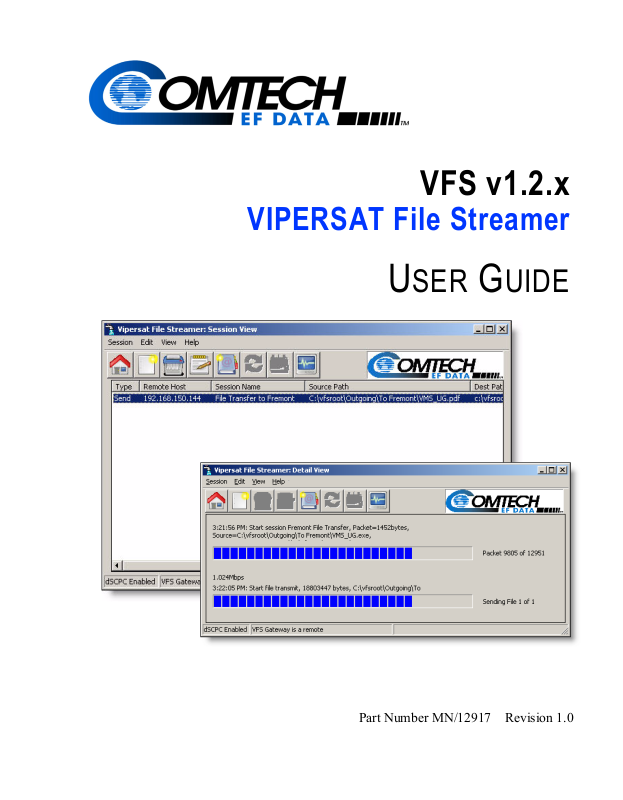

Comtech EF Data VIPERSAT File Streamer User Manual

VFS v1.2.x
VIPERSAT File Streamer
USER GUIDE
Part Number MN/12917 Revision 1.0
VFS v1.2.x
VIPERSAT File Streamer
User Guide
Document Revision 1.0
Software version 1.2.x
March 05, 2007
COMTECH EF DATA
VIPERSAT Network Products Group
3215 Skyway Court Fremont, CA 94539 USA
Phone: (510) 252-1462 Fax: (510) 252-1695 www.comtechefdata.com
Part Number: MN/12917 Revision: 1.0
Software Version 1.2.x ©2007 by Comtech EF Data, Inc. All rights reserved. No part of this document may be copied or
reproduced by any means without prior written permission of Comtech EF Data. All products, names and services are trademarks or registered trademarks of their respective
companies. Comtech reserves the right to revise this publication at any time without obligation to provide
notification of such revision. Comtech periodically revises and improves its products and therefore the information in this document is subject to change without prior notice. Comtech makes no warranty of any kind with regard to this material, including but limited to the implied warranties of merchantability and fitness for a particular purpose. No responsibility for any errors or omissions that may pertain to the material herein is assumed. Comtech makes no commitment to update nor to keep current the information contained in this document.
Printed in the United States of America
Document Revision History
Revision Description
1.0 Initial Release
{ This Page Intentionally Blank }

Table of Contents

Chapter 1
General
How to Use This Manual . . . . . . . . . . . . . . 1-1
Manual Organization . . . . . . . . . . . . . . 1-1
Chapter 1 — General . . . . . . . . . . . . 1-1
Chapter 2 — Installation . . . . . . . . . . 1-1
Chapter 3 — Using VFS . . . . . . . . . . 1-2
Appendix A — Glossary . . . . . . . . . . 1-2
Conventions and References . . . . . . . . . . 1-2
Product Description . . . . . . . . . . . . . . . . . 1-3
Introduction . . . . . . . . . . . . . . . . . 1-3
Simplicity of Operation . . . . . . . . . . . 1-3
Overview . . . . . . . . . . . . . . . . . . 1-3
Features . . . . . . . . . . . . . . . . . . . 1-5
System Requirements . . . . . . . . . . . . . . 1-5
Client PC Components . . . . . . . . . . . 1-6
Satellite Network Components . . . . . . . 1-6
Customer Support . . . . . . . . . . . . . . . . . . 1-7
Contact Information . . . . . . . . . . . . . 1-7
Reader Comments / Corrections . . . . . . 1-7
Chapter 2
VFS Installation
Installing VFS on Client Workstation . . . . . . . . 2-1
VFS Setup . . . . . . . . . . . . . . . . . . 2-3
WinVfs . . . . . . . . . . . . . . . . . . . 2-7
VfsService. . . . . . . . . . . . . . . . . . 2-7
VFS Feature Configuration . . . . . . . . . . . . . 2-9
Vipersat Modem Configuration . . . . . . . . . 2-9
VMS Configuration . . . . . . . . . . . . . . .2-10
View Area . . . . . . . . . . . . . . . . . . . . 3-4
Starting VFS . . . . . . . . . . . . . . . . . . . . 3-5
Verify VFS Status. . . . . . . . . . . . . . . . . 3-5
VFS Gateway. . . . . . . . . . . . . . . . . 3-6
Creating a VFS Session . . . . . . . . . . . . . . . 3-7
Global Configuration . . . . . . . . . . . . . . . 3-7
New Session . . . . . . . . . . . . . . . . . . . 3-8
Parameter Settings . . . . . . . . . . . . . . 3-9
Session Progress . . . . . . . . . . . . . . . . . . 3-13
Progress Detail . . . . . . . . . . . . . . . 3-13
VMS Indications . . . . . . . . . . . . . . . . 3-14
Event Log . . . . . . . . . . . . . . . . . . . . . . 3-15
Change Date . . . . . . . . . . . . . . . . 3-15
Appendix A
Glossary
Index
Chapter 3
Using VFS
Main Window Description. . . . . . . . . . . . . . 3-1
Menu Bar . . . . . . . . . . . . . . . . . . . . 3-2
Session . . . . . . . . . . . . . . . . . . . 3-2
Edit . . . . . . . . . . . . . . . . . . . . . 3-2
View . . . . . . . . . . . . . . . . . . . . . 3-2
Help . . . . . . . . . . . . . . . . . . . . . 3-3
Tool Bar . . . . . . . . . . . . . . . . . . . . . 3-3
Status Bar . . . . . . . . . . . . . . . . . . . . 3-4
i
{ This Page Intentionally Blank }
ii VFS User Guide

List of Figures

Chapter 1 Figures
Figure 1-1 VFS Application on a Vipersat Network
1-4
Chapter 2 Figures
Figure 2-1 VFS Installation Files . . . . . . . . . . . 2-1
Figure 2-2 VFS Setup, Installation Options . . . 2-2
Figure 2-3 VFS Setup, Installation Folder . . . . 2-2
Figure 2-4 VFS Setup, Installation Progress . . 2-3 Figure 2-5 VFS Setup, Session Default Settings .
2-3
Figure 2-6 VFS Setup, Installation Status . . . . 2-5
Figure 2-7 VFS Setup, Installation Completed 2-6 Figure 2-8 VFS Setup, Completed Details . . . 2-6 Figure 2-9 Files Installed in VFS Directory . . . 2-7
Figure 2-10 Windows Services . . . . . . . . . . . . 2-7
Figure 2-11 Vipersat File Streamer Properties 2-8 Figure 2-12 Feature Configuration, CDM-570L 2-9 Figure 2-13 VMS Policy Configuration, Remote
Subnet . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Chapter 3 Figures
Figure 3-13 VFS Session Configuration Example .
3-11
Figure 3-14 New Session Listing. . . . . . . . . . 3-12
Figure 3-15 Session Listing, Schedule View . 3-12
Figure 3-16 Progress View, Transmit . . . . . . 3-13
Figure 3-17 Detail Progress View, Transmit . 3-13 Figure 3-18 VMS, Example of Vipersat Network . .
3-14
Figure 3-19 VMS Bandwidth View. . . . . . . . . 3-14
Figure 3-20 Log View, Event Status . . . . . . . 3-15
Figure 3-1 VFS Main Window, Functional Areas .
3-1
Figure 3-2 About Vipersat File Streamer window .
3-3
Figure 3-3 VFS Tool Bar . . . . . . . . . . . . . . . . . 3-3
Figure 3-4 VFS Main Window, Initial . . . . . . . . 3-5
Figure 3-5 VFS Event Log, Initial . . . . . . . . . . 3-6
Figure 3-6 Connect to VFS Gateway dialog . . 3-6 Figure 3-7 Global Configuration Settings, Hub
Gateway. . . . . . . . . . . . . . . . . . . . . . . . 3-7
Figure 3-8 Global Configuration Settings, Remote
Gateway. . . . . . . . . . . . . . . . . . . . . . . . 3-8
Figure 3-9 Session Configuration, Remote Gateway
3-8 Figure 3-10 Session Configuration, Hub Gateway
3-9
Figure 3-11 VFS Directory Browser . . . . . . . 3-10
Figure 3-12 VFS File Browser . . . . . . . . . . . . 3-10
iii
{ This Page Intentionally Blank }
iv VFS User Guide

GENERAL

How to Use This Manual

This manual documents the features and functions of the Vipersat File Streamer software application, and guides the user in how to use this product in a Viper­sat network.
Workstation users, as well as network administrators and operators responsible for the configuration and maintenance of the Vipersat satellite network, are the intended audience for this document.
C
HAPTER

Manual Organization

This User Guide is organized into the following sections:
Chapter 1 — General
Contains VFS product description, customer support information, and manual conventions and references.
Chapter 2 — Installation
Covers the steps for installing the VFS client software application on a host PC/ workstation, and enabling the VFS feature option on Vipersat modems.
Chapter 1 - General 1-1
How to Use This Manual
Chapter 3 — Using VFS
Describes using VFS for streaming data files over the Vipersat network at high transmission rates between PC hosts running the VFS application.
Appendix A — Glossary
A glossary of terms that pertain to Vipersat satellite network technology.

Conventions and References

The following conventions are utilized in this manual to assist the reader:
NOTE
Note: Provides important information relevant to the accompanying
text.
Tip: Provides complementary information that facilitates the
associated actions or instructions.
Caution: Provides explanatory text that notifies the reader of
possible consequences of an action.
Warning: Provides precautionary text that describes a potentially
hazardous situation. Failure to take or avoid a specified action may result in damage to equipment.
The following documents are referenced in this manual, and provide supple­mentary information for the reader:
Vipersat CDM-570/570L User Guide (Part Number 22125)
Vipersat CDD-56X Series User Guide (Part Number 22137)
Vipersat Management System User Guide (Part Number 22156)
1-2 VFS User Guide

Product Description

Introduction

Vipersat File Streamer (VFS) is a software application that allows rapid file transfers over the Comtech EF Data Vipersat network between host PCs that are running the VFS application. VFS runs on a Microsoft Windows-based PC/ workstation and, together with the Vipersat Management System (VMS), utilizes the bandwidth-on-demand capabilities of the system for applications such as file transfers.
VFS, in conjunction with Vipersat-enabled IP modems and the VMS, can stream large files from one workstation to another workstation over the satellite network. VFS overcomes the limitations of TCP/IP over satellite links by imple­menting an efficient and reliable datagram protocol, while at the same time having the ability to request dynamic SCPC (dSCPC) satellite bandwidth.

Simplicity of Operation

Through its graphical user interface, VFS simplifies the file transfer process by allowing the operator to select which files or folders are to be transferred and where they are to be stored. Files or folders can be dragged from the desktop or Windows Explorer™ and dropped into the VFS window to create a new transfer session. Transfers can be scheduled on a periodic basis or performed immedi­ately. Scheduled transfers during non-peak hours aid in avoiding network congestion.
Product Description

Overview

Designed to transfer files across the Vipersat network over satellite, VFS uses UDP as a transport layer protocol together with the proprietary Streamload protocol rather than using TCP, a common standard for computer communica­tions. The advantages that TCP/IP provides for typical internet communications can become limitations when passing traffic over a satellite network, where inherent delays can be mistaken for congestion or low bandwidth, resulting in compromised transmission rates. Instead of constantly monitoring for acknowl­edgements and retransmission of bad or lost data, the Streamload protocol streams all data packets and performs any necessary retransmission only at the end of the session.
With the addition of VFS into the Vipersat Network solution, channel utilization efficiencies improve dramatically over standard FTP file transfers.
VFS is a peer-to-peer application where each host in the network can directly communicate with any other host. With VFS, there is no centrally located server required to manage file transfers in the network. VFS authorization is controlled
Chapter 1 - General 1-3
Product Description
by enabling a FAST feature code within the gateway modems at each endpoint in the network.
VFS receives authorization from the local CDM terminal, which serves as a proxy between VFS and the VMS, then utilizes VESP to request switches from VMS to support the required bandwidths for file transfers. Any number of trans­fers—incoming or outgoing—can be handled at any time. Because VFS runs as a Windows service on the host PC, logging in is not required and file transfers are managed unattended.
The VFS GUI configuration tool is used to schedule session transfers of individ­ual files or entire directories, and even set up “hot” directories where any file placed into that directory is immediately sent to its destination.
A typical network configuration diagram is shown in figure 1-1, below. File transfers can be executed between the Hub and a Remote, as well as between two Remotes utilizing a mesh application.
NOTE
Note: For meshed circuits, an expansion unit is required at the receiving
Remote and at the Hub. When transferring a file from a Remote to the Hub, an expansion unit is required at the Hub only. A file transfer origi­nating at the Hub and sent to a Remote will utilize the TDM outbound, and no expansion unit is required.
Figure 1-1
1-4 VFS User Guide
VFS Application on a Vipersat Network
Product Description

Features

Maximize (up to 99%) channel utilization of satellite bandwidth for all bit rates
Significant reduction in file transfer time when compared to TCP/IP-based solutions such as FTP or HTTP
Integrates with the Vipersat Management System, providing dynamic SCPC satellite bandwidth for all file transfers
Eliminates the requirement for additional hardware devices such as PEP products or accelerators
Improved OPEX savings
Simple GUI interface and ease of setup
Files can be distributed on a schedule or immediately
Event logging of file transfers and real time transfer status indicators
Runs in the background as a Windows Service, even when user is not
logged onto host PC
File Transfer Status
The progress of sending and receiving file transfers is visually displayed through the Progress View screen. Progress bars exist for the duration of the transfer. Progress bars use color coding to indicate transmission state. Blue indi­cates a normal transfer state, while yellow indicates missing packets are being resent.
Event Log
VFS maintains a log of files transferred in both sent and received directions. Information contained in the event log indicates the size of the file, the source and destination locations, as well as the allocated bandwidth.

System Requirements

VFS is a Windows™ based application that can be run from any client PC using Windows 2000 or higher and must meet the hardware and software require­ments listed below:
Chapter 1 - General 1-5
Product Description
Client PC Components
CPU – Pentium IV, 3.0 GHz or higher
Operating System – Windows 2000, Windows XP, Windows 2003 Server
RAM – 1 GB
Bus Speed – 100 MHz
Hard Disk Space – 20 GB
Video – XVGA, 1280 x 1024, 75 Hz
Network Interface – Ethernet 10/100 Base-T NIC
Satellite Network Components
Satellite Modem(s):
Vipersat Management System – VMS v3.3 or greater
Gateway Modem – Vipersat IP Modem with VFS FAST option enabled Expansion Unit(s) – as required per application
1-6 VFS User Guide

Customer Support

Contact Information

Contact Comtech Vipersat Networks Customer Support for information or assistance with product support, service, or training on any Vipersat product.
Mail: 3215 Skyway Court
Phone: 1+510-252-1462
Fax: 1+510-252-1695
Email: support@comtechefdata.com
Web: www.comtechefdata.com

Reader Comments / Corrections

If the reader would like to submit any comments or corrections regarding this manual and its contents, please forward them to a Comtech Vipersat Customer Support representative. All input is appreciated.
Customer Support
Fremont, CA 94539 USA
Chapter 1 - General 1-7
Customer Support
{ This Page Intentionally Left Blank }
1-8 VFS User Guide

VFS INSTALLATION

This chapter provides the steps necessary to install the VFS software application on a host PC/workstation, and the configuration of the Vipersat modems and the Vipersat Management System that is required for VFS usage.

Installing VFS on Client Workstation

C
HAPTER
Note: If an earlier version of VFS is currently installed on the host PC, that
NOTE
The Vipersat File Streamer software should be installed on an industry-standard computer running Microsoft Windows 2000 or later operating system. Refer to “System Requirements” on page 1-5 for the recommended system configura­tion.
The VFS software is located on the Comtech EF Data website (www.comtechef- data.com/software.asp) for easy downloading of the installation files:
Chapter 2 - VFS Installation 2-1
version of VFS must first be uninstalled prior to installing a newer version.
Figure 2-1
VFS Installation Files
Installing VFS on Client Workstation
1.
Download the VFS installation files to the desktop of the host PC/
workstation.
2. Double-click on the VfsInstall.exe icon. The Vipersat File Streamer Setup wizard will open and display the Installation Options window.
Figure 2-2
VFS Setup, Installation Options
3. Select the installation options, then click the Next button. The Installation Folder window will appear.
Figure 2-3
2-2 VFS User Guide
VFS Setup, Installation Folder
Installing VFS on Client Workstation
4. Designate the installation folder, if different from the default, then click the Install button. The Installation Progress window will appear.
Figure 2-4
VFS Setup, Installation Progress

VFS Setup

As the progress bar expands, the VFS Setup window appears. The parameter settings in this window will be saved as the default values that will be displayed in the Global Configuration window and the Session Configuration window when creating a new VFS session.
Figure 2-5
VFS Setup, Session Default Settings
Chapter 2 - VFS Installation 2-3
Installing VFS on Client Workstation
5. The most important parameter to set is the VFS Gateway Address. Enter the IP address of the Vipersat modem (e.g., CDM-570L) on the local network that serves as the gateway to the VMS for this PC/workstation.
6. Set the default parameter values for Session Configuration:
Source Root Path – Directory path location on local transmitting host from
which files will be transferred.
Destination Root Path – Directory path location on remote receiving host to which files will be transferred. This must be a valid/existing path.
Ideal Bit Rate – Maximum bit rate for file transfer. Ideally, this value will match the Application Policy maximum bit rate.
Minimum Bit Rate – Minimum bit rate for file transfer.
7. Set the default parameter values for Global Configuration:
Retry Count – Number of retries allowed to complete any single VFS
transaction (e.g., session set-up, VESP, dropped packet retransmission).
Time Out – Amount of time allowed to attempt to complete any single VFS transaction before ending that attempt. This time must accomodate any delays and/or latencies expected in the network.
The check box Options are defined as follows:
Archive – Once the specified file/folder has been successfully transferred, it is removed from its source directory and placed into the VFS Archive folder that is created in that same directory. Once the file/folder has been archived, it is no longer available for subsequent transfers from the source directory.
Overwrite – For periodically scheduled transfers, the received file overwrites the previous copy of that file in the destination directory.
Share – Allows shared access to the source and destination file during file transfer.
Blocking – Prevents concurrent file transfer sessions. This is an option for Hub gateway modems to prevent exceeding the bandwidth on the TDM outbound carrier.
Aggregate Bit Rate – The maximum sum of the bit rates for all concurrent VFS sessions allowed over the TDM outbound channel from the Hub. This parameter must be set to a value that is less than the available bandwidth of the TDM outbound.
Excess Bandwidth – Percentage of additional bandwidth required to accommodate any overhead transmitted from a Remote.
2-4 VFS User Guide
Installing VFS on Client Workstation
8. Once the default configuration values have been entered, click the OK button to save the settings.
The VFS Installation status window will appear, displaying a list of successive processes that have occurred for this installation. The last status entry should confirm that the VFS service is running.
Figure 2-6
VFS Setup, Installation Status
9. If installation is successful, the OK button will appear in the lower right area of the window. Click the OK button to display the VFS Setup window (figure 2-7) showing that the installation is completed.
If VFS installation is not successful, the OK button will not appear in the window, and the only option is to Cancel the installation. Contact the network administrator for assistance.
Chapter 2 - VFS Installation 2-5
Installing VFS on Client Workstation
Figure 2-7
VFS Setup, Installation Completed
Clicking on the Details button will display the sequential steps of the installation process.
Figure 2-8
VFS Setup, Completed Details
10. Click the Close button to close the VFS Setup window.
A number of related files are installed in the designated VFS directory, as shown in figure 2-9, below.
2-6 VFS User Guide
Installing VFS on Client Workstation
Figure 2-9
Files Installed in VFS Directory

WinVfs

The WinVfs.exe file opens the client application that displays the graphical user interface used to create and configure VFS sessions, and monitor file transfer progress.

VfsService

The VfsService.exe file runs the main VFS Service program which executes the file transfer sessions created with the WinVfs client application.
VfsService starts upon completion of VFS installation, and continues running in the background to provide unattended VFS operation. Opening WinVfs auto­matically starts VfsService, if it isn’t running already.
By default, the service is installed with a Manual startup setting. Optionally, the startup setting can be changed to Automatic using Windows Services to ensure that the Service is automatically restarted following a PC/workstation reboot/restart.
Figure 2-10
Chapter 2 - VFS Installation 2-7
Windows Services
Installing VFS on Client Workstation
Figure 2-11
Vipersat File Streamer Properties
This completes the installation of the VFS application on the client workstation. The next step is to configure the VFS features on the gateway modems and the VMS, as covered in the next section.
2-8 VFS User Guide

VFS Feature Configuration

In order for the VFS software application to successfully perform a file transfer, the Vipersat satellite modems serving as VFS gateways and the VMS must be configured appropriately.

Vipersat Modem Configuration

Using either the Parameter Editor (VMS or Vload) or the modem CLI, config­ure the VFS Gateway Modems as follows:
Enable Automatic Switching on each modem (see example below).
Enable the Vipersat File Stream feature on each modem.
This involves two one, the VFS Feature Code, an optional feature that must be purchased
for each Vipersat modem, must reside on the unit; two, the Vipersat File Stream feature must be enabled, as shown in the
example below.
requirements:
VFS Feature Configuration
Figure 2-12
Chapter 2 - VFS Installation 2-9
Feature Configuration, CDM-570L
VFS Feature Configuration
Refer to the Vipersat CDM-570/570L User Guide (Part Number 22125) and/or the Vipersat CDD-56X Series User Guide (Part Number 22137) for additional information on modem configuration.

VMS Configuration

Use the VMS to configure the Inband Policy Switching parameters for the Remote Subnets as follows:
Enable Automatic Switching
Define a policy for Type 1 (default type for VFS), as shown in the
example below.
For best bandwidth utilization, ensure that the specified Maximum Bit Rate for the policy matches or exceeds the Ideal Bit Rate setting that will
be used for the VFS sessions.
If Load switching is enabled, ensure that the Load switch settings do not overlap/conflict with VFS bandwidth settings.
Figure 2-13
VMS Policy Configuration, Remote Subnet
Refer to the Vipersat Management System User Guide (Part Number 22156) for additional information on VMS configuration.
2-10 VFS User Guide

USING VFS

Main Window Description

This section describes how to use the controls and capabilities that are available in VFS. The four functional areas of the Main Window are shown in figure 3-1, below.
C
HAPTER
menu bar
status bar
Chapter 3 - Using VFS 3-1
tool bar
Figure 3-1
view area
VFS Main Window, Functional Areas
Main Window Description

Menu Bar

The VFS commands are provided within four pull-down menu items in the Menu Bar, shown at the top of figure 3-1.
Session
The Session pull-down menu includes the following commands:
New – Create a new VFS session.
Edit – Edit an existing VFS session. This command is only available when
a session is selected in either the Session List or the Schedules view. This command is the same as the Edit–Session command.
Delete – Remove an existing VFS session. This command is only
available when a session is selected in the Session List view.
Exit – Exit the VFS client application.
Edit
The Edit pull-down menu includes the following commands:
VFS Gateway – Edit the VFS Gateway IP Address for this PC/
workstation (see “VFS Gateway” section on page 3-6).
Configuration – Edit the global configuration parameter settings for VFS.
Session – Edit an existing VFS session. This command is only available
when a session is selected in either the Session List or the Schedules view. This command is the same as the Session–Edit command.
View
The View pull-down menu includes the following commands:
Refresh – Updates the current listing view. This command only appears
when in either Log view or Schedules view.
Change Date – Select the desired Event Log file (by date) to view. This
command only appears when in Log view.
Session List – Display list of existing sessions with send/receive
information.
Progress – Display the file transfer—receive or transmit—progress;
provides session name, file number, and packet number.
3-2 VFS User Guide
Main Window Description
Detail – Display the file transfer progress detail, including time, directory path, data bit rate, file number, and packet number.
Event Log – Display the sequence of events for the VFS service and file
transfers.
Schedules – Display list of existing sessions with scheduling
information.
Help
About VFS – Display version and date information for VFS Service and WinVfs client application.
Figure 3-2
About Vipersat File Streamer window

Tool Bar

Just below the Menu Bar, eight of the most commonly used VFS commands are presented as button icons in the Tool Bar, as shown in figure 3-3, below. These command buttons provide an easily executable alternative to accessing the same commands from the pull-down menus.
view sessions
Chapter 3 - Using VFS 3-3
delete session
new session
edit session
Figure 3-3
view log
VFS Tool Bar
change date
refresh view progress
Main Window Description
The buttons are context-sensitive and only active when appropriate. Inactive buttons appear as grayed-out shadow icons.

Status Bar

Appearing at the bottom of the main window, the Status Bar indicates the current state of the VFS Gateway and whether or not VFS is enabled.
If the Gateway IP Address is detected by VFS and is found to be a VFS-enabled modem, the modem’s role—Hub or Remote—will be displayed in the status bar. File transfers can occur with this status.
When the gateway modem role is Hub, dSCPC will show as Disabled since no switching is required; data is transferred using the TDM outbound channel.
When the gateway modem role is Remote, dSCPC will show as Enabled since switching is required.
If the Gateway IP Address is not detected by VFS or is not found to be a VFS­enabled modem, the status bar will display VFS Disabled / Cannot reach proxy or Not connected. File transfers can not occur with this status.

View Area

The View Area of the main window displays a listing of existing sessions, event log entries, and file transfer progress activity, depending on the current view mode.
Clicking on an existing session that appears in the view area will select that session and allow a command, such as Edit Session or Delete Session, to be executed on that selection.
3-4 VFS User Guide

Starting VFS

To start VFS, open the WinVfs.exe application from one of the three locations:
The initial VFS main window will appear, as shown in figure 3-4.
Starting VFS
The winvfs shortcut icon on the desktop
The Winvfs pick from
Start\Programs\VFS\Winvfs menu
The directory that was specified during the installation process
NOTE
Figure 3-4
Note: Opening WinVfs automatically starts the Windows service VfsSer-
vice.exe that runs in the background. This service appears under
Windows Services. When all sessions have been created and sched­uled, the WinVfs client application can be closed; file transfers will be managed by the VFS Service that continues to run in the background.
VFS Main Window, Initial

Verify VFS Status

Click on the View Log button in the tool bar to display the historical status of VFS in the Event Log, as shown in figure 3-5, below. Information for the start­ing of the service, the authorization provided by the VFS Gateway modem, the modem role and whether switching is enabled is provided. Note that each log entry is time stamped; the date of the event is used for the .txt file name that appears in the window header.
Chapter 3 - Using VFS 3-5
Starting VFS
Figure 3-5
VFS Event Log, Initial
VFS Gateway
If the VFS Gateway is not connected, ensure that the correct IP address has been specified. This is the address of the Vipersat modem (e.g., CDM-570L) on the local network that serves as the gateway to the VMS.
To change the IP address, select VFS Gateway from the Edit pull-down menu to open the Connect to VFS Gateway dialog window and enter the new address.
Figure 3-6
Once VFS has been started and authorized, the next step is to create a new session or sessions. This is described in the next section, Creating a VFS Session.
Connect to VFS Gateway dialog
3-6 VFS User Guide

Creating a VFS Session

Global Configuration

The Global Configuration settings apply to all VFS sessions. The parameters in the Global Configuration are a subset of those that are defined during installa­tion and setup. To modify these settings, select Configuration from the Edit pull-down menu to open the Global Configuration dialog window.
The parameters that appear will vary, depending on whether the gateway modem is a Hub or a Remote, as shown in figure 3-7 and figure 3-8, respec­tively.
Refer to the “VFS Setup” section on page 2-3 for more information on these parameter settings.
Creating a VFS Session
Figure 3-7
Chapter 3 - Using VFS 3-7
Global Configuration Settings, Hub Gateway
Creating a VFS Session
Figure 3-8
Global Configuration Settings, Remote Gateway

New Session

To create a new VFS session, click on the New Session button in the tool bar. The Session Configuration window opens with the default parameter settings for this session, as shown in figure 3-9.
Figure 3-9
3-8 VFS User Guide
Session Configuration, Remote Gateway
Creating a VFS Session
Note that the window appearance in this example reflects a Remote gateway. The default settings for a Hub gateway are shown in figure 3-10; since there is no switching involved for a Hub gateway, the Switch Type and Bit Rate settings are not applicable and do not appear in this window.
Figure 3-10
Tip: An alternative method for creating a new session is by dragging the
desired file/folder from its directory and dropping it into the View Area of the VFS main window. The Session Configuration window opens with the default parameter settings and the Name and Source Path fields auto­filled.
Session Configuration, Hub Gateway
Parameter Settings
Configure the session by entering the following parameter settings:
1. Enter/Edit the Name for this session. This will identify the session in the
Session List view.
2. For a Remote gateway, enter the Ideal Bit Rate, the Minimum Required Bit Rate, and the Switch Type, if different from the default settings.
Note that the specified Switch Type must be defined in the VMS Application Policies.
3. Enter/Edit the Source Path, if different from the default, for the file/folder that is to be transferred. The path can be entered manually, or the Browser buttons can be used to make the selection.
An example of using the Browser is shown below.
Chapter 3 - Using VFS 3-9
Creating a VFS Session
Figure 3-11
Figure 3-12
VFS Directory Browser
VFS File Browser
3-10 VFS User Guide
Creating a VFS Session
4. Specify the Destination Folder, if different from the default, on the receiving PC/workstation. This path must be entered manually—and must be valid/existing on the remote host.
5. Enter the Destination Address—the IP address of the NIC on the receiving PC/workstation.
6. Choose a recurring period from the Schedule pull-down list for this transfer. Using the default setting Never will prevent the session from occurring.
7. Set the date and time for the First Run Time for this schedule, or click on the Now button to begin the first transfer immediately.
NOTE
Note: In order for a VFS session to run successfully, the VFS Service must be
running on both the transmitting PC/workstation and the receiving PC/ workstation.
The parameter settings for a session configuration example is shown in figure 3-13, below.
Figure 3-13
VFS Session Configuration Example
8. Click on the OK button to save these parameter settings and enter this ses­sion in the Session List view, as shown in figure 3-14.
Chapter 3 - Using VFS 3-11
Creating a VFS Session
Figure 3-14
New Session Listing
Additional information—such as Initial Time, Next Time, and Estimated Duration—can be displayed by changing to Schedule View, as shown in
figure 3-15.
Figure 3-15
Session Listing, Schedule View
3-12 VFS User Guide

Session Progress

Once a VFS session has been created and the selected schedule time arrives, the progress of the file transfer can be observed by clicking on the View Progress button in the tool bar to display the Progress View, as shown in figure 3-16.
Session Progress
Figure 3-16
File transfer progress can be viewed from the transmitting PC/workstation as well as the receiving PC/workstation.
Progress View, Transmit

Progress Detail

For more detailed information, selecting Detail from the View pull-down menu displays the progress shown in figure 3-17.
Figure 3-17
Detail Progress View, Transmit
Chapter 3 - Using VFS 3-13
Session Progress

VMS Indications

When a VFS session occurs over a Vipersat network involving automatic switching between nodes, the establishment of an SCPC carrier for the transmit­ting Remote can be observed using VMS ViperView.
The Vipersat network that has been used as an example for illustrating the func­tionality of VFS is shown below in figure 3-18. This represents a typical Viper­sat network. In this example, an SCPC link is set up between Remote-1 and the Hub to provide the carrier for streaming the data file from a PC/workstation on the Remote-1 LAN to a PC/workstation on the Hub LAN.
SCPC
RMT-2
RMT-3
Figure 3-18
HUB
VMS, Example of Vipersat Network
RMT-1
The ViperView window for VMS bandwidth displays the VFS carrier, as shown in figure 3-19.
VFS SCPC Carrier
Figure 3-19
3-14 VFS User Guide
VMS Bandwidth View

Event Log

Event Log
Clicking on the View Log button in the tool bar displays the detailed events of VFS for the current date. The event log status for the file transfer example illus­trated above can be seen in figure 3-20, below.
Figure 3-20
Click on the Refresh button to update the view to the latest status.
Log View, Event Status

Change Date

As long as the VFS Service continues to run, a new Event Log file (*-*-*.txt) is generated and saved, using the current calendar date for the file name, for every 24 hour period, beginning just after midnight.
To view the log for another date, click on the Change Date command button in the tool bar, then select the desired log file.
VFS Event Log files can be viewed at any time, even when WinVfs is not running. The log files are simple text (.txt) files that can be opened directly using the Windows Notepad application, or any other text editor.
Chapter 3 - Using VFS 3-15
Event Log
{ This Page Intentionally Blank }
3-16 VFS User Guide

GLOSSARY

ALC Automatic Limit Control is a closed loop mechanism controlling the gain
stabilization of the HPA’s RF output power.
APL Asynchronous Party Line – A VIPERSAT term for RS-485 multi-drop bus used
for control of indoor equipment. See also SPL.
A
A
PPENDIX
ARP Address Resolution Protocol – A protocol for a LAN device to determine the
MAC address of a locally connected device given its IP address. See also MAC.
ATM Asynchronous Transfer Mode
B
BER Bit Error Rate (sometimes Ratio) – A measure of the number of data bits
received incorrectly compared to the total number of bits transmitted.
BUC Block Up Converter
BPS Bits Per Second – A measure of transmission speed. See also Kb/s &
Mb/s.
BPSK Binary Phase Shift Keying – A modulation technique in which the carrier is
phase shifted +/- 180 degrees. See also QPSK.
Appendix A - Glossary A-1
C
C-Band A frequency band commonly used for satellite communications (and sometimes
terrestrial microwave). For terrestrial earth stations the receive frequency band is 3.7-4.2 GHz and transmit 5.925-6.425 GHz. See also Ku-band.
CDM Comtech Data Modem
CRC Cyclic Redundancy Check – A method of applying a checksum to a block of
data to determine if any errors occurred during transmission over communica­tions links.
CXR Carrier – A radio frequency transmission linking points and over which infor-
mation may be carried.
D
DAMA Demand Assigned Multiple Access – A process whereby communications links
are only activated when there is an actual demand.
dBm Decibel referenced to 1 milliwatt.
DHCP The Dynamic Host Configuration Protocol is an Internet protocol for automat-
ing the configuration of computers that use TCP/IP.
DNA Dynamic Node Announcement – In VIPERSAT satellite networks a process
whereby remote sites periodically announce their presence to facilitate network setup and monitoring.
DPC Dynamic Power Control
DRAM Dynamic Random Access Memory
DSP Digital Signal Processor – A microprocessor chip optimized for signal process-
ing applications.
DSCP Differentiated Services (DiffServ) Code Point – a field in the header of an IP
packet that is used for packet classification purposes.
DVB Digital Video Broadcast
DVP Digital Voice Processor – Used in packet voice applications.
A-2 VFS User Guide
E
Eb/NoEb/No is the ratio of Eb (energy per bit) and No (noise power density per Hz).
The bit error rate (BER) for digital data is a decreasing function of this ratio. E is the energy of an information bit measured in Joules, or equivalently, in Watts per Hertz.
F
FAST Code Fully Accessible System Topology Code – Designation for feature code used
by Comtech EF Data for their satellite modems. The FAST method makes it easy to quickly upgrade the feature options of a modem while it is running live in the network, either on site or remotely.
FDMA Frequency Division Multiple Access – A technique where multiple users can
access a common resource (e.g. satellite) by each being allocated a distinct frequency for operation. See also TDMA.
FEC Forward Error Correction – A process whereby data being transmitted over a
communications link can have error correction bits added which may be used at the receiving end to determine/correct any transmission errors which may occur.
b
FIFO First In First Out – A simple buffer or queue technique whereby data queued
the longest is transmitted first.
FTP File Transfer Protocol – An application for transferring computer files over the
Internet. See also TFTP.
G
G.729 ITU standard for LD-CELP (Low Delay – Code Excited Linear Prediction)
voice encoding at 8 kb/s.
GIR Guaranteed Information Rate
Group ID A number assigned to equipment which defines it as a member of a group when
addressed by the VMS burst controller.
GUI Graphical User Interface – A form of graphical shell or user interface to a
computer operating system.
Appendix A - Glossary A-3
H
HDLC High Level Data Link Control – A standard defining how data may be transmit-
ted down a synchronous serial link.
HPA High Power Amplifier – The amplifier used in satellite communications to raise
the transmit signal to the correct power level prior to transmission to satellite.
HTTP Hyper Text Transfer Protocol – The Internet standard for World Wide Web
(WWW) operation.
Hub The central site of a network which links to a number of satellite earth sites.
I
ICMP Internet Control Message Protocol
IF Intermediate Frequency – In satellite systems IF frequencies are usually
centered around 70 or 140 MHz, or 1200 MHz (L-band).
IP Internet Protocol – A format for data packets used on networks accessing the
Internet.
ISP Internet Service Provider – A company providing Internet access.
ITU International Telecommunications Union
K
Kb/s Kilo bits per second - 1000 bits/second. A measure of transmission speed. See
also bps & Mb/s.
Ku-Band A frequency band used for satellite communications. For terrestrial earth
stations the receive frequency band is in the range 10.95–12.75 GHz and trans­mit 14.0–14.5 GHz. See also C-band.
A-4 VFS User Guide
L
L-Band A frequency band commonly used as an IF for satellite systems using block up/
down conversion. Usually 950-1450 MHz.
LAN Local Area Network
LLA Low Latency Application
LNA Low Noise Amplifier – An amplifier with very low noise temperature used as
the first amplifier in the receive chain of a satellite system.
LNB Low Noise Block – A downconvertor so called because it converts a whole
band or “block” of frequencies to a lower band. It is similar to LNA.
LNC Low Noise Converter – A combined low noise amplifier and block down
converter, usually with an L-band (typically 950-1450 MHz) IF.
LO Local Oscillator
M
M&C Monitor & Control
MAC Media Access Control – A protocol controlling access to the physical layer of
an Ethernet network.
Mb/s Mega bits per second – 1 Million bits/second. A measure of transmission speed.
See also bps & kb/s.
Modem Modulator and Demodulator units combined.
Multicast Transmitting a single message simultaneously to all recipients.
N
NAT Network Address Translation – An Internet standard that enables a local-area
network (LAN) to use one set of IP addresses for internal traffic and a second set of addresses for external traffic.
NIC Network Interface Controller – The network interface for a PC/workstation that
provides Ethernet connectivity. Depending on the computer, the NIC can either
Appendix A - Glossary A-5
be built into the motherboard, or be an expansion card. Some computers have multiple NICs, each identified by a unique IP address.
NOC Network Operation Center (NOC) has access to any earth station installed using
the VIPERSAT Management System (VMS). A NOC can remotely interrogate, control, and log network activities.
O
ODU Outdoor Unit – In a VSAT system the RF components (transceiver) are usually
installed outdoors on the antenna structure itself and are thus referred to as an ODU.
OPEX Operating Expenditure
OSPF Open Shortest Path First – A common routing algorithm.
P
PLDM Path Loss Data Multicast message is sent every sixty seconds and
contains information on messages received or lost.
PMUX Port Multiplexing – Each port of the SDMS is individually configured from the
NMS port (hub) to port (remote) multiplexing.
PSTN Public Switched Telephone Network – Refers to the world’s public circuit-
switched telephone network governed by technical standards created by the ITU-T, using telephone numbers for addressing. A mixture of digital and analog telephone systems, the network includes mobile as well as fixed (land-line) tele­phones.
Q
QPSK Quaternary Phase Shift Keying – A modulation technique in which the carrier
is phase shifted +/- 90 or +/-180 degrees. See also BPSK.
A-6 VFS User Guide
R
RF Radio Frequency – A generic term for signals at frequencies above those used
for baseband or IF.
RFC Request For Comment – The de-facto Internet standards issued by the Internet
Engineering Task Force (IETF).
RIP Routing Information Protocol
RS-232 A common electrical/physical standard issued by the IEEE used for point to
point serial communications up to approximately 115 kb/s.
RS-485 A common electrical/physical standard issued by the IEEE used for multi-drop
serial communications.
Rx Receive
S
SCPC Single Channel Per Carrier – A satellite communications technique where an
individual carrier is transmitted to a single destination.
SNMP Simple Network Management Protocol – A protocol defining how devices from
different vendors may be managed using a common network management system.
SPL Synchronous Party Line – An electrically isolated interface between indoor and
outdoor equipment used in VIPERSAT satellite systems. See also APL.
Star
Topology
STDMA Selective Time Division Multiple Access – A multiple access technique where
Streamload
Protocol
Appendix A - Glossary A-7
A network topology which, if drawn as a logical representation, resembles a star with a hub at the center.
users time-share access to a common channel with variable-sized time slots allocated on usage.
A proprietary Vipersat data streaming protocol used by VFS for transferring files over a Vipersat satellite network.
T
TCP/IP Transmission Control Protocol / Internet Protocol – A standard for networking
over unreliable transmission paths. See also UDP.
TDMA Time Division Multiple Access – A multiple access technique where users
contend for access to a common channel on a time-shared basis. See also FDMA and STDMA.
TFTP Trivial File Transfer Protocol – A simple file transfer protocol used over reli-
able transmission paths. See also FTP.
Tx Transmit
U
UDP User Datagram Protocol – A standard for networking over reliable transmission
paths.
UDP
Multicast
A multicast transmission using the UDP protocol.
V
VESP Vipersat External Switching Protocol – A switch-request protocol which allows
external VPN equipment and Real-Time proprietary applications to negotiate bandwidth requests between any two subnets on a Vipersat network.
VFS Vipersat File Streamer – A file transfer application utilizing UDP and a propri-
etary Streamload protocol to transmit data across the Vipersat network.
VMS Vipersat Management System – A comprehensive M&C tool providing rapid
and responsive control of Vipersat satellite networks.
VoIP Voice over IP – The routing of voice communications over the Internet or
through any IP-based network.
VOS Vipersat Object Service
A-8 VFS User Guide
W
Wizard A specialized program which performs a specific function, such as installing an
application.
WRED Weighted Random Early Detection – A queue management algorithm with
congestion avoidance capabilities and packet classification (QoS) providing prioritization.
Appendix A - Glossary A-9
{ This Page Intentionally Left Blank }
A-10 VFS User Guide
CHAPTER 0INDEX
A
about VFS, 3-3 application policies archive
, 2-4
automatic switching
, 2-10, 3-9
, 2-9, 2-10
B
blocking, 2-4 browser buttons
, 3-9
C
change date button, 3-15 customer support
, 1-7
D
destination
address
folder drag and drop dSCPC
, 3-11
, 3-11
, 3-9
, 1-3, 3-4
E
edit menu, 3-2 event log expansion unit
, 1-5, 3-3, 3-5, 3-15
, 1-4
F
FAST feature code, 1-4 feature configuration first run time
, 3-11
, 2-9
G
gateway address, 2-4, 3-6 general
, 1-1
global configuration
, 3-7
H
how to use this manual, 1-1
ideal bit rate, 2-4, 2-10, 3-9 inband policy switching installation installed files
, 1-1, 2-1
, 2-7
, 2-10
M
main window, 3-1, 3-5 maximum bit rate menu bar
, 3-2
minimum bit rate modem configuration
, 2-4, 2-10
, 2-4, 3-9
, 2-9
N
new session, 3-8 now button
, 3-11
O
overwrite, 2-4
P
parameter settings, 2-3, 3-9 product description
, 1-3
progress
detail
, 3-13
view
, 1-5, 3-13
R
refresh button, 3-15
S
schedule view, 3-12 session
configuration list view menu
, 3-2
setup wizard share
, 2-4
source path status bar
, 2-3, 3-8
, 3-11
, 2-2
, 3-9
, 3-4
I
Index-1
streamload protocol switch type
, 3-9
system requirements
TDM outbound, 1-4 tool bar type 1 policy
, 3-3
, 2-10
UDP, 1-3 using
, 1-2
VESP, 1-4 VFS
about
, 3-3
carrier
, 3-14
creating a session
feature code
, 2-9
feature configuration
, 1-3
, 1-5
, 3-7
T
U
V
, 2-9
gateway
, 3-2, 3-4
gateway address gateway modem general
, 1-1
installation introduction starting status using
VfsService
, 1-1, 2-1
, 1-3
, 3-5 , 3-4, 3-5 , 1-2, 3-1
, 2-7, 3-3, 3-5
view
area
, 3-4
log button menu progress button
, 3-5, 3-15
, 3-2
, 3-13
VMS
configuration indications
, 2-10
, 3-14
WinVfs, 2-7, 3-3, 3-5
, 2-4, 3-6 , 3-5
W
Index-2 VFS User Guide
Loading...
