Comtech FM2400RTIM8 Dip switch settings

www.13cm.co.uk

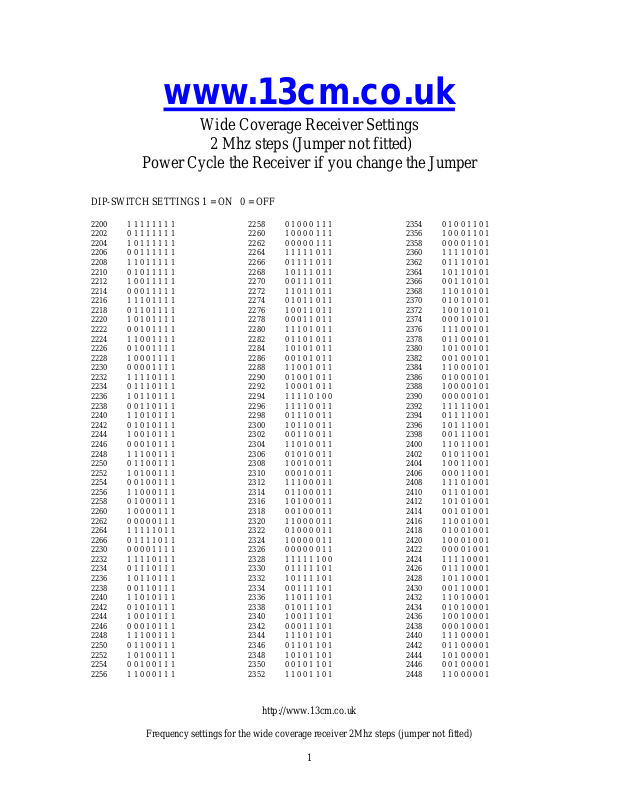

Wide Coverage Receiver Settings

2 Mhz steps (Jumper not fitted)

Power Cycle the Receiver if you change the Jumper

DIP-SWITCH SETTINGS 1 = ON 0 = OFF

2200 1 1 1 1 1 1 1 1
2202 0 1 1 1 1 1 1 1
2204 1 0 1 1 1 1 1 1
2206 0 0 1 1 1 1 1 1
2208 1 1 0 1 1 1 1 1
2210 0 1 0 1 1 1 1 1
2212 1 0 0 1 1 1 1 1
2214 0 0 0 1 1 1 1 1
2216 1 1 1 0 1 1 1 1
2218 0 1 1 0 1 1 1 1
2220 1 0 1 0 1 1 1 1
2222 0 0 1 0 1 1 1 1
2224 1 1 0 0 1 1 1 1
2226 0 1 0 0 1 1 1 1
2228 1 0 0 0 1 1 1 1
2230 0 0 0 0 1 1 1 1
2232 1 1 1 1 0 1 1 1
2234 0 1 1 1 0 1 1 1
2236 1 0 1 1 0 1 1 1
2238 0 0 1 1 0 1 1 1
2240 1 1 0 1 0 1 1 1
2242 0 1 0 1 0 1 1 1
2244 1 0 0 1 0 1 1 1
2246 0 0 0 1 0 1 1 1
2248 1 1 1 0 0 1 1 1
2250 0 1 1 0 0 1 1 1
2252 1 0 1 0 0 1 1 1
2254 0 0 1 0 0 1 1 1
2256 1 1 0 0 0 1 1 1
2258 0 1 0 0 0 1 1 1
2260 1 0 0 0 0 1 1 1
2262 0 0 0 0 0 1 1 1
2264 1 1 1 1 1 0 1 1
2266 0 1 1 1 1 0 1 1
2230 0 0 0 0 1 1 1 1
2232 1 1 1 1 0 1 1 1
2234 0 1 1 1 0 1 1 1
2236 1 0 1 1 0 1 1 1
2238 0 0 1 1 0 1 1 1
2240 1 1 0 1 0 1 1 1
2242 0 1 0 1 0 1 1 1
2244 1 0 0 1 0 1 1 1
2246 0 0 0 1 0 1 1 1
2248 1 1 1 0 0 1 1 1
2250 0 1 1 0 0 1 1 1
2252 1 0 1 0 0 1 1 1
2254 0 0 1 0 0 1 1 1
2256 1 1 0 0 0 1 1 1

Frequency settings for the wide coverage receiver 2Mhz steps (jumper not fitted)

2258 0 1 0 0 0 1 1 1
2260 1 0 0 0 0 1 1 1
2262 0 0 0 0 0 1 1 1
2264 1 1 1 1 1 0 1 1
2266 0 1 1 1 1 0 1 1
2268 1 0 1 1 1 0 1 1
2270 0 0 1 1 1 0 1 1
2272 1 1 0 1 1 0 1 1
2274 0 1 0 1 1 0 1 1
2276 1 0 0 1 1 0 1 1
2278 0 0 0 1 1 0 1 1
2280 1 1 1 0 1 0 1 1
2282 0 1 1 0 1 0 1 1
2284 1 0 1 0 1 0 1 1
2286 0 0 1 0 1 0 1 1
2288 1 1 0 0 1 0 1 1
2290 0 1 0 0 1 0 1 1
2292 1 0 0 0 1 0 1 1
2294 1 1 1 1 0 1 0 0
2296 1 1 1 1 0 0 1 1
2298 0 1 1 1 0 0 1 1
2300 1 0 1 1 0 0 1 1
2302 0 0 1 1 0 0 1 1
2304 1 1 0 1 0 0 1 1
2306 0 1 0 1 0 0 1 1
2308 1 0 0 1 0 0 1 1
2310 0 0 0 1 0 0 1 1
2312 1 1 1 0 0 0 1 1
2314 0 1 1 0 0 0 1 1
2316 1 0 1 0 0 0 1 1
2318 0 0 1 0 0 0 1 1
2320 1 1 0 0 0 0 1 1
2322 0 1 0 0 0 0 1 1
2324 1 0 0 0 0 0 1 1
2326 0 0 0 0 0 0 1 1
2328 1 1 1 1 1 1 0 0
2330 0 1 1 1 1 1 0 1
2332 1 0 1 1 1 1 0 1
2334 0 0 1 1 1 1 0 1
2336 1 1 0 1 1 1 0 1
2338 0 1 0 1 1 1 0 1
2340 1 0 0 1 1 1 0 1
2342 0 0 0 1 1 1 0 1
2344 1 1 1 0 1 1 0 1
2346 0 1 1 0 1 1 0 1
2348 1 0 1 0 1 1 0 1
2350 0 0 1 0 1 1 0 1
2352 1 1 0 0 1 1 0 1

http://www.13cm.co.uk

2354 0 1 0 0 1 1 0 1
2356 1 0 0 0 1 1 0 1
2358 0 0 0 0 1 1 0 1
2360 1 1 1 1 0 1 0 1
2362 0 1 1 1 0 1 0 1
2364 1 0 1 1 0 1 0 1
2366 0 0 1 1 0 1 0 1
2368 1 1 0 1 0 1 0 1
2370 0 1 0 1 0 1 0 1
2372 1 0 0 1 0 1 0 1
2374 0 0 0 1 0 1 0 1
2376 1 1 1 0 0 1 0 1
2378 0 1 1 0 0 1 0 1
2380 1 0 1 0 0 1 0 1
2382 0 0 1 0 0 1 0 1
2384 1 1 0 0 0 1 0 1
2386 0 1 0 0 0 1 0 1
2388 1 0 0 0 0 1 0 1
2390 0 0 0 0 0 1 0 1
2392 1 1 1 1 1 0 0 1
2394 0 1 1 1 1 0 0 1
2396 1 0 1 1 1 0 0 1
2398 0 0 1 1 1 0 0 1
2400 1 1 0 1 1 0 0 1
2402 0 1 0 1 1 0 0 1
2404 1 0 0 1 1 0 0 1
2406 0 0 0 1 1 0 0 1
2408 1 1 1 0 1 0 0 1
2410 0 1 1 0 1 0 0 1
2412 1 0 1 0 1 0 0 1
2414 0 0 1 0 1 0 0 1
2416 1 1 0 0 1 0 0 1
2418 0 1 0 0 1 0 0 1
2420 1 0 0 0 1 0 0 1
2422 0 0 0 0 1 0 0 1
2424 1 1 1 1 0 0 0 1
2426 0 1 1 1 0 0 0 1
2428 1 0 1 1 0 0 0 1
2430 0 0 1 1 0 0 0 1
2432 1 1 0 1 0 0 0 1
2434 0 1 0 1 0 0 0 1
2436 1 0 0 1 0 0 0 1
2438 0 0 0 1 0 0 0 1
2440 1 1 1 0 0 0 0 1
2442 0 1 1 0 0 0 0 1
2444 1 0 1 0 0 0 0 1
2446 0 0 1 0 0 0 0 1
2448 1 1 0 0 0 0 0 1

1

2450 0 1 0 0 0 0 0 1
2452 1 0 0 0 0 0 0 1
2454 0 0 0 0 0 0 0 1
2456 1 1 1 1 1 1 1 0
2458 0 1 1 1 1 1 1 0
2460 1 0 1 1 1 1 1 0
2462 0 0 1 1 1 1 1 0
2464 1 1 0 1 1 1 1 0
2466 0 1 0 1 1 1 1 0
2468 1 0 0 1 1 1 1 0
2470 0 0 0 1 1 1 1 0
2472 1 1 1 0 1 1 1 0
2474 0 1 1 0 1 1 1 0
2476 1 0 1 0 1 1 1 0
2478 0 0 1 0 1 1 1 0
2480 1 1 0 0 1 1 1 0
2482 0 1 0 0 1 1 1 0
2484 1 0 0 0 1 1 1 0
2486 0 0 0 0 1 1 1 0
2488 1 1 1 1 0 1 1 0
2490 0 1 1 1 0 1 1 0
2492 1 0 1 1 0 1 1 0
2494 0 0 1 1 0 1 1 0
2496 1 1 0 1 0 1 1 0
2498 0 1 0 1 0 1 1 0
2500 1 0 0 1 0 1 1 0
2502 0 0 0 1 0 1 1 0
2504 1 1 1 0 0 1 1 0
2506 0 1 1 0 0 1 1 0
2508 1 0 1 0 0 1 1 0
2510 0 0 1 0 0 1 1 0
2512 1 1 0 0 0 1 1 0
2514 0 1 0 0 0 1 1 0
2516 1 0 0 0 0 1 1 0
2518 0 0 0 0 0 1 1 0
2520 1 1 1 1 1 0 1 0
2522 0 1 1 1 1 0 1 0
2524 1 0 1 1 1 0 1 0
2526 0 0 1 1 1 0 1 0
2528 1 1 0 1 1 0 1 0
2530 0 1 0 1 1 0 1 0
2532 1 0 0 1 1 0 1 0
2534 0 0 0 1 1 0 1 0
2536 1 1 1 0 1 0 1 0

2538 0 1 1 0 1 0 1 0
2540 1 0 1 0 1 0 1 0
2542 0 0 1 0 1 0 1 0
2544 1 1 0 0 1 0 1 0
2546 0 1 0 0 1 0 1 0
2548 1 0 0 0 1 0 1 0
2550 0 0 0 0 1 0 1 0
2552 1 1 1 1 0 0 1 0
2554 0 1 1 1 0 0 1 0
2556 1 0 1 1 0 0 1 0
2558 0 0 1 1 0 0 1 0
2560 1 1 0 1 0 0 1 0
2562 0 1 0 1 0 0 1 0
2564 1 0 0 1 0 0 1 0
2566 0 0 0 1 0 0 1 0
2568 1 1 1 0 0 0 1 0
2570 0 1 1 0 0 0 1 0
2572 1 0 1 0 0 0 1 0
2574 0 0 1 0 0 0 1 0
2576 1 1 0 0 0 0 1 0
2578 0 1 0 0 0 0 1 0
2580 1 0 0 0 0 0 1 0
2582 0 0 0 0 0 0 1 0
2584 1 1 1 1 1 1 0 0
2586 0 1 1 1 1 1 0 0
2588 1 0 1 1 1 1 0 0
2590 0 0 1 1 1 1 0 0
2592 1 1 0 1 1 1 0 0
2594 0 1 0 1 1 1 0 0
2596 1 0 0 1 1 1 0 0
2598 0 0 0 1 1 1 0 0
2600 1 1 1 0 1 1 0 0
2602 0 1 1 0 1 1 0 0
2604 1 0 1 0 1 1 0 0
2606 0 0 1 0 1 1 0 0
2608 1 1 0 0 1 1 0 0
2610 0 1 0 0 1 1 0 0
2612 1 0 0 0 1 1 0 0
2614 0 0 0 0 1 1 0 0
2616 1 1 1 1 0 1 0 0
2618 0 1 1 1 0 1 0 0
2620 1 0 1 1 0 1 0 0
2622 0 0 1 1 0 1 0 0
2624 1 1 0 1 0 1 0 0

2626 0 1 0 1 0 1 0 0
2628 1 0 0 1 0 1 0 0
2630 0 0 0 1 0 1 0 0
2632 1 1 1 0 0 1 0 0
2634 0 1 1 0 0 1 0 0
2636 1 0 1 0 0 1 0 0
2638 0 0 1 0 0 1 0 0
2640 1 1 0 0 0 1 0 0
2642 0 1 0 0 0 1 0 0
2644 1 0 0 0 0 1 0 0
2646 0 0 0 0 0 1 0 0
2648 1 1 1 1 1 1 1 0
2650 0 1 1 1 1 0 0 0
2652 1 0 1 1 1 0 0 0
2654 0 0 1 1 1 0 0 0
2656 1 1 0 1 1 0 0 0
2658 0 1 0 1 1 0 0 0
2660 1 0 0 1 1 0 0 0
2662 0 0 0 1 1 0 0 0
2664 1 1 1 0 1 0 0 0
2666 0 1 1 0 1 0 0 0
2668 1 0 1 0 1 0 0 0
2670 0 0 1 0 1 0 0 0
2672 1 1 0 0 1 0 0 0
2674 0 1 0 0 1 0 0 0
2676 1 0 0 0 1 0 0 0
2678 0 0 0 0 1 0 0 0
2680 1 1 1 1 0 0 0 0
2682 0 1 1 1 0 0 0 0
2684 1 0 1 1 0 0 0 0
2686 0 0 1 1 0 0 0 0
2688 1 1 0 1 0 0 0 0
2690 0 1 0 1 0 0 0 0
2692 1 0 0 1 0 0 0 0
2694 0 0 0 1 0 0 0 0
2696 1 1 1 0 0 0 0 0
2698 0 1 1 0 0 0 0 0
2700 1 0 1 0 0 0 0 0
2702 0 0 1 0 0 0 0 0
2704 1 1 0 0 0 0 0 0
2706 0 1 0 0 0 0 0 0
2708 1 0 0 0 0 0 0 0
2710 0 0 0 0 0 0 0 0

Wide coverage Receiver Connections

Power supply should be 12 to 15V DC Center Pin Positive, DO NOT Reverse the polarity as
this will cause damage.

Composite Video output is on the Yellow Phono Socket
Audio 6Mhz and 6.5Mhz White and Red Phono Socket

The Video Gain can be adjusted using the Yellow Preset Potentiometer on the PCB

We value any questions or comments you might have please email [email protected]

http://www.13cm.co.uk

Frequency settings for the wide coverage receiver 2Mhz steps (jumper not fitted)
