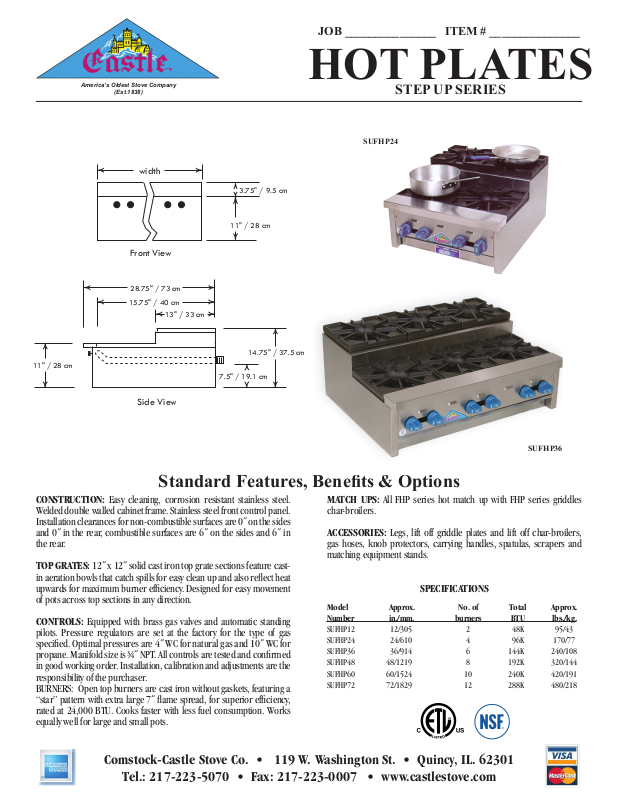

Comstock Castle SUFHP12 User Manual

Job _______________ item # _______________

11" / 28 cm

America’s Oldest Stove Company

(Est.1838)

width

Front View

28.75" / 73 cm

15.75" / 40 cm
13" / 33 cm

Hot plates

step up series

suFHp24

3.75" / 9.5 cm

11" / 28 cm

14.75" / 37.5 cm

7.5" / 19.1 cm

Side View

Standard Features, Benets & Options

CONSTRUCTION: Easy cleaning, corrosion resistant stainless steel.
Welded double walled cabinet frame. Stainless steel front control panel.
Installation clearances for non-combustible surfaces are 0˝ on the sides
and 0˝ in the rear, combustible surfaces are 6˝ on the sides and 6˝ in
the rear.

TOP GRATES: 12˝ x 12˝ solid cast iron top grate sections feature cast-
in aeration bowls that catch spills for easy clean up and also reflect heat
upwards for maximum burner efficiency. Designed for easy movement
of pots across top sections in any direction.

CONTROLS: Equipped with brass gas valves and automatic standing
pilots. Pressure regulators are set at the factory for the type of gas
specified. Optimal pressures are 4˝ WC for natural gas and 10˝ WC for
propane. Manifold size is ¾˝ NPT. All controls are tested and confirmed
in good working order. Installation, calibration and adjustments are the
responsibility of the purchaser.
BURNERS: Open top burners are cast iron without gaskets, featuring a
“star” pattern with extra large 7˝ flame spread, for superior efficiency,
rated at 24,000 BTU. Cooks faster with less fuel consumption. Works
equally well for large and small pots.

suFHp36

MATCH UPS: All FHP series hot match up with FHP series griddles
char-broilers.

ACCESSORIES: Legs, lift off griddle plates and lift off char-broilers,
gas hoses, knob protectors, carrying handles, spatulas, scrapers and
matching equipment stands.

SPECIFICATIONS

Model Approx. No. of Total Approx.
Number in./mm. burners BTU lbs./kg.

SUFHP12 12/305 2 48K 95/43
SUFHP24 24/610 4 96K 170/77
SUFHP36 36/914 6 144K 240/108
SUFHP48 48/1219 8 192K 320/144
SUFHP60 60/1524 10 240K 420/191
SUFHP72 72/1829 12 288K 480/218

Comstock-Castle Stove Co. • 119 W. Washington St. • Quincy, IL. 62301

Tel.: [phone] • Fax: [phone] • www.castlestove.com
