Standard Features & Benefits
OVENS: Medium ovens measure 26.5"w x 22"d x 14"h. Large oven
measures 31".5w x 22"d x 14"h for superior baking characteristics and
results. Heavy insulation for fuel efficiency. Easy cleaning porcelain and
aluminized linings with one nickel plated rack. 3 rack positions with
2 3/4" between rack positions. Both ovens feature long life 30,000 BTU
cast iron “H” pattern oven burners. Special “V” shaped baffle directs heat
for excellent air circulation.
COOK TOPS: 24,000 BTU “star” pattern top burners with no gaskets
to leak. The large 7" flame spread offers a more efficient burn pattern for
small to large pots. Full width crumb trays catch all spillage. Top grates are
12" x 12" cast iron with spillover bowl that also reflects heat for added
efficiency. Designed for easy movement of pots across top sections. Stainless
steel bullnose-rail is safely flush with the cook tops and functional to
straddle pots, skillets and plates and also serves as control protection.
CONSTRUCTION: Easy cleaning, corrosion resistant stainless steel
finish, welded with angle iron and aluminized inner framing. Sturdy 6"
heavy duty stainless pipe legs with adjustable feet. Double wall
construction with heavy insulation for cooler operation. Installation
clearances for non-combustible surfaces are 0" on sides and 0" in the
rear, combustible surface clearances are 2" and 2".
CONTROLS: Include 500° thermostat, 100% safety shut off, automatic
standing pilot and brass top burner valves. Pressure regulators are set at
the factory for the gas specified. Optimal pressures are 4" WC for natural
gas and 10" WC for propane. Manifold size is 3/4" NPT. All controls are
tested and confirmed in good working order. Calibration and adjustments
are the responsibility of the buyer.
Optional Features
GRIDDLES: 12" increments have 20,000 BTU cast iron burners
replacing front to back open burner pairs. 18" & 30" sections feature 2 &
4 “I” burners respectively, rated at 18,000 BTU each, available only when
matched together with 18" or 30" char-broilers. 3/4" thick is standard. SS
splash guards tapering to 4". Front grease trough and large capacity grease
catch. Optional raised griddle-cheesemelters with rear trough are available
up to 36". Maximum rack clearance is 41/2".
CHAR-BROILERS: 12" increments have 25,000 BTU cast iron burners
replacing front to back open burner pairs. 18" & 30" sections feature 2
& 4 “I” burners respectively, rated at 20,000 BTU each, available only
when matched together with 18" or 30" griddles. Flare up reducing cast
iron top grates and radiants for superior heat retention. Front grease
trough and large capacity grease catch. SS splash guards tapering to 4".
Char-broilers are approved for use in non-combustible locations only.
HOT TOPS: Available in 12" width increments in lieu of open top
burners. 3/4" thick to hold heat from long life, even heating 20,000 BTU
cast iron “H” pattern burners.
ACCESSORIES & OPTIONS: Casters, extra racks, pizza decks, FD
oven thermostats, oven spark pilots, chrome griddle plates, 1" thick
griddle plates, griddle thermostats, safety pilot griddles, lift off griddles,
grill scrapers, cleaning supplies, hose and quick disconnects, control
protection bars, storage base in lieu of oven and low backs are some of
the standard options and accessories available.
America’s Oldest Stove Company
(Est. 1838)
Comstock-Castle Stove Co. • 119 W. Washington • Quincy, IL 62301 USA
Tel.: 217-223-5070 • Telefax: 217-223-0007 • www.castlestove.com

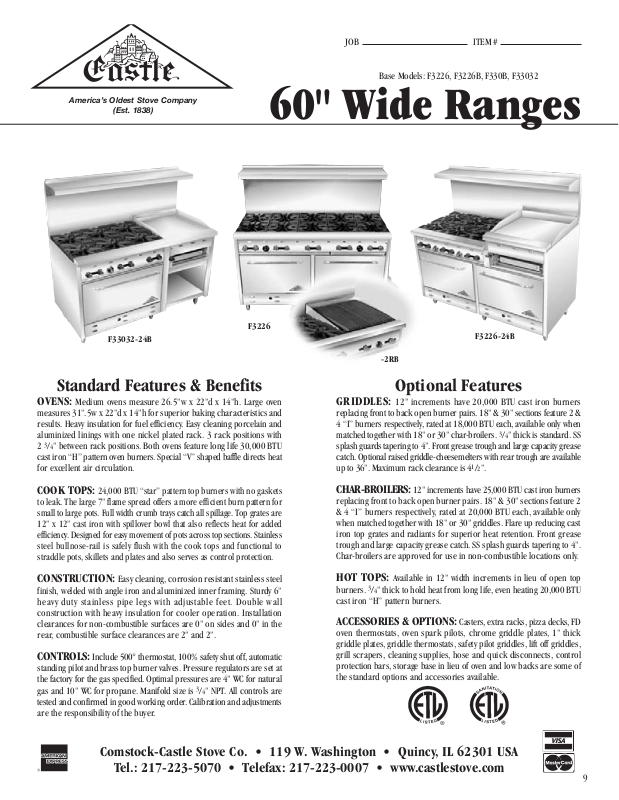

60" Wide Ranges
JOB ITEM #
Base Models: F3226, F3226B, F330B, F33032
F33032-24B
F3226
-2RB
F3226-24B
9
®
®
®
®
60"
60" Restaurant Range Series
Top Description Total Approx. Ship Weight
Configuration Model # Top Base B.T.U. (Kg) (Lbs.)
F3226 (10) Open Burners - w/ (2) 26.5" Ovens 300,000 364 800
F33032 (10) Open Burners - w/ (1) 31.5" Oven 270,000 325 715
- & 22" storage space
F3226-24 (6) Open Burners - w/ (2) 26.5" Ovens 244,000 400 880
& (1) 24" Griddle
F33032-24 (6) Open Burners - w/ (1) 31.5" Oven 214,000 350 770
& (1) 24" Griddle - & 22" storage space
F33032-24B (6) Open Burners - w/ (1) 31.5" Oven 204,000 393 865
& (1) 24" Griddle, 18" cheesemelter - & 22" storage space
F3226-24B (6) Open Burners - w/ (2) 26.5" Ovens 234,000 398 875
& (1) 24" Griddle, 18" cheesemelter
F3226-36 (4) Open Burners - w/ (2) 26.5" Ovens 216,000 436 960
& (1) 36" Griddle
F33032-36 (4) Oven Burners - w/ (1) 31.5" Oven 186,000 377 830
& (1) 36" Griddle - & 22" storage space
F33032-36B (4) Open Burners - w/ (1) 31.5" Oven 176,000 355 780
& (1) 36" Griddle, 18" cheesemelter - & 22" storage space
F3226-36B* (4) Open Burners - w/ (2) 26.5" Ovens 186,000 430 946
& (1) 36" Griddle, 30" cheesemelter
F3226-60 (0) Open Burners - w/ (2) 26.5" Ovens 160,000 441 970
& (1) 60" Griddle
F33032-60 (0) Open Burners - w/ (1) 31.5" Oven 130,000 400 880
& (1) 60" Griddle - & 22" storage space
F3226-18-1.5RB (4) Open Burners - w/ (2) 26.5" Ovens 232,000 436 960
& (1) 18" Griddle
& (1) 18" Radiant Broiler
F3226-30-2.5RB (0) Open Burners - w/ (2) 26.5" Ovens 212,000 441 985
& (1) 30" Griddle -
& (1) 30" Radiant Broiler
Note: Radiant char-broiler sections and hot top available, add suffix -1RB, -2RB or -1HT, -2HT, etc. per section.
Top sections in lieu of open top burners are located on the right when viewing from the front. Special locations may require custom work and pricing, please call the factory for
details. Product improvement is a Comstock-Castle policy and may result in design and specification change without notice.
Approximate Packaging Dimensions: 67" (1702mm) Wide x 41" (1041mm) Deep x 40" (1016mm) High.
Gas connection location as you look from the front:
3226 series; 21.5" from the floor, 3" from the left side.
F33032 series; 21.5" from the floor, 3" & 27" from the left side.
F3226-B series; 21.5" & 30.5" from the floor, 3" & 39" from the left side.
* not ETL design listed
60" WIDE SERIES MEASUREMENTS
F3226
F33032-24B
F3226-24B
10
1524mm
60"
1524mm
18"
28"
30.5"
775mm
24"
10"
58"
1473mm
37"
940mm
37"
940mm
4.5"
15.5"
21.5"
6"
37"
940mm
60"
1524mm
4.5"
15.5"
13"
28"
30.5"
775mm
10"
30.5"
6"
58"
1473mm
