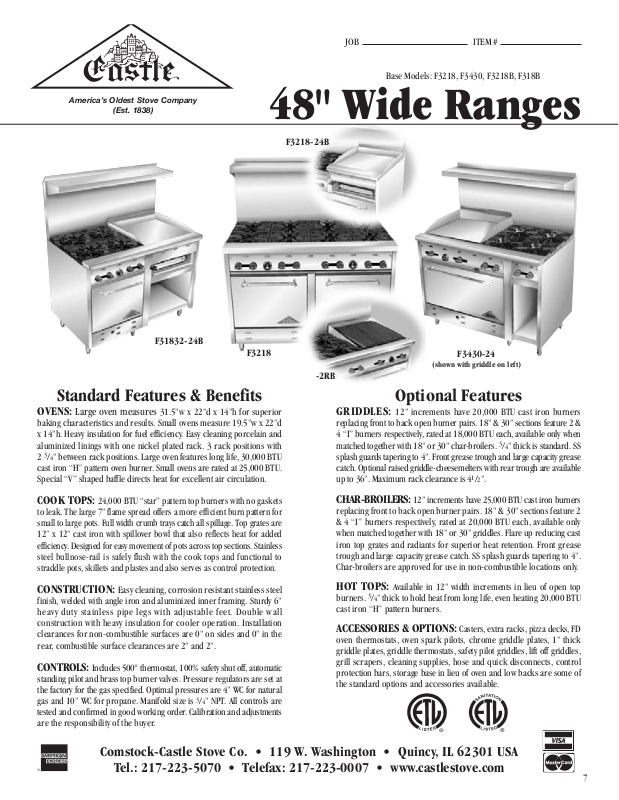

Comstock Castle F318B User Manual
America’s Oldest Stove Company
(Est. 1838)
48" Wide Ranges
JOB ITEM #
Base Models: F3218, F3430, F3218B, F318B
Standard Features & Benefits
OVENS: Large oven measures 31.5"w x 22"d x 14"h for superior
baking characteristics and results. Small ovens measure 19.5"w x 22"d
x 14"h. Heavy insulation for fuel efficiency. Easy cleaning porcelain and
aluminized linings with one nickel plated rack. 3 rack positions with
2 3/4" between rack positions. Large oven features long life, 30,000 BTU
cast iron “H” pattern oven burner. Small ovens are rated at 25,000 BTU.
Special “V” shaped baffle directs heat for excellent air circulation.
COOK TOPS: 24,000 BTU “star” pattern top burners with no gaskets
to leak. The large 7" flame spread offers a more efficient burn pattern for
small to large pots. Full width crumb trays catch all spillage. Top grates are
12" x 12" cast iron with spillover bowl that also reflects heat for added
efficiency. Designed for easy movement of pots across top sections. Stainless
steel bullnose-rail is safely flush with the cook tops and functional to
straddle pots, skillets and plastes and also serves as control protection.
CONSTRUCTION: Easy cleaning, corrosion resistant stainless steel
finish, welded with angle iron and aluminized inner framing. Sturdy 6"
heavy duty stainless pipe legs with adjustable feet. Double wall
construction with heavy insulation for cooler operation. Installation
clearances for non-combustible surfaces are 0" on sides and 0" in the
rear, combustible surface clearances are 2" and 2".
CONTROLS: Includes 500° thermostat, 100% safety shut off, automatic
standing pilot and brass top burner valves. Pressure regulators are set at
the factory for the gas specified. Optimal pressures are 4" WC for natural
gas and 10" WC for propane. Manifold size is 3/4" NPT. All controls are
tested and confirmed in good working order. Calibration and adjustments
are the responsibility of the buyer.
Optional Features
GRIDDLES: 12" increments have 20,000 BTU cast iron burners
replacing front to back open burner pairs. 18" & 30" sections feature 2 &
4 “I” burners respectively, rated at 18,000 BTU each, available only when
matched together with 18" or 30" char-broilers. 3/4" thick is standard. SS
splash guards tapering to 4". Front grease trough and large capacity grease
catch. Optional raised griddle-cheesemelters with rear trough are available
up to 36". Maximum rack clearance is 41/2".
CHAR-BROILERS: 12" increments have 25,000 BTU cast iron burners
replacing front to back open burner pairs. 18" & 30" sections feature 2
& 4 “I” burners respectively, rated at 20,000 BTU each, available only
when matched together with 18" or 30" griddles. Flare up reducing cast
iron top grates and radiants for superior heat retention. Front grease
trough and large capacity grease catch. SS splash guards tapering to 4".
Char-broilers are approved for use in non-combustible locations only.
HOT TOPS: Available in 12" width increments in lieu of open top
burners. 3/4" thick to hold heat from long life, even heating 20,000 BTU
cast iron “H” pattern burners.
ACCESSORIES & OPTIONS: Casters, extra racks, pizza decks, FD
oven thermostats, oven spark pilots, chrome griddle plates, 1" thick
griddle plates, griddle thermostats, safety pilot griddles, lift off griddles,
grill scrapers, cleaning supplies, hose and quick disconnects, control
protection bars, storage base in lieu of oven and low backs are some of
the standard options and accessories available.
Comstock-Castle Stove Co. • 119 W. Washington • Quincy, IL 62301 USA
Tel.: 217-223-5070 • Telefax: 217-223-0007 • www.castlestove.com
F31832-24B
F3218
-2RB
F3218-24B
F3430-24
(shown with griddle on left)
7
®
®
®
®
48"
48" WIDE SERIES MEASUREMENTS
F3430 F3218 F34-4RB
8
48" Restaurant Range Series Note: Radiant char-broiler sections and hot top available, add suffix -1RB, -2RB or -1HT, -2HT, etc. per section.
Top Description Total Approx. Ship Weight
Configuration Model # Top Base B.T.U. (Kg) (Lbs.)
F3218 (8) Open Burners - w/ (2) 19.5" Ovens 242,000 309 680
F3430 (8) Open Burners - w/ (1) 31.5"Oven 222,000 291 640
- & 10" storage space
F3218-24 (4) Open Burners - w/ (2) 19.5" Ovens 186,000 302 665
& (1) 24" Griddle
F3430-24 (4) Open Burners - w/ (1) 31.5" Oven 166,000 293 645
& (1) 24" Griddle - & 10" storage space
F3430-24B* (4) Open Burners - w/ (1) 31.5" Oven 156,000 291 640
& (1) 24" Griddle, 18" cheesemelter - & 10" storage space
F31832-24B (4) Open Burners - w/ (1) 19.5" Oven 151,000 280 615
& (1) 24" Griddle, 18" cheesemelter - & 21" storage space
F3218-24B (4) Open Burners - w/ (2) 19.5" Ovens 176,000 316 695
& (1) 24" Griddle, 18" cheesemelter
F3218-36 (2) Open Burners - w/ (2) 19.5" Ovens 158,000 318 700
& (1) 36" Griddle
F3430-36 (2) Open Burners - w/ (1) 31.5" Oven 138,000 277 610
& (1) 36" Griddle - & 10" storage space
F31832-36B (2) Open Burners - w/ (1) 19.5" Oven 123,000 291 640
& (1) 36" Griddle, 18" cheesemelter - & 21" storage space
F3430-36B* (2) Open Burners - w/ (1) 31.5" Oven 138,000 272 598
& (1) 36" Griddle, 30" cheesemelter
F3218-36B* (2) Open Burners - w/ (2) 19.5" Ovens 158,000 312 686
& (1) 36" Griddle, 30" cheesemelter
F3218-18-1.5RB (2) Open Burners - w/ (2) 19.5" Ovens 174,000 318 700
& (1) 18" Griddle
& (1) 18" Radiant Broiler
F3430-18-1.5RB (2) Open Burners - w/ (1) 31.5" Oven 154,000 277 610
& (1) 18" Griddle
& (1) 18" Radiant Broiler
Top sections in lieu of open top burners are located on the right when viewing from the front. Special locations may require custom work and pricing, please call for details.
Approximate Packaging Dimensions: 55" (1397mm) Wide x 41" (1041mm) Deep x 40" (1016mm) High.
Product improvement is a Comstock-Castle policy and may result in design and
specification change without notice.
Gas connection location as you look from the front:
3430 series; 21.5" from the floor, 3" & 39" from the left side.
3218 & F31832 series; 21.5" from the floor, 3" & 27" from the left side.
F3218-24B series; 21.5" & 30.5" from the floor, 3" & 39" from the left side.
*not ETL design listed
F3218-24B
1219mm
48"
1219mm
48"
1219mm
10"
30.5"
18"
28"
775mm
24"
58"
1473mm
37"
940mm
37"
940mm
37"
940mm
4.5"
15.5"
21.5"
6"
48"
1219mm
10"
13"
28"
30.5"
775mm
37"
940mm
15.5"
4.5"
30.5"
6"
58"
1473mm
