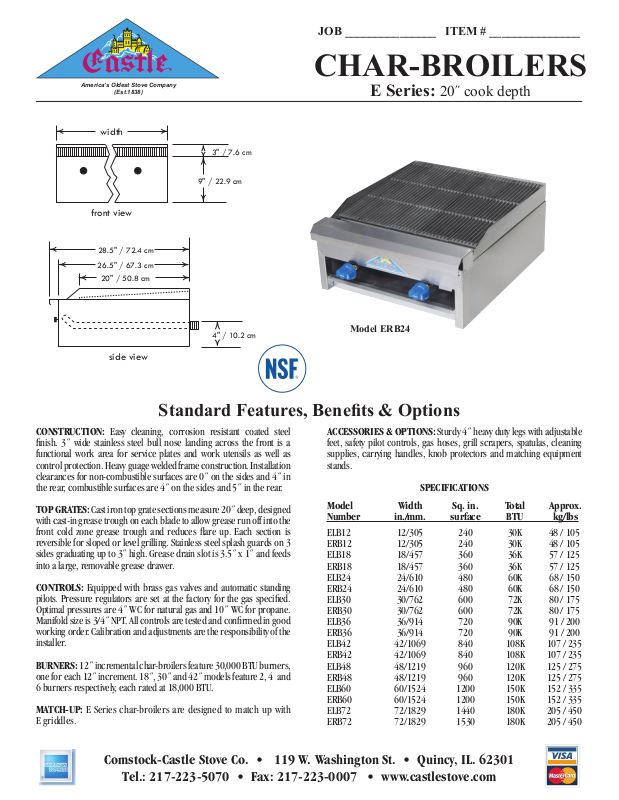

Comstock Castle ELB30 User Manual

America’s Oldest Stove Company

(Est.1838)

width

front view

28.5" / 72.4 cm

26.5" / 67.3 cm

20" / 50.8 cm

JOB _______________ ITEM # _______________

CHAR-BROILERS

E Series: 20˝ cook depth

3" / 7.6 cm

9" / 22.9 cm

4" / 10.2 cm

side view

Standard Features, Benets & Options

CONSTRUCTION: Easy cleaning, corrosion resistant coated steel
finish. 3˝ wide stainless steel bull nose landing across the front is a
functional work area for service plates and work utensils as well as
control protection. Heavy guage welded frame construction. Installation
clearances for non-combustible surfaces are 0˝ on the sides and 4˝ in
the rear, combustible surfaces are 4˝ on the sides and 5˝ in the rear.

TOP GRATES: Cast iron top grate sections measure 20˝ deep, designed
with cast-in grease trough on each blade to allow grease run off into the
front cold zone grease trough and reduces flare up. Each section is
reversible for sloped or level grilling. Stainless steel splash guards on 3
sides graduating up to 3˝ high. Grease drain slot is 3.5˝ x 1˝ and feeds
into a large, removable grease drawer.

CONTROLS: Equipped with brass gas valves and automatic standing
pilots. Pressure regulators are set at the factory for the gas specified.
Optimal pressures are 4˝ WC for natural gas and 10˝ WC for propane.
Manifold size is 3/4˝ NPT. All controls are tested and confirmed in good
working order. Calibration and adjustments are the responsibility of the
installer.

BURNERS: 12˝ incremental char-broilers feature 30,000 BTU burners,
one for each 12˝ increment. 18˝, 30˝ and 42˝ models feature 2, 4 and
6 burners respectively, each rated at 18,000 BTU.

MATCH-UP: E Series char-broilers are designed to match up with
E griddles.

Model ERB24

ACCESSORIES & OPTIONS: Sturdy 4˝ heavy duty legs with adjustable
feet, safety pilot controls, gas hoses, grill scrapers, spatulas, cleaning
supplies, carrying handles, knob protectors and matching equipment
stands.

SPECIFICATIONS

Model Width Sq. in. Total Approx.
Number in./mm. surface BTU kg/lbs

ELB12 12/305 240 30K 48 / 105
ERB12 12/305 240 30K 48 / 105
ELB18 18/457 360 36K 57 / 125
ERB18 18/457 360 36K 57 / 125
ELB24 24/610 480 60K 68 / 150
ERB24 24/610 480 60K 68 / 150
ELB30 30/762 600 72K 80 / 175
ERB30 30/762 600 72K 80 / 175
ELB36 36/914 720 90K 91 / 200
ERB36 36/914 720 90K 91 / 200
ELB42 42/1069 840 108K 107 / 235
ERB42 42/1069 840 108K 107 / 235
ELB48 48/1219 960 120K 125 / 275
ERB48 48/1219 960 120K 125 / 275
ELB60 60/1524 1200 150K 152 / 335
ERB60 60/1524 1200 150K 152 / 335
ELB72 72/1829 1440 180K 205 / 450
ERB72 72/1829 1530 180K 205 / 450

Comstock-Castle Stove Co. • 119 W. Washington St. • Quincy, IL. 62301

Tel.: [phone] • Fax: [phone] • www.castlestove.com
