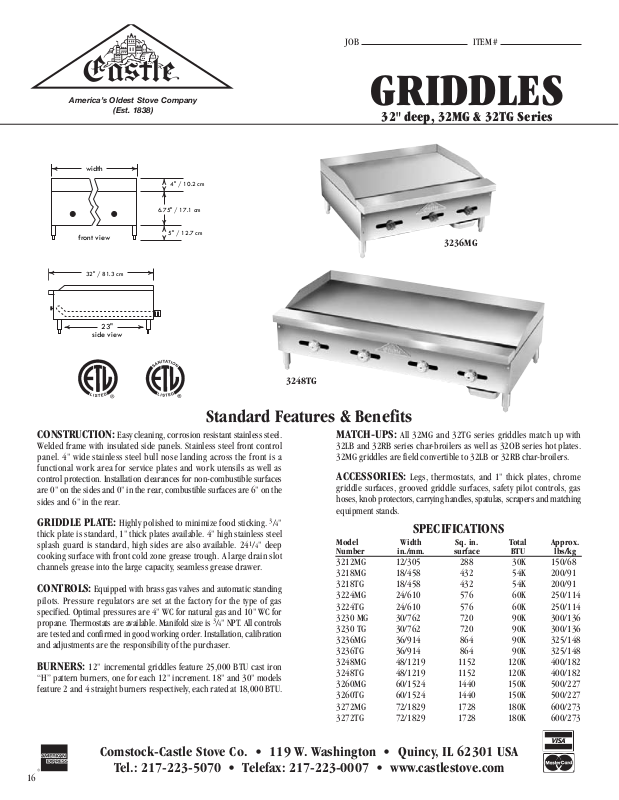

Comstock Castle 3230MG Specifications

CONSTRUCTION: Easy cleaning, corrosion resistant stainless steel.

Welded frame with insulated side panels. Stainless steel front control
panel. 4" wide stainless steel bull nose landing across the front is a
functional work area for service plates and work utensils as well as
control protection. Installation clearances for non-combustible surfaces
are 0" on the sides and 0" in the rear, combustible surfaces are 6" on the
sides and 6" in the rear.

GRIDDLE PLATE: Highly polished to minimize food sticking.

3

/4"
thick plate is standard, 1" thick plates available. 4" high stainless steel
splash guard is standard, high sides are also available. 241/4" deep
cooking surface with front cold zone grease trough. A large drain slot
channels grease into the large capacity, seamless grease drawer.

CONTROLS: Equipped with brass gas valves and automatic standing

pilots. Pressure regulators are set at the factory for the type of gas
specified. Optimal pressures are 4" WC for natural gas and 10" WC for
propane. Thermostats are available. Manifold size is 3/4" NPT. All controls
are tested and confirmed in good working order. Installation, calibration
and adjustments are the responsibility of the purchaser.

BURNERS: 12" incremental griddles feature 25,000 BTU cast iron

“H” pattern burners, one for each 12" increment. 18" and 30" models
feature 2 and 4 straight burners respectively, each rated at 18,000 BTU.

MATCH-UPS: All 32MG and 32TG series griddles match up with

32LB and 32RB series char-broilers as well as 32OB series hot plates.
32MG griddles are field convertible to 32LB or 32RB char-broilers.

ACCESSORIES: Legs, thermostats, and 1" thick plates, chrome

griddle surfaces, grooved griddle surfaces, safety pilot controls, gas
hoses, knob protectors, carrying handles, spatulas, scrapers and matching
equipment stands.

SPECIFICATIONS

Model Width Sq. in. Total Approx.
Number in./mm. surface BTU lbs/kg

3212MG 12/305 288 30K 150/68
3218MG 18/458 432 54K 200/91
3218TG 18/458 432 54K 200/91
3224MG 24/610 576 60K 250/114
3224TG 24/610 576 60K 250/114
3230 MG 30/762 720 90K 300/136
3230 TG 30/762 720 90K 300/136
3236MG 36/914 864 90K 325/148
3236TG 36/914 864 90K 325/148
3248MG 48/1219 1152 120K 400/182
3248TG 48/1219 1152 120K 400/182
3260MG 60/1524 1440 150K 500/227
3260TG 60/1524 1440 150K 500/227
3272MG 72/1829 1728 180K 600/273
3272TG 72/1829 1728 180K 600/273

America’s Oldest Stove Company

(Est. 1838)

JOB ITEM #

GRIDDLES

32" deep, 32MG & 32TG Series

Comstock-Castle Stove Co. • 119 W. Washington • Quincy, IL 62301 USA

Tel.: [phone] • Telefax: 217-223-0007 • www.castlestove.com

16

Standard Features & Benefits

®

®

®

®

3236MG

3248TG

front view

width

4" / 10.2 cm

6.75" / 17.1 cm

5" / 12.7 cm

32" / 81.3 cm

23"

side view
