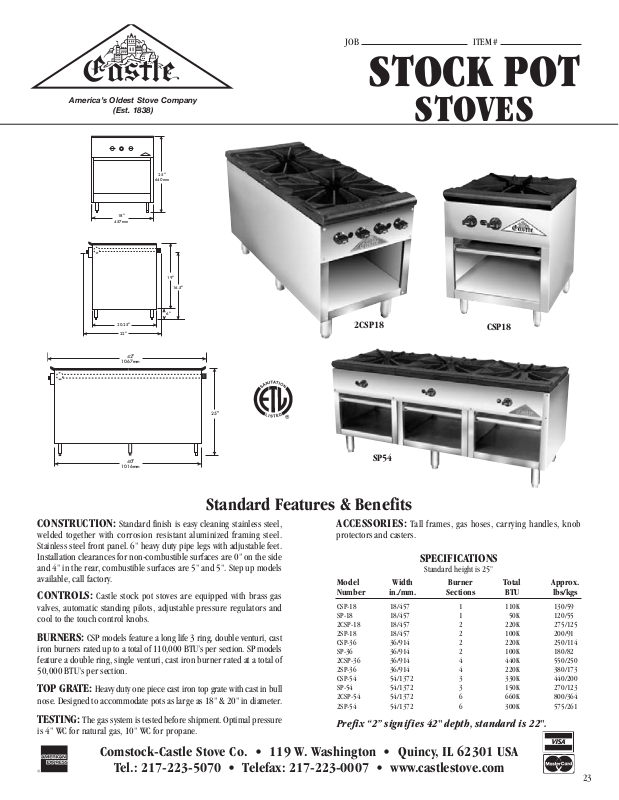

Comstock Castle 2CSP-18 User Manual

CONSTRUCTION: Standard finish is easy cleaning stainless steel,

welded together with corrosion resistant aluminized framing steel.
Stainless steel front panel. 6" heavy duty pipe legs with adjustable feet.
Installation clearances for non-combustible surfaces are 0" on the side
and 4" in the rear, combustible surfaces are 5" and 5". Step up models
available, call factory.

CONTROLS: Castle stock pot stoves are equipped with brass gas

valves, automatic standing pilots, adjustable pressure regulators and
cool to the touch control knobs.

BURNERS: CSP models feature a long life 3 ring, double venturi, cast

iron burners rated up to a total of 110,000 BTU’s per section. SP models
feature a double ring, single venturi, cast iron burner rated at a total of
50,000 BTU’s per section.

TOP GRATE: Heavy duty one piece cast iron top grate with cast in bull

nose. Designed to accommodate pots as large as 18" & 20" in diameter.

TESTING: The gas system is tested before shipment. Optimal pressure

is 4" WC for natural gas, 10" WC for propane.

ACCESSORIES: Tall frames, gas hoses, carrying handles, knob

protectors and casters.

America’s Oldest Stove Company

(Est. 1838)

JOB ITEM #

STOCK POT

STOVES

Comstock-Castle Stove Co. • 119 W. Washington • Quincy, IL 62301 USA

Tel.: [phone] • Telefax: 217-223-0007 • www.castlestove.com

SPECIFICATIONS

Standard height is 25"

Model Width Burner Total Approx.
Number in./mm. Sections BTU lbs/kgs

CSP-18 18/457 1 110K 130/59
SP-18 18/457 1 50K 120/55
2CSP-18 18/457 2 220K 275/125
2SP-18 18/457 2 100K 200/91
CSP-36 36/914 2 220K 250/114
SP-36 36/914 2 100K 180/82
2CSP-36 36/914 4 440K 550/250
2SP-36 36/914 4 220K 380/173
CSP-54 54/1372 3 330K 440/200
SP-54 54/1372 3 150K 270/123
2CSP-54 54/1372 6 660K 800/364
2SP-54 54/1372 6 300K 575/261

Prefix “2” signifies 42" depth, standard is 22".

2CSP18

CSP18

SP54

23

Standard Features & Benefits

®

®

18"

457mm

20.25"

22"

42"

1067mm

25"

640mm

19"

16.5"

6"

25"

40"

1016mm

®

®
