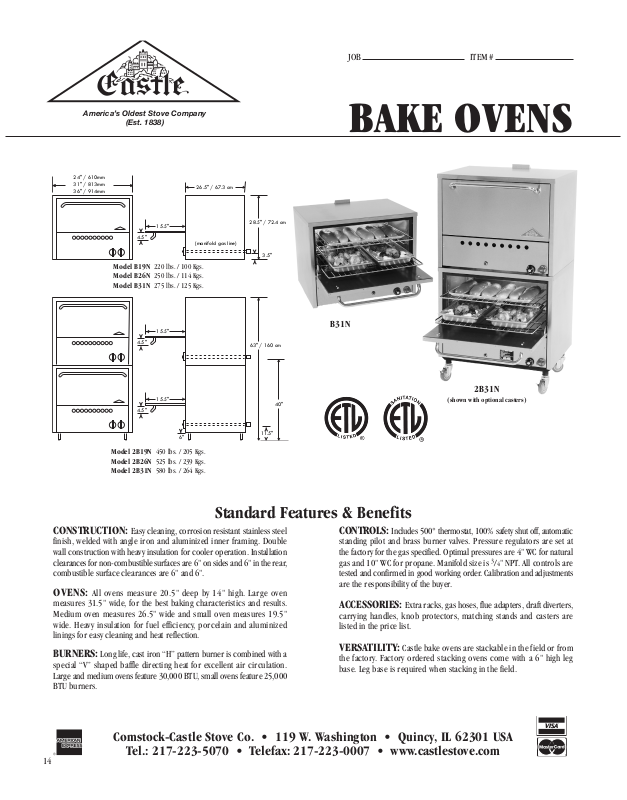

Comstock Castle 2B19N Specifications
America’s Oldest Stove Company
(Est. 1838)
JOB ITEM #
BAKE OVENS
(manifold gas line)
26.5" / 67.3 cm
15.5"
15.5"
63" / 160 cm
15.5"
28.5" / 72.4 cm
40"
4.5"
4.5"
4.5"
3.5"
6"
11.5"
24" / 610mm
31" / 813mm
36" / 914mm
Model B19N 220 lbs. / 100 Kgs.
Model B26N 250 lbs. / 114 Kgs.
Model B31N 275 lbs. / 125 Kgs.
Model 2B19N 450 lbs. / 205 Kgs.
Model 2B26N 525 lbs. / 239 Kgs.
Model 2B31N 580 lbs. / 264 Kgs.
CONSTRUCTION: Easy cleaning, corrosion resistant stainless steel
finish, welded with angle iron and aluminized inner framing. Double
wall construction with heavy insulation for cooler operation. Installation
clearances for non-combustible surfaces are 6" on sides and 6" in the rear,
combustible surface clearances are 6" and 6".
OVENS: All ovens measure 20.5" deep by 14" high. Large oven
measures 31.5" wide, for the best baking characteristics and results.
Medium oven measures 26.5" wide and small oven measures 19.5"
wide. Heavy insulation for fuel efficiency, porcelain and aluminized
linings for easy cleaning and heat reflection.
BURNERS: Long life, cast iron “H” pattern burner is combined with a
special “V” shaped baffle directing heat for excellent air circulation.
Large and medium ovens feature 30,000 BTU, small ovens feature 25,000
BTU burners.
CONTROLS: Includes 500° thermostat, 100% safety shut off, automatic
standing pilot and brass burner valves. Pressure regulators are set at
the factory for the gas specified. Optimal pressures are 4" WC for natural
gas and 10" WC for propane. Manifold size is 3/4" NPT. All controls are
tested and confirmed in good working order. Calibration and adjustments
are the responsibility of the buyer.
ACCESSORIES: Extra racks, gas hoses, flue adapters, draft diverters,
carrying handles, knob protectors, matching stands and casters are
listed in the price list.
VERSATILITY: Castle bake ovens are stackable in the field or from
the factory. Factory ordered stacking ovens come with a 6" high leg
base. Leg base is required when stacking in the field.
Comstock-Castle Stove Co. • 119 W. Washington • Quincy, IL 62301 USA
Tel.: 217-223-5070 • Telefax: 217-223-0007 • www.castlestove.com
14
Standard Features & Benefits
®
®
®
®
B31N
2B31N
(shown with optional casters)
