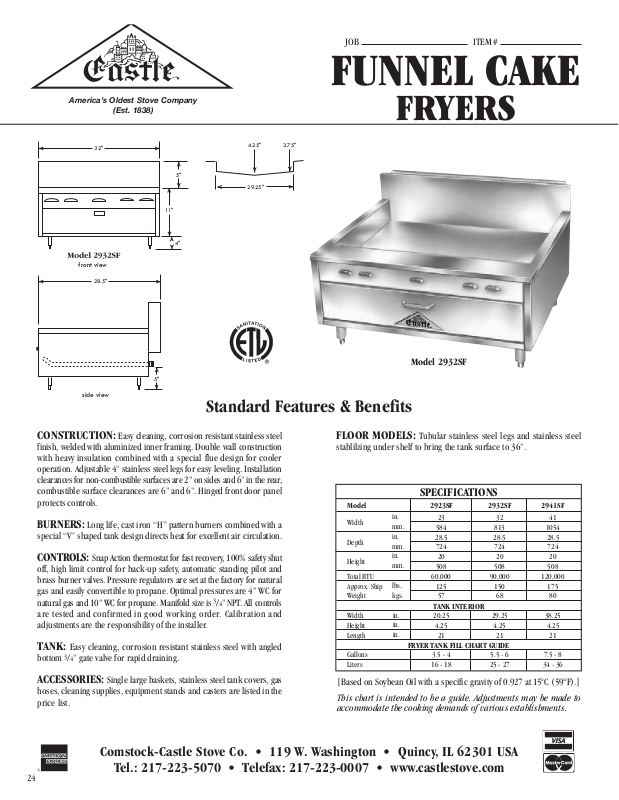

Comstock Castle 2923SF Specifications

CONSTRUCTION: Easy cleaning, corrosion resistant stainless steel

finish, welded with aluminized inner framing. Double wall construction
with heavy insulation combined with a special flue design for cooler
operation. Adjustable 4" stainless steel legs for easy leveling. Installation
clearances for non-combustible surfaces are 2" on sides and 6" in the rear,
combustible surface clearances are 6" and 6". Hinged front door panel
protects controls.

BURNERS: Long life, cast iron “H” pattern burners combined with a

special “V” shaped tank design directs heat for excellent air circulation.

CONTROLS: Snap Action thermostat for fast recovery, 100% safety shut

off, high limit control for back-up safety, automatic standing pilot and
brass burner valves. Pressure regulators are set at the factory for natural
gas and easily convertible to propane. Optimal pressures are 4" WC for
natural gas and 10" WC for propane. Manifold size is

3

/4" NPT. All controls
are tested and confirmed in good working order. Calibration and
adjustments are the responsibility of the installer.

TANK: Easy cleaning, corrosion resistant stainless steel with angled

bottom 3/4" gate valve for rapid draining.

ACCESSORIES: Single large baskets, stainless steel tank covers, gas

hoses, cleaning supplies, equipment stands and casters are listed in the
price list.

FLOOR MODELS: Tubular stainless steel legs and stainless steel

stablilzing under shelf to bring the tank surface to 36".

America’s Oldest Stove Company

(Est. 1838)

JOB ITEM #

FUNNEL CAKE

FRYERS

Comstock-Castle Stove Co. • 119 W. Washington • Quincy, IL 62301 USA

Tel.: [phone] • Telefax: 217-223-0007 • www.castlestove.com

SPECIFICATIONS

Model 2923SF 2932SF 2941SF

Width

23 32 41

584 813 1054

Depth

28.5 28.5 28.5
724 724 724

Height

20 20 20

508 508 508

Total BTU 60,000 90,000 120,000
Approx. Ship 125 150 175
Weight 57 68 80

TANK INTERIOR

Width 20.25 29.25 38.25
Height 4.25 4.25 4.25
Length 21 21 21

FRYER TANK FILL CHART GUIDE

Gallons 3.5 - 4 5.5 - 6 7.5 - 8
Liters 16 - 18 25 - 27 34 - 36

in.
mm.
in.
mm.
in.
mm.

lbs.
kgs.

[Based on Soybean Oil with a specific gravity of 0.927 at 15°C (59°F).]

This chart is intended to be a guide. Adjustments may be made to
accommodate the cooking demands of various establishments.

in.
in.
in.

Model 2932SF

24

Standard Features & Benefits

®

®

®

®

32"

5"

11"

4"

front view

28.5"

5"

side view

4.25"

29.25"

3.75"
