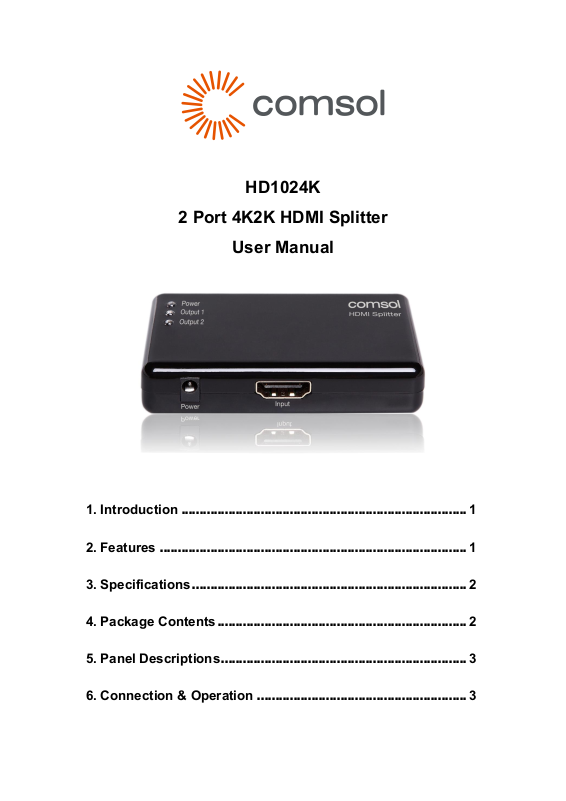

HD1024K
2 Port 4K2K HDMI Splitter
User Manual
1. Introduction ............................................................................... 1
2. Features ..................................................................................... 1
3. Specifications ............................................................................ 2
4. Package Contents ..................................................................... 2
5. Panel Descriptions .................................................................... 3
6. Connection & Operation .......................................................... 3
Page 2
2 Port HDMI Splitter
1
2 Port HDMI Splitter
Thank you for purchasing this 2 Port 4K2K HDMI Splitter. For optimum
performance and safety, please read these instructions carefully before
connecting or operating this product. Please keep this user manual for future
reference
1. Introduction
This HDMI splitter takes the HDMI audio and video signal from one source and
simultaneously outputs them to two HDTVs or HDMI displays. Ideal for DVD,
Blu-ray player, set top box, media player, gaming console, foxtel box, computer
or other HDMI source.
2. Features
• Simultaneously display one HDMI source to two HDTVs or HDMI displays
• Simply connect and enjoy - no setup or adjustments required
• Supports 4K Ultra HD 2160p (3840 x 2160) @30Hz
• Supports Full HD 1080p (1920 x 1080) @60Hz
• Supports HDMI formats 2160p, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
• Supports HDR (High Dynamic Range)
• Supports all current 3D formats
• Supports 36-bit deep colour
• 32 channel digital audio supports Dolby® True HD and DTS-HD
• Supports HDCP 1.3 (High-bandwidth Digital Content Protection)
• 3 x LEDs to indicate power and output status
• Compliant with HDMI version 1.4
• Compact and lightweight design
Page 3
2 Port HDMI Splitter
2
3. Specifications
Input Connector
1 x HDMI Female Connector
Output Connectors
2 x HDMI Female Connectors
Maximum Resolution
3840 x 2160 @30Hz
Video Bandwidth per Channel
340MHz/3.4Gbps
Total Video Bandwidth
10.2Gbps
HDCP Version
HDCP 1.3
HDMI Version
HDMI v1.4
Operating Temperature
0℃ to 70℃
Operating Humidity
10% to 85% RH (no condensation)
Storage Temperature
-10℃ to +80℃
Storage Humidity
5% to 90% RH (no condensation)
Power Supply
5V DC
Power Consumption (Max)
5W
4. Package Contents
• 2 Port HDMI Splitter
• 5V DC Power Adapter
• User Manual
Page 4
2 Port HDMI Splitter
3
5. Panel Descriptions

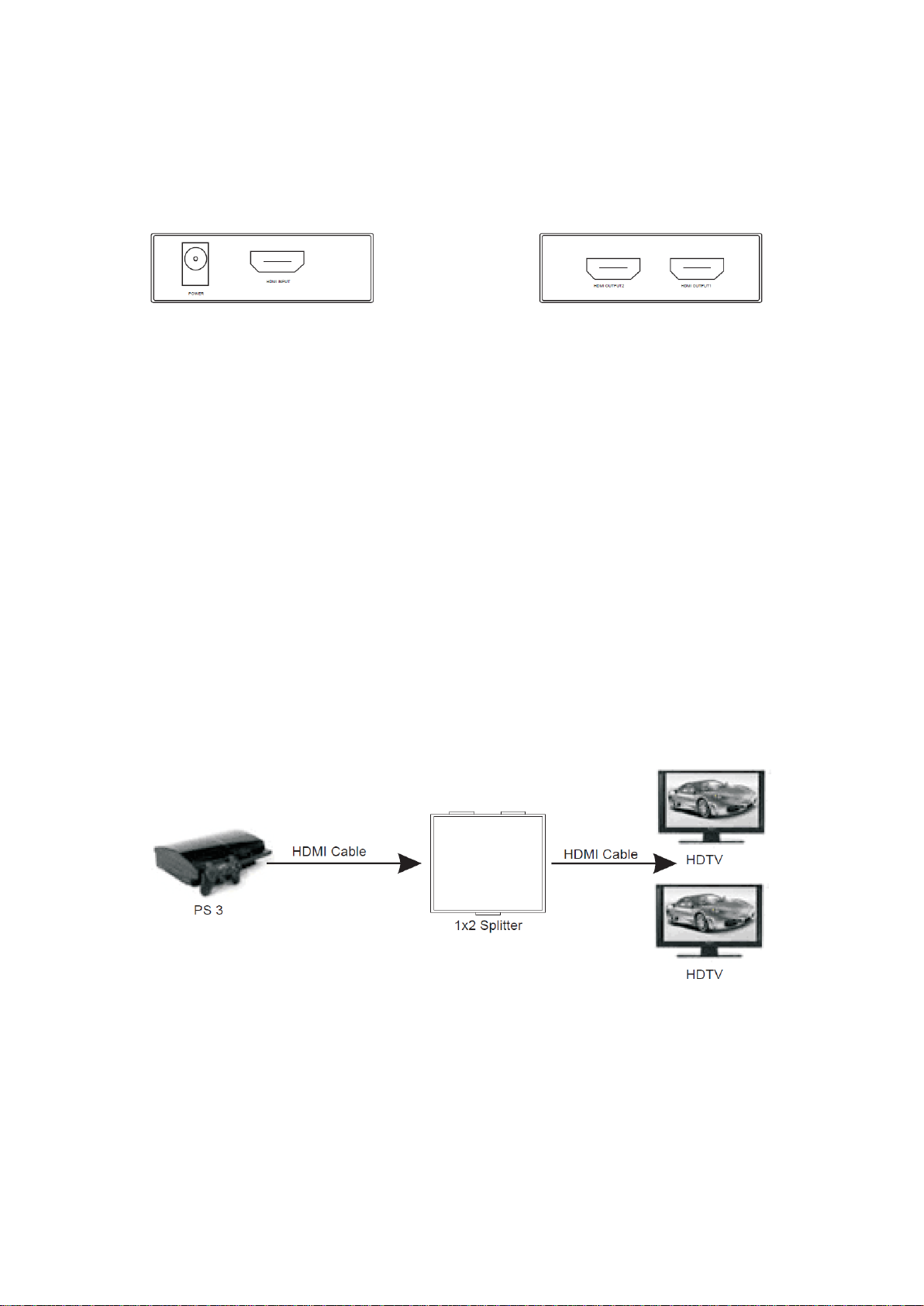

6. Connection & Operation
1. Connect one end of an HDMI cable into the input port of the splitter and
the other end of the cable into the output port of your source device such
as set top box, media player, Blu-ray player, foxtel box, gaming console or
computer.
2. Connect one end of an HDMI cable into the output 1 port of the splitter
and the other end of the cable into the HDMI port on your HDTV or HDMI
monitor.
3. Repeat step 2 for output 2
4. Plug the AC power adapter into the power port on the splitter.
