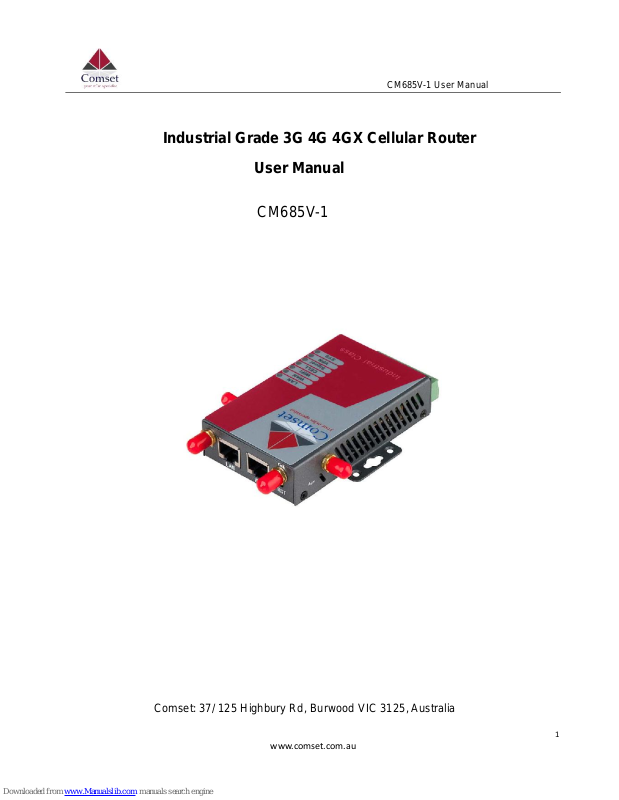

CM685V-1 User Manual
1
www.comset.com.au
Industrial Grade 3G 4G 4GX Cellular Router
User Manual
CM685V-1
Comset: 37/ 125 Highbury Rd, Burwood VIC 3125, Australia
CM685V-1 User Manual
2
www.comset.com.au
Table of Contents
1 Product Introduction·························································································································································· 5
1.1 Product overview ······················································································································ 5
1.2 Typical Application Diagram···································································································· 6
1.3 Features····································································································································· 6
2 Hardware Installation························································································································································· 7
2.1 Overall Dimensions··················································································································7
2.2 Ports············································································································································8
2.3 Powering up the CM685V-1···································································································· 9
2.4 SIM/UIM card···························································································································· 9
2.5 Terminal block ···························································································································9
2.6 Grounding································································································································11
2.7 Power Supply··························································································································11
2.8 LED Description······················································································································ 11
3 Software configuration·····················································································································································14
3.1 Overview·································································································································· 14
3.2 How to log into the Router·····································································································14
3.3 Router status··························································································································· 17
3.3.1 Status overview···················································································································· 17
3.3.2 Network status····················································································································· 18
3.3.3 Firewall status······················································································································ 21
3.3.4 Routes···································································································································21
3.3.5 System log····························································································································22
3.3.6 Kernel log······························································································································22
3.3.7 Realtime graphs···················································································································23
3.4 System Configuration·············································································································24
3.4.1 Setup wizard························································································································ 24
3.4.2 System·································································································································· 28
3.4.3 Password······························································································································30
3.4.4 NTP········································································································································30
3.4.5 Backup/Restore···················································································································31
3.4.6 Upgrade································································································································31
3.4.7 Reset·····································································································································33
CM685V-1 User Manual
3
www.comset.com.au
3.4.8 Reboot··································································································································· 34
3.5 Services configuration············································································································ 34
3.5.1 ICMP check··························································································································34
3.5.2 VRRP···································································································································· 36
3.5.3 Failover (link backup)·········································································································· 37
3.5.4 DTU·······································································································································39
3.5.5 SNMP····································································································································41
3.5.6 GPS (optional)····················································································································· 43
3.5.7 SMS·······································································································································45
3.5.8 VPN·······································································································································48
3.5.8.1 IPSEC································································································································48
3.5.8.2 PPTP··································································································································49
3.5.8.3 L2TP··································································································································· 52
3.5.8.4 OpenVPN··························································································································53
3.5.8.5 GRE tunnel························································································································ 55
3.5.9 DDNS···································································································································· 56
3.5.10 Connect Radio Module····································································································· 58
3.6 Network Configuration··········································································································· 60
3.6.1 Operation Mode··················································································································· 60
3.6.2 Mobile configuration············································································································61
3.6.3 Cell mobile data limitation··································································································62
3.6.4 LAN settings························································································································· 63
3.6.5 Wired-WAN···························································································································66
3.6.6 WiFi Settings························································································································ 67
3.6.6.1 Wifi General configuration ······························································································ 68
3.6.6.2 WiFi Advanced Configuration·························································································69
3.6.6.3 WiFi Interface Configuration··························································································· 70
3.6.6.4 WiFi AP client····················································································································72
3.6.7 Interfaces Overview ············································································································ 74
3.6.8 Firewall··································································································································75
3.6.8.1 General Settings···············································································································75
3.6.8.2 Port Forwards···················································································································75
3.6.8.3 Traffic rules························································································································ 76
3.6.8.4 DMZ····································································································································80
3.6.8.5 Security······························································································································81
3.6.9 Static Routes························································································································ 82
3.6.10 Switch··································································································································82
3.6.11 DHCP and DNS················································································································· 83
3.6.12 Diagnostics························································································································· 85
3.6.13 Loopback Interface··········································································································· 86
3.6.14 Dynamic Routing··············································································································· 86
3.6.15 QoS·····································································································································88
CM685V-1 User Manual
4
www.comset.com.au
Copyright © COMSET 2017
Comset is a registered trademark of Comset. Other brands used in this manual are trademarks
of their registered holders.
Specifications are subject to change without notice. No part of this manual may be reproduced
without the consent of Comset. All rights reserved.
WARNING: Keep at least a 20 cm distance between the user’s body and the modem
router device.
Address： 37/ 125 Highbury Road, Burwood VIC 3125, Australia
Web：
http://www.comset.com.au
Phone: +61 3 9001 9720
Fax: +61 3 9888 7100
CM685V-1 User Manual
5
www.comset.com.au
Chapter 1
1 Product Introduction
1.1 Product overview
The Comset CM685V-1 is a CAT-1 industrial grade 3G/4G/4GX WiFi Modem Router, based on the
latest OpenWrt platform. This low-cost and low-power CAT-1 router, with download speeds of up to
10Mbps and upload speeds of up to 5Mbps, is an ideal replacement to 3G devices. This allows a
smooth migration from 3G to 4G LTE, with the benefits of a lower latency and a much better
network coverage.
The Comset CM685V-1 is designed to suit Australian conditions. It is one of the few routers on the
Australian market that supports band B28 (700MHz). It enables users to quickly create a secure
and fast wireless network. It features a built-in WiFi N300 with speeds of up to 300 Mbps, one
Ethernet WAN port for fixed internet connection and one Ethernet LAN port, as well as a GPIO
with two digital output ports. Other features include VPN IPSEC, PPTP, L2TP and Open VPN to
establish a secure connection over the 3G/4G network.
The durable and rugged design makes the CM685V-1 the router of choice for remote harsh
environments. The compact design, easy integration and advanced built-in features make it
suitable for a wide range of industrial M2M applications, including industrial automation, building
automation, smart metering, security, surveillance, transportation, health, mining and
environmental monitoring.
CM685V-1 User Manual
6
www.comset.com.au
1.2 Typical Application Diagram
The Comset CM685V-1 3G/4G/4GX Router is suitable for a wide range of machine-to-machine
applications (M2M). A good example is the connection of ATM machines and POS systems
back to a server over a secure 4G connection using a secure VPN IPSEC tunnel.
1.3 Features
The CM685V-1 supports the following:
LTE FDD B1/B2/B3/B4/B5/B7/B8/B28 and LTE TDD B40 with 3G fallback to
DC-HSPA+/HSPA+/HSPA/WCDMA B1/B2/B5/B8
IEEE802.11b/g/n N300 Wi-Fi AP function, WDS bridging, WEP,WPA/WPA2
Personal/Enterprise, TKIP/AES, Authenticated encryption mode
RS232 interface data transparent transmission and protocol conversion
On-demand dialing, including time on/off-line, voice or SMS control on/off-line, data
trigger online or link idleoffline
TCP/IP protocol stack, Telnet, HTTP, SNMP, PPP,PPPoE, network protocol
VPN IPSEC, PPTP, L2TP and Open VPN
Configuration via a user-friendly interface using a web browser
CM685V-1 User Manual
7
www.comset.com.au
Chapter 2
2 Hardware Installation
1. Overall Dimensions
2. Accessories
3. Installation
2.1 Overall Dimensions
CM685V-1 User Manual
8
www.comset.com.au
2.2 Ports
LAN: LAN RJ45 Ethernet port
WAN: WAN RJ45 Ethernet port
RST: sys reset button
PWR: DC power socket. DC5~40V standard. (DC5~50V optional)
VCC: DC wire positive pole
GND: DC wire ground
GND: Serial ground
RX: Serial receive
TX: Serial transmit
RST: Reset
DIO0: Digital I/O port 0
DIO1: Digital I/O port 1
NC: Not connected
WPS: WPS button
CM685V-1 User Manual
9
www.comset.com.au
Antenna Connections Table
Antenna Connector
Marks
Cell
for main cell antenna
Aux
for auxiliary cell antenna
WiFi 1
for WiFi-1 antenna
WiFi 2
For WiFi-2 antenna
GPS
for GPS antenna (optional)
2.3 Powering up the CM685V-1
Please ensure the SIM card is inserted, and the antennas are connected before powering up
the router.
2.4 SIM/UIM card
If your router has a SIM/UIM card cover, please remove it and have the SIM card properly
inserted.
2.5 Terminal block
Please refer to the following table on Pin description relating to the terminal block:
CM685V-1 User Manual
10
www.comset.com.au
.
Attention:
1. If you are not using the AC adapter supplied with the router, and if you wish to power
up the unit using the terminal block, the power cable should be wired with the correct
voltage polarity. Wrong wiring will destroy the equipment. Pin 1 and Pin 2 are reserved
for power, where Pin 2 is “GND” and PIN 1 is power input “Vin”(DC5~40V).
I/O Terminal on router
Serial port (RS485 or
RS232)
PIN
Signal
Description
Note
1
VCC
+5-40V DC Input,
+5~50V optional
Current: 12V/1A
2
GND
Ground
3
GND
Ground
4RXReceive Data
5TXTransmit Data
6
RST
Reset
The Reset Pin has the same
function as the reset button.
Simply short the RST pin with
the GND Pin and hold for 3 sec
and the device will restore to
factory settings. If you hold for
1 sec, the router will reboot.
7
DIO0
General Purpose
I/O
8
DIO1
General Purpose
I/O
9NCNot connected
10NCNot connected
CM685V-1 User Manual
11
www.comset.com.au
Pin 3 (GND)
Pin 5
Pin 4 (RX)
Pin 2
Pin 5 (TX)
Pin 3
Note: If you do not get a serial connection, try to switch Pin 4 and Pin 5.
2.6 Grounding
To ensure a safe operation, the cabinet where the router is installed should be grounded
properly.
2.7 Power Supply
The CM685V-1 supports a wide range of DC voltage between 5 VDC and 40 VDC. The
router is supplied with a 12 VDC power adapter.
2.8 LED Description
Please refer to the following table for LED description.
CM685V-1 User Manual
12
www.comset.com.au
LED
Indication Light
Description
SYS
On for 25 seconds
On for 25 seconds after power up
Blink
System set-up normally
Off or still on after 25
seconds
System set-up failure
LAN
Blink
Ethernet data transmission
Off
No Ethernet connection
On
Ethernet is connected
VPN
On
VPN tunnel set-up
Off
VPN tunnel not set-up or VPN failure
CELL
On
Cell connection is ‘UP’and now you have access
to the Internet
CM685V-1 User Manual
13
www.comset.com.au
WIFI
On
WiFi enabled
Off
WiFi disabled
WAN
Blink
Ethernet data transmission
Off
No Ethernet connection
On
Ethernet is connected
Signal
Off
No signal, or signal checking is not ready
Blinks once every 4s
Signal bar is 1
Blinks once every 3s
Signal bar is 2
Blinks once every 2s
Signal bar is 3
Blinks once every 1s
Signal bar is 4
Blinks twice every 1s
Signal bar is 5
CM685V-1 User Manual
14
www.comset.com.au
Chapter 3
3 Software configuration
1. Overview
2. How to log into the router
3. How to configure the router
3.1 Overview
The CM685V-1 router has a built-in WEB interface. Below are instructions on how to access
the web interface and configure the router.
3.2 How to log into the Router
3.2.1 Network Configuration
The router’s default parameters are:
Default IP: 192.168.1.1
Subnet mask: 255.255.255.0
There are two ways to configure the IP address of your PC.
1) Manual settings
Set the PC IP to 192.168.1.xxx (xxx = 2~254), subnet mask: 255.255.255.0, default
gateway: 192.168.1.1, primary DNS: 192.168.1.1.
CM685V-1 User Manual
15
www.comset.com.au
2) DHCP settings
Choose “Obtain an IP address automatically” and “Obtain DNS server address
automatically”. Then click the ‘OK’ button.
CM685V-1 User Manual
16
www.comset.com.au
3.2.2 Log into the router
Open a Web browser and type http://192.168.1.1 into the address field, then press
“Enter”.
Type in the username and password. Both User Name and Password are “admin”.
Then click on the “Login” button.
To configure the router, you can skip the following section “Router status” and go straight to
System> Setup wizard which is covered in section 3.4.1
CM685V-1 User Manual
17
www.comset.com.au
3.3 Router status
3.3.1 Status overview
Click “Status” in the navigation bar, and then click “Overview”.
CM685V-1 User Manual
18
www.comset.com.au
3.3.2 Network status
The Network status page consists of 3 tabs, detailing information about the cell mobile
interface, WAN and LAN.
Cell mobile interface page:
CM685V-1 User Manual
19
www.comset.com.au
WAN status page:
CM685V-1 User Manual
20
www.comset.com.au
LAN status page:
CM685V-1 User Manual
21
www.comset.com.au
3.3.3 Firewall status
The Firewall status page shows the IPv4 and IPv6 rules and counters. Here, you can reset the
counters and restart the firewall functionality.
3.3.4 Routes
The Routes page shows rules which are currently active on the router. An ARP table is
displayed as well.
CM685V-1 User Manual
22
www.comset.com.au
3.3.5 System log
This page shows the system log from system boot up. The system log resets when the router
is restarted. You can export the system log by clicking the button “Export Syslog”.
3.3.6 Kernel log
This page shows the kernel log from system boot up. This log is not saved when the router is
restarted. It can be exported by clicking the button “Export Log”.
CM685V-1 User Manual
23
www.comset.com.au
3.3.7 Realtime graphs
The realtime graphs page shows the system load and interfaces traffic in realtime.
CM685V-1 User Manual
24
www.comset.com.au
3.4 System Configuration
3.4.1 Setup wizard
When you login to the router for the first time, you will need to configure the Setup Wizard
page. This page consists of 4 sections:
General
Mobile
LAN
WiFi
Fill in parameters as required, then click “Save & Next”.
CM685V-1 User Manual
25
www.comset.com.au
Enable: Enable mobile network;
Mobile connection: Select a suitable mode for the mobile connection. The default value
is ‘DHCP mode’;
APN: Fill in the related value. This can be obtained from your carrier or SIM Card
Provider;
PIN code: Most SIM cards don’t have a PIN code, in which case you leave this field
blank;
Dialing number: Fill in the related value. The default value is *99#. This can be obtained
from your carrier or SIM Card Provider;
Authentication method: There are three options to choose from (None, PAP, CHAP).
Please confirm with your carrier the type of authentication. Default is None;
Username: Fill in the related value. This can be obtained from your carrier or SIM Card
Provider;
Note: If your SIM card has no user name, please input the default value, otherwise the router
may not dialup. If the Authentication method is ‘None’, this option will not appear.
Password: Fill in the related value. This can be obtained from your carrier or SIM Card
Provider.
Network Type: Different Cell Modems support different types. The default value is
Automatic.
CM685V-1 User Manual
26
www.comset.com.au
MTU: Maximum Transmission Unit. It is the maximum size of packets transmitted on the
network. The default value is 1500. Please configure it to optimise your own network.
When finished, click “Save & Next”
Fill in parameters as required. When finished, click “Save & Next”
CM685V-1 User Manual
27
www.comset.com.au
Fill in parameters as required, then press “Finish”. Note: pressing the button “Save & Next” will
save the configuration of the current page and jump to the next page. All configurations will be
applied when you click the button “Finish” on this last page (WiFi).
CM685V-1 User Manual
28
www.comset.com.au
3.4.2 System
General Settings
Local Time
This page shows the system time. You can sync the time with the browser by clicking the
button “Sync with browser”.
Hostname
It is the router’s name. The default name is “CM685V_W”
Time zone
Select a suitable time zone. The default value is “Australia/Melbourne”
CM685V-1 User Manual
29
www.comset.com.au
Logging
System log buffer size
The unit is KB. The default value is 64 KB. If the actual log size exceeds the set value, thenthe
first lines of data will be lost.
External system log server
Here you enter the IP address of the external log server. You can setup a Linux machine with
syslogd run as a log server.
External system log server port
This is the UDP port of the external log server.
Log output level
This is the Log level. The default is ‘Debug’ with highest level. Emergency is the lowest level.
Cron log level
It is the log level to process Crond.
Language and Style
The default language is “English”.
CM685V-1 User Manual
30
www.comset.com.au
3.4.3 Password
Here you can change the administrator’spassword for accessing the device. Click the “eye button”
to show the new password you entered.
3.4.4 NTP
NTP is Network Timing Protocol.
Enable NTP client
The default value is checked. The router acts as a NTP client.
Provide NTP server
The default value is unchecked. The router acts as a NTP server.
CM685V-1 User Manual
31
www.comset.com.au
NTP server candidates
It is the NTP server list. Multiple NTP servers are accepted. You can click the button to
delete an entry, or click the button to add a new entry.
3.4.5 Backup/Restore
To backup the configuration files, click the button “Download”. Then an archive file will be
generated and downloaded to your PC automatically.
To restore the configuration files, click the button “Choose File” and select an archived
configuration file. Click the button “Upload”. The system will upload the file and then restart
the router.
3.4.6 Upgrade
Upload a system compatible firmware to replace the current firmware. The default value for “Keep
CM685V-1 User Manual
32
www.comset.com.au
settings” is checked, which means the existing configuration will be kept after the system upgrade,
otherwise the router will be reset to factory settings. We recommend to un-check “Keep settings”
to prevent conflicting parameters after the firmware upgrade.
Click the button “Choose File” and select a compatible firmware, then click the button “Upload
image”. The router will run a basic check of the file. If it is an incompatible file, an error message
will appear like this one below:
If the firmware file is ok, a verification message will appear. Click the button “Proceed”, and the
system will restart after a few minutes.
CM685V-1 User Manual
33
www.comset.com.au
3.4.7 Reset
This button resets all configurations to factory default. After clicking the button “Reset”, a message
will appear prompting you to confirm. By clicking “OK”, the router will reset to factory default and
the system will restart.
CM685V-1 User Manual
34
www.comset.com.au
3.4.8 Reboot
Click the button “Reboot” and the system will restart.
3.5 Services configuration
3.5.1 ICMP check
For a stable operation, we suggest you enable ICMP check. With this feature, the router will
periodically ping a hostname and automatically restart when a problem is detected.
CM685V-1 User Manual
35
www.comset.com.au
Enable: Enable ICMP check feature
Host1 to ping / Host2 to ping: The domain name or IP address for checking the network
connection.
Ping timeout:After a ping packet is sent, if the response packet is not received before the
timeout, then this ping has failed.
Max retries: When the number of failed pings reaches the “Max retries”, this will trigger the
action configured in item “Action when failed”.
Interval between pings: The time between two pings in minutes.
Action when failed: the options are “Restart module” and “Restart router”. “Restart module”
will restart the radio module. “Restart router” will restart the whole system including the radio
module.
CM685V-1 User Manual
36
www.comset.com.au
3.5.2 VRRP
Enable: Enable VRRP (Virtual Router Redundancy Protocol) for LAN.
IP address: Virtual IP address for LAN’s VRRP cluster. IP address entry can be deleted by
clicking the button , or added by clicking the button .
Virtual ID: Routers with the same IDs will be grouped in the same VRRP cluster. The legal
number is from 1 to 255.
Priority: The router with the highest priority in the same VRRP cluster will act as a master. The
legal number is from 1 to 255.
CM685V-1 User Manual
37
www.comset.com.au
3.5.3 Failover (link backup)
CM685V-1 User Manual
38
www.comset.com.au
Enable: Enable failover feature
Back to high priority: If “back to high priority” is checked, the router will go back to the
selected “high priority” WAN interface when available. The priorities can be set to primary,
secondary and third priority. There are four options to choose from: Wired-WAN, Wifi_client,
Cell_mobile, and None.
Host1 to ping / Host2 to ping: The domain name or IP address for checking the network
connection.
Ping timeout: After a ping packet is sent, if the response packet is not received before the
timeout, then this ping has failed.
Max retries: When the number of failed pings reaches the “Max retries”, this will confirm that
the WAN interface is unavailable.
Interval between pings: The time between two pings in seconds.
CM685V-1 User Manual
39
www.comset.com.au
3.5.4 DTU
Notes:
1) This feature is for the CM685V-1 with DTU option only.
2) This feature conflicts with the “Connect Radio module” and “GPS send to serial”
features. Please disable “DTU” when using either of the above two functions.
CM685V-1 User Manual
40
www.comset.com.au
Enable: Enable DTU feature.
Send DTU ID: Send DTU ID at the front of the packet.
DTU ID: The default DTU ID is the SN of the router. You can change it if required.
Forward delay:This unit is in milliseconds. It isthe time delay when sending data between the
serial port and the network.
Serial baudrate: Supports 300/1200/2400/4800/9600/19200/38400/57600/115200bps
Serial parity: Can be none, odd or even
Serial databits: Can be 7 bits or 8 bits
Serial stopbit: Can be 1 bit or 2 bits
Protocol: Both TCP and UDP are supported
Service mode: Client and Server are supported.
Enable heartbeat: The heartbeat is used to maintain the “keep alive” connection.
Heartbeat interval: The time between two heartbeat packets.
Heartbeat content: The content of heartbeat packets.
DTU center Configuration: The DTU centre is the DTU server. Simply input the centre name
and click the button “Add”.
If the centre is not needed, you can delete it by clicking the button “Delete”, or set it to
‘Disabled’.
Notes:
The maximum number of DTU centers is 32.
CM685V-1 User Manual
41
www.comset.com.au
3.5.5 SNMP
Enable SNMP: Enable the SNMP feature
Remote Access: Allow SNMP remote access. If it is unchecked, only the LAN subnet can
access SNMP.
Contact: Set the contact information here.
Location: Set the router’s physical address.
Name: Set the router’s name in SNMP.
Port: SNMP service port, the default value is 161.
Get Community: The username for SNMP get. The default value is ‘public’. SNMP get is
read-only.
CM685V-1 User Manual
42
www.comset.com.au
Get Host/Lan: The network range to get the router via SNMP, default is ‘0.0.0.0./0’
Set Community: The username for SNMP set. The default value is ‘private’. SNMP set is
read-write.
Set Host/Lan: The network range to set the router via SNMP, default is ‘0.0.0.0./0’
User: SNMPv3 username
Security Mode: Three options: None, Private and Authorised. If it is set to ‘None’, there is no
password required. If it is set to ‘Authorised’, only Authentication method and password are
required.
Authentication: Authentication method with two options: MD5 and SHA.
Encryption: Encryption method DES and AES supported.
Authentication password: SNMPv3 authentication password is at least 8 characters long.
Encryption password: SNMPv3 encryption password is at least 8 characters long.
After all items are setup, click the button “Save & Apply” to enable SNMP functionality.
CM685V-1 User Manual
43
www.comset.com.au
3.5.6 GPS (optional)
Enable: Check this button to enable GPS.
Only GPRMC: If checked, it will only send GPRMC data info (Longitude Latitude altitude)
Prefix SN No.: If checked, it will add the router’s SN to the data packet.
Send interval: Set the frequency of GPS data packets being sent.
GPS Send to: Choose between “Serial” and “TCP/IP”. The router will only receive the GPS
signal and will not process it. It will send this GPS signal to your GPS processor devices or
servers. If the GPS processor device is connected to the CM685V-1 Router via a Serial Port,
please choose “Serial”.
If the GPS processor device is a remote server, please choose “Serial”.
GPS to TCP/UDP Settings
Server IP: Fill in the correct destination server IP or domain name.
Server port: Fill in the correct destination server port.
CM685V-1 User Manual
44
www.comset.com.au
Serial baudrate: 9600/19200/38400/57600/115200bps
Serial parity: none/odd/even
Serial databits: 7/8
Serial stopbits: 1/2
Serial flow control: none/hardware/software
CM685V-1 User Manual
45
www.comset.com.au
3.5.7 SMS
SMS Command
Enable: Check it to enable the SMS command feature.
SMS ACK: If checked, the router will send the command feedback to the sender’s mobile
phone number.
Reboot Router Command: Input the command for “reboot” operation, default is “reboot”.
Get Cell Status Command: Input the command for “router cell status” operation, default is
“cellstatus”.
Set cell link-up Command: Input the command for “router cell link up” operation, default is
“cellup”. If the router gets this command, the Router Cell will go online.
Set cell link-down Command: Input the command for “router cell link down” operation,
default is “celldown”. If the router gets this command, the Router Cell will go offline.
CM685V-1 User Manual
46
www.comset.com.au
DIO_0 Set Command: Input the command for I/O port 0. For SMS feature, please keep the
default parameters.
DIO_0 Reset Command: Input the command for I/O port 0. For SMS feature, please keep the
default parameters.
DIO_1 Set Command: Input the command for I/O port 1. For SMS feature, please keep the
default parameters.
DIO_1 Reset Command: Input the command for I/O port 1. For SMS feature, please keep the
default parameters.
DIO Status Command: Input the command for I/O port status. For SMS feature, please keep
the default parameters.
Wifi on Command: input the command for turning on WiFi. For SMS feature, please keep the
default parameters.
Wifi off Command: input the command for turning off WiFi. For SMS feature, please keep the
default parameters.
SMS alarm
SMS Alarm: Enable the SMS alarm feature.
Enable Signal Quality Alarm: Enable Signal Quality Alarm feature.
Signal Quality Threshold: Set the signal quality threshold.
Failed Times Threshold: If the failed counter exceeds this threshold, a signal alarm
will be generated.
Success Times Threshold: If a signal alarm is generated, and the success counter is
greater or equal to the Success Times Threshold, this will clear the signal alarm.
CM685V-1 User Manual
47
www.comset.com.au
Phone Number
Add Phone number: Input a name and click the button “Add” to add a new Phone
number.
Delete Phone number: Click the button “Delete”.
SMS command: Enable the SMS command feature on this phone number.
SMS alarm: This phone number can receive SMS alarms.
SMS
Receiver Phone Number: The phone number that receives SMS messages.
Message: Message content.
Submit: Click the button “Submit” to send the message immediately.
CM685V-1 User Manual
48
www.comset.com.au
3.5.8 VPN
3.5.8.1 IPSEC
Enable: Enable IPSEC feature
Exchange mode: IKEv1-Main, IKEv1-Aggressive and IKEv2-Main modes are
supported.
Authentication method: Client and Server. Client is the machine which starts the
IPSEC connection.
Remote VPN endpoint: Domain name or IP address of the remote endpoint. This
needs to be accessed over the internet.
Preshared Keys: This is known as PSK. The length is 16 to 32.
Local subnet: The local subnet which connects to the IPSEC VPN.
Remote subnet: The remote subnet which connects to the IPSEC VPN.
CM685V-1 User Manual
49
www.comset.com.au
Note:
All configurations in Phase 1 Proposal and Phase 2 Proposal must match with the remote
endpoint to establish an IPSEC connection.
3.5.8.2 PPTP
CM685V-1 User Manual
50
www.comset.com.au
This pageshows a list of configured PPTP instances and their state. Click the button “Edit” to make
changes to an instance, or click the button “Delete” to delete it.
PPTP Client configuration
Enable: Enable this instance.
Server: Domain name or IP address of PPTP server.
Username: Server authentication username.
Password: Server authentication password.
MTU: Maximum Transmission Unit.
Keep Alive: Number of unanswered echo requests before considering the peer dead.
The interval between echo requests is 5 seconds.
Use default gateway: If unchecked, no default route is configured.
Use DNS servers advertised by peer: If unchecked, the advertised DNS server
addresses are ignored.
CM685V-1 User Manual
51
www.comset.com.au
PPTP Server Configuration
Local IP: Indicates the server’s IP address.
Remote IP: The remote IP address lease start.
Remote IP end: The remote IP address lease end.
ARP Proxy: If the remote IP has the same subnet as the LAN, check it for connecting
with each other.
Debug: For PPTP server debug, the log can be monitored in the system log.
Username: Server authentication username
Password: Server authentication password.
CM685V-1 User Manual
52
www.comset.com.au
3.5.8.3 L2TP
This page showsa list of configured L2TP instances and their state. Click the button “Edit” to make
changes to an instance, or click the button “Delete” to delete it.
L2TP Client configuration
Enable: Enable this L2TP instance.
Server: Domain name or IP address of L2TP server.
Username: Server authentication username.
Password: Server authentication password.
MTU: Maximum Transmission Unit.
Keep Alive: Number of unanswered echo requests before considering the peer dead.
The interval between echo requests is 5 seconds.
Checkup Interval: Number of seconds to pass before checking if the interface is not
up since the last setup attempt and retry the connection otherwise. Set it to a value
sufficient for a successful L2TP connection for you. It's mainly for the case that netifd
sent the connect request yet xl2tpd failed to complete it without the notice of netifd.
CM685V-1 User Manual
53
www.comset.com.au
L2TP Server configuration
Local IP: Indicates the server’s IP address.
Remote IP range begin: The remote IP address lease start.
Remote IP range end: The remote IP address lease end.
Remote LAN IP: L2TP client IP.
Remote LAN netmask: The mask of L2TP client IP, the default value is 255.255.255.0
Username: Server authentication username.
Password: Server authentication password.
3.5.8.4 OpenVPN
This page is a list of configured OpenVPN instances and their state. Click the button “Edit” to make
changes to an instance, or click the button “Delete” to delete it. Click the button “Start” or “Stop” to
start or stop a specific instance.
CM685V-1 User Manual
54
www.comset.com.au
Note: For OpenVPN configuration help, hover the cursor over the item to get more information. If
the item you need is not shown on the main page, please check the “Additional Field”dropdown list
at the bottom of the page.
CM685V-1 User Manual
55
www.comset.com.au
3.5.8.5 GRE tunnel
Enable: Enable GRE tunnel feature.
TTL: Time-to-live.
MTU: Maximum Transmission Unit.
Peer IP address: Remote WAN IP address.
Remote Network IP: Remote LAN subnet address.
Remote Netmask: Remote LAN subnet mask.
Local Tunnel IP: Virtual IP address. This cannot be in the same subnet as the LAN
network.
Local Tunnel Mask: Virtual IP mask.
Local Gateway: Local gateway
CM685V-1 User Manual
56
www.comset.com.au
3.5.9 DDNS
DDNS allows a router to be reached via a fixed domain name while having a dynamically changing
IP address.
Enabled: Enable this instance.
IP address version: IPv4 and IPv6 supported.
DDNS Service provider: Select a suitable provider.
Hostname/Domain: The Domain name to remotely access the router.
CM685V-1 User Manual
57
www.comset.com.au
IP address source: Defines the source of the systems IPv4-Address which will be
sent to the DDNS provider. We recommend the option ‘Network’.
Network: Defines the network of the systems IPv4-Address.
DNS-server: OPTIONAL: Use non-default DNS-Server to detect 'Registered IP'. IP
address and domain name are required.
Log to syslog: Writes log messages to the syslog. Critical errors will always be
written to the syslog.
Log to file: Writes detailed messages to the log file. File will be truncated
automatically.
Check Interval: The minimum check interval is 1 minute=60seconds.
Force interval: The minimum check interval is 1 minute=60seconds.
Error Retry Counter: On Error, the script will stop execution after a given number of
retries. The default settings of ‘0’ will retry indefinitely.
CM685V-1 User Manual
58
www.comset.com.au
Read the log file of DDNS.
3.5.10 Connect Radio Module
The Connect Radio Module feature is used for exchanging data between Radio module and serial.
Note:
This feature conflicts with the “DTU” and “GPS sent to serial” functions. Please make
sure the other two features are disabled before enabling the Connect Radio Module.
Otherwise, the following error will appear:
CM685V-1 User Manual
59
www.comset.com.au
Connect Mode: Serial only
Modem to Serial Settings
Serial baudrate: 9600/19200/38400/57600/115200bps
Serial parity: none/odd/even
Serial databits: 7 bits/ 8 bits
Serial stopbit: 1 bit/ 2 bits
Serial Flow Control: none/hardware/software
CM685V-1 User Manual
60
www.comset.com.au
3.6 Network Configuration
3.6.1 Operation Mode
Operation mode
Bridge: All Ethernet and wireless interfaces are bridged into a single bridge interface.
Gateway: The first Ethernet port is treated as a WAN port. The second Ethernet port
and the wireless interface are bridged together and are treated as LAN ports.
AP Client: The wireless apcli interface is treated as a WAN port and the wireless AP
interface and the Ethernet ports are treated as LAN ports.
NAT Enabled
Network Address Translation. Default is Enabled.
Ethernet WAN port:
Wired-WAN port acts as WAN
Wired-WAN port acts as LAN
The default operation is in “Gateway mode”.
CM685V-1 User Manual
61
www.comset.com.au
3.6.2 Mobile configuration
The router supports several cell modems. If you replace the original cell modem with a different
one, the router will automatically detect the new modem.
Enable: Enable mobile network;
Mobile connection: Select a suitable mode for the mobile connection. The default value
is DHCP mode;
APN: Fill in the related value. This can be obtained from your carrier or SIM Card
Provider;
PIN number: Most SIM cards don’t have a PIN number, in which case you leave this field
blank;
Dialing number: Fill in the related value. This can be obtained from your carrier or SIM
Card Provider;
Authentication method: There are three options to choose from (None, PAP, CHAP).
Please confirm with your carrier the type of authentication. Normally select None;
Username: Fill in the related value. This can be obtained from your carrier or SIM Card
Provider;
Note: If your SIM card has no username, please input the default value, otherwise the router
may not dialup. If the authentication method is ‘None’, this option will not appear.
Password: Fill in the related value. This can be obtained from your carrier or SIM Card
Provider.
CM685V-1 User Manual
62
www.comset.com.au
Network Type: Different Cell Modems support different types. The default value is
Automatic.
MTU: Maximum Transmission Unit. It is the maximum size of packets transmitted on the
network. The default value is 1500. Please configure it to optimise your own network.
Online Mode
Keep Alive: Means always online. The router will keep online whether there is data for
transmission or not.
On Demand: The router will dialup only when there is data for transmission.
Idle time (minutes): Fill in the time. For example, if you fill in 5, the router will go offline
after 5 minutes if there is no data for transmission.
Scheduled: The router will dialup or go offline depending on the schedule.
3.6.3 Cell mobile data limitation
Enable data limitation:
Period: Month, Week or Day.
Start day: The first day of the period.
SIM data limit (MB): The maximum data that can be used during this period. If it is exceeded,
the router will terminate the cell mobile connection.
Enable alarm: Enable ‘data limitation’ alarm.
Phone number: The phone number that receives the data limitation alarm SMS.
Warning percent of data used: If the used data reaches this level, a data limitation alarm SMS
will be sent.
Used (MB): The data that has been consumed so far during this period.
CM685V-1 User Manual
63
www.comset.com.au
3.6.4 LAN settings
Protocol: Only static address is supported for LAN.
Use custom DNS servers: Multiple DNS servers are supported.
IPv6 assignment length: Assign a part of given length of every public IPv6-prefix to LAN
interface.
IPv6 assignment hint:Assign prefix parts using this hexadecimal sub prefix ID for LAN
interface.
Bring up on boot: If checked, the LAN interface will be set to ‘up’ upon system boot-up. If
unchecked, the LAN interface will be ‘down’. Don’t uncheck it if not required.
CM685V-1 User Manual
64
www.comset.com.au
Use built-in IPv6-management: The default is checked. If IPv6 is not needed, it can be
unchecked.
Override MAC address: Overrides LAN MAC address.
Override MTU: Maximum Transmission Unit.
Use gateway metric: The LAN subnet’s metric to gateway.
Bridge interfaces: LAN bridges wired-LAN and WiFi in the same LAN subnet.
Enable STP: Enable Spanning Tree Protocol on LAN. The default value is unchecked.
Ignore interface: If it is unchecked, this will disable DHCP on LAN.
Start: Lowest leased address as offset from the network address.
Limit: Maximum number of leased addresses.
Leasetime: Expiry time of leased addresses, minimum is 2 minutes (2m).
CM685V-1 User Manual
65
www.comset.com.au
Dynamic DHCP: Dynamically allocate DHCP addresses for clients. If disabled, only clients
having static leases will be served.
Force: Force DHCP on this network even if another server is detected.
IPv4-Netmask: Override the netmask sent to clients. Normally it is calculated from the subnet
that is served.
DHCP-Options: Define additional DHCP options. (For example ‘192.168.2.1 and 192.168.2.2’
which advertises different DNS servers to clients.)
CM685V-1 User Manual
66
www.comset.com.au
Router Advertisement-Service: Four options: disabled, server mode, relay mode and hybrid
mode.
DHCPv6-Service: Same options as above.
NDP-Proxy: Three options: disabled, relay mode and hybrid mode.
Always announce default router: Announce as default router even if no public prefix is
available.
3.6.5 Wired-WAN
Protocol: The default protocol is DHCP client. If you need to change it to a different protocol (i.e.
PPPoE), select the protocol from the drop-down menu, then click the button “Switch protocol”.
Note: the ‘Advanced Settings’ is different for different protocols. Move the mouse over the title
to get help information. We recommend you use Google Chrome.
CM685V-1 User Manual
67
www.comset.com.au
3.6.6 WiFi Settings
Wifi Restart: turnWiFi off then on.
AP Client: Scan all frequencies to get the WiFi network information.
Add: Add a new wireless network.
Disable: Disable a wireless network.
Edit: Modify settings of the wireless network.
Remove: Delete a wireless network.
Associated Stations: This is a list of connected wireless stations.
CM685V-1 User Manual
68
www.comset.com.au
3.6.6.1 Wifi General configuration
Status: Shows the WiFi signal strength, mode, SSID.
Operating frequency Mode: Supports 802.11b/g/n. the Legacy means 802.11b/g. “N” means
802.11n.
Channel: Channel 1-11.
Width: 20MHz and 40MHz.
Transmit Power: From 0dBm to 20dBm.
CM685V-1 User Manual
69
www.comset.com.au
3.6.6.2 WiFi Advanced Configuration
Country Code: Use ISO/IEC 3166 alpha2 country codes.
Distance Optimization: Distance to furthest network member in meters.
Fragmentation Threshold
RTS/CTS Threshold
CM685V-1 User Manual
70
www.comset.com.au
3.6.6.3 WiFi Interface Configuration
ESSID: Extended Service Set Identifier. It is the broadcast name.
Mode: Supported options.
Network: Choose the network(s) you want to attach to this wireless interface or fill out the
create field to define a new network.
Hide Extended Service Set Identifier: ‘Hide SSID’ means this WiFi cannot be scanned by
others.
WMM Mode
CM685V-1 User Manual
71
www.comset.com.au
Encryption:
Key: It is the password to join the wireless network. If the Encryption is set to “No Encryption”,
no password is needed.
MAC-Address Filter: MAC Address Access Policy. Disabled: disable MAC-address filter
CM685V-1 User Manual
72
www.comset.com.au
functionality. Allow list: only the MAC address in the list is allowed to forward. Deny list: all
packet is allowed to forward except MAC address in the list.
MAC-List: Click button to delete a MAC address from list, click button to add a new
MAC address to the list.
3.6.6.4 WiFi AP client
Steps 1) Click the button “AP Client” on the wireless overview page, thenthe system will start to
scan all WiFi signals.
Step 2) If the WiFi you want to join is on the list, click the button “Join Network” accordingly. If it
is not, click “Repeat Scan” until you find the WiFi that you want to join.
Step 3) Join Network Settings
Replace wireless configuration: An additional wireless network will be created if it is unchecked.
Otherwise it will replace the old configuration.
WPA passphrase: Specify the secret encryption key here.
Name of the new network: The default value is ‘wwan’. Please change it if it conflicts with other
interfaces.
Step 4) Click ‘Submit’if everything is configured. The below is the Wi-Fi configuration page.
Don’t change the operating frequency. Make sure the ESSID and BSSID are for the Wi-Fi you
want to join.
CM685V-1 User Manual
73
www.comset.com.au
CM685V-1 User Manual
74
www.comset.com.au
Step 5) Click the button “Save & Apply” to start the AP client.
3.6.7 Interfaces Overview
The “Interfaces Overview” page shows all Interfaces status, including uptime, MAC-address, RX,
TX and IP address.
CM685V-1 User Manual
75
www.comset.com.au
3.6.8 Firewall
3.6.8.1 General Settings
3.6.8.2 Port Forwards
This page includes the “Port Forwards” list and how to add new “Port Forwards” rules.
CM685V-1 User Manual
76
www.comset.com.au
Name: Port Forward instance name.
Protocol: TCP+UDP, UDP and TCP can be chosen.
External zone: The recommended option is ‘wan’.
External port: Match incoming traffic directed at the given destination port on this host.
Internal zone: The recommended zone is ‘lan’.
Internal IP address: Redirect matched incoming traffic to the specific host.
Internal port: Redirect matched incoming traffic to the given port on the internal host.
3.6.8.3 Traffic rules
Traffic rules define policies for packets traveling between different zones, for example to reject
traffic between certain hosts or to open WAN ports on the router.
The traffic rules overview page contains the following functionalities:
CM685V-1 User Manual
77
www.comset.com.au
Traffic rules list:
Open ports on router and create ‘new forward rules’:
CM685V-1 User Manual
78
www.comset.com.au
Source NAT list and create source NAT rule:
Traffic rule configuration page: This page allows you to change advanced properties of the traffic
rule entry, such as matched source and destination hosts.
CM685V-1 User Manual
79
www.comset.com.au
Name: Traffic rule entry name.
Restrict to address family: IPv4+IPv6, IPv4 and IPv6 can be selected. Specify the matched IP
address family.
Protocol: Specify the protocol matched in this rule. “Any” means any protocol is matched.
Source zone: It is the zone that the traffic comes from.
Source MAC address: Traffic rule check if the incoming packet’s source MAC address is
matched.
Source address: Traffic rule check if the incoming packet’s source IP address is matched.
Source port: Traffic rule check if the incoming packet’s TCP/UDP port is matched.
Destination zone: The zone that the traffic will go to.
Destination address: Traffic rule check if the incoming packet’s destination IP address is
matched.
CM685V-1 User Manual
80
www.comset.com.au
Destination port: Traffic rule check if the incoming packet’s TCP/UDP port is matched.
Action: If traffic is matched, the system will handle traffic according to the Action (accept, drop,
reject, don’t track).
Extra argument: Passes additional argument to the iptable.
3.6.8.4 DMZ
In computer networking, DMZ is a firewall configuration for securing local area networks (LANs).
IP Address: Please Enter the IP address of the computer which you want to set as DMZ host
Protocol: All protocols, TCP+UDP,TCP,UDP.
Note: When DMZ host is settled, the computer is completely exposed to the external
network; the firewall will not influence this host.
CM685V-1 User Manual
81
www.comset.com.au
3.6.8.5 Security
SSH access from WAN: Allow or deny users to access the router from remote side.
Ping from WAN to LAN: Allow or deny ping from remote side to the internal LAN subnet.
HTTPS access from WAN: Allow or deny access to the router web management page from the
remote side.
Remote network: Any IP Address, Single IP address, Subnet.
IP address: Fill a remote IP address that can access the router’s web management page.
Netmask: 24 means net mask 255.255.255.0, 32 means 255.255.255.255, the value is from 1
to 32.
CM685V-1 User Manual
82
www.comset.com.au
3.6.9 Static Routes
Interface: You can choose the corresponding interface type.
Target: The destination host IP or network.
Gateway: IP address of the next router.
Notice:
The Gateway and LAN IP of this router must belong to the same network segment.
If the destination IP address is that of a host, then the Netmask must be 255.255.255.255.
If the destination IP address is an IP network segment, it must match with the Netmask.
For example, if the destination IP is 10.0.0.0, and the Netmask is 255.0.0.0.
3.6.10 Switch
CM685V-1 User Manual
83
www.comset.com.au
Note:
1. Port 4 is Wired-WANport, port 0, port 1, port 2, port 3 are LAN ports.
2. “Untagged” means the Ethernet frame transmits from this port without VLAN tag.
3. “Tagged” means the Ethernet frame transmits from this port with VLAN tag.
4. “Off” means this port does not belong to VLAN. For default settings, port 0 belongs to
VLAN1, but does not belong to VLAN 2.
3.6.11 DHCP and DNS
Domain required: Don’t forward DNS-requests without DNS-Name.
Authoritative: This is the only DHCP on the local network.
Local server: Local domain specifications. Names matching this domain are never forwarded
and are resolved from DHCP or hosts files only.
Local domain: Local domain suffix appended to DHCP names and hosts file entries.
CM685V-1 User Manual
84
www.comset.com.au
Log queries: Write received DNS requests to syslog.
DNS forwardings: List of DNS servers to forward requests to.
Rebind protection: Discard upstream RFC1918 responses.
Allow localhost: Allow upstream responses in the 127.0.0.0/8 range, e.g. for RBL services.
Domain whitelist: List of domains to allow RFC1918 responses for.
Suppress logging: Suppress logging of the routine operation of these protocols.
Allocate IPsequentially: Allocate IP addresses sequentially, starting from the lowest available
address.
Filter private: Do not forward reverse lookups for local networks.
Filter useless: Do not forward requests that cannot be answered by public name servers.
Localise queries: Localise hostname depending on the requesting subnet if multiple IPs are
available.
Expand hosts: Add local domain suffix to names served from hosts files.
No negative cache: Do not cache negative replies, e.g. for non existing domains.
CM685V-1 User Manual
85
www.comset.com.au
Strict order: DNS servers will be queried in the order of the resolvfile.
Bogus NX Domain Override: List of hosts that supply bogus NX domain results.
DNS server port: Listening port for inbound DNS queries.
DNS query port: Fixed source port for outbound DNS queries.
Max DHCP leases: Maximum allowed number of active DHCP leases.
Max edns0 packet size: Maximum allowed size of EDNS.0 UDP packets.
Max concurrent queries: Maximum allowed number of concurrent DNS queries.
3.6.12 Diagnostics
Ping : It is a tool used to test the reachability of a host on an Internet Protocol (IP) network.
Traceroute: It is a network diagnostic tool for displaying the route (path) and measuring transit
delays of packets across an Internet Protocol (IP) network.
Nslookup: It is a network administration command-line tool for querying the Domain Name
System (DNS) to obtain domain name or IP address mapping or for any other specific DNS
record.
For example if you want to ping www.google.com, type the target domain name or IP address, then
click the button “Ping”. Wait a couple of seconds, the result will be shown as below.
CM685V-1 User Manual
86
www.comset.com.au
3.6.13 Loopback Interface
The default Loopback interface has IP address 127.0.0.1. You can change it if required.
3.6.14 Dynamic Routing
Dynamic Routing is implemented by quagga-0.99.22.4. Dynamic Routing services can be enabled:
CM685V-1 User Manual
87
www.comset.com.au
Zebra: Zebra is an IP routing manager. Telnet port number is 2601.
OSPF: Open Shortest Path First. Telnet port number is 2604.
OSPF6: Open Shortest Path First for IPv6. Telnet port number is 2606.
RIP: Routing Information Protocol. Telnet port number is 2602.
RIPng: It is an IPv6 reincarnation of the RIP protocol. Telnet port number is 2603.
BGP: Border Gateway Protocol. Telnet port number is 2605.
Example: The router’s LAN IP is 192.168.10.1. If we want to configure OSPF, we need to set OSPF
to “Enable” first, then open putty in windows:
CM685V-1 User Manual
88
www.comset.com.au
Input the password of OSPF. Then press key”?” for help.
3.6.15 QoS
QoS (Quality of Service) can prioritise network traffic selected by addresses, ports or services.
CM685V-1 User Manual
89
www.comset.com.au
Enable: Enable QoS on this interface.
Classification group: Specify class group used for this interface.
Calculate overhead: Decrease upload and download ratio to prevent link saturation.
Download speed: Download limit in kilobits/second.
Upload speed: Upload limit in kilobits/second.
Each section defines one group of packets and which target (i.e. bucket) this group belongs to. All
the packets share the bucket specified.
Target: The four defaults are: priority, express, normal, low.
Source host: Packets matching this source host(s) (single IP or in CIDR notation) belong to
the bucket defined in target.
Destination host: Packets matching this destination host(s) (single IP or in CIDR notation)
belong to the bucket defined in target.
Protocol: Matching packets belong to the bucket defined in target.
Ports: Matching packets belong to the bucket defined in target. If more than 1 port is required,
they must be separated by a comma.
Number of bytes: Matching packets belong to the bucket defined in target.
Loading...
