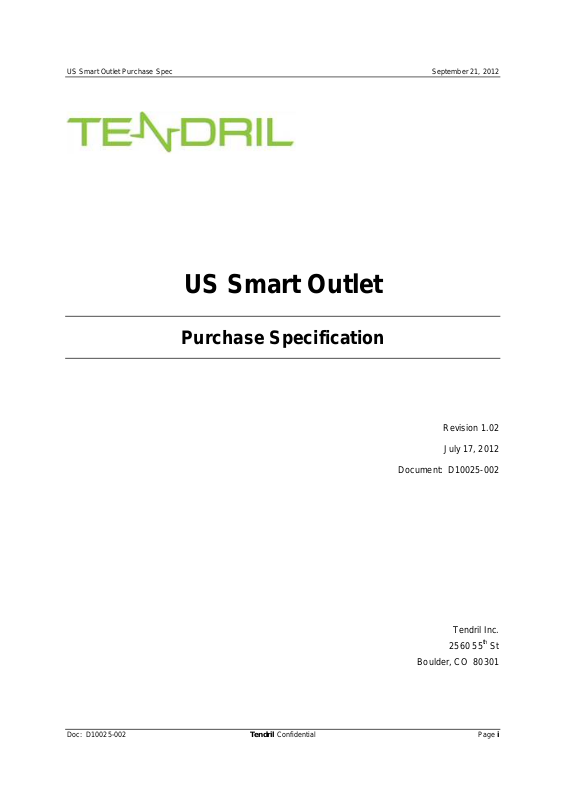

US Smart Outlet Purchase Spec September 21, 2012
This document contains information that is extremely sensitive to Tendril and its suppliers. It is an
unpublished work that contains confidential and secret information that is protected under the copyright
laws. The existence of the copyright notice is not to be construed as an admission of presumption that
publication has occurred. Restricted Rights: Use, duplication, or disclosure by the U.S. Government are
subject to restrictions as set forth in subparagraph © (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS 252.227-7013.
Do not reproduce or further distribute without written consent from Tendril Corporation.
Copyright © Tendril Corporation 2012. All Rights Reserved.
Tendril and the Tendril logo are trademarks of Tendril Corporation, registered in the U.S.A. and other
countries.
Author / Editor
Tim Hughes x2146
Devices Development Group
Location
//Filer/Groups/Engineering/Engineering Specs/US Smart Outlet Purchase Spec D10025-000.doc
Revision History
Document Name - Doc Number Date Summary
US Smart Outlet Purchase Spec D10025-000.doc 03/22/12 Initial Version
US Smart Outlet Purchase Spec D10025-001.doc 06/28/12 CUL / CSA added
US Smart Outlet Purchase Spec D10025-002.doc 07/17/12 Label Spec Updated
Doc: D10025-002 Tendril Confidential Page ii
US Smart Outlet Purchase Spec September 21, 2012
TABLE OF CONTENTS
1 INTRODUCTION....................................................................................................................... .............1
1.1 Executive Summary............................................................................................................. ......1
1.2 About This Specification............................................................................................................1
1.3 Related Documents...................................................................................................................1
2 PRODUCT DESCRIPTION....................................................................................................................2
2.1 Features.....................................................................................................................................2
2.2 Electronic Hardware Description...............................................................................................2
2.2.1 Block Diagram.....................................................................................................................3
2.3 Relay..................................................... .....................................................................................3
3 Performance Specifications......................................................... .... .... .... ... .... .... .... ....... .... .... .............4
3.1 Reliability ...................................................................................................................................4
3.1.1 Reliability Testing................................................................................................................4
3.2 Power.........................................................................................................................................4
3.2.1 Power Source......................................................................................................................4
3.2.2 Power Consumption............................................................................................................4
3.2.3 Noise Rejection...................................................................................................................4
3.2.4 Power Cycling.....................................................................................................................4
3.3 Sub-metering Accuracy.............................................................................................................5
3.4 Radio ............................................. ............................................................................................5
3.4.1 HAN Radio Specifications ...................................................................................................5
3.4.2 Channel Tx Power...............................................................................................................5
4 Physical Specifications........................................................................................................................6
4.1 Dimensions................................................................................................................................6
4.2 Appearance ...............................................................................................................................6
4.3 LEDs..........................................................................................................................................6
4.4 Button ........................................................................................................................................7
4.5 Device Labeling................................................................................. ........................................7
4.5.1 Housing and Agency Label................................................................................ .... .... .... ... ..7
4.5.1.1 Company and Product Name...................................................................................7
4.5.1.2 Tendril Logo..............................................................................................................7
4.5.1.3 Model Number..........................................................................................................7
4.5.1.4 Label Example................................................................... ... .... .... .... ....... .... .... ... .... ..7
4.6 ESD Failure Level Limits...........................................................................................................8
4.7 Environmental Specifications....................................................................................................9
4.7.1 Altitude................................................................................................................................9
4.7.2 Temperature........................................................................................................................9
4.7.3 Humidity............................................................................................................. .................9
4.7.4 Actual Environmental Test Corners................................................................... .... .... ... .... ..9
4.8 Shock and Vibration Specifications.............................................................................. .... ... ....10
4.8.1 Transportation Vibration....................................................................................................10
4.8.2 Transportation Drop..........................................................................................................10
4.8.3 Non-Operational Shock........................................................................... ..........................10
4.8.4 Non-Operational Vibration .............................................................. ..................................11
4.8.5 Operational Random Vibration............................................. .... ... .... .... .... ... .... .... .... .... ... ....11
5 Installation...........................................................................................................................................12
5.1 Location...................................................................................................................................12
5.2 Maintenance / Service.................................................................... .........................................12
Doc: D10025-002 Tendril Confidential Page iii
US Smart Outlet Purchase Spec September 21, 2012
6 Manufacturing / Test Specifications.................................................................................................12
6.1 Manufacturing Process............................................................................................................12
6.2 Minimum Testing Requirements........................................................................... .... ........ ... ....12
7 Agency Requirements........................................................................................................................13
7.1 Electromagnetic Compatibility (EMC)......................................................................................13
7.1.1 Background Radiation..................................................................... .... .... .... ... .... .... .... ... ....13
7.1.2 RF - United States - FCC..................................................................................................13
7.1.3 RF - Canada - IC...............................................................................................................13
7.2 Safety.................................................................................................. ................................. ....13
7.2.1 Safety Standards...............................................................................................................13
7.2.2 Required Safety Notifications............................................................................................13
7.2.3 Additional UL Requirements.............................................................................................13
7.2.4 Future Agency Certification Plans................................................... ........ .... ... .... .... .... ... ....13
7.3 Environmental Impact..............................................................................................................14
Doc: D10025-002 Tendril Confidential Page iv
US Smart Outlet Purchase Spec September 21, 2012
1 INTRODUCTION
1.1 Executive Summary

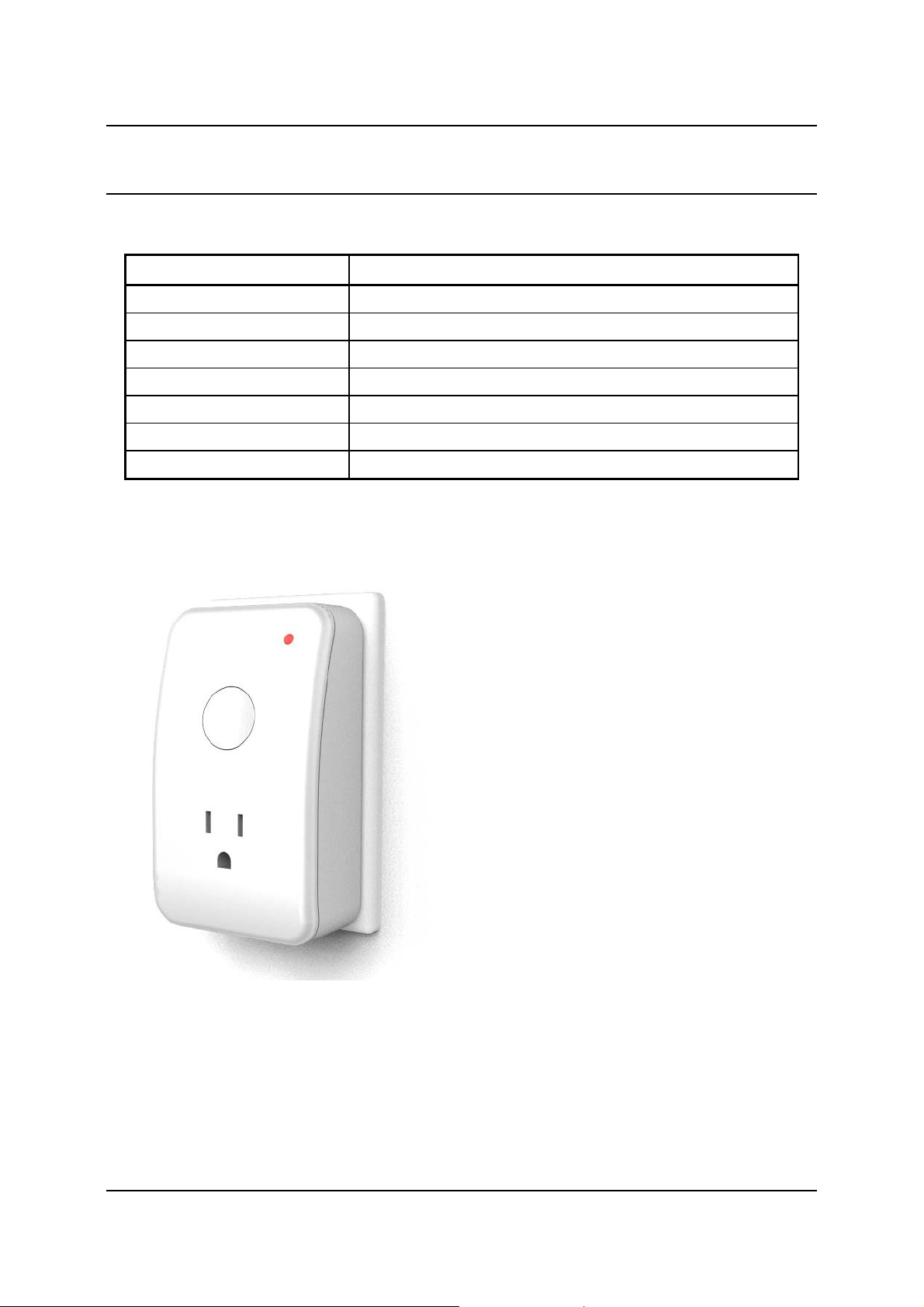

The US Smart Outlet is a radio controlled outlet that can apply or remove power to a device plugged into
its receptacle. It also measures RMS power being utilized by the device being controlled.
The Outlet communicates wirelessly via 802.15.4 ZigBee SE 1.0 protocol, and responds to the ZigBee
Smart Energy commands. It can be controlled via the Tendril Connect Platform through several portals
(consumer, utility, support) for use in home automation and energy monitoring applications. The device is
intended for indoor applications on UL rated 15A circuits.
1.2 About This Specification
This document describes the Outlet minimal requirements for purchase, such as performance,
environmental specifications, and regulatory compliance requirements. This document is created and
maintained by the Engineering and Operations Team.
1.3 Related Documents
• D10009-1xx Outlet Engineering Specification
• D10080-0xx Outlet Test Specification
• D10022-XXX Product Labeling Spec
• D10079-XXX Tendril Supplier Quality Policy
Doc: D10025-002 Tendril Confidential Page 1
US Smart Outlet Purchase Spec September 21, 2012
2 PRODUCT DESCRIPTION
2.1 Features
1) Smart Energy (SEP 1.1) certified via NTS or similar test house
a) AES 128 bit encryption across the HAN
b) Multiple ESI Support
c) Cluster Binding
d) ECC capability with Production Certificates
2) Switches 120V, 15A UL rated device on or off via SEP DR Clusters and Tendril custom control
commands. Device uses a latching SP relay that opens the hot side..
3) Application Bootloader OTA upgrade capability of radio FW.
4) Current, Voltage, and power measurement of attached loads, made available via the SEP Simple
Metering Cluster
a) ID = Instantaneous Demand = Power (V*I*PF)
b) CSD = Current Summation Delivered = Energy (kWh)
c) Voltage = Special Tendril Cluster
d) Current = Special Tendril Cluster
5) Certifications
a) UL 916 (Load Management Equipment)
b) Canadian UL Listed to Canadian Safety Standards (CAN/CSA 22.2)
c) FCC 15-B approval (US)
d) FCC ID and IC numbers on labels
e) Other International Certifications planned for future versions
1) Consumer safe, durable plastic housing for indoor use
2) Push Button for:
a) Opt out of DR events or other OFF condition
b) Scanning for networks for non-ECC HANs
3) Colored LEDs indicate status
2.2 Electronic Hardware Description
PCBs contains:
• ZigBee Radio Module containing:
o EM357 Radio SoC
o 100mW RF Power Amp operating at 2.4GHz
o 1MB external serial flash EEPROM
• 5V and 3.3V regulation
• Bi-color LED
• Switch for button
• Internal UART and test port connections sufficient to access the processor for programming at
initial manufacture, and validate PCBA functionality
• 150VAC / 16A minimum rated latching relay with 5V coil
• Current and voltage monitoring circuitry for the connected load
Further power and radio specifications are listed in the Performance Section below.
Doc: D10025-002 Tendril Confidential Page 2
