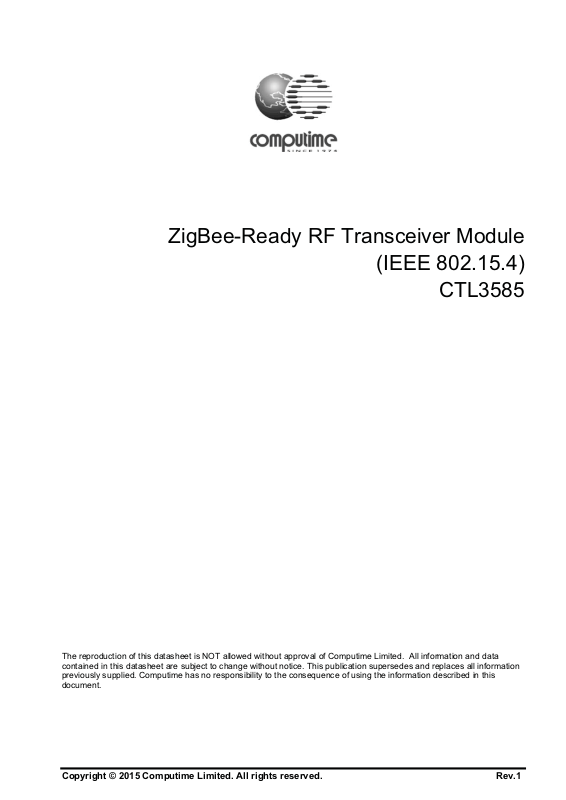

ZigBee-Ready RF Transceiver Module
(IEEE 802.15.4)
CTL3585
The reproduction of this datasheet is NOT allowed without approval of Computime Limited. All information and data contained in this datasheet are subject to change without notice. This publication supersedes and replaces all information previously supplied. Computime has no responsibility to the consequence of using the information described in this document.
Copyright © 2015 Computime Limited. All rights reserved. Rev.1
Revision
Rev. Date
(DD-MM-YYYY)
1 21-1-2015
First Released
History
Copyright © 2015 Computime Limited. All rights reserved. Rev. 1
Table of Contents
1.
General Description...................................................................................................................................... 1
2. Applications .................................................................................................................................................. 1
3. Features ....................................................................................................................................................... 1
4. Absolute Maximum Ratings.......................................................................................................................... 2
5. Recommended Operating Conditions .......................................................................................................... 2
6. Electrical Specifications................................................................................................................................ 2
7. Typical application block .............................................................................................................................. 3
8. Pin Assignment............................................................................................................................................. 4
9. Pin Description ............................................................................................................................................. 5
10. Block Diagram........................................................................................................................................... 9
11. RF Frequency Detail............................................................................................................................... 10
12. PCB Layout Recommendations.............................................................................................................. 11
13. Mechanical Dimensions.......................................................................................................................... 12
Copyright © 2015 Computime Limited. All rights reserved. Rev.1
1. General Description
The CTL3585 are compact surface mounted High Power Wireless RF Transceiver Module specially designed for Ember ZigBee™ protocol stack for wireless networks, EmberZNet, based on IEEE 802.15.4 standard in the 2.4GHz world-wide ISM band. The size of CTL3514 is 19.2 x 16 x
2.8 mm and the size of CTL3585 is 23.5x16 x2.8mm.It integrated a 2.4GHz, IEEE 802.15.4-2003 compliant transceiver with a 32-bit network processor (ARM Cortex-M3 Processor) to run EmberZNet. It contains embedded FLASH and integrated RAM for program and data storage. It utilizes the non-intrusive SIF module for powerful software debugging and programming of the network processor.
2. Applications
Home
automation &
building control
Home
appliances &
alarms
Monitoring of
remote
systems
Security
systems &
lighting
controls
Sensor data
capture in
embedded
networks
3. Features
Complete ZigBee-ready module with integrated PCB antenna Integrated IEEE 802.15.4 PHY and MAC layer Non-intrusive debug interface (SIF) SPI interface for communication and controlled by the Host using the EmberZNet Serial Protocol
(EZSP)
Internal RC oscillator for timer High performance direct sequence spread spectrum (DSSS) RF transceiver 16 channels in the 2.4 GHz ISM band On-chip regulator for 2.1-3.6V operation. Three deep low power modes 32-bit ARM® Cortex™-M3 processor 192KB FLASH ROM and 12KB RAM(EM357 internal) +20dBm Max. transmission power -100dBm sensitivity Small footprint: 23.5x16x2.8mm Extremely low Deep Sleep Current.
Copyright © 2015 Computime Limited. All rights reserved. Rev. 1
4. Absolute Maximum Ratings
Parameter Test Conditions Min. Max. Unit
Regulator input voltage (VDD_PADS) -0.3 +3.6 V
Voltage on any GPIO (PA[7:0], PB[7:0], PC[7:0]), SWCLK, nRESET, VREG_OUT
Voltage on any GPIO pin (PA4, PA5, PB5, PB6, PB7, PC1), when used as an input to the general purpose ADC with the low voltage range selected
Voltage on OSCA, OSCB, NC -0.3 VDD_PADSA
Storage temperature -40 +85 °C
-0.3 VDD_PADS +0.3
-0.3 2.0 V
+0.3
5. Recommended Operating Conditions
Parameter Test Conditions Min. Typ. Max. Unit
Regulator input voltage (VDD_PADS)
Operating temperature range
Moisture Sensitivity Level(MSL)
2.1 3.6 V
-40 +85 °C
MSL3
V
V
6. Electrical Specifications
T=25ć, VCC = 3.0V, Fo =2450MHz, if nothing else stated.
Parameter Condition / Note Min Typ. Max Unit
RF Operating frequency
Number of channels For IEEE 802.15.4 compliance 16
Channel spacing For IEEE 802.15.4 compliance 5 MHz
Frequency stability +/-40 ppm
Transmit power Programmable from firmware +20 dBm
Sensitivity
Adjacent channel rejection +/-5 MHz
Adjacent channel rejection +/-10 MHz
Programmable in 5MHz steps, 5 MHz steps for IEEE 802.15.4 compliance
PER = 1% PER, 20byte packet defined by IEEE 802.15.4 Boost mode
IEEE 802.15.4 compliance at -82 dBm
IEEE 802.15.4 compliance at -82 dBm
2.405 2.48 GHz
-100 dBm
35/35 dB
40/40 dB
Copyright © 2015 Computime Limited. All rights reserved. Rev. 1
Parameter Condition / Note Min Typ. Max Unit
Supply voltage 2.1 3.6 V
Current consumption, RX mode
Current consumption,
TX mode
Deep sleep current CTL3585 2.8 uA
Flash Memory FLASH memory in EM3585 512 KB
MCU clock frequency 24 MHz
MCU Low Speed Clock
CTL3585 190 mA
Max RX sensitivity (normal mode) 28 mA
Max RX sensitivity (boost mode) 30 mA
External crystal or Ext 32.768KHz clock
32.768 KHz
7. Typical application block
HOST
MCU
VDD_PADS=2.1- 3.6V
NREST
CTL3585
RF Module
LINK_ACTIVITY
32.768 kHz CL=12.5 pF
Debug and
programming
interface
PTI_EN
PTI-DATA
SIF_CLK
SIF-MISO
SIF-MOSI
Figure 1: Example of application circuit
Copyright © 2015 Computime Limited. All rights reserved. Rev. 1
8. Pin Assignment
Pin 9
Pin 18
Pin 18
Figure 2: CTL3585 pin assignment
Pin 8
Pin 1
Pin 1
Pin 29
Copyright © 2015 Computime Limited. All rights reserved. Rev. 1
9. Pin Description
Pin# CTL3585 Direction Description
PB0 I/O Digital I/O
VREF Analog O ADC reference output
VREF Analog I ADC reference input
1
2NC NC
3
4
IRQA I External interrupt source A
TRACECLK O Synchronous CPU trace clock
TIM1CLK I Timer 1 external clock input
TIM2MSK I Timer 2 external clock mask input
NC
PC0
JRST I JTAG reset input from debugger
IRQD I Default external interrupt source D
TRACEDATA1 O Synchronous CPU trace data bit 1
PB7 I/OHigh current Digital I/O
ADC2 Analog ADC input 2
IRQC I Default external interrupt source C
TIM1C2 O Timer 1 channel 2 output
I/O High
current
Digital I/O Either Enable with GPIO_DBGCFG[5]
TIM1C2 1 Timer 1 channel 2 input
PB6
ADC1 Analog ADC input 1
5
IRQB I External interrupt source B
TIM1C1 O Timer 1 channel 1 output
TIM1C1 I Timer 1 channel 1 input
I/O High
current
Digital I/O
Copyright © 2015 Computime Limited. All rights reserved. Rev. 1
Pin# CTL3585 Direction Description
PB5 I/O Digital I/O
ADC0 Analog ADC input 0
6
TIM2CLK I Timer 2 external clock input
TIM1CLK I Timer 1 external clock mask input
7 GND
8 GND
9NC NCNC
10 nRESET I Active low chip reset(internal pull-up)
PC6 I/O Digital I/O
11
12
13 VDD_PADS Power Pads supply(2.1-3.6V)
14
15
OSC32B I/O 32.768KHz crystal oscillator.
NTX_ACTIVE O Inverted TX_ACTIVE signal
PC7 I/O Digital I/O
OSC32A I/O 32.768KHz crystal oscillator.
OSC32_EXT I Digital 32.768KHz clock input source
PA7 I/O High current Digital I/O Disable REG_EN with GPIO_DBGCFG [4]
TIM1C4 O Timer 1 channel 4 output
TIM1C4 I Timer 1 channel 4 input
REG_EN O External regulator open drain output
PB3 I/O Digital I/O
TIM2C3 O Timer 2 channel 3 output
TIM2C3 I Timer 2 channel 3 input
SC1nCTS I UART CTS handshake of Serial Controller 1
SC1SCLK O SPI master clock of serial Controller 1
SC1SCLK I SPI slave clock of serial Controller 1
Copyright © 2015 Computime Limited. All rights reserved. Rev. 1
Pin# CTL3585 Direction Description
PB4 I/O Digital I/O
TIM2C4 O Timer 2 channel 4 output
16
17
18
TIM2C4 i Timer 2 channel 4 input
SC1nRTS O UART RTS handshake of serial controller 1
SC1nSSEL I SPI slave select of serial controller 1
PA0 I/O Digital I/O
TIM2C1 O Timer 2 channel 1 output
TIM2C1 I Timer 2 channel 1 input
SC2MOSI O SPI master data out of serial controller 2
SC2MOSI I SPI slave data in of serial controller 2
PA1 I/O Digital I/O
TIM2C3 O Timer 2 channel 3 output
TIM2C3 I Timer 2 channel 3 input
SC2SDA I/O TWI data of serial controller 2
SC2MISO O SPI slave data out of serial controller 2
SC2MISO I SPI master data in of serial controller 2
PA2 I/O Digital I/O
TIM2C4 O Timer 2 channel 4 output
TIM2C4 I Timer 2 channel 4 input
19
SC2SCL I/O TWI clock of serial controller 2
SC2SCLK O SPI master clock of serial controller 2
SC2SCLK I SPI slave clock of serial controller 2
PA3 I/O Digital I/O
SC2Nssel I SPI slave select of serial controller 2
20
TIM2C2 O Timer 2 channel 2 output
TIM2C2 I Timer 2 channel 2 input
Copyright © 2015 Computime Limited. All rights reserved. Rev. 1
Pin# CTL3585 Direction Description
PA4 I/O Digital I/O
ADC4 Analog ADC input 4
21
PTI_EN O Frame signal of packet trace interface
TRACEDATA2 O Synchronous CPU trace data bit 2
PA5 I/O Digital I/O
ADC5 Analog ADC input 5
22
PTI_DATA O Data signal of packet trace interface
NBOOTMODE I Embedded serial bootloader activation out of reset
TRACEDATA3 O Synchronous CPU trace data bit 3
PA6 I/O High current Digital I/O
23
24
25
TIM1C3 O Timer 1 channel 3 output
TIM1C3 I Timer 1 channel 3 input
PB1 I/O Digital I/O
SC1MISO O SPI slave data out of serial controller 1
SC1MOSI O SPI master data out of serial controller 1
SC1SDA I/O TWI data of serial controller 1
SC1TXD O UART transmit data of serial controller 1
TIM2C1 O Timer 2 channel 1 output
TIM2C1 I Timer 2 channel 1 input
PB2 I/O Digital I/O
SC1MISO I SPI master data in of serial controller 1
SC1MOSI I SPI slave data in of serial controller 1
SC1SCL I/O TWI clock of serial controller 1
SC1RXD I UART receive data of serial controller 1
TIM2C2 O Timer 2 channel 2 output
TIM2C2 I Timer 2 channel 2 input
JTCK I JTAG clock input from debugger
26
SWCLK I/O Serial Wire Clock input/output with debugger
Copyright © 2015 Computime Limited. All rights reserved. Rev. 1
App
C
r
Pin# CTL3585 Direction Description
PC2 I/O Digital I/O Enable with GPIO_DBGCFG[5]
JTDO O JTAG data out to debugger
27
SWO O Serial Wire Output asynchronous trace output to debugger
TRACEDATA0 O Synchronous CPU trace data bit3
PC3 I/O Digital I/O Enable with GPIO_DBGCFG[5]
28
29
JTDI I JTAG data in from debugger
TRACECLK O Synchronous CPU trace clock
PC4 I/O Digital I/O Either Enable with GPIO_DBGCFG[5]
JTMS I JTAG mode select from debugger
SWDIO I/O Serial Wire bidirectional data to/from debugger
10.Block Diagram
UART/SPI/I2C Communication
2.1–3.6V
32 Bit ARM Processor
itARM Processo
User
ser
lication
Application
TM
TM
Zigbee
gbee
Network
etwork
PCB antenna
24MHz
FEM
IEEE 802.15.4
RF Transceiver
IEEE 802.15.4
IEEE 802.15.4
MAC
MA
CTL3585
Figure 3: Block Diagram
Copyright © 2015 Computime Limited. All rights reserved. Rev. 1
11.RF Frequency Detail
The following table shows the RF channels as defined by the IEEE 802.15.4 standard.
RF channel Frequency
11 2405MHz
12 2410MHz
13 2415MHz
14 2420MHz
15 2425MHz
16 2430MHz
17 2435MHz
18 2440MHz
19 2445MHz
20 2450MHz
21 2455MHz
22 2460MHz
23 2465MHz
24 2470MHz
25 2475MHz
26 2480MHz
The use of RF frequencies and maximum allowed RF power should according to different national regulations. The CTL3585 are complying with the applicable regulations for the world wide 2.4GHz ISM band.
Copyright © 2015 Computime Limited. All rights reserved. Rev. 1
12.PCB Layout Recommendations
Please reference Mechanical Dimensions shown in next section for PCB layout.
The area underneath the module should be covered with solder mask in order to prevent short circuit on the test pads on the back side of the module. A solid ground plane under the module is preferred.
As the module integrated with onboard PCB trace antenna, the mounting position of the module will have great impact on the RF performance. There should not be any trace, ground plane or metal part underneath or nearby the area of the onboard PCB trace antenna. The figure below shows an example how the module positioned on the mother PCB.
Figure 4: A recommended placement of the module on a main PCB
Copyright © 2015 Computime Limited. All rights reserved. Rev. 1
13.Mechanical Dimensions
Figure 5: Mechanical Dimensions of CTL3585
Figure 5: Mechanical Dimensions of CTL3585
For further details on the SoC transceiver (Ember EM351), please consult the data sheet at
http://www.ember.com
Copyright © 2015 Computime Limited. All rights reserved. Rev. 1
Contact information
COMPUTIME CORPORATE HQ
9/F Tower One, Lippo Centre,
89 Queensway,
Hong Kong
Tel: +852.2260.0300
Fax: +852.2790.3996
e-mail: hq@computime.com
COMPUTIME NORTH AMERICA HQ,
4700 Duke Dr.
Suite 200
Mason OH 45040
USA
Tel: +1(513).398.2579
Fax: +1(513).754.8955
e-mail: na@computime.com
Cincinnati Technologies
4700 Duke Dr.
Suite 200
Mason OH 45040
USA
Tel: +1(513).754.8935
Fax: +1(513).754.8955
e-mail: ctws@computime.com
About Computime
Founded in 1974, Computime is a global technology, brand and manufacturing company providing innovative automation and control solutions to customers in commercial, industrial and consumer markets. The Company provides technologies and products that save energy and make people's lives more productive and comfortable.
Copyright © 2015 Computime Limited. All rights reserved. Rev. 1
Regulatory Information
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
The devices must be installed and used in strict accordance with the instructions as
device may not cause harmful interference, and (2) this device must accept any interference received, including
described in the user documentation that comes with the product.
interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
If the FCC identification number is not visible when the module is installed inside another
FCC Radiation Exposure Statement
device, then the outside of the device into which the module is installed must also display a
The modular can be installed or integrated in mobile or fix devices only. This modular cannot be installed in any portable device, for example, USB dongle like transmitters is forbidden.
label referring to the enclosed module.
This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This
This exterior label can use wording such as the following:
transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This
“Contains Transmitter Module FCC ID: 2AAUQ-CTL35XXA”
modular must be installed and operated with a minimum distance of 20 cm between the radiator and user body. If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This
When the module is installed inside another device, the user manual of this device must
exterior label can use wording such as the following: “Contains Transmitter Module FCC ID:
contain below warning statements:
Contains FCC ID:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
when the module is installed inside another device, the user manual of this device must contain below warning
two conditions:
statements;
(1) This device may not cause harmful interference, and (2) This device must accept any
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
interference received, including interference that may cause undesired operation.
(1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's
Changes or modifications not expressly approved by the party responsible for compliance
authority to operate the equipment.
could void the user's authority to operate the equipment.
The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product
This modular could be installed in the fix or mobile devices only, installed in the portable
2AAUQ-CTL35XXA ā
2AAUQ-CTL35XXA Or
device, like USB dongle is forbidden. This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co- located or operating in conjunction with any other antenna or transmitter. This modular must be installed and operated with a minimum distance of 20 cm between the radiator and user body.
For manufacturer: The end product into which the module will be installed should be the fix or mobile devices only, the portable device, like USB dongle is forbidden. The end product into which the module will be installed should be installed and operated with a minimum distance of 20 cm between the radiator and user body.
Copyright © 2015 Computime Limited. All rights reserved. Rev. 1
IC Statement:
This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son fonctionnement est soumis aux deux conditions suivantes : ( 1 ) Ce dispositif ne peut causer d'interférences ; et ( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil.
IC Radiation Exposure Statement The modular can be installed or integrated in mobile or fix devices only. This modular cannot be installed in any portable device, for example, USB dongle like transmitters is forbidden. This modular complies with IC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This modular must be installed and operated with a minimum distance of 20 cm between the radiator and user body. Cette modulaire doit être installé et utilisé à une distance minimum de 20 cm entre le radiateur et le corps de l'utilisateur. If the IC number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains IC: 1700A-CTL35XXA” when the module is installed inside another device, the user manual of this device must contain below warning statements;
1. This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
2. Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son fonctionnement est soumis aux deux conditions suivantes : ( 1 ) Ce dispositif ne peut causer d'interférences ; et ( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil. The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product
Copyright © 2015 Computime Limited. All rights reserved. Rev. 1
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
