Computime CTL3579 User Manual

ZigBee-Ready RF Transceiver Module

(IEEE 802.15.4)

CTL3576/7/8/9

The reproduction of this datasheet is NOT allowed without approval of Computime Limited. All information and data contained in this datasheet are subject to change without notice. This publication supersedes and replaces all information previously supplied. Computime has no responsibility to the consequence of using the information described in this document.

ZigBee- Ready RF Transceiver Module CTL3576/7/8/9

Revision

Rev. Date

(DD-MM-YYYY)

1 18-09-2011

First Release

History

ZigBee- Ready RF Transceiver Module CTL3576/7/8/9

Table of Contents

1.

General Description...................................................................................................................................... 0

2. Applications .................................................................................................................................................. 0

3. Features ....................................................................................................................................................... 0

4. Absolute Maximum Ratings.......................................................................................................................... 1

5. Recommended Operating Conditions .......................................................................................................... 1

6. Electrical Specifications................................................................................................................................ 1

7. Typical application block .............................................................................................................................. 3

8. Pin Assignment............................................................................................................................................. 3

9. Pin Description ............................................................................................................................................. 4

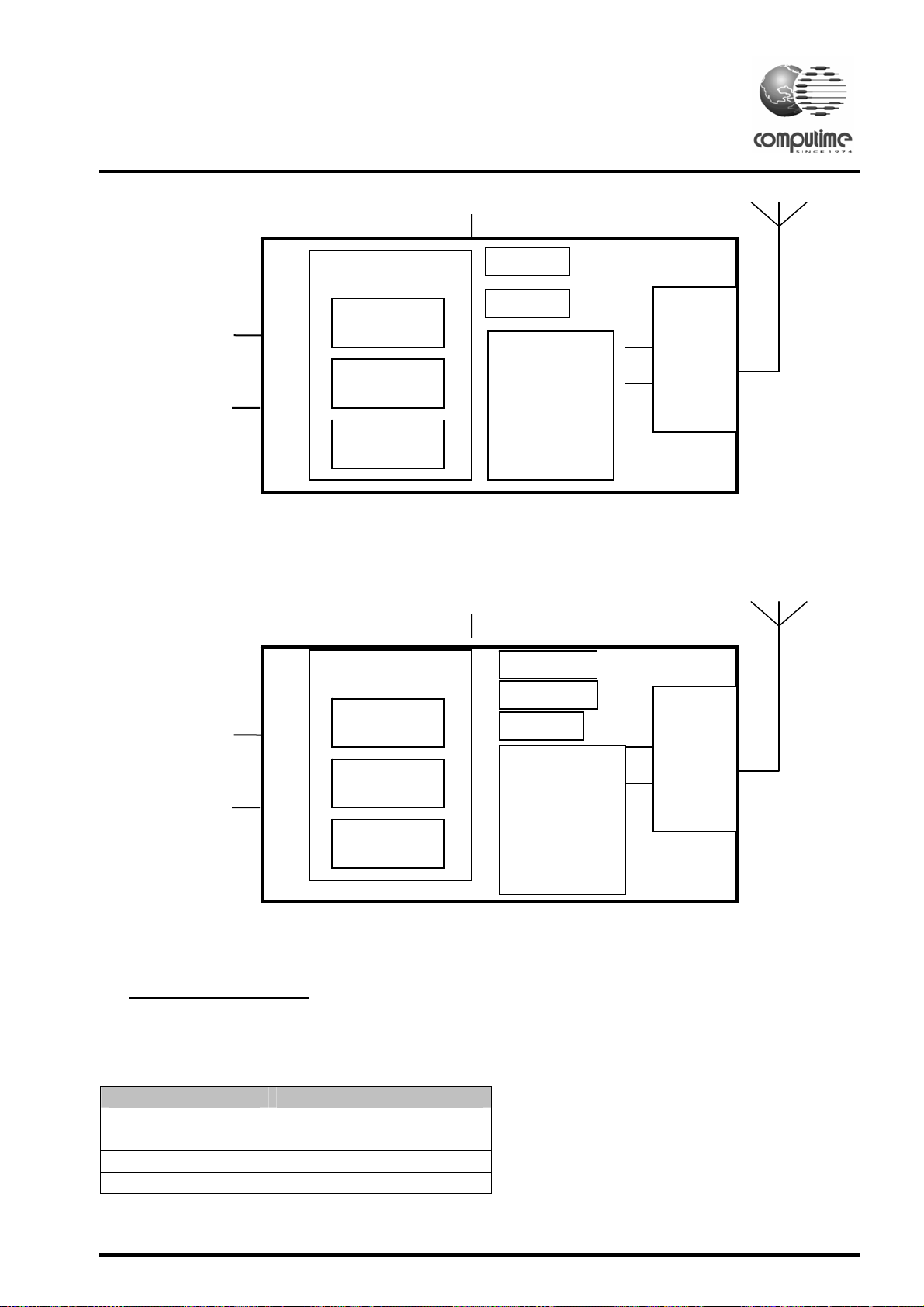

10. Block Diagram......................................................................................................................................... 11

11. RF Frequency Detail............................................................................................................................... 12

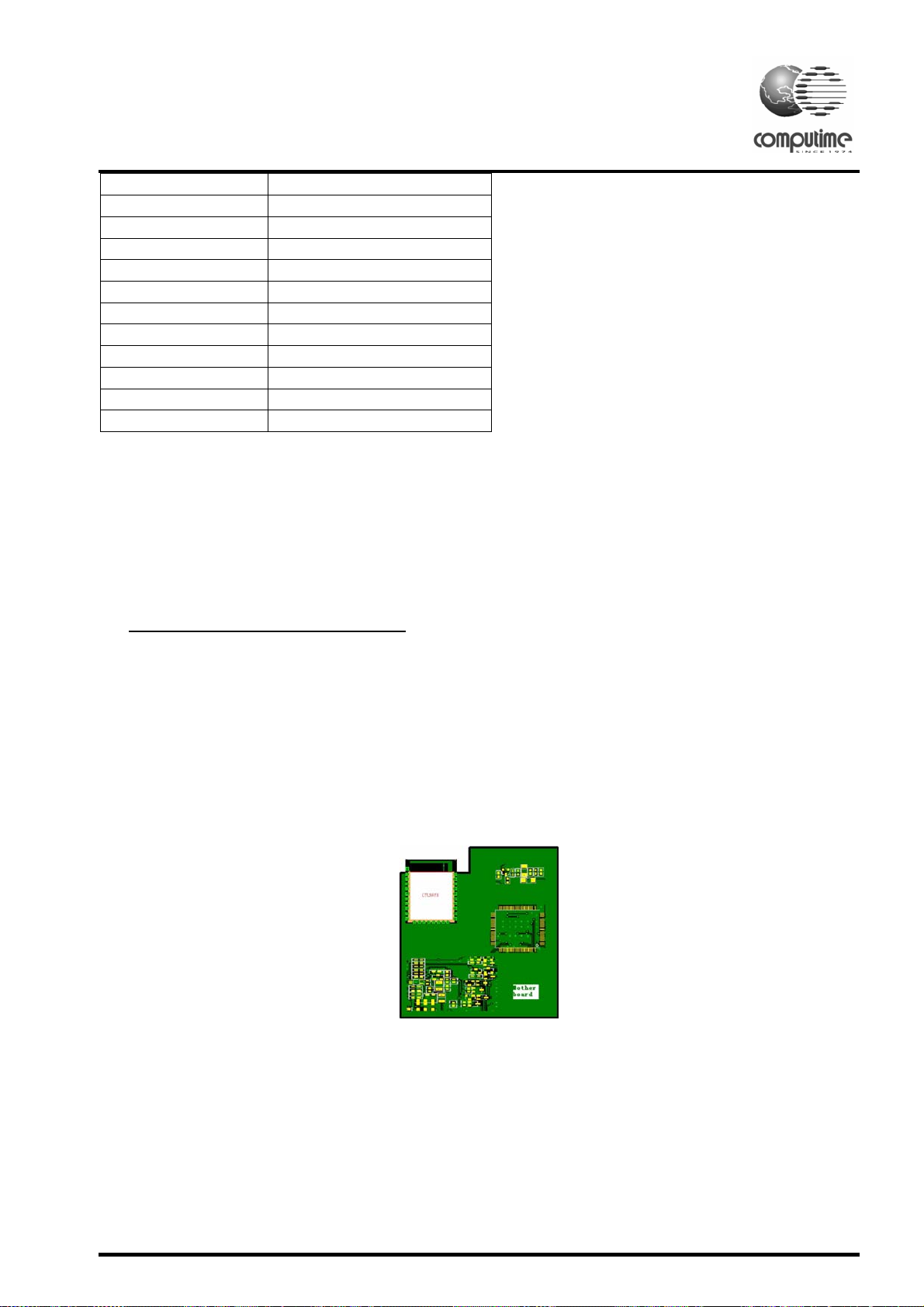

12. PCB Layout Recommendations.............................................................................................................. 13

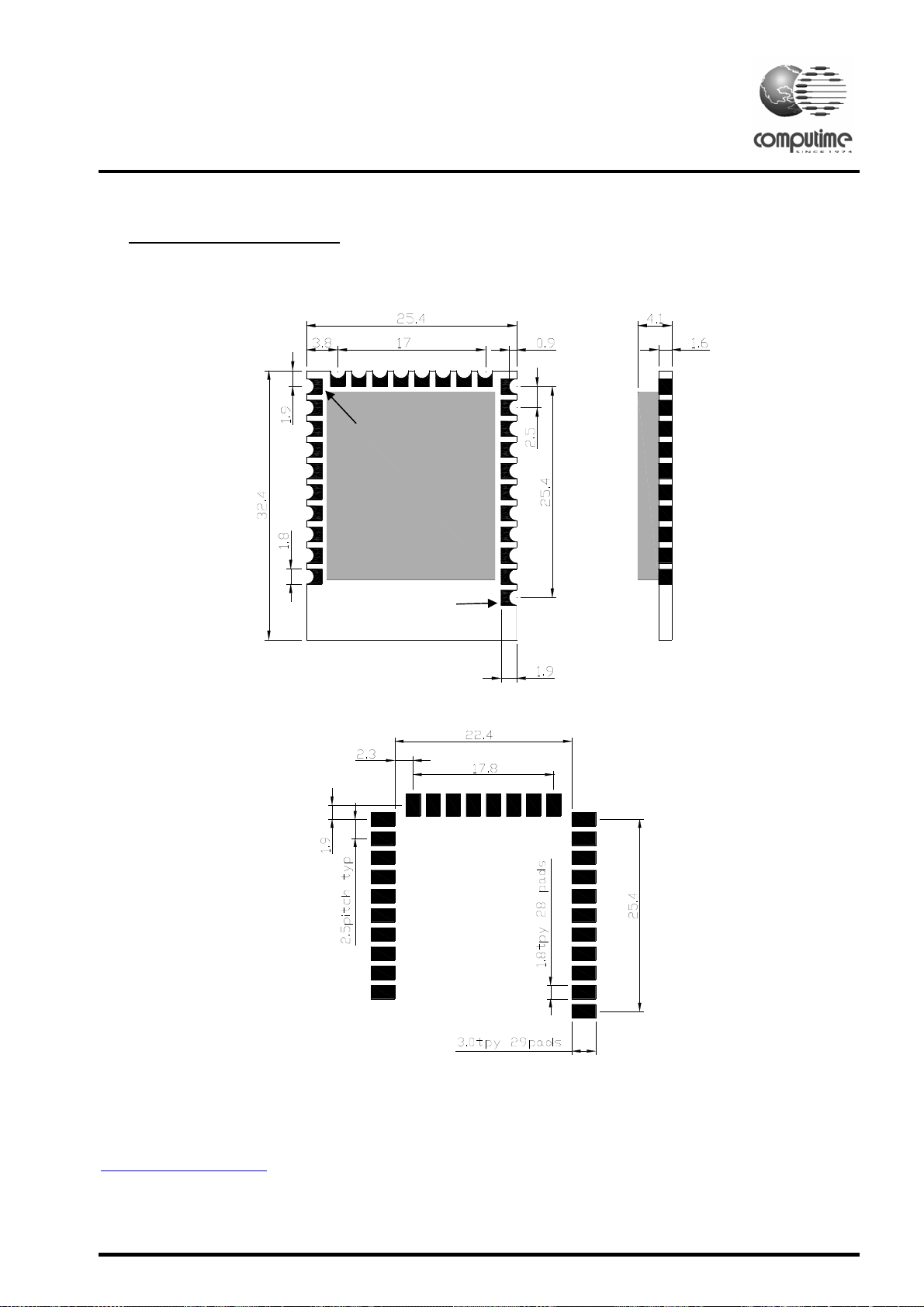

13. Mechanical Dimensions.......................................................................................................................... 14

14. Modules Differentia................................................................................................................................. 15

ZigBee- Ready RF Transceiver Module CTL3576/7/8/9

1. General Description

The CTL357x RF Transceiver Module is compact surface mounted Module specially designed for Ember ZigBee™ protocol stack for wireless networks, EmberZNet, based on IEEE 802.15.4 standard in the 2.4GHz world-wide ISM band. The complete module is only 32.4 x 25.4 x 4.1 mm. It integrated a 2.4GHz, IEEE 802.15.4-2003 compliant transceiver with a 32-bit network processor (ARM Cortex-M3 Processor) to run EmberZNet. They contain embedded Flash and integrated RAM for program and data storage. It utilizes the non-intrusive SIF module for powerful software debugging and programming of the network processor.

2. Applications

Home

automation &

building control

Home

appliances &

alarms

Monitoring of

remote

systems

Security

systems &

lighting

controls

Sensor data

capture in

embedded

networks

3. Features

 Complete ZigBee-ready module with integrated PCB antenna  Integrated IEEE 802.15.4 PHY and MAC layer  Non-intrusive debug interface (SIF)  SPI interface for communication and controlled by the Host using the EmberZNet Serial Protocol

(EZSP)

 Internal RC oscillator for timer  High performance direct sequence spread spectrum (DSSS) RF transceiver  16 channels in the 2.4 GHz ISM band  On-chip regulator for 2.1-3.6V operation , three sleep low power modes  32-bit ARM® Cortex™-M3 processor  192KB FLASH ROM and 12KB RAM(EM357 internal) ,8Mb off chip Flash memory

(CTL3577&CTL3579)

 +20dBm transmission power  -98dBm excellent reception sensitivity. (Boost mode -101dBm)  Small footprint: 32.4 x 25.4 x 4.1 mm  Optional MMCX connector for external antenna  Extremely low Deep Sleep Current.

ZigBee- Ready RF Transceiver Module CTL3576/7/8/9

4. Absolute Maximum Ratings

Parameter Test Conditions Min. Max. Unit

Regulator input voltage (VDD_PADS)

-0.3 +3.6 V

RF Input Power (for max level for correct packet reception)

Voltage on any GPIO (PA[7:0], PB[7:0], PC[7:0]), SWCLK, nRESET, VREG_OUT

Voltage on any GPIO pin (PA4, PA5, PB5, PB6, PB7, PC1), when used as an input to the general purpose ADC with the low voltage range selected

Voltage on OSCA, OSCB, NC

Storage temperature

RX signal into a lossless balun

5. Recommended Operating Conditions

Parameter Test Conditions Min. Typ. Max. Unit

Regulator input voltage (VDD_PADS)

Operating temperature range

2.7 3.6 V

0 +70

-0.3 VDD_PADS

-0.3 2.0 V

-0.3 VDD_PADSA

-40 +140 °C

+15 dBm

V

+0.3

V

+0.3

①

°C

6. Electrical Specifications

T=25℃, VCC = 3.0V, Fo =2450MHZ, if nothing else stated.

Parameter Condition / Note Min Typ. Max Unit

Operating frequency

Number of channels For IEEE 802.15.4 compliance 16

Channel spacing For IEEE 802.15.4 compliance 5 MHz

Input/output impedance 50 Ohm

Frequency stability +/-40 ppm

Transmit power Programmable from firmware -15 +20 dBm

①

Operationg temperature range from -40 to 85°C for module CTL3576 and CTL3578.

Programmable in 5MHz steps, 5 MHz steps for IEEE 802.15.4 compliance

2.4 2.5 GHz

ZigBee- Ready RF Transceiver Module CTL3576/7/8/9

Parameter Condition / Note Min Typ. Max Unit

Sensitivity

Adjacent channel rejection +/-5 MHz

Adjacent channel rejection +/-10 MHz

Co-channel rejection -6

Supply voltage 2.7 3.6 V

Current consumption, RX mode

Current consumption, TX mode

Deep sleep current

Flash Memory 192③ KB

MCU clock frequency 24 MHz

PER = 1% PER, 20byte packet defined by IEEE 802.15.4 Boost mode

IEEE 802.15.4 compliance at -82 dBm

Max RX sensitivity (normal mode) 28 mA

Max RX sensitivity (boost mode) 30 mA

-98 dBm

35/35 dB

40/40 dB

190 mA

10② μA

dB

②

Deep sleep current less than 5 uA for module CTL3576 and CTL3578.

③

Only CTL3577 and CTL3579 have 8Mb off chip flash memory on the RF module.

ZigBee- Ready RF Transceiver Module CTL3576/7/8/9

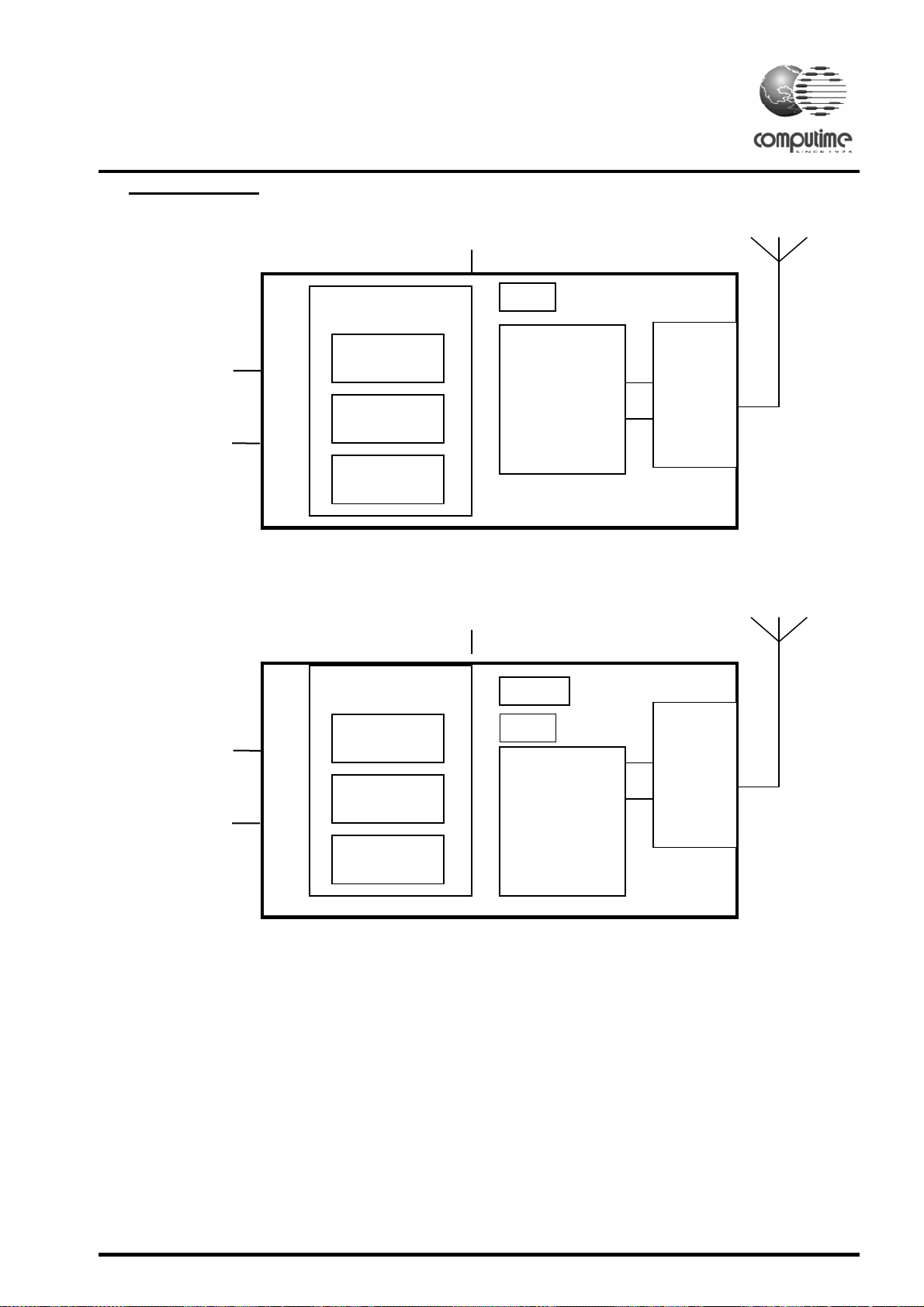

7. Typical application block

HOST

MCU

NREST

Debug and

programming

interface

PTI_EN

PTI-DATA

SIF_CLK

SIF-MISO

SIF-MOSI

CTL357x

RF Module

24MHz

VDD_PADS=2.7- 3.6V

8Mb flash32.768kHz

8. Pin Assignment

LINK_ACTIVITY

Figure 1: Example of application circuit

Figure 2: CTL357x pin assignment

ZigBee- Ready RF Transceiver Module CTL3576/7/8/9

9. Pin Description

Pin# CTL3576 CTL3577 CTL3578 CTL3579 Direction Description

JTCK JTCK JTCK JTCK I

1

SWCLK SWCLK SWCLK SWCLK I/O

2

3

4

PC2 PC2 PC2 PC2 I/O

JTDO JTDO JTDO JTDO O JTAG data out to debugger

SWO SWO SWO SWO O

PC3 PC3 PC3 PC3 I/O

JTDI JTDI JTDI JTDI I JTAG data in from debugger

PC4 PC4 PC4 PC4 I/O

JTMS JTMS JTMS JTMS I

JTAG clock input from debugger

Serial Wire Clock input/output with debugger

Digital I/O Enable with GPIO_DBGCFG[5]

Serial Wire Output asynchronous trace output to

Digital I/O Enable with GPIO_DBGCFG[5]

Digital I/O Either Enable with GPIO_DBGCFG[5]

JTAG mode select from debugger

SWDIO SWDIO SWDIO SWDIO I/O

PC0 PC0 PC0 PC0

JRST JRST JRST JRST

5

IRQD IRQD IRQD IRQD I

TRACEDATA1 TRACEDATA1 TRACEDATA1 TRACEDATA1 O

6

PB7 PB7 PB7 PB7

ADC2 ADC2 ADC2 ADC2 Analog ADC input 2

I/O High

current

I

I/OHigh

current

Serial Wire bidirectional data to/from debugger

Digital I/O Either Enable with GPIO_DBGCFG[5]

JTAG reset input from debugger

Default external interrupt source D

Synchronous CPU trace data bit 1

Digital I/O

ZigBee- Ready RF Transceiver Module CTL3576/7/8/9

IRQC IRQC IRQC IRQC I

TIM1C2 TIM1C2 TIM1C2 TIM1C2 O Timer 1 channel 2 output

TIM1C2 TIM1C2 TIM1C2 TIM1C2 1 Timer 1 channel 2 input

PB6 PB6 PB6 PB6

ADC1 ADC1 ADC1 ADC1 Analog ADC input 1

7

Pin# CTL3576 CTL3577 CTL3578 CTL3579 Direction Description

IRQB IRQB IRQB IRQB I External interrupt source B

TIM1C1 TIM1C1 TIM1C1 TIM1C1 O Timer 1 channel 1 output

TIM1C1 TIM1C1 TIM1C1 TIM1C1 I Timer 1 channel 1 input

I/O High

current

Default external interrupt source C

Digital I/O

PA7 PA7 PA7 PA7

TIM1C4 TIM1C4 TIM1C4 TIM1C4 O Timer 1 channel 4 output

8

TIM1C4 TIM1C4 TIM1C4 TIM1C4 I Timer 1 channel 4 input

REG_EN REG_EN REG_EN REG_EN O

PC1 PC1 PC1 PC1 I/O Digital I/O

ADC3 ADC3 ADC3 ADC3

9

SWO SWO SWO SWO O

TRACEDATA0 TRACEDATA0 TRACEDATA0 TRACEDATA0 O

10 GND GND GND GND

I/O High

current

Analog ADC input 3

Digital I/O Disable REG_EN with GPIO_DBGCFG [4]

External regulator open drain output

Serial Wire Output asynchronous trace output to

Synchronous CPU trace data bit 0

ZigBee- Ready RF Transceiver Module CTL3576/7/8/9

PB3 PB3 PB3 PB3 I/O

TIM2C3 TIM2C3 TIM2C3 TIM2C3 O Timer 2 channel 3 output

TIM2C3 TIM2C3 TIM2C3 TIM2C3 I Timer 2 channel 3 input

11

SC1nCTS SC1nCTS SC1nCTS SC1nCTS I

SC1SCLK SC1SCLK SC1SCLK SC1SCLK O

SC1SCLK SC1SCLK SC1SCLK SC1SCLK I

12 GND GND GND GND

PC6 PC6 PC6 PC6 I/O Digital I/O

13

OSC32B OSC32B I/O 32.768KHz crystal oscillator

Digital I/O

UART CTS handshake of Serial Controller 1

SPI master clock of serial Controller 1

SPI slave clock of serial Controller 1

NTX_ACTIVE NTX_ACTIVE NTX_ACTIVE NTX_ACTIVE O Inverted TX_ACTIVE signal

PC7 PC7 PC7 PC7 I/O

14

15 GND GND GND GND

16 VDD_PADS VDD_PADS VDD_PADS VDD_PADS Power Pads supply(2.1-3.6V)

17 nRESET nRESET nRESET nRESET I

OSC32A OSC32A I/O 32.768KHz crystal oscillator

OSC32_EXT OSC32_EXT OSC32_EXT OSC32_EXT I

Digital I/O

Digital 32.768KHz clock input source

Active low chip reset(internal pull-up)

Pin# CTL3576 CTL3577 CTL3578 CTL3579 Direction Description

18

PA0 PA0 PA0 PA0 I/O

Digital I/O

ZigBee- Ready RF Transceiver Module CTL3576/7/8/9

TIM2C1 TIM2C1 TIM2C1 TIM2C1 O Timer 2 channel 1 output

TIM2C1 TIM2C1 TIM2C1 TIM2C1 I Timer 2 channel 1 input

SC2MOSI SC2MOSI SC2MOSI SC2MOSI O

SC2MOSI SC2MOSI SC2MOSI SC2MOSI I SPI slave data in of serial controller 2

SI SI I Serial data in fot the 8Mb flash④

PA1 PA1 PA1 PA1 I/O

TIM2C3 TIM2C3 TIM2C3 TIM2C3 O Timer 2 channel 3 output

TIM2C3 TIM2C3 TIM2C3 TIM2C3 I Timer 2 channel 3 input

19

SC2SDA SC2SDA SC2SDA SC2SDA I/O TWI data of serial controller 2

SC2MISO SC2MISO SC2MISO SC2MISO O SPI slave data out of serial controller 2

SC2MISO SC2MISO SC2MISO SC2MISO I SPI master data in of serial controller 2

SPI master data out of serial controller 2

Digital I/O

SO SO O Serial data out of the 8Mb flash

20

PA2 PA2 PA2 PA2 I/O

TIM2C4 TIM2C4 TIM2C4 TIM2C4 O Timer 2 channel 4 output

TIM2C4 TIM2C4 TIM2C4 TIM2C4 I Timer 2 channel 4 input

SC2SCL SC2SCL SC2SCL SC2SCL I/O TWI clock of serial controller 2

SC2SCLK SC2SCLK SC2SCLK SC2SCLK O SPI master clock of serial controller 2

Digital I/O

④

The SI,SO,SCK and CE# on the module pin18,19,20 and 23 are connected to the off chip 8Mbit SPI Serial

Flash(SST25VF080B).Details information about the flash memory ,refers to its datasheet. It applys to the module CTL3577 and CTL3579.

ZigBee- Ready RF Transceiver Module CTL3576/7/8/9

SC2SCLK SC2SCLK SC2SCLK SC2SCLK I SPI slave clock of serial controller 2

SCK SCK I Clock in for the 8Mb flash

PA6 PA6 PA6 PA6

21

22

TIM1C3 TIM1C3 TIM1C3 TIM1C3 O Timer 1 channel 3 output

TIM1C3 TIM1C3 TIM1C3 TIM1C3 I Timer 1 channel 3 input

PB4 PB4 PB4 PB4 I/O

TIM2C4 TIM2C4 TIM2C4 TIM2C4 O Timer 2 channel 4 output

TIM2C4 TIM2C4 TIM2C4 TIM2C4 i Timer 2 channel 4 input

SC1nRTS SC1nRTS SC1nRTS SC1nRTS O

SC1nSSEL SC1nSSEL SC1nSSEL SC1nSSEL I SPI slave select of serial controller 1

I/O High

current

Digital I/O

UART RTS handshake of serial controller 1

Pin# CTL3576 CTL3577 CTL3578 CTL3579 Direction Description

Digital I/O

SPI slave select of serial controller 2

Synchronous CPU trace clock

Chip Enable for the 8Mb flash

Digital I/O

23

24

PA3 PA3 PA3 PA3 I/O

SC2Nssel SC2Nssel SC2Nssel SC2Nssel I

TRACECLK TRACECLK TRACECLK TRACECLK O

TIM2C2 TIM2C2 TIM2C2 TIM2C2 O Timer 2 channel 2 output

TIM2C2 TIM2C2 TIM2C2 TIM2C2 I Timer 2 channel 2 input

CE# CE# I

PA4 PA4 PA4 PA4 I/O

ZigBee- Ready RF Transceiver Module CTL3576/7/8/9

ADC4 ADC4 ADC4 ADC4 Analog ADC input 4

PTI_EN PTI_EN PTI_EN PTI_EN O

TRACEDATA2 TRACEDATA2 TRACEDATA2 TRACEDATA2 O

PA5 PA5 PA5 PA5 I/O

ADC5 ADC5 ADC5 ADC5 Analog ADC input 5

25

PTI_DATA PTI_DATA PTI_DATA PTI_DATA O

NBOOTMODE NBOOTMODE NBOOTMODE NBOOTMODE I

TRACEDATA3 TRACEDATA3 TRACEDATA3 TRACEDATA3 O

PB1 PB1 PB1 PB1 I/O

SC1MISO SC1MISO SC1MISO SC1MISO O

Frame signal of packet trace interface

Synchronous CPU trace data bit 2

Digital I/O

Data signal of packet trace interface

Embedded serial bootloader activation out of reset

Synchronous CPU trace data bit 3

Digital I/O

SPI slave data out of serial controller 1

SC1MOSI SC1MOSI SC1MOSI SC1MOSI O

26

SC1SDA SC1SDA SC1SDA SC1SDA I/O TWI data of serial controller 1

SC1TXD SC1TXD SC1TXD SC1TXD O

TIM2C1 TIM2C1 TIM2C1 TIM2C1 O Timer 2 channel 1 output

TIM2C1 TIM2C1 TIM2C1 TIM2C1 I Timer 2 channel 1 input

Pin# CTL3576 CTL3577 CTL3578 CTL3579 Direction Description

27

PB2 PB2 PB2 PB2 I/O

Digital I/O

SPI master data out of serial controller 1

UART transmit data of serial controller 1

ZigBee- Ready RF Transceiver Module CTL3576/7/8/9

SC1MISO SC1MISO SC1MISO SC1MISO I SPI master data in of serial controller 1

SC1MOSI SC1MOSI SC1MOSI SC1MOSI I SPI slave data in of serial controller 1

SC1SCL SC1SCL SC1SCL SC1SCL I/O TWI clock of serial controller 1

28

SC1RXD SC1RXD SC1RXD SC1RXD I

TIM2C2 TIM2C2 TIM2C2 TIM2C2 O Timer 2 channel 2 output

TIM2C2 TIM2C2 TIM2C2 TIM2C2 I Timer 2 channel 2 input

PB5 PB5 PB5 PB5 I/O

ADC0 ADC0 ADC0 ADC0 Analog ADC input 0

TIM2CLK TIM2CLK TIM2CLK TIM2CLK I Timer 2 external clock input

TIM1CLK TIM1CLK TIM1CLK TIM1CLK I Timer 1 external clock mask input

PB0 PB0 PB0 PB0 I/O

VREF VREF VREF VREF Analog O ADC reference output

UART receive data of serial controller 1

Digital I/O

VREF VREF VREF VREF Analog I ADC reference input

29

IRQA IRQA IRQA IRQA I External interrupt source A

TRACECLK TRACECLK TRACECLK TRACECLK O Synchronous CPU trace clock

TIM1CLK TIM1CLK TIM1CLK TIM1CLK I Timer 1 external clock input

TIM2MSK TIM2MSK TIM2MSK TIM2MSK I Timer 2 external clock mask input

ZigBee- Ready RF Transceiver Module CTL3576/7/8/9

10. Block Diagram

2.7 – 3.6V

PCB antenna

TO HOST MCU

32 Bit ARM Processor

User

Application

ZigbeeTM

Network

IEEE 802.15.4

MAC

CTL3576

2.7 – 3.6V

32 Bit ARM Processor

User

Application

ZigbeeTM

Network

24MHz

IEEE 802.15.4

RF Transceiver

8Mb flash

24MHz

IEEE 802.15.4

RF Transceiver

FEM

PCB antenna

FEM

IEEE 802.15.4

MAC

CTL3577

ZigBee- Ready RF Transceiver Module CTL3576/7/8/9

2.7 – 3.6V

PCB antenna

TO HOST MCU

32 Bit ARM Processor

User

Application

ZigbeeTM

Network

IEEE 802.15.4

MAC

CTL3578

2.7 – 3.6V

32 Bit ARM Processor

User

Application

ZigbeeTM

Network

IEEE 802.15.4

MAC

32.768kHz

24MHz

IEEE 802.15.4

RF Transceiver

8Mb flash

32.768kHz

24MHz

IEEE 802.15.4

RF Transceiver

FEM

PCB antenna

FEM

CTL3579

Figure 3: Block Diagram

11. RF Frequency Detail

The following table shows the RF channels as defined by the IEEE 802.15.4 standard.

RF channel Frequency

11 2405MHz

12 2410MHz

13 2415MHz

14 2420MHz

ZigBee- Ready RF Transceiver Module CTL3576/7/8/9

15 2425MHz

16 2430MHz

17 2435MHz

18 2440MHz

19 2445MHz

20 2450MHz

21 2455MHz

22 2460MHz

23 2465MHz

24 2470MHz

25 2475MHz

26 2480MHz

Note: the output power of EM357 should be configured lower than -15dBm for 2480M channel to Comply FCC requirement.

The use of RF frequencies and maximum allowed RF power should according to different national regulations. The CTL3576 is complying with the applicable regulations for the world wide 2.4GHz ISM band.

12. PCB Layo ut Recommendations

Please reference Mechanical Dimensions shown in next section for PCB layout.

The area underneath the module should be covered with solder mask in order to prevent short circuit on the test pads on the back side of the module. A solid ground plane under the module is preferred.

As the module integrated with onboard PCB trace antenna, the mounting position of the module will have great impact on the RF performance. There should not be any trace, ground plane or metal part underneath or nearby the area of the onboard PCB trace antenna. The figure below shows an example how the module positioned on the mother PCB.

Figure 4: A recommended placement of the module on a main PCB

ZigBee- Ready RF Transceiver Module CTL3576/7/8/9

13. Mechanical Dimensions

Figure 5: Mechanical Dimensions of CTL3576

.8

Pin 1

Pin 11

For further details on the SoC transceiver (Ember EM357), please consult the data sheet at

http://www.ember.com

ZigBee- Ready RF Transceiver Module CTL3576/7/8/9

14. Modules Differentia

Computime Model No. P.A. 32kHz Crystal 8Mbit Flash Memory

CTL3576 Y N N

CTL3577 Y N Y

CTL3578 Y Y N

CTL3579 Y Y Y

FCC STATEMENT:

1. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful inter ference, and (2) this device must accept any interference received, including interference that may c aus e

undesired operation.

2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or m ore of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement

The modular can be installed or integrated in mobile or fix devices only. This modular cannot be installed in any portable device, for example, USB dongle like transmitters is forbidden.

This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This modular must be installed and operated with a minimum distance of 20 cm between the radiator and user body.

If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording suc h as the following: “Contains Transmitter Module FCC ID: DI2-CTL3579

when the module is installed inside another device, the user manual of this device must contain below warning statements;

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) T

his device may not cause harmful interference.

(2) This device must accept any interference received, including interfere nce that may cause undesired operation.

2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product.

IC STAT

EMENT

Operatio

n is subject to the following two condition

s: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

Le présent app appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

IC RF warning statement

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance 20cm between the radiator &

your body.

If the IC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording suc h as the following: “Contains Transmitter Module IC: 1700D-CTL3579

areil est conforme aux CNR d'Industrie Canada applicables aux

This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

IC: 1700D-CTL3579 Model No.:CTL3579, CTL3576, CTL3577, CTL3578 Antenna type:intergal (SMT) Antenna gain:-0.32dBi Antenna impedance: 50ohm

ZigBee- Ready RF Transceiver Module CTL3576/7/8/9
