Computime CTL3082 User Manual

Smart Energy In-Home Display

Instruction Manual

Model No.CTL3082

1

CONTENTS

PRODUCT OVERVIEW..............................................................................................................................................3

SAFETY INSTRUCTIONS.............................................................................................................................................3

INSTALLATION...........................................................................................................................................................4

BACKLIGHT ...............................................................................................................................................................4

NAVIGATION BUTTONS ...........................................................................................................................................4

HOME SCREEN .........................................................................................................................................................5

MENU.........................................................................................................................................................................5

Usage me nu.........................................................................................................................................................6

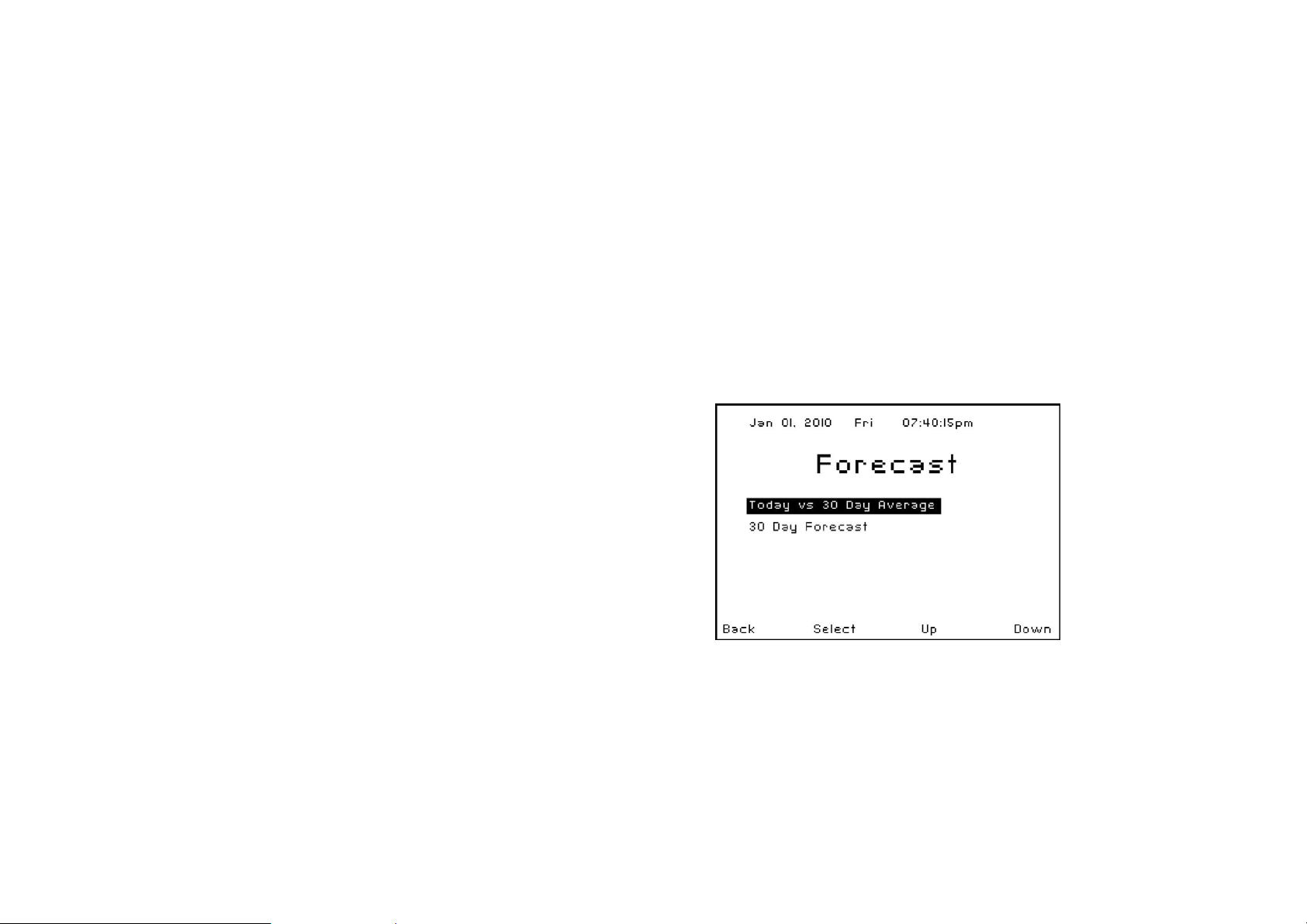

Forecast menu.....................................................................................................................................................6

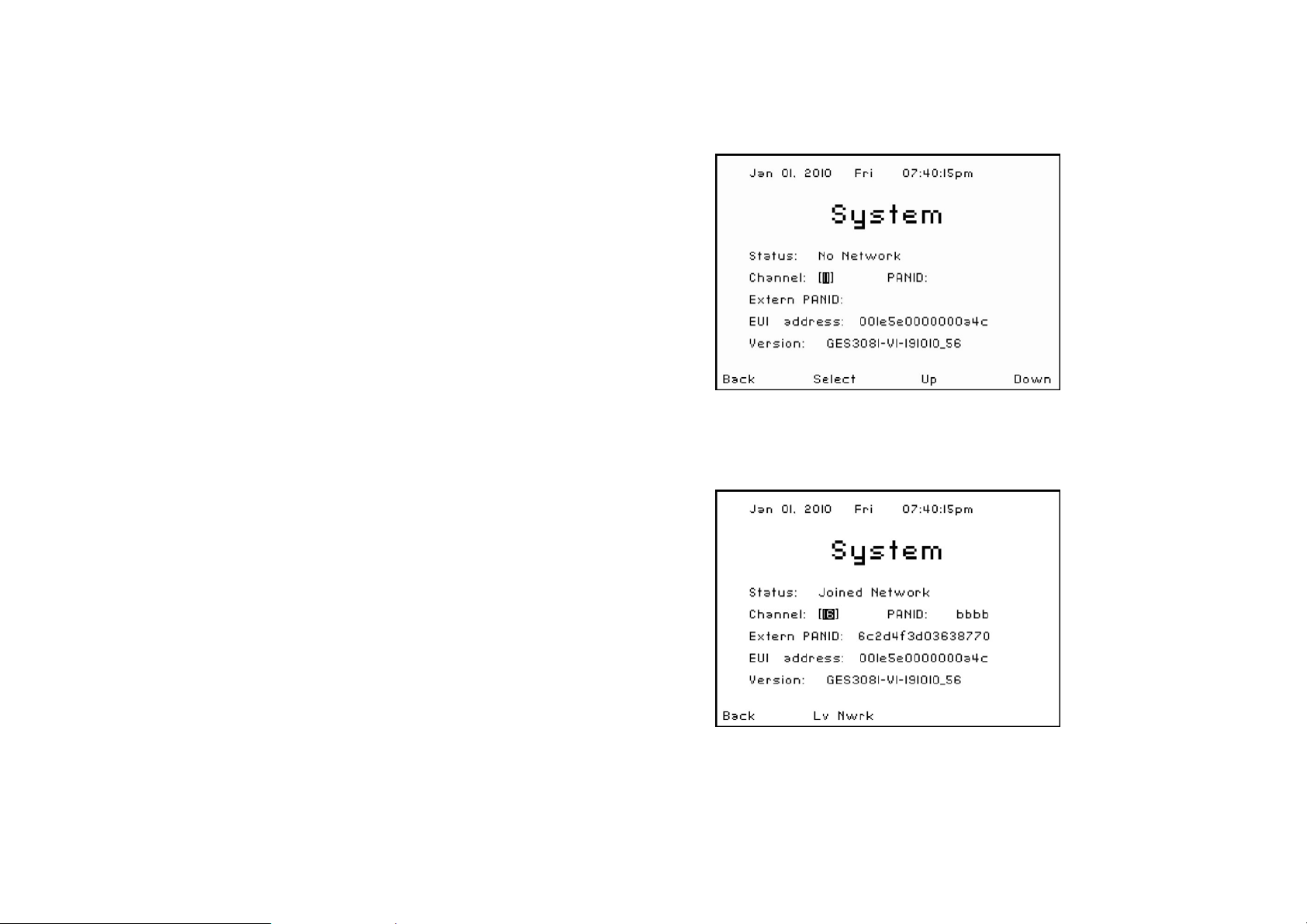

System menu........................................................................................................................................................7

Settings menu ......................................................................................................................................................7

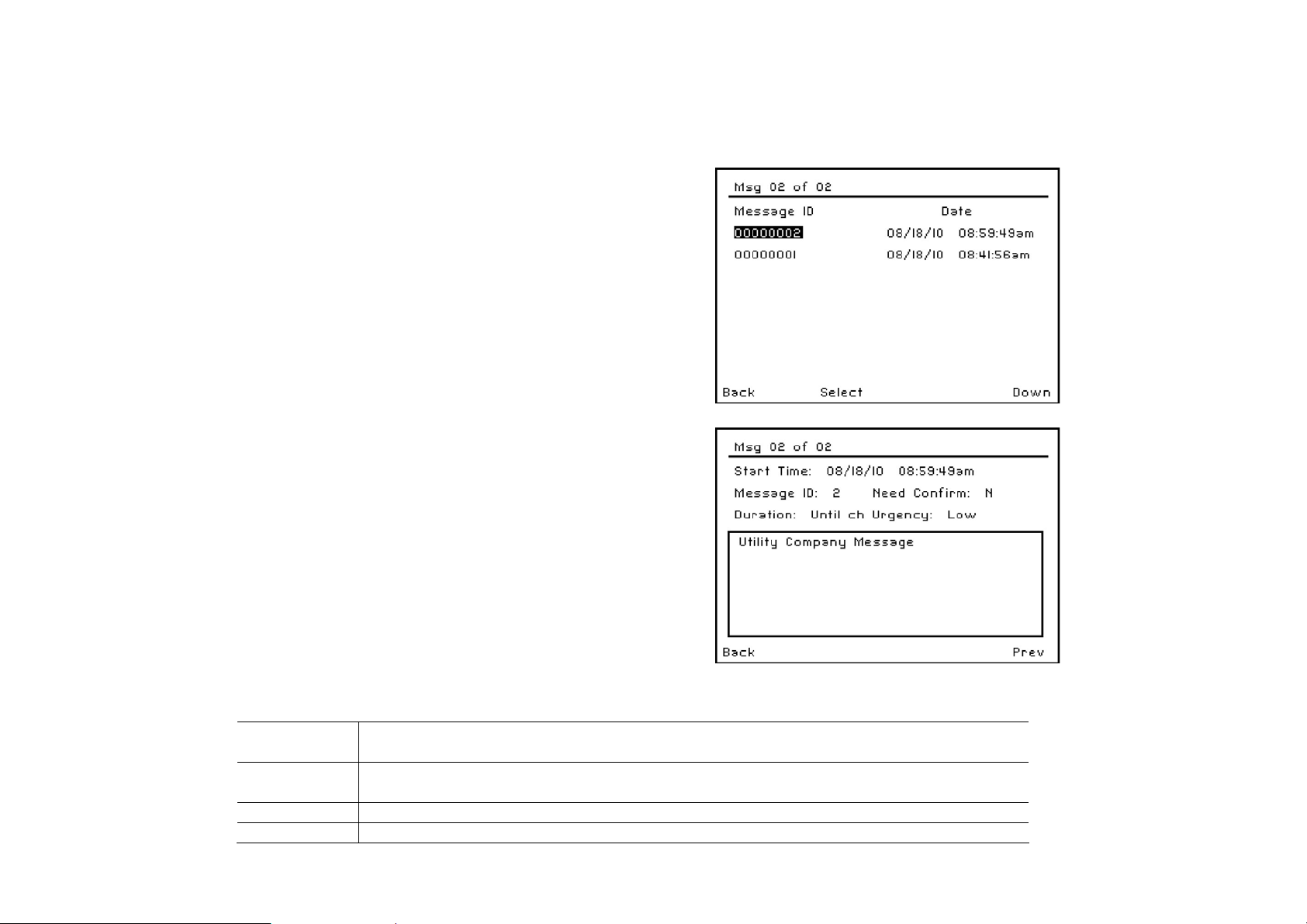

MESSAGES ................................................................................................................................................................8

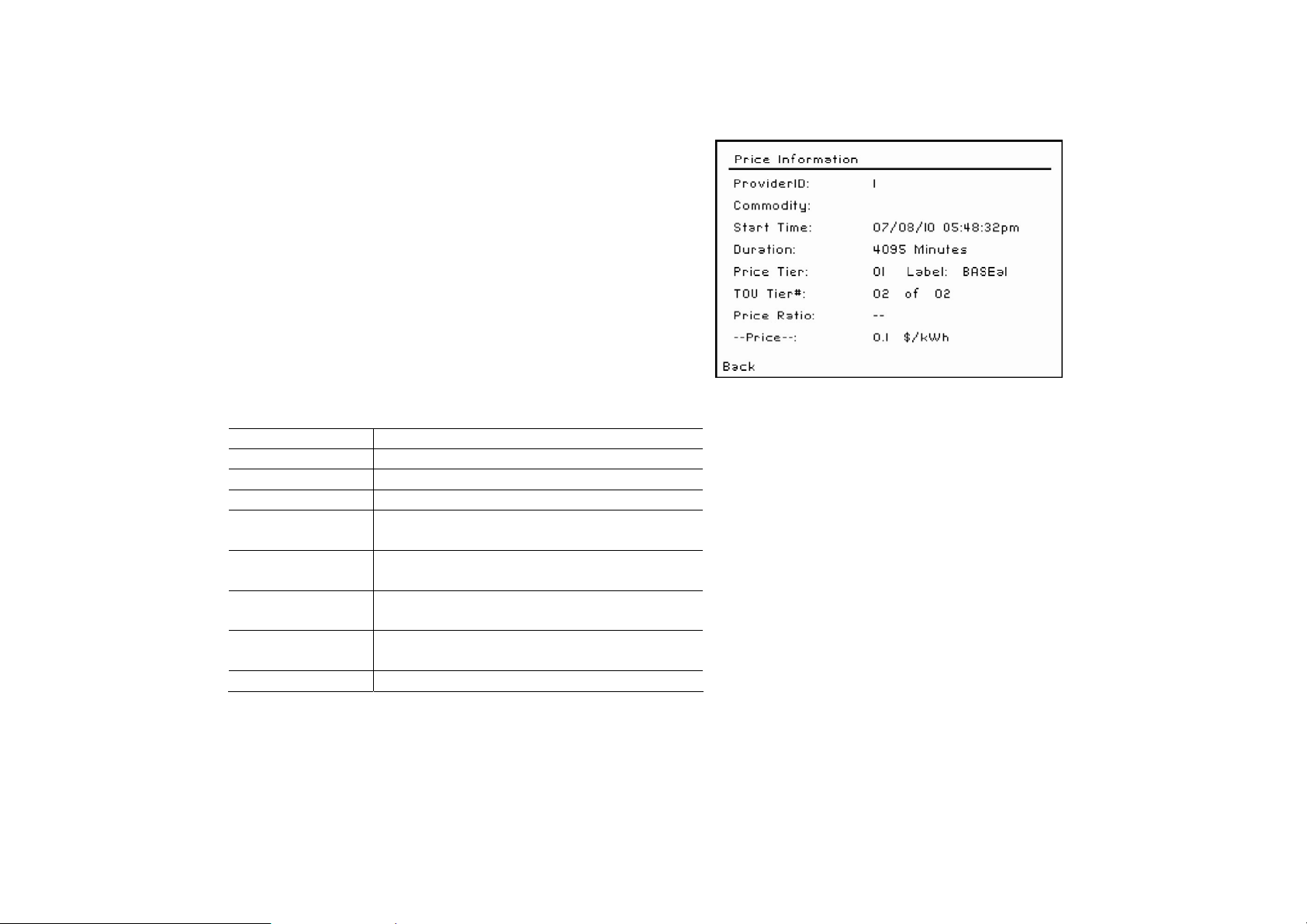

PRICE...................................................................................................................................................................... 10

SPECIFICATIONS.................................................................................................................................................... 11

FCC DECLARATION.............................................................................................................................................. 12

ETL........................................................................................................................................................................... 14

2

PRODUCT OVERVIEW

The In-Home Display unit shows the history of your energy and forecasts your energy usage based on the data
it collects. The smart ZigBee™ technology enables the unit to communicate with your u tility company so you
can receive messages about energy saving events and price reductions.

SAFETY INSTRUCTIONS

Purpose and correct use:

• Read these instructions carefully and keep in a safe place for future reference.

• All manual/safety instructions and electricity supplier’s regulations must be adhered to.

• Only conne ct this uni t to a UL/ET L approved 5-volt DC power supply provided by manufacturer.

• Do not install this unit at an altitude of over 2000 meters.

• This standalone electronic unit should only be used in dry, closed living and office spaces. Do not place

the unit in a bathroom or area of excessive moisture. Do not allow the unit to get wet.

• Place the unit in an easy-to-reach posi tion where you can comfortably reach the buttons and view the
screen.

• Do not expose the unit to temperatures below 5°C or above 40°C, humidity above 90% or pollution
above level 2.

• Do not expose the unit to voltage beyond 90V-260V AC.

• Clean the unit with a dry, soft cloth. Do not use solven ts or aggressive cleaning agents.

The manufacturer accepts no responsibility for damage caused by non-observance of these instructions.

3

INSTALLATION

2 3 4

1. Plug the power adapter into the adapter socket on the left-hand side of the unit.

2. Pull out the table stand on the back of the unit and place the unit on a firm, flat surface near a power
source.

3. Insert the plug into a 120 or 220 V wall socket.

BACKLIGHT

Press any button to turn on the backlight.
Note: If the backlight has turned off, you need to press any button to turn it on again before you can enter the

menus.

NAVIGATION BUTTONS

The navigation buttons are as follows:

1

Throughout this manual, the buttons to press in order to access the onscreen commands will be referred to as
(1), (2 ), (3), ( 4).

4

HOME SCREEN

The Home screen is the main display screen. It shows the
current power consumption and the cost per hour.

From the Home screen, you can access the system menu,
current price of your electricity, messages from your utility
company, and your current meter reading.

MENU

The Menu page provides navigation to the Usage, Forecast,
System and Settings menu pages. To view one of these
pages, press (3) or (4) to select the desired page and press (2)
to view it. Press (1) to return to the Home Screen.

5
