Computime CT EM2506 User Manual
CT-EM2506 ZigBee Ready RF Transceiver Modules
ZigBee- Ready SoC RF Transceiver Modules

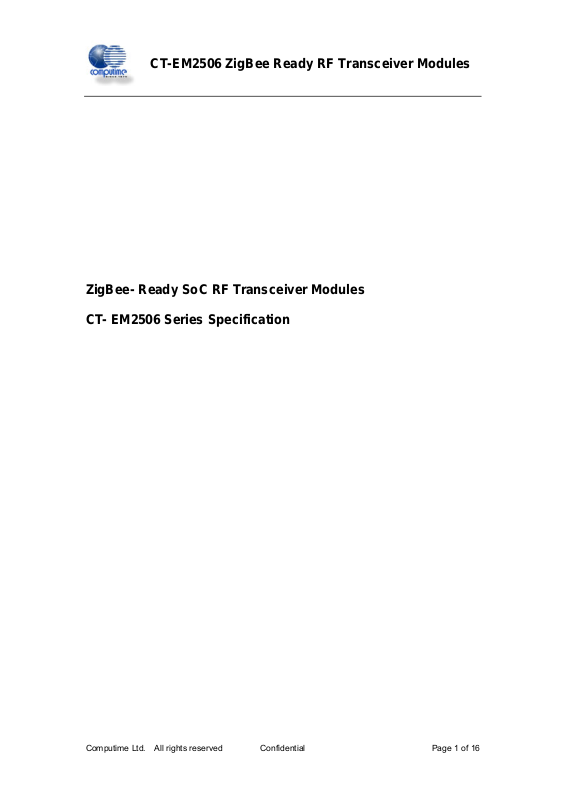

CT- EM2506 Series Specification
Computime Ltd. All rights reserved Confidential Page 1 of 16
CT-EM2506 ZigBee Ready RF Transceiver Modules
Table of Content
1. General Description ..................................................................................................................3
2. Applications..............................................................................................................................3
3. Features.....................................................................................................................................3
4. Absolute Maximum Ratings .....................................................................................................4
5. Recommended Operating Conditions.......................................................................................4
6. Electrical Specifications............................................................................................................4
7. Introduction...............................................................................................................................6
8. Typical application block..........................................................................................................6

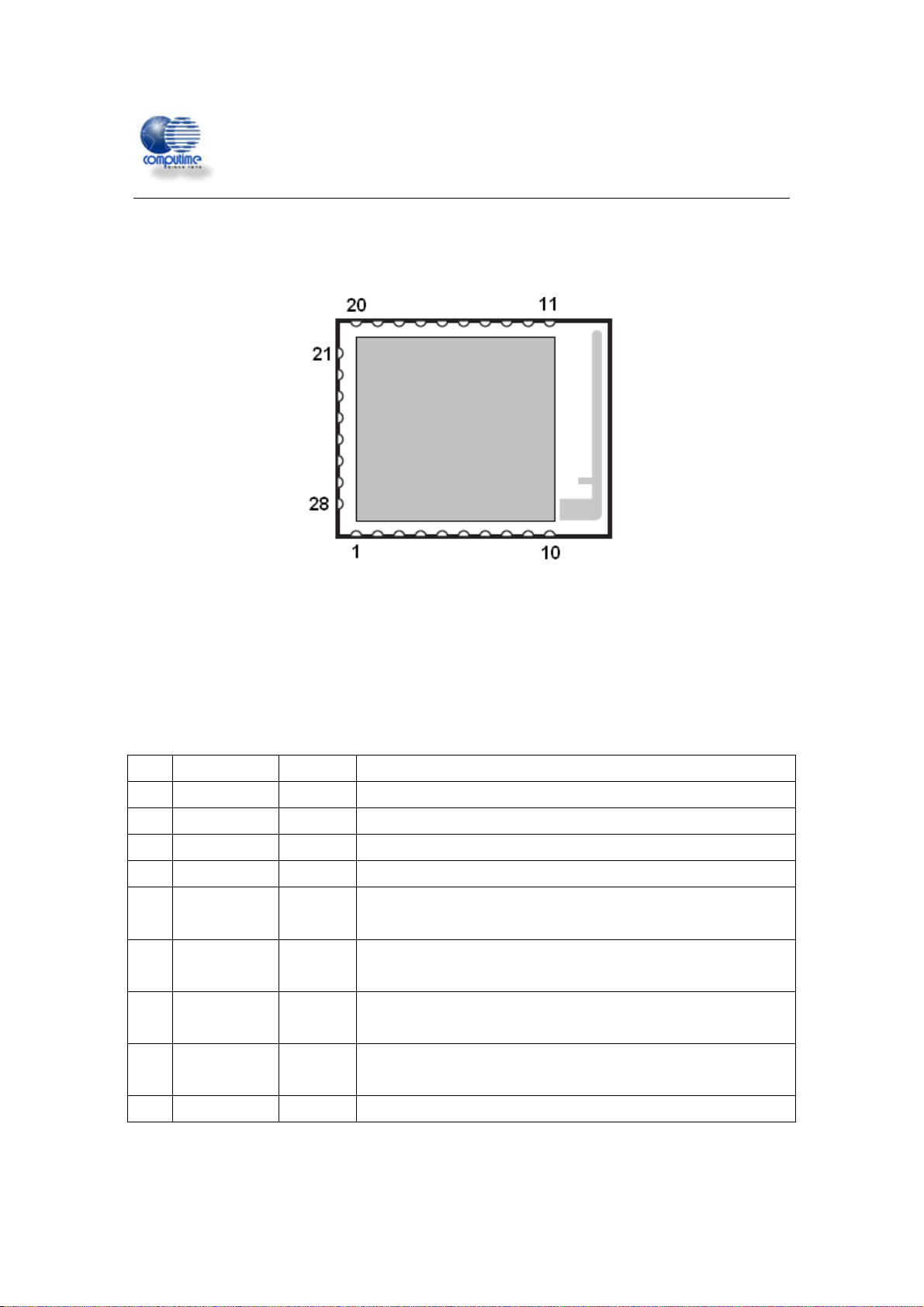

9. Pin Assignment .........................................................................................................................7
10. Pin Description......................................................................................................................7
11. Block Diagram......................................................................................................................9
12. Circuit Description................................................................................................................9
13. SIF Module Programming and Debug Interface.................................................................10
14. Power Management.............................................................................................................10
15. RF Frequency, Output Power Levels and Data Rates.........................................................11
16. Antenna Design Considerations..........................................................................................12
17. Product Approvals...............................................................................................................13
18 Mechanical Dimension .......................................................................................................15
19 Ordering Information..........................................................................................................16
20 Document Revision History................................................................................................16
Computime Ltd. All rights reserved Confidential Page 2 of 16
CT-EM2506 ZigBee Ready RF Transceiver Modules
ZigBee- Ready SoC RF Transceiver Modules
1. General Description
The CT-EM2506 SoC RF Transceiver Modules is a compact surface mounted
module specially designed for Ember’s ZigBee™ protocol stack for wireless networks,
EmberZNet, based on IEEE 802.15.4 standard in the 2.4GHz world-wide ISM band. It
provides 16 channels and compliant PHY and MAC layers. The complete module is
only 25.4 x 32.4 x 4.1mm. They both integrate a 2.4GHz, IEEE 802.15.4-compliant
transceiver with a 16-bit XAP2b microprocessor and a FEM. They consist of
integrated Flash and RAM memory and peripherals. A number of peripherals such as
GPIO, UART, SPI, I2C, ADC, and general purpose timers are integrated to support
user-defined applications.
2. Applications
Home
automation &
building control
Home
appliances &
alarms
Monitoring of
remote
systems
3. Features
Integrated PCB trace antenna
IEEE 802.15.4 compliant PHY and MAC layer
12MHz XAP2b 16-bit microcontroller core
128kB Flash and 5kB RAM, emulation EEPROM
17 GPIO , 4 channel 12 bit ADC
2
UART, SPI, I
C and debug interfaces
Lighting
controls
Sensor data
capturing
External 32.768 kHz real time clock or internal RC oscillator for timer
16 channels in the 2.4 GHz ISM band
On-chip regulator for 2.7-3.6V operation, three sleep low power modes
-15dBm------20dBm output power, SW controlled
Computime Ltd. All rights reserved Confidential Page 3 of 16
CT-EM2506 ZigBee Ready RF Transceiver Modules
4. Absolute Maximum Ratings
Parameter Test Conditions Min. Max. Unit
Regulator voltage (VDD_PADS)
Voltage on any GPIO[16:0], SIF_CLK,
SIF_MISO, SIF_MOSI, nSIF_LOAD, OSC32A,
OSC32B, nRESET
Storage temperature
Under no circumstances should the absolute maximum ratings given above be violated. Stress exceeding
one or more of the limiting values may cause permanent damage to the device.
- 0.3 VDD_PADS+
- 0.3 3.6 V
V
0.3
- 40 + 140 °C
5. Recommended Operating Conditions
Parameter Test Conditions Min. Typ. Max. Unit
Regulator input voltage (VDD_PADS) 2.7 3.6
Core input voltage (VDD_24MHZ, VDD_VCO,
VDD_RF, VDD_IF, VDD_PADSA,
VDD_FLASH, VDD_PRE, VDD_SYNTH,
VDD_CORE)
Temperature range - 40 + 85 °C
1.7 1.8 1.9 V
6. Electrical Specifications
T = 25℃, VCC = 3.0V, fo = 2450Mhz, if nothing else stated.
Parameter Min. Typ. Max Unit Condition / Note
Operating frequency 2400 2483.5 MHz
Number of channels 16 For IEEE 802.15.4 compliance
Channel spacing 5 MHz For IEEE 802.15.4 compliance
Input/output impedance 50 Ohm
Data rate 250 kbit/s
DSSS chip rate 2 Mc/s
Frequency stability +/-40 ppm
Transmit power
-15 20 dBm Programmable from software
Programmable in 5 MHz steps for
IEEE 802.15.4 compliance
Computime Ltd. All rights reserved Confidential Page 4 of 16
CT-EM2506 ZigBee Ready RF Transceiver Modules
Parameter Min. Typ. Max Unit Condition / Note
Sensitivity -98 dBm PER = 1% Boost Mode
Adjacent channel rejection
+/-5 MHz
Adjacent channel rejection
+/-10 MHz
Co-channel rejection -6 dB IEEE 802.15.4 signal at - 82dBm
Supply voltage 2.7 3.6 V
Current consumption
RX mode
Current consumption
TX Mode
Quiescent current 5.0 μA
35/35 dB
40/40 dB
36 mA Max RX sensitivity (normal mode)
38 mA Max RX sensitivity (boost mode)
190 mA 20dBm output
IEEE 802.15.4 signal at - 82dBm
IEEE 802.15.4 signal at 82dBm
Flash memory 128 KB
RAM memory 5 KB
Simulated EEPROM memory 8 KB
MCU clock frequency 12 MHz
RC OSCILATOR frequency 10 KHZ
MCU low frequency crystal 32.768 kHz
Computime Ltd. All rights reserved Confidential Page 5 of 16
