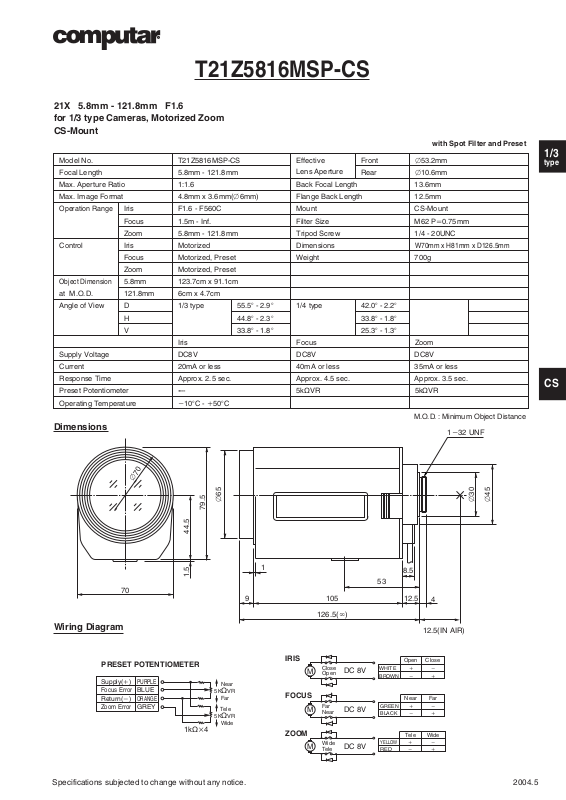

Computar T21Z5816MSP Specsheet

Specifications subjected to change without any notice. 2004.5

1/3

type

CS

70

79.5

쏗65

쏗30

44.5

1

쏗45

8.5

53

105

126.5(앝)

12.59

4

1Ҁ32 UNF

1.5

12.5(IN AIR)

PRESET POTENTIOMETER

Supply(ѿ)
Focus Error
Return(Ҁ)
Zoom Error

PURPLE
BLUE
ORANGE
GREY

1k⏲҂4

Near
5K⏲VR
Far

Tele
5K

⏲VR

Wide

IRIS

FOCUS

ZOOM

M

Close
Open

DC 8V

M

Far
Near

DC 8V

M

Wide
Tele

DC 8V

Open

ѿ
Ҁ

WHITE
BROWN

Close

Ҁ
ѿ

Near

ѿ
Ҁ

GREEN
BLACK

Far

Ҁ
ѿ

Tele

ѿ
Ҁ

YELLOW
RED

Wide

Ҁ
ѿ

쏗70

21X 5.8mm - 121.8mm F1.6
for 1/3 type Cameras, Motorized Zoom
CS-Mount

with Spot Filter and Preset

T21Z5816MSP-CS

Model No. T21Z5816MSP-CS

Effective

Front 쏗53.2mm

Focal Length 5.8mm - 121.8mm

Lens Aperture

Rear 쏗10.6mm

Max. Aperture Ratio 1:1.6 Back Focal Length 13.6mm

Max. Image Format 4.8mm x 3.6mm(쏗6mm) Flange Back Length 12.5mm

Operation Range

Iris F1.6 - F560C Mount CS-Mount

Focus 1.5m - Inf. Filter Size M62 P҃0.75mm

Zoom 5.8mm - 121.8mm Tripod Screw 1/4 - 20UNC

Control Iris Motorized Dimensions

W70mm x H81mm x D126.5mm

Focus Motorized, Preset Weight 700g

Zoom Motorized, Preset

Object Dimension

5.8mm 123.7cm x 91.1cm

at M.O.D. 121.8mm 6cm x 4.7cm

Angle of View D 1/3 type 55.5쎷 - 2.9쎷 1/4 type 42.0쎷 - 2.2쎷

H 44.8쎷 - 2.3쎷 33.8쎷 - 1.8쎷

V 33.8쎷 - 1.8쎷 25.3쎷 - 1.3쎷

Iris Focus Zoom

Supply Voltage DC8V DC8V DC8V

Current 20mA or less 40mA or less 35mA or less

Response Time Approx. 2.5 sec. Approx. 4.5 sec. Approx. 3.5 sec.

Preset Potentiometer ---- 5 k⏲VR 5k⏲VR

Operating Temperature Ҁ10쎷C - ѿ50쎷C

M.O.D. : Minimum Object Distance

Dimensions

Wiring Diagram
