Specifications subject to change without notice. 2004.5
CS
1/2
type
(IN AIR)
쏗39.2
M37.5 P҃0.5
Zoom Ring
Focus Ring
1-32UNF
쏗47
3.5
12.5
0.9
11.37.9 9.5
57.7
28.1
34
90 *
43
21
Pin No.
1
BROWN
Control (Ҁ)
2
RED
Control (ѿ)
3
YELLOW
Drive (ѿ)
4
ORANGE
Drive (Ҁ)

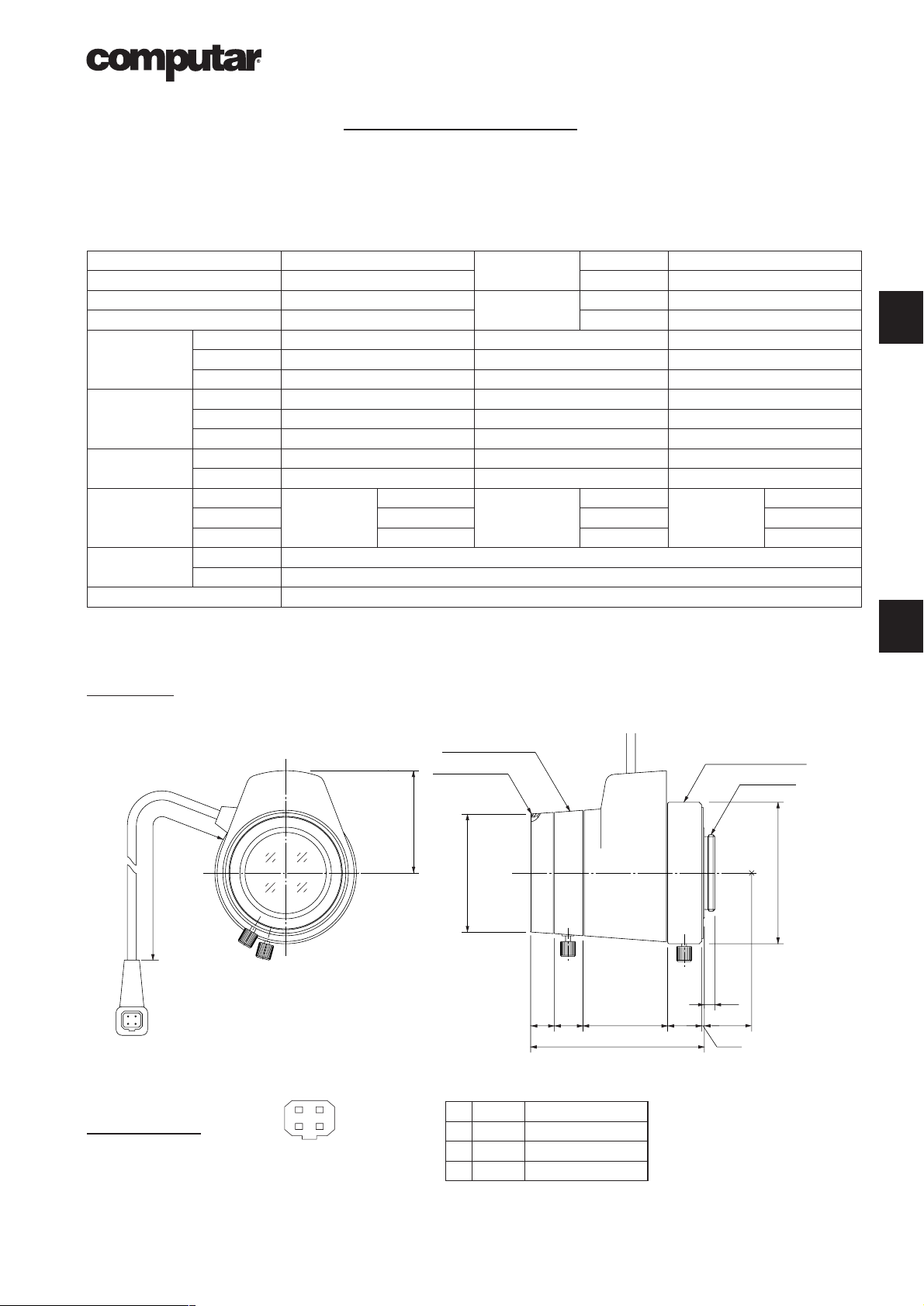

3X 10mm - 30mm F1.4
for 1/2 type Cameras, Vari-focal Auto Iris DC Drive
CS-Mount
with Focus, w/o Amplifier
HG3Z1014FCS
Model No. HG3Z1014FCS
Effective
Front 쏗26.6mm
Focal Length 10mm - 30mm
Lens Aperture
Rear 쏗9.0mm
Max. Aperture Ratio 1:1.4 Back Focal
Tele
9.8mm
Max. Image Format 6.4mm x 4.8mm(쏗8mm) Length Wide 11mm
Operation Range
Iris F1.4 - F360C Flange Back Length 12.5mm
Focus 0.6m - Inf. Mount CS-Mount
Zoom 10mm - 30mm Filter Size M37.5 P҃0.5mm
Control Iris DC Auto Iris Dimensions 쏗41.7mm x 57.5mm x 57.7mm
Focus Manual Weight 120g
Zoom Manual
Object Dimension
10mm 38.8cm x 28.6cm
at M.O.D.
30mm 13.1cm x 9.9cm
Angle of View D 1/2 type 44.8쎷 - 15.6쎷 1/3 type 35.6쎷 - 11.7쎷 1/4 type 25.1쎷 - 8.8쎷
H 35.8쎷 - 12.5쎷 26.8쎷 - 9.4쎷 20.1쎷 - 7.0쎷
V 26.8쎷 - 9.4쎷 20.1쎷 - 7.1쎷 15.0쎷 - 5.3쎷
Coil Drive 190⏲
Control 1000⏲
Operating Temperature Ҁ20쎷C - ѿ50쎷C
Dimensions
Wiring Diagram
* : 310mm cable is available
M.O.D : Minimum Object Distance
