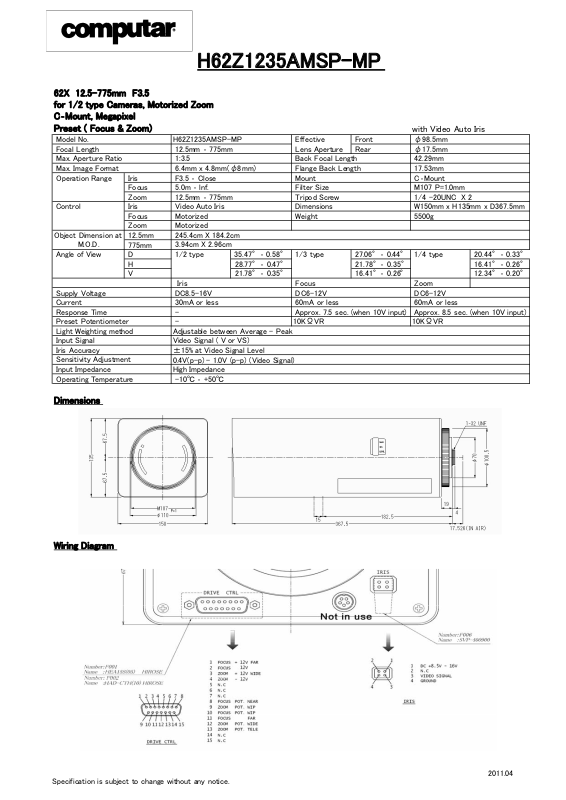

H62Z1235AMSP-MP
62X 12.5-775mm F3.5
for 1/2 type Cameras, Motorized Zoom
C‐Mount, Megapixel
Preset ( Focus & Zoom)
Model No. H62Z1235AMSP-MP Effective Front φ98.5mm
Focal Length 12.5mm ‐ 775mm Lens Aperture Rear φ17.5mm
Max. Aperture Ratio 1:3.5 Back Focal Length 42.29mm
Max. Image Format 6.4mm x 4.8mm(φ8mm） Flange Back Length 17.53mm
Operation Range Iris F3.5 ‐ Close Mount C‐Mount
Focus 5.0m ‐ lnf. Filter Size M107 P=1.0mm
Zoom 12.5mm ‐ 775mm Tripod Screw 1/4 -20UNC X 2
Control Iris Video Auto Iris Dimensions W150mm x H135mm x D367.5mm
Focus Motorized Weight 5500g
Object Dimension at
M.O.D.
Angle of View D 1/2 type 35.47°‐ 0.58° 1/3 type 27.06°‐ 0.44° 1/4 type 20.44°‐ 0.33°
Supply Voltage DC8.5-16V DC6-12V DC6-12V
Current 30mA or less 60mA or less 60mA or less
Response Time - Approx. 7.5 sec. (when 10V input) Approx. 8.5 sec. (when 10V input)
Preset Potentiometer - 10KΩVR 10KΩVR
Light Weighting method Adjustable between Average - Peak
Input Signal
Iris Accuracy ±15% at Video Signal Level
Sensitivity Adjustment
Input Impedance High Impedance
Operating Temperature -10℃ ‐ +50℃
Zoom Motorized
12.5mm
775mm
H 28.77°‐ 0.47° 21.78°‐ 0.35° 16.41°‐ 0.26°
V 21.78°‐ 0.35° 16.41°‐ 0.26° 12.34°‐ 0.20°
245.4cm X 184.2cm
3.94cm X 2.96cm
Iris Focus Zoom
Video Signal ( V or VS)
0.4V(p-p) - 1.0V (p-p) (Video Signal)
with Video Auto Iris
1/2
type
C
Dimensions
Wiring Diagram
Specification is subject to change without any notice.
2011.04
