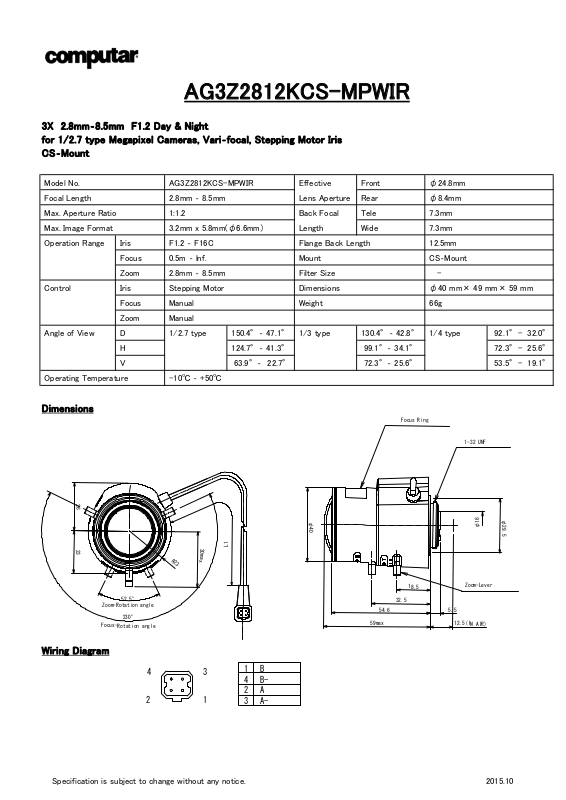

Computar AG3Z2812KCS-MPWIR Specsheet

AG3Z2812KCS-MPWIR

3X 2.8mm‐8.5mm F1.2 Day & Night
for 1/2.7 type Megapixel Cameras, Vari‐focal, Stepping Motor Iris
CS‐Mount

Model No. AG3Z2812KCS-MPWIR Effective Front φ24.8mm

Focal Length 2.8mm ‐ 8.5mm Lens Aperture Rear φ8.4mm

Max. Aperture Ratio 1:1.2 Back Focal Tele 7.3mm

Max. Image Format 3.2mm x 5.8mm(φ6.6mm） Length Wide 7.3mm

Operation Range Iris F1.2 ‐ F16C Flange Back Length 12.5mm

Focus 0.5m ‐ lnf. Mount CS‐Mount

Zoom 2.8mm ‐ 8.5mm Filter Size -

Control Iris Stepping Motor Dimensions φ40 mm× 49 mm× 59 mm

Focus Manual Weight 66g

Zoom Manual

Angle of View D 1/2.7 type 150.4°‐ 47.1° 1/3 type 130.4°‐ 42.8° 1/4 type 92.1°- 32.0°

H 124.7°‐ 41.3° 99.1°‐ 34.1° 72.3°- 25.6°

V 63.9°‐ 22.7° 72.3°‐ 25.6° 53.5°- 19.1°

Operating Temperature -10℃ ‐ +50℃
