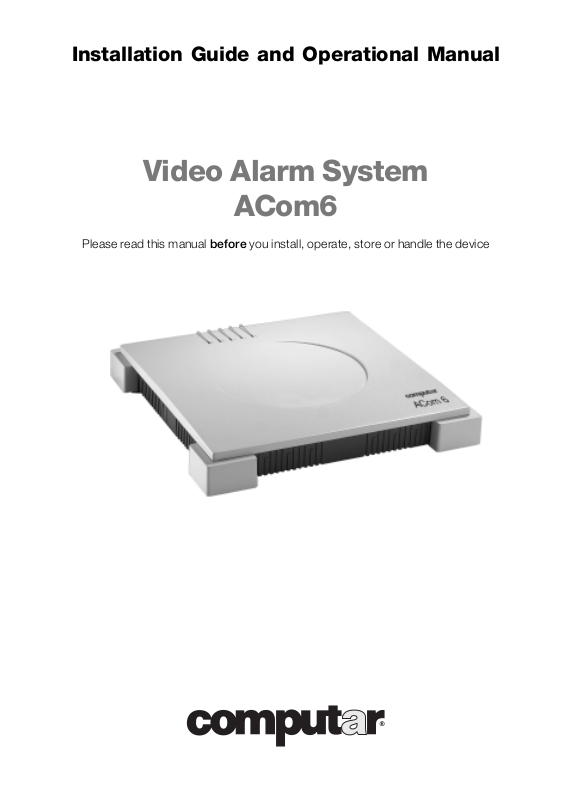

Installation Guide and Operational Manual

Video Alarm System

ACom6

Please read this manual before you install, operate, store or handle the device

This Installation and Operational Manual, edition 01 - 12/99, is valid for

the models ACom6, ACom6A, ACom6H and ACom6HA (as of 1999)

and the software CMCtrl, version 4.15 (as of 1998)

Contents

Introduction

Use for Designated Purpose 5
EU-Regulations 5
Type Plates 5

Safety Measures

Danger by Electric Current 6
Installation and Operation 6
Maintenance and Repair 7
Symbols used in this Manual 7

Product Description

Extent of Delivery 8
Functions and Features: An Overview 9
Connections 10

Assembly

Wall-Mounting 12
Connections 13
Switch on/switch off 17

Configuration with CMCtrl

Installation of Programme 18
Start/end Programme 19
System Menu 20
Configure computer interface 21
Language 22
Send Address 22
Main Window 23
Contacting a Remote ACom 25

ACom-Settings 26
Video/Audio 27
Alarm Events 29
Switch Outlets 32
Camera Options 34
ACom-Interfaces 36
Basic Settings 37
Telephone Numbers 41
Output actions 42
Input Actions 44
Recording 45
Changing the Settings 46

Operation

Assembly 48
LEDs 48
Functional Test 49
MFD-Control 49
Maintenance 51
Cleaning 51
Passing-on Disposal 52

Appendix

When Something Goes Wrong –
Diagnosis and Troubleshooting 53

Technical Data 55

Introduction

Introduction

This Installation Guide and Operational Manual should be read by any person charged
with and responsible for the installation and operation of any ACom model. International,
national and (where applicable) regional rules and regulations concerning electric appli­ances must be observed under all circumstances. The Operational Manual explains how
to install and operate the ACom.

Use for Designated Purpose

The Video Alarm System ACom transmits video-/audio and control signals via public tel­ecommunication networks (ISDN, PSTN, GSM). It is intended for the use in video moni­toring systems. The intrusion of external alarm triggers can automatically activate differ­ent functions. If a hard disc is installed, you can record video data. Other applications are
not permitted.

If you have studied this manual carefully and still have questions concerning the operation
of the device, please contact:

CBC (Deutschland) GmbH

Hansaallee 191
D – 40549 Düsseldorf

Phone [phone]
Fax [phone]

CBC (Europe) Ltd.

7/8, Garrick Industrial Centre, Irving Way
GB – London NW9 6AQ

Phone [phone]
Fax [phone]

EU-Regulations

The Video Alarm System ACom complies with the European Regulations 89/336 (Elec­tromagnetic Compatibility) and 73/23 changed by 93/68 (Regulation on Low Voltage).

Type Plates

Model description and serial number are identified on the type plate at the bottom of the
casing. Make a note of them prior to assembly in order to be able to quote them when
you have questions or want to order spare parts.

Model:

Serial number:

(12/99)

ACom6 5

Safety Measures

Safety Measures

Danger by Electric Current

• Install the device only in an electrical network which has been designated for this
purpose.

• Only use the integrated power pack delivered with the device.

• Do not open the casing of the power pack.

• In case of an operational failure, disconnect the power pack from the electrical network
and all other appliances.

• Install both device and power pack only in dry and weather-proof rooms.

• As soon as the safe operation of a device cannot be guaranteed anymore, the device
must be immediately switched off and secured against inadvertent restarting. Such
safe operation is no longer possible, if for instance

– device and connecting lines are visibly damaged,
– the device no longer operates smoothly and perfectly,
– if the device has been exposed to rain or humidity,
– if objects have been inserted,
– if the device has been in storage for a considerable time under adverse

conditions or if it has been subjected to heavy transport strains.

If any or all of the preceding apply, have the device examined by CBC.

Installation and Operation

• When installing the device, the generally accepted rules and regulations of electrical
installation must be observed at all times.

• When installing and operating the device, pay attention to the documentation of all
connected peripherals such as swivelling / inclined heads or cameras. These contain
important safety instructions and information about permissible applications.

• Only ever execute steps for the installation and operation of the device which have
been described in this manual. Additional actions may cause personal injury and mate­rial damage and/or may damage the device.

• Make sure that you have a safe stand when executing any kind of work at great
heights. Only use safety ladders. Secure yourself against falling where appropriate.

6 ACom6

Safety Measures

Maintenance and Repair

• Never open the casing of the power pack. The power pack does not contain any parts
which you can repair or change.

• Only execute the repairs described in this manual. Additional repair works may cause
personal injury and material damage and / or may damage the device.

• Ensure that only qualified personnel (electrical engineers) are charged with maintenance
and repair works.

Symbols used in this Manual

Safety instructions in this manual are divided into two different categories:

DANGER!

A

z

In some places you will receive instructions intended to enable you to operate the device
more easily:

If you are ignoring safety instructions which are marked like this, you are en­dangering human life and may cause personal harm. The symbol represents
immediately imminent dangers.

Attention!

This symbol indicates a danger for the device or other material objects.

(12/99)

☞

Instruction

This symbol points out particular details in the operation of the device.

ACom6 7

Product Description

Product Description

Extent of Delivery

❚ ACom6

or

❚ ACom6A

or

❚ ACom6H

or

❚ ACom6HA
each of which includes

❚ Plug-type power pack incl. connection cable with plug-type screwed terminal
❚ Data cable 9-pole sub-D on 9-pole sub-D
❚ Telephone cable RJ45 on RJ45
❚ Configuration programme CMCtrl
❚ Receiving software CMConnect

Pre-conditions for the Installation

❚ Computer with a free serial interface and operating system Windows 95/98/NT
❚ Access to ISDN

or

❚ Access to the analog phone network and a readily installed modem

Pre-conditions for Successful Operation

❚ Computer with access to the phone network and readily installed receiving software

(such as CMConnect)
or

❚ Outstation compatible with standard H.320

(such as the video telephone T-View 100 of the Deutsche Telekom)

Recommended Accessories

❚ High-Speed Modem

(such as 3Com 56k or Elsa Microlink 56k)

❚ ISDN-adapter card with Common-ISDN-API (CAPI) version 2.0

8 ACom6

Product Description

Functions and Features: An Overview

The video alarm system ACom carries out remote surveillance and remote control of vid­eo surveillance devices via ISDN or other public telecommunication networks. The sys­tem can easily be connected to a multiple ISDN-connection and can send data either to
an internal substation or to an external connection. In order to receive the data you will
need a computer programmed with the CMConnect (part of the delivery) or another
H.320-compatible outstation such as a video telephone. You can enter simple control
and configuration demands for the models ACom6A and ACom6HA already with the dig­ital dial of an ordinary telephone.

Apart from the basic system ACom6, you have the choice between several other models.
In addition to the transmission of images, the model ACom6A enables you to transmit

audio data as well (from an intercom or another talk-back-circuit).The device transmits
the audio data bidirectionally and parallel to the transmission of pictures.

The model ACom6H is equipped with an integrated hard disc and a memory capacity of

2.1 GB. The hard disc records video data, depending on its configuration, either in a pro-

grammed sequence or “event-driven“, i.e. in the case of an alarm.
The model ACom6HA is equipped with both audio function and hard disc (2.1 GB).
Ideally, ACom is transmitting via the digital communication network ISDN (Integrated

Service Digital Network). All ACom-devices have an integrated ISDN-adapter. Rapid
transmission of large data volumes is best conducted simultaneously on both B-channels
of a basic ISDN-connection S
channel, too. The analog phone networks or GSM-networks (Global Systems for Mobile
Telecommunications) can also be used for the sake of data transmission. For these pur­poses, however, you need an external modem.

The device is capable of compressing the data in compliance with the norm H.320 in or­der to accelerate the data transmission. This enables it to communicate with other
H.320-compatible systems (such as video conferencing systems or video telephones).

Apart from video data, ACom is capable of transmitting control commands for movable
cameras and other appliances. The range of controllable appliances is steadily being ex­tended. You may contact your local CBC-branch for more detailed and up-to-date infor­mation. Two relays can activate further switch functions such as door openers or lamps.

In order to turn work with the ACom system into a convenient experience, the software
CMConnect has been designed to make your life easier. You can watch and evaluate vid­eo pictures on a computer and easily control the peripherals/appliances connected to the
ACom with mouse and keyboard. The programme has been developed for Windows 95/
98/NT and is delivered with a manual of its own.

For the purposes of local installation and configuration of your ACom, you should make
use of the software CMCtrl which is delivered together with this product.

. The system, however, is fully functional on a single B-

0

(12/99)

ACom6 9

Product Description

Connections

10 ACom6

Product Description

1 LEDs
2 Drill holes (for fastening)
3 Pivot

to ease the tensile load of the connecting lines

4 Drill holes (for fastening)
5 Openings to feed the connecting lines through
6 Service switch

to bypass the password protection

7 Terminal resistances

DIP-switch to activate the terminal resistances of the video inlets

8 Audio connection terminals

Inlets and outlets for audio signals

9 Safety fuse

10 Power pinbar

to receive the plug-type screw terminals from the power pack

11 BNC-video connector

Input for video signals from a camera or another device

12 Video connection terminals

Inputs for video signals from a camera or another device

13 Video connection terminal

Outputs for video signals to the connection with a local observation screen

14 Alarm connecting terminals

4 potential-free inlputs for alarm triggers

15 Alarm connecting terminals

4 potential-linked inputs for alarm triggers

16 Relay connecting terminals

Switch outputs

17 Socket COM 1

serial RS232-interface to connect an analog modem and for connection to the com­puter during installation and local configuration

18 Socket COM 2

serial RS232-interface for bidirectional transparent data transmission to controllable
devices (such as PTL/dome cameras)

19 ISDN-connection socket

RJ45-socket to connect the ACom to the net (NTBA)

20 ISDN-connection socket

RJ45-socket to connect additional ISDN-appliances

(12/99)

ACom6 11

Assembly

Assembly

The ACom is suitable both for operation as a desktop and for being mounted on the wall.

Attention!

z

❚ Do not set up the device in the immediate vicinity of radiators or other heat sources.

Avoid sites which are exposed to direct sunlight.

❚ Create sufficient space for lines and cables.
❚ Ensure sufficient ventilation of the device.
❚ For cable connections, use only cables which have been part of the delivery or are

otherwise suitable and which help to suppress electric interference.

❚ When laying out the lines and cables, make sure that they cannot be easily damaged

and ease wherever possible tensile loads and stresses.

Wall-Mounting

The device is intended for indoor use. Do not expose it to either extreme tem­peratures or extreme humidity at any time and choose its setup site accord­ingly. The ambient temperature must fall within the range from 5 to 40 °C at all
times, the relative humidity of the air must not exceed 80 %.

At the back of the ACom you will find four fixing holes that you can use for mounting the
ACom on the wall.

☞

• Push against the flaps by the side and lift the lid to open the casing.

• Screw the ACom to the wall by using the four fixing holes.

Important

Mount the ACom in immediate vicinity to your NTBA for it to be the first device
to be connected to the S

-Bus.

0

12 ACom6

Assembly

Connections

You have two options of feeding the connection cables through into the interior of the
casing. You either use the openings in the back of the casing or you punch out the desig­nated section at the bottom side of the casing and feed the connection cable through the
hole.

Camera

You can connect a maximum of six cameras or other video sources. If you use only one
camera, you can connect it either to the BNC-socket marked Video1 or the first pair of
terminals V1. You can connect any additional cameras to the remaining terminals.

☞

• Connect the video camera with a video cable (75 ohm, BNC-plug) to the BNC-socket
of the ACom.

or

• Remove terminal block from the socket.

• Put signal conductor on terminal V1.

• Put shield on terminal ⊥.

• Connect additional cameras where applicable.

• Insert terminal block in socket.

• Lead cable around the pivot several times (to reduce tensile loads and stresses).

• Switch on terminal resistance of the video connections not in use. Turn the respective
DIP-switches to position ON.

ISDN

You can easily connect the ACom to the S
cable which is part of the delivery.

z

Important

For connection use micro coaxial cables since they can be laid more easily in­side the device.

-Bus of an ISDN-system by using the ISDN-

0

Attention!

Make sure that the ACom is the first device you connect to the S
ately after the NTBA. This is the only way for you to ensure that the ACom is
capable of emitting an alarm even if the ISDN-line has been damaged. Addi­tional appliances (phone, fax) may if necessary be connected to the ISDN-out­let of the ACom (ISDN OUT).

-Bus immedi-

0

(12/99)

ACom6 13

Assembly

Example:

In the course of a burglary in your home, the ISDN-line is short-circuited at a free ISDN­socket, thus paralysing all additional ISDN-connections. Only the first device (e.g., an
ACom installed in your basement) is not affected and still capable of emitting an alarm.

• Put the plug into the socket ISDN IN of the ACom and the phone socket until they
snap in with a clearly audible “click“.

• If necessary, connect additional appliances to the socket ISDN OUT of the ACom.

Modem

If you cannot use the ISDN for ACom, you may alternatively connect an analog modem
to the serial interface COM1. Data transmission via analog phone networks, however, is
considerably slower. This is why connections via analog networks does not support the
transmission of audio data. Video data and configuration parameters, meanwhile, are
transmitted as they would be with an ISDN-line.

The system supports all modems with an asynchronous RS232-interface and which op­erate with the Hayes command set. Once you have connected the modem, ACom auto­matically recognizes it and sets the highest possible data transmission speed.

☞

Screen

You can connect a local surveillance monitor to the video output OUT of the ACom, if you
want to check the camera pictures during the installation in situ.

• Remove terminal block from socket.

• Put signal conductor on terminal V.

• Put shield on terminal ⊥.

• Insert terminal block in socket.

• Lead cable around the pivot several times (to reduce tensile loads and stresses).

Alarm Inputs

The alarm inlets of the ACom allow you the intrusion of one or several alarm triggers such
as door contacts or sensors. If you configure the system accordingly, an alarm trigger
can for instance cause the automatic establishment of a connection between ACom and
CMConnect.

Important

For best results, use modems of an identical make on either side of the data
transmission process.

14 ACom6

Assembly

At the connections Alarm IN 0-3, you will find four potential-free alarm inputs. The poten-
tial-free alarm inputs are galvanically separated (by optical couplers) from the other
ACom components and thus give you the greatest possible protection from outside in­terference. They need a direct voltage between 5 and 12 V. When connecting the alarm
inputs, please make sure that you are connecting the polarry correctly.

Alternatively, there are four potential-linked alarm inputs at the connections Alarm IN 4-7.
Here, you may connect switches or closing contacts directly without the need for any
separate power supply. Connect the respective input and the common ground.

Attention!

z

• Remove terminal block from socket.

• Put conductors to the terminals in strict compliance with their polarity. Ensure correct

assignment (+. –. ⊥)

• Insert terminal block in socket.

• Lead cable around the pivot several times (to reduce tensile loads and stresses).

Connection Outputs

The ACom is equipped with two relay outputs (Rel1 and Rel2) for the connection of exter­nal appliances such as lamps or alarm sirens. The relays function as throw-over switches
and the symbols Open, Closed at the screw terminals each refer to the resting state.

In cases of galvanic separation by optical couplers a common ground should
under no circumstances be used. External voltage must not exceed 12 V. En­sure correct polarity.

Attention!

z

• Remove terminal block from socket.

• Connect the contacts in the middle and to the left. The relay functions as normally
close.

or
Connect the contacts in the middle and to the right. The relay functions as normally

open.

• Insert terminal block in socket.

• Lead cable around the pivot below the screw terminals several times (to reduce tensile
loads and stresses).

(12/99)

The relay contacts can operate at maximum loads of 24 V, 0.5 A each.

ACom6 15

Assembly

Audio Connection

☞

ACom6A and ACom6HA are both equipped with two audio inputs and outputs respec­tively at the audio terminal block. Here, you can attach two parallel audio and video connec­tions such as a microphone, a loud-speaker and a phone receiver. At any one time, howev­er, only one of these may be active.

The audio signals are transmitted bidirectionally and simultaneously with the video sig­nals. This can be used, for instance, to activate a loud-speaker at the surveillance site or
to listen to an intercom at the entrance door. Transmission of audio data is generally only
possible via the ISDN-network, not by using ordinary phone lines.

1–
2–
3 Microphone
4 Loud-speaker
5 Telephone receiver/transmitter
6 Telephone receiver/ear piece +
7 Telephone receiver/ear piece –
8 common ground

• Remove terminal block from socket.

• Put cables on the appropriate connections.

• Insert terminal block in socket.

• Lead cable around the pivot several times (to reduce tensile loads and stresses).

Important

The audio function is only available for the models ACom6A and ACom6HA. It
cannot be retrofitted for the other models.

Camera and Peripheral Appliance Control (COM 2)

The range of appliances which are controllable by ACom (such as dome cameras) is per­manently being extended. Information concerning installation and control is separately
contained in the respective installation guides and operational manuals.

Attention!

z

When installing and operating the device, please pay attention to any supple­ment to the installation guide and operational manual in question and also to
any documentation of the other appliances to which the device may be con­nected such as swivelling/inclined heads or cameras. You will find important
safety advice there and information concerning permissible applications.

16 ACom6

Assembly

Switch on/switch off

Power supply

The extent of delivery of the ACom includes a plug-type power pack. Only connect the
device to the power supply after you have completed all other connections.

Attention!

z

• Insert screw terminal of the plug-type power pack into the plug bar Power of the
ACom.

• Insert plug of the power pack into the socket. The green LED under the circuit board
shield lights up, and the device is ready to operate.

The ACom is not equipped with an electricity switch. It is switched on and ready to oper­ate once you have inserted the plug of the power pack and connected the device to the
power supply. The green LED Power lights up.

For purposes of operating the ACom, use only the plug-type power pack
which is part of this delivery. Ensure - if necessary by connecting additional de­vices - that occurrences of excess voltage, peaks of interference voltage and
voltage losses in the electric network can be absorbed efficiently.

(12/99)

ACom6 17

Configuration with CMCtrl

Configuration with CMCtrl

The ACom can be configured directly in situ. You only have to connect the ACom with a
serial interface of your computer (via the interface cable which is part of this delivery) and
install the software CMCtrl. The configuration may even be conducted via remote control
over an ISDN-line. In order to do this, however, you have to assign an MSN (Multiple
Subscriber Number for the correct selection and identification of end devices) to the
ACom; otherwise, no phone connection with the ACom can be established. Once the
ACom can be identified by its individual MSN, you can contact and configure it from any­where you like.

☞

Important

Remote configuration is possible with CMCtrl or the programme CMConnect.

Installation of Programme

Whether you want to configure the ACom in situ or by remote control, you have to use
the programme CMCtrl (part of the extent of delivery) which must first be installed on
your computer. The programme has been designed for the operating system Windows
95/98/NT.

System Conditions

❚ Computer with readily installed operating system Windows 95/98/NT
❚ 1 free serial interface
❚ mouse or other pointing device

☞

z

In the course of the installation you will be requested to select the language for both in­stallation programme and programme interface of CMCtrl. You can change the language
of the programme interface at a later stage within CMCtrl.

• Switch on your computer and start Windows 95/98/NT.

• Close all other applications (programmes).

• Insert the installation discette in the floppy disc drive.

• Click Start and select the option Run on the menu.

Important

Instructions for the use of the graphic operating interfaces of Windows and for
the installation of programmes are contained in the information packs of Win­dows 95/98/NT or on-line under Help (press F1 on your keyboard).

Attention!

Install any version of CMCtrl including updates and supplements only with the
assistance of an installation programme. Upon installation always use the same
target directory.

18 ACom6

Configuration with CMCtrl

• Enter: a:setup
and click OK. The installation programme is being started. (If you have inserted the
discette into the drive b:, you must enter b:setup.)

• Select a language and follow the instructions of the installation programme.

• After the installation has been successfully completed, take the discette out of the
drive.

You may now start CMCtrl immediately.

☞

Important

If you do not need the programme on your computer anymore, you can per­form deinstallation simply by deleting the entire directory.

Start/end Programme

Once you have completed the installation procedure successfully, you will find the pro­gramme icon in the folder NCTerm.

• Connect the ACom to the power supply and connect it to a serial interface of the
computers (see also the chapter on modems, page 14).

• Click Start in the Windows task bar.

• Select option Control Terminal in the folder Programme and click on the icon of Control
Terminal. The programme window will appear on your screen.

• To end the programme, click on the X in the right hand corner of the title bar. The
programme window will be closed.

(12/99)

ACom6 19

Configuration with CMCtrl

System Menu

CMCtrl is designed for operation by mouse and keyboard. It uses the Windows stand­ards for its graphic user interfaces. CMCtrl is equipped with a system menu that you can
use to customise all your basic settings.

• Click on the symbol in the left hand corner of the title bar. The system menu of CMCtrl
will appear on your screen.

Restore

Restore programme window to its original size.

Move

Move CMCtrl-programme window with the cursor keys.

Minimize

Reduce programme window in size (symbol).

Close

End programme.

About Control Terminal...

Display programme version.

Language...

Select a language for the user interface.

Interface...

Configure the interface-parameter for the data exchange with the computer.

Send Address ...

RS485-address of the ACom selected.

20 ACom6

Configuration with CMCtrl

Configure computer interface

Immediately after the start, CMCtrl begins its search for devices capable of configuration.
In order to enable the data exchange with an ACom that you have connected, you must
set up the parameters for the precise serial interface of the computer that you selected
for the connection to the ACom.

Com Port:

Serial interface of the computer to which the ACom has been connected.

Baud Rate:

Transmission speed in bits/s.

Data Bits:

Number of data bits per signal.

Parity:

Type of parity check.

Stop Bits:

Number of stop bits per signal.

☞

(12/99)

Important

At first, select only the COM-Port and keep the default settings.

ACom6 21

Configuration with CMCtrl

• Select the option Interface... . in the system menu. A dialogue box appears on your

screen.

• Select the required settings from the list boxes.

• Finally, click Set to save your settings and close the window.

Language

You can select a language for the texts of the programme interface and the dialogue box­es.

• Go to the system menu and select the option Language... . A dialogue box will appear

on your screen.

• Click the desired option and then OK to confirm your selection. The dialogue box will
be closed.

☞

Important

A change of the default language will only take effect after the next start of CM­Ctrl.

Send Address

If the configuration involves the connection of several AComs with the interface of the
computer via an RS485-data bus, you must indicate the address of the ACom which you
are about to configure.

• Go to the system menu and select the option Send address... . A dialogue box will be

opened.

• Click the button with the right address.

• Click on the X in the title bar of the window to close the window.

22 ACom6

Configuration with CMCtrl

Main Window

The upper part of the main window of CMCtrl assists you in the establishment of connec­tions and indicates (by using different symbols) the status of the connection in question.
The lower part of the window displays status messages concerning the alarm inputs of
the ACom. You can access the ACom-outputs by various boxes and buttons.

B1, B2, M

The status panels indicate the status of the ISDN-B-channels 1 and 2 or the status of the
modem connection:

Black: no connection
Green: connection has been established
Yellow: connection is in the process of being established or terminated

List Panel Call Number

The upper list panel consists of the call numbers dialled so far (to enable easy and con­venient re-dialling). You may enter new call numbers by simply overwriting existing ones
in the existing panels. The overwritten number, instead of being deleted, remains an ele­ment of the list. The entire list is deleted when you close the programme.

with 2B, via Modem

The option 2B allows you to decide whether you want to create a connection on two or
just one of the B-channels. The option Modem enables you to establish an alternative
connection via modem in case the ISDN-line is not available.

(12/99)

ACom6 23

Configuration with CMCtrl

☞

Establishing and Terminating Connections

Both buttons assist you in establishing and terminating connections via the phone net­work.

List Panel Connections

The lower part of the list panel gives an overview of all connections established and all
such attempts, each of them with date and time of day. Additionally, information concern­ing the connection is given in the form of text. This list is deleted when you close the pro­gramme.

ISDN, Modem

The status panels indicate the availability of the ISDN-B-channels and the modem:
Black: not available
Green: available
Yellow: Modem is in the process of being initialised
Blue: (only for GSM-modem) PIN correct, but modem not yet booked in
Red: (only for GSM-modem) incorrect PIN
Red flashes: (only for GSM-modem) PIN inhibited on the SIM-card

Important

Please take into account that a connection can be created substantially faster
via a single ISDN-channel. This can make all the difference in case of an emer­gency.

Test 1, 2, 3

These options allow you to carry out a test by contacting three stations where either an
ACom or compatible devices (such as cameras) have been installed.

Alarm

The status panels identify the present status of the reported alarms (M = movement de­tected by video sensor, 0 = master alarm, In 1/1 ... 6 = alarm inputs):

Grey: not activated
Green: activated in resting mode
Red: activated in alarm mode

Outputs

The boxes and buttons allow you to operate the relays of the switch outputs. If you
check the device locally, you can test the function of the relays; if you switch them, there
must be a clearly discernible clicking sound in the ACom.

24 ACom6

Configuration with CMCtrl

Contacting a Remote ACom

When the connection to a remote ACom has been established, your screen will display a
video picture. In addition you will get further information, depending on the exact configu­ration of the remote ACom (see also the chapter on Alarm Results, page 29).

1

2

3

4

5

Such additional information may include:
1 Alarm information

grey signal: Alarm trigger has been rendered active
white sign: Alarm has been activated / triggered
V: Video signal interrupted (camera failure)
M: Modem connection interrupted
I: ISDN-connection interrupted
MD: Alarm triggered by video sensor
0: Master alarm

1 ... 6: Alarm inputs
2 Name of the ACom
3 Name of the camera
4 (Alarm) text
5 Date and time

(12/99)

ACom6 25

Configuration with CMCtrl

• Enter a call number in the upper list panel in order to establish a connection with a
remote ACom or click one of the boxes Test.

• Click, if necessary, either of the control boxes 2B or Modem for selecting the respec­tive option.

• Click Establishing a Connection to dial the number you have chosen.

• Pay attention to the status messages in the lower list panel and the other status
panels.

• Click on the field Outputs to activate the available relay outputs of the ACom.

• Click on the field Terminating a Connection to terminate the existing connection.

ACom-Settings

Immediately after the start, CMCtrl begins its search for devices capable of configuration.
If a local ACom has been found, the field Local Unit will light up in yellow. If a connection
has been established with a remote device, the field Remote Unit will light up in red.

When one of those two fields lights up in colour, you may proceed with the configuration
of the device in question. When the field remains grey, this indicates that no connection
has been established. In this case, check the parameters in the menu Interface or estab­lish the connection to a remote ACom.

• Click on either Local Unit or Remote Unit. The dialogue window Settings will be
opened.

• Go through the individual tabs.

• When you have completed your selections, click on the X in the title bar of the window.
The dialogue window will be closed.

26 ACom6

Configuration with CMCtrl

Video/Audio

On this tab, you configure the parameters for audio and video transmissions. You can
switch the video inlets.

Audio

ACom6A and AComAH transmit an audio signal in their basic configuration. You can de­activate the audio transmission for transmitter separately and select the compression
mode. You can adjust the audio level of the ACom (input and output) in order to improve
the quality.

Furthermore, you can also activate the automatic audio transmission in the course of the
establishment of a connection. If you also transmit audio data, the line capacity for the
transmission of the video image will be reduced by 56 kbit/s. This may reduce the picture
quality (lower frame rate and/or reduced picture resolution).

• Select the right options by clicking the respective fields for transmitters and receivers.

(12/99)

ACom6 27

Configuration with CMCtrl

• Click Level. A dialogue window will appear on your screen.

• Select the required settings for Volume and Input sensitivity by moving the scroll bar
(keep the mouse button down).

• Click on the X in the title bar to close the dialogue window.

• Set the audio parameters of your computer by using the respective Windows pro­grammes (such as the programme for your sound card).

• Click Off when you want to finish the audio transmission.

The sound card terminates the playing back. The transmission capacity taken up by the
audio signal until now will again be released for use by the video signal. This immediately
improves picture quality.

Video

When a connection with an ACom has been established, you can switch between the six
video inputs. You can determine the video play back quality. You have the choice between
a high-resolution and a lower-resolution mode.

❚ The Common Intermediate Format (CIF) supports a local resolution of 288 lines x 352

dots. This is the resolution of the default setting.

❚ The format Quarter CIF (QCIF) has a resolution of 144 lines x 176 dots.
Selection of the lower resolution may prove to be sensible if you prefer a higher frame

rate (refresh frequency) to a high resolution. The resolution of the video signal currently
received is identified in the field Video inside the control window: green indicates higher
resolution (CIF), yellow the lower resolution (QCIF).

Furthermore, you must find a compromise between the conflicting demands of high im­age definition (sharp focus) and a rapid, “lifelike“ representation of movement inside the
picture.

If your priority is a high refresh frequency, the picture quality in terms of sharpness and
focus will decrease in direct proportion to the increase of movement in the camera range
(blurred and distorted images). If you prefer pictures with the highest possible sharpness
and a clear focus, this means that the refresh frequency decreases when there is move­ment to be detected. If movement is anticipated only in a limited part of the frame, you
may be well advised to prioritise sharpness. The smart compression process is capable
of refreshing only the parts of the images concerned by (spatially constricted) move­ments. The unchanged rest of the picture will be represented with the highest possible
degree of sharpness.

By selecting the option PiP (Picture in Picture) you can display the image of the local
camera as a part of the surveillance frame.

• Click on one of the fields Camera to receive the desired camera image or video signal.

• Define your choices by clicking the respective options.

• Move the scroll bar between Sharpness and Motion to create the right balance.

28 ACom6

Configuration with CMCtrl

Alarm Events

You can configure the ACom for a variety of alarm events on the tab Alarm Inputs. The
ACom is capable of displaying the present alarm status and additional text on the screen.
The selected internal alarm events are also being displayed as grey symbols (for instance
V for video alarm). In the case of an alarm the same symbol will appear in red (see page

25).

Alarm Stamping

You can enter a text and select additional alarm symbols to be displayed in the video im­age in the case of an alarm (see page 25). For this, you have several options.

Off

No text will be displayed.

On

The text will always be displayed, whether there is an alarm or not.

(12/99)

ACom6 29

Configuration with CMCtrl

If alarm active

The text will only be displayed in case of an alarm.

Hold

The alarm signals (text and symbol) remain displayed once the alarm is over.

• Enter the required text in the text panel Alarm message:.

• Click Set to save the text.

• Click the desired option or control box.

Alarm input activation

You can activate the available alarm inlets of the ACom individually and add short texts
for prompt and easy identification. Apart from the alarm inputs, you are free to choose
additional events which will trigger an alarm. An alarm can be automatically caused by an
interruption to the ISDN-line, the modem-line or the video connection. Status panels iden­tify the present status of an alarm trigger:

Grey: not activated
Green: activated and in rest mode
Red: activated and in alarm mode
The ACom gives you the option of using the alarm input 0 as master alarm. This may be

useful when a key switch is being used to activate the system. If this option is activated,
the alarm input 0 must itself be active (red status panel) to clear all other alarms.

You can decide for every individual alarm input whether it is meant to trigger an alarm in
the case of voltage detected (On) or not detected (Low active).

• Select the right options by clicking the respective boxes.

• Enter a text (description) for every alarm inlet in the text panel provided.

• Click Set to save the description.

Motion detection sensitivity

All ACom models are equipped with an integrated video sensor capable of identifying
changes in the video signal based on image processing according to the norm H.320.
These changes are caused mainly by movements within the visual range of the camera.

The sensitivity of the video sensor can be adjusted so that a certain “movement threshold“
must be crossed before an alarm is triggered. The threshold values range from 0 ... 15 with
the highest value representing a maximum of sensitivity.

30 ACom6

Configuration with CMCtrl

The video image is divided into 242 square cells (regions). You can activate or deactivate
all cells.

For the video sensor to function properly, the following pre-conditions must be met:

❚ At least one alarm call number must have been entered for the video sensor.
❚ All cells (regions) must have been activated.
❚ The sensitivity must have been set at a value above zero.
❚ Where applicable, the master alarm must have been activated.

☞

• Click in the control box On to activate the video sensor.

• Set the required level of sensitivity by moving the scroll bar to the desired value (keep
the mouse button down).

• Click on either Set or Clear to either activate or deactivate all regions of the video
image for the video sensor.

Important

Carry out several tests if necessary to ensure that the video sensor functions
correctly.

(12/99)

ACom6 31

Configuration with CMCtrl

Switch Outputs

On the tab Outputs you can perform several settings to the switch outputs of the ACom.

Output switching

You can activate the available switch outputs of the ACom individually and assign a brief
text to them for easy and prompt identification.

• Activate the switch outputs as required by clicking the respective fields.

• For each switch output, enter a customised description in the text panel provided.

• Click Set to save the description.

32 ACom6

Configuration with CMCtrl

Output Settings

The switch functions of the available relay outputs of the ACom can be defined individual­ly. Each relay can be assigned the function of normally open (rest status open) or normal­ly closed (rest status closed).

By selecting the switch times you also determine whether the switch relay in question is
meant to react in a bi-stable or monostable manner. Example: When a lamp which has
been turned on by an alarm is meant to remain switched on after the end of the alarm,
you would have to select the option Forever. If a siren which has been switched on by an
alarm is meant to emit a sound for the duration of 45 seconds, you would have to select
the option 45 (seconds).

Attention!

z

• From the list boxes, select the rest status for each relay.

• Select a switch time for each relay.

Under normal circumstances, you would define the function of the relays by the
choice of terminal. Therefore you should choose the option In idle state the
relay:.

(12/99)

ACom6 33

Configuration with CMCtrl

Camera Options

On the tab Camera, you can enter different text to be displayed in the video picture and
also set additional video parameters.

Name and Time stamping, Camera names

You can enter a name for each camera to be displayed later together with the video im­age on your screen after selection of the camera. The text to be displayed will allow you
to identify the camera site immediately. If required, the system can display the time of
day alongside the text (see page 24). You can determine the position of camera name
and text within the frame.

☞

Important

All text displays are carried out by the ACom before the image coding to pre­vent any manipulations.

34 ACom6

Configuration with CMCtrl

• Select the desired option clicking the respective field.

• Enter a name for every connected camera in the text panel provided next to the cam­era number.

• Click on Set to save the name.

Default Camera

You can define one of the six camera inputs as the default camera. The camera connect­ed to this input will automatically be the first to be activated during the establishment of a
new connection. Such a setting can be useful if you have activated the detection of
movement and/or the video alarm.

• From the list box, select the camera input you want to define as the default camera.

Video Source

Select the setting Camera if a camera has been connected as the video source since this
setting will produce better picture quality.

Under the setting VCR, the range in which the video synchronization operates is bigger
and better absorbing flutters. If you encounter problems with the VCR being connected,
select the option VCR here.

• Select the desired option by clicking the respective field.

(12/99)

ACom6 35

Configuration with CMCtrl

ACom-Interfaces

On this tab, you are setting the parameters for the interfaces COM1 and COM2 of the
ACom.

Adapt the interface parameters to the connected devices. Information on how to pro­ceed is contained in the documentation delivered with the devices in question.

• Select the required parameters from the list boxes.

• Click the control box if you want to switch the interfaces.

Datamode

You can set different modes for the purposes of serial data communication. The mode
Transparent 1 is suitable for the control of appliances connected to the interface COM2
such as PTL or dome cameras. If you select the mode Transparent 2, the binary data of
the remote ACom will be transmitted via the interface COM1 alongside the control com­mands.

• Select the required option by clicking the respective field.

36 ACom6

Configuration with CMCtrl

Basic Settings

You can carry out some basic settings for the ACom on the tab General settings.

Set Password

The ACom can administrate two user profiles. While the connection to the protected
ACom is being established, a dialogue window is displayed to the caller into which he has
to enter his password. If he cannot enter a valid password, the process is terminated.
Once he has entered a valid password, the ACom can either be operated in User or Serv-
ice mode. Operation in Service mode makes all settings freely configurable, whereas in
the user mode you can read the settings but not change them. You can change the pass­words in the basic setting or after having entered the Service password.

• Click on Password to change a password. A dialogue box will be displayed.

(12/99)

ACom6 37

Configuration with CMCtrl

Attention!

z

Use only numbers to configure your password to be able to operate the
ACom by remote control using a phone/MFV. Otherwise, you will not be able
to access the ACom since you cannot enter letters by using a telephone dial.

☞

• In order to change the password, choose one of the options by clicking it.

• Enter a new password in the text box New password and confirm your entry in the
text box Verification:.

• Click OK to save the new password.

• Click Remove to delete the present password.

Entering a GSM-PIN

For a connection to be established via a GSM-modem, the valid PIN (Personal Identifica­tion Number) of the SIM-card must be entered to prevent data abuse. You have to save
your PIN in the ACom for it to be transmitted to the GSM-modem when a connection is
established.

• Click on PIN to enter your PIN. A dialogue window will appear on your screen.

• Enter the number in the text box New PIN: and confirm your entry in the text box
Verification:.

• Click on Save to save the PIN that you just entered.

Access control

Any establishment of a connection to a protected ACom requires the password, no mat­ter which side the call is coming from. You can, however, turn off the password protec­tion for the case of an alarm. This is a useful step for unmanned alarm centres which are
accessed by the ACom via GSM- or modem connections. The connection will then be
established also with devices which are password protected.

• Click in the control box Disable Password protection on alarm to turn off the access
restriction in the case of an alarm.

Important

You can only ever change one of the two passwords at any given time. If you
want to change the other password, too, you will have to open the dialogue
window again.

Other Settings

You can set the internal calendar clock of the ACom by taking over the system time of
the computer. The present ACom time is displayed in the text field. For prompt and easy
identification, you may assign a name and an identification number (ID) to the ACom.

38 ACom6

Configuration with CMCtrl

You can enter an identification number for the ACom (no more than 12 digits). This
number is to be read during the establishment of any connection before (if applicable) a
password is entered. This allows you to identify which ACom is calling even if the devices
are password protected. It is not permitted to give the same ID-number to two or more
different devices.

• Click on Set to take over the system time of the computer for the ACom.

• Enter a name in the text box Unit Name and click on Set to save your entry.

• Enter a number in the text box Unit ID and click on Set to save your entry.

EAZ/MSN

The MSN is a complete call number (without area code). You must programme the entire
call number to which the ACom is meant to respond. The ACom will only accept the call if
the call number as dialled is identical with this MSN.

• Enter the number in the text box EAZ/MSN: depending on the protocol in use either
the MSN (entire call number) or the EAZ (last number) of your ISDN-connection.

ISDN-protocol

You can perform different settings for the ISDN-connection. You may, for instance, define
whether the connection from the ACom will be operated as a switched line or as a non­switched line via one or both of the B-channels.

• Select the ISDN-protocol applied from the list box.

ACom-HW Version/ACom-SW Version

These are the generation numbers (version numbers) of the hardware components and
the software installed in the ACom. Write down these numbers before you contact any
branch of computer services.

Modem init string

In order to operate a modem which is connected to the ACom you have to enter the ini­tialization commands. Information on how to proceed is included in the documentation
for the modem in use.

• Enter the command chain for the initialization of the modem in the text box and click
Set to save your entry.

Configuration

You can save the entire configuration of the ACom in one file or load a configuration which
you have previously saved. This allows you to set up a configuration once and then use it
several times.

(12/99)

ACom6 39

Configuration with CMCtrl

Saving the Configuration

• Click Save on disk to save the configuration as set. The window Read/Save Configura-
tion appears on your screen.

• Enter the file name and the corresponding path or click Search to change into the
required directory.

• Click Start to save the configuration.

Loading of Configurations

• Click Restore from disk to load a previously saved configuration. The window Read/
Save Configuration will appear on your screen.

• Enter the file name and the corresponding path or click Search to change into the
required directory

• Select the required file.

• Click Start to load the configuration you have selected.

☞

Use the directory...\NCTerm to save and secure all your data with the suffix .inf.

Important

Make it a habit to save the configuration settings you made with CMCtrl on a
regular basis on external data media (such as discettes). This way you ensure
that no important data will be lost (for instance in case of computer break­down).

40 ACom6

Configuration with CMCtrl

Telephone Numbers

You can save up to 50 speed (abbreviated) calling numbers and assign them to different
alarm events. When an alarm is triggered, the ACom will try to call the saved numbers in
sequence. The speed calling numbers are numbered from 01 to 50 and can be assigned
in any order.

• Click the required speed calling number in the list box, for instance 01. A dialogue
window will appear on your screen.

• Enter the complete call number in the text box Call number.

• If the call number belongs to an ACom under password protection, enter a password
in the text box Password. The password will be transmitted immediately after the
connection has been established in order to enable video image transmission.

• Select the appropriate type of connection in the list box Connection type.

• If the ACom is meant to use both ISDN-channels, select the control box 2B.

(12/99)

ACom6 41

Configuration with CMCtrl

☞

• Click Save to save the settings. The dialogue window will be closed. The list box
displays the newly assigned settings.

Alarm Numbers

All defined alarm events are listed under Alarm Numbers. To every alarm event you can
assign up to five speed calling numbers in any order.

• Click Edit. A dialogue window with five list boxes appears on your screen.

• From the first list box, select the speed calling to be called first in the case of an alarm.

• From the subsequent list boxes, select alternative numbers to be called in case the
prioritized connection cannot be established.

• In the same way, assign speed calling numbers to the other alarm events (if required).

Important

Please bear in mind that a connection can be established much more quickly
by using a single ISDN-channel. This may make all the difference in the case of
an alarm.

Redialling

You can determine how many attempts the ACom is meant to perform in order to estab­lish a connection and in what intervals. This setting applies to all call numbers.

• Select the required settings from the list boxes.

Output actions

You can assign a number of actions to the available switch outputs of the ACom. You can
determine

❚ to what events an output responds (Follow),
❚ how an output responds in case a connection is interrupted (After Disconnection).

42 ACom6

Configuration with CMCtrl

No Change

The output does not respond to any of the following events.

Camera 1 ... 6

When you select a camera, the output is activated. This allows you, for instance, to
switch on a spot-light to illuminate the scene.

Connection

The status of the output responds to the status of a connection. An existing connection
may for instance be signalled by a control lamp.

Local Input 0 ... 6, Remote Input 0 ... 6

The status of an input is passed on to the output. Example: on activating an input via a
door contact the output will switch on a siren. Inputs and outputs of two ACom-devices
may also be cross-connected to make the switch relays follow the inputs of the other
device. This allows you, for instance, to turn on a spot-light on a remote site by using a
switch in the local control station. Vice versa, an alarm sensor at a remote ACom can
trigger a siren in the control station.

Alarm Sources

Apart from the inputs, internal alarm events (ISDN, modem, video sensor, movement)
can also be used for switching an output.

• Select the required actions for every switch output.

☞

(12/99)

Important

You can make changes when the connection is already operating.

ACom6 43

Configuration with CMCtrl

Input Actions

You can define the switching of the video inputs for the ACom. You can set which alarm
input activates which video input. On the basis of this configuration, you can switch both
local and remote cameras to a keyboard which is connected with the ACom without us­ing a computer programme.

As long as no connection has been established via the phone network, the local video
inputs are being activated; when a connection exists, the video inputs of the remote
ACom are used.

You can rule separately for every input whether a local or a remote video source is to be
activated. The setting - - - - - - - - does not cause any change.

Hold Function

When several alarm sensors (such as movement detectors) are connected to the ACom,
it may happen that different sensors trigger an alarm in rapid succession and thereby
switch on the cameras assigned to them. Such multiple switching actions can be avoided
by activating the holding function. If you have activated the holding function, only the first
alarm will cause the camera image to be offered. Any further alarm will not have a bearing
on the camera picture as shown.

44 ACom6

Configuration with CMCtrl

• Select the required video input for every switch input of the ACom.

• Click the control box, if applicable, to activate the hold function.

Recording

You can give the ACom6H and the ACom6HA detailed instructions when to record data
on the hard disc. You have the choice between a time-triggered and an event-triggered
recording mode. You can also define the type of recording (individual pictures or film) and
the quality of recording. The configuration fields (E, 1, 2, 3) are arranged according to
their priority.

E

Parameters for an event-triggered recording, top priority.

1, 2, 3

Parameters for a time-triggered recording, priority corresponding to the numbers.

(12/99)

ACom6 45

Configuration with CMCtrl

The defined parameters are highlighted in black, the other parameters are displayed in
grey.

Status panels identify the present status of the recording modes.
Grey: No parameters defined.
Light green: Parameters defined, recording modes not active at present.
Green: Recording mode active.

Changing the Settings

• Click on Settings. The window Recording will appear on your screen.

Active from … to

Period in which the recording mode in question is active.

Type

Recording of individual picture frames or of films. You should select the option individual
picture frames, if a continuous recording is not strictly necessary. The intervals between
the frames can be set between 1 and 65 seconds. Recording as film allows you to re­construct events in their entirity. Films can be recorded at 1 ... 30 images/second.

46 ACom6

Configuration with CMCtrl

Quality

The picture quality correlates with the size of the pictures. High quality images need more
memory space than images with a lower quality.

Camera Cycle

You can activate the camera switch in the control box Active. Define the dwell time in the
text box Holdtime and use the text box Cameras to define the sequence in which the dif­ferent camera images are to be recorded.

Options

Use the field Start,if one of these Alarms get active to define (in the corresponding con­trol boxes) which alarm is to trigger the recording. Use the list box Stop recording after
to determine how long the recording is meant to last. Use the list box Pre Alarm to acti­vate the ring recording mode. If you have entered a period in this list box, the ACom will
save incoming video data in a ring (loop) memory. Once all free memory space has been
occupied, the oldest data will be overwritten with new. In the case of an alarm, the video
images immediately preceding the trigger will also be available (along with the images
immediately after). This allows you to establish what has triggered an alarm.

☞

• Click the required control box or list box and enter the values as required in the text
panels.

• Click Apply or Store to save the settings as selected.

• Click Close to return to the tab Recording.

Important

When the function Pre-Alarm has been activated, no time-triggered recordings
can be carried out.

(12/99)

ACom6 47

Operation

Operation

Assembly

After you have carried out and checked all connections and configurations, you may now
proceed with the re-assembly of the casing.

• Check the lines for firm and stable hold.

• Remove the cable at the serial interface and (if applicable) the cable of the surveillance
screen.

• Replace the lid. Both flaps must snap in with a discernible clicking sound.

LEDs

1 Power

lights up if the device is connected to the power supply.

2 Detect

lights up if the video sensor detects a movement in the video image (only if this func­tion has been activated).

3B2

lights up if a connection exists on the ISDN-channel B2
flashes if service switch has been switched to position Service.

4B1

lights up if a connection exists on the ISDN-channel B1

5 HDD

lights up if data are being recorded on the hard disc.

48 ACom6

Operation

Functional Test

The ACom offers a large variety of configuration and connection options. You should
therefore confirm that it functions properly and according to your requirements before
you put it into service. This way you ensure that the ACom will give you the required
service in case of an alarm.

Check the following functions:

❚ the ACom can be accessed (by dialling) in remote mode
❚ the ACom transmits all the required data
❚ the ACom dials the alarm numbers as saved
❚ the ACom responds to alarm events according to the configuration
❚ CMConnect ensures correct control of cameras and other peripherals (where applica-

ble)

❚ ACom6H and ACom6HA: the optional hard disc saves the data as specified in the

configuration

❚ Service and user password protect the ACom from unauthorised access

Attention!

z

Make sure that the service switch is always switched to Betrieb. Otherwise,
the password does not protect the ACom from unauthorized access any­more.

MFD-Control

Modern telecommunications networks support Multi-Frequency Dialling (MFD). This
means that on dialling you are hearing a succession of high-pitch tones. The models
ACom6A and ACom6HA allow you to enter simple control or configuration commands
by using the dial of a telephone if you are operating them via an ISDN-line. The ACom
confirms correct commands by a brief answer signal and responds to non-valid com­mands with a long tone.

☞

Before controlling the ACom by MFD, you will have to identify yourself by entering your
password. A user password gives you access to some of the control functions of the
MFD-code. A service password gives you access to all MFD-codes.

(12/99)

Important

You can only control the ACom by using a telephone dial if the connection sup­ports MFD. If you are calling from a public phone, you may have to change the
dialling method to MFD.

ACom6 49

Operation

• Enter #.

• Enter your password.

• Enter again #. ACom confirms the correct password with a brief response signal.

If no password has been programmed, just enter twice # in quick succession.
The other control commands are specified in the following tables.

Examples:

❚ Select camera 3.

Press the buttons # * 1 3 #

❚ Activate the alarm inlet 6.

Press the buttons # * 2 8 1 #

Command MFD-user code

Switch camera # * 1 x # x = Numbers 1 ... 6 (camera inlet)
Activate alarm # * 2 x 1 # x = Numbers 0 ... 8 (alarm inlet)
Deactivate alarm # * 2 x 0 # x = Numbers 0 ... 8 (alarm inlet)
Switch on relay # * 3 x 1 # x = Numbers 1 ... 2 (relay outlet)
Switch off relay # * 3 x 0 # x = Numbers 1 ... 2 (relay outlet)
Play back video recording # * 4 x # x = Numbers 01 ... 99 (File number)
Play back previous recording # 1 #
Stop play back # 2 #
Play back next recording # 3 #
Delete recording # 0 #

☞

Command MFD-service code

Enter alarm number # # n <Number> # n = speed calling number 01 ... 50
Change user password # # 51 <Password> # <Password> #
Change service password # # 52 <Password> # <Password> #

Important

You will find more detailed information about these functions in the CMConnect
manual.

50 ACom6

Operation

Maintenance

Service Switch

The ACom is equipped with a service switch to deactivate the password protection, for
instance in the course of a remote configuration. The orange LED B2 identifies the opera­tional status of the ACom. If it flashes, the service switch has been switched to Service
and the ACom is not password-protected anymore. Otherwise, the ACom can be pro­tected by a password.

Attention!

z

Changing the Fuse

The ACom is equipped with a safety fuse which can be changed (if necessary) with a few
operations.

z

If no cause for the defect is obvious from the outside, contact the customer services de­partment of CBC or send the device (after having sought advice over the phone) to your
nearest CBC branch.

• Take the lid off the casing.

• Remove the transparent cover from the fuse and take the fuse out of the fastening
device (using leverage).

• Put a new fuse in, push the cover on and close the lid on the casing.

Make sure that the service switch is always switched to Operation. Otherwise,
the password does not protect the ACom from unauthorized access.

Attention!

Disconnect the ACom first from the power supply and then from the ISDN.
Check what caused the defect in the first place before inserting a new fuse.
Only use a fuse with 250 V and 2 A tr.

Cleaning

Attention!

z

❚ Clean the ACom with a moist cloth on the outside only.
❚ Clean power pack and cable, if necessary, with a moist cloth.

(12/99)

Never use alcohol, thinners, scouring or caustic detergents to clean the device.
These may cause brittleness in the plastic parts and damage the paint. Only
ever use a moist cloth.

ACom6 51

Operation

Passing-on, Disposal

Only pass on the ACom together with this manual.
ACom6 and plug-type power pack contain toxic substances which must be treated as

hazardous industrial waste and discharged expertly and in compliance with legal rules
and regulations.

Devices, peripherals and accessories which are either faulty or not in use anymore should
be discharged by a qualified enterprise or directly taken to a dump which is specialised in
the treatment of industrial waste.

52 ACom6

Appendix

Appendix

When Something Goes Wrong – Diagnosis and Troubleshooting

The following table is meant to help you in reading failure situations correctly and possi­bly in finding a solution. If you cannot correct the malfunction on your own, please con­tact the customer services department of CBC.

melborP sesuacelbissoP ydemerdetsegguS

noitcennocoN

lrtCMCneewteb

.moCAdna

.eergaton

noitcennocoN

,dehsilbatse

erutcipon

.noissimsnart

.ylreporp

.rebmungnorWkcehc,rebmunllacehtkcehC

.snoitcennocelbacytluaFdnastcatnoc,sgulp,sdaelllakcehC

lairess'retupmocehT

.detcennoctonsiecafretni

odsretemarapecafretnI

.noitarugifnocmoCA.sretemarapnoitarugifnocllakcehC

.noitallatsniytluaFdnastcatnoc,sgulp,sdaelllakcehC

detcennoctonselbaC

.dedivorp

desaelertonecivresataD

.egnahcxehcnarbrof

.snoitcennoc

.secafretnilairesrehtokcehC

MOCtnereffidatceles,yrassecenfI

s'retupmocehttahterusekam,trop

esohthtiweergasretemarapecafretni

gniwollofehttcelesylbissoP.moCAfo

:lrtCMCrofsretemarapdradnats

1,ytirapon,stibatad8,duaB002.91

rewopffonrutyltneuqesbuS.tibpots

aretfaniaganonrutdnamoCAot

.sdnocesfoelpuoc

.snoitcennoc

elbacnoitcennocehtesuylnO

yrt,segnahcxehcnarbni,NSM/ZAE

.tnorfniorezagnittup

mrifehtfo.tpedecivresehtksA

raelcotmetsysenohpehtgnitarepo

.ecivresatadeht

(12/99)

-itlumybdesuacmelborP

.noitarugifnocecived

ACom6 53

.niaga

yrtdnasecivedrehtollatcennocsiD

Appendix

melborP sesuacelbissoP ydemerdetsegguS

noitcennocoN

htiwdehsilbatse

medom

.ytluafro

tonseodmoCA

mralananehwlaid

.srucco

erutcipoN

otnoissimsnart

.noitatstuo

otelbissoptoN

-napfolortnoc
rosevirdtlit-dna

.secivedrehto

lortnocwolfataD

noitasilaitinis'medomehT

etelpmocnisidnammoc

atadfosetargniyraV

.noissimsnart

mralaehtrofegatlovoN

.)relpuoc-otpo(langis

nideretnerebmunllacoN

.tsilgnilaidedoctrohseht

.aremacevitcefeDkcehcdnarotinomlacoltcennoC

.noitcennocelbacytluaFdnastcatnoc,sgulp,sdaelllakcehC

neewtebnoitcennocelbaC

dnasecafretni232SReht

siseciveddetcennoceht

.tcerrocni

sretemarapecafretniehT

rehtoehthtiwtcilfnoc

.detcennocsecived

STC/STRotekahsdnahteS

.detavitcaton)ekahsdnah(

ebtsumsdnammocgniwollofehT

,0=0S,1C&,2D&,R&,H&:deniatnoc

.1V

dexifaotsetarnoissimsnartatadteS

.eulav

.)V21.xam...5(egatlovehtkcehC

edoctrohsehtniseirtneehtkcehC

fi,tnemelppusdnatsilgnilaid

.yrassecen

.noitcnufaremac

.snoitcennoc

erusnednasnoitcennocelbacllakcehC

.nideggulpylreporperasgulplla

secivedehtfosgnittesehterusekaM

.rehtohcaehtiweergadevlovni

demmargorP

retfatsolsgnittes

.eruliafrewop

.demmargorp

ehtelihweruliafegatloV

gniebsielifetadpu

54 ACom6

.niagamoCAmargorP

tievahdnaecivedehtecalpeR

.CBCybdekcehc

Appendix

Technical Data

Power supply plug-type power pack 100 ... 240 V AC, 50/60 Hz
Service voltage ACom6 5 V DC
Power consumption about 7 W
ISDN-protocol EDSS 1
Transmission rate 64/128 kbit/s (ISDN)
Video norm PAL, NTSC
Image refresh rate max. 25 images/s
Video image resolution 352 × 288 pixel (CIF), 144 × 176 pixel (QCIF)
Compression Standard: H.320

Video: H.261

Audio: G.711/722/728
ISDN-connection RJ45-socket
Video signal inlets 6 × FBAS 1.0 V

(6 × screwed terminals, 1 × BNC-socket)
Video signal outlets 1 × FBAS 1.0 V
Audio inlet 1 × 19 mV

1 × 13 mV
Audio outlet 1 × 2.2 V

1 × 2.2 V

S-S

S-S

Data interfaces 2 × RS232
Alarm inlets 4 × potential-free via optical coupler,

5 ... 12 V DC, max. 4 mA at 12 V

4 × potential-linked (screwed terminals)
Switch outlets 2 × relays, max. 24 V, 0.5 A
Displays Operation

Connection B1-Channel

Connection B2-Channel

Video sensor-alarm

Hard disc-activity
Operational conditions Temperature: +5 ... +40 °C

rel. air humidity: 20 ... 80 %, non-

condensating
Dimensions (W × H × D) 293 × 55 × 293 mm
Weight about 1340 g (ACom6HA with hard disc

installed and audio function)

, 75 Ohm,

S-S

, 75 Ohm,

S-S

... 1.67 V

S-S

... 1.18 V

S-S

, 15 kOhm (40 dBm0)

S-S

, 15 kOhm (40 dBm0)

S-S

max., 50 Ohm (2.5 ... -20 dBm0)
max., 200 Ohm (2.5 ... -20 dBm0)

(12/99)

ACom6 55

CBC (Deutschland) GmbH

Hansaallee 191
D – 40549 Düsseldorf
T: [phone]
F: [phone]

CBC (Poland) Sp.z o.o.

Ul. G. Morcinka 5, Paw 6
PL – 01496 Warszawa
T: [phone]
F: [phone]

CBC (Europe) Ltd.

7/8 Garrick Industrial Centre, Irving Way
GB – London NW9 6AQ
T: [phone]
F: [phone]

CBC (Europe) Ltd. Ufficio Milano

Via E.Majorana, 2
I – 20054 Nova Milanese (MI)
T: [phone]
F: [phone]

CBC (Europe) Ltd. Paris Branch

1, Avenue des Marguerites
ZAC des Petits Carreaux
F – 94389 Bonneuil sur Marne Cedex
T: [phone]
F: [phone]
