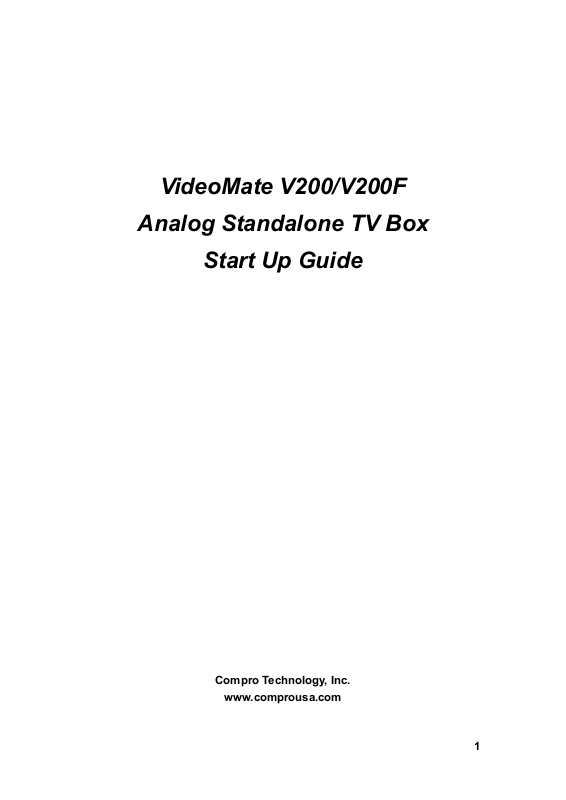

VideoMate V200/V200F
Analog Standalone TV Box
Start Up Guide
Compro Technology, Inc.
www.comprousa.com
1
Page 2
Table of Contents
About This Guide .............................................................. 3
VideoMate V200/V200F TV Box Contents........................ 4
Install V200/V200F TV Box with Box Stand ...................... 5
VideoMate V200/V200F TV Box Connection .................... 6
Buttons on VideoMate V200/V200F TV Box ..................... 7
Remote Control Key Definition and Use ........................... 8
VideoMate V200/V200F TV Box Using Guide .................. 9
Troubleshooting............................................................... 15
Copyright © 2001-2008. Compro Technology, Inc. No part of this document
may be copied or reproduced in any form or by any means without the prior
written consent of Compro Technology, Inc.
Compro, VideoMate, Poladyne, Play with Power, and the Compro logo are
trademarks of Compro Technology, Inc. Other names and marks are
trademarks of their respective owners.
COMPRO makes no warranties with respect to this documentation and
disclaims any implied warranties of merchantability, quality, or fitness for
any particular purpose. The information in this document is subject to
change without notice. COMPRO reserves the right to make revisions to
this publication without obligation to notify any person or entity of any such
changes.
Compro Technology, Inc.
Tel. +886 2 2918 0169, Fax +886 2 2915 2389
4/F, No.12, Alley 6, Lane 45, Pao Shin Road Hsintein City, Taipei, Taiwan.
www.comprousa.com
2
Page 3
About This Guide
This guide provides you the information on how to install and use your
VideoMate V200/V200F analog standalone TV box.
VideoMate V200/V200F analog standalone TV box lets you watch TV with
your computer monitor without driver or applications install, also the V200F
can provide FM radio listening. V200/V200F TV box provide S-video and
composite video input which allow you to connect other video devices (i.e.
DVD Player, camcorder, XBox360, PS 2, PS 3, Wii or other game console).
The maximum resolution is 1600x1200 and 1680x1050, which allows you to
have crystal clear pictures. It also supports 4:3, 5:4, 16:9, and 16:10 screen
ratio for all kinds of monitors. With the remote control that included with
V200/V200F package will greatly increase the value of the computer monitor
which also saves you from buying another TV set.
MINIMUM SYSTEM REQUIREMENTS
z Monitor (CRT or LCD) contains D-sub Connector and supports 640*480
resolution or above.
z Speakers with stereo jack.
z Analog TV cable or antenna input
Warning
It is normal for VideoMate V200/V200F TV Box become warm when it is being
used. Please place the TV Box at a place where the air flows.
VideoMate V200/V200F TV Box will only need a computer monitor to work; It
does not require to connect to computer nor turn on the computer to work
properly.
Please do not use other adaptor except the one included in the package to
V200/V200F prevent damaging V200/V200F. Damaged V200/V200F by using
wrong adaptor will not be cover from the warranty.
Page 4
VideoMate V200/V200F TV Box Contents
V200/V200F
TV Box
TV Box
stand
Remote Control
AAA batteries
Start Up Guide
FM Antenna
Power Adaptor
9-pin Mini-DIN
Audio Cable
to 15-pin D-sub
Cable
4
Page 5
Install V200/V200F TV Box with Box Stand
p
Step 1 Step 2
Ste
3 Step 4
Page 6

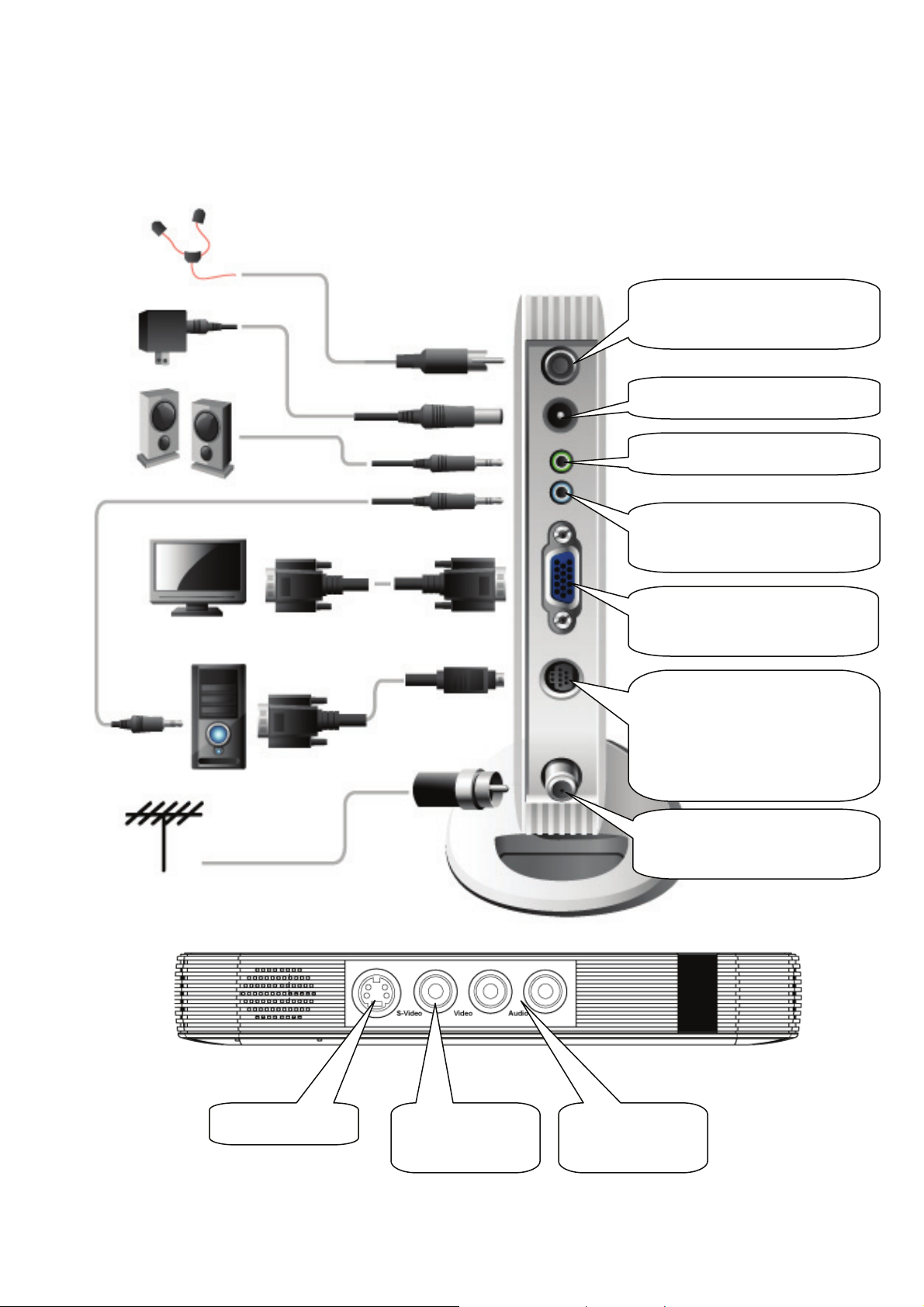

VideoMate V200/V200F TV Box Connection
FM Antenna Input
(V200F only)
Power Adaptor
Line-Out to Speaker
Line-In from the Line-Out
connector of sound card
Connect to monitor by
VGA cable
Connect from TV box to
VGA card by 9-pin
Mini-DIN to 15-pin D-Sub
cable in the package
Analog TV
6
S-Video Input
Composite
Video Input
Cable/Antenna Input
Stereo Audio
Input (L/R)
Page 7

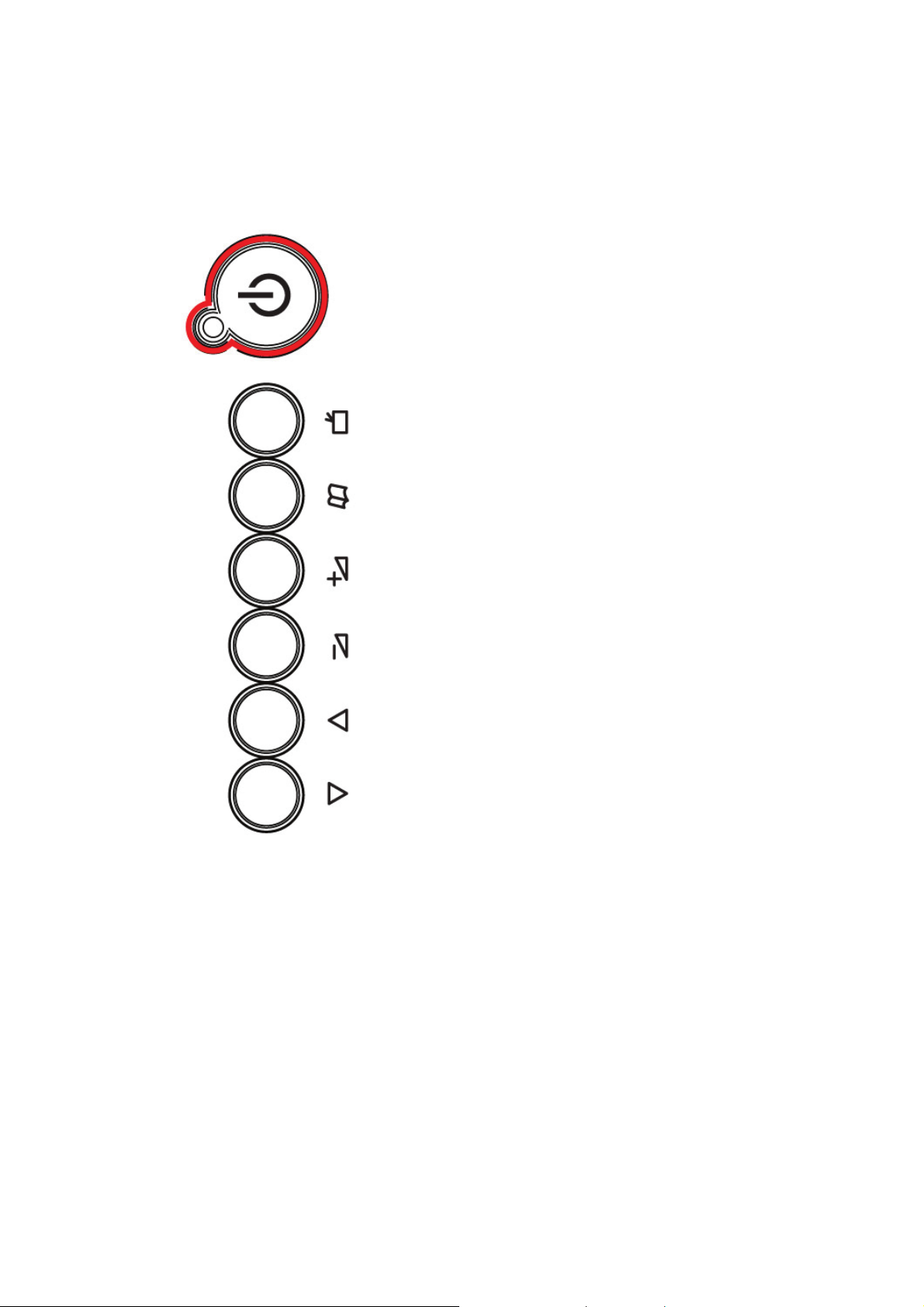

Buttons on VideoMate V200/V200F TV Box
Power On/Off
Source Switch
TVÆAV (Composite) ÆS-videoÆFM
Open OSD Menu
Volume Up
Volume Down
Channel Up
Channel Down
Page 8

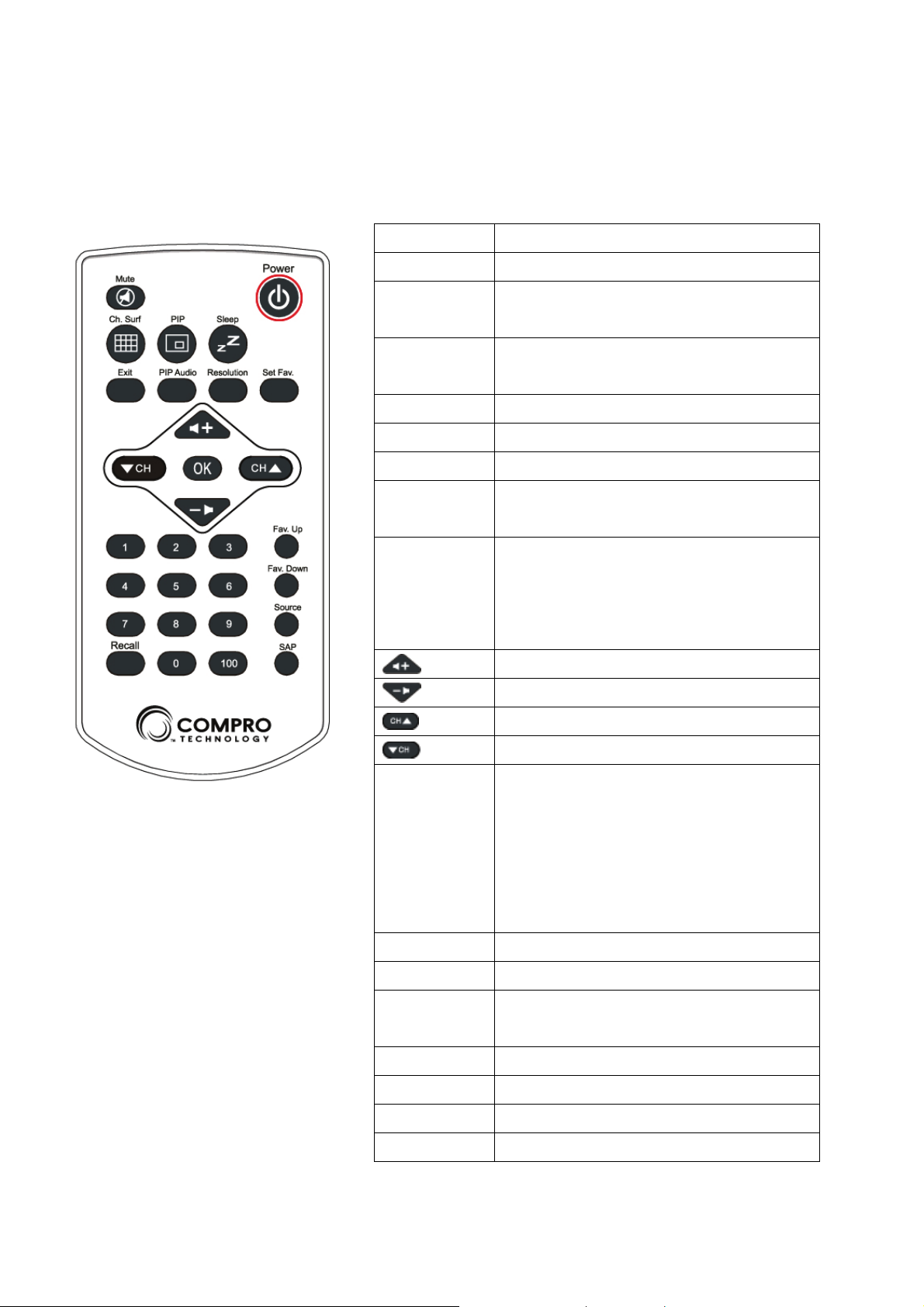

Remote Control Key Definition and Use
Power Power On/Off
Mute Mute
Sleep Sleep mode
(OFFÆ30Æ60Æ90Æ120 minutes)
PIP Picture In Picture On/Off and
screen size select
Ch. Surf 9 Channels preview
Set Fav. Set to favorite channel list
Resolution Switch Resolution
PIP Audio Switch audio between
TV and PC in PIP mode
Exit * Exit OSD Menu
* Display info
* Pause live TV screen
* Exit PIP to TV mode
OK * Confirm / Open OSD Menu
Fav. Up Favorite channel list up
Fav. Down Favorite channel list down
Source Source Switch
SAP Stereo/SAP/Mono
Volume Up / Direction key “Up”
Volume Down / Direction key “Down”
Channel Up / Direction key “Right”
Channel Down / Direction key “Left”
* Switch PIP mode in PIP:
Open (default): Channel/Volume
up/down
Close: Direction key to move TV
screen on windows’ desktop
(TVÆAV(Composite)ÆS-VideoÆFM)
8
0-9 Number Keys
100 Number Key
Recall Return to last channel
Page 9
VideoMate V200/V200F TV Box Using Guide
Using at the first time
Please refer to the above for correct setup to use V200/V200F TV box. After
you have connected the power adaptor, you can press the power switch to turn
on the TV box and you will see the green LED light beside the power button.
The default TV settings will be your local country and TV system, and you can
change it from OSD menu later. Now you may enjoy the TV shows on your
monitor.
If you have connect V200/V200F TV box to your computer’s video card, press
the power button on the TV box to switch between TV and PC signal.
Order of the Sources: TV Æ AV (Composite) Æ S-Video Æ FM Æ TV…
VideoMate V200/V200F TV Box supports 60 and 75 Hz with 9 resolutions from
below. The default setting is 1024*768 @ 60Hz.
Resolution 1 -> 640*480 (4:3) Resolution 6 -> 1400*1050 (4:3)
Resolution 2 -> 800*600 (4:3) Resolution 7 -> 1440*900 (16:10)
Resolution 3 -> 1024*768 (4:3) Resolution 8 -> 1600*1200 (4:3)
Resolution 4 -> 1280*720 (16:9) Resolution 9 -> 1680*1050 (16:10)
Resolution 5 -> 1280*1024 (5:4)
To change resolution, please open up menu and select the resolution you want.
Refer to later instruction for more detail. “Resolution” button from the remote
controller can also switch the resolution.
If using PIP feature, the refresh rates in Windows support resolutions below:
Resolution
60 Hz 70 Hz 72 Hz 75 Hz
640 x 480 Yes - Yes Yes
800 x 600 Yes - Yes Yes
1024 x 768 Yes Yes Yes Yes
1152 x 864 Yes Yes - Yes
1280 x 1024 Yes Yes Yes Yes
1280 x 720 Yes Yes Yes Yes
1440 x 900 Yes Yes Yes Yes
1400 x 1050 Yes Yes Yes Yes
1600 x 1200 Yes - Yes Yes
1680 x 1050 Yes
Support Refresh Rate
No No No
Page 10
OSD Menu Guide
Menu button will open up OSD Menu, please use the direction key to navigate.
(Picture)
Brightness Adjust the brightness (0~100)
Contrast Adjust the Contrast (0~100)
Saturation Adjust the Saturation (0~100)
Sharpness Adjust the Sharpness (0~15)
Hue Adjust the Hue ( 0~100)
3 preset modes (Standard/TV, Game, and Cinema) and 5
OptiColor Mode
(Picture)
Input Signal Select Air or Cable for TV input signal type. Default is Air
Channel
Rename
Fine tune Fine tune frequency if TV is unclear. (0~100) default is 50
custom modes of picture settings. You can adjust the color
settings then save it in custom mode.
Set a name for specific channel. (5 letter/numbers)
(TV)
(TV)
(Monitor)
(Monitor)
(OSD)
(OSD)
(Sound)
(Sound)
Auto Scan Recommend to use Auto Scan for the first time. (NO/YES)
Channel Swap Swap the channel numbers to your preference. (NO/YES)
CH Add/Erase Add or Erase channel. (Default: Add)
Channel Video
System
FM Mode: While listen to FM radio, this OSD page will different with TV mode.
(Picture)
Auto Scan Recommend to use Auto Scan for the first time. (NO/YES)
Enter Frequency
CH Add/Erase Add or Erase channel. (Default: Add)
Channel
Rename
Change video standard for current channel.
(Only appears in countries with 2 or multiple TV systems)
(FM)
Directly input the channel frequency you want to listen. And
you can use the CH Add/Erase to save it.
Set a name for specific channel. (5 letter/numbers)
(Monitor)
(OSD)
(Sound)
10
Page 11
(Picture)
640*480 800*600 1024*768 (default) 1280*720
Resolution
Refresh Rate 60Hz (default) 75Hz
Noise Reduction Adjust level of noise reduction. (0~8) Default is 4
OptiRatio 4:3 16:9 SmartZoom Panorama Full
Display Type LCD (default) CRT PDP
Input Source TV AV (Composite) S-Video FM PC
Position Finetune
1280*1024 1400*1050 1440*900 1600*1200
1680*1050
Use right and left direction key to adjust the position of
screen
(TV)
(Monitor)
(OSD)
(Sound)
(Picture)
OSD Position Use direction keys to move OSD position
OSDTransparency 1 2 3 4
Language Select your language (Default is your local country)
Information VideoMate V200F/V200 Version information
Reset All Settings NO/YES (1 Cancel / 2 Reset All Settings)
Country/Region Select your country or region
(Picture)
Volume Adjust volume (0-50)
Treble Adjust Treble volume (0-15)
Bass Adjust Bass volume (0-15)
Dynamic Bass
Boost
Stereo Effect Adjust Stereo Effect (0~8) Default : 0
SAP Mode
Reset Reset sound settings (NO/YES)
ON/OFF (Default is OFF)
ON/OFF (Default is OFF)
(Only appears in PAL/SECAM TV system area)
(TV)
(TV)
(Monitor)
(Monitor)
(OSD)
(OSD)
(Sound)
(Sound)
Channel Swap
To swap the channel numbers, please select Channel Swap from the menu
then select YES, and it will show as a sub menu. Once you have entered this
menu, you will see a list of channels. You may browse with the direction keys;
Up and Down are going through the list while Left and Right are changing
Page 12
pages of the list. Select the channel number that you wish to swap and press
OK, and then enter the number of the channel that you wish to switch.
To reset to the original channel numbers, please rescan the channel table
again by selecting Auto Scan in the menu.
My Favorite Channel List
My favorite channel list can store up to 10 channels that you watch the most
and browse with “Fav. Up” and “Fav. Down” keys on the remote control.
To add channels to the favorite list, please turn to the channel you wish to add
and press “Set Fav” on the remote control. Press “OK” on the selected
position.

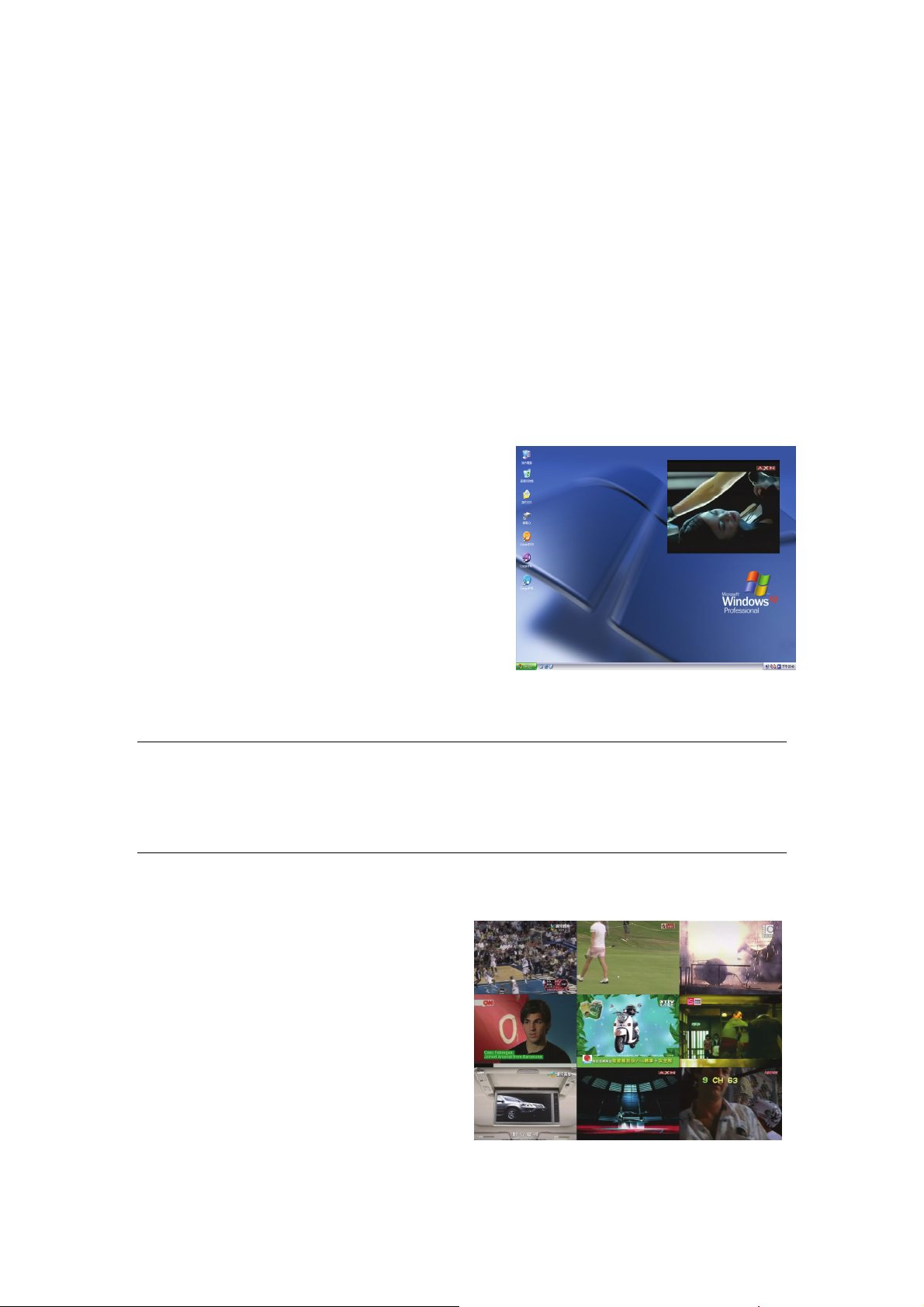

PIP (Picture In Picture)
You can start PIP function by clicking “PIP”
button on the remote control. It allows you
to watch TV on the Windows desktop.
When PIP is working, press “PIP” button
again will change the size of the TV screen;
you may zoom twice and the third time you
press “PIP”, it will close the PIP function.
The PIP feature can supports up to 1680 x 1050 windows’ resolution.
Note:
If you need to move the TV screen position on Windows desktop, please press
the “OK” to switch the keys of channel and volume up/down into direction key,
and you can move the PIP TV windows to the place you want.
Channel Surfing
Channel Surfing allows you to preview
and find the channel you want by
presenting in 9 squares.
To access this function, please press
“Ch.Surf” button on the remote
controller. The pictures will refresh
from left to right. When you have found
the channel you prefer, please press
the correspondent number keys (1~9) to switch to that channel.
12
Page 13

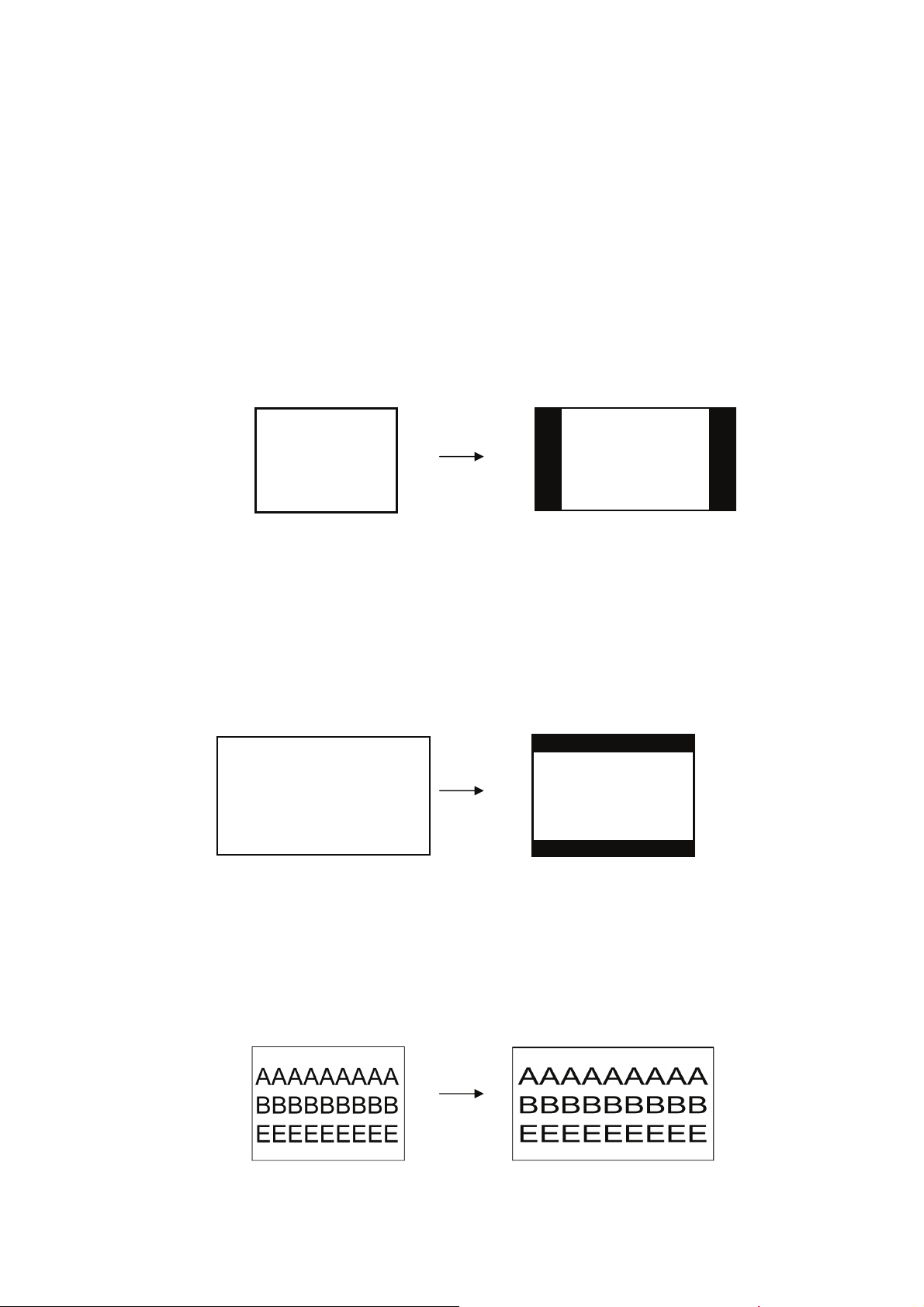

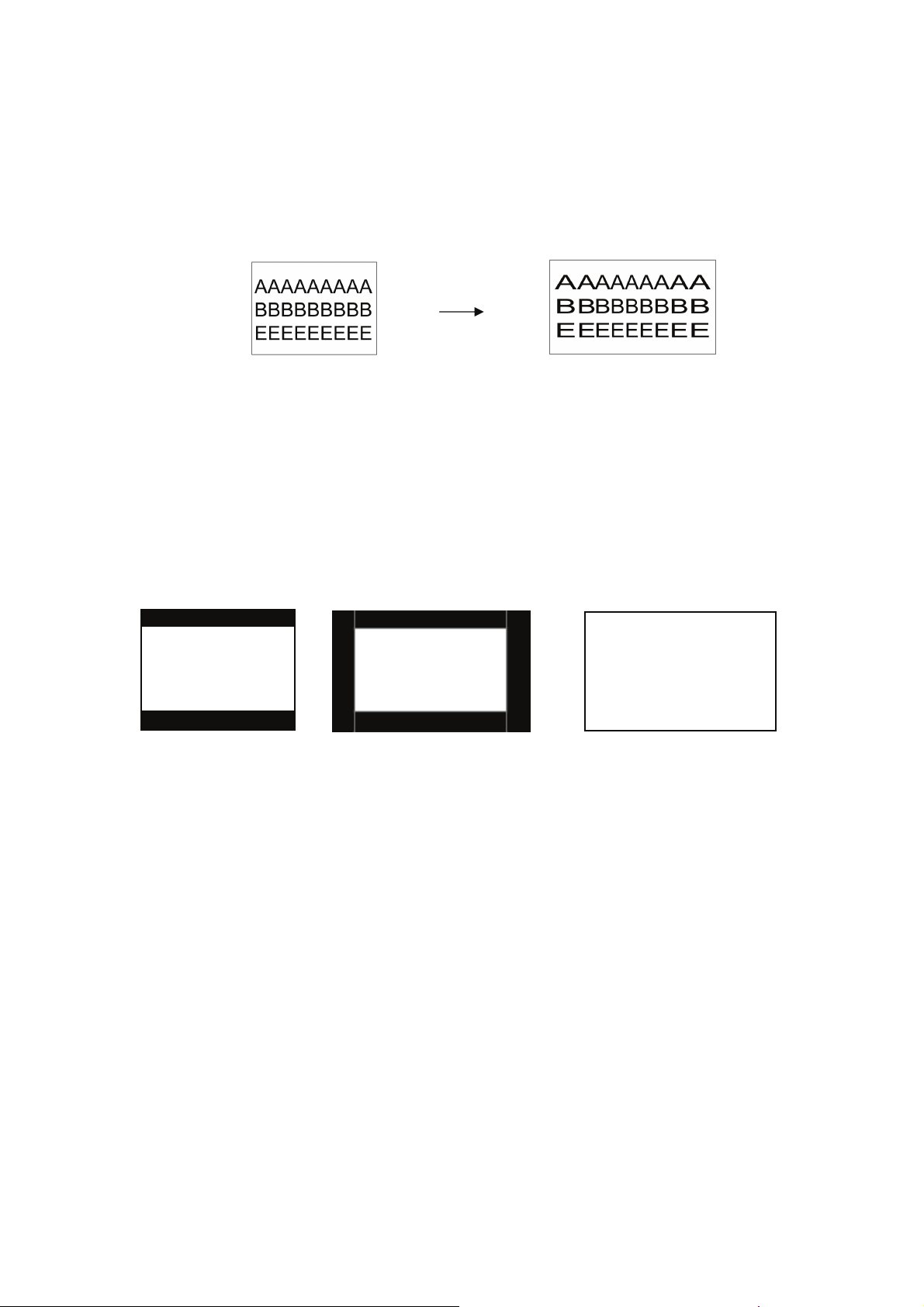

OptiRatio
OptiRatio Aspect Selection provides 4:3, 16:9, Panorama, Full Screen, and
SmartZoom aspect ratio selections to provide the best TV and video watching
on different type monitors.
4:3 Mode: When the 4:3 formats TV/video display on 16:9/16:10 wide-screen
monitors, it can keep the 4:3 aspect ratio video and add letter box on both left
and right sides.
Original video format 4:3
Add letter box on both
left and right sides of
wide-screen monitors
16:9 Mode:
When the 16:9 formats TV/video display on 4:3/5:4 standard monitors, it can
keep the 16:9 aspect ratio video and add letter box on both the top and bottom.
Full Screen Aspect Ratio Mode:
Stretch all the input TV and video to full screen display. But if the original video
format is 4:3, it will look a little squash.
Original video format 16:9
Add letter box on both
top and bottom sides
of standard monitors.
Original video format 4:3
Stretch video to fit monitors
Page 14
Panorama Mode:
Extend all the input TV and video to full screen display. But the distortion on
the center of screen will be less than full screen mode and looks better.
SmartZoom Mode:
When the 16:9 movie broadcast from TV channel, it will add the letter box for
4:3 video format transmit and it looks small on the 16:9/16:10 wide-screen
monitors. The SmartZoom mode can remove the letter box on top and bottom
to make the movie displays bigger and clearer.
Less distortion from center Original video format 4:3
Original video format
on 4:3 monitor
Letter box on each
sides of video with
16:9 monitor
Removed letter
box to display 16:9
Dynamic Bass Boost
Dynamic Bass Boost is a function that will automatically analyze your audio
signal and adjust the volume of the bass. To activate this function, please
press the MENU button and select Sound section, then select ON with the
option of Dynamic Bass Boost. You may refer to the OSD Menu Guide
above for exact location.
14
Page 15
Stereo Effect
Stereo Effect is a function that will simulate stereo sound when your audio
input is Mono. When your audio input is stereo, it will enhance the effect and
give you a greater feeling of the surrounding effect. To activate this function,
please press the MENU button and select Sound section, then adjust the
volume of Stereo Effect higher for greater effect. You may refer to the OSD
Menu Guide above for exact location.
SAP Mode (Only appears in PAL/SECAM TV system area)
SAP Mode is a function that will allow you to broadcast Main Audio Channel in
the left and Sub Audio Channel in the right. To activate this function, please
press the MENU button and select Sound section, then select ON with the
option of SAP Mode. Switch to the channel that contains both Main and Sub
Audio Channel, and then change the stereo mode to SAP by pressing SAP
button on the remote controller.
Troubleshooting
Installation
The most common cause of the problem is the incorrect connection of the
cables. Please refer to “VideoMate V200/V200F TV Box Connection” on
proper connection. And also please check the power adaptor already plugged.
Warning
It is normal for VideoMate V200/V200F TV box become warm when it is being
used. Please place the TV Box at a place where the air flows.
Please do not use other adaptor except the one included in the package to
prevent damaging V200/V200F. Damaged V200/V200F by using wrong
adaptor will not be cover from the warranty.
No Picture
Please make sure you have properly connected the TV cable to TV Box in
order to watch live TV. It might also because the input source of V200/V200F
TV Box is not set to TV mode, please switch the video input source to TV.
Page 16
No Sound
Please try to use the built-in speaker to make sure the TV ot FM audio is OK.
Then if the TV display without sound, please make sure you have connect your
speaker to V200/V200F TV Box’s Line Out and check the speaker has turn on
and volume is not at the minimum.
If you switch to PC and PC does not have sound while TV has it, please make
sure you have connected Line-In from V200/V200F TV Box to Line-Out from
your computer.
How to add the missing channel?
If there are some channels missing after Auto Scan, you can add the missing
channel to channel table by yourself from the steps below:
1. Please directly key-in the missing channel number by remote number pad.
2. Press “Menu” key to open the OSD menu.
3. Select the “TV” setting tab (the second from left).
4. Select “CH Add/Erase”, and then pick “Yes” to add channel.
5. Now you can watch the missing channel.
TV picture is not clear?
TV signal could be reduced by the branching. Please make sure the cable
signal is good. Try to move the computer to a TV set and connect the cable
which is being used for the TV set. Also directly connecting the cable before
the splitter may help. This problem could also come from with static. Once you
connect the cable to our TV card, the static interfere the system. It's possible to
correct this problem by connecting a wire from the grounding of the cable to
ground. Also make sure computer grounding is good.
Why PIP does not work?
Please make sure you have connected your computer VGA to V200/V200F
and connect V200/V200F to the monitor. For more information, please refer to
the TV box connection description.
If your display card of your computer has both DVI and VGA connected, please
make sure the settings in Windows is set to VGA output.
Please also check if your desktop resolution is one of our supported
resolutions. Please refer to the detail list of resolutions.
Contacting Compro Technical Support
Before you submit an email for support, please check the troubleshooting list
above. You may fill out the form (http://comprousa.com/en/form.htm) or directly
email to [email protected]
16
P/N: 3GA0310370
Loading...
