1 Introduction

Congratulations on purchasing your CVG-719xl / CVG -720xl / CVG -724xl Presentation Switcher / Scaler, which is ideal for the following typical applications:

 Projection systems in conference rooms, boardrooms, auditoriums, hotels and

churches

 Production studios, rental and staging  Any application where high quality conversion and switching of multiple and

different video signals to graphical data signals is required for projection purposes

The package includes the following items:

 CVG-719xl / CVG -720xl / CVG -724xl Presentation Switcher / Scaler  Power cord1  Infra-red remote control transmitter  Null-modem adapter  This user manual

2 Getting Started

We recommend that you:  Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

 Review the contents of this user manual

3 Overview

The CVG-719xl / CVG -720xl / CVG -724xl is a Presentation Switcher / Scaler designed for a wide variety of presentation and multimedia

applications. It is a true multi-standard video to RGBHV (pixel) scaler and a seamless presentation switcher. It converts video, s-Video, component video, VGA-through-UXGA and DVI signals to a range of user-selectable VESA and HDTV pixel rates, as well as some other special resolutions. Using the Presentation Switcher / Scaler, you can select any one of the inputs and scale that input to the output at the set resolution.

The Presentation Switchers / Scalers support the following user-selectable output pixel rates:

1 We recommend that you use only the power cord that is supplied with this machine

 VGA (640x480)  852x1024i  720x483

 SVGA (800x600)  1024x1024i  852x480

 XGA (1024x768)  1366x768  1400x1050

 SXGA (1280x1024)  1365x1024  1280x768*1

 UXGA (1600x1200)  1280x720  User Define2

The CVG -724xl also has the following user selectable output pixel rates: 480p, 720p, 1080i and 1080p. Each Presentation Switcher / Scaler:

 Digitally reprocesses the signal to correct mastering errors, and regenerates the

video at a higher line and pixel rate format, providing native-resolution video for LCD, DLP and plasma displays

 Up- and down-scales any graphics resolution to any other resolution3  Incorporates a unique graphics-scaling engine with image enhancement

algorithms, which are built into the firmware

 Is specifically designed to improve video quality by reducing chroma noise  Scales and zooms (to up to 400% of the original size)  Includes a built-in power amplifier of 2x5Watt RMS, ample to fill a

presentation room. Audio volume can be easily and rapidly controlled via the front panel buttons

 Switches the audio channels in audio-follow-video mode  Includes an OSD (On-Screen Display) – for making adjustments – that can be

located anywhere on the screen, and can be doubled in size For example, the OSD can be used to deactivate the source prompt, choose the color of the blank screen, and choose from three seamless switching image transition speeds

 Includes seven4 multi-functional INPUT SELECTOR buttons that can cycle

between selecting a source, freezing that source, or deactivating that source (and displaying a blank screen), if programmed to do so5

 Includes a BLANK button, a MUTE button; a FREEZE button; a RESET TO

VGA button (to hardware-reset the output resolution); and a PANEL LOCK button6

1 This is not a standard VESA resolution and its parameters vary from manufacturer to manufacturer. Therfore, use this

resolution with caution. It is also possible to use the parameters of this resolution in combination with the User Defined

resolution. There is also an RS-232 command for this resolution

2 Recommended for advanced users only – non-standard settings may not be recognized by the display device

3 For example, scaling a VGA input to an UXGA output, or an SXGA input to an SVGA output

4 Eight on the CVG-724xl

5 See section 8.5.9

6 Also includes a front panel lock that can be programmed via the OSD menu (see section 8.5.9)

 Has two HD15F outputs, that can be used as graphics, or HDTV1 outputs  Incorporates full ProcAmp2 for video correction and enhancement  Offers high quality de-interlacing 3:2/2:2 pulldown3  Can provide non-linear scaling for 4:3, 16:9 transformation4  Supports firmware upgrade via RS-232  Includes non-volatile memory that retains the last setting, after switching the

power off and then on again

 Includes a built-in Picture-in-Picture (PIP) inserter (not available on the

CVG-719xl)

Control your Presentation Switcher / Scaler:

 From the front panel buttons  Remotely from the infra-red remote control transmitter  Remotely via RS-232

To achieve the best performance:  Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise- levels (often associated with low quality cables)

 Avoid interference from neighboring electrical appliances and position your

CVG-719xl / CVG -720xl / CVG -724xl away from moisture, excessive sunlight and dust

4 Your Presentation Switcher / Scaler

This section defines each of the Presentation Switcher / Scaler machines:

 Figure 1 and Figure 2 illustrate the CVG-719xl Presentation Switcher / Scaler  Figure 3 and Figure 4 illustrate the CVG-720xl Presentation Switcher / Scaler  Figure 5 and Figure 6 illustrate the CVG-724xl Presentation Switcher / Scaler

Table 1 and Table 2 define the Presentation Switcher / Scaler machines5.

1 For CVG-724xl

2 Processing amplification enables adjustment of different video and audio signal parameters

3 Accommodates the frame-rate of a converted movie (24 frames per second) to video frequencies (25 frames per second

(PAL); 30 frames per second (NTSC)

4 See section 8.4.1

5 Some items, which appear in the table, do not appear in the illustrations since they are not included in that specific machine

Figure 1: CVG-719xl Presentation Switcher / Scaler Front Panel1

Figure 2 CVG-719xl Presentation Switcher / Scaler Rear Panel

1 Items 10 and 11, which appear in Table 1 are not included in this machine

2 Items 10 and 15, which appear in Table 2 are not included in this machine

Figure 3: CVG-720xl Presentation Switcher / Scaler Front Panel1

Figure 4: CVG-720xl Presentation Switcher / Scaler Rear Panel2

1 Item 10, which appears in Table 1 is not included in this machine

2 Items 10 and 15, which appear in Table 2 are not included in this machine

Figure 5: CVG-724xl Presentation Switcher / Scaler Front Panel

Figure 6: CVG-724xl Presentation Switcher / Scaler Rear Panel

Table 1: Front Panel Presentation Switcher / Scaler Features

# Feature Function

1 POWER Switch Illuminated switch for turning the machine ON or OFF

2 IR Receiver / LED Red when the unit accepts IR remote commands

3 AV1 Press to select the composite video/audio source 1

4 AV2 Press to select the composite video/audio source 2

5 YC1 Press to select the s-Video (Y/C)/audio source 1

6 YC2 Press to select the s-Video (Y/C)/audio source 2

7 COMPONENT Press to select the component video/audio source

Buttons

8 DVI Press to select the DVI/audio source

9 VGA2 1 Press to select the VGA/audio source 1

INPUT SELECTOR

11 PIP Button3 Toggles the picture-in-picture function (see section 7.2)

12 BLANK Button Press to toggle between a blank screen (blue or black screen)4 and the display

13 MUTE Button Press to toggle between muting (blocking out the sound) and enabling the audio

14 FREEZE Button Press to freeze/unfreeze the output video image4

15 MENU Button Displays the OSD menu screen5

16 ENTER Button Moves to the next level in the OSD screen 17 - Button Decreases the range by one step in the OSD screen6

18 DOWN Button Moves down one step (in the same level) in the OSD screen6

19 UP Button Moves up one step (in the same level) in the OSD screen6

20 + Button Increases the range by one step in the OSD screen6

21 RESET TO VGA Button Press and hold for a few seconds7 to reset to the default output resolution

22 PANEL LOCK Button Press and hold to lock/unlock the front panel to prevent unintentional operation

VGA2 2 Press to select the VGA/audio source 2

output

(640x480 @60Hz)

1 When selected, button illuminates. See section 7.1 for details of how to program the INPUT SELECTOR buttons

2 Only the CVG-724xl has two VGA INPUT SELECTOR buttons. The CVG-719xl and CVG-720xl have one VG A button

3 Not available on the CVG-719xl

4 Also available via each INPUT SELECTOR button, when programmed accordingly (see section 7.1)

5 Or moves to the previous level in the OSD screen

6 When pressing the button continuously, you can speed up its response. For step-by-step response, press and release the

button as many times as needed

7 Until you see the screen refresh

Terminal Block

Table 2: Rear Panel Presentation Switcher / Scaler Features

# Feature Function

1 VIDEO OUT 1

HD15 Connector

2 VIDEO OUT 2

HD15 Connector

3 AV1 Connects to the stereo audio input from composite video source 1

4 AV2 Connects to the stereo audio input from composite video source 2

5 YC1 Connects to the stereo audio input from s-Video source 1

6 YC2 Connects to the stereo audio input from s-Video source 2 7 COMP Connects to the stereo audio input from the component video source

Connectors

8 DVI Connects to the stereo audio input from the DVI graphics source

9 VGA1 1 Connects to the stereo audio input from the VGA graphics source 1

11 LINE AUDIO OUT Terminal

12 SPKR OUT

13 DVI Connector Connects to the DVI (digital video interface) graphics source

14 VGA1 1 HD15

15 VGA1 2 HD15

16 Y RCA

17 Pb/Cb RCA

19 YC2 4p Connector Connects to the s-Video source 2

20 AV2 RCA Connector Connects to the composite video source 2 21 YC1 4p Connector Connects to the s-Video source 1

23 RS-232 DB 9 Connector Connects to PC or Serial Controller

24 Power Connector with Fuse AC connector enabling power supply to the unit

VGA1 2 Connects to the stereo audio input from the VGA graphics source 2

AUDIO IN

Block Connector

Terminal Block Connector

Connector

VIDEO INPUTS

COMPONENT

Pr/Cr RCA

Connector

AV1 RCA Connector Connects to the composite video source 1

Connects to the video acceptor (for example, a plasma display, projector or monitor) that displays the scaled output

In the default HDTV mode, the signal goes out via 3 PINS: PIN 1 is Pr, PIN 2 is Y, PIN 3 is P

Connects to the video acceptor (for example, a plasma display, projector or monitor) that displays the scaled output In the default HDTV mode, the signal goes out via 3 PINS: PIN 1 is Pr, PIN 2 is Y, PIN 3 Pb

Connects to the stereo audio acceptor

Connects to the speakers

Connects to the VGA (analog interface) graphics source 1. When connecting an HDTV source, the signal goes in via 3 PINS: PIN 1 is Y, PIN 2 is Pb, and PIN 3 is Pr

Connects to the VGA (analog interface) graphics source 2. When connecting an HDTV source, the signal goes in via 3 PINS: PIN 1 is Y, PIN 2 is Pb, and PIN 3 is Pr

Connect to the component (Y, Pb/Cb, Pr/Cr) or RGB video source. If RGB colorspace is used, connect as follows: For video frequencies2, connect:

 Green to the Y connector  Blue to the Pb/Cb connector  Red to the Pr/Cr connector

For Graphics frequencies3, connect:

 Red to the Y connector

 Green to the Pb/Cb connector

 Blue to the Pr/Cr connector

1 Only the CVG-724xl has 2 VGA connectors. The CVG-719xl and CVG-720xl have 1 VGA connector

2 50Hz or 60Hz interlaced video

3 Including HD (480p, 576p, 720p and 1080i)

Before Installing on a Rack

5 Installing on a Rack

This section describes what to do before installing on a rack and how to rack mount.

How to Rack Mount

Before installing on a rack, be sure that the environment is within the recommended range:

Operating temperature range +5 to +45 Deg. Centigrade

Operating humidity range

Storage temperature range

Storage humidity range

When installing on a 19" rack, avoid hazards by taking care that:

It is located within the recommended environmental

conditions, as the operating ambient temperature of a closed or multi unit rack assembly may exceed the room ambient temperature.

Once rack mounted, enough air will still flow around the

machine.

The machine is placed straight in the correct horizontal

position.

You do not overload the circuit(s). When connecting

the machine to the supply circuit, overloading the circuits might have a detrimental effect on overcurrent protection and supply wiring. Refer to the appropriate nameplate ratings for information. For example, for fuse replacement, see the value printed on the product label.

The machine is earthed (grounded) in a reliable way

and is connected only to an electricity socket with grounding. Pay particular attention to supply connections other than direct connections to the branch circuit (for example, the use of power strips), and that you use only the power cord that is supplied with the machine.

5 to 65% RHL, non-condensing

-20 to +70 Deg. Centigrade

5 to 95% RHL, non-condensing



CAUTION!!

To rack-mount a machine:

Attach both ear brackets to the machine. To do so, remove the screws from each side of the machine (3 on each side), and replace those screws through the ear brackets.

Place the ears of the machine

against the rack rails, and insert the proper screws (not provided) through each of the four holes in the rack ears.

Note that:



In some models, the front panel may feature built-in rack ears

Detachable rack ears can be removed



for desktop use

Always mount the machine in the rack



before you attach any cables or connect the machine to the power

If you are using a Kramer rack adapter



kit (for a machine that is not 19"), see the Rack Adapters user manual for installation instructions (you can download it at: http://www.kramerelectronics.com)

6 Connecting your Presentation Switcher / Scaler

To connect the CVG-724xl as illustrated in the example1 in Figure 7, do the following2:

1. Connect the following video sources3:

 One4 composite video source (for example, a composite video player) to

the AV1 RCA connector

 One4 s-Video source (for example, an s-Video player) to the YC1 4p

connector

 A component video5 source (for example, a Betacam video player) to the

three RCA connectors, Y, Pb/Cb, and Pr/C

 One computer graphics source7 to the VGA 1 HD15 connector  A DVI graphics source to the DVI connector

2. Connect the stereo audio sources8 (not illustrated in Figure 7):

 The audio of the composite video source 1 to the AUDIO IN AV1

terminal block connector

 The audio of s-Video source 1 to the AUDIO IN YC1 terminal block

connector

 The audio of the component video source to the AUDIO IN COMP

terminal block connector

 The audio of computer graphics source to the AUDIO IN VGA1 terminal

block connector

 The audio of the DVI graphics source to the AUDIO IN DVI terminal

block connector

3. Connect the VIDEO OUT 1 and VIDEO OUT 2 HD15F connectors9 to the video acceptors, for example, a plasma display and a VGA display.

1 From this section on, all the information is relevant to th e CVG-719xl, CVG-720xl and CVG-724xl machines, unless noted

otherwise

2 Switch OFF the power on each device before connecting it to your CVG-724xl. After conn ecting your CVG-724 xl, switch

on its power and then switch on the power on each device

3 You do not have to connect all the inputs

4 Although in the example illustrated in Figure 7 only one source is connected, you may connect both sources simultaneously

5 Sometimes called YUV, or Y, B-Y, R-Y, or Y, Pb, Pr

6 Alternatively, you can connect an RGB signal (not shown in Figure 7), as follows: Red to the Y connector, Green to the

Pb/Cb connector, and Blue to the Pr/Cr connector

7 You can connect up to two graphic sources o nly on the CVG-724xl, other models in this series have only one VGA graphic

source

8 As required. Not all devices need to be connected

9 In the HDTV mode, the signal goes out via three PINS: PIN 1 is Red or Pr, PIN 2 is Green or Y, PIN 3 is Blue or Pb

4. Connect the LINE AUDIO OUT terminal block connector to one of the audio acceptors, for example, speakers (not illustrated in Figure 7)

5. Connect the SPKR OUT terminal block to a pair of loud speakers.

6. The power cord1 (the power connector is not illustrated in Figure 7).

7. A PC (optional), as section 6.2 describes.

6.1 The RGBS and RGsB PINOUTs

Table 3 defines both the progressive2 and interlaced3 RGBS and RGsB pinouts:

Table 3: RGBS and RGsB PINOUTS

Input Color Space PINOUT

VGA RGsB Green + sync, to PIN 1

RGBS Red to PIN 1

YUV RGsB Green + sync to Y

Blue to PIN 2 Red to PIN 3

Green to PIN 2 Blue to PIN 3 Hs (H and V) to PIN 13

Blue to Pb Red to Pr

1 We recommend that you use only the power cord that is supplied with this machine

2 A display mode in which all the horizontal lines of an image are displayed in a single frame (one field)

3 A display mode in which a frame consists of two separate fields with the first field consisting of odd horizontal lines and the

second field even horizontal lines

RS-232

Composite Video

Plasma Display

Display

Player

Figure 7: Connecting the CVG-724xl Rear Panel

B9 (To Presentation

Switcher / Scaler)

6.2 Connecting a PC

You can connect a PC (or other controller) to the CVG-724xl via the RS-232 port for remote control, and for upgrading the firmware.

To connect a PC to a CVG-724xl unit, using the Null-modem adapter provided with the machine (recommended):

 Connect the RS-232 DB9 rear panel port on the CVG-724xl unit to the

Null-modem adapter and connect the Null-modem adapter with a 9-wire flat cable to the RS-232 DB9 port on your PC

To connect a PC to a CVG-724xl unit, without using a Null-modem adapter:  Connect the RS-232 DB9 port on your PC to the RS-232 DB9 rear panel port

on the CVG-724xl unit, forming a cross-connection1, as Figure 8 illustrates

DB9 (From PC)

Figure 8: Connecting the PC

1 Also known as a Null-modem connection

Auto (N T SC Sys tem)

7 Presentation Switcher / Scaler Buttons

The CVG-724xl includes the following front panel buttons:

 Eight INPUT SELECTOR buttons1, see section 7.1  A PIP button2, see section 7.2  BLANK, MUTE and FREEZE buttons  Six OSD buttons  A RESET TO VGA button  A PANEL LOCK button, see section 7.3

7.1 Switching an Input

Each INPUT SELECTOR button can be used to select the source. It can also be programmed to freeze the image or display a blank screen when pressed again. Refer to section 8.5.9 for details.

You can switch seamlessly3 between each input4 that is connected to a source, by pressing the appropriate INPUT SELECTOR button. The OSD status appears superimposed over the top right corner of the screen for a few seconds, as Figure 9 illustrates:

AV-2

1 The CVG-719xl and CVG-720xl have seven INPUT SELECTOR buttons

2 Not available on the CVG-719xl

3 For glitchless transitions between inputs

4 To set the image transition speed (fast, safe or moderate), see section 8.5.5

Figure 9: OSD Input Status

Auto( NTSC System )

PIP

Source : VG A-2

7.2 The PIP Button Feature

The Picture-in-Picture inserter (PIP) is used to present video and graphic sources simultaneously. You can display:

 An inserted video source1 PIP over a graphic source2 display  An inserted graphic source2 PIP over a video source1 display

7.2.1 Selecting the PIP Source

To use the PIP feature, set the PIP source via the OSD menu by using either the OSD front-panel buttons or the remote-transmitter keys.

To set the PIP source, do the following:

1. Select an input source3.

2. Press the MENU button to enter the OSD menu.

3. Press the DOWN button to move to the Utility icon, and then press ENTER.

4. Scroll down to the PIP Setting icon and press ENTER.

5. Use the UP or DOWN buttons to select PIP Source, press ENTER and select a PIP source from the drop-down list box (see Table 4). The PIP source prompt appears on the display (see Figure 10).

6. To exit the OSD menu, press the MENU button several times, until the OSD disappears.

PIP

Auto (NTSC System )

Source : YC- 1

Figure 10: PIP Source

You can repeat the above procedure to change the current PIP source

(compliant to Table 4)

1 That is, composite, s-Video or component

2 That is, DVI or VGA

3 Either a graphic source (for a video PIP source) or a video source (for a graphic PIP source)

When selecting one PIP source, the Presentation Switcher / Scaler automatically recognizes and displays the selected graphic PIP source on all the video displays1 and the selected video source on all the graphic1 displays, compliant to Table 4.

Table 4: PIP Source Appearance Availability2

The selected PIP source:

Appears on:

Does not appear on:

AV1, AV2, YC1, YC2, or component (video)

Component (graphics), DVI, VGA1, and VGA2

AV1, AV2, YC1, YC2, and component (video)

Component (graphics), DVI, VGA1, or VGA2

AV1, AV2, YC1, YC2, and component (video)

Component (graphics), DVI, VGA1, and VGA2

7.2.2 Activating the PIP Feature

After setting the PIP source you can activate the PIP by:

 Pressing the PIP button  Pressing the PIP key on the infra-red remote control transmitter (see

section 7.4, Figure 14)

 Switching on the PIP functionality via the OSD Menu (see section 8.5.4,

Figure 33)

7.2.3 The PIP Source (Orange) Frame

Whether the PIP source is enclosed by an orange frame or not, determines the functionality of the operation buttons (on the machine and remote control transmitter). For example, when the Source Prompt is ON, and the PIP Frame is ON, you can instantly position the PIP using the preset position control keys3.

When pressing the PIP button while the PIP Frame is ON (see section 8.5.4):

 The PIP appears enclosed in an orange frame  After a few seconds4 the orange frame disappears  When pressing the PIP button once again, the orange frame reappears

When pressing the PIP button while the PIP Frame is OFF (see section 8.5.4), the PIP source toggles between PIP and no PIP, with no orange frame.

1 Even if the input signal is not connected. In this case the PIP appears over a blank screen

2 Since the component input is compatible with both video and graphic sources, the type of component source (video or

graphic) determines where it is positioned in the table

3 On the infra-red remote control transmitter to instantly mo ve the position of the PIP window to up to nine preset fixed

locations (see Figure 14). For example, to move to the lower right corner of the image, press the

4 By default, 20 seconds. But you can reset the timeout (from 3 to 60 seconds), see section 8.5.6

button

Aut o(NTSC Syst em)

Main: DVI

7.2.4 Toggling between the PIP and the Screen Source (SWAP)

To toggle back and forth between the PIP Source and the main display, do the following:

 Press the SWAP key on the infra-red remote control transmitter (see

Figure 14). The OSD SWAP status appears superimposed over the top right corner of the screen for a few seconds1 only when the Source Prompt is ON, as Figure 11 illustrates.

SWAP

Aut o(N TSC S yst em)

Main: YC-1 PIP : DV I

SWAP

PIP : YC -1

Figure 11: OSD SWAP Status

7.2.5 PIP Characteristics

You can determine the following PIP characteristics:

 The PIP Size (1/4, 1/9, 1/16, 1/25, Split or User Define)  The Horizontal and Vertical position, letting you place the PIP anywhere on the

screen

7.2.5.1 Resizing the PIP

To resize the PIP (1/4, 1/9, 1/16, 1/25, User Define or Split  see the example in Figure 12):

 When the PIP is enclosed by an orange frame, use the UP and/or DOWN

navigation control keys on the infra-red remote control transmitter (see Figure

14) or the UP and/or DOWN front panel OSD buttons; otherwise

 Use the OSD Menu buttons

1 By default, 20 seconds. But you can reset the timeout (from 3 to 60 seconds), see section 8.5.6

Auto (NTSC System )

PIP

Source : VGA-2

Auto (NTSC Syste m)

Figure 12: PIP Size – Split Screen

7.2.5.2 Moving the Position of the PIP

To move the position of the PIP, as illustrated in Figure 13, use the OSD menu (Utility>>PIP Setting>>H-Position; V-Position).

When the Source Prompt is ON, and the PIP Frame is ON, you can instantly position the PIP using the preset position control keys on the infra-red remote control transmitter.

When there is no orange frame, use the +, -, Up and DOWN buttons1.

Auto (NTSC System )

Figure 13: Moving the Position of the PIP

1 On the machine, or the navigation control keys on the infra-red remote control transmitter (see Figure 14)

7.3 Locking and Unlocking the Front Panel

You can lock the front panel1 to safeguard the settings on the CVG-724xl.

To lock the front panel:  Press the PANEL LOCK button or the MENU key on the infra-red remote

control transmitter (see Figure 14) for a few seconds, until the “Key Lock On” OSD status appears superimposed over the top right corner of the screen for a few seconds2, and all button LEDs turn off

Pressing a button when the panel is locked, displays the “Key Lock On” message superimposed over the top right corner of the screen and the PANEL LOCK button blinks for a few seconds.

To unlock the front panel (releasing the protection mechanism):  Press and hold the PANEL LOCK button or the MENU key on the infra-red

remote control transmitter (see Figure 14) for a few seconds, until the “Key Lock Off” OSD status appears superimposed over the top right corner of the screen for a few seconds2

7.4 The Infra-Red Remote Control Transmitter

You can control the Presentation Switcher / Scaler remotely, from the infra-red remote control transmitter, which:

 Is a hand held instrument with a convenient keypad that receives its power from

2 AAA size 1.5V DC batteries

 Has a range of up to 15 meters  Delivers instantaneous results

Figure 14 and Table 5 define3 the infra-red Remote Control Transmitter:

1 However, operation via RS-232 serial commands is still available

2 By default, 20 seconds. But you can reset the timeout (from 3 to 60 seconds), see section 8.5.6

3 The illustration in Figure 14 shows an enlarged view of three separate parts of the infra-red remote control transmitter

Figure 14: Infra-Red Remote Control Transmitter

Table 5: Infra-Red Remote Control Transmitter Functions

Keys Function

OUT Selects the output resolution

FREEZE Pauses the output video POWER Cycles power

INPUT SELECTOR1 8 separate keys for selecting each of the following sources: AV1, AV2, COMP.

INFO. Defines the main source, PIP source, whether mute is activated, output mode,

PRESET POSITION CONTROL2

AUTO IMAGE Assesses the image and improves the quality accordingly, by automatically

MENU Displays the OSD Menu screen5 and locks/unlocks the front panel6

NAVIGATION CONTROL7 Allows maneuvering within an OSD screen (all keys); adjusts the zoom position

AUTO GAIN Automatically adjusts the brightness and contrast

SWAP8 Toggles between the PIP content and the screen source content PIP9 Selects the picture-in-picture function and illuminates the PIP button10

CONT. Displays the contrast status11

BRIGHT. Displays the brightness status11

AUDIO/ZOOM CONTROL7 Allows volume and zoom control

MODE Toggles between each of the following modes:

SCALE Toggles between each of the following Aspect Ratios:

(Component) YC1, YC2, VGA1, VGA2 and DVI

as well as the firmware version number Adjusts the zoom3 position4 or moves the PIP position when the Source Prompt

is ON

adjusting the phase, frequency and position

(4 keys); moves the PIP location when the Source Prompt is OFF (4 keys); resizes the PIP when the Source Prompt is ON (2 keys)

Normal, Presentation, Cinema, Nature, User 1 and User 2

Normal, Wide Screen, Pan & Scan, 4:3 Output, and 16:9 Output12

1 Press to select the source. Can be programmed (see section 8.5.9)

2 Consists of a set of nine separate keys. See the illustration in Figure 14 which shows an enlarged view of this part of the

infra-red remote control transmitter

3 A small rectangle inside a transparent pop-up OSD Enlarge status box appears at the top right corner of the screen showing

the position of the zoom within a picture (see Figure 24)

4 For example, when enlarging the display, press this button: to go to the lower right corner of the display area

5 As Figure 15 illustrates

6 See section 7.3

7 Consists of a set of five separ ate keys. See the illustration in Figure 14 whic h shows an enlarged view of this part of the

infra-red remote control transmitter

8 See section 7.2.4

9 Not available on the CVG-719xl

10 See section 7.2

11 Adjust using the +/- keys

12 See section 8.4.1

8 Configuring the CVG-724xl via the OSD MENU Screens

The OSD superimposes a menu on the screen from which you can configure and control each input signal on your CVG-724xl, using the MENU, ENTER, , +, UP and DOWN OSD buttons on the front panel and the remote transmitter.

To use the OSD menus:

1. Select the desired input signal.

2. Use the menu buttons as follows:

 Press the MENU front panel OSD button or the MENU key on the

infra-red remote control transmitter (see Figure 14) to display the MENU screen (see Figure 15), which displays six interactive icons1 (defined in Figure 16)

 Press the MENU front panel OSD button or the MENU key on the

infra-red remote control transmitter to move to the previous level in the OSD screen (Esc)

 Press the UP or DOWN buttons to select menu icons and then press

ENTER

 Use + and – buttons to increase and decrease the (numerical) rate

respectively2

Figure 15: MENU Screen

Brightness

and Contrast

1 Each icon represents a Level 1 function. In addition to Level 1, the OSD structure includes Level 2 (a subset of level 1),

Level 3 (a subset of level 2), Level 4 (a subset of level 3) and a numerical range

2 By pressing the +, -, UP and DOWN buttons continuously, you can speed up their response. For example, to roughly set the

brightness to a higher level, open “Brightness and Contrast”>Brightness, and press and hold the + button. For step-by-step

response, press and release these buttons as many times as needed

Gamma

and Color

Source

Figure 16: Menu Screen Icons

Geometry

Utility

Information

8.1 Controlling the Brightness and Contrast

Figure 17 and Table 6 define the Brightness and Contrast screen.

Figure 17: Brightness and Contrast Screen

Table 6: Brightness and Contrast Screen Functions

Setting Function Range Default

Brightness 0 to 128 64

Contrast

Press + and – buttons to increase or decrease the brightness and contrast

0 to 128 64

8.2 Controlling the Gamma and Color

Figure 18 and Table 7 define the Gamma and Color Screen.

Figure 18: Gamma and Color Screen

Table 7: Gamma and Color Screen Functions

Button Function Range Default

Normal Average Setting

Presentation Higher black level

Cinema Higher white balance

Nature Higher green level

User 1/2

Set to customize, and save (press MENU) User 1 and User 2 to recall for later use

Gamma -10 to 10 0

Color Temperature

Red 0 to 127 64

Green 0 to 127 64

Blue 0 to 127 64

Color manager

Red 0 to 32 16

Green 0 to 32 16

Blue 0 to 32 16

Yellow 0 to 32 16

8.3 Selecting the Source

Figure 19 illustrates the Source screen, displaying the active source1 (main screen). Scroll up and down to change the source (same as selecting an INPUT with the remote transmitter or via the INPUT SELECTOR buttons).

Figure 19: Source Selection Screen

8.4 Controlling the Scale Geometry

Figure 20 illustrates the main Geometry Screen, from which you can scale and zoom.

Figure 20: Geometry (Scale and Zoom) Screen

1 Only CVG-724xl has 2 VGA inputs; CVG-719xl and CVG-720xl have 1 VGA input

8.4.1 Setting the Scale Features

Figure 21 (for a graphic source), Figure 22 (for a video source) and Table 8 define the Scale feature on the main Geometry screen.

Figure 21: Geometry (Scale: Aspect Ratio) Screen – Graphic Source

Figure 22: Geometry (Scale: Aspect Ratio) Screen – Video Source

Table 8: Geometry Scale Functions

Button Function

Aspect Ratio Set the aspect ratio according to your specific requirements—the native resolution—that

Non-Linear6 For certain resolutions, select between Side, Middle and Off: Select Side to stretch the

is, depending on the specifications of the Plasma screen or projector: When using a VGA, DVI and/or component video1 source, you can choose an aspect ratio from the following: Full Screen, Native, non-linear, 4:3 Output User Define4

When using a composite video source and/or an s-Video source and/or component

video1 source, you can choose an aspect ratio from the following: Normal, Wide Screen, Pan5 & Scan, 4:3 Output2, 16:9 Output3 and User Define4

image from the center to the side; select Middle to leave the middle portion of the image untouched, while the sides are stretched; select Off to deactivate this feature

, 16:9 Output3 and

8.4.2 Adjusting the Zoom Ratio and Position

Figure 23 and Table 9 define the Geometry (Zoom) Screen.

Figure 23: Geometry (Zoom) Screen

Table 9: Geometry Zoom Functions

Button Function

Zoom Ratio Set between 100% – 400%

Zoom Position Adjustment

1 Depending on the resolution of the component source

2 In this standard, the ratio between the width and the height is 4:3

3 In this standard (a Cinema mode standard used for movies and DVDs), the ratio between the length and height is 16:9 (or

sometimes 1:2.35)

4 H-Zoom (-32 to +32), V-Zoom (-32 to +32), H-Pan (-32 to +32 and V-Pan (-32 to +32), 0 corresponds to a full screen

5 Panning the picture refers to resizing and cropping it

6 Converts a 4:3 standard-definition video to a 16:9 wide-aspect definition ratio in a non-linear manner

Press the , +, UP and DOWN OSD buttons arrows to set the

Zoom position

Auto (NT SC Sys tem)

The zoom ratio and the zoom position are illustrated by a small rectangle inside a transparent pop-up OSD Enlarge status box that appears at the top right corner of the screen, as the example in Figure 24 illustrates:

Enlarg e x 4 00%

Figure 24: OSD Enlarge Status

When you change the zoom ratio or zoom position, the screen image is adjusted accordingly, and the change is reflected in the pop-up OSD Enlarge status box.

8.4.2.1 Adjusting the Zoom Ratio

You can adjust the zoom ratio to up to 400% via one or both of these methods:  Using the Zoom + and/or the Zoom - control keys1 on the infra-red remote

control transmitter (see Figure 14). The pop-up OSD Enlarge status box continuously displays the zoom ratio and position, as Figure 24 illustrates

 Using the OSD Menu buttons, as Figure 25 illustrates

Figure 25: Geometry (Zoom Ratio) Screen

1 The and the buttons

Using the navigation control keys on

8.4.2.2 Adjusting the Zoom Position

You can adjust the zoom position via one or more of the following methods:  Using the preset position control

keys (see Figure 26) on the infra-red remote control transmitter (see Figure 14), which instantly move the position of the zoom to up to nine preset fixed locations1

Figure 26: Preset Position Control Keys



the infra-red remote control transmitter (see Figure 14), to fine tune the zoom position (that is, to slowly zoom-in at any location on the screen)2, as Figure 27 illustrates

Figure 27: Navigation Control Keys

 Using the OSD Menu buttons (see Figure 28)3

Figure 28: Geometry (Zoom Position Adjustment) Screen

1 For example, to zoom-in to the lower right corner of the image, press the button

2 For example, to zoom-in toward the lower right of the image, press the and the buttons separately, as required

3 For example, to zoom-in to the lower right part of the image instead of the top left part, press the + and DOWN OSD Menu

buttons on the front panel separately, as required

8.5 Configuring via the Utility Screens

Figure 29 shows the Utility menu, from which you can define the machine settings.

Figure 29: Utility Screen

8.5.1 Choosing the Graphic Utility Settings

From the Graphic1 Setting Utility screen (see Figure 30), you can set the color format, position, Color, hue, sharpness, frequency and phase, as well as auto image and auto gain (described in Table 10).

Figure 30: Graphic Setting Utility Screen

1 When a VGA source is selected, “Graphic Setting” will be shown. “HDTV Setting” (illust rated in Figure 38) will appear

when an HDTV source is selected

Table 10: Graphic Setting Utility Screen Features

Button Function Range Default

Color Format Selecting the color format lets you select RGB or YUV1 colorspace. When the Default

H-Position Set the horizontal position of the display 0 to 255 128

V-Position Set the vertical position of the display 0 to 255 128

Color Set the intensity of the color 0 to 128 70

Hue Set the hue 0 to 128 64

Sharpness Set the sharpness 0 to 16 8

Frequency Set the frequency 0 to 100 49

Phase Set the phase of the input sampling clock 0 to 31 0

SOG Setting The SOG (Sync on Green) setting is enab led only when the graphics signal is in YUV

Auto Image Assesses the image and improves the quality accordingly, by automatically adjusting the

Auto Gain Automatically adjusts the brightness and contrast

setting is chosen, the colorspace is set according to the detected input resolution

format (component). Otherwise it is disabled. Select RGsB (sync on green), HDTV (standard HDTV), or AUTO (automatic identification)

phase, frequency and position

8.5.2 Choosing the Video Utility Settings

From the Video Setting Utility screen (see Figure 31), you can set the video standard, color, hue, sharpness, and position.

Figure 31: Video Setting Utility Screen

Table 11: Video Setting Utility Screen Features

Button Function Range Default

Color Format Selecting the color format lets you select RGB or YUV1 colorspace. When the Default

Standard Select the video standard: Auto (auto detects the standard),

Film Mode Select ON for 3:2 or 2:2 pulldown

Color Set the color 0 to 128 64

Hue Set the hue 0 to 128 64

Sharpness Set the sharpness 0 to 16 11

H-Position Set the horizontal position of the display 0 to 20 15

V-Position Set the vertical position of the display 0 to 39 10

1 That is Y, B-Y, R-Y colorspace, also known as Y, Cb, Cr or Y, Pb, Pr

setting is chosen, the colorspace is set according to the detected input resolution

Auto

NTSC, NTSC4.43, PAL, PAL-N, PAL-M, SECAM

8.5.3 Choosing the Audio Utility Settings

From the Audio Setting Utility screen (see Figure 32), you can set the volume, treble, bass, and choose between stereo and mono.

Figure 32: Audio Setting Utility Screen

Table 12: Audio Setting Utility Screen Features

Button Function Range Default

Volume Adjust the volume1 0 to 32 28

Treble Adjust treble 0 to 12 6

Bass Adjust bass 0 to 12 6

Stereo Select Stereo ON or OFF ON

Control Select Master to apply audio parameters2 simultaneously to all the inputs;

select Individual to apply an individual setting per input; select Linked to apply the relative3 changes in the audio settings to all the inputs

Master

8.5.4 Choosing the PIP Utility Settings

Figure 33 and Table 13 define the PIP Setting Utility screen.

Figure 33: PIP Utility Screen

1 When the volume is set to its default value (28), the output volume is equal to the input volume

2 Volume Bass and Treble

3 For example, an increase of two steps in the volume will increase the volume by two steps for each input

Table 13: PIP Setting Utility Screen Features

Button Function Range Default

PIP On/Off Activate or deactivate the PIP feature

PIP Source Select the PIP source, as described in section 7.2.1

PIP Size Select between: 1/25, 1/16, 1/9, 1/4, Split or User Define

PIP Frame Allows the PIP to appear with or without an orange frame

H - Position Set the horizontal position of the PIP 0 to 36 1

V - Position Set the vertical position of the PIP 0 to 36 1

User Define Size After selecting the User Define PIP Size, set the PIP size (H-

size and V-Size)

0 to 255 63

8.5.5 Choosing the Seamless Switch Utility Settings

From the Seamless Switch Utility screen (see Figure 34), you can choose the image transition speed Mode and activate the Auto Search, as described in Table 14:

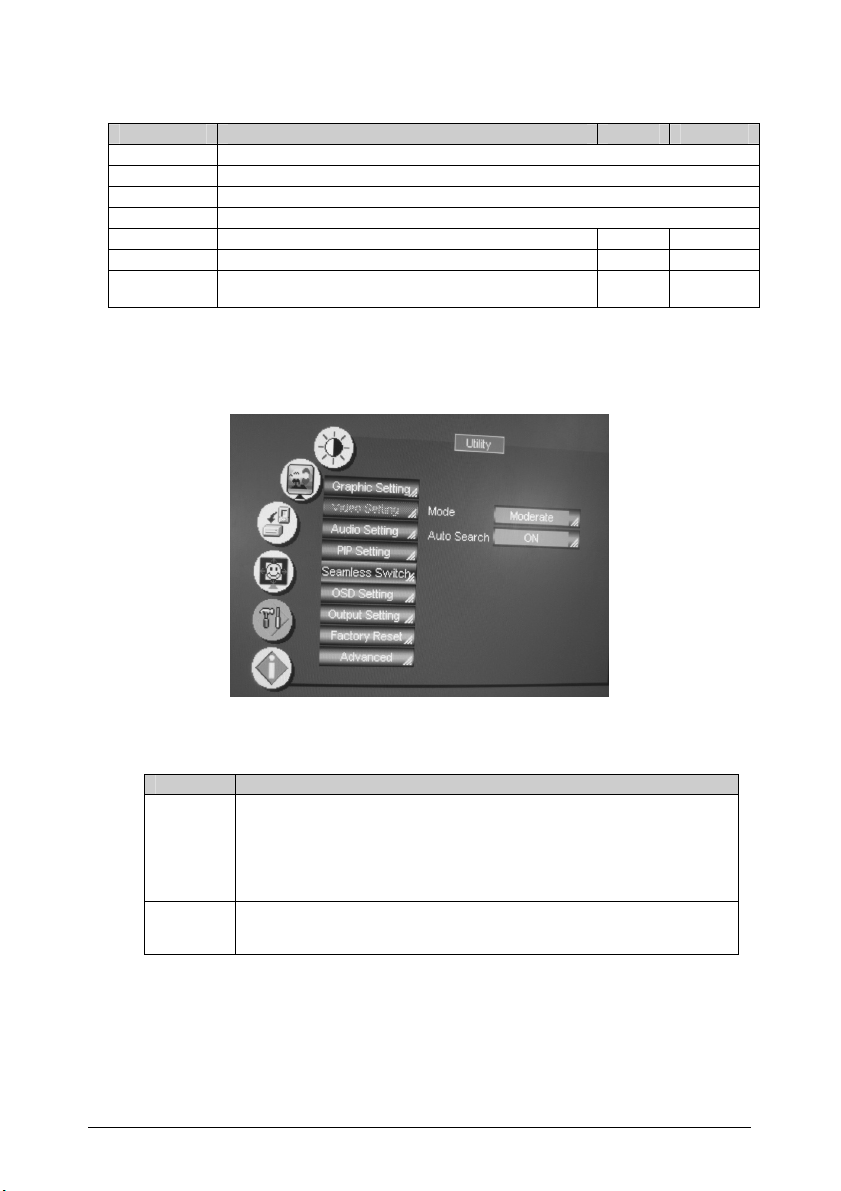

Figure 34: Seamless Switch Utility Screen

Table 14: Seamless Switch Utility Screen Features

Button Function

Mode Select image between:

Auto Search Activate the Auto Search to find the active source when the unit is powered up; or

Fast  an immediate switch, without checking the resolution. However, the image transition may appear unstable Safe – a smooth image transition - the input resolution at the input is checked and outputted after a few seconds delay, but it takes longer than fast Moderate – between fast and safe

deactivate the Auto Search (when the unit is powered up, displays the source selected prior to power down)

8.5.6 Choosing the OSD Utility Settings

Figure 35 and Table 15 define the OSD Setting Utility screen.

Figure 35: OSD Setting Utility Screen

Table 15: OSD Setting Utility Screen Features

Button Function

H-Position

V-Position

Time Out Set the timeout for source prompts and OSD menu1

OSD Size Set the OSD size to Normal or Double the normal size2

Source Prompt Set the Source Prompt3

OSD Time Out Enable Set to OFF for OSD to remain indefinitely on screen

Set the OSD menu position

1 By default, 20 seconds. But you can reset the timeout (from 3 to 60 seconds). Set to OFF to disable the timeout function

2 You cannot double the OSD size when the output resolution is 640x480

3 We recommend that you set the source prompt ON, when adjusting the system. During a presentation, set the source prompt

OFF to avoid the appearance of OSD screen labels

Auto (NTSC System )

8.5.7 Choosing the Output Utility Settings

Figure 36 and Table 16 define the Output Utility settings. From the Output Setting Utility screen, you can set the Resolution, Refresh Rate, and a user definable output mode (see Figure 38 and Table 17).

Figure 36: Output Setting Utility Screen

Table 16: Output Setting Utility Screen Features

Button Function

Resolution Select the desired resolution from the list, including the User Define resolution

Refresh Rate Select the refresh rate (for example3, 50Hz, 60Hz, 75Hz or 85Hz)

Confirm / Discard Select to confirm or reject Resolution and Refresh Rate selections

User Mode Setting Set a user definable output mode4 (see Figure 38)

(for advanced users only) You can cycle the output resolutions (choosing the pixel resolution) by pressing the OUT key on the infra-red remote control transmitter (see Figure

14). The OSD status appears superimposed over the top right corner of the screen for a few seconds1, as Figure 37 illustrates2

Output M ode

800x600 75Hz

Figure 37: OSD Output Status

1 By default, 20 seconds. But you can reset the timeout (from 3 to 60 seconds)

2 Adjusting the output resolution results in a corresponding adjustment to the size of the OSD status window

3 Different resolutions allow different choices of refresh rates

4 Recommended for advanced users only – non-standard settings may not be recognized by the display device

8.5.7.1 The User Mode Setting

Figure 38 and Table 17 define the User Mode Setting1.

Figure 38: Output Setting User Mode Setting Utility Screen

Table 17: User Mode Setting Definitions

User Mode Setting Definitions

HT: Horizontal total

HW: Horizontal sync pulse width

HS: Horizontal active start point

HA: Horizontal active region

HP: Horizontal polarity

VT: Vertical total

VW: Vertical sync pulse width

VS: Vertical active start point

VA: Vertical active region

VP: Vertical polarity

OCLK: Output clock

Group Set up to three different sets of parameters for

user defined resolutions Confirm: Confirm the action

Discard: Cancel the action

Set Current: Import the values of the currently selected output

resolution into the User Mode Setting

1 These values will be used when “ User Define” is selected as the output resolution

8.5.8 Choosing Factory Reset

From the Factory Reset Utility screen (see Figure 39), you can reset your CVG-724xl to its preset default setting:

Figure 39: Factory Reset Utility Screen

8.5.9 Choosing Advanced Utility Settings

Figure 40 and Table 18 define the Advanced Utility screen.

Figure 40: Advanced Utility Screen

Table 18: Advanced Utility Screen Features

Button Function

Input Button You can set the function of the input button besides selecting the input signal: Freeze/Blank

Startup Logo Choose ON for the start up logo to appear on the screen or OFF for it not to appear

Blank Color Set the blank color, the color that appears on the screen when the blank button is pressed

Background Set the background screen color: You can select the screen color (black or blue) when there is

Lock Option Set the panel lock options (see Figure 41):

Mode Define When the Measure Mode is set to Default, it measures and displays the parameters of the

(press selected input button once to freeze the frame, press again to create a blank screen and again to return to normal state); Freeze (press once to freeze the frame, press again to cancel freeze); Blank (press once to insert blank screen, press again to return to display); Ignore (input button ignores freeze and blank – you can freeze the frame or insert a blank screen only via Freeze and Blank buttons respectively)

no active source

Set the Save option to ON to save the lock status when the machine is powered down Set the Input Lock to OFF so you can still use the SOURCE button on the front panel even when the lock button is on

currently selected input (see Figure 42 and Table 19) When the Measure Mode is set to User Define, you can set the selected input to a non-standard

resolution (see section 8.5.9.1)

Figure 41: Lock Option Screen

Figure 42 and Table 19 define the Mode Define features.

Figure 42: Mode Define Screen

Table 19: Mode Define Features

H Total Horizontal total

H Start Horizontal active start point

H Active Horizontal active region

V Start Vertical active start point

V Active Vertical active region

Ch. Pump Charge pump current

Color Color format

H Freq Horizontal Frequency

V Freq Vertical Frequency

V Total Vertical total

Save Mode Save the user defined resolution1

Erase Mode Erase the user defined resolution

Measure Mode Select between Default and User Define

Mode Define Definitions

8.5.9.1 Setting an Input to a Non-standard Resolution (Example)

When connecting a source with a non-standard resolution, you have to set your scaler to this resolution so it will correctly identify this source. The Advanced mode lets you set up to three non-standard resolutions. To set an input to a non-standard resolution, for example to 1100x800, do the following:

1. Connect the source (with the non-standard resolution, in this example – 1100x800) to the appropriate input connector on your scaler and press the appropriate INPUT SELECTOR button.

2. Connect the VIDEO OUT 1/2 HD15F connector to a video acceptor.

3. Turn the machines ON.

4. Press menu, go to Utility>Advanced> Mode Define, and press ENTER.

5. Scroll to Measure Mode, press ENTER and select User Define.

6. Set H Active to 1100 and V Active to 800, and set the remaining parameters according to the input data.

7. Scroll to the Save Mode and save the new resolution.

8. Open the Information screen and check that the new resolution appears in the Main Source line2 (see Figure 43).

1 You can save up to three settings

2 Note that for the Scaler to correctly read the input, its OCLK value should be different from that of any other defined input

of the scaler

Non-standard

Resolution

Figure 43: Non-standard Resolution in the Information Screen

8.6 Verifying Configuration Details via the Information Screen

From the Information screen (see Figure 44), you can verify the main source, PIP source, whether mute is activated, output mode, as well as the firmware version number:

Figure 44: Information Screen

9 Technical Specifications

Table 20 includes the technical specifications:

Table 20: Technical Specifications1 of the Presentation Switchers / Scalers

INPUTS:

MAX. OUTPUT LEVEL: AUDIO: 4.88Vpp2

OUTPUTS: 2 x RGBHV (VGA) format on HD15 connectors; component HDTV on the same

OUTPUT RESOLUTIONS:

CONTROL: Front panel buttons / OSD, IR remote control, RS-232 on a DB-9 connector, Picture-

ADDITIONAL CONTROLS:

POWER SOURCE: 100-240 VAC, 50/60 Hz, 30VA automatic power supply

DIMENSIONS: 19" (W), 9.3" (D) 1U (H) rack mountable

WEIGHT: 3 kg (6.6 lbs.) approx. ACCESSORIES: Null modem adapter, IR remote control, power cord3

2 x CV 1 Vpp/75  on RCA connectors; 2 x Y/C (s-Video) 1 Vpp (Y), 0.3Vpp (C) / 75  on 4 pin connectors; 1 x Component (Y, Pb/Cb, Pr/Cr) (both progressive and interlaced signals accepted) HDTV on RCA connectors; 1 x VGA (VGA/SVGA/XGA/UXGA +HDTV on an HD15F connector (2 x VGA on the CVG-724xl); and 1x DVI-D connector. For each video input there is a corresponding (unbalanced) audio stereo input on a terminal block connector

HD15 connectors for 480p, 720p 1080i and 1080p (on the CVG-724xl). One linelevel stereo audio on terminal blocks. One stereo loudspeakers output 2x5W (RMS) on terminal blocks

VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), UXGA (1600x1200), 1024x852, 1024x1024, 1366x768, 1365x1024, 1280x720, 720x483, 852x480, 1400x1050, 1280x768*, as well as a user definable output mode. Also supports 480p, 720p, 1080i and 1080p (on the CVG-724xl)

In-Picture (not available on the CVG-719xl): Video in Graphics (or vice versa) in any size and at any location, or Split Screen (2 images side-by-side)

Freeze, zoom, different selectable vertical refresh rates, Video and Audio ProcAmp control, output image scaling and aspect ratio change

Table 21: Technical Specifications of the VGA Input Signal

Sync Type Support RGBHV, RGBHs, RGsB (not supported) RGB Signal Resolution Vertical Frequency (Hz) Horizontal Frequency (kHz)

640x480

800x600

1 Specifications are subject to change without notice

2 With maximum amplification (volume set to maximum), AUDIO IN maximum is 1.9Vpp, and the AUDIO OUT maximum

is 4.8Vpp

3 We recommend that you use only the power cord that is supplied with this machine

640x480 60 31.469l

640x480 67 35.0001

640x480 72 37.861l

640x480 75 37.500l

640x480 85 43.269l

720x400 70 31.469l 720x400

720x400 85 37.92

800x600 56 35.156l

800x600 60 37.879l

800x600 72 48.077

800x600 75 46.875l

Sync Type Support RGBHV, RGBHs, RGsB (not supported) RGB Signal Resolution Vertical Frequency (Hz) Horizontal Frequency (kHz)

832x624 832x624 75 49.7001

1024x800 1024x800 84 70.8401

1024x768

1152x864 1152x864 75 67.500l

1152x870 1152x870 75 68.700l

1280x1024

1400x1050

1600x1200

1080I 1920x540 60,50 33.6701

720P 1280x720 60 ,50 45.363l

480P 720x483 60 31.469l

576P 720x576 50 31.256l

576I 720x275 50 15.600l

480I 720x235 60 15.750l

1280x768 50,60

1366x768 1366x768 50 40.8

1366x768 60 48.85

800x600 85 53.674l

1024x768 60 48.363l

1024x768 70 56.476l

1024x768 75 60.200l

1024x768 85 68.677l

1152x900 66 61.846l 1152x900

1152x900 76 71.808l

1280x960 60 60.000l 1280x960

1280x960 85 85.938l

1280x1024 60 63.981l

1280x1024 75 79.976l

1280x1024 76 81.130l

1280x1024 85 91.146l

1400x1050 60 66.000l

1400x1050 70 77.000l

1400x1050 72 79.200l

1400x1050 75 82.500l

1400x1050 80 88.000l

1400x1050 85 93.500l

1600x1200 60 75.000l

1600x1200 65 81.250l

1600x1200 70 87.500l

1600x1200 75 93.750l

1600x1200 85 106.250l

1024x576 60 44.000l 1024x576

1024x576 72 58.890l

Table 22: Technical Specifications of the DVI Input Signal

DVI Signal Resolution Vertical Frequency (Hz) Horizontal Frequency (kHz)

640x480

800x600

1024x768

1280x1024

1600x1200 1600x1200 60 75.000l

1080i 1920x540 60 33.6701

720p 1280x720 60 45.363l

480p 720x483 60 31.469l

576p 720x576 50 31.256l

1366x768 1366x768 50 40.8

1366x768 60 48.85

1365x1024 1365x1024 50 52.73

1365x1024 60 63.6

1365x1024 75 80.29

640x480 60 31.469l

640x480 67 35.0

640x480 72 37.861l

640x480 75 37.500l

640x480 85 43.269l

720x400 70 31.469l 720x400

720x400 85 37.92

800x600 56 35.156l

800x600 60 37.879l

800x600 72 48.077

800x600 75 46.875l

800x600 85 53.674l

1024x768 60 48.363l

1024x768 70 56.476l

1024x768 75 60.023l

1280x1024 60 63.981l

1280x1024 75 79.976l

1280x1024 76 81.130l

1280x1024 85 91.146l

1400x1050 60 66.000l 1400x1050

1400x1050 70 77.000l

Table 23: Technical Specifications of the Video Input Signal

Standard NTSC, NTSC4.43, PAL, PAL-M, PAL-N, SECAM

Format Composite, Y/C, Component

Remarks

Table 24: Technical Specifications of the HDTV Input Signal

HDTV mode 1080i, 720p, 480p, 576p, 1024x576p DVI Signal Resolution Vertical Frequency (Hz) Horizontal Frequency (kHz)

480p 720x483 60 31.469l YPbPr

576p 720x576 50 31.256l YPbPr

1024x576p 1024x576 50 31.256l YPbPr

576i 720x275 50 15.600l YCbCr

480i 720x235 60 15.750l YCbCr

1920x540 60 33.6701 YPbPr 1080i

1920x540 50 28.1251 YPbPr

1280x720 60 45.363l YPbPr 720p

1280x720 50 37.500l YPbPr

10 CVG-724xl Communication Protocol

This protocol includes two types of commands: 3 bytes and 4 bytes.

In the 3 bytes command type, the scaler operates in a fast mode because it does not save the information immediately. The sent command is executed immediately, but the status of the scaler is saved in the non-volatile memory only after 30 sec of no activity.

In the 4 bytes command type, the scaler executes the save process immediately after each command. This operation consumes more time (adding about 2 sec).

Set and Get command:

Set Command: YControl_TypeFunctionParamCR

 Reply: ZControl_TypeFunctionParamCRDone>CR

Get Command: YControl_TypeFunctionParamCR

Reply: ZControl_TypeFunctionParamCR

Example:

1. "Y 1170-127CR" -> set Contrast value. (4th byte is between 0 and

127). "Z1170-127CR>" --> Reply value "DoneCR" --> command setting success

2. "Y4210-17CR" -> get current output resolution. (4th byte is between 0 and 17). "Z4210-17CR>" -> Reply value

3. "Y035CR" -> Volume down. Each time we apply this command will decrease the volume level by one step. "Z035CR>"-->Reply value "DoneCR" --> command setting success

Definition:

: ASCII Code 0x20

CR: Ascii Code 0xD or 0xA

After set type Command setting, system will respond a string as "Done"

Control

0 0 N/A Output

0 1 N/A Freeze

0 2 N/A Power

0 3 N/A AV1 0 4 N/A AV2

0 5 N/A Comp

0 6 N/A YC1

0 7 N/A YC2

0 8 N/A VGA1

0 9 N/A VGA2 (CVG-724xl Only) 0 10 N/A DVI

0 11 N/A Information

0 12 N/A Area Left Up

0 13 N/A Area Middle Up

0 14 N/A Area Right Up

0 15 N/A Area Left Center 0 16 N/A Area Middle Center

0 17 N/A Area Right Center

0 18 N/A Area Left Down

0 19 N/A Area Middle Down

0 20 N/A Area Right Down

0 21 N/A AutoImage 0 22 N/A Menu

0 23 N/A Up

0 24 N/A Left

0 25 N/A Enter

0 26 N/A Right

0 27 N/A Down 0 28 N/A AutoGain

0 29 N/A PIP

0 30 N/A Swap

0 31 N/A Contrast

0 32 N/A Brightness 0 33 N/A Zoom In

0 34 N/A Zoom Out

0 35 N/A Volume Down

0 36 N/A Mute

0 37 N/A Volume Up

0 38 N/A Color Mode 0 39 N/A Aspect Ratio

1: Set 2: Get

Type

Function

0 -10~10

1 0~127

2 0~127

Param

(for Set)

Gamma and Color: User1 Gamma

Gamma and Color: User1 Color Temp Red

Gamma and Color: User1 Color Temp Green

Function

Description

Comment

Control

Type

1: Set 2: Get

Function

3 0~127

4 0~32

5 0~32

6 0~32

7 0~32

8 -10~10

9 0~127

10 0~127

11 0~127

12 0~32

13 0~32

14 0~32

15 0~32

16 0~127 Brightness

17 0~127 Contrast

18 -32~32

19 -32~32

20 -32~32

21 -32~32

22 0~255

23 0~255

24 0~127

25 0~127

26 0~16

27 0~100

28 0~31

Param

(for Set)

Gamma and Color: User1 Color Temp Blue

Gamma and Color: User1 Color Manager Red

Gamma and Color: User1 Color Manager Green

Gamma and Color: User1 Color Manager Blue

Gamma and Color: User1 Color Manager Yellow

Gamma and Color: User2 Gamma

Gamma and Color: User2 Color Temp Red

Gamma and Color: User2 Color Temp Green

Gamma and Color: User2 Color Temp Blue

Gamma and Color: User2 Color Manager Red

Gamma and Color: User2 Color Manager Green

Gamma and Color: User2 Color Manager Blue

Gamma and Color: User2 Color Manager Yellow

Aspect RatioUserDefine H-Zoom

Aspect RatioUserDefine V-Zoom

Aspect RatioUserDefine H-Pan

Aspect RatioUserDefine V-Pan

Graphics Setting- H-Position

Graphics Setting- V-Position

Graphics Setting- Color

Graphics Setting- Hue

Graphics Setting- Sharpness

Graphics Setting- Frequency

Graphics Setting- Phase

Function

Description

Comment

Control

Type

1: Set 2: Get

3: Set 4: Get

Function

29 0~127

30 0~127

31 0~16

32 0~20

34 0~32

35 0~12

36 0~12

37 0~36 PIP Setting: H-Position

38 0~36 PIP Setting: V-Position

39 0~255

40 0~255

41 0~36 OSD Setting: H-Position

42 0~36 OSD Setting: V-Position

43 3~60 OSD Setting: OSD TimeOut

0 0~9 Select Input Source

1 0~5

2 0~3

Param

(for Set)

Video Setting: Color

Video Setting: Hue

Video Setting: Sharpness

Video Setting: H-Position

Video V-Position for

0~20

NTSC/NTSC 4.43/PAL-M/PAL 60

Video V-Position for PAL/PAL-

0~39

N/SECAM/NTSC 4.43 50

Audio Setting: Volume

Audio Setting: Treble

Audio Setting: Bass

PIP Setting: User Define V-Size

PIP Setting: User Define H-Size

Geometry: Video Aspect Ratio

Geometry: Video Nonlinear

Function

Description

0: VGA-1 1: VGA-2 (CVG-724xl Only) 2: DVI 3: Component 4: YC-1 5: AV-1 6: YV-2 7: AV-2 8: Scart 9: TV

0: Normal 1: Wide Screen 2: Pan&Scan 3: 4:3 4: 16:9 5: UserDefine

0: Off 1: Side 2: Middle

Comment

Control

Type

3:Set 4:Get

3: Set 4: Get

Function

4 0~10

5 0~2

6 0~2 Video Setting: Color Format

7 0~6 Video Setting: Video Standard

8 0~1 Video Setting: Film Mode

9 0~1

10 0~1 PIP Setting: PIP On/Off 0:Off, 1:On

11 0~9 PIP Setting: PIP Source

12 0~5 PIP Setting: PIP Size

13 0~1 PIP Setting: PIP Frame

Param

(for Set)

0~5

Geometry: VGA Aspect Ratio

Zoom: Zoom Ratio

Graphics Setting: Color Format

Audio Setting: Stereo

Function

Description

0: Full Screen 1: Native 2: NonLinear 3: 4:3 4: 16:9 5: UserDefine

0: Off 1: 150% 2: 200% 3: 225% 4: 250% 5: 275% 6: 300% 7: 325% 8: 350% 9: 375% 10: 400%

0: Default 1: RGB 2: YUV

0: Video Standard - Auto 1: Video Standard - NTSC 2: Video Standard - NTSC

4.43 3: Video Standard - PAL 4: Video Standard - PAL-N 5: Video Standard - PAL-M 6: Video Standard SECAM

0: Off 1: On

0: VGA-1 1: VGA-2 (CVG-724xl Only) 2: DVI 3: Component 4: YC-1 5: AV-1 6: YV-2 7: AV-2 8: Scart 9: TV

0: 1/25 1: 1/16 2: 1/9 3: 1/4 4: Split 5: UserDefine

0: Off 1: On

Comment

Control

3: Set 4: Get

5 0 N/A Load Gamma/Color - Normal

5 1 N/A

Function

Type

14 0~2

15 0~2

16 0~2

17 0~1 OSD Setting: Startup Logo

18 0~1 OSD Setting: Size

19 0~1 OSD Setting: Source Prompt

20 0~1 OSD Setting: Blank Color

21 0~17 Output Resolution

22 0~3 Output Refresh Rate

23 0~1 Factory Reset 0: Cancel, 1: ok

24 0~3

25 0~1 Key Lock Save

26 0~1 Input Lock

27 0~1 SOG Setting

Param

(for Set)

Seamless Switch: Mode

Seamless Switch: Background

Seamless Switch: Auto Search

Advanced: Input Buttom

Load Gamma/Color Presentation

Function

Description

0: Fast 1: Moderate 2: Safe

0: Black 1: Blue

0: Off 1: On

0: Normal 1: Double

0: Off 1: On

0: Blue 1: Black

0: 640x480 1: 800x600 2: 1024x768 3: 1280x1024 4: 1600x1200 5: 852x1024i 6: 1024x1024i 7: 1366x768 8: 1365x1024 9: 1280x720 10: 720x483 11: 852x480 12: 1400x1050 13: 480P 14: 720P 15: 1080i 16: 576p 17: 1080p 18: 1280x768 19: User Define

0: 60Hz 1: 75Hz 2: 85Hz 3: 50Hz

0: Freeze/Blank 1: Freeze 2: Blank 3: Ignore

0: Auto 1: RGsB 2: HDTV

Comment

Control

Type

Function

Param

(for Set)

5 2 N/A Load Gamma/Color - Cinema

5 3 N/A Load Gamma/Color - Nature

5 4 N/A Load Gamma/Color - User1

5 5 N/A Load Gamma/Color - User2 6: Set

7: Get 6: Set

7: Get

8 0 N/A

1: Set 2: Get

3: Set 4: Get

6: Set 7: Get

0 0~1 Power

1 0~1 Freeze

2 0~1 Blank

3 0~1 Mute

"Resolution/Refresh Rate" Or "Video Stand"

44 > 100 HT, H-Sync Cycle

45 > 0 HW, H-Sync Width

46 > 0 HS, Active Pixel Start

47 - HA, Active Pixel

44 > 100 HT, H-Sync Cycle

45 > 0 HW, H-Sync Width

46 > 0 HS, Active Pixel Start

47 - HA, Active Pixel

44 > 100 HT, H-Sync Cycle

45 > 0 HW, H-Sync Width

54 > 100 OCLK

28 0~1 Enable OSD Timeout

29 0~2

Select Output Mode Userdefined Parameter Group

Set the control way of Saving

30 0~2

Audio Volume / Treble / Bass values

4 0~1 Key Lock

Function

Description

0: Power Down 1: Power On

0: Off 1: On

1. Setting Command should be a reasonable value

2. Getting Command return the current group parameter (refer to command "Y 3 29 X" or "Y 4 29 " )

1. Oclk = Param / 10 Mhz

2. Should be a reasonable value

0: Disable 1: Enable

0: Group 1 1: Group 2 2: Group 3

0: Master 1: Individual 2: Linked

0: Off 1: On

Comment

Example: "Y 8 0 CR" return: "Z 8 0 1080i CR"

Version 2.42 and above

Version 2.42 Select which group of User Define Display Mode to be saved or loaded

Version 2.42 and above

Comprehensive CVG-724xl User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
