1. INTRODUCTION

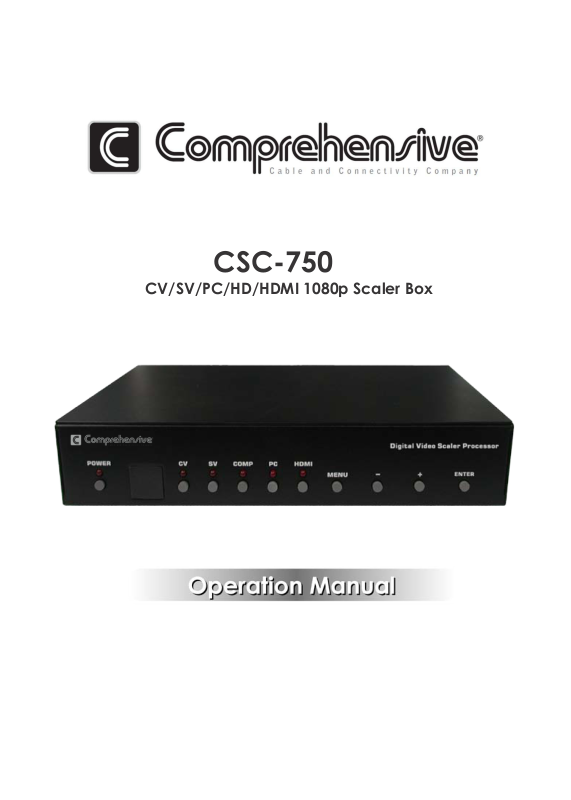

The CSC-750 Scaler Box is designed to upscale digital/analog video
signals from Composite, S-Video, PC, Component (HD) and HDMI
input sources, to digital HDMI output of a wide range of HDTV and PC
resolutions including 1080p and WUXGA (1920 x 1200).
As well as upscaling video, the scaler box also converts digital/analog
audio signals to digital format, which can then be output either
through HDMI combined with the video signal or s
discrete Coaxial S/PDIF output.
The Comprehensive CSC-750 has a on-screen display
(OSD) menu that allows the user to select a variety of output
resolutions and adjust them for the best picture quality.
eparately via the
2. APPLICATIONS
• Upscale the video from standard
to a HDMI equipped display.
definition
sources or a PC/Laptop
3. PACKAGE CONTENTS
• CSC-750 Scaler Box
• D-Sub (15pin) Cable
• 3 × RCA Cable (Composite Video and Stereo Audio)
• Remote Controller
• 5 V DC Power Supply
• Operation Manual
Adaptor
4. SYSTEM REQUIREMENTS
• INPUT: Composite, Component, S-Video or HDMI, or PC VGA video/
audio source.
• OUTPUT: HDMI equipped TV or monitor, optional Coaxial (S/PDIF)
equipped
receiver/amplifier.
2
5. FEATURES
• HDMI, HDCP 1.1 and DVI 1.0 compliant.
• Scales any PC (VGA~WUXGA) or HD (480i~1080p) resolutions to
from another PC/HD resolutions.
• Automatically detects the correct settings of the connected
display and outputs the corresponding resolution and refresh rate,
when the NATIVE output is selected.
• Supports 50/60 Hz frame rate conversion.
• Supports 3D motion video adaptive, 3D de-interlacing, and 3:2 / 2:2
pull-down detection and recovery.
• Provides outpu t picture adjustment on contrast, brigh tness, hue,
saturation, sharpness, RGB (color tone) level, and aspect ratio size.
• Supports high resolution input/output:
PC: VGA, SVGA, XGA, SXGA, UXGA, W XGA, W SX GA, WUXGA
HDTV: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p
• Supports digi tal and analog audio in p ut and digital output.
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
Digital V
ideo
COMP
SV
PCHDMI
3
MENU
4
-
+
5
POWERCV
1
2
1
POWER Button and LED Indicator
Press the button power the unit on or off. When the power is turned
on, the LED will illuminate.
2
IR Remote Control Sensor
3
Input Selection Buttons and LED Indicators
Press the required button (CV/SV/COMP/PC/HDMI) to select
the desired input source. The LED will illuminate to indicate the
corresponding input is selected.
4
MENU Button
Press the MENU button t
section 6.3 OSD Operation for reference.)
5
+/− Buttons
A. On the
first
level of OSD menu, use + and − buttons to move up/
down the menu to highlight the item for selection.
B. Once the desired option is selected, use + and − buttons to
toggle between setting values.
6
ENTER Button
In the OSD menu, use the ENTER button to
o bring up OSD operation menu (see
confirm
the selection.
Scaler
ENTER
6
ocessor
Pr
4
6.2 Rear Panel
2
CO-AX OUT
AUX IN
HDMI OUT
HDMI IN
4
RS-232
PC IN
R
PC IN
Cr/Pr
1
3
5
1
HDMI Out and COAXIAL Out
Connect the HDMI OUT port to the HDMI input port of your display
such as HDTV or monitor. Connect the COAXIAL OUT port to the
Coaxial (S/PDIF) input port of your
audio output.
2
AUX IN Input
When the video signal input through the HDMI IN port is from a DVI
source such as a PC, use the AUX IN port to input the audio signal.
3
HDMI IN Input
Connect the HDMI IN port to the HDMI output port of your source
equipment such as a DVD player or Set-top box. You can also use
a HDMI to DVI cable to connect to the DVI outpu t o f your PC.
4
RS-232
The port is for
5
PC IN for Video and Audio Input
Connect the PC IN D-Sub (15-pin) por t to the D-Sub output por t o f
your PC and connec t the PC IN 3.5mm phone jack to the audio
output port of your PC.
firmware
update only.
7
L CO-AX R L
Cb/Pb Y
6
amplifier
R L
for separate digital
8
CV
DC 5V
SV
9
5
6
Y Pb/Cb Pr/Cr Video and L/R Audio Input
Connect the Y Pb/Cb Pr/Cr (Compone nt) 3 RCA input ports to the
Component output port of your video source equipment such as a
DVD player or Set-top box and connect the L/R audio input ports
to the audio output port of your audio source equipment.
7
COAXIAL Input
The COAXIAL port provides the digital audio input support, and
can be assigned to any of the video inputs (CV/SV/COMP/PC/
HDMI). Once connected, it can be assigned in the OSD Menu
under Audio Source Selection by selecting between Coaxial (S/
PDIF) or other audio sourc e (see section 6.3 OSD Ope ration for
reference).
8
Composite Video / S-Video and L/R Audio Input
Connect the Composite or S-Video input port to the Composite or
S-Video output port of your video source equipment such as DVD
player or Set-top box and conn ec t the L/R audio input po rts to th e
audio output port of your audio source equipment.
9
Power
Plug the 5 V DC power supply into the unit and connect the
adaptor to AC wall outlet.
