1 Introduction
Congratulations on purchasing your CSC-650 Component / UXGA HDMI Scaler. This product, which incorporates HDMI™ technology, is ideal for:
Projection systems in conference rooms, boardrooms, hotels and churches Home theater up-scaling
This product comes with the following items:
Power adapter (12V DC input) Infrared remote control transmitter and this user manual
2 Getting Started
We recommend that you: Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
3 Overview
The CSC-650 is a high quality component video/UXGA to HDMI scaler. It accepts one of three inputs: either component video1 on RCA connectors, computer graphics on a 15-pin HD connector, or an HDMI signal (selected via a front panel selector button or via the Remote dry contact switch). It scales the video, embeds the audio, and outputs the signal to the HDMI output.
The CSC-650 Component / UXGA HDMI Scaler:
Is HDTV compatible and the resolution can be scaled up to 480p, 576p, 720p,
1080i or 1080p via a front panel selector button2
Has analog audio inputs for the COMP, UXGA and HDMI inputsAutomatically detects and selects the audio source for the HDMI input. Default
selection is HDMI – if this is not present, then the machine uses the audio from the analog input
Comes with an On-Screen Display (OSD) for easy setup and adjustment,
accessible via the IR remote control and via the front-panel buttons
Has a non-volatile memory that retains the last settings used Is housed in a desktop sized enclosure and is 12VDC fed
1 Also known as Y, Pb, Pr, Y, Cb, Cr and YUV; compatible with both SD and HD component 2 Other resolutions can be selected via the OSD menu. These include: 1080i, 1080p, 576i, 576p, 720p, 1080i, 1080p, WXGA, WSXGA, WUXGA, NATIVE, VGA, SVGA, XGA, SXGA, UXGA, 480i, 480p
1
Control your CSC-650:
Directly, via the front panel push buttons Remotely, from the infrared remote control transmitter Remotely, from the Remote dry contact switch
3.1 About HDMI
High-Definition Multimedia Interface (HDMI) is an uncompressed all-digital1 audio/video interface, widely supported in the entertainment and home cinema industry. It delivers the maximum high-definition image and sound quality in use today. In particular, HDMI2:
Provides a simple3 interface between any audio/video source, such as a set-top
box, DVD player, or A/V receiver and video monitor, such as a digital flat LCD / plasma television (DTV), over a single lengthy4 cable
Supports standard, enhanced, high-definition video, and multi-channel digital
audio5 on a single cable
Transmits all ATSC HDTV standards and supports 8-channel digital audio,
with bandwidth to spare to accommodate future enhancements and requirements
Benefits consumers by providing superior, uncompressed digital video quality
via a single cable6, and user-friendly connector
Is backward-compatible with DVI (Digital Visual Interface) Supports two-way communication between the video source (such as a DVD
player) and the digital television, enabling new functionality such as automatic configuration and one-button play
HDMI has the capacity to support existing high-definition video formats (720p,
1080i, and 1080p/60), standard definition formats such as NTSC or PAL, as well as 480p and 576p
1 Ensuring an all-digital rendering of video without the losses associated with analog interfaces and their unnecessary digital­to-analog conversions 2 HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC 3 With video and multi-channel audio combined into a single cable, the cost, complexity, and confusion of multiple cables currently used in A/V systems is reduced 4 HDMI technology has been designed to use standard copper cable construction at up to 15m 5 HDMI supports multiple audio formats, from standard stereo to multi-channel surround-sound. HDMI has the capacity to support Dolby 5.1 audio and high-resolution audio formats 6 HDMI provides the quality and functionality of a digital interface while also supporting uncompressed video formats in a simple, cost-effective manner
2
3.2 Recommendations for Best Performance
To achieve the best performance:
Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise- levels (often associated with low quality cables)
Avoid interference from neighboring electrical appliances and position your
machine away from moisture, excessive sunlight and dust
Caution – No operator-serviceable parts inside unit. Warning – Use only the input power wall adapter that is
provided with this unit.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
4 Your CSC-650 Component / UXGA HDMI Scaler
Figure 1, Table 1 and Table 2 define the CSC-650:
Figure 1: CSC-650 Component / UXGA HDMI Scaler
3
Indicator LED
Table 1: CSC-650 Component / UXGA HDMI Scaler Front Panel Features
# Feature Function
1 IR Receiver Receives signals from the remote control transmitter 2 Selector Button Press to select the UXGA input, the COMP input, or the HDMI
3 UXGA Indicator LED Lights when the UXGA input is selected
Input
4 COMP 5 6 Selector Button Press to select the resolution: 480p, 576p, 720p, 1080i or 1080p 7 480p Indicator LED Lights when the 480p resolution is selected 8 576p Indicator LED Lights when the 576p resolution is selected 9 720p Indicator LED Lights when the 720p resolution is selected 10 1080i Indicator LED Lights when the 1080i resolution is selected 11 12 MENU Button Displays the OSD menu (see section 6.2) 13 ENTER Button Press to accept changes and change the SETUP parameters1 14 - Button Press to move down the menu list1 15
HDMI Indicator LED Lights when the HDMI input is selected
Res.
1080p Indicator LED Lights when the 1080p resolution is selected
Control
+ Button Press to move up the menu list values1
input
Lights when the COMP input is selected
Table 2: CSC-650 Component / UXGA HDMI Scaler Rear Panel Features
# Feature Function
16 HDMI Out Connector Connects to the HDMI acceptor 17 3.5mm Mini Jack
HDMI In
18 19 3.5mm Mini Jack
UXGA In
20
21 L RCA Connector
COMP In
22 R RCA Connector 23 PR RCA Connector 24 PB RCA Connector Connects to the component video source3 25 26 Remote Terminal Block Connects to a dry contact switch (see section 5.1) 27 12 VDC +12V DC connector for powering the unit
Connector HDMI Connector Connects to the HDMI source
Connector UXGA 15-pin HD
Connector
Y RCA Connector
Connects to the analog unbalanced stereo audio signal2
Connects to the analog unbalanced stereo audio signal source
Connects to the UXGA source
Connect to the left and right analog unbalanced stereo audio source (of the COMP source)
1 See section 6.2.2 2 The audio source is automatically detected and selected. The default selection is the audio signal embedded in the HDMI signal. If this is not present, then the machine uses the audio from the analog input 3 For component video, connect all three connectors: Y, Cb, Cr (also known as YUV)
4
5 Connecting the CSC-650 Component / UXGA HDMI Scaler
To connect1 your CSC-650 as the example in Figure 2 illustrates:
1. Connect a component video source (for example, a DVD player) to the COMP In Y, Pb, Pr, RCA connectors, and to the COMP In L and R audio RCA connectors.
2. Connect a computer graphics source to the UXGA In 15-pin HD connector, and to the UXGA In audio 3.5mm mini jack connector.
3. Connect an HDMI source (for example, a DVD player) to the HDMI In connector, and to the HDMI In analog audio 3.5mm mini jack connector.
4. Connect the HDMI Out connector to an HDMI acceptor (for example, a plasma display).
5. Connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity (not shown in Figure 2).
Figure 2: Connecting the CSC-650 Component / UXGA HDMI Scaler
1 You do not have to connect all the inputs, connect only those that are required
5
To select HDMI,
temporarily short
temporarily short
temporarily short

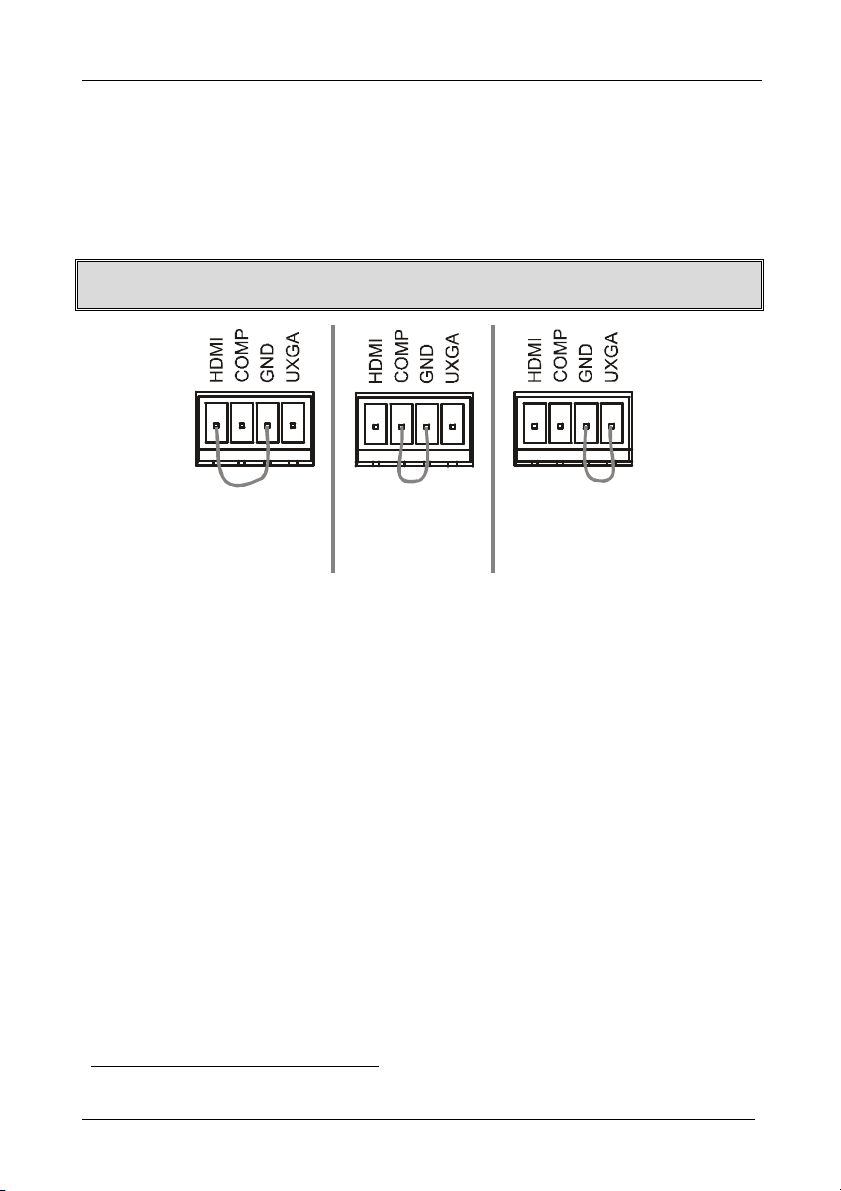

5.1 Connecting the Contact Closure Remote Control PINs
The contact closure remote control pins operate in a similar way to the Input selector button. Using the contact closure remote control you can select the HDMI, the COMP or the UXGA input. To do so, temporarily connect the required input1 pin on the REMOTE terminal block connector to the GND (Ground) pin, as Figure 3 illustrates.
DO NOT Connect more than one PIN to the GND PIN at the same time
To select COMP,
the HDMI PIN to the GND PIN
Figure 3: Connecting the Contact Contact Remote Control PINs
the COMP PIN to the GND PIN
1 HDMI, COMP or UXGA
To select UXGA,
the UXGA PIN to the GND PIN
6
6 Controlling the CSC-650
The CSC-650 can be controlled directly via the front panel buttons (see section 6.1), via the OSD menu (see section 6.2), and/or remotely from the infrared remote control transmitter (see section 6.3).
6.1 Controlling via the Front Panel Buttons
The CSC-650 includes the following front panel buttons:
An Input selector button for selecting the required input (UXGA, COMP. or
HDMI)
A resolution (Res.) button for selecting the desired resolution Control buttons, including the MENU, ENTER, + and – buttons
6.2 Using the CONTROL Buttons
The CONTROL buttons let you control the CSC-650 via the OSD menu. Press the:
MENU button to enter the menu1  ENTER button to accept changes and to change the menu settings + and – buttons to move through the OSD menu, which is displayed on the
video output
On the OSD menu, select EXIT to exit the menu.
1 The default timeout is set to 10 seconds
7
6.2.1 The MAIN MENU
Table 3 defines the MAIN MENU features and functions.
Table 3: The MAIN MENU Features
Mode Function
CONTRAST Set the contrast (0 to 100) BRIGHTNESS Set the brightness (0 to 100) FINETUNE Set the hue, saturation and sharpness (0 to 100) COLOR Set the red, green and blue shades (0 to 100) SIZE Select the size of the display: full, overscan, underscan, letter box, panscan OUTPUT Select the output resolution from the menu: Appears as: Output resolution: Appears as: Output resolution: 1080I60 1080i @60Hz NATIVE1 1080P60 1080p @60Hz VGA 640x480 576I 576i SVGA 800x600 576P 576p XGA 1024x768 720P50 720p @50Hz SXGA 1280x1024 1080I50 1080i @50Hz UXGA 1600x1200 1080P50 1080p @50Hz 480I 480i WXGA 1366x768 480P 480p WSXGA 1680x1050 720P60 720p @50Hz WUXGA 1920x1200 OSD Set the OSD parameters: H POSITION, V POSITION, TIMER, BACKGROUND (see
FACTORY RESET Resets to the default parameters (resolution is set to VGA2) INFORMATION Displays the source, the input resolution, the output resolution and the software version EXIT Select to exit the menu
section 6.2.2)
6.2.2 The OSD Menu
Table 4 defines the OSD menu.
Table 4: The SETUP Menu Features
Parameter Function
H POSITION Sets the horizontal position of the OSD (from 0 to 100) V POSITION Sets the vertical position of the OSD (from 0 to 100) TIMER Sets the timeout period in seconds (from 5 to 100). The default timeout is 10 seconds BACKGROUND Sets the OSD background between 0 (solid black) and 8 (transparent)
1 Select “NATIVE” to select the output resolution from the EDID of the connected HDMI monitor 2 If you cannot see the display after factory reset, use the front panel Res. button to set the correct resolution
8
and output resolutions and the firmware
PC
VGA
6.3 Controlling via the Infrared Remote Control Transmitter
You can control the CSC-650 from the infrared remote control transmitter, as Figure 4 and Table 5 define:
Table 5: Infrared Remote Control
Transmitter Functions
SIZE
HD
SXGA UXGA
480p 720p
INFO
MENU
POWER
HDMI
SVGA XGA
1080i
1080p
NATIVE
OK
EXIT
Keys Function
SIZE Set the size of the image displayed
POWER Turn the transmitter ON or OFF
HD Select the component video input
PC Select the UXGA input
HDMI Select the HDMI input
VGA Set the output resolution to VGA
SVGA Set the output resolution to SVGA
XGA Set the output resolution to XGA
SXGA Set the output resolution to SXGA
UXGA Set the output resolution to UXGA
1080i Set the output resolution to 1080i
480p Set the output resolution to 480p
720p Set the output resolution to 720p
1080p Set the output resolution to 1080p
INFO Displays the selected input, the input
versions on the OSD
NATIVE Select the output resolution from the
EDID of the connected HDMI monitor Four navigation keys
Figure 4: Infrared Remote Control
Transmitter
OK Press to accept changes
MENU Enter the OSD menu
EXIT EXIT the menu
9
7 Technical Specifications
Table 6: Technical Specifications1 of the CSC-650 Component / UXGA HDMI Scaler
INPUTS: 1 HDMI connector (HDMI version 1.2, HDCP version 1.1)
OUTPUT: 1 HDMI connector (HDMI version 1.2, HDCP version 1.1) OUTPUT
RESOLUTIONS: CONTROLS: Front panel buttons, dry contact and infra red remote for menu driven OSD
ADDITIONAL CONTROLS:
POWER SOURCE:
DIMENSIONS: 21.5cm x 16.1cm x 4.36cm (8.46” x 6.34” x 1.7”) W, D, H WEIGHT: 1.1kg (2.43lb.) approx. ACCESSORIES: Power supply, IR remote control
1 UXGA on a 15-pin HD connector 1 component video on 3 RCA connectors 1 analog unbalanced stereo audio on a 3.5mini jack connector (for the HDMI input) 1 analog unbalanced stereo audio on a 3.5mini jack connector (for the UXGA input)
2 analog unbalanced stereo audio (left and right) on RCA connectors, 4dBm nominal
1080i, 1080p, 576i, 576p, 720p, 1080i, 1080p, WXGA, WSXGA, WUXGA, NATIVE, VGA, SVGA, XGA, SXGA, UXGA, 480i, 480p
control Contrast, brightness, hue, saturation and sharpness; red, green and blue;
Resolution, image size 12V DC, 350mA
1 Specifications are subject to change without notice
10
