USER MANUAL



Model:

CSC-550

Video to SXGA / HD Scaler

For maximum results, use Comprehensive Brand Premium High Resolution cables

and connectors.

Contents

Introduction 1

Getting Started 1

Overview 1

Your CSC-550 Video to SXGA / HD Scaler 3

Connecting the CSC-550 Video to SXGA / HD Scaler 4

Controlling the CSC-550 6

6.1 Controlling via the Front Panel Buttons 6

6.2 Using the CONTROL Buttons 6

6.2.1 The MAIN MENU 6

6.2.2 The PICTURE Menu 7

6.2.3 The SETUP Menu 7

6.3 Controlling via the Infra-Red Remote Control Transmitter 8

Technical Specifications 9

Figures

Figure 1: CSC-550 Video to SXGA / HD Scaler – Front and Rear View 3 Figure 2: Connecting the CSC-550 Video to SXGA / HD Scaler 5 Figure 3: Infra-Red Remote Control Transmitter 8

Tables

Table 1: CSC-550 Video to SXGA / HD Scaler Front Panel Features 3 Table 2: CSC-550 Video to SXGA / HD Scaler Rear Panel Features 4 Table 3: HD15 PINOUT for HD 4 Table 4: The MAIN MENU Features 6 Table 5: The PICTURE Menu Features 7 Table 6: The SETUP Menu Features 7 Table 7: Infra-Red Remote Control Transmitter Functions 8 Table 8: Technical Specifications of the CSC-550 9

1 Introduction

Congratulations on purchasing your CSC-550 Video to SXGA / HD Scaler. This product is ideal for:

 Projection systems in conference rooms, boardrooms, hotels and churches  Home theater up-scaling

The package includes the following items:

 CSC-550 Video to SXGA / HD Scaler  Power adapter (12V DC input)  Infra red remote control transmitter  This user manual

2 Getting Started

We recommend that you:

 Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

 Review the contents of this user manual

3 Overview

The CSC-550 Video to SXGA / HD Scaler is a high quality converter for upscaling composite video, s-Video (YC), and SD component video to XGA1 and HD resolutions. It also has a computer graphics (XGA) input, which – when selected, or when the machine is not powered - is routed directly (bypassed) to the output. Video inputs are de-interlaced and scaled to the selected PC or HDTV resolutions, as follows:

 VGA (640x480)  SXGA (1280x1024)  720p

 SVGA (800x600)  480p  1080i

 XGA (1024x768)  576p

1 The terminology XGA is used throughout this manual, where this implies any RGBHV signal on an HD15 connector

having a resolution from VGA up to SXGA

The CSC-550 Video to SXGA / HD Scaler also features:

 Automatic detection of NTSC, PAL-B, PAL-G, PAL-I, PAL-D, and

SECAM video standards

 An On-Screen Display (OSD) for easy setup and adjustment, accessible

via the IR remote control and via the front-panel buttons

 A high-performance adaptive 3D comb filter (for precise color

management)

 Per-pixel motion compensated de-interlacing for artifact-free video images  Automatic detection for 3:2 pulldown for 24fps film source material  Frame rate conversion of 50Hz to 60Hz for PAL input signals  A Vertical Temporal (VT) Filter for removing jagged artifacts  Advanced color/luminance transient improvement circuitry  A PC Input connector for easy integration into an existing system  A built-in procamp for convenient signal adjustment  A non-volatile memory that retains the last settings used

The machine is fed from an external 12V DC source, making it suitable for field operation.

Control your CSC-550:

 Directly, via the front panel push buttons  Remotely, from the infra-red remote control transmitter

To achieve the best performance:

 Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise-levels (often associated with low quality cables)

 Avoid interference from neighboring electrical appliances and position

your CSC-550 away from moisture, excessive sunlight and dust

Caution – No operator-serviceable parts inside unit.

Warning – Use only the input power wall adapter that is

provided with this unit.

Warning – Disconnect power and unplug unit from wall

before installing or removing device or servicing unit.

4 Your CSC-550 Video to SXGA / HD Scaler

Figure 1, Table 1 and Table 2 define the CSC-550 Video to SXGA / HD Scaler:

Figure 1: CSC-550 Video to SXGA / HD Scaler – Front and Rear View

Table 1: CSC-550 Video to SXGA / HD Scaler Front Panel Features

# Feature Function

1 POWER Switch Switch for turning the unit ON or OFF 2 RGB/RESET Button Illuminates when the output resolution is set to RGB. Press to set output

3 IR Receiver Lights when receiving signals from the remote control transmitter

4 MENU Button Displays the OSD menu (see section 6.2)

5 ENTER Button Press to accept changes and change the SETUP parameters (see

6 + Button Press to go up the menu list or adjust the PICTURE submenu values

CONTROL

8 CV Button Press to select the composite video source

9 YC Button Press to select the s-Video (YC) video source 10 COMP. Button Press to select the component video source

- Button Press to go down the menu list or adjust the PICTURE submenu values

INPUT

SXGA Button Press to select the SXGA source

SELECTOR

to Y Pb Pr (the button no longer illuminates). Press and hold for more than 3 seconds to reset to VGA. Press and hold for 10 seconds to reset to 480p

section 6.2.3)

(see section 6.2.2)

Table 2: CSC-550 Video to SXGA / HD Scaler Rear Panel Features

# Feature Function

12 YC 4p Connector Connects to the s-Video source

13 CV RCA Connector Connects to the composite video source

14 Y RCA Connector

15 CB RCA Connector Connects to the interlaced1 component video source2

INPUTS

16 CR RCA Connector

18 SXGA / HD OUT HD15 Connector Connects to the SXGA or HDTV (component video)

19 12 VDC +12V DC connector for powering the unit

SXGA PASS HD15 Connector Connects to the VGA/Y, Pb, Pr source3

acceptor

5 Connecting the CSC-550 Video to SXGA / HD Scaler

Connect4 your CSC-550, as illustrated in the example in Figure 2:

1. Connect an s-Video source (for example, an s-Video camcorder) to the YC INPUT 4p connector.

2. Connect a composite video source (for example, a composite video player) to the CV INPUT RCA connector.

3. Connect a component video source (for example, a DVD player) to the Y, Cb and Cr INPUT RCA connectors.

4. Connect an SXGA graphics source to the SXGA PASS INPUT HD15 connector5.

5. Connect the SXGA/HD OUT HD15 connector to a video acceptor (for example, a plasma display) as follows:

 When connecting to an XGA acceptor (RGBHV), then connect to

the acceptor’s XGA connector

 When connecting to a component acceptor (Y, Cb, Cr), then

connect as shown in Table 3

Table 3: HD15 PINOUT for HD6

PIN # Signal

1 Cr

2 Y

3 Cb

1 Not compatible with progressive scan Y, Pb, Pr or HDTV

2 For component video, connect all three connectors: Y, Cb, Cr (also known as YUV)

3 This PC input signal is not scaled, but is available for pass-through when the PC source is selected

4 You do not have to connect all the inputs, connect only those that are required

5 This PC input signal is not scaled, but is available for pass-through when the PC Source is selected

6 The PINOUT should be: PIN 1 = Cr, PIN 2 = Y and PIN 3 = Cb (with pins 6, 7 and 8 as ground respectively)

Plasma

Display

Computer Graphics

Source

DVD Player

6. Connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity (not shown in Figure 2).

Composite

Video Player

s-Video

Camcorder

Figure 2: Connecting the CSC-550 Video to SXGA / HD Scaler

6 Controlling the

CSC-550

The CSC-550 can be controlled directly via the front panel buttons (see section

6.1), via the OSD menu (see section 6.2), and/or remotely from the infra-red remote control transmitter (see section 6.3).

6.1 Controlling via the Front Panel Buttons

The CSC-550 includes the following control front panel buttons:

 An RGB/RESET button for setting the output to either RGB or Y, Pb, Pr

or resetting

the resolution to VGA or 480p

 CONTROL buttons, including the MENU, ENTER, + and – buttons  INPUT SELECTOR buttons for selecting the required input (CV, YC,

COMP. or SXGA)

6.2 Using the CONTROL Buttons

The CONTROL buttons let you control the CSC-550 via the OSD menu

 Press the MENU button to enter the menu  Press the ENTER button to accept changes and to change the menu

settings

 Press the + and – buttons to move through the OSD menu, which is

displayed on the video output, or adjust the PICTURE parameters

On the OSD menu, select EXIT to exit the menu.

6.2.1 The MAIN MENU

Table 4 defines the MAIN MENU features and functions.

Table 4: The MAIN MENU Features

Mode

PICTURE Set the picture parameters (contrast, brightness, color, hue, detail and reset), see

SOURCE Select the desired input source: video, s-Video, Y, CB, CR or computer

RESOLUTION After selecting the output type3, select between the RGB output resolutions (VGA,

SETUP Select the aspect, output, 3D enhance, digital NR, display and HV output (see section

INFORMATION Displays the source, resolution and software version

EXIT Select to exit the menu

1 Press for 3 seconds to reset to VGA and press for 10 seconds to reset to 480p

2 The menu times out after 8 seconds

3 By pressing the RGB/RESET button or via the OSD menu

Function

section 6.2.2

SVGA, XGA or SXGA) or the YPbPr output resolutions (480p, 576p, 720p or 1080i)

6.2.3)

6.2.2 The PICTURE Menu

Table 5 defines the PICTURE menu.

Table 5: The PICTURE Menu Features

Parameter Function Range Default

CONTRAST Adjust the contrast From 0 to 63 58

BRIGHT Adjust the brightness From 0 to 63 31

COLOR Adjust the color From 0 to 63 31

HUE Adjust the hue From 0 to 63 31

DETAIL Adjust the sharpness From 0 to 63 10

RESET Select RESET and press ENTER to reset to the default parameters

EXIT Select to exit to the MAIN MENU

6.2.3 The SETUP Menu

Table 6 defines the SETUP menu.

Table 6: The SETUP Menu Features

Parameter Function

ASPECT1 Select between STANDARD, 4:3 and 16:9

OUTPUT Select a PC (RGB) output or an HDTV (Y, Pb, Pr) output

3D ENHANCE Turn the 3D comb filter function ON or OFF2

DIGITAL NR Turn the digital noise reduction function ON or OFF

DISPLAY Set to ON to display the input standard and the output resolution on the screen;

HV OUTPUT Select ON to send H and V synchronization when Y, Pb, Pr is selected for the output3

EXIT Select to exit to the MAIN MENU

otherwise, set to OFF

1 STANDARD will output the signal in the same aspect ratio as the input aspect ratio. 4:3 a nd 16:9 will always output as 4:3

and 16:9 respectively, regardless of the input aspect ratio

2 When a video player or a non-standard video source is connected to the input, the output picture may jitter. If this occurs,

turn the 3D Comb Filter to OFF

3 H and V are always sent when RGB is selected at the output

6.3 Controlling via the Infra-Red Remote Control Transmitter

YPbCr

S-VIDEO

C-VIDEO

3D PICT

URE

RESET

ASPECT

SXGA

SVGA VGA XGA

576p 720p 1080i

480p

ENTER

You can control the CSC-550 from the infra-red remote control transmitter, as Figure 3 and Table 7 define:

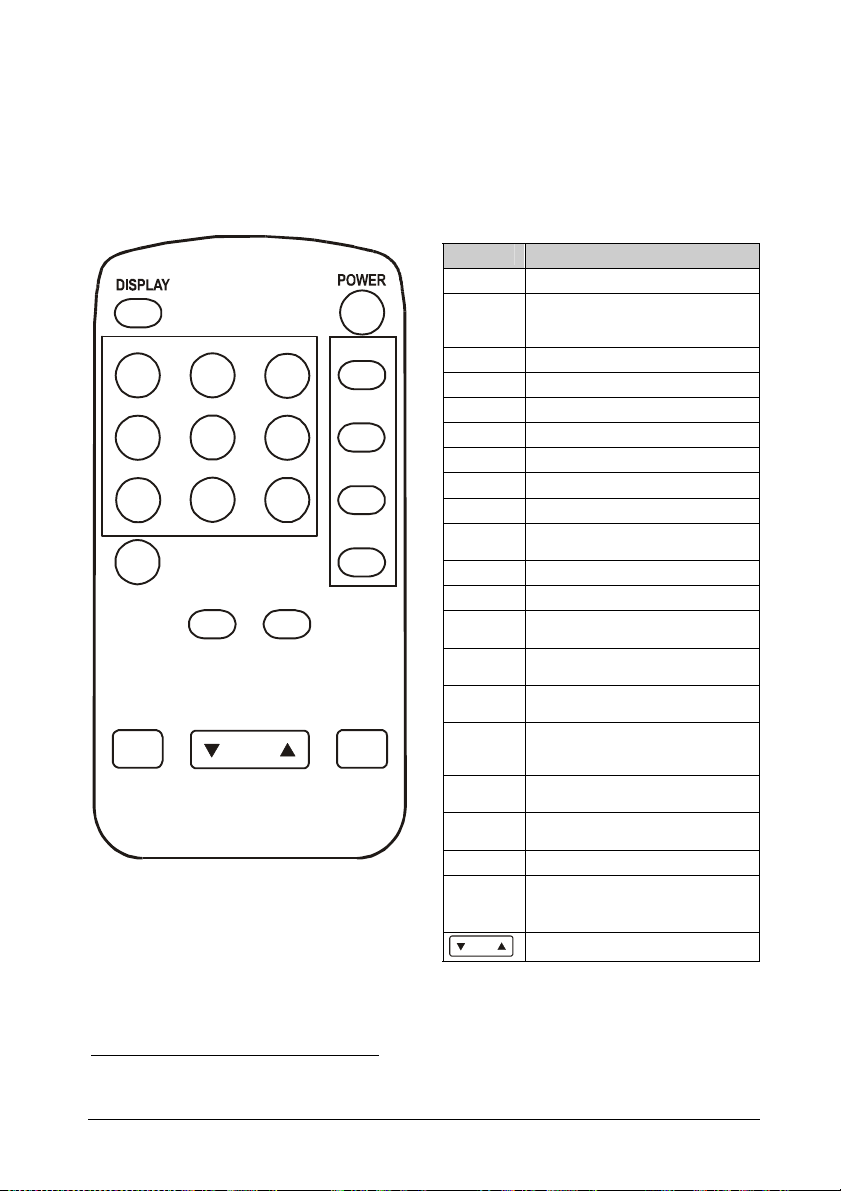

Figure 3: Infra-Red Remote Control

Transmitter

Table 7: Infra-Red Remote Control

Transmitter Functions

Keys Function

POWER Turn power ON or OFF

DISPLAY Turn input standard and output

C-VIDEO Select the composite video input

S-VIDEO Select the s-Video input

YCbCr Select the component video input

PC Select the input PC to loop-through

VGA Set the output resolution to 640x480

SVGA Set the output resolution to 800x600

XGA Set the output resolution to 1024x768

SXGA Set the output resolution to

480p Set the output resolution to 852x480p

576p Set the output resolution to 852x576p

720p Set the output resolution to

1080i Set the output resolution to

ASPECT Select the standard, normal (4:3) or

PICTURE RESET

3D Turn the 3D enhance feature ON or

NR Turn the digital noise reduction feature

MENU Enter the OSD menu

ENTER Press to accept changes and to

resolution information display ON or OFF

1280x1024

1280x720p

1920x1080i

the wide (16:9) aspect ratio

Press and hold for 2 seconds to reset all the ProcAmp settings (contrast, brightness and so on)1

OFF

ON or OFF

change SETUP parameters

Press to adjust the picture parameters

1 In some versions, you need to be within the PICTURE menu to do this

7 Technical Specifications

Table 8: Technical Specifications1 of the CSC-550

INPUTS: 1 VGA/SVGA/XGA/SXGA on an HD15F connector

OUTPUT: 1 RGB/YPbPr on an HD15F connector

OUTPUT RESOLUTIONS: VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA

PROCESSING DELAY: 2 frames

CONTROLS: Front panel buttons and infra red remote for menu driven OSD control

ADDITIONAL CONTROLS: Contrast, brightness, color, tint and sharpness; Resolution, output

POWER SOURCE: 12V DC, 350mA DIMENSIONS: 21.5cm x 16.3cm x 4.36cm (8.46” x 6.4” x 1.7”) W, D, H

WEIGHT: 0.25kg (0.55lb.) approx.

ACCESSORIES: Power supply, IR remote control

1 composite video on an RCA connector 1 component video (Y, Cb, Cr) on RCA connectors 1 s-Video on a 4p connector

(1280x1024), HDTV: 480p, 576p, 720p, 1080i

image scaling, output mode, 3D comb filter function and aspect ratio

1 Specifications are subject to change without notice
