VGA SPLITTER 1× 4 with audio
CDA-VGA104A
USER MANUAL
Table of Contents
1.0 Introduction……………………………………………………..2
2.0 Specifications…………………………………….………..……2
3.0 Package Contents………………………………………….…..3
4.0 Panel Descriptions…………………………………….…….…3
5.0 Connection and Operation..................................................3
Cab le a nd Conn ectivity Com p a n y
１
VGA SPLITTER 1× 4 with audio
VGA SPLITTER 1× 4 with audio
Dear Customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
1.0 INTRODUCTION
This product is an VGA splitter 1x4 with audio. It distributes the input of the VGA
signal and stereo audio signal into the four identical outputs simultaneously.This
product has the ability of buffering and amplifying. Each amplifier splitter’s output
can achieve long distance transmission of VGA signal of more than 15 meters.
This VGA Splitter offers solutions for monitors or projectors retail and show site,
and Projector factory, noise, space and security concern
information distribution, conference room presentation, school and corporate
training environments.
s, data c
1.1 FEATURES
This VGA Splitter has many features that enable it to perform in a superior
manner. Among those features you will find:
Easy to Use: Install in seconds, no need of setting.
Connects VGA source to four VGA displays at the time.
Connects stereo audio source to four audio receivers at the time.
Supports highest video resolution up to 1920 x 1200 and 1080p
Supports highest video Amplifier Bandwidth to 500MHz
enter control,
2.0 SPECIFICATIONS
Signal Inputs/Output
Input video Signal 1.2 volts p-p
Maximum Single Link Range 1920X1200,1080p
Operating Frequency
Vertical Frequency Range 30-170 Hz
Video Amplifier Bandwidth 500MHz
Input/Output connector
elam nip51 AGV tupnI
Mechanical
MM54x29x561 )H-W-L(eziS
g054 )teN(thgieW
Warranty
Environmental
２
elamef nip51 AGV tuptuO
robaL dna straP rsaeY 2 ytnarraW detimiL
VGA SPLITTER 1×4 with audio
Operating Temperature
0℃ to +70℃
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature
-10℃ to +80℃
)noitasnednoc on( HR % 09 ot %5 ytidimuH egarotS
Power Requirement
External Power Supply 5V DC@2A
Power consumption (Max) 5W(max)
Regulatory Approvals
LU,EC,CCF tinU retrevnoC
CCF,EC,LU ylppuS rewoP
Accessories Adapter
AC Power Adapter US standard, UK standard and so on
launaM resU
Note: Specifications are subject to change without notice.
3.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the shipping carton:
1) Main unit
2) 6 feet VGA cable(M-F)
3) 5V/2A DC Power Supply.
4) User’s Manual.

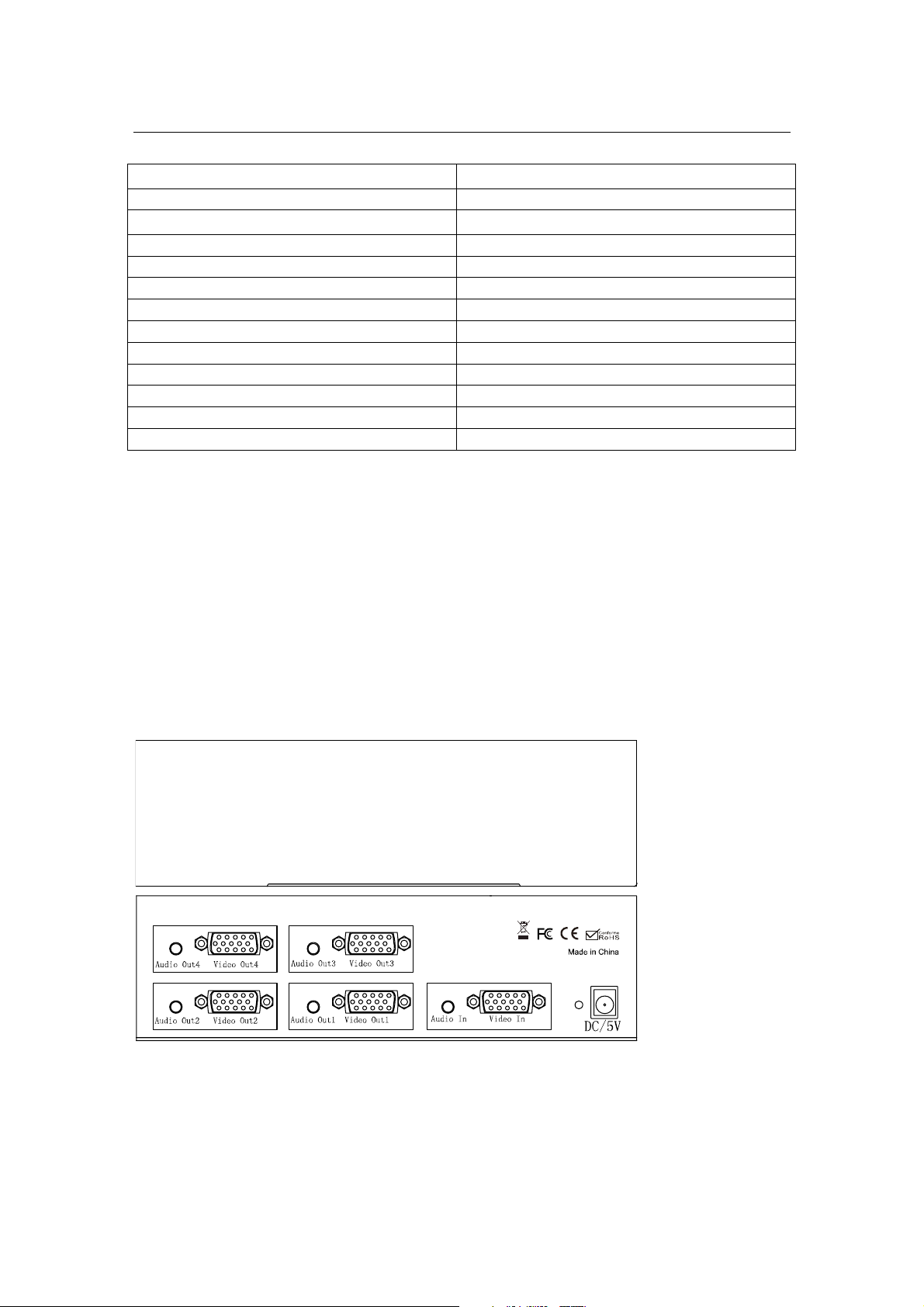

4.0 PANEL DESCRIPTIONS
5.0 CONNECTION AND OPERATION
1) Connect the supplied VGA cable(M-F) from VGA device into VGA input of the
３
VGA SPLITTER 1× 4 with audio
main unit.
2) Connect stereo audio cable(M-M) from audio device into the audio input of the
main unit.
3) Connect the VGA cable(M-M) from your displays into the VGA output of the
main unit
4) Connect stereo audio cable(M-M) from audio receiver into the audio output of
the main unit.
5) Insert the DC side of 5v power supply into the main unit and then connect the
AC side of the power supply into the wall outlet.
*please refer to the connection diagram section.
Attention: Insert / Extract cable gently.
5.1 CONNECTION DIAGRAM
55 Ruta Ct. South Hackensack, NJ 07606
Toll Free: 800 526-0242
Email:
sales@comprehensivecable.com
customerservice@comprehensivecable.com
www.comprehensivecable.com
４
