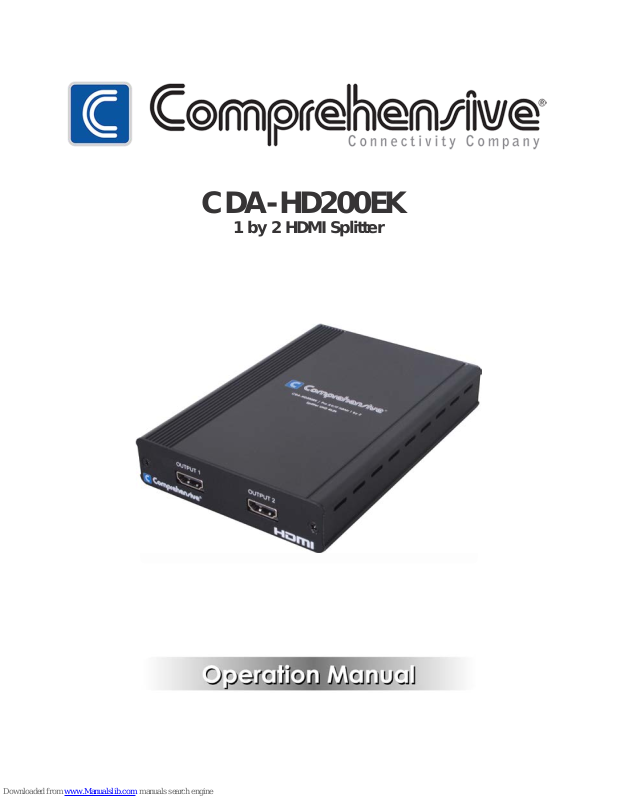

CDA-HD200EK
1 by 2 HDMI Splitter
SAFETY PRECAUTIONS
Please read all instructio ns before attempti ng to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of
fire,
electrical shock and injury to persons.
• To prevent
fire
or shock hazard, do not expose the unit to rain,
moisture or install this pr o duct near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power su p p l y unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cablin g or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings i n the unit housing that provide ventilation and allow for
sufficient
space for air to circulate around the unit.
CONTENTS
1. Introduction............................................ 1
2. Applications ........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features .................................................. 1
6. Operation Controls and Functions....... 2
6.1 Front Pane l ........................................ 2
6.2 Rear Panel......................................... 2
7. Connection Diagram ............................ 3
8. Specifications ........................................ 4
9. Acronyms ............................................... 5
1
1. INTRODUCTION
This HDMI spl itter provides one HDMI in to two HDMI outputs and
supports 4K×2K, 3D, 12-bit Deep Color as well as High
Definition
Lossless Audio. With its 3Gbps bandwidth and the additional
features of the latest HDMI standards you can be sure of great HD MI
distribution.
2. APPLICATIONS
• Simultaneously display one HDMI sourc e on 2 TVs/projectors
• Showroom display
• University lecture hall display
• Retail sales display
• Commercial presentation switcher/scaler
3. PACKAGE CONTENTS
• 1×1 by 2 HDMI Splitter
• 1×5 V DC Power Supply Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
• HDMI equipped source devices such as a DVD/Blu-ray play with
HDMI cables or DVI to HDMI cables
• HDMI equipped displays (TVs or monitors) with HDMI cables
5. FEATURES
• Supports HDTV resolutions up to 4K×2K/30 Hz
• HDMI an d DVI compatible
• Supports 1080p@60Hz, Deep Color 12-bit
• Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
• Supports 3 D
2
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Pan e l
2
3
4
5
6
1
HDMI OUTPUT: Connect each of the output ports to the HDMI
display for simultaneous HDMI distribution.
6.2 Rear Panel
1
HDMI INPUT: Connect the input ports to the H DMI source.
2
SERVICE: Manufacturer use onl y.
3
POWER LED: The power LED will illuminate when the unit is powered.
4
DC 5V: Connec t the 5V DC power su p p ly into the splitte r and Plug
the adaptor to AC wall outlet.
3
7. CONNECTION DIAGRAM
4
8. SPECIFICATIONS
Video Bandwidth
9 Gbps
Input Port
1×HDMI (Female connector)
1×USB (Manufacturer use only)
Output Ports
2 ×HDMI (Female connector)
Output Resolution
480i~1080p@50/60, 1080p@24/50/60,
VGA~UXGA, 4K×2K@30
ESD Protection
Human body model:
±8 k V (a ir -gap dischar ge)
±4 kV (contact discharge)
Dimensions
4.05” (W)× 2.16” (D)× 0.98” (H)
Weight
0.65lbs
Chassis Material
Metal
Silkscreen Color
Black
Operating Temperature
0 ˚C~40 ˚C/32 ˚F~104 ˚F
Storage Temperature
−20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Relative Humidity
20~90 % RH (non-condensing)
Power Consumption
2.85 W
Note: When displaying a 3D signal with a higher bandwidth than 225
MHz or a 4K×2K resolution source, a High Speed HDMI cable is
required.
9. ACRONYMS
ACRONYM
COMPLETE TERM
4K×2K
3840×2160
HDMI
High-Definition
Multimedia Interface
HDTV
High-Definition
Television
