USER MANUAL

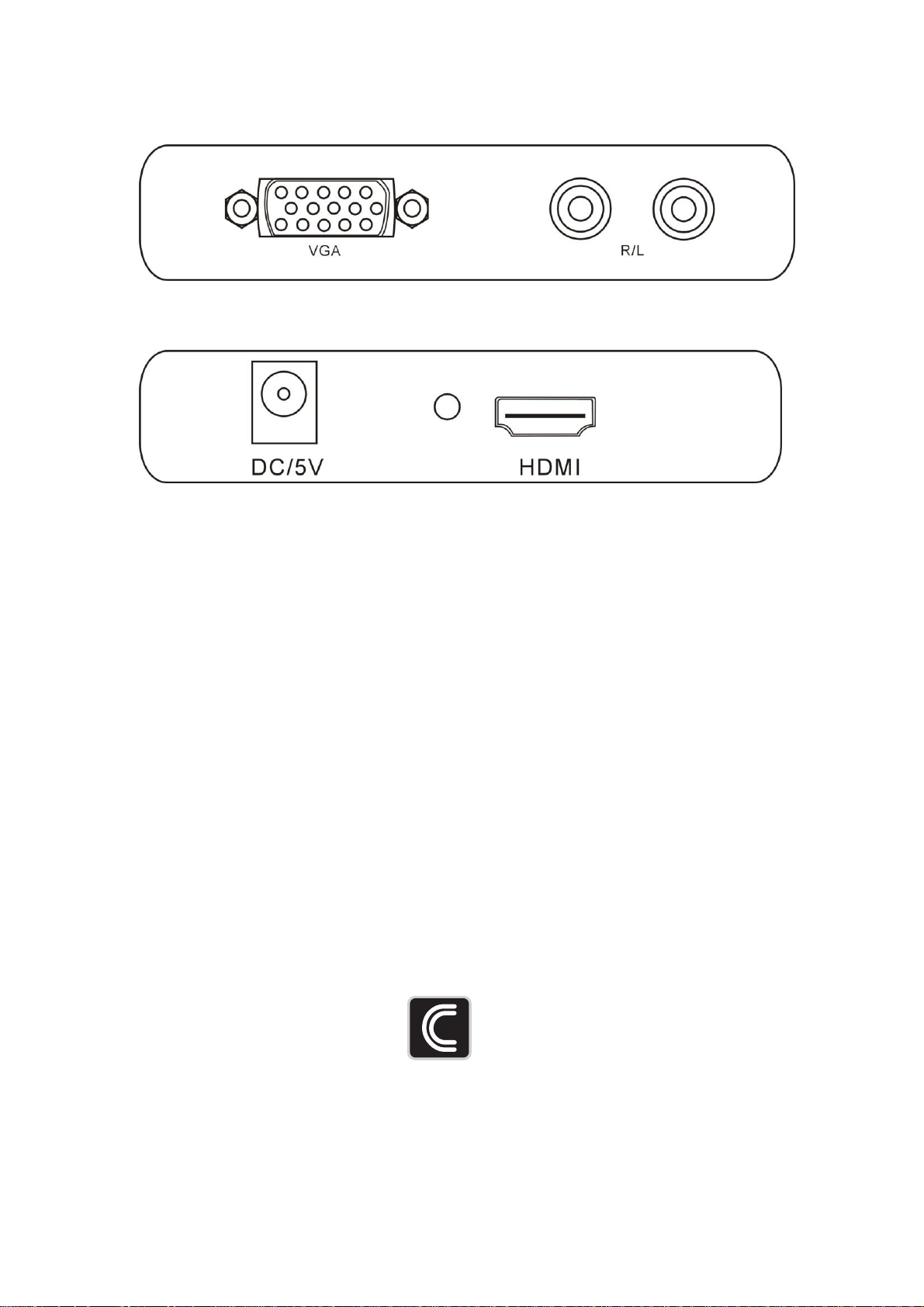

VGA +R/L Audio to HDMI Converter

Model No.: CCN-VH101

Cable and Connectivity Company

VGA to HDMI Converter

Signal Inputs/Output

Input Video Signal

0.5-1.0 volts p-p

Input DDC Signal

5 volts p-p (TTL)

Output Video

HDMI 1.2a

VGA Resolution

640x480 60Hz 75Hz
800x600 60Hz 75Hz
1024x768 60Hz 75Hz
1280x720 60Hz 75Hz
1280x768 60Hz 75Hz
1280x960 60Hz 75Hz
1280x1024 60Hz 75Hz

Operating Frequency

Dear customer

Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or
adjusting this product. Please keep this manual for future reference.

1.0 INTRODUCTION

This kind of the Converter is a VGA video converter. It converts VGA input into
HDMI and allows PC users to enjoy their larger image on TV. The conversion is
along with the R/L audio.
It offers solutions for digital entertainment center, HDTV retail and show site,
HDTV, STB, DVD and Projector factory, noise space and security concerns,
data center control, information distribution, conference room presentation,
school and corporate training environments.

1.1 FEATURES

This HDMI converter has many features that enable it to perform in a superior
manner. Among those features you will find:

 Easy to Use: Install in seconds, no need of setting.
 Conversion: It could convert PC’s VGA video and R/L audio into complete

HDMI.

 Supports highest video resolution 1280x1024.
 Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel)

bandwidth.

 Supports 8bit per channel (24bit all channel) deep color.

2.0 SPECIFICATIONS
