USER MANUAL
YPbPr + SPDIF To HDMI Converter
Model No.: CNN-CH101
Cable and Connectivity Company
HDMI Converter (YPbPr to HDMI)
Signal Inputs/Output
Input DDC Signal
5 volts p-p (TTL)
HDMI Connector
type A (19 pin) female
Video Connector
3 RCA Component
Audio Connector
SPDIF
Output Video
HDMI 1.2a
Operating Frequency
Vertical Frequency Range
50/60Hz
Frequency
1.65Gbps/165MHz
Resolutions(HDTV)
Interlaced(50&60Hz)
480i,576i,1080i
Progressive(50&60Hz)
480p,576p,720p,1080p
Mechanical
Size(W-H-D)
88mmW x 25.5mmH x 68mmD
Weight for shipping
0.12KGs
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
1.0 INTRODUCTION
This is a component video (YPbPr) converter that allows older analog devices to
be integrated seamlessly into the modern home theater. This adapter connects
component video home theater devices to HDMI compliant digital monitors. This
adapter also takes digital audio and encodes it onto the HDMI signal for the full
HDMI video and audio effect. With the Component + Digital Audio to HDMI
Adapter legacy home theater devices can be easily connected to any HDMI
display for the full digital video and audio experience.
1.1 FEATURES
This Converter has many features that enable it to perform in a superior manner.
Among those features you will find:
Allows you to connect YPbPr HDTV sources to an HDMI display
Encodes digital audio onto the video signal for HDMI video and audio
Supports HDTV/YPbPr
Supports highest video resolution 1080p.
Supports 165MHz/ 1.65 Gbps per channel (6.75Gbps all channel) bandwidth.
Supports 8bit per channel (24bit all channel) deep color.
Supports uncompressed audio such as LPCM
Supports compr essed audio such as DTS Digital, Dolby Digital（including
DTS-HD and Dolby True HD）
2.0 SPECIFICATIONS
１
HDMI Converter (YPbPr to HDMI)
Warranty
Limited Warranty
2 Years Parts and Labor
Environmental
Operating Temperature
Operating Humidity
10% to 85 % RH (no condensation)
Storage Temperature
Storage Humidity
5% to 90 % RH (no condensation)
Power Requirement
External Power Supply
5V DC@2A
Power Consumption(max)
5 W
Regulatory Approvals
Converter Unit
FCC,CE,UL
Power Supply
UL,CE,FCC
Accessories Adapter
AC Power Adapter
US standard, UK standard and so on
User Manual
English Version
0 ℃ to +70℃
-10℃ to +80℃
Note: Specifications are subject to change without notice.
3.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the shipping carton:
Main unit.
5V Power Supply
User's Manual
HDMI cables are optional.

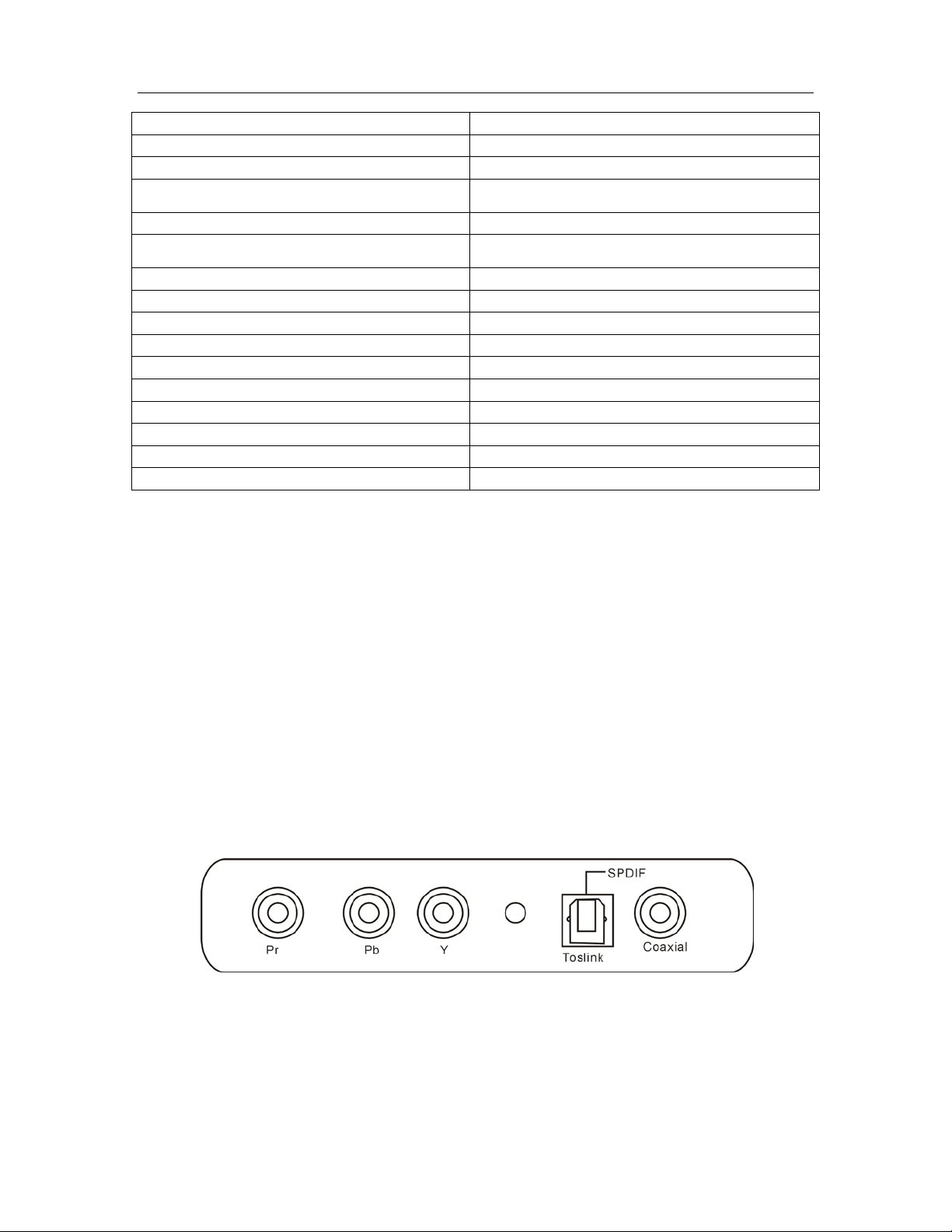

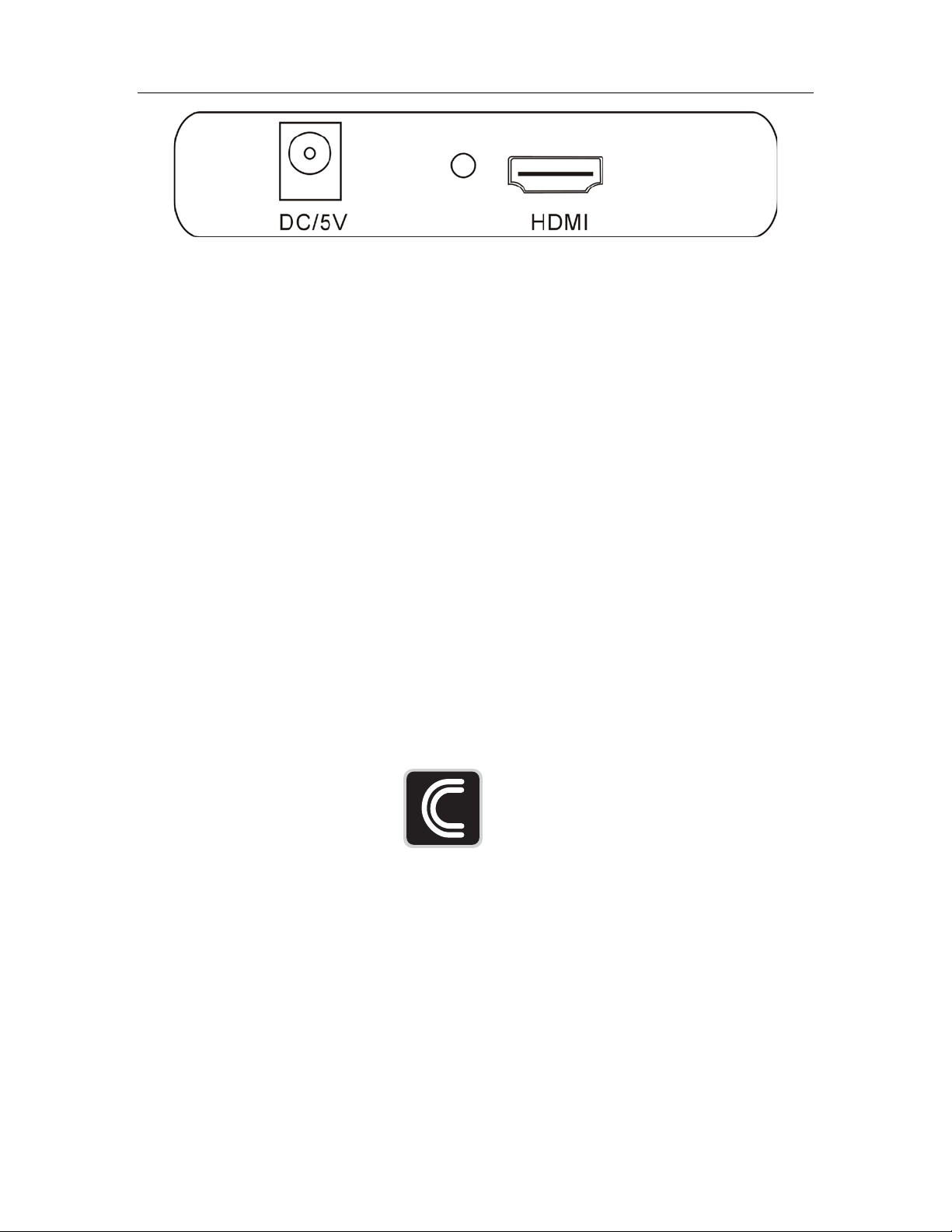

4.0 PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the signal
input(s), output(s) and power requirements.
２
HDMI Converter (YPbPr to HDMI)
5.0 CONNECTION AND OPERATION
Before installation, please make sure all devices you wish to connect have been
turned off.
1) Connect the input sources into this product. (Input cables are optional)
2) Connect the HDMI device into the HDMI Output slot in the back of this
product.
3) Insert the DC side of 5v power supply into this product and then connect
4) the AC side of the power supply into the wall outlet
Attention: Insert / Extract cable gently.
55 Ruta Ct. South Hackensack, NJ 07606
Toll Free: 800 526-0242
Email:
sales@comprehensivecable.com
customerservice@comprehensivecable.com
www.comprehensivecable.com
３
