Page 1

Compool

Cp3830 POOL-SPA CONTROL SYSTEM

Installation & Operating Instructions

05/01/98 941-1010

Page 2

Page 3

Compool Cp3830

Table of Contents

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Safety Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Plumbing Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Equipment Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

High Voltage Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Power Center with built in Sub-panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Power Center without built in Sub-panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

System Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Equipment Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Adding Relays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Underwater Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Low Voltage Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Power Center Circuit Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Low Voltage Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Gas Heater Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Water Temperature Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Freeze Temperature Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Modular Crimping Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

System Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Spa-side Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Multiple Control Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Valve Actuator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Valve Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Heat Pump or Electric Heater. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Solar Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Solar Booster Pump Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Two Speed Spa Filter Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Two Speed Pool Filter Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Telephone Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Dimmer Relay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Backwash Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Floor Cleaner Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Configuration Switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

FREEZE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

I/L - Interlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

SYST - System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Page 4

Compool Cp3830

SPC FNCT - Special Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

HI SPD - High Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

PHONE CONTROLS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

System Start-up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Equipment Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Equipment Status Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Equipment Status Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Heater Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Cleaner Protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Canceling Heater and Cleaner Protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Temperature Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Fahrenheit/Celsius key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Programming additional Run Times. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Programming a Time-out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Programming a Once-only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Canceling Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Setting the Time of Day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Remote Control at Spa key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Power Center. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Equipment keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

3 - Hour Filter Override . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Sensor Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

System Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Spa-side Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Spa-side Heat Boost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Telephone Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

2-speed Spa Filter Pump Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

2-speed Pool Filter Pump Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Spa Waterfall Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Freeze Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Winterizing the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Problem Solving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Page 5

Compool Cp3830

Safety Not i c e

Important Safety Instructions

When installing and using this electrical equipment, basic safety precautions should always be followed, including the following:

Read and follow all instructions.



To reduce the risk of injury, do not permit children to use this product unless they are



closely supervised at all times.

Water in excess of 100 degrees Fahrenheit may be hazardous to your health.



A terminal bar (marked for equipment ground only) is located inside the high voltage



compartment of the Power Center. To reduce the risk of electric shock, this terminal must be connected to the grounding means provided in the electrical supply panel with a continuous copper wire equivalent in size to the circuit conductors supplying this equipment.

Save these instructions.



Page 6

Introduction

Package Contents

Compool Cp3830

The CP3830/S system includes the following components.

CP-3830 Control Panel (w/ cable) (1 qty.). LX-3830 Power Center (1 qty.). SNS-KIT3 Sensor Kit (1 qty.).

Page 7

Compool Cp3830

The CP3830/SL system includes the following components.

CP-3830 Control Panel (w/ cable) (1 qty.). LX-3830L Power Center (1 qty.). SNS-KIT3 Sensor Kit (1 qty.).

Page 8

Plumbing Requirements

Compool Cp3830

CONTROL PANEL

JET

PUMP

AIR

INTAKE

REMOTE

SPA-SIDE

FILTER

PUMP

WATER

SENSOR

FILTER

SOLAR

SENSOR

POWER CENTER

CVA-24

VACUUM

HEATER

RELIEF

FILTER

PUMP

WATER

SENSOR

SKIMMER

FREEZE SENSOR

FILTER

SOLAR

SENSOR

-5B HW

SOLAR

PUMP

CVA-24

CLEANER

PUMP

VACUUM

RELIEF

HEATER

CVA-24

SPA

LIGHT

SPA

POOL

MAIN

DRAIN

POOL

LIGHT

WATERFALL

Plumb system in accordance with recommended hydraulic schematic.

1. If a jet booster pump is being used, it is recommended that 1/4 HP per jet be installed. If a single pump system is being used, it is recommended that 1/2 HP per jet be installed.

2. If a Spa-side Remote is to be used, install a 3” to 6” length of 1.5” Sch. 40 pvc pipe in the spa wall so that the Spa-side Remote will not be submerged. Positioning the top of the pipe 1/2” below the coping. The pipe should extend beyond the finis hed surface and will be cut back after tile work is completed. Connect a 1/2” conduit and run back to Power Center. Use sweep elbows for turns.

3. Plumb solar feed and return lines between the filter and heater. Install 3-port solar valve at the feed line. Use Compool solar valve (model SOL-2T), to allow automatic draining of panels.

4. Glazed solar panels require a drain valv e (model HW-5B) to allow draining of panels. This prevents damage fro m o ver heating water. Install drain valve at solar feed line and con nect to the pool fill line.

5. Plumb solar feed and return lines between the filter and heater. Install 3-port solar valve at the feed line. Use Compool solar valve (model SOL-2T), to allow automatic draining of

Page 9

Compool Cp3830

Equipment Location

panels.

6. A solar booster pump should be used when distance to panels exceeds 200’, or panels are elevated higher than 25’.

7. Plumb cleaner pump after the return valve to the pool return line.

8. A Valve Actuator can be used to direct pool return water to a waterfall. This eliminates the need for an additional pump.

With the exception of the Spa-side Remote, all equipment must be located at least 10’ from the water’s edge. Locate equipment in the following locations.

LX-3830 Power Center - at the equipment site. CP-3830 Control Panel - inside the house or other weather-protected area. SNS-KIT3 Water Temperature Sensors - spa and pool filter pump. Freeze Temperature Sensor - at equipment pad.

Page 10

Installation

High Voltage Wiring

Power Center with built in Sub-panel

At the equipment pad, mount the Power Center within 15’ of all the equipment. Provide power from the Main-panel (located at the house) to Power Center.

Compool Cp3830

Power Center without built in Sub-panel

At the equipment pad, mount a 100 amp electrical circuit breaker panel (Sub-panel) within 15’ of all the equipment. Provide power from Main-panel (located at the house) to the Sub-panel. Mount the Power Center next to the Sub-panel.

Page 11

Compool Cp3830

System Power

SUB-PANEL

Lx3830

System Power provides power to the transformer.

• To wire System Power

1. At the Sub-panel, install a circuit breaker for System Po wer. The system draws less than 1 amp. Do not use a GFCI circuit breaker.

2. Run appropriate wires from the circuit breaker to the System Power terminal block.

3. For a 115 vo lt connection, connect to terminals 2 and 3.

4. For a 230 vo lt connection, connect to terminals 1 and 3.

Caution

Incorrect wiring will cause permanent damage to the transformer.

Page 12

Equipment Power

Lx3830

LINE 2

LOAD 2

LINE 2

LOAD 2

LINE 2

LOAD 2

LINE 2

LOAD 2

LINE 2

LOAD 2

LINE 2

LOAD 2

LINE 2

LOAD 2

LINE 1

LOAD 1

LINE 1

LOAD 1

LINE 1

LOAD 1

LINE 1

LOAD 1

LINE 1

LOAD 1

LINE 1

LOAD 1

LINE 1

LOAD 1

Compool Cp3830

SUB-PANEL

FULL LOAD: 20AMP

LOCKED ROTOR: 60AMP

HIGH VOLTAGE RELAYS

Adding Relays

The diagram above shows how the filter pump is wired. Additional pumps should be wired the same way.

• To wire high voltage equipment

1. At the Sub-panel, install circuit breaker. Run wires from circuit breaker to relay terminal block LINE 1 and LINE 2.

2. Connect equipment to the relay terminal block LOAD 1 and LOAD 2.

If pump is greater than 3 H.P., install an external contactor. Use relay to switch coil of

Note

external contactor.

The Power Center comes standard with 4 relays. It is possible to add additional relays (model RLY-LX). The LX-3830 Power Cen ter has room for 7 relays, and the LX-3830L Power Center has room for 8 relays.

Page 13

Compool Cp3830

Underwater Lights

Lx3830

LINE 2

LOAD 2

LINE 2

LOAD 2

LINE 2

LOAD 2

LINE 2

LOAD 2

LINE 2

LOAD 2

LINE 2

LOAD 2

LINE 2

LOAD 2

LINE 1

LOAD 1

LINE 1

LOAD 1

LINE 1

LOAD 1

LINE 1

LOAD 1

LINE 1

LOAD 1

LINE 1

LOAD 1

LINE 1

LOAD 1

SUB-PANEL

FULL LOAD: 20AMP

LOCKED ROTOR: 60AMP

HIGH VOLTAGE RELAYS

GFCI

TO LIGHT

High voltage pool/spa lights require GFCI protection. To meet electrical code requirements, the pool/spa light must be connected directly to the GFCI. Do not use a GFCI circuit breaker.

• To wire high voltage pool/spa light

1. Install a GFCI receptacle next to the Sub-panel.

2. Connect neutral and hot wire from circuit breaker to the LINE SIDE of the GFCI receptacle.

3. Connect white wire from the light to the LOAD SIDE of the GFCI receptacle.

4. Connect the other wire from the light to LOAD 1 of the relay terminal block.

5. Connect a wire from LINE 1 of the relay terminal block to the LOAD SIDE of the GFCI receptacle.

The example above assumes the pool or spa light is 500 watts or less. If the pool has two

Note

500 watt lights, the second light needs to be wired to LOAD 2 of the relay terminal block. Install a jumper wire between LINE 1 and LINE 2 of the relay terminal block.

Page 14

Low Voltage Wiring

Power Center Circuit Board

VLV1

WITH

VLV2

(optional)

VALVE MODULE

COMPOOL 11040A PART# MOD-VLV3

VLV2 WITH VLV3

COMBINED VALVES

CONTROL JUMPERS

TRANSFORMER CONNECTIONS

1810 24

VLV1

VLV2

VLV3

AUXILIARY VALVE

Compool Cp3830

ACTUATORS

PART# PC-LX3830COMPOOL 11010B

12345

SFLT

PFLT

AUX1

AUX2

AUX3

AUX4

AUX5

AUX6

FREEZE I/L SYST

GND

HLMP

HBST

SPA

POOL

REM1

REM2

REM3

Switch 2

Switch 3

REM4

Switch 4

SELECT 4 CIRCUITS

Switch 1

SPA FLTR

AUX VLV

POOL

AUX VLV CNTRL

FLTR

AUX1

AUX2

AUX3

AUX4

AUX5

AUX6

DIM3DIM4

SPA 2SPD

DIM3

DIM4

HEAT

POOL

FLR CLN

POOL 2SPD

B/W

SHEAT

SAUX2

HI SPD

COM PORT

PHEAT

CAUTION: DO NOT SHORT PINS OF RELAY SOCKETS

SSOL

REM6

SHPMP

12345

PSOL

PHPMP

FLRCL

SPC FNCT

PHONE CONTROLS

SPA

PHONE

12345

FDEL

CLNR

MANHT

REM5

B/W

SPA EHTR

SPA SOL

POOL EHTR

POOL SOL

GAS HEATERS

POOL SPA

GRN

RED

SPA SOL

GRN

RED

SPA WTRPOOL WTR

GRN

RED

POOL SOL

TEMPERATURE SENSORS

GRN

RED

GRN

PAUX1

FREEZE

SENSOR

RED

PRESSURE

CONTROL

GAS VALVE

RELAY CONNECTIONS

GRN

GRN RED

RED GRN RED GRN

GRN RED

RED GRN RED

GRN RED

SPA HEATER

LIMIT

OFF

THERMOSTAT

POOL HEATER

GAS VALVE

CONTROL

PRESSURE

LIMIT

THERMOSTAT

OFF

SPA SOLAR SENSOR

SPA W A TER SENSOR

POOL SOLAR SENSOR

POOL WA TER SENSOR

FREEZE SENSOR

to CONTROL

PANEL

944-1010

BLK

ORG

RED

YEL

GRN

BLU

to SPA-SIDE REMOTE

Page 15

Compool Cp3830

Low Voltage Cables

Control Panel

6-conductor cable runs between the Control Panel and the Power Center.

Heater Connections

2-conductor cable runs between the spa heater and the Power Center. 2-conductor cable runs between the pool heater and the Power Center.

Water Temperature Sensors

2-conductor cable runs between the spa Water Temperature Sensor and the Power Center. 2conductor cable runs between the pool Water Temperature Sensor and the Power Center.

Freeze Temperature Sensor

2-conductor runs between the Freeze Temperature S ensor and the Power Center.

Caution

when cable goes underground.

Gas Heater Connections

Do not install low voltage and high voltage wires in the same conduit. Use conduit

THERMOSTAT

GAS VALVE

CONTROL

PRESSURE

LIMIT

OFF

GAS HEATERS

POOL SPA

GRN

RED

SPA SOL

GRN

RED

SPA WTRPOOL WTR

GRN

RED

POOL SOL

TEMPERATURE SENSORS

GRN

RED

CONTROL

GAS VALVE

PRESSURE

LIMIT

THERMOSTAT

GRN

FREEZE

SENSOR

RED

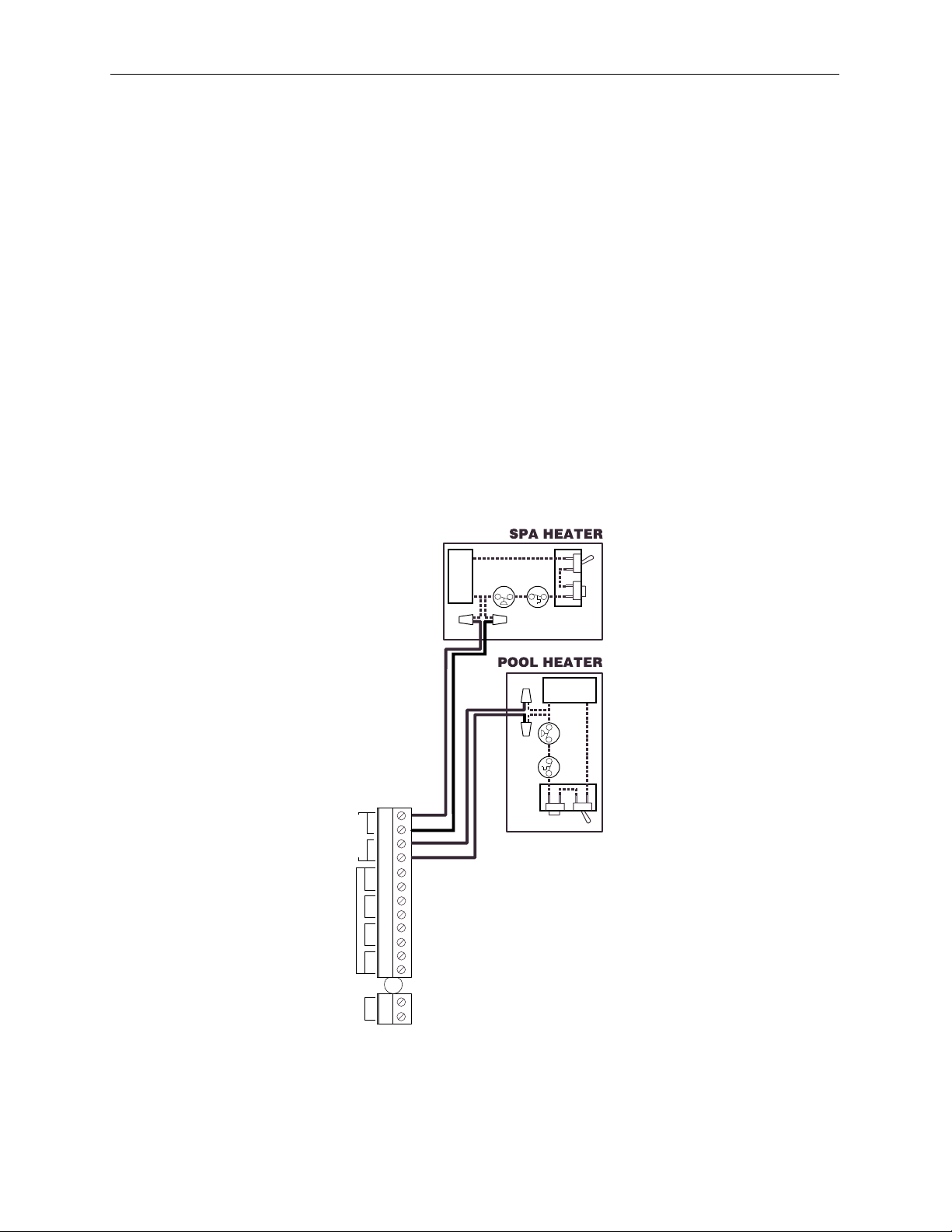

The diagram above shows how to wire the gas heaters.

• To wire the gas heaters

Page 16

1. Run 2-conductor cables from spa and pool heater to the Power Center.

2. At the heaters, connect 2-conductor cable as instructed in heater installation manual.

3. At the Power Center circuit board, connect 2-conductor cables to the GAS HEATERS terminals.

4. If the heater has electronic ignition, provide high voltage power from the Sub -panel.

Water Temperature Sensors

GAS HEATERS

POOL SPA

GRN

RED

SPA SOL

GRN

RED

SPA WTRPOOL WTR

GRN

RED

POOL SOL

TEMPERATURE SENSORS

GRN

RED

GRN

FREEZE

SENSOR

RED

GRN RED

Compool Cp3830

SPA W A TER SENSOR

POOL WA TER SENSOR

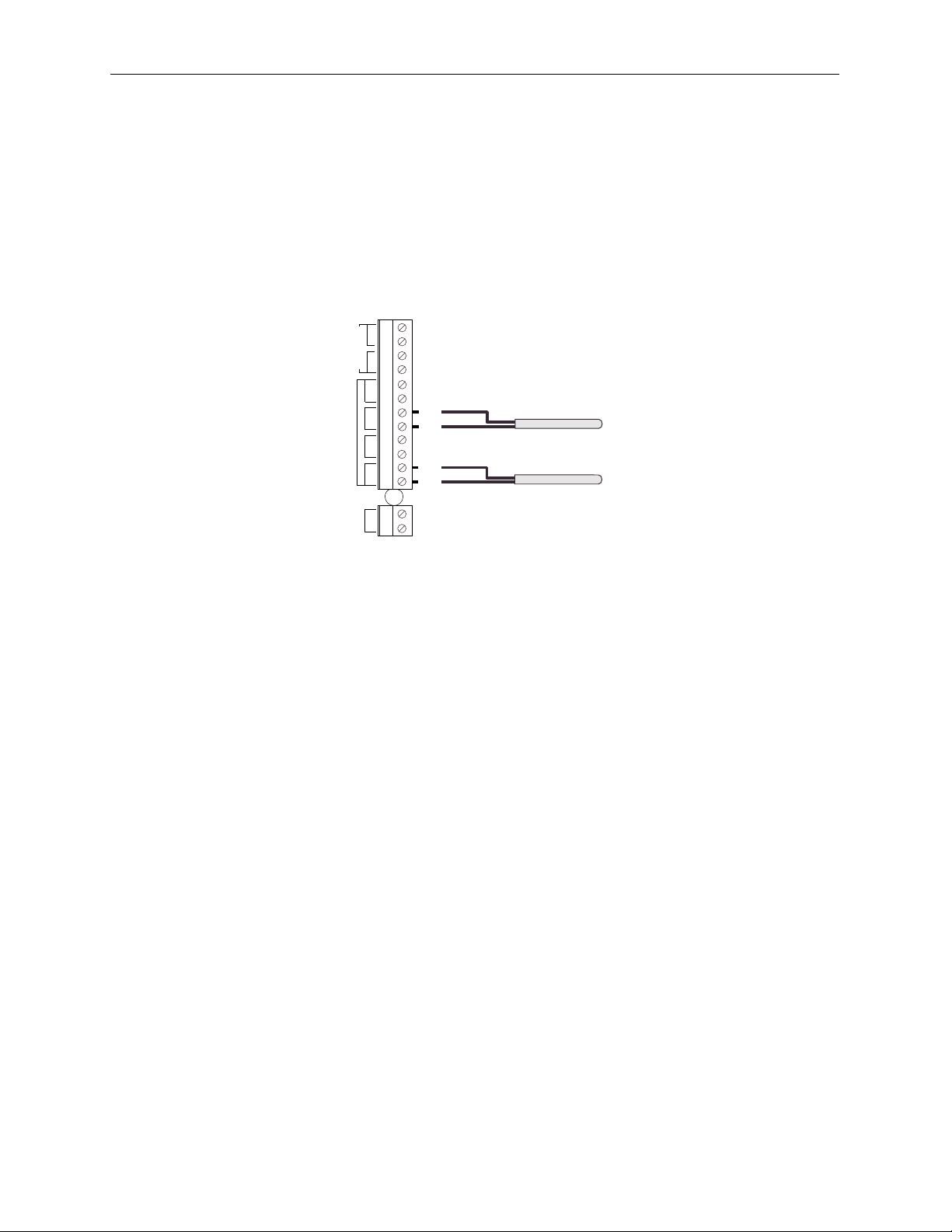

The Water Temperature Sensors measure the pool and spa temperatures.

• To wire the Water Temperature Sensors

1. Select a convenient location to mount the sensors between the filt er pump and filter.

2. Drill a 5/16 inch diameter hole in the pipe and insert the sensors.

3. Position the hose clamp over the sensors, and gently tighten around pipe.

Caution

Do not overtighten clamp.

4. Run a 2-conductor cable between each sensor and the Power Center.

5. At the sensors, use crimp connectors (included) to provide waterproof connections. Before making connections, cut off stripped ends of cable. Insert the 2 wires to be connected into the connector and squeeze the connector with a pair of pliers. Two extra connectors are included.

Caution

Do not strip wires.

6. At the Power Center circuit board, connect sensor wires to SPA WTR and POOL WTR screw terminals. Pay attention to color-coding of wires.

Calibration of the Water Temperature Sensors is required. See Calibration for details.

Note

Page 17

Compool Cp3830

Freeze Temperature Sensor

GAS HEATERS

POOL SPA

GRN

RED

SPA SOL

GRN

RED

SPA WTRPOOL WTR

GRN

RED

POOL SOL

TEMPERATURE SENSORS

GRN

RED

GRN

FREEZE

SENSOR

RED

GRN RED

FREEZE SENSOR

The Freeze Temperature Sensor measures air temperature at the equipment pad.

• To wire the Freeze Temperature Sensor

1. Install the sensor next to the Power Center.

2. Run a 2-conductor cable from the sensor to the Power Center.

3. At the sensor, use crimp con nectors (in cluded) to pro vide waterp roof con nections. Bef ore making connections, cut of f stripped ends of cable. Insert the 2 wires to be co nnected into the connector and squeeze the connector with pliers. Two extra connectors are included.

Caution

Do not strip wires.

4. At the Power Center circuit board, connect sensor wires to FREEZE SENSOR screw terminals. Pay attention to color-coding of wires.

5. Adjust the Freeze program switch at the bottom of the Power Center circuit board to determine which pumps should turn on during freeze protection.

Calibration of Freeze Temperature Sensor is required. See Calibration for details.

Note

Page 18

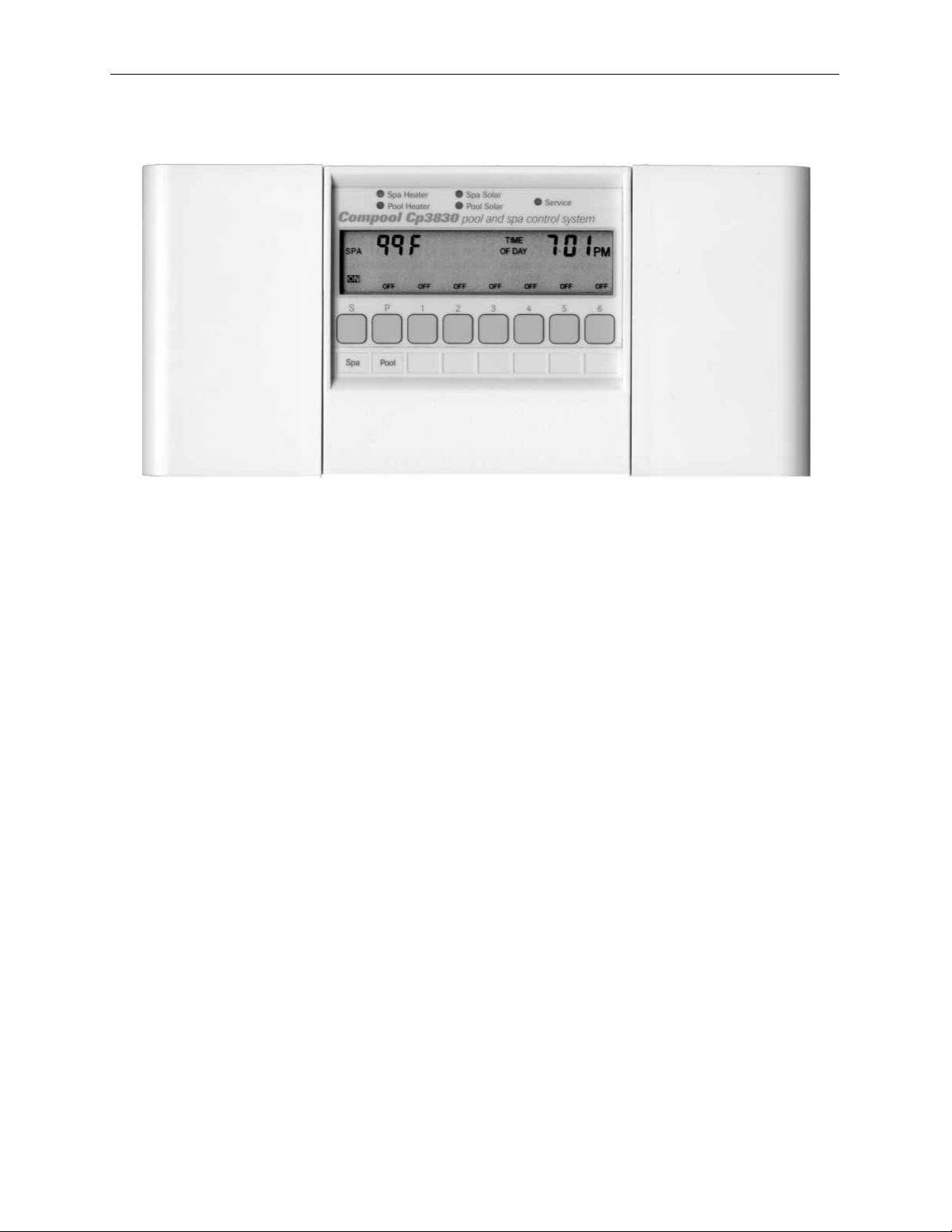

Control Panel

Compool Cp3830

• To install the Control Panel

1. Select a location inside the house or other weather-protected area to mount the Control Panel. The Control Panel should be installed at or below eye level.

2. Remove backplate from Control Panel. Position backplate and mark the three mounting points.

3. Drill 3/16” diameter holes at the three points. Insert mounting anchors (included) into the three holes.

4. Pull cable through large hole in backplate, use the three 1.25” screws to mount backplate to wall. Use crimping tool to connect modular connector to cable. See Modular Crimping Tool for details.

5. Plug modular connector into either COM PORT socket on the back of the Control Panel.

6. Use the four 1/2” screws (included) to mount the Control Panel to the backplate.

7. At the Power Center, us e the crimping tool to connect the modular conn ector to the cable. Plug modular connector into the COM PORT socket.

Page 19

Compool Cp3830

Modular Crimping Tool

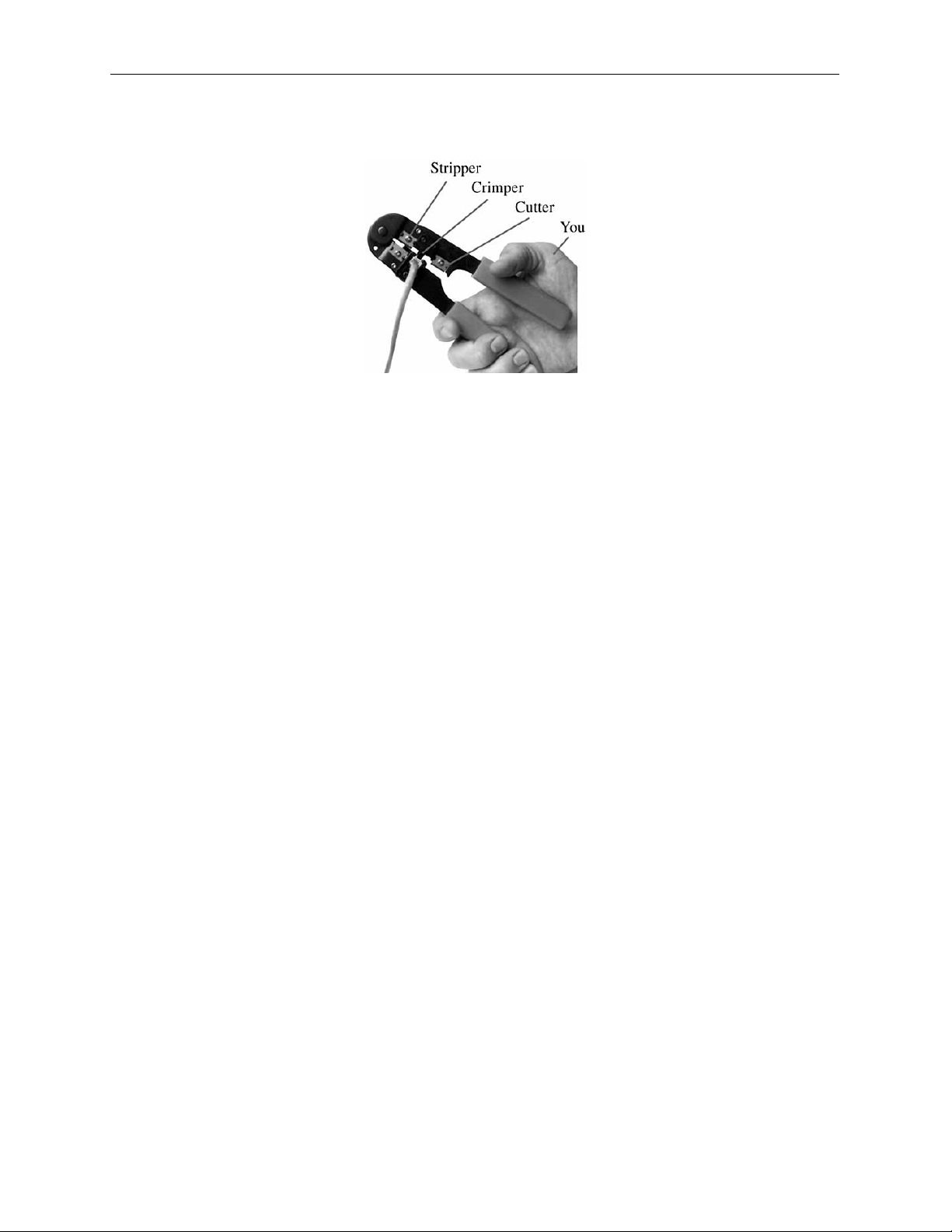

The Crimping Tool is required to attach modular connector s to the Hookup Cable. The tool may be purchased from a poo l supply store (model TOOL-6) . If purchasing from an el ectrical supply store, verify it is designed to crimp 6-position connectors.

• To install the modular connectors

1. Use stripper to remove cable jacket.

2. Insert modular connector into crimper slot.

3. Insert cable with blue wire closest to the tool handle.

4. Squeeze handle firmly to set secure connector.

It is required that position of blue wire is the same at both ends of the cable.

Note

Page 20

System Options

Spa-side Remote

• To install the Spa-side Remote

Compool Cp3830

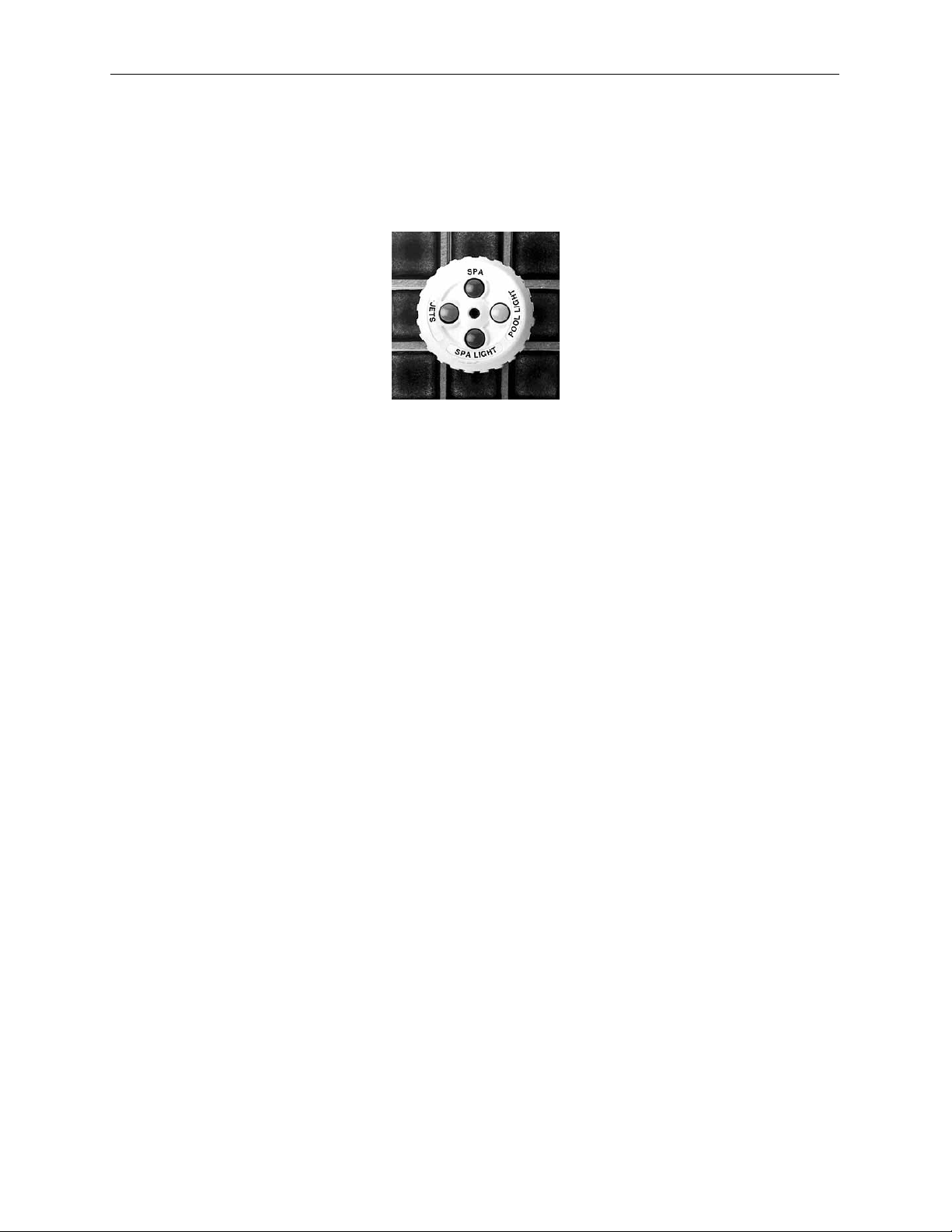

The Spa-side Remote is typically installed in the tile-line of the spa. See Plumbing Requirements for details.

1. When spa construction is completed, cut back the 1.5” dia. pvc pipe flush to the tile.

2. Thread mounting adapter onto Spa-side Remote.

3. Pull Spa-side Remote cable through conduit to Power Center.

4. Glue mounting adapter into 1.5” pvc pipe with pvc cement so that the red button will be on top.

5. At the Power Center, connect Spa-side Remote wires to appropriate screw terminals located at bottom of the of the circuit board.

GND

HLMP

HBST

SPA

POOL

REM1

REM2

REM3

REM4

REM5

SELECT 4 CIRCUITS

BLK

ORG

Switch 1

Switch 2

RED

YEL

Switch 3

GRN

REM6

Switch 4

BLU

6. Connect black wire to GND screw terminal.

7. Connect orange wire to HLMP screw terminal.

8. Determine which circuits you wish to control from within the spa, and connect the red, yellow, green and blue wires to the appropriate screw terminals.

HBST Activates Heat-Boost function. SPA Activates Spa mode.

Page 21

Compool Cp3830

9. Use labels provided to identify each button on the Spa-side Remote.

Note

Multiple Control Pa nels

It is possible to add additional Control Panels.

• To install an additional Control Panel

1. Mount Control Panel as described earlier.

2. Run the communication cable between each Control Panel. Two connectors are provided

POOL Activates pool filter pump. REM1 Activates AUX1 equipment. REM2 Activates AUX2 equipment. REM3 Activates AUX3 equipment REM4 Activates AUX4 equipment. REM5 Activates AUX5 equipment. REM6 Activates AUX6 equipment.

Install a second Spa-side Remote to control additional functions.

on the back of each Control Panel to allow “daisy chaining”.

Valve Actuator

If two Control Panels are being wired where each communication cable is run back to the

Note

Power Center, a coupler (model 6COND-DUAL) is required.

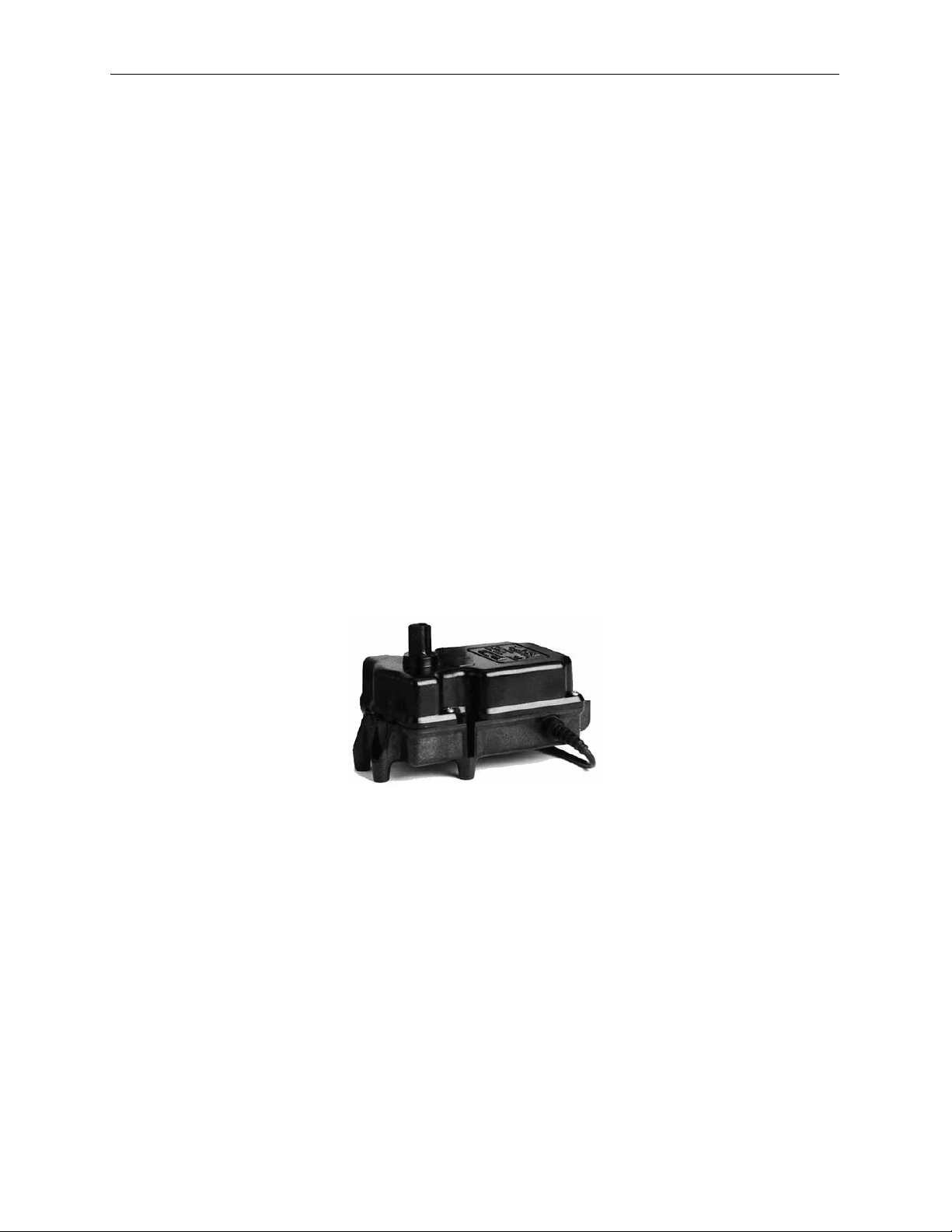

The Valve Actuator comes with 15 feet of cable. If this distance is not long enough, it is possible to splice in additional wire to lengthen cable. Use 3-conductor wire (model 3C ONDCVA).

• To install a Valve Actuator

1. Remove knob, handle and four cover screws from the valve to be motorized.

2. Use mounting screws provided to mount Valve Actuator.

3. Run Valve Actuator cable to the Power Center. Bundle up extra cable under Power Center. Do not store extra cable in the low voltage compartment.

4. At the top right corner of the Power Center circuit board, plug Valve Actuator cable into the AUX VLV socket.

5. The AUX VLV socket is most often used to control a so lar or cleaner Valve Actuator. To select which circuit will control the AUX VLV socket, connect jumper wire between AUX

Page 22

Valve Module

Compool Cp3830

VLV CNTRL socket and relay socket of choice. The system sh ips with the jumper connected between AUX VLV CNTRL and POOL SOL.

To control more than three Valve Actuators, see Valve Module for details.

Note

VLV1 WITH VLV2

VLV2

WITH

VLV3

COMPOOL 11040A

MOD-VLV3

CONTROL JUMPER

SOCKETS

VLV1

VLV2

VLV3

ACTUATORS

AUXILIARY VALVE

The Valve Module (model MOD-VLV3) allows the system to control three additional Valve Actuators.

• To install Valve Module

1. Attach Valve Module to the top of the Power Cent er circuit board.

2. Run Valve Actuator cable(s) to the Valve Module.

3. Plug each Valve Actuator cable into the 3-pin sockets (VLV1, VLV2, or VLV3).

4. Locate the 2-conductor jumper wires included with Valve Module kit. Each individually controlled Valve Actuator will require a separate jumper wire.

5. Connect one end of the jumper wire into CONTROL JUMPERS socket on the Valve Module. Connect the other end of the jumper wire into the Power Center circuit board at the appropriate relay socket (SPA FLTR, POOL FLTR, AUX1, AUX2, AUX3, AUX4, AUX5, AUX6, B/W, SPA EHTR, SPA SOL, POOL EHTR, POOL SOL, SPA 2SPD, FLR CLR, and POOL 2SPD).

6. The D.I.P. switch, located at the upper left-side of Valve Module, allows combining the operation of Valve Actuators.

Heat Pump or Electric Heater

These heaters require a relay kit (model RLY-LX) be added. The HTR connection used for gas heaters cannot be used.

• To wire a heat pump or electric heater.

1. At the Power Center, install the relay into the high voltage compartment. Plug control wire into SPA EHTR or POOL EHTR relay socket on the Power Center circuit board.

2. Run a 2-conductor cable the from heater to the Power Center.

3. At the heater, cut thermos tat wire and connect to 2-conductor cable.

4. At the Power Center, connect 2-conductor cable to LINE 1 and LOAD 1 of the relay terminal block.

Page 23

Compool Cp3830

Solar Heating

• To install solar equipment

GAS HEATERS

POOL SPA

GRN

RED

SPA SLR

GRN

RED

SPA WTRPOOL WTR

GRN

RED

POOL SOL

TEMPERATURE SENSORS

GRN

RED

GRN

FREEZE

SENSOR

RED

GRN

GRN RED

RED

GRN

GRN RED

RED

SPA SOLAR SENSOR

POOL SOLAR SENSOR

Each solar systems requires the following additional equipment, a Solar Temperature Sensor (model TS-5L), a Valve Actuator (model CVA-24T), and a solar valve (model SOL-2T).

1. Discard clamp included with sensor kit. For unglazed panels, fasten sensor next to solar panels. For glazed panels, suspend sensor between collector and glazing.

2. Run a 2-conductor cable from the sensor to the Power Center.

3. At the sensor, use crimp con nectors (in cluded) to pro vide waterp roof con nections. Bef ore making connections, cut of f stripped ends of cable. Insert the 2 wires to be connected into the connector and squeeze the connector with a pair of pliers. Two extra connectors are included.

Caution

4. At the Power Center circuit board, connect sensor wires to the SPA SOL or POOL SOL screw terminals. Pay attention to color-coding of wires.

5. Turn on the appropriate SYST configuration switch (SSOL and/or PSOL) located at the bottom of the Power Center circuit board.

6. Connect solar Valve Actuator cord into AUX VLV socket at the Power Center circuit board. Connect wire jumper between AUX VLV CNTRL socket SPA SOL and/or POOL SOL socket.

7. If two solar systems are being installed, the valve module (model MOD-VLV) needs to be installed. The second Valve Actuator cord is con nected to VLV1 on the valv e module and a jumper is connected between CONTROL JUMPERS and SPA SOL or POOL SOL socket.

Infield calibration of Solar Temperature Sensor(s) is required. See Calibration for details.

Note

Solar Booster Pump Control

If a solar booster pu mp is being us ed, install rela y kit (model RLY- LX) into Power Center . Plug control wire of relay into SPA SOL or POOL SOL socket.

Do not strip wires.

Two Speed Spa Filter Pump

If the system is equipped with a 2-speed spa filter pump, install a 2-speed relay kit (model RLY-

Page 24

Compool Cp3830

LXD) into Power Center.

There are two ways to configure the spa 2-Speed filter pump.

Automatic configuration.

The system will run the filter pump in “low speed” during normal operation, but will automatically switch the pump to “high speed” for 5 minutes whenever the spa filter pump turns on.

It is additionally possible to activate the pump in “high speed” whenever the SPA HEATER, or AUX2 is turned on. To enable the pump to run in “high speed” during these conditions, it is necessary to adjust the HI SPD program switch, which is located at bottom of the Power Center circuit board.

Connect RLY-LXD relay control wire into SPA 2SPD relay socket.

Manual configuration .

The system will run the spa filter pump in “low speed” during normal filter operation, but will switch the pump to “high speed” when the selected auxiliary circuit is activated.

Select an auxiliary circuit (AUX1 - AUX6), and connect RLY-LXD control wire into the appropriate relay socket.

Two Speed Pool Filter Pump

If the system is equipped with a 2-speed pool filter pump, install a 2-speed relay kit (model RLY-LXD) into Power Center.

There are two ways to configure the pool 2-Speed filter pump.

Automatic configuration.

The system will run the filter pump in “low speed” during normal operation, but will automatically switch the pump to “high speed” for 5 minutes whenever the pool filter p ump turns on.

It is additionally possible to activate the pump in “high speed” whenever the POOL HEATER, or AUX1 is turned on. To enable the pump to run in “high speed” during these conditions, it is necessary to adjust the HI SPD program switch, which is located at bottom of the Power Center circuit board.

Connect RLY-LXD relay control wire into POOL 2SPD relay socket.

Manual configuration .

The system will run the pool filter pump in “low speed” during normal filter operation, but will switch the pump to “high speed” when the selected auxiliary circuit is activated.

Select an auxiliary circuit (AUX1 - AUX6), and connect RLY-LXD control wire into the appropriate relay socket.

Tele phone Module

The Telephone Module (model MOD-TELSPA) allows turning the spa on/o ff from a ph one. If preferred, the Telephone Module can be conf igured to turn on/off the pool heater instead. The factory default is to control the spa.

Page 25

Compool Cp3830

• To install the Telephone Module

Dimmer Relay

• To install the Dimmer Relay

To change spa command to pool heater, change the 2 jumpers, which are located at bottom of the Power Center ci rcuit board. Move both jumpers to POOL HEAT posi tion.

1. Install the Telephon e Module into th e low voltage compartment of the Power Center.

1. Run a phone line to the Telephone Module.

2. Connect the 4-wire interface cable from the Telephone Module into the PHONE socket at the bottom of the Power Center circuit board.

A maximum of two Dimmer Relays (model RLY-DIM) can be installed. Th ese relays are controlled by Equipment keys 3 and 4. Each relay can switch a maximum of 1000 watts.

1. Install the Dimmer Relay(s) into high the voltage compartment.

2. Plug the control wire(s) into DIM 3 and/ or DIM 4 sockets.

3. Turn on SPC FNCT configuration switch DIM3 and/or DIM4 located at bottom of the Power Center circuit board.

Backwash Control

• To install the Backwash Control

Floor Cleaner Valve

The backwash control system is designed to automatically backwash the pool filter on a timed basis. This feature uses the B/W circuit to control the two backwash valves.

To install an automatic backwash system, you must have a sand filter with a side inlet and outlet. The following additional equipment is required, one Valve Module (model MOD-VLV3), three Valve Actuators (model CVA-24T), and three 3-port valves (model PTV-2T).

1. Connect a jumper wire between the B/W socket and the Valve Module CONTROL JUMPERS socket. Turn on D.I.P. switch number 1 and 2 on the Valve Module.

2. Connect backwash Valve Actuator cords into VLV, VLV2, and VLV3 sockets on the Valve Module.

3. Turn on SPC FNCT configuration switch B/W located at the bottom of the Power Center circuit board.

4. Program the backwash interval and duration times at the Control Panel. See Calibration for details.

The Floor Cleaner Valve is designed to control a dual zone floor cleaning system. The Floor Cleaner Valve can be programmed to rotate once every 5-60 minutes while the pool filter pump is on. Additional parts required, one Valve Actuator (model CVA-24T), and one 3-port valve (model PTV-2T).

• To install the Floor Cleaner Valve

1. Install Valve Actuator onto Floor Cleaner valve.

Page 26

Compool Cp3830

2. Plug valve actuator cord into AUX VLV socket on Power Center circuit board.

3. Connect a jumper wire between the AUX VLV CNTRL and the FLR CLN sockets.

4. Turn on SPC FNCT configuration switch FLRCL located at the bottom of P ower Center circuit board.

5. Program the time interval at the Control Panel. See Calibration for details.

Page 27

Compool Cp3830

Configuration Switches

FREEZE

AUX4

AUX5

AUX6

12345

FDEL

CLNR

12345

SFLT

PFLT

AUX1

AUX2

AUX3

FREEZE I/L SYST

MANHT

SSOL

SHPMP

PSOL

PHPMP

FLRCL

12345

DIM3

DIM4

B/W

SPC FNCT

SHEAT

SAUX2

PHEAT

HI SPD

PAUX1

After setting configuration switches, turn system power off for a few seconds.

Freeze settings are used to configure the following equipment.

SFLT Activate spa filter pump during freezing conditions.



PFLT Activate pool filter pump during freezing conditions.



AUX1 Activate AUX1 during freezing conditions.



AUX2 Activate AUX2 during freezing conditions.



AUX3 Activate AUX3 during freezing conditions.



AUX4 Activate AUX4 during freezing conditions.



AUX5 Activate AUX5 during freezing conditions.



AUX6 Activate AUX6 during freezing conditions.



I/L - Interlock

Interlock settings are used to configure the following equipment.

FDEL Activate filter delays (heater cool down).



CLNR Activate cleaner interlocks. Cleaner must be installed on AUX1.



SYST - System

System settings are used to configure the following equipment.

MANHT Activate heater when spa is manually turned on.



SSOL Activate spa solar system.



SHPMP Activate spa heatpump as secondary heat source.



PSSOL Activate pool solar system.



PHPMP Activate pool heatpump as secondary heat source.



FLRCL Activate floor cleaner valve.



SPC FNCT - Special Functions

Special Functions settings are used to configure the following equipment.

DIM3 Activate dimmer for AUX3 circuit.



DIM4 Activate dimmer for AUX4 circuit.



B/W Activate backwash circuit.



Page 28

HI SPD - High Speed

PHONE CONTROLS

System Start-up

• To perform initial start-up

High Speed settings are used to configure the following equipment.

SHEAT Activate high speed when spa heater is on.



AUX2 Activate high speed when AUX2 is on.



PHEAT Activate high speed when pool heater is on.



PAUX1 Activate high speed when AUX1 is on.



Phone Controls settings are used to configure the following equipment.

POOL HEAT Activate pool Heat Source key.



SPA Activate Spa key.



Compool Cp3830

1. At the Power Center, press the Auto/Service key to select Service mode.

2. Press Equipment keys (Spa Filter Pump, Pool Filter Pump, 1, 2, 3, 4, 5, and 6,) verify equipment is being activated.

3. Press the Heater keys, verify heaters fire (Filter pumps must also be on).

4. Press the Solar keys, verify solar valves (if applicable) rotate to solar position. If either valve is 180 degrees out of phase, flip the toggle switch on the rear of Valve Actuat or to reverse phase (ON1/ON2).

5. Check Sensor Status lights. If a light is on, check appropriate sensor wiring and connections.

6. Press the Auto/Service key to select Auto mode.

7. At the Spa-side Remote, press the Red, Yellow, Green, and Blue key, verify equipment is being activated. Verify the light in the middle of the remote turns on.

8. At the Cont rol Panel, press Equipment keys (Spa, Pool, 1, 2, 3 , 4, 5, and 6), verify equipment is being activated.

9. Affix labels provided to identify Equipment keys at the Control Panel, Power Center, and Spa-side Remote.

10. Calibrate sensors. See Calibration for details.

11. Program equipment as needed. See Programming for details.

Page 29

Compool Cp3830

Operating Instructions

Control Panel

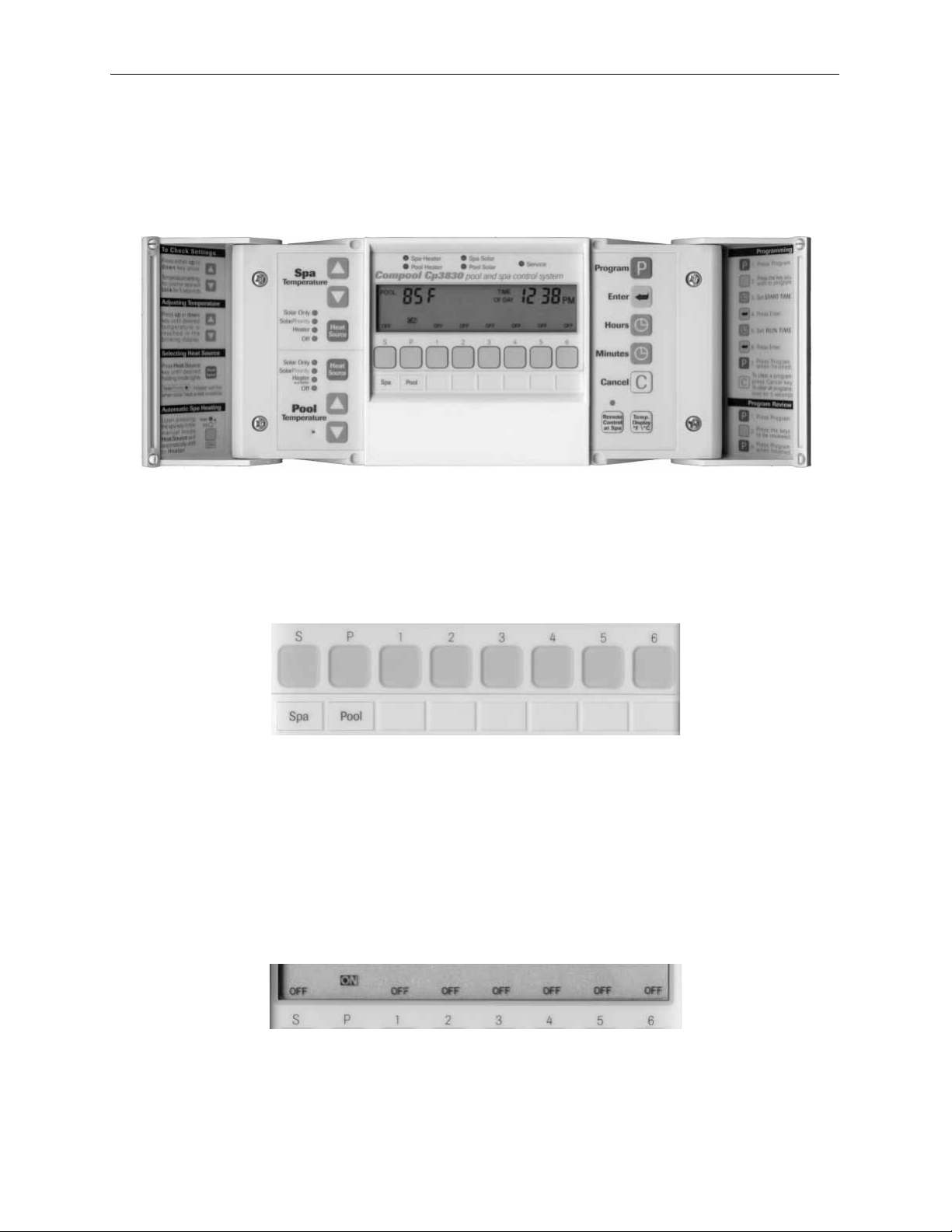

Installed at a conven ient location inside th e house, th e Control Panel provi des comp lete contr ol of all the equipment associated with your swimming pool and spa. The system comes with one Control Panel, however additional Control Panels may be added as needed.

Equipment Keys

Equipment keys activate the Spa, Pool, and up to 6 additional items. Each key can be customlabeled for your specific application. To turn equipment on or off, press the appropriate Equipment key once. An audible beep will indicate the key has been pressed.

Note

the day.

Equipment Status Icons

Turning off equipment that has been turned on by a program will cancel that program for

Equipment Status icons are located above each Equipment key.

A solid ON indicates the equipment is on.



Page 30

A solid OFF indicates the equipment is off.



A blinking ON indicates the cleaner is in a safety delay mode. The cleaner will turn on in



5 minutes.

A blinking OFF indicates the heater is in a cool down mode. The pool will turn off after



10 minutes .

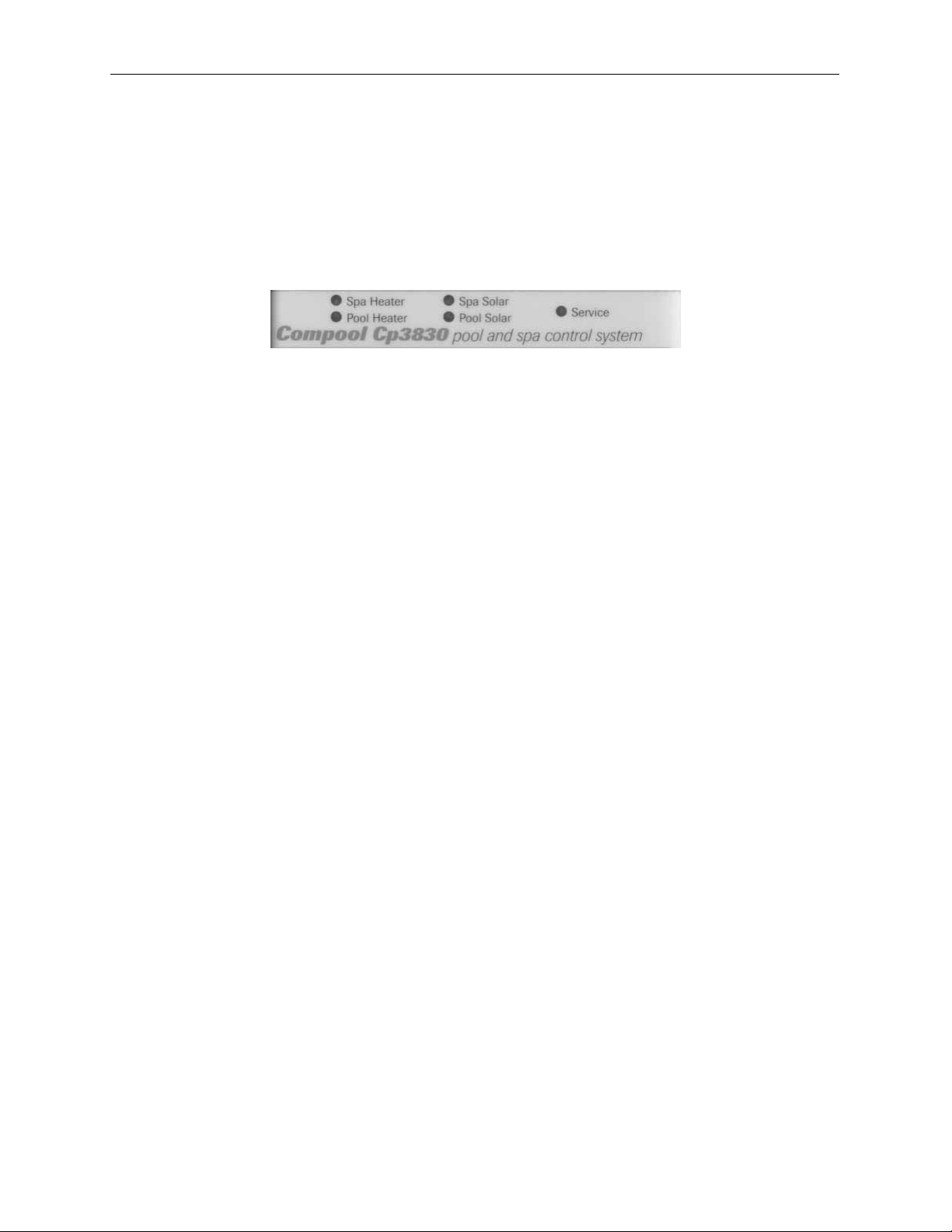

Equipment Status Lamps

Five equipment Status lights are located on the top of the Control Panel.

Compool Cp3830

Spa



Spa



Pool



Pool



 Service

Heater Protection

When the spa or pool is turned off, the system may keep the filter pump on for an additional 10 minutes to allow the heater to cool down. During this cool down cycle, and icon on the display will indicate DELAY. Some heaters do not require a cool down period, so this function may have been disabled. See Configuration Switches for details.

Cleaner Protection

Systems with an automatic pool cleaner (booster pump type) will have been set up to control it with equipment key 1. The cleaner will operate in the following way.

Cleaner turns on pool.



Cleaner turns on after 5 minute delay.



Cleaner is disabled for 5 minutes when the spa solar turns on.



Canceling Heater and Cleaner Protection

For testing purposes only, it is possible to cancel the heater and cleaner protection by pressing the CANCEL key, which is located behind the right-side door of the Control Panel.

Light on indicates the spa heater is on.

Heater

Light on indicates the spa solar is on.

Solar

Light on indicates the pool heater is on.

Heater

Light on indicates the pool solar is on.

Solar

Blinking light indicates the system is in Service Mode.

Page 31

Compool Cp3830

Temper ature Control

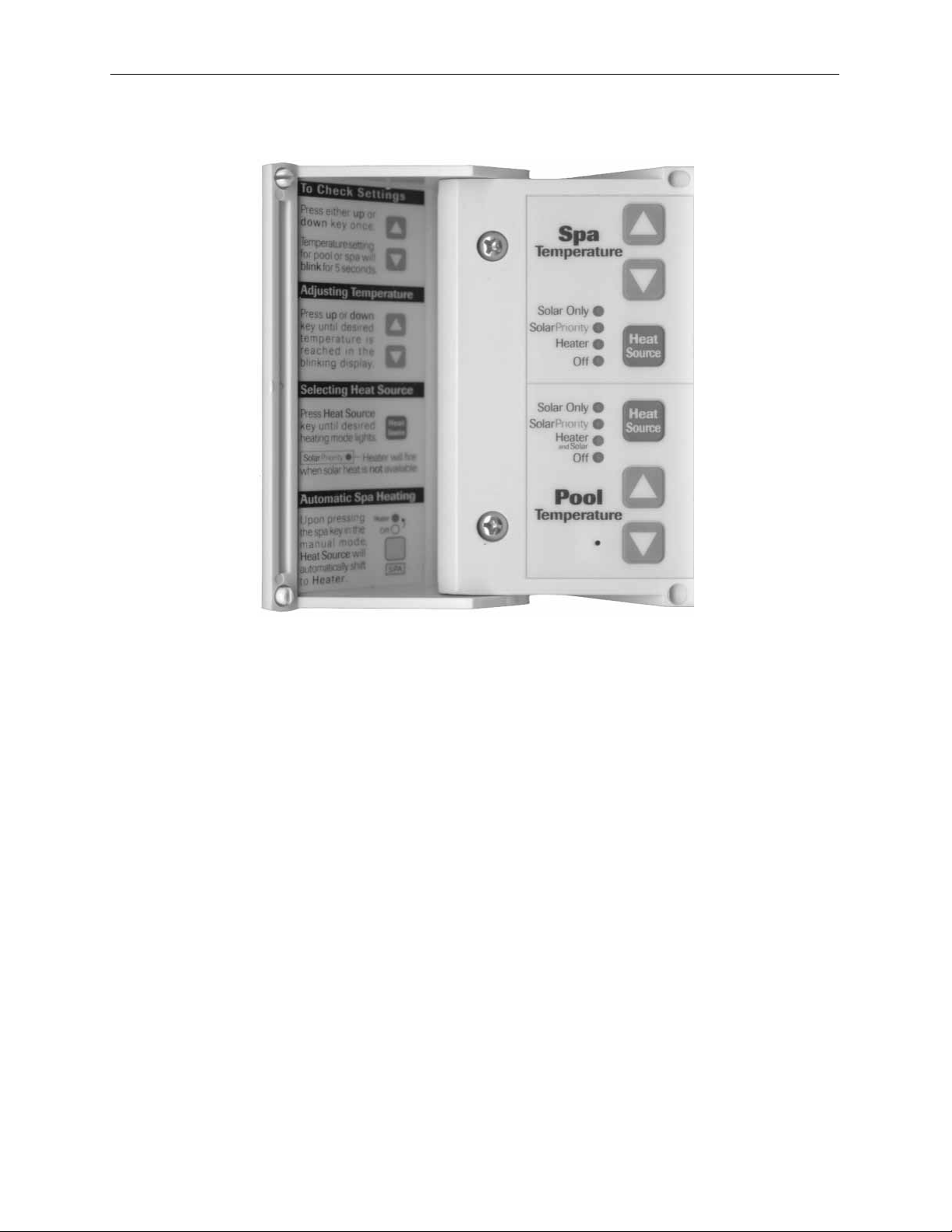

Located behind the left door of the Control Panel is the Temperature Control area. Heating choices are selected using the following keys.

Heat Source key

To select heating method, press the Heat Source key through the different heating options.

 Solar Only -  Solar Priority-  Heater -  Off -

For added convenience, whenever the sp a is manu ally activated (fr om either the Control Panel or the Spa-side Remote), the Spa Heat Source Lamp will automatically switch to “Heater”. Turning the spa off will return Spa Heat Source Lamp to its previous position.

Note

available.

Temperature keys

To adjust the pool or spa temperature settings, press the appropriate Temperature key once. SET TEMP will be displayed. Press the Temperature keys to adjust desired water temperatur e. After 5 seconds, the display will automatically return to its original condition.

No heating.

If system does not incorporate solar, the Solar Priority and Solar Only options will not be

Heat with solar only.

Heat with solar when available, otherwi se switch to gas heater.

Heat with gas heater and solar when available.

Page 32

Fahrenheit/Celsius key

Located behind the right-door of the Con trol Pan el is the Temp. Displ ay key. Press this key to select Fahrenheit or Celsius temperature display.

Programming

Compool Cp3830

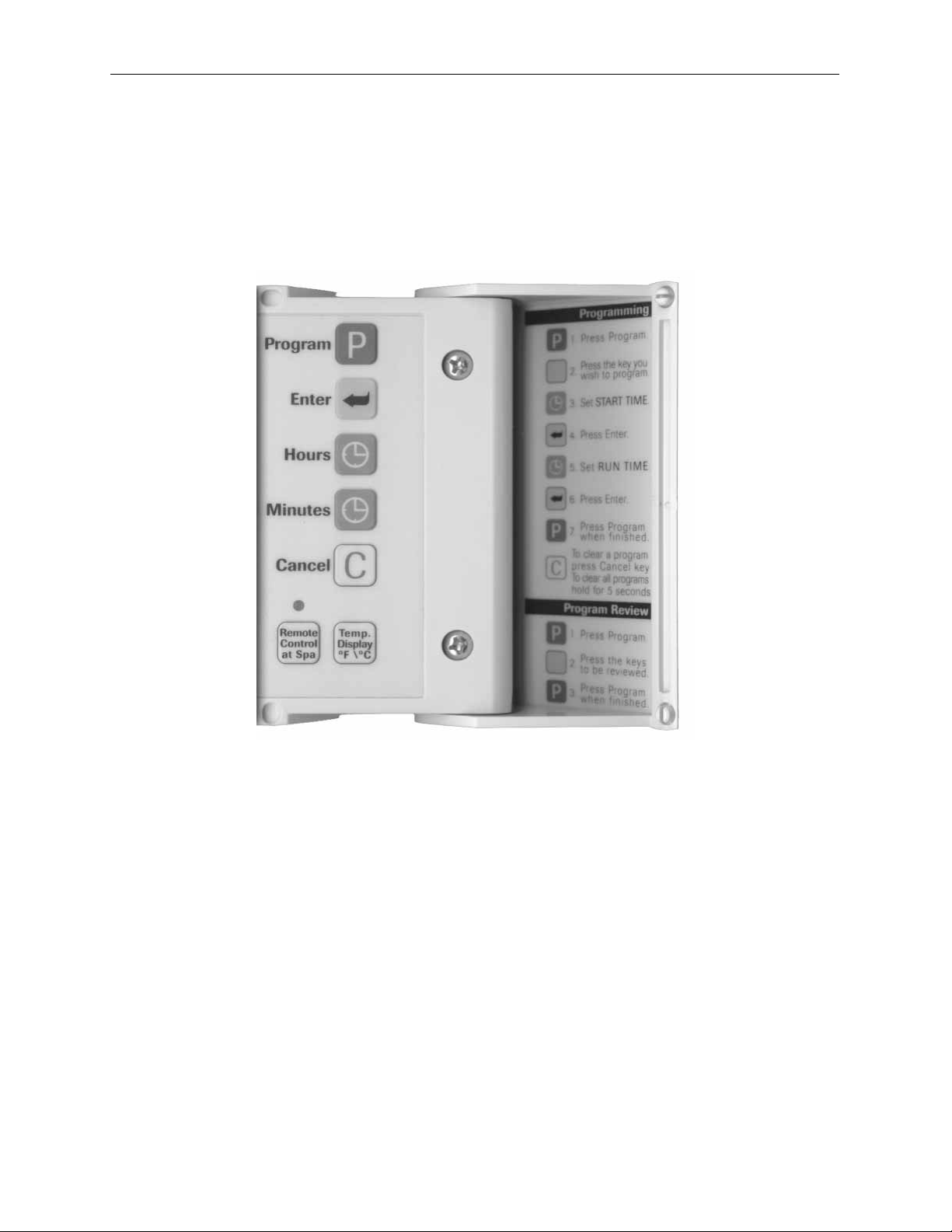

Behind the right door of the Control Panel are the keys used to Program equipment.

Page 33

Compool Cp3830

Programming

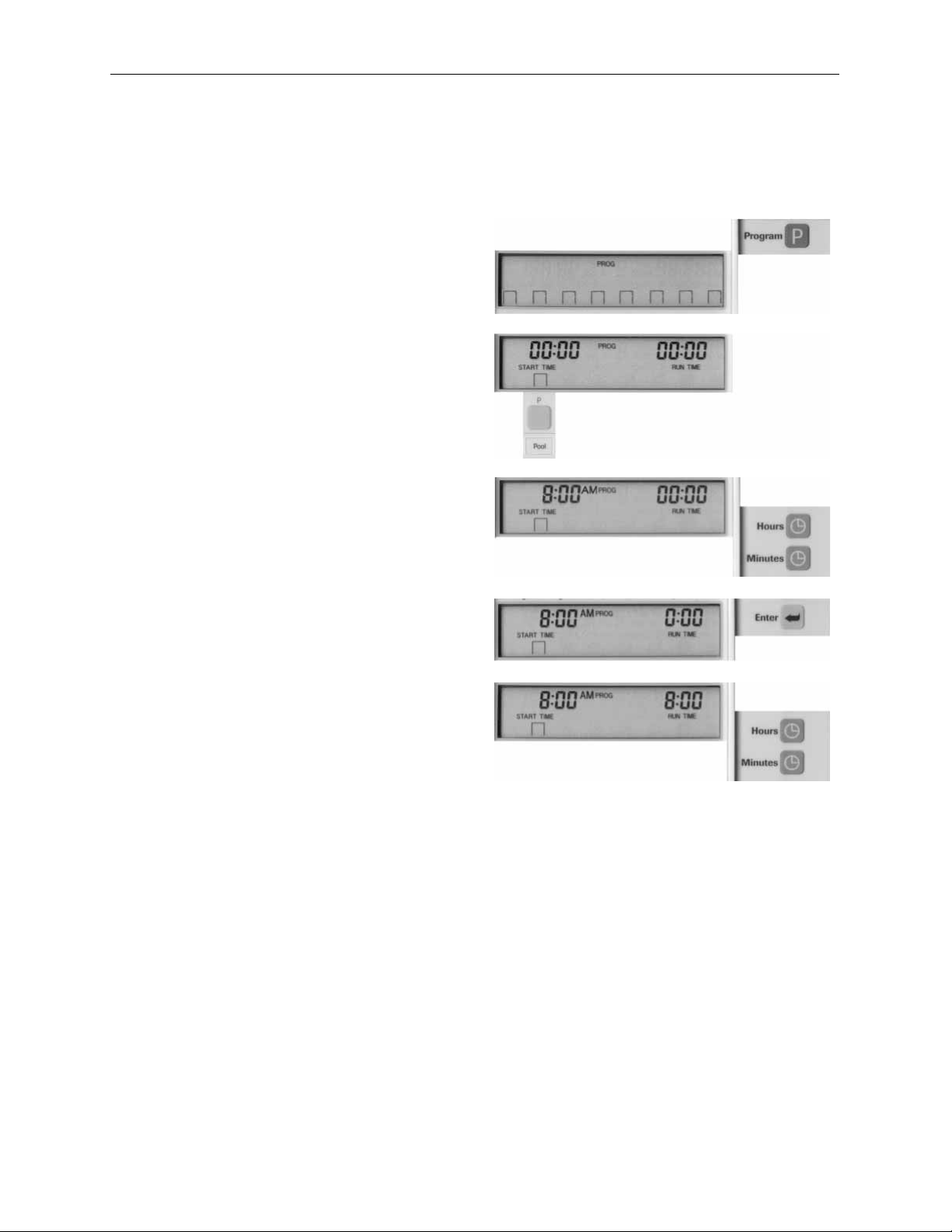

• To program Pool filtration

Typically only the Pool and Spa keys (filtration) needs to be programmed. Other Equipment keys can be programmed the same way.

1. Press the Program key.

2. Press the Pool key.

3. Press the Hours/Minut es ke y to set the START TIME.

4. Press the Enter key.

5. Press the Hours/Minut es ke y to set the RUN TIME.

6. Press the Program key to end.

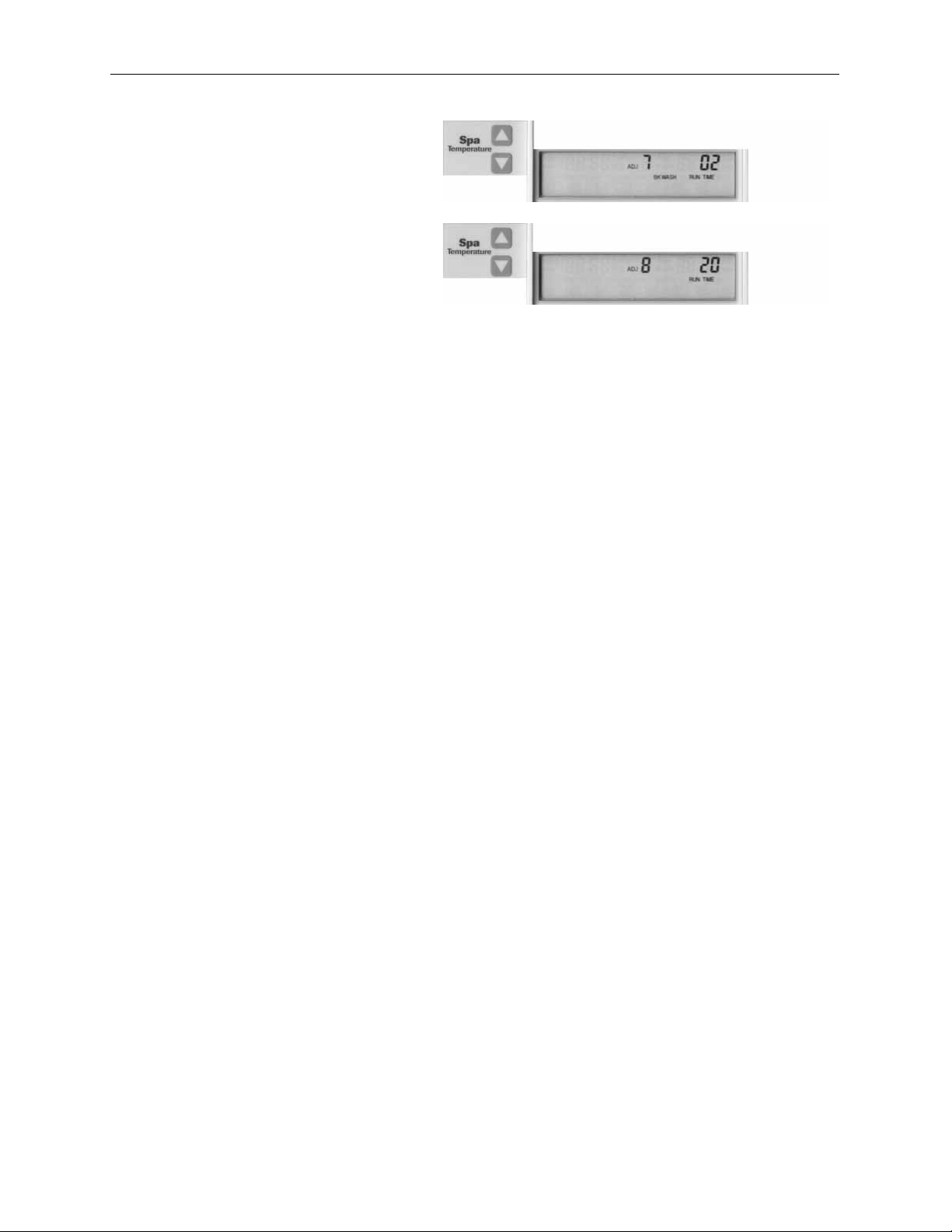

Programming additional Run Times

It is possible to program up to four separate START TIME and RUN TIME’s for each equipment key. Follow the previous example to step 2, then press the same equipment key until PROG 2 is displayed. Continue with steps 3-6 to enter the second START TIME and RUN TIME.

Programming a Time-out

By default, manually activated equipment will Time-out after 12 hours. However, it is possible to program a different Time-out period for each equipment key.

Follow Programming example, set START TIME to 0:00 hours. Set RUN TIME to the number of Hour/Minutes before equipment should Time-out.

Page 34

If the RUN TIME is set for 24 hours, manually activated equipment will run continuously

Note

until manually turned off.

Programming a Once-only

The Once-only program is used to start the spa after a few hours , for example, you would like to have the spa start in 2 hours. Once the program executes, it is automatically erased.

Follow the programming example above, enter the time the Spa s hould start (START TIME) and set the RUN TIME to 0:00.

Canceling Programs

• To cancel all of the programs

1. Press the Program key. The Display will show a row of blinking icons located immediately above the eight Equipment keys.

2. Press and hold down the Cancel key for 5 seconds. After 5 seconds, a continuous alarm will sound (until you release the Cancel key), indicating that all of the programs have been erased.

3. Press the Program key to end.

• To cancel an individual program

Compool Cp3830

1. When programming or reviewing a pro gram, pressing the Cancel key will return the START TIME and RUN TIME to “0:00”.

Setting the Time of Day

To set the TIME OF DAY, press the Hours/Minutes key to set correct time. Pay attention to the AM/PM symbol.

Remote Control at Spa key

It is possible to disable the Spa-side Remote from your Control Panel by pressing the Remote Control at Spa key. The key is located behind the right-side door of the Control Panel. If the status lamp is on, the Spa-side Remote is operational. If the status lamp is off, the Spa-side Remote is disabled.

Page 35

Compool Cp3830

Calibration

• To calibrate equipment

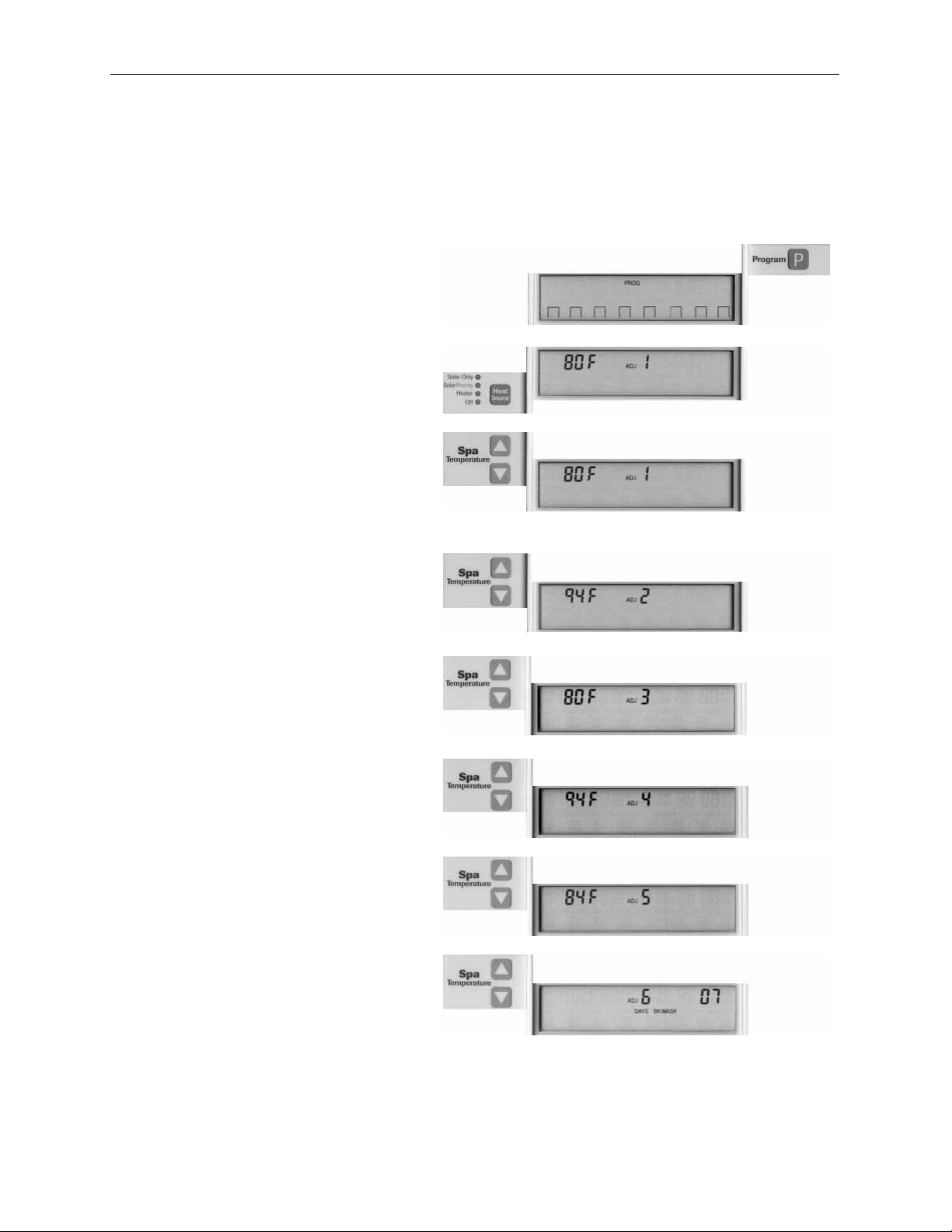

The temperature sensors, backwash, and floor cleaner valve can be adjusted in the calibration mode. Allow the spa and pool to run 5 minutes before calibrating the Water Temperature Sensors.

1. Press the Program key.

2. Press the Spa Heat Source key.

3. Enter correct pool water temperature and press Spa Heat Source key.

4. Enter correct pool solar temperature and press Spa Heat Source key.

5. Enter correct spa water temperature and press Spa Heat Source key.

6. Enter correct spa solar temperature and press Spa Heat Source key.

7. Enter correct air temperature and press Spa Heat Source key.

8. Enter number of days between backwash and press Spa Heat Source key.

Page 36

Compool Cp3830

9. Enter number of minutes to backw ash and press Spa Heat Source key.

10. Enter floor cleaner valve cycle time and press Spa Heat Source key.

11. Press the Program key to end.

Solar, backwash, and floor cleaner valve adjus tments are skipped if feature is not enabled .

Note

Tips for calibrating the temperature sensors

 Water Sensors

to accurately pickup current water temperatures.

 Solar Sensors

measurement.

 Freeze Sensor

Let the spa and pool run for 5 minutes to allow water temperature sensors

Put a thermometer into direct sunlight and add 10 degrees to the

Shade thermometer from direct sunlight.

Page 37

Compool Cp3830

Power Center

Equipment keys

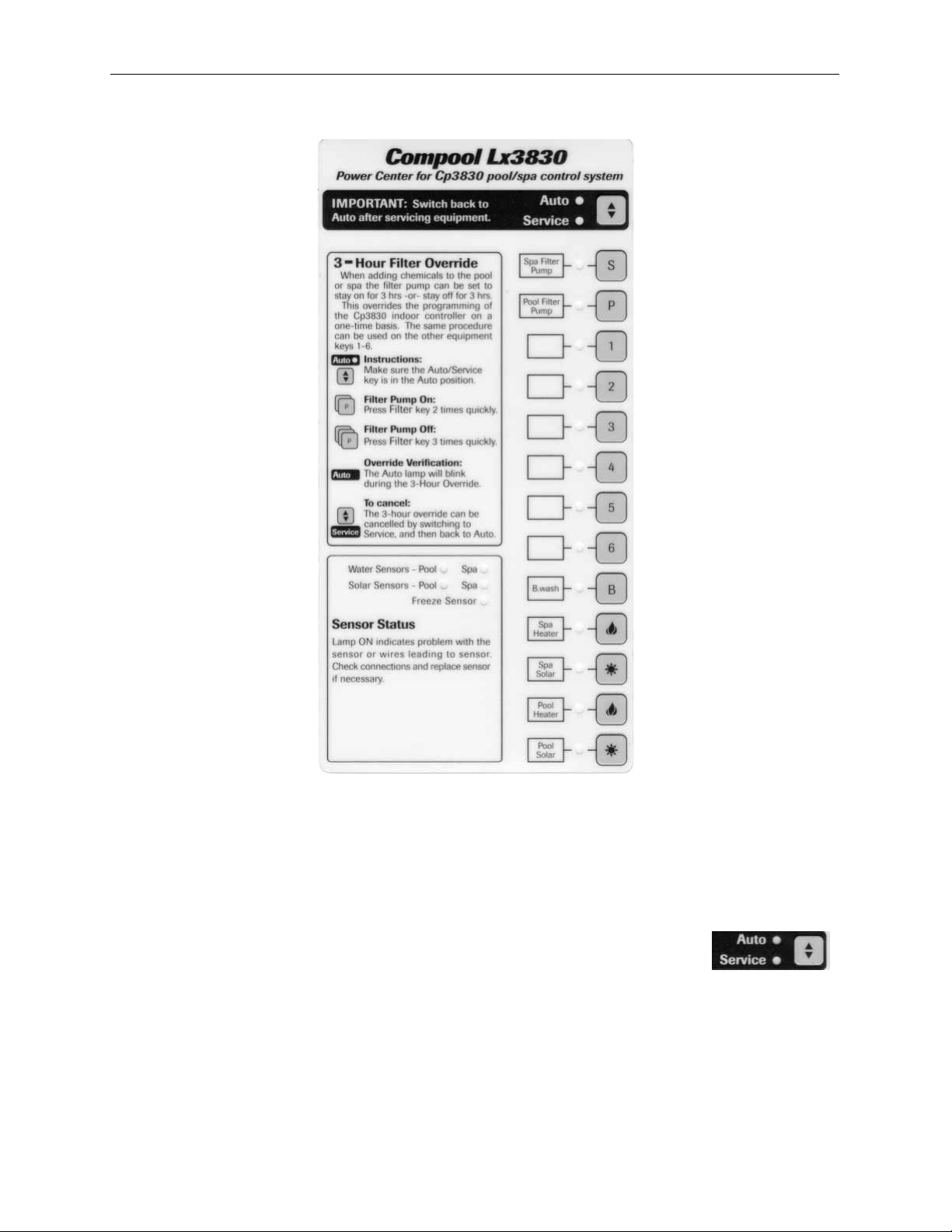

Located at the equipment pad, the Power Center provides manual-override capability of your equipment.

Caution

The Auto/Service key toggles the Power Center between th e fo llowing modes.

 Auto  Service

A blinking “Auto” status lamp indicates that the equipment is undergoing a 3-Hour program override. See 3-hour Filter Override for details.

To prevent water damage, close Power Center door after use.

Control Panel and Spa-s ide Remo te ar e e nabled. Power Center keys are disabled. Power Center keys are enabled. Control Panel and Spa-side Remote are

disabled.

Page 38

Compool Cp3830

Caution

in equipment interlocks and safety delay circuits.

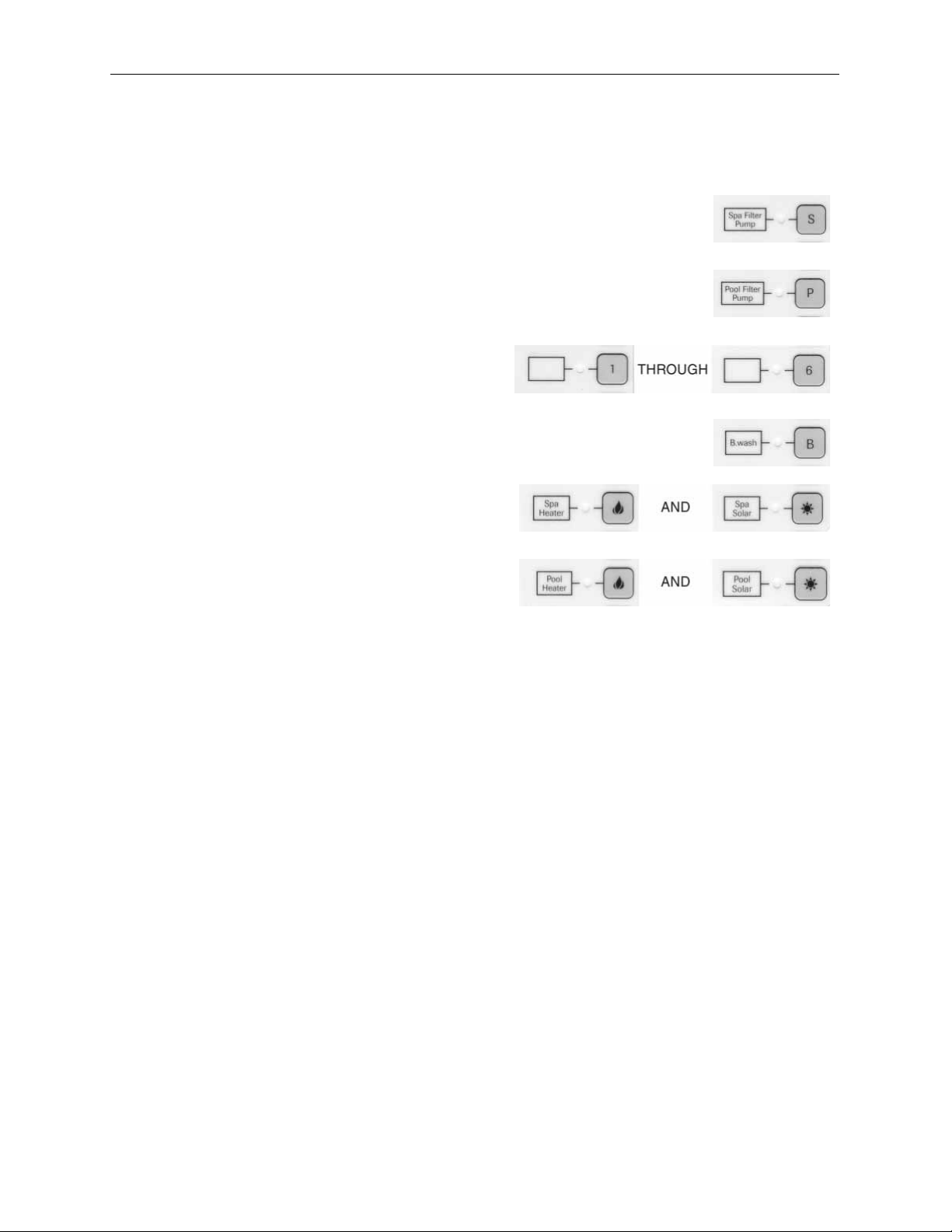

The S key turns on the

The P key turns on the

Keys 1-6 activate auxiliary equipment.

Activates the Backwash.

Activates the Spa Heater and Solar.

Activates the Pool Heater and Solar.

Manual-activation of equipment from the Power Center, will override any of the built-

Spa Filter Pump.

Pool Filter Pump.

3 - Hour Filter Override

It is possible to override the daily equipment operating cycles, and manually activate (or deactivate) the filter pumps and any of the 6 auxiliary circuits for a 3-Hour period. This is particularly useful when adding chemicals to the pool.

Note

To turn the filter pump on, press the P key (Filter Pump) 2 times quickly. The “Auto” mode Status Lamp will begin to blink, and the Filter Pump Status Lamp will illuminate for the 3-Hour cycle.

To turn the filter pump off, press the P key (Filter Pump) 3 times quickly. The “Auto” mode Status Lamp will begin to blink, and the Filter Pump Status Lamp will not be illuminated during the 3-Hour cycle.

Sensor Status

If there is a fault with a temperature sensor, the appropriate status lamp will turn on. Check cable and connections to appropriate sensor. If necessary, replace Temperature Sensor.

The Control System must be in “Auto” mode to enable these feature.

Page 39

Compool Cp3830

System Options

Spa-side Remote

Spa-side Heat Boost

The Spa-side Remote allows controlling your equipment from the spa. The light in the middle of the switch will turn on whenever the spa is on. The light will blink when the spa is being heated.

If your Spa-side Remote has one of its buttons designated for the controlling the Heat Boost feature, it is possible to manually activate the heater, and boos t the spa temperature for a five minute period. This feature can only be activated if the Spa-side Remote light is not blinking.

Tele phone Module

To activate the Heat Boost, press the desi gnated button. The light will blin k during the 5-minute cycle to indicate that the spa is being heated. If you wish to turn the heater off at any time during this 5-minute cycle, press the Heat Boost button again. The ligh t will stop blinking to indicate that the spa is no longer being heated.

The Telephone Module can control your equipment from inside your home or by calling your home from a remote location.

The Telephone Module is most often setup to control the spa, however if the home is a vacation home, you may want to configure it to turn on your pool heater instead. See Configuration Switches for details.

To turn the spa ON or OFF, follow this command:

Press ‘772’ or ‘SPA’. 2 confirming beeps ind i cated spa is on, 3 confirming beeps indicate



spa is off.

To turn the pool heater ON or OFF, follow this command:

Press ‘487’ or ‘HTR’. 2 conf irmi ng beeps indicated po ol heati ng is enabl ed, 3 conf i rming



beeps indicate pool heating is off.

Controlling the Telephone Module from outside the home uses the same procedure as described above. The Telephone Module will answer the phone after 30 seconds if no other device answers the phone first. If another device answers the phone first, like an answering machine or fax machine, the Telephone Module will listen fo r the commands.

Page 40

2-speed Spa Filter Pump Control

The 2-speed spa filter pump can be switched to high speed under the following conditions.

Heater/Solar is on.



AUX2 is on.



When the 2-speed filter is turned on, it will start in high speed and automatically switch

Note

to low speed after 5 minutes.

2-speed Pool Filter Pump Control

The 2-speed pool filter pump can be switched to high speed under the following conditions.

Heater/Solar is on.



AUX1 is on.



When the 2-speed filter is turned on, it will start in high speed and automatically switch

Note

to low speed after 5 minutes.

Spa Waterfall Control

The Spa Waterfall feature is similar to filling the spa. This feature uses Equipment key number “2”. See Configuration Switches for details.

Compool Cp3830

Freeze Protection

Where freezing temperatures occur for a few days, it is possible to protect equipment from freeze damage by turning on pumps.

When the Freeze Temperature Sensor detects 35 degrees Fahrenheit or less, the system starts Freeze Protection. An icon on the Control Panel will display FRZ to indicate that Freeze Protection is active. Every 15 minutes the pool/spa valves will rotate to protect the spa plumbing. When air temperature rises above 37 degrees Fahrenheit, the Freeze Protection mode stops. See Configuration Switches to determine what equipment will turn on during Freeze Protection.

Note

must be protected by other methods. See Plumbing Requirements for details.

Winterizing the System

In areas where freezing temperatures occur fo r an extended period of time, it is required to consult a qualified service company to winterize your pool.

Freeze Protection will not provide circulation of water through solar panels. Solar panels

Page 41

Compool Cp3830

Problem Solving

Display shows “Err 1”

If there is a fault with the spa or pool Water Temperature Sensor, the display will show “Err 1”.



Display shows “Err 2”

If there is a fault with the spa or pool Solar Temperature Sensor, the display will show “Err 2”.



Display shows “Err 3”

If there is a fault with the Freeze Temperature Sensor, the display will show “Err 3”.

Check water sensor cable and connections. Replace Water Temperature Sensor (model TS-5L).

Check sensor cable and connections. Replace Solar Temperature Sensor (model TS-5L).

Check sensor cable and connections.



Replace Freeze Temperature Sensor (model TS-5L).



Display shows “Err 4”

If the Control Panel is not able to communicate with the Power Center, the display will show “Err 4”.

Check communication cable and connections.



Use test cable provided in low voltage compartment of the Power Center to determine if



the cable is the problem.

Display shows “Err 5”

If there is a short at the Spa-side Remote, the display will show “Err 5” and the Remote Control is disabled (see L.E.D. behind right door of Control Panel).

Replace Spa-side Remote switch.



Temperature display is not correct

Calibrate Water Temperature Sensor. See Calibration for details.



Heater does not operate

Check desired water temperature setting. See Control Panel for details.



Check Heat Source key. See Control Panel for details.



Check switches on heater.



Page 42

Compool Cp3830

Heat Source does not allow Solar

At the Power Center circuit board, the SYST configuration switch SSOL or PSOL needs



to be turned on. See Configuration Switches for details.

Solar heating stops too soon

Verify solar temperature is calibrated correctly. See Calibration for details.



Spa-side Remote does not operate

At the Control Panel, v erify R emote Contro l at Spa lamp (behi nd right-si de door) is turn ed



on.

No display at Control Panel

Check circuit breakers in the Sub-panel and Power Center.



Check communication cable.



Clock lost time after power failure

Replace battery located on Power Center circuit board.



System not responding

Reset the Control Panel. Locate small hole next to the Pool Temperature keys. With a



pointed object, push the reset button. Reset the Power Center. Locate small hole next to Auto/Service key. With a pointed



object, push the reset button.

Determining revision date

At the Control Panel, press and hold the Enter key. The numbers on the left indicate the



Control Panel revision number, the numbers on the right indicate the Power Center revision number.

Page 43

Compool Cp 3830

Page 44

Index

2-speed Pool Filter Pump Control 38 2-speed Spa Filter Pump Control 38 3 - Hour Filter Override 36 Adding Relays 10 Backwash Control 23 Calibration 33 Canceling Heater and Cleaner Protection 28 Canceling Programs 32 Cleaner Protection 28 Configuration Switches 25 Control Panel 16 Control Panel 27 Dimmer Relay 23 Equipment Keys 27 Equipment keys 35 Equipment Location 7 Equipment Power 10 Equipment Status Icons 27 Equipment Status Lamps 28 Fahrenheit/Celsius key 30 Floor Cleaner Valve 23 FREEZE 25 Freeze Protection 38 Freeze Temperature Sensor 15 Gas Heater Connections 13 Heat Pump or Electric Heater 20 Heater Protection 28 HI SPD - High Speed 26 High Voltage Wiring 8 I/L - Interlock 25 Important Safety Instructions 3 Index 42 Installation 8 Introduction 4 Low Voltage Cables 13 Low Voltage Wiring 12 Modular Crimping Tool 17 Multiple Control Panels 19 Operating Instructions 27 Package Contents 4 PHONE CONTROLS 26 Plumbing Requirements 6 Power Center 35 Power Center Circuit Board 12

Compool Cp3830

Page 45

Compool Cp3830

Power Center with built in Sub-panel 8 Power Center without built in Sub-panel 8 Problem Solving 39 Programming 30 Programming 31 Programming a Once-only 32 Programming a Time-out 31 Programming additional Run Times 31 Remote Control at Spa key 32 Safety Notice 3 Sensor Status 36 Setting the Time of Day 32 Solar Booster Pump Control 21 Solar Heating 21 Spa Waterfall Control 38 Spa-side Heat Boost 37 Spa-side Remote 18 Spa-side Remote 37 SPC FNCT - Special Functions 25 SYST - System 25 System Options 18 System Options 37 System Power 9 System Start-up 26 Table of Contents 1 Telephone Module 22 Telephone Module 37 Temperature Control 29 Two Speed Pool Filter Pump 22 Two Speed Spa Filter Pump 21 Underwater Lights 11 Valve Actuator 19 Valve Module 20 Warranty 41 Water Temperature Sensors 14 Winterizing the System 38
