Compool Cp3600
Safety Not i c e
Important Safety Instructions
When installing and using this electrical equipment, basic safety precautions should always be
followed, including the following:
Read and follow all instructions.
To reduce the risk of injury, do not permit children to use this product unless they are
closely supervised at all times.
Water in excess of 100 degrees Fahrenheit may be hazardous to your health.
A terminal bar (marked for equipment ground only) is located inside the high voltage
compartment of the Power Center. To reduce the risk of electric shock, this terminal must
be connected to the grounding means provided in the electrical supply panel with a
continuous copper wire equivalent in size to the circuit conductors supplying this
equipment.
3
Save these instructions.
Page 6
4
Introduction
Package Contents
Compool Cp3600
The CP3600/T system includes the following components.
CP-3600 Control Panel (w/ cable) (1 qty.).
LX-3600 Power Center (1 qty.).
CVA-24T Valve Actuator (2 qty.).
PTV-2T 3-Port Valve (2 qty.).
SNS-KIT2 Sensor Kit (1 qty.).
Page 7
Compool Cp3600
5
The CP3600/TL system includes the following components.
CP-3600 Control Panel (w/ cable) (1 qty.).
LX-3600L Power Center (1 qty.).
CVA-24T Valve Actuator (2 qty.).
PTV-2T 3-Port Valve (2 qty.).
SNS-KIT2 Sensor Kit (1 qty.).
Page 8
6
Plumbing Requirements
CONTROL PANEL
POWER CENTER
WATER
FILTER
PUMP
SENSOR
FREEZE
SENSOR
FILTER
SOLAR
SENSOR
11
HW-5B
SOLAR
PUMP
9
10
CVA-24
VACUUM
RELIEF
HEATER
Compool Cp3600
4
AIR
INTAKE
BLOWER
JET
PUMP
REMOTE
SPA-SIDE
5
CVA-24
2
SKIMMER
1
6
MAIN
DRAIN
7
CLEANER
PUMP
POOL
LIGHT
CVA-24
3
CVA-24
8
SPA POOL
SPA
LIGHT
Plumb system in accordance with recommended hydraulic schematic.
1. Spa should be at or above the level of the pool. If spa is attached to pool, provide a dam
between the two bodies of water, th is allo ws the spa to o verf lo w into the pool. If spa is not
attached to pool, an overflow, sufficient in size to carry full pump-flow, must be installed
between the spa and pool.
2. Plumb 3-port valve on the suction-side of the filter pump, so that center port of valve is
connected to the filter pump. Connect spa suction to one port, and pool suction to the
other port.
WATERFALL
3. Plumb 3-port valve on the output-side of the heater, so that center port of valve is
connected to the heater. Connect spa return to one port, and pool return to the other port.
4. Plumb 3/4” spa makeup line (incorporating a 3/4” ball valve and a 3/4” check valve).
During pool circulation, some of the pool water needs to enter the spa to keep it
chemically balanced and full of water. The ball valve adjusts the amount of bypass.

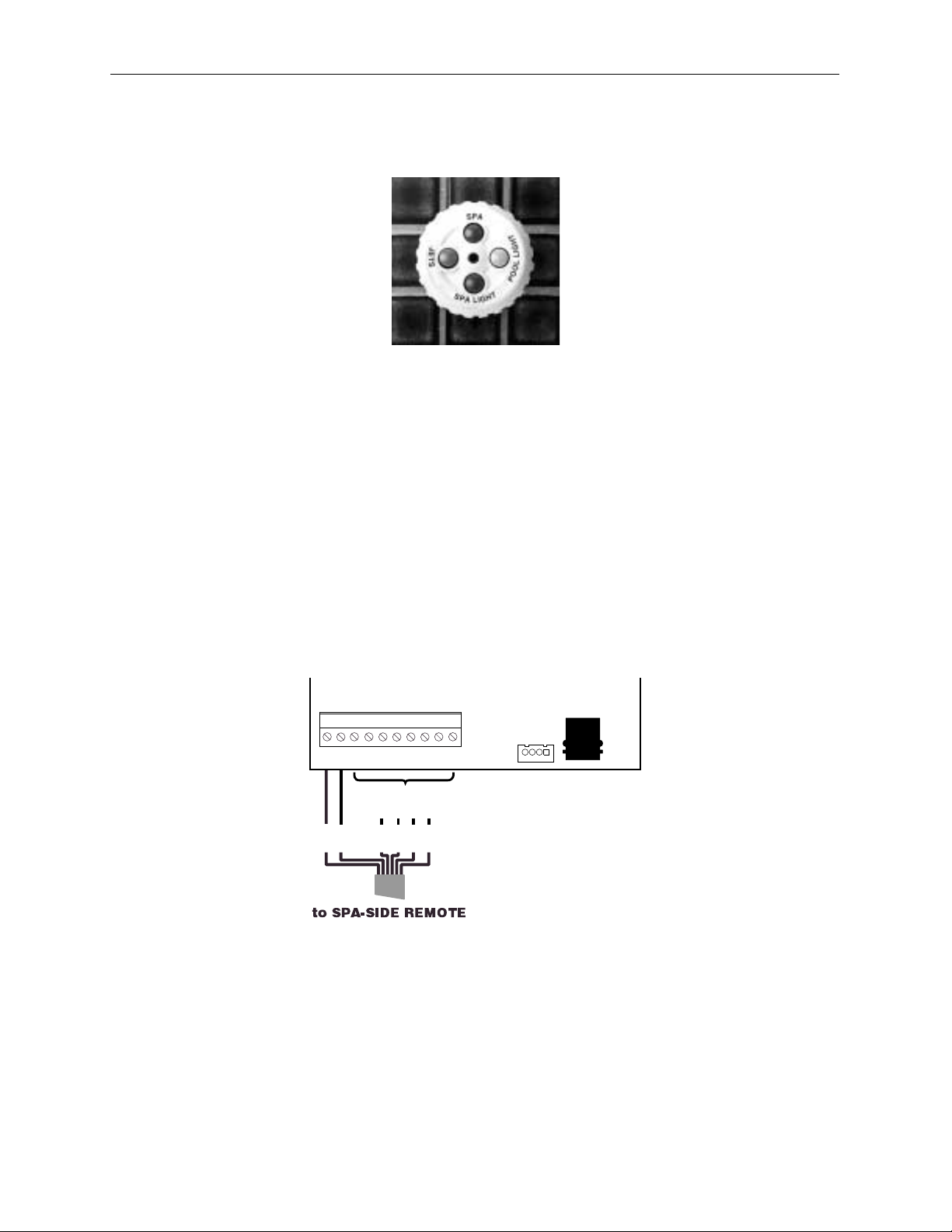

5. If a Spa-side Remote is to be used, install a 3” to 6” length of 1.5” Sch . 40 pv c pipe in the
spa wall so that the Spa-side Remote will not be submerged. Positioning the top of the
pipe 1/2” below the coping. The pipe should extend beyond the finished surface and will
be cut back after tile work is completed. Connect a 1/2” conduit and run back to Power
Center. Use sweep elbows for turns.
Page 9
Compool Cp3600
Equipment Location
7
6. Systems with separate main drain and skimmer lines can use a 3-port valve to balance the flow.
7. Plumb cleaner pump after the return valve to the pool return line.
8. A Valve Actuator can be used to direct pool return water to a waterfall. This eliminates the
need for an additional pump.
9. Plumb solar feed and return lines between the filter and heater. Install 3-port solar valv e at
the feed line. Use Compool solar valve (model SOL-2T), to allow automatic draining of
panels.
10. A solar booster pump should be used when distance to panels exceeds 200’, or panels are
elevated higher than 25’.
11. Glazed solar panels require a drain valve (model HW-5B) to allow draining of panels.
This prevents damage from overheating water. Install drain valve at solar feed line and
connect to the pool fill line.
With the exception of the Spa-side Remote, all equipment must be located at least 10’ from the
water’s edge. Locate equipment in the following locations.
LX-3600 Power Center - at the equipment site.
CP-3600 Control Panel - inside the house or other weather-protected area.
CVA-24T Valve Actuators - at valves to be motorized.
SNS-KIT2 Water Temperature Sensor - at the filter pump. Freeze Temperature
Sensor - at equipment pad.
Page 10
8
Installation
High Voltage Wiring
Power Center with b uilt in Sub-panel
At the equipment pad, mount the Power Center within
15’ of all the equipment. Provide power from the
Main-panel (located at the house) to Power Center.
Compool Cp3600
Po wer Center without built in Sub-panel
At the equipment pad, mount a 100 amp
electrical circuit breaker panel (Sub-panel)
within 15’ of all the equipment. Provide
power from Main-panel (located at the house)
to the Sub-panel. Mount the Power Center
next to the Sub-panel.
Page 11
Compool Cp3600
System Power
9
SUB-PANEL
Filter key 3 times quickly.
Water Sensor
Solar Sensor
Freeze Sensor
Service
Auto
▲
▲
Spa
Fill
S
Drain
Filter
P
Pump
1
2
3
4
5
B.wash
B
Heater
Solar
IMPORTANT: Switch back to
Auto after servicing equipment.

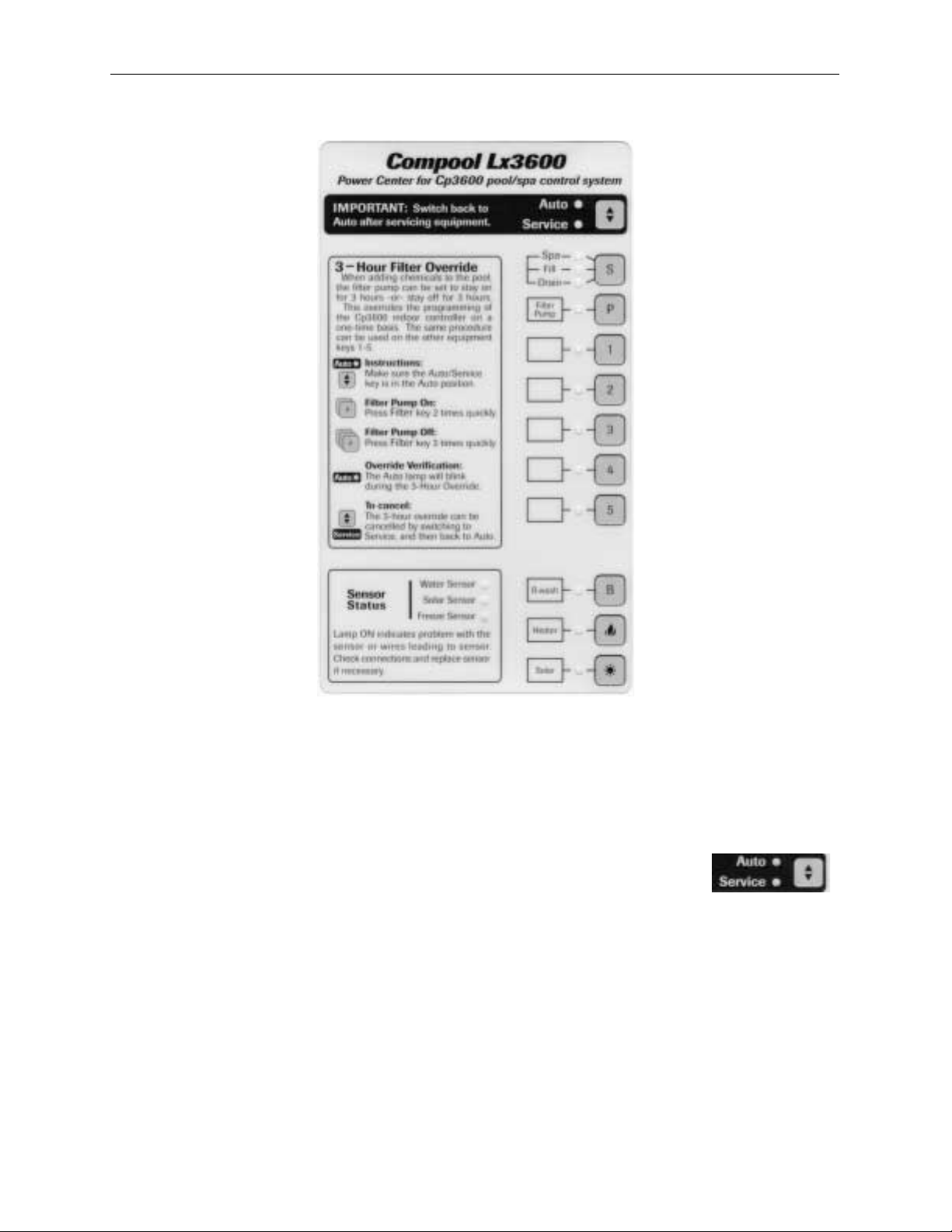

3 Hour Filter Override
When adding chemicals to the pool,
the filter pump can be set to stay on
for 3 hours -or- stay off for 3 hours.
This overrides the programming of
the Cp3600 indoor controller on a
one-time basis. The same procedure
can be used on the other equipment
keys 1-5.
Instructions:
Auto
Make sure the Auto/Service
▲
▲
key is in the Auto position.
Filter Pump On:
P
Press Filter key 2 times quickly.
Filter Pump Off:
Press
P
Override Verification:
The Auto lamp will blink
Auto
during the 3-Hour Override.
To cancel:
▲
The 3-hour override can be
▲
cancelled by switching to
Service
Service, and then back to Auto.
Sensor
Status
Lamp ON indicates problem with the
sensor or wires leading to sensor.
Check connections and replace sensor
if necessary.
Lx3600
System Power provides power to the transformer.
• To wire System Power
1. At the Sub-panel, install a circuit breaker for System Po wer. The system draws less than 1
amp. Do not use a GFCI circuit breaker.
2. Run appropriate wires from the circuit br eaker to the System Power terminal block.
3. For a 115 volt connection, connect to terminals 2 and 3.
4. For a 230 volt connection, connect to terminals 1 and 3.
Caution
Incorrect wiring will cause permanent damage to the transformer.
Page 12
10
Equipment Power
Lx3600
IMPORTANT: Switch back to
Auto after servicing equipment.
3 Hour Filter Override
When adding chemicals to the pool,
the filter pump can be set to stay on
for 3 hours -or- stay off for 3 hours.
This overrides the programming of
the Cp3600 indoor controller on a
one-time basis. The same procedure
can be used on the other equipment
keys 1-5.
Instructions:
Auto
Make sure the Auto/Service
▲
▲
key is in the Auto position.
Filter Pump On:
P
Press Filter key 2 times quickly.
Filter Pump Off:
Filter key 3 times quickly.
Press
P
Override Verification:
The Auto lamp will blink
Auto
during the 3-Hour Override.
To cancel:
▲
The 3-hour override can be
▲
cancelled by switching to
Service
Service, and then back to Auto.
Water Sensor
Sensor
Solar Sensor
Status
Freeze Sensor
Lamp ON indicates problem with the
sensor or wires leading to sensor.
Check connections and replace sensor
if necessary.
Service
Compool Cp3600
SUB-PANEL
LINE 1
LINE 2
R1
LOAD 1
LOAD 2
LINE 1
LINE 2
R2
LOAD 1
Auto
▲
▲
Spa
Fill
S
Drain
Filter
P
Pump
1
2
3
4
5
B.wash
B
Heater
Solar
LOAD 2
LINE 2
LOAD 2
LINE 2
LOAD 2
LINE 2
LOAD 2
LINE 2
LOAD 2
LINE 2
LOAD 2
LINE 1
LOAD 1
LINE 1
LOAD 1
LINE 1
LOAD 1
LINE 1
LOAD 1
LINE 1
LOAD 1
R3
R4
R5
R6
R7
FULL LOAD: 20AMP
LOCKED ROTOR: 60AMP
HIGH VOLTAGE RELAYS
Adding Relays
The diagram above shows how the filter pump is wired. Additional pumps should be wired the
same way.
• To wire high voltage equipment
1. At the Sub-panel, install circuit breaker. Run wires from circuit breaker to relay terminal
block LINE 1 and LINE 2.
2. Connect equipment to the relay terminal block LOAD 1 and LOAD 2.
If pump is greater than 3 H.P., install an external contactor. Use relay to switch coil of
Note
external contactor.
The Power Center comes standard with 4 relays. It is possible to add additional relays (model
RLY-LX). The LX-3600 Power Center has r oom for 7 rela ys, and the LX-360 0L Power Center
has room for 8 relays.
Page 13
Compool Cp3600
Underwater Lights
IMPORTANT: Switch back to
Auto after servicing equipment.
3 Hour Filter Override
When adding chemicals to the pool,
the filter pump can be set to stay on
for 3 hours -or- stay off for 3 hours.
This overrides the programming of
the Cp3600 indoor controller on a
one-time basis. The same procedure
can be used on the other equipment
keys 1-5.
Instructions:
Auto
Make sure the Auto/Service
▲
▲
key is in the Auto position.
Filter Pump On:
P
Press Filter key 2 times quickly.
Filter Pump Off:
Filter key 3 times quickly.
Press
P
Override Verification:
The Auto lamp will blink
Auto
during the 3-Hour Override.
To cancel:
▲
The 3-hour override can be
▲
cancelled by switching to
Service
Service, and then back to Auto.
Sensor
Status
Lamp ON indicates problem with the
sensor or wires leading to sensor.
Check connections and replace sensor
if necessary.
Lx3600
Water Sensor
Solar Sensor
Freeze Sensor
Service
11
SUB-PANEL
LINE 1
R1
LINE 2
LOAD 1
LOAD 2
LINE 1
LINE 2
R2
LOAD 1
Auto
▲
▲
Spa
Fill
S
Drain
Filter
P
Pump
1
2
3
4
5
B.wash
B
Heater
Solar
LOAD 2
LINE 2
LOAD 2
LINE 2
LOAD 2
LINE 2
LOAD 2
LINE 2
LOAD 2
LINE 2
LOAD 2
LINE 1
LOAD 1
LINE 1
LOAD 1
LINE 1
LOAD 1
LINE 1
LOAD 1
LINE 1
LOAD 1
R3
R4
R5
R6
R7
FULL LOAD: 20AMP
LOCKED ROTOR: 60AMP
HIGH VOLTAGE RELAYS
GFCI
TO LIGHT
High voltage pool/spa lights require GFCI protection. To meet electrical code requ irements,
the pool/spa light must be connected directly to the GFCI. Do not use a GFCI circuit breaker.
• To wire high voltage pool/spa light
1. Install a GFCI receptacle next to the Sub-panel.
2. Connect neutral and hot wire from circuit breaker to the LINE SIDE of the GFCI receptacle.
3. Connect white wire from the light to the LOAD SIDE of the GFCI receptacle.
4. Connect the other wire from the light to LOAD 1 of the relay terminal block.
5. Connect a wire from LINE 1 of the relay terminal block to the LOAD SIDE of the GFCI receptacle.
The example above assumes the pool or spa light is 500 watts or less. If the pool has two
Note
500 watt lights, the second light needs to be wired to LOAD 2 of the relay terminal block. Install
a jumper wire between LINE 1 and LINE 2 of the relay terminal block.
Page 14
12
Low Voltage Wiring
Power Center Circuit Board
PART# PC-LX3600COMPOOL 11095B
ON
12345
67
FLTR
AUX1
AUX2
AUX3
AUX4
AUX5
FREEZE I/L SYST SPEC FUNCT HI SPD
VLV1
WITH
VLV2
(optional)
VALVE MODULE
ON
12345
SPA
CLNR
FDEL
SOLR
HTPMP
67
8
VLV2
12
WITH
O
N
VLV3
COMBINED VALVES
COMPOOL 11040A
PART# MOD-VLV3
CONTROL
JUMPERS
TRANSFORMER
CONNECTIONS
1810 24
AUX
VLV
CNTRL
3
DIMMER
4
DIMMER
2SPD
FLRCL
CAUTION: DO NOT SHORT PINS OF RELAY SOCKETS
POOL
ON
1234
SPA
HTR
AUX1
HEAT
SPA
SOLR
8
MANHT
WFAL
ON
123
FLRCL
DIM3
DIM4
B/W
VLV1
VLV2
VLV3
INT
VLV
RET
VLV
AUX
V
VLV
SPA
FLTR
AUX1
AUX2
AUX3
AUX4
AUX5
B/W
EHTR
SOL
PUMP
HTR
GRN
RED
SOLR SENSFRZ SENS
GRN
RED
WAT SENS
GRN
RED
PHONE CONTROLS
ACTUATORS
AUXILIARY VALVE
INTAKE
VALVE
ACTUATOR
RELAY CONNECTIONS
CONTROL
GAS VALVE
GRN
GRN
RED
RED
GRN
RED
GRN
RED
RETURN
VALVE
ACTUATOR
PRESSURE
SOLAR SENSOR
WATER SENSOR
FREEZE SENSOR
Compool Cp3600
AUX
VALVE
ACTUATOR
HEATER
ON
LIMIT
OFF
THERMOSTAT
944-1095
GND
HLMP
HBST
SPA
FLTR
REM1
REM2
REM3
Switch 2
Switch 3
YEL
GRN
REM4
Switch 4
BLU
BLK
ORG
SELECT 4 CIRCUITS
Switch 1
RED
to SPA-SIDE REMOTE
REM5
PHONE
COM PORT
BLU
BLU
to CONTROL
PANEL
Page 15
Compool Cp3600
Low Voltage Cables
13
Control Panel
6-conductor cable runs between the Control Panel and the Power Center.
Heater Connection
2-conductor cable runs between the heater and the Power Center.
Water Temperature Sensor
2-conductor cable runs between the Water Temperature Sensor and the Power Center.
Freeze Temperature Sensor
2-conductor runs between the Freeze Temperature S ensor and the Power Center.
Valve Actuators
3-conductor cable runs between Valve Actuator and the Power Center.
Valve Actuators
Caution
when cable goes underground.
Valve Actuators come with 15 feet of cable. If this distance is not long enough, it is possible to
splice in additional wire to lengthen cable. Use 3-conductor wire (model 3COND-CVA).
• To install Valve Actuators
1. Remove knob, handle and four cover screws from the valves to be motorized.
2. Use mounting screws provided to mount Valve Actuators.
Do not install low voltage and high voltage wires in the same conduit. Use conduit
3. Run Valve Actuators cables to the Power Center. Bundle up extra cable under Power
Center. Do not store extra cable in the low voltage compartment.
4. At the top right corner of the Power Center circuit board, plug Valve Actuator cable into
the appropriate valve socket.
• Plug intake Valve Actuator cable into INT VLV socket.
• Plug return Valve Actuator cable into RET VLV socket.
• Plug optional third Valve Actuator cable into AUX VLV socket.
5. The AUX VLV socket is mos t often used to control a solar or cleaner Valve Actuator. To
select which circuit will control the AUX VLV socket, connect jumper wire between
Page 16
14
AUX VLV CNTRL socket and relay socket of choice. The system ships with the jumper
connected between AUX VLV CNTRL and SOL PUMP.
Note
Gas Heater Connections
Compool Cp3600

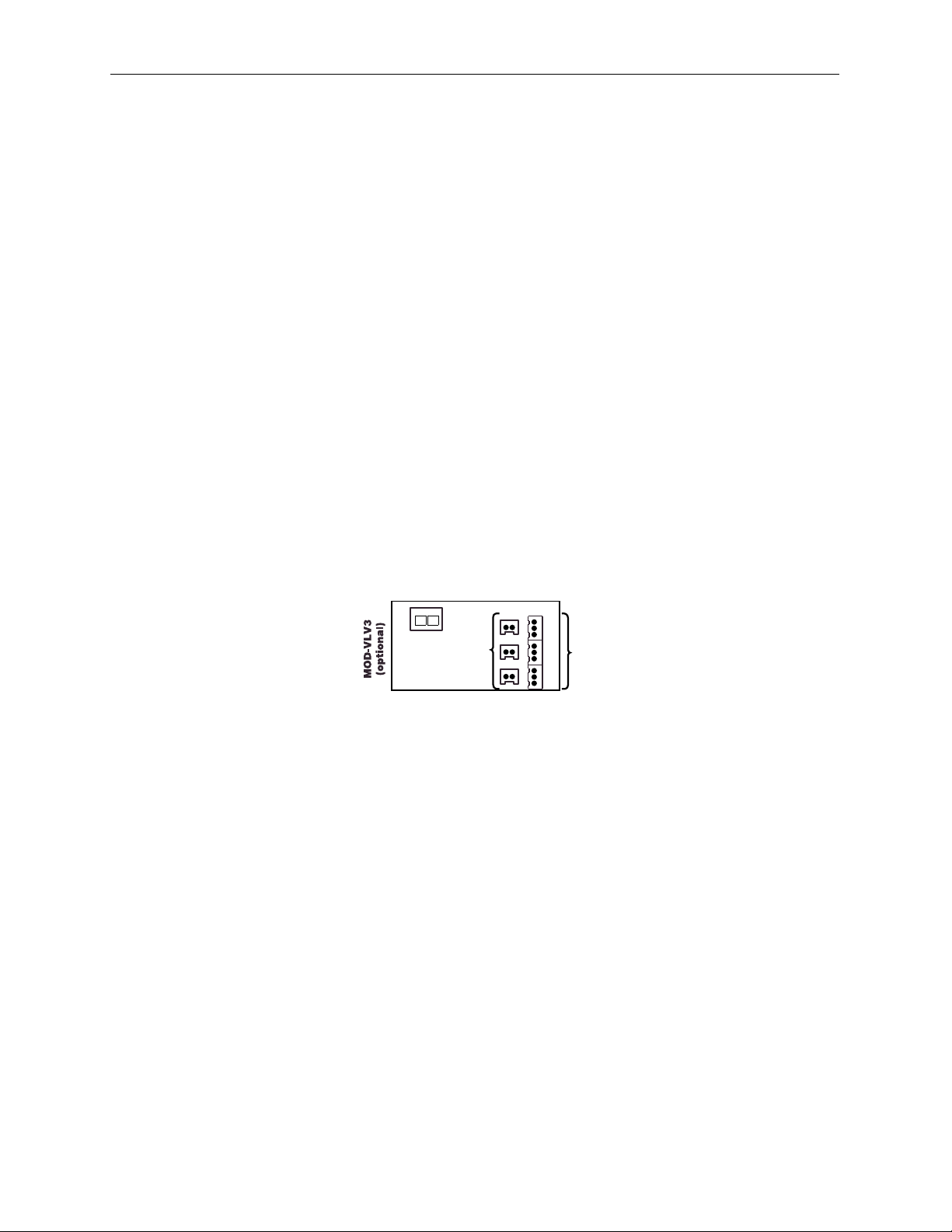

To control more than three Valve Actuators, see Valve Module for details.
HEATER
ON
OFF
THERMOSTAT
CONTROL
GAS VALVE
PRESSURE
LIMIT
The diagram above shows how to wire a gas heater.
• To wire the gas heater
1. Run a 2-conductor cable from the heater to the Power Center.
2. At the heater, connect 2-conductor cable as instructed in heater installation manual.
3. At the Power Center circuit board , connect 2-conductor cable to the HTR terminals.
4. If heater has electronic i gnition, provide high voltage power from the Sub-panel.

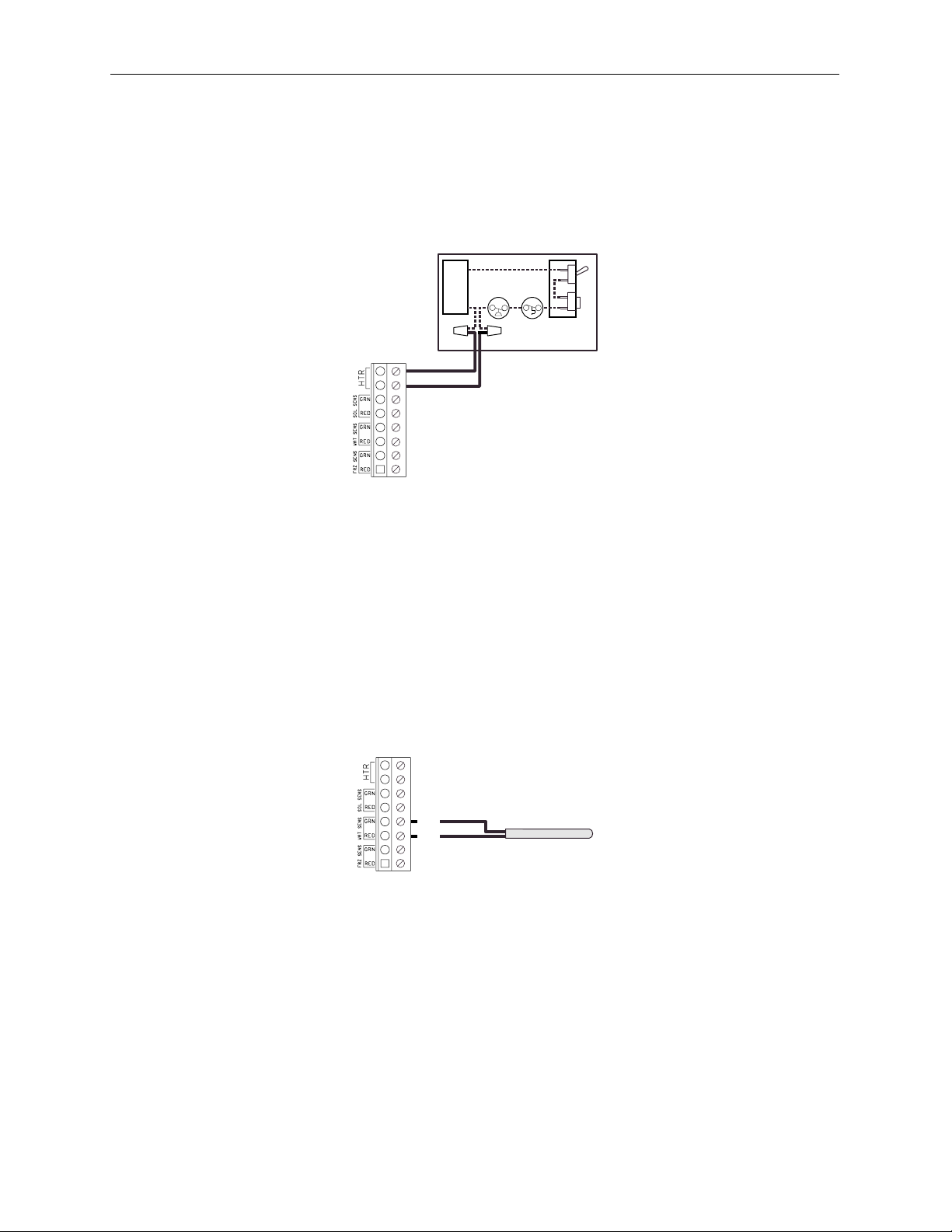

Water Temperature Sensor
The Water Temperature Sensor measures pool and s pa temperature.

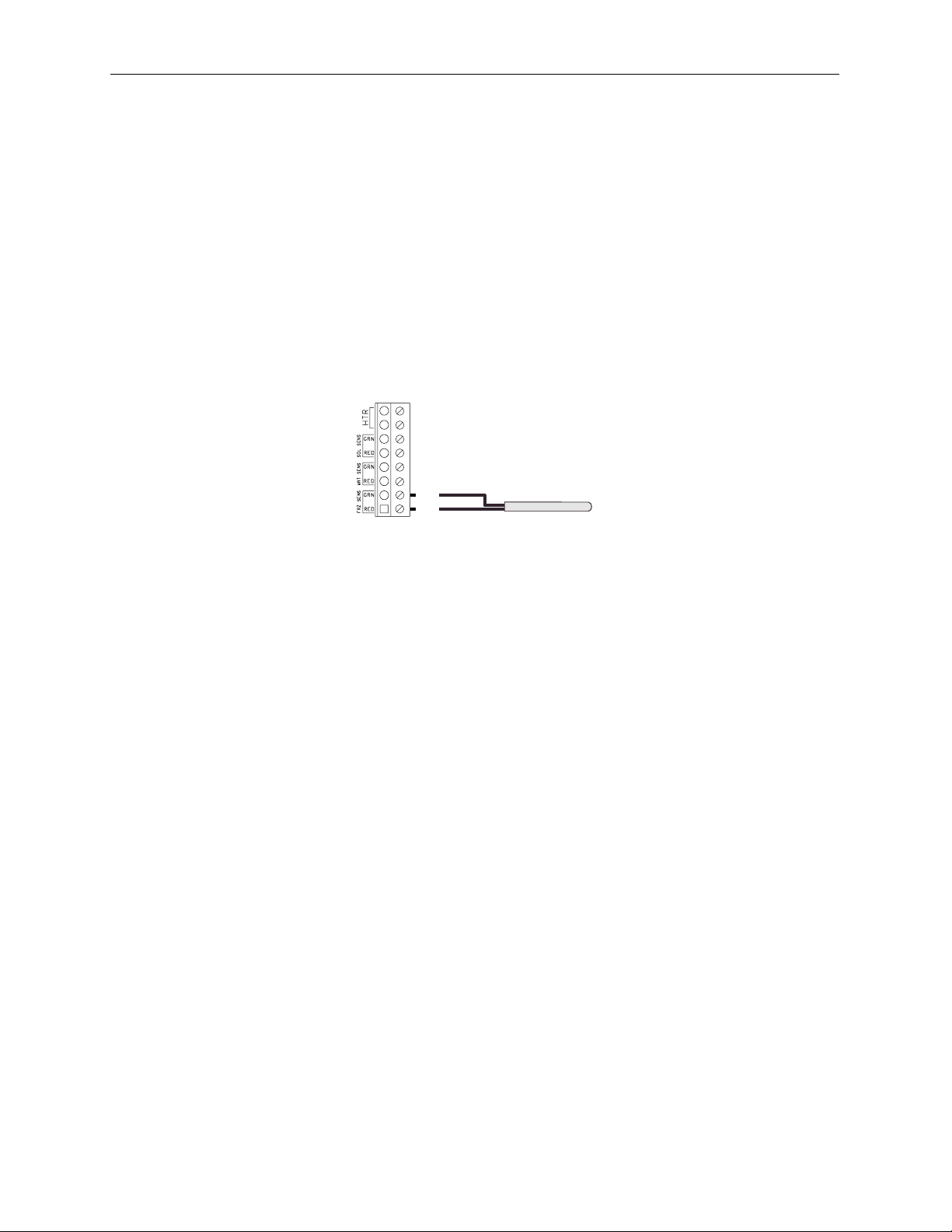

• To wire the Water Temperature Sensor
GRN
RED
WATER SENSOR
1. Select a convenient location to mount the sensor between the filter pum p and filter.
2. Drill a 5/16 inch diameter hole in the pipe and insert the sensor.
3. Position the hose clamp over the sensor, and gently tighten around pipe.
Caution
Do not overtighten clamp.
4. Run a 2-conductor cable between the sensor and the Power Center.
Page 17
Compool Cp3600
15
5. At the sensor, use crimp con nectors (inclu ded) to pro vide waterp roof connections. Bef ore
making connections, cut of f stripped en ds of cable. Ins ert the 2 wires to be conn ected into
the connector and squeeze the connector with a pair of pliers. Two extra connectors are
included.
Caution
6. At the Power Center circuit board , connect sensor wires to WAT SENS screw terminals.
Pay attention to color-coding of wires.
Calibration of the Water Temperature Sensor is required. See Calibration for details.
Note
Freeze Temperature Sensor
The Freeze Temperature Sensor measures air temperature at the equipment pad.

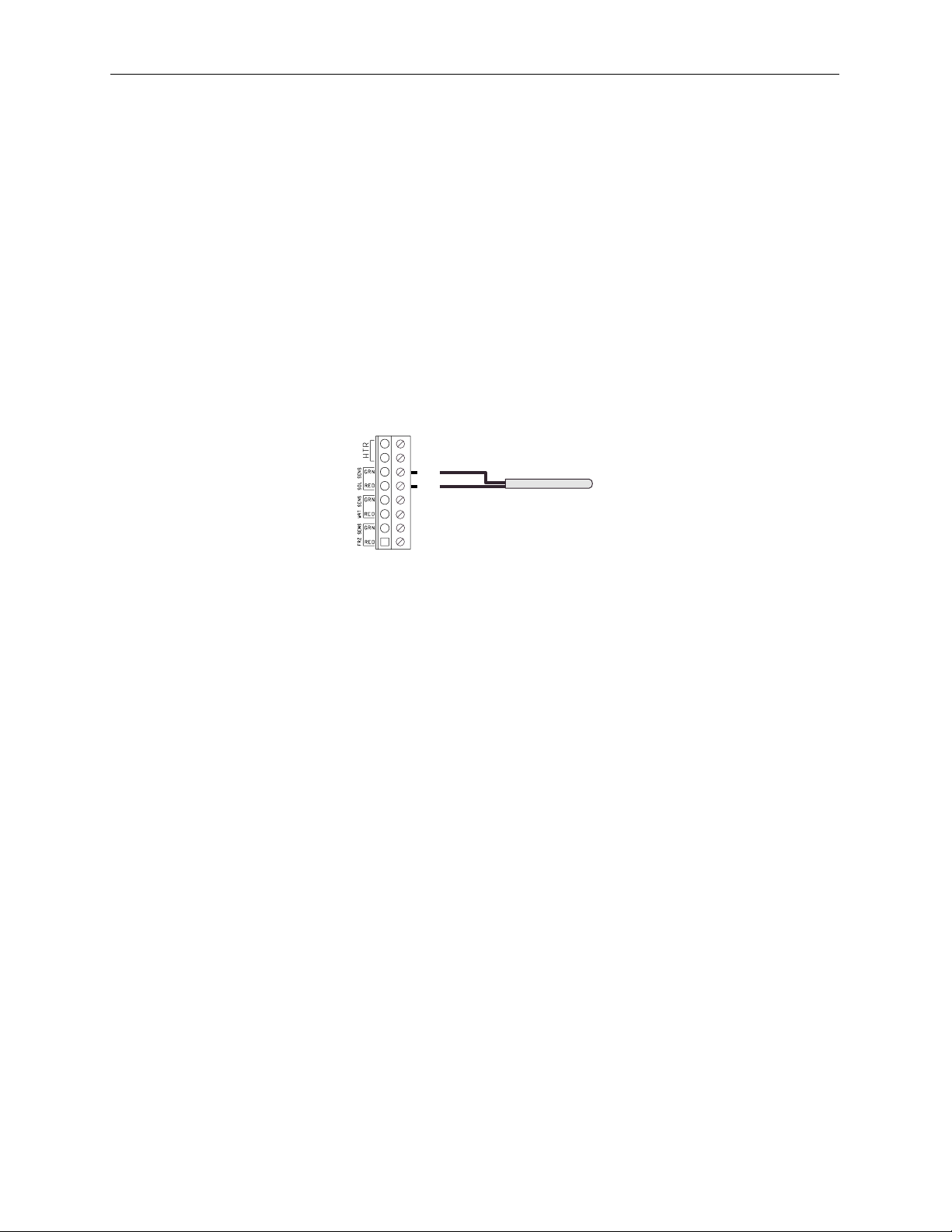

• To wire the Freeze Temperature Sensor
1. Install the sensor next to the Power Center.
Do not strip wires.
GRN
RED
FREEZE SENSOR
2. Run a 2-conductor cable from the sensor to the Power Center.
3. At the sensor, use crimp con nectors (inclu ded) to pro vide waterp roof connections. Bef ore
making connections, cut of f stripped ends of cable. Insert the 2 wires to be connected into
the connector and squeeze the connector with pliers. Two extra connectors are included.
Caution
Do not strip wires.
4. At the Power Center circuit board , connect sensor wires to FRZ SENS screw terminals.
Pay attention to color-coding of wires.
5. Adjust the Freeze program switch at the bottom of the Power Center circuit board to
determine which pumps should turn on during freeze protection.
Calibration of Freeze Temperature Sensor is required. See Calibration for details.
Note
Page 18
16

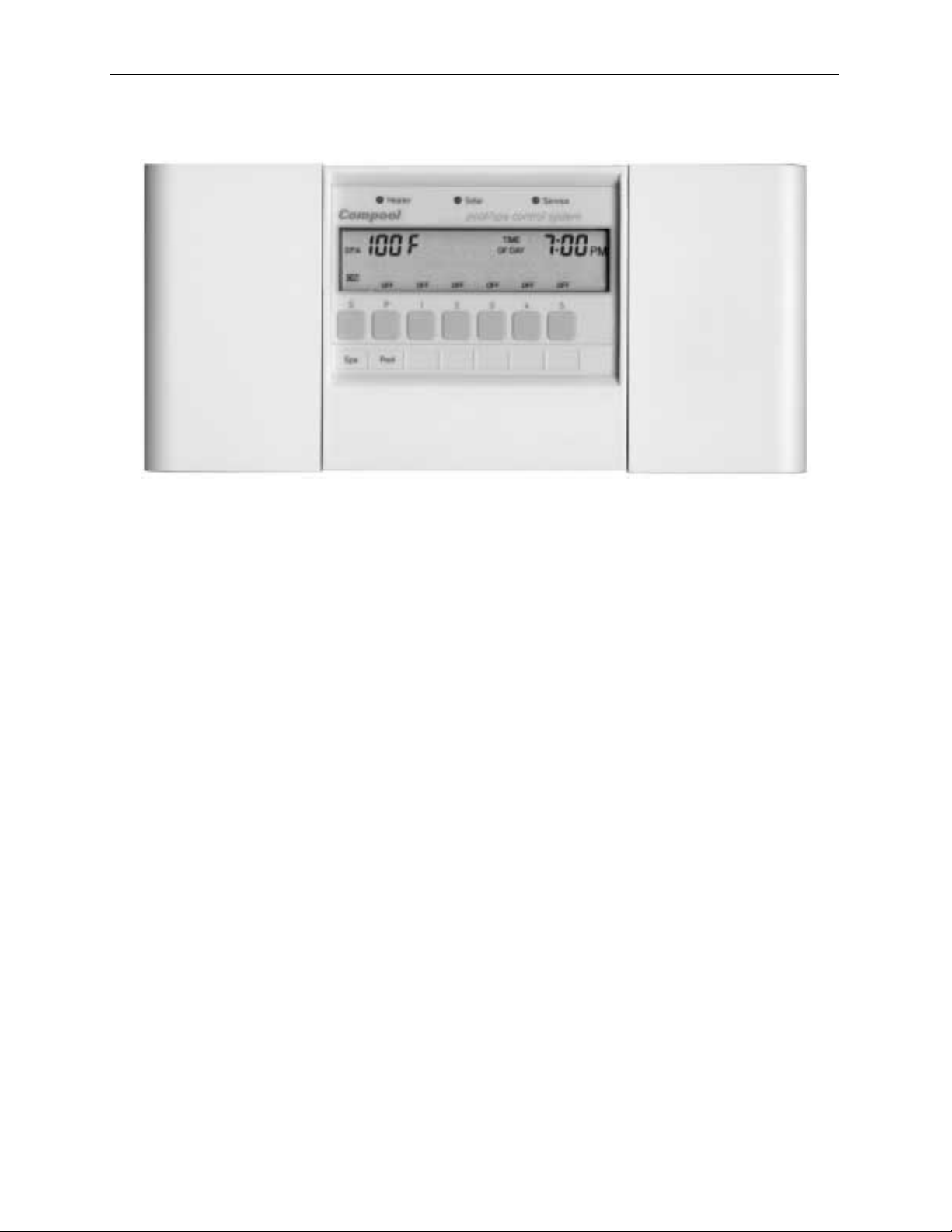

Control Panel
Compool Cp3600

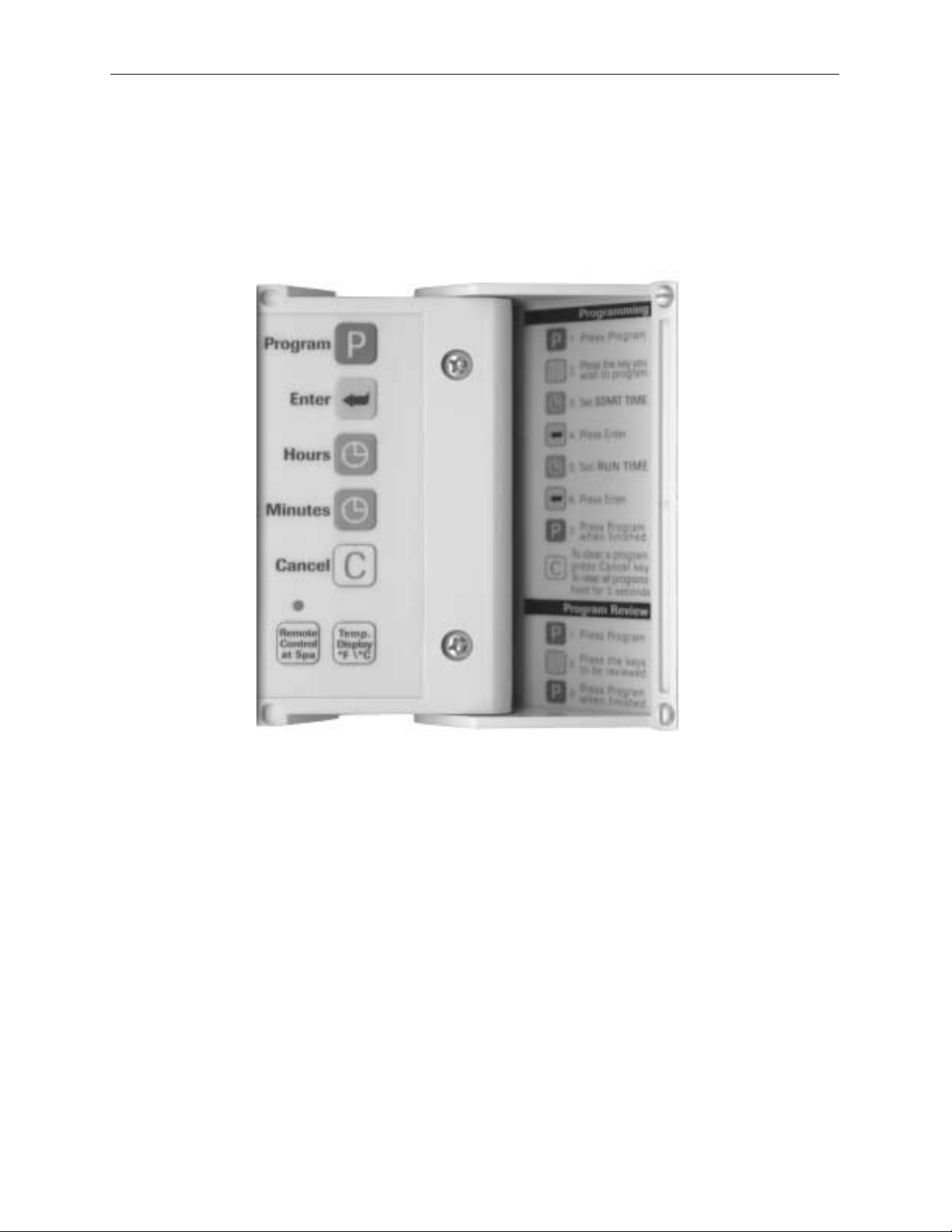

• To install the Control Panel
1. Select a location inside the house or other weather-protected area to mount the Control
Panel. The Control Panel should be installed at or below eye level.
2. Remove backplate from Control Panel. Position backplate and mark the three mounting points.
3. Drill 3/16” diameter holes at the three points. Insert mounting anchors (included) into the
three holes.
4. Pull cable through large hole in backplate, use the three 1.25” screws to mount backplate

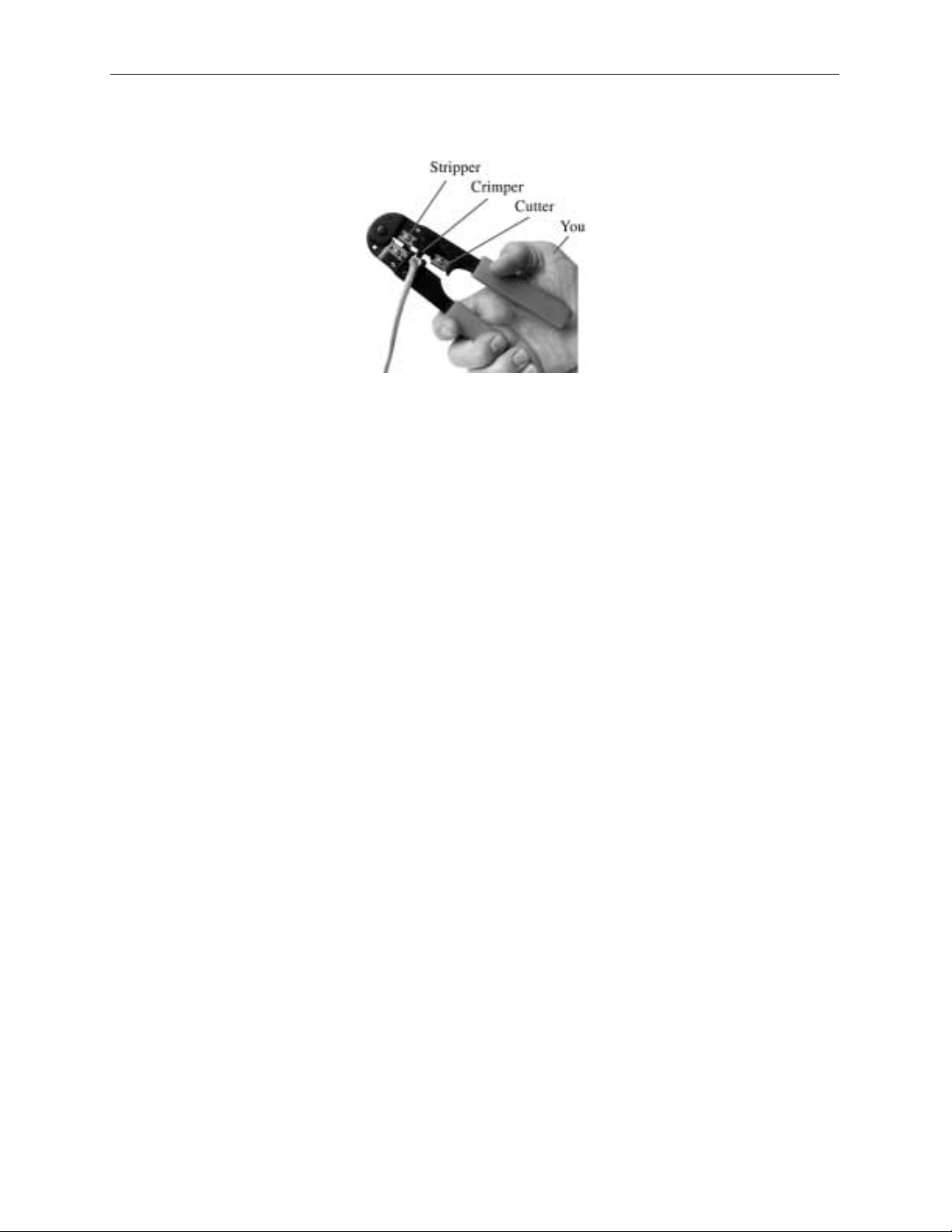

to wall. Use crimping tool to connect modular connector to cable. See Modular Crimping
Tool for details.
5. Plug modular connector into either COM PORT socket on the back of the Control Panel.
6. Use the four 1/2” screws (included) to mount the Control Panel to the backplate.
7. At the Power Center , use the crimpi ng tool to connect the modular con nector to the cable.
Plug modular connector into the COM PORT socket.
Page 19
Compool Cp3600
Modular Crimping Tool
The Crimping Tool is required to attach modular connectors to the Hooku p Cable. The tool may
be purchased from a poo l supply store (model TO OL-6). If purchasing from an electrical supply
store, verify it is designed to crimp 6-position connectors.
• To install the modular connectors
17
1. Use stripper to remove cable jacket.
2. Insert modular connector into crimper slot.
3. Insert cable with blue wire closest to the tool handle.
4. Squeeze handle firmly to set secure connector.
It is required that position of blue wire is the same at both ends of the cable.
Note
Page 20
18
System Options
Spa-side Remote
• To install the Spa-side Remote
Compool Cp3600
The Spa-side Remote is typically installed in the tile-line of the spa. See Plumbing
Requirements for details.
1. When spa construction is completed, cut back the 1.5” dia. pvc pipe flush to the tile.
2. Thread mounting adapter onto Spa-side Remote.
3. Pull Spa-side Remote cable through conduit to Power Center.
4. Glue mounting adapter into 1.5” pvc pipe with pvc cement so that the red button will be on top.
5. At the Power Center, connect Spa-side Remote wires to appropriate screw terminals
located at bottom of the of the circuit board.
GND
HLMP
HBST
SPA
SELECT 4 CIRCUITS
BLK
ORG
FLTR
REM1
Switch 1
Switch 2
RED
YEL
REM2
REM3
Switch 3
Switch 4
BLU
GRN
REM4
REM5
PHONE
COM PORT
6. Connect black wire to GND screw terminal.
7. Connect orange wire to HLMP screw terminal.
8. Determine which circuits you wish to control from within the spa, and connect the red,
yellow, green and blue wires to the appropriate screw terminals.
HBST Activates Heat-Boost function.
FLTR Activates filter pump.
Page 21
Compool Cp3600
9. Use labels provided to identify each button on the Spa-side Remote.
Note
Multiple Control Pa nels
It is possible to add additional Control Panels.
• To install an additional Control Panel
1. Mount Control Panel as described earlier.
2. Run the communication cable between each Control Panel. Two conn ectors are provided
19
SPA Activates Spa mode.
REM1 Activates AUX1 equipment.
REM2 Activates AUX2 equipment.
REM3 Activates AUX3 equipment
REM4 Activates AUX4 equipment.
REM5 Activates AUX5 equipment.
Install a second Spa-side Remote to control additional functions.
on the back of each Control Panel to allow “daisy chaining”.
Valve Module
If two Control Panels are being wired where each communication cable is run back to the
Note
Power Center, a coupler (model 6COND-DUAL) is required.
VLV1
WITH
VLV2
VLV2
12
O
WITH
N
VLV3
COMPOOL 11040A
MOD-VLV3
CONTROL JUMPER
SOCKETS
VLV1
VLV2
VLV3
ACTUATORS
AUXILIARY VALVE
The Valve Module (model MOD-VLV3) allows the system to control three additional Valve
Actuators.
• To install Valve Module
1. Attach Valve Module to the top of the Power Center circuit board.
2. Run Valve Actuator cable(s) to the Valve Module.
3. Plug each Valve Actuator cable into the 3-pin sockets (VLV1, VLV2, or VLV3).
4. Locate the 2-conductor jumper wires included with Valve Module kit. Each individually
controlled Valve Actuator will require a separate jumper wire.
5. Connect one end of the jumper wire into CONTROL JUMPERS socket on the Valve
Module. Connect the other end of the jumper wire into t he Power Center circuit board at
the appropriate relay socket (SPA, FLTR, AUX1, AUX2, AUX3, AUX4, AUX5, B/W,
EHTR, SOL PUMP, 2SPD, FLRCL).
6. The D.I.P. switch, located at the upper left-side of Valve Module, allows combining the
operation of Valve Actuators.
Page 22
20
Heat Pump or Electric Heater
These heaters require a relay kit (model RLY-LX) be added. The HTR connection used for gas
heaters cannot used.
• To wire a heat pump or electric heater.
1. At the Power Center, install the relay into the high voltage compartment. Plug control
wire into the EHTR relay socket on the Power Center circuit board.
2. Run a 2-conductor cable the from heater to the Power Center.
3. At the heater, cut thermostat wire and connect to 2-conductor cable.
4. At the Power Center, connect 2-conductor cable to LINE 1 and LOAD 1 of the relay terminal block.
Solar Heating
Compool Cp3600
GRN
GRN
RED
RED
SOLAR SENSOR
Solar systems require the following additional equipment, a Solar Temperature Sensor (model
TS-5L), a Valve Actuator (model CVA-24T), and a solar valve (model SOL-2T).
• To install solar equipment
1. Discard clamp included with sensor kit. For unglazed panels, fasten sensor next to solar
panels. For glazed panels, suspend sensor between collector and glazing.
2. Run a 2-conductor cable from the sensor to the Power Center.
3. At the sensor, use crimp con nectors (inclu ded) to pro vide waterp roof connections. Bef ore
making connections, cut of f stripped en ds of cable. Ins ert the 2 wires to be conn ected into
the connector and squeeze the connector with a pair of pliers. Two extra connectors are
included.
Caution
Do not strip wires.
4. At the Power Center circuit board , connect sensor wires to the SOL SENS screw
terminals. Pay attention to color-coding of wires.
5. Turn on SYST SOLR configuration switch located at the bottom of the Power Center circuit board.
6. Connect solar Valve Actuator cord into AUX VLV socket at the Power Center circuit board.
Infield calibration of Solar Temperature Sensor is required. See Calibration for details.
Note
Solar Booster Pump Control
If a solar booster pump is being used, install re lay kit (model RL Y-LX) into Power Center. Plug
Page 23
Compool Cp3600
control wire of relay into SOL PMP relay socket.
Two Speed Filter Pump
If the system is equipped with a 2-speed filter pump, install a 2-speed relay kit (model RLYLXD) into Power Center.
There are two ways to configure the 2-Speed filter pump.
Automatic configuration.
Manual configuration.
21
The system will run the filter pump in “low speed” during normal operation, but will
automatically switch the pump to “high speed” for 5 minutes whenever the filter pump
turns on.
It is additionally possible to activate the pump in “high speed” whenever the SPA,
HEATER, SOLAR, or AUX1 is turned on. To enable the pump to run in “high speed”
during these conditions, it is necessary to adjust the HI SPD program switch, which is
located at bottom of the Power Center circuit board.
Connect RLY-LXD relay control wire into 2SPD relay socket.
The system will run the filter pump in “low speed” during normal filter operation, but will
switch the pump to “high speed” when the selected auxiliary circuit is activated.
Tele phone Module
• To install the Telephone Module
Dimmer Relay
• To install the Dimmer Relay
Select an auxiliary circuit (AUX1 - AUX5), and connect RLY-LXD control wire into the
appropriate relay socket.
The Telephone Module (model MOD-TELSPA) allows turning t he spa on/off f rom a phone. If
preferred, the Telephone Module can be configured to turn on/off the pool heater instead. The
factory default is to control the spa.
To change spa command to pool heater, change the 2 jumpers, which are located at bottom of
the Power Ce nter circuit board. Move both jumper s to POOL HEAT position.
1. Install the Telep hone Module into the low voltage compartment of the Power Center.
1. Run a phone line to the Telephone Module.
2. Connect the 4-wire interface cable from the Telephone Module into the PHONE socket at
the bottom of the Power Center circuit board.
A maximum of two Dimmer Relays (model RLY-DIM) can be installed. These relays are
controlled by Equipment keys 3 and 4. Each relay can switch a maximum of 1000 watts.
1. Install the Dimmer Relay(s) into high the voltage compartment.
2. Plug the control wire(s) into DIMMER 3 and/or DIMMER 4 sockets.
3. Turn on SPEC FNCT configuration switch DIM3 and/or DIM4 located at bottom of the
Page 24
22
Backwash Control
• To install the Backwash Control
Compool Cp3600
Power Center circuit board.
The backwash control system is designed to automatically backwash the filter on a timed basis.
This feature uses the B/W circuit to control the two backwash valves.
To install an automatic backwash system, you must have a sand filter with a side inlet and outlet.
The following additional equipment is required, a Valve Module (model MOD-VLV3), two
Valve Actuators (model CVA-24T), and two 3-port valves (model PTV-2T).
1. Connect a jumper wire between the B/W socket and the Valve Module CONTROL
JUMPERS socket. Turn on D.I.P. switch number 1 on the Valve Module.
2. Connect backwash Valve Actuator cords into VLV1 and VLV2 sockets on the Valve Module.
3. Turn on SPEC FNCT configuration switch B/W located at the bottom of the Power Center
circuit board.
4. Program the backwash interval and duration times at the Control Panel. See Calibration
for details.
Floor Cleaner Valve
• To install the Floor Cleaner Valve
The Floor Cleaner Valve is designed to control a dual zone floor cleaning system. The Floor
Cleaner Valve can be programmed to rotate once every 1-99 minutes while the filter pump is
on. Additional parts required, one Valve Actuator (model CVA-24T) and one 3-port valve
(model PTV-2T).
1. Install Valve Actuator onto Floor Cleaner valve.
2. Plug valve actuator cord into AUX VLV socket on Power Center circuit board.
3. Connect a jumper wire between the AUX VLV CNTRL and the FLRCL sockets.
4. Turn o n SPEC FNCT conf igu ration s witch FLRCL located at the botto m of Power Center circuit board.
5. Program the time interval at the Control Panel. See Calibration for details.
Page 25
Compool Cp3600

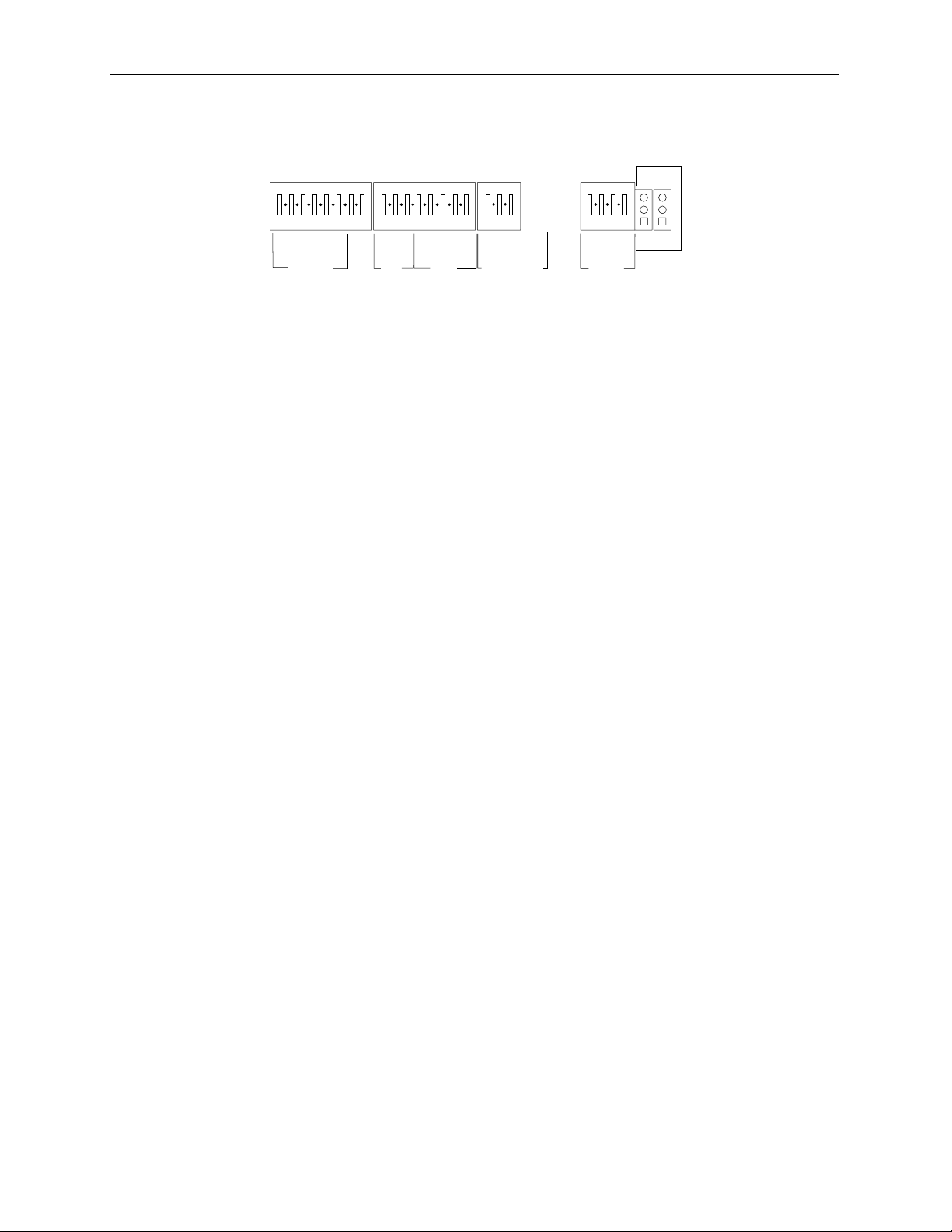

Configuration Switches
ON
23
POOL
ON
ON
ON
HEAT
FREEZE
I/L - Interlock
12345
FLTR
AUX1
AUX2
AUX3
AUX4
FREEZE I/L SYST SPEC FUNCT HI SPD
67
AUX5
12345
8
SPA
CLNR
FDEL
SOLR
HTPMP
67
MANHT
WFAL
8
FLRCL
123
DIM3
DIM4
B/W
1234
SPA
HTR
AUX1
SPA
SOLR
PHONE CONTROLS
After setting configuration switches, turn system power off for a few seconds.
Freeze settings are used to configure the following equipment.
FLTR Activate filter pump during freezing conditions.
AUX1 Activate AUX1 during freezing conditions.
AUX2 Activate AUX2 during freezing conditions.
AUX3 Activate AUX3 during freezing conditions.
AUX4 Activate AUX4 during freezing conditions.
AUX5 Activate AUX5 during freezing conditions.
Interlock settings are used to configure the following equipment.
SPA Activate filter pump (single pump system)
CLNR Activate cleaner i nterlocks. Cleaner must be installed on AUX1.
FDEL Activate filt er delay (heater cool down).
SYST - System
System settings are used to configure the following equipment.
SOLR Activate solar system.
HTPMP Activate heatpump as secondary heat source.
MANHT Activate heater when spa is manually turned on.
WFAL Activate an overflow from spa to pool. Uses AUX2 circuit.
FLRCL Activate floor cleaner valve.
SPEC FUNCT - Special Functions
Special Functions settings are used to configure the following equipment.
DIM3 Activate dimmer for AUX3 circuit.
DIM4 Activate dimmer for AUX4 circuit.
B/W Activate backwash circuit.
Page 26
24
HI SPD - High Speed
PHONE CONTROLS
System Start-up
• To perform initial start-up
High Speed settings are used to configure the following equipment.
SPA Activate high speed when spa is on.
HTR Activate high speed when heater is on.
AUX1 Activate high speed when AUX1 is on.
SOLR Activate high speed when solar is on.
Phone Controls settings are used to configure the following equipment.
POOL HEAT Activate pool Heat Source key.
SPA Activate Spa key.
Compool Cp3600
1. At the Power Center, press the Auto/Service key to select Service mode.
2. Press the S key, verify the Intake and Return valves rotate to spa position. If either valve is
180 degrees out of phase, flip the toggle s witch on the rear of Valve Actuator to reverse
phase (ON1/ON2).
3. Press Equipment keys (Filter, 1, 2, 3, 4, and 5), verify equipment is being activated.
4. Press the Heater key, verify heater fires (Filter pump must also be on).
5. Press the Solar key, verify solar valve (if applicable) rotates to solar position. If it is 1 80
degrees out of phase, flip the toggle switch on the rear of Valve Actuator to reverse phase
(ON1/ON2).
6. Check Sensor Status lights. If a light is on, check appropriate sensor wiring and connections.
7. Press the Auto/Service key to select Auto mode.
8. At the Spa-side Remote, press the Red, Yellow, Green, and Blue key, verify equipment is
being activated. Verify the light in the middle of the remote turns on.
9. At the Control Panel, pr ess Equipment keys (Spa, Pool , 1, 2, 3, 4, 5), verify equipment is
being activated.
10. Affix labels provided to identify Equipment keys at the Control Panel, Power Center, and
Spa-side Remote.
11. Calibrate sensors. See Calibration for details.
12. Program equipment as needed. See Programming for details.
Page 27
Compool Cp3600
Operating Instructions
Control Panel

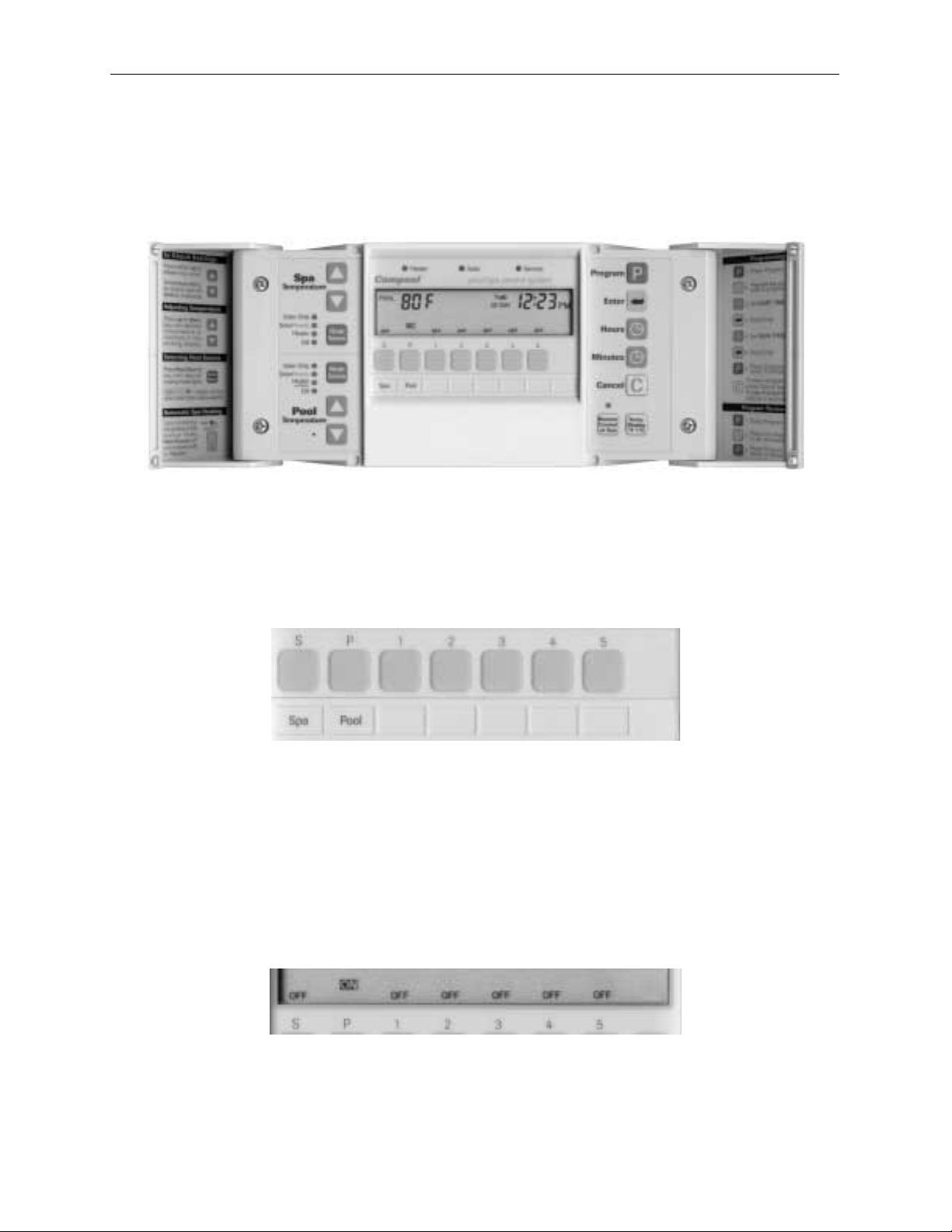

Installed at a conven ient location inside th e house, th e Control Panel provi des comp lete contr ol
of all the equipment associated with your swimming pool and spa. The system comes with one
Control Panel, however additional Control Panels may be added as needed.
25
Equipment Keys
Equipment keys activate the Spa, Pool, and up to 6 additional items. Each key can be customlabeled for your specific application. To turn equipment on or off, press the appropriate
Equipment key once. An audible beep will indicate the key has been pressed.
Note
the day.
Equipment Status Icons
Turning off equipment that has been turned on by a program will cancel that program for
Equipment Status icons are located above each Equipment key.
A solid ON indicates the equipment is on.
Page 28
26
A solid OFF indicates the equipment is off.
A blinking ON indicates the cleaner is in a safety delay mode. The cleaner will turn on in
5 minutes.
A blinking OFF indicates the heater is in a cool down mode. The pool will turn off after
10 minutes .
Equipment Status Lamps

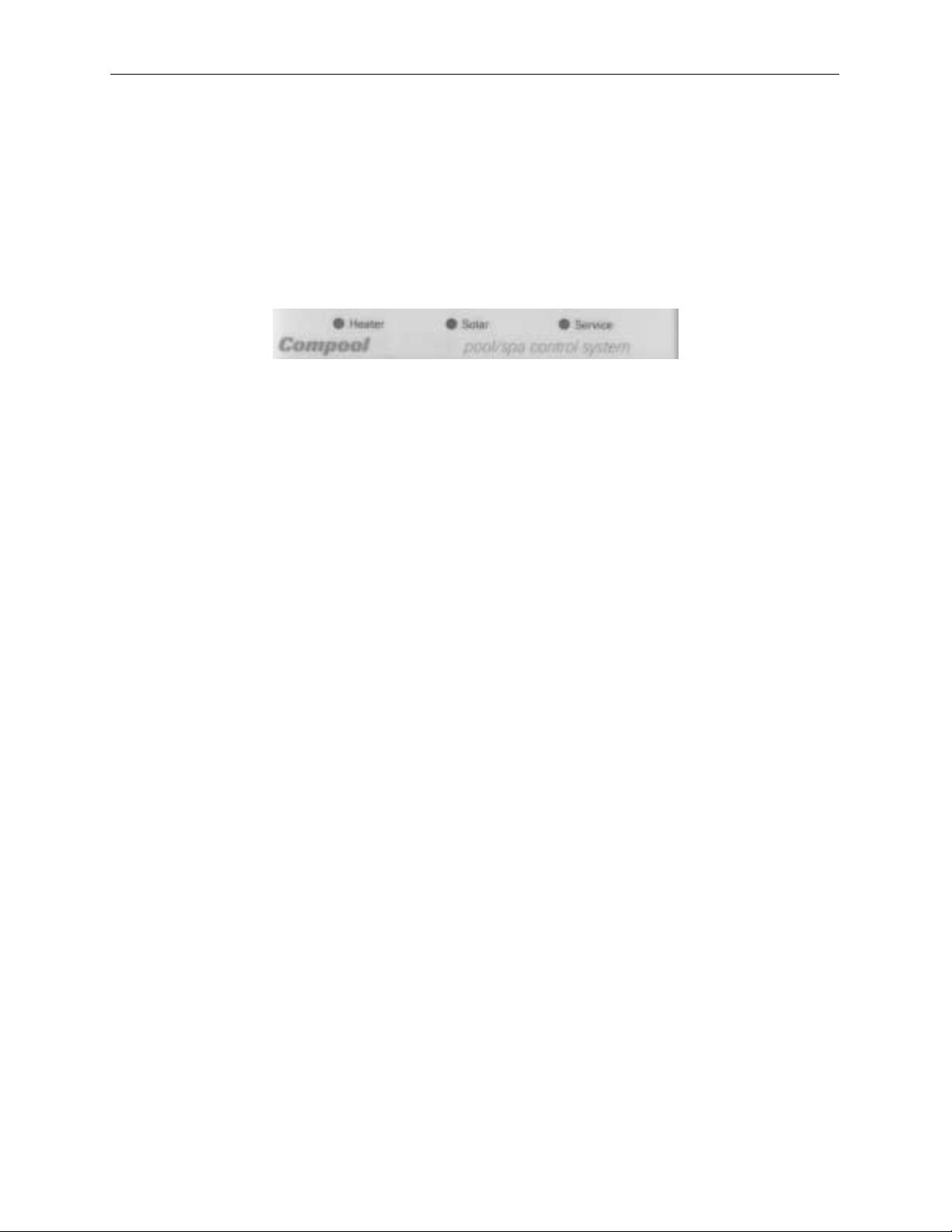

Three Equipment Status lights are located on the top of the Control Panel.
Compool Cp3600
Heater
Solar
Service
Heater Protection
When the pool or spa is turned off, the system may keep the filter pump on for an additional 10
minutes to allow the heater to cool down. During this cool down cycle, and icon on the display
will indicate DELAY. Some heaters do not require a cool down period, so this function may
have been disabled. See Configuration Switches for details.
Cleaner Protection
Systems with an automatic pool cleaner (booster pump type) will have been set up to control it
with equipment key 1. The cleaner will operate in the following way.
Cleaner turns on pool.
Cleaner turns on after 5 minute delay.
Cleaner is disabled while spa is on.
Cleaner is disabled for 5 minutes when the solar turns on.
Canceling Heater and Cleaner Protection
For testing purposes only, it is possible to cancel the heater and cleaner protection by pressing
the CANCEL key, which is located behind the right-side door of the Control Panel.
Light on indicates the heater is on.
Light on indicates the solar is on.
Blinking light indicates the system is in Service Mode.
Page 29
Compool Cp3600
Temperature Control
27

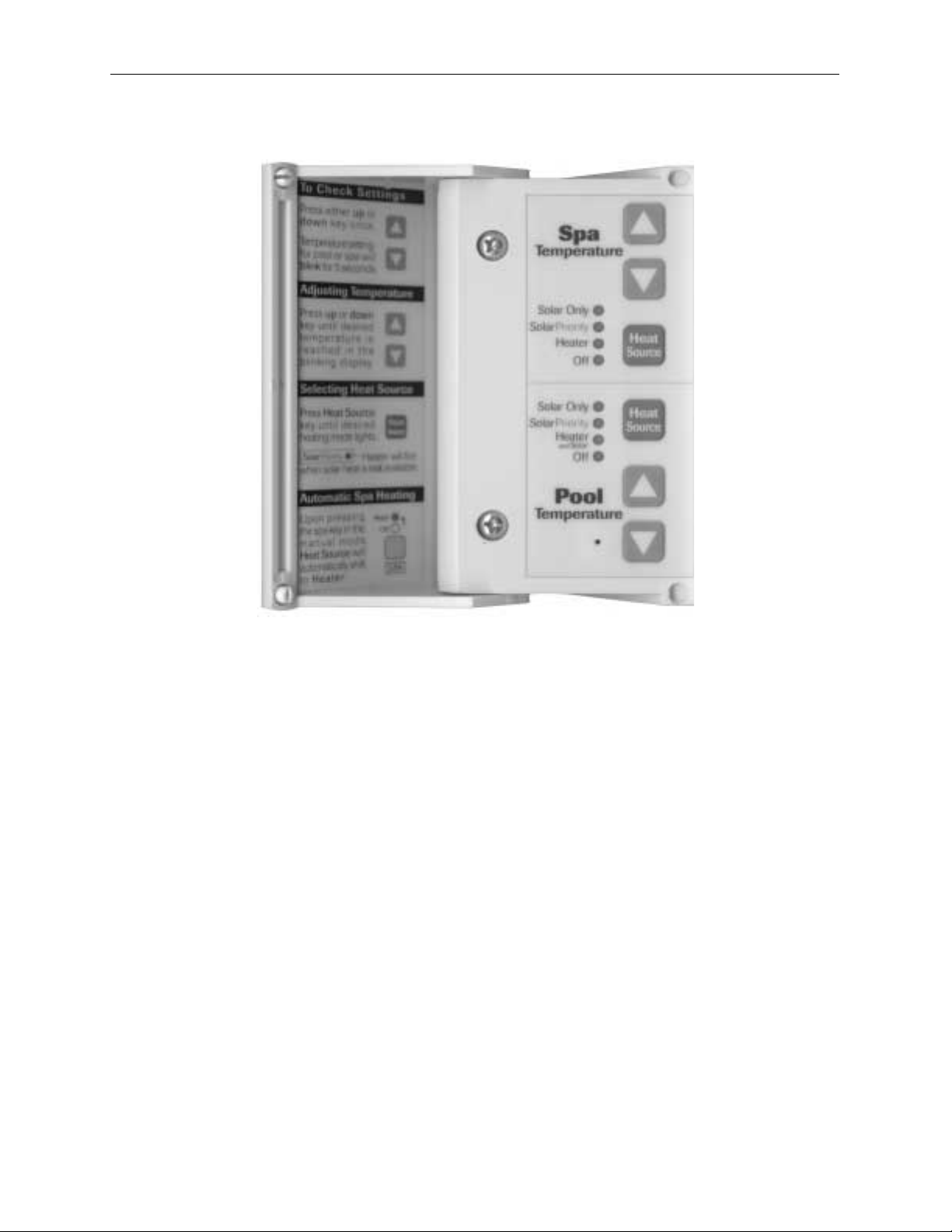

Located behind the left door of the Control Panel is the Temperature Control area. Heating
choices are selected using the following keys.
Heat Source key
To select heating method, press the Heat Source key through the different heating options.
Solar Only -
Solar Priority-
Heater
Off
For added convenience, whenever the spa is manu ally activated (fr om either th e Contro l Pan el
or the Spa-side Remote), the Spa Heat Source Lamp will automatically switch to “Heater”.
Turning the spa off will return Spa Heat Source Lamp to its previous position.
Note
available.
Temperature keys
To adjust the pool or spa temperature settings, press the appropriate Temperature key once.
SET TEMP will be displayed. Press the Temperature keys to adjust desired water temperature.
After 5 seconds, the display will automatically return to its origin al condition.
- Heat with gas heater and solar when available.
- No heating.
If system does not incorporate solar, the Solar Priority and Solar Only options will not be
Heat with solar only.
Heat with solar when available, otherwise switch to gas heater.
Page 30
28
Fahrenheit/Celsius key
Located behind the right-door of the Con trol Pan el is the Temp. Disp lay key. Pres s this ke y to
select Fahrenheit or Celsius temperature display.
Programming
Compool Cp3600
Behind the right door of the Control Panel are the keys used to Program equipment.
Page 31
Compool Cp3600
Programming
• To program Pool filtration
29
Typically only the Pool key (Pool filtration) needs to be programmed. Other Equipment keys
can be progra mmed the sam e way.

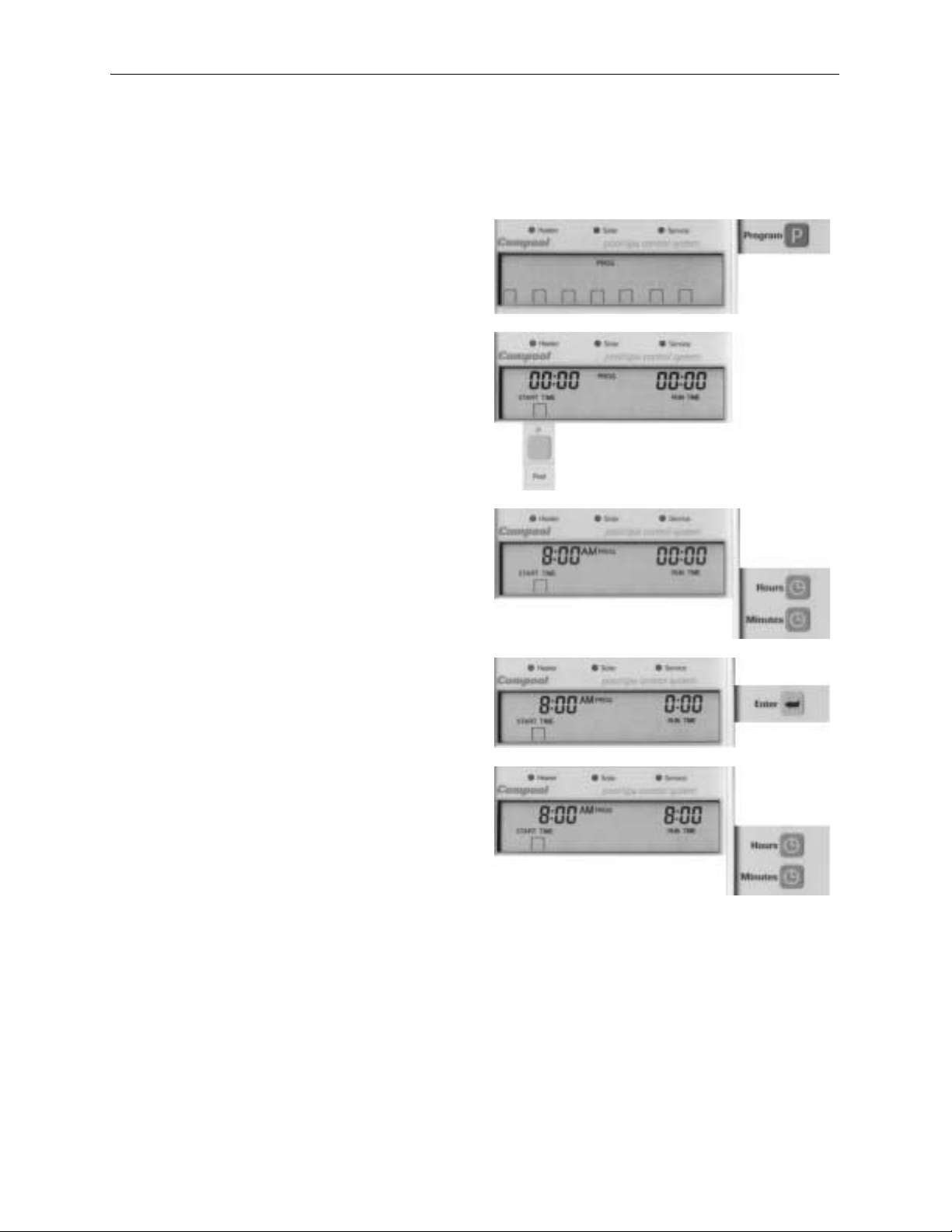

1. Press the Program key.
2. Press the Pool key.
3. Press the Hours/Mi nutes ke y to set the START TIME.
4. Press the Enter key.
5. Press the Hours/Mi nutes ke y to set the RUN TIME.
6. Press the Program key to end.
Programming additional Run Times
It is possible to program up to four separate START TIME and RUN TIME’s for each
equipment key. Follow the previous example to step 2, then press the same equipment key until
PROG 2 is displayed. Continue with steps 3-6 to enter the second START TIME and RUN
TIME.
Programming a Time-out
By default, manually activated equipment will Time-out after 12 hours. However, it is possible
to program a different Time-out period for each equipment key.
Page 32
30
Follow Programming example, set START TIME to 0:00 hours. Set RUN TIME to the number
of Hour/Minutes before equipment should Time-out.
If the RUN TIME is set for 24 hours, manually activated equipment will run continuously
Note
until manually turned off.
Programming a Once-only
The Once-only program is used to start the spa after a few hours, for example, you would like
to have the spa start in 2 hours. Once the program executes, it is automatically erased.
Follow the programming example above, enter the time the Spa should start (START TIME)
and set the RUN TIME to 0:00.
Canceling Programs
• To cancel all of the programs
1. Press the Program key. The Display will show a row of blinking icons located
immediately above the eight Equipment keys.
2. Press and hold down the Cancel key for 5 seconds. After 5 seconds, a continuous alarm
will sound (until you release the Cancel key), indicating that all of the programs have been
erased.
Compool Cp3600
3. Press the Program key to end.
• To cancel an individual program
1. When programming or reviewing a program, pressing the Cancel key will return the
START TIME and RUN TIME to “0:00”.
Setting the Time of Day
To set the TIME OF DAY, press the Hours/Minutes key to set correct time. Pay attention to the
AM/PM symbol.
Remote Control at Spa key
It is possible to disable the Spa-side Remote from your Control Panel by pressing the Remote
Control at Spa key. The key is located behind the right-side door of the Control Panel. If the
status lamp is on, the Spa-side Remote is operational. If the status lamp is off, the Spa-side
Remote is disabled.
Page 33
Compool Cp3600
Calibration
• To calibrate equipment
31
The temperature sensors, backwash, and floor cleaner valve can be adjusted in the calibration
mode. Allow pool to run 5 minutes before calibrating the Water Temperature Sensor.

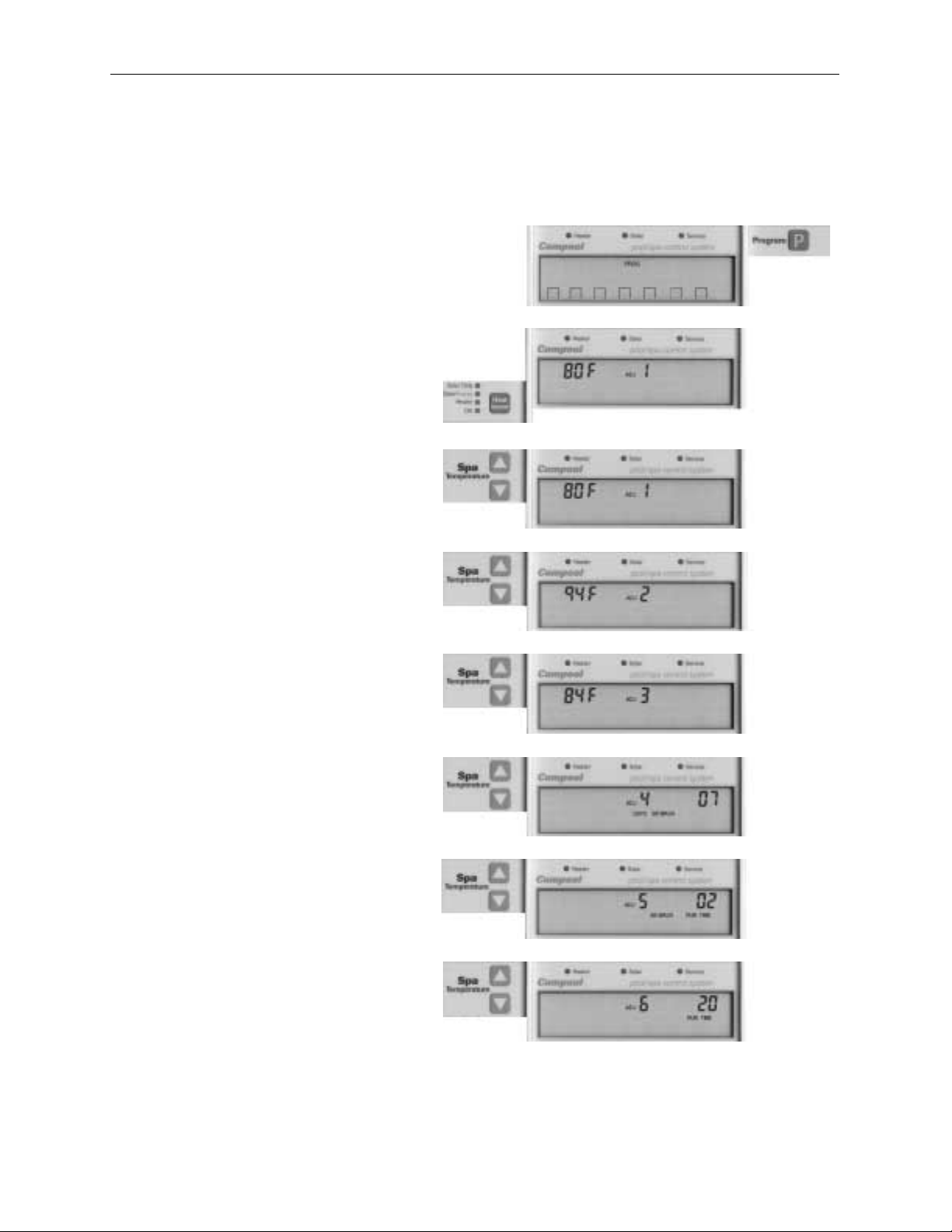

1. Press the Program key.
2. Press the Spa Heat Source key.
3. Enter correct pool temperature and press Spa Heat Source key.
4. Enter correct solar temperature and press Spa Heat Source key.
5. Enter correct air temperature and press Spa Heat Source key.
6. Enter number of days between backwash and press Spa Heat Source key.
7. Enter number of minutes to backw ash and press Spa Heat Source key.
8. Enter floor cleaner valve cycle time and press Spa Heat Source key.
9. Press the Program key to end.
Page 34
32
Compool Cp3600
Solar, backwash, and floor cleaner valve ad justments are skipped if feature is not enabled.
Note
Tips for calibrating the temperature sensors
Water Sensor
accurately pickup current pool water temperature.
Solar Sensor
measurement.
Freeze Sensor
Let the pool run for 5 minutes to allow water temperature sensor to
Put a thermometer into direct sunlight and add 10 degrees to the
Shade thermometer from direct sunlight.
Page 35
Compool Cp3600
Power Center
33
Equipment keys
Located at the equipment pad, the Power Center provides manual-override capability of your
equipment.
Caution
The Auto/Service key toggles the Power Center between th e fo llowing
modes.
Auto
Service
A blinking “Auto” status lamp indicates that the equipment is undergoing a 3-Hour program
override. See 3-hour Filter Override for details.
Caution
in equipment interlocks and safety delay circuits.
To prevent water damage, close Power Center door after use.
Control Panel and Spa-side Remote are enabled. Power Center key s are disabled.
Power Center keys are enabled. Control Panel and Spa-side Remote are
disabled.
Manual-activation of equipment from the Power Center, will override any of the built-
Page 36
34

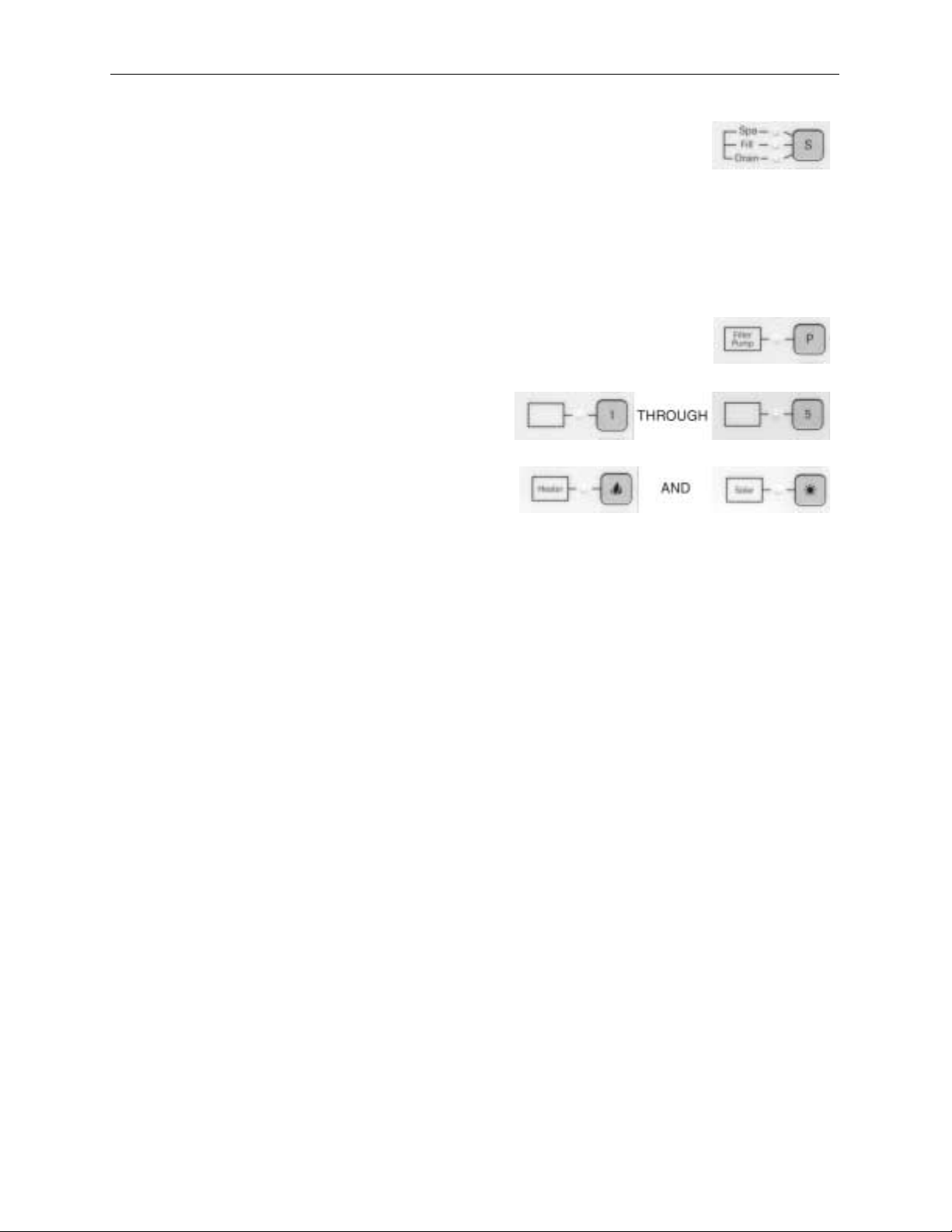

The S key toggles the Intake and Return Valve Actuators through the
following options.
Spa circulation.
Fill spa.
Drain spa.
No status lamp indicates valves are in pool circulation.
Compool Cp3600
The P key turns on the
Keys 1-5 activate auxiliary
equipment.
Activates the Heater and Solar.
3 - Hour Filter Override
It is possible to override the daily equipment operati ng cycles, and manually activate (or
deactivate) the filter pump and any of the 5 auxiliary circuits for a 3-Hour period. This is
particularly useful when adding chemicals to the pool.
Note
To turn the filter pump on, press the P key (Filter Pump) 2 times quickly. The “Auto” mode
Status Lamp will begin to blink, and the Filter Pump Status Lamp will illuminate for the 3-Hour
cycle.
To turn the filter pump off, press the P key (Filter Pump) 3 times quickly. The “Auto” mode
Status Lamp will begin to blink, and the Filter Pump Status Lamp will not be illuminated during
the 3-Hour cycle.
Filter Pump.
The Control System must be in “Auto” mode to enable these feature.
Sensor Status
If there is a fault with a temperature sensor, the appropriate status lamp will turn on. Check
cable and connections to appropriate sensor. If necessary, replace Temperature Sensor.
Page 37
Compool Cp3600
Spa-side Remote
Spa-side Heat Boost
35
The Spa-side Remote allows controlling your equipment from the spa. The light in the middle
of the switch will turn on whenever the spa is on. The light will blink when the spa is being
heated.
If your Spa-side Remote has one of its buttons designated for the controlling the Heat Boost
feature, it is possible to manually activate the heater, and boost the spa temperature for a five
minute period. This feature can only be activated if the Spa-side Remote light is not blinking.
To activate the Heat Boost, press t he designated button. The light wi ll blink during the 5-minute
cycle to indicate that the spa is being heated. If you wish to turn the heater off at any time during
this 5-minute cycle, press the Heat Boost button again. The ligh t will stop blinkin g to indicate
that the spa is no longer being heated.
Page 38
36
System Options
Tele phone Module
Compool Cp3600
The Telephone Module can control your equipment from inside your home or by calling your
home from a remote location.
The Telephone Module is most often setup to control the spa, however if the home is a vacation
home, you may want to configure it to turn on your pool heater instead. See Configuration
Switches for details.
To turn the spa ON or OFF, follow this command:
Press ‘772’ or ‘SPA’. 2 confirming beeps indicated spa is on, 3 confirming beeps indicate
spa is off.
To turn the pool heater ON or OFF, follow this command:
Press ‘487’ or ‘HTR’. 2 conf i rming beeps indicat ed pool heat ing is enabled, 3 conf ir ming
beeps indicate pool heating is off.
Controlling the Telephone Modul e from outside the home uses the same pr ocedure as described
above. The Telephone Module will answer the phone after 30 seconds if no other device
answers the phone first. If another device answers the phone first, like an answering machine
or fax machine, the Telephone Module will listen for the commands.
2-speed Filter Pump Control
The 2-speed filter pump can be switched to high speed under the following conditions.
Cleaner is on.
Spa is on.
Heater is on.
Solar is on.
When the 2-speed filter is turned on, it will start in high speed and automatically switch
Note
to low speed after 5 minutes.
Spa Waterfall Control
The Spa Waterfall feature is similar to filling the spa. This feature uses Equipment key number
“2”. See Configuration Switches for details.
Freeze Protection
Where freezing temperatures occur for a few days, it is possible to protect equipment from
freeze damage by turning on pumps.
When the Freeze Temperature Sensor detects 35 degrees Fahrenheit or less, the system starts
Freeze Protection. An icon on the Control Panel will display FRZ to indicate that Freeze
Protection is active. Every 15 minutes the pool/spa valves will rotate to protect the spa
plumbing. When air temperature rises above 37 degrees Fahrenheit, the Freeze Protection mode
stops. See Configuration Switches to determine what equipment will turn on during Freeze
Protection.
Freeze Protection will not provide circulation of water through solar panels. Solar panels
Note
must be protected by other methods. See Plumbing Requirements for details.
Page 39
Compool Cp3600
Winterizing the System
In areas where freezing temperatures occur for an extended period of time, it is required to
consult a qualified service company to winterize your pool.
37
Page 40
38
Problem Solving
Display shows “Err 1”
If there is a fault with the Water Temperature Sensor, the display will show “Err 1”.
Display shows “Err 2”
If there is a fault with the Solar Temperature Sensor, the display will show “Err 2”.
Display shows “Err 3”
If there is a fault with the Freeze Temperature Sensor, the display will show “Err 3”.
Compool Cp3600
Check sensor cable and connections.
Replace Water Temperature Sensor (model TS-5L).
Check sensor cable and connections.
Replace Solar Temperature Sensor (model TS-5L).
Check sensor cable and connections.
Replace Freeze Temperature Sensor (model TS-5L).
Display shows “Err 4”
If the Control Panel is not able to communicate with the Power Center, the display wi ll show
“Err 4”.
Check communication cable and connections.
Use test cable provided in low voltage compartment of the Power Center to determine if
the cable is the problem.
Display shows “Err 5”
If there is a short at the Spa-side Remote, the display will show “Err 5” and the Remote Control
is disabled (see L.E.D. behind right door of Contol Panel).
Replace Spa-side Remote switch.
T e mperature display is not correct
Calibrate Water Temperature Sensor. See Calibration for details.
Heater does not operate
Check desired water temperature setting. See Control Panel for details.
Check Heat Source key. See Control Panel for details.
Check switches on heater.
Page 41
Compool Cp3600
Heat Source does not allow Solar
At the Power Center circuit board, the SPEC FNCT configuration switch SOLR needs to
be turned on. See Configuration Switches for details.
Solar heating stops too soon
Verify solar temperature is calibrated correctly. See Calibration for details.
Spa-side Remote does not operate
At the Control Panel, verify Remote Control at Spa lamp (behind right-side door), is
turned on.
No display at Control Panel
Check circuit breakers in the Sub-panel and Power Center.
Check communication cable.
Clock lost time after power failure
39
Replace battery located on Power Center circuit board.
System not responding
Reset the Control Panel. Locate small hole next to the Pool Temperature keys. With a
pointed object, push the reset button.
Reset the Power Center. Locate small hole next to Auto/Service key. With a pointed
object, push the reset button.
Determining revision date
At the Control Panel, press and hold the Enter key. The numbers on the left indicate the
Control Panel revision number, the numbers on the right indicate the Power Center
revision number.
Page 42
40
Warranty
Compool Cp3600
Compool, Inc. warrants to the purchaser of this electronic con trol system, for the period of one
year from the date of original purchase for use, that any defective product proved to be caused
by faulty workmanshi p or faulty material, will be repaired or replaced at Compool’s option at
no charge, providing the product is returned to Compool with all transportation charges prepaid.
This warranty covers the Control Panel, Power Center, Valve Actuators, and op tional Controls
including all components and parts. It extends to the first retail purchaser and any subsequent
owners of the system.
This limited warranty applies only to controls which have been installed and maintained in strict
accordance with installation and operating instructions provided by Compool, Inc., using
installation hardware supplied and/or recommended in writing by Compool, and to controls
which have been connected to the correct supply voltage.
This limited warranty does not apply to any controls which have been repaired or altered by
anyone other than Compool or a person authorized by it; or which have been subject to mi suse,
neglect or accident; or which have been damaged by wind, rain, lightning, freezing or other
cause, thing, person, or act of God; or which have been subject to damage in transit, during
installation, or by someone o ther than Compool, Inc.; or which have been damaged because of
a defect in a component or part which is not p art of the Compool Control System; or upon which
the serial number or manufacture date has been altered, effaced or removed.
This warranty gives you specific legal rights and you may also have other rights which vary
from State to State. Compool, Inc. does not authorize any person to cr eate any other obligation
or liability in connection with Compool controls.
Compool, Inc. makes no warranty of merchantability or fitness for any use. Any implied
warranty applicable to Compool controls is limited in duration to the duration of this written
warranty. Unless state law provides otherwise, Compool, Inc. shall not be liable for
consequential or incidental damages resulting from breach of this written warranty or any
implied warranty, or any inconvenience, loss of time, or incidental expenses such as telephone
calls.
Compool, Inc. shall not be liable for any labor charges associated with the removal or
reinstallation of any so- claimed defective products.
To exercise this warranty, send defective parts, with copy of dated receipt and a brief description
of the problems encountered, postage prepai d, to:
Compool, Inc.
599 Fairchild Drive
Mountain View, California 94043
For questions, repairs, replacement parts, or information on possible Authorized Service
Centers within your vicinity call:
Compool, 800-458-2201 or 415-964-2201, Monday - Friday, 8:00 - 5:00 Pacific Time.
Or visit us on the Internet at http://www.compool.com
Page 43
Compool Cp3600
Index
2-speed Filter Pump Control 36
3 - Hour Filter Override 34
Adding Relays 10
Backwash Control 22
Calibration 31
Canceling Heater and Cleaner Protection 26
Canceling Programs 30
Cleaner Protection 26
Configuration Switches 23
Control Panel 16
Control Panel 25
Dimmer Relay 21
Equipment Keys 25
Equipment keys 33
Equipment Location 7
Equipment Power 10
Equipment Status Icons 25
Equipment Status Lamps 26
Fahrenheit/Celsius key 28
Floor Cleaner Valve 22
FREEZE 23
Freeze Protection 36
Freeze Temperature Sensor 15
Gas Heater Connections 14
Heat Pump or Electric Heater 20
Heater Protection 26
HI SPD - High Speed 24
High Voltage Wiring 8
I/L - Interlock 23
Important Safety Instructions 3
Index 41
Installation 8
Introduction 4
Low Voltage Cables 13
Low Voltage Wiring 12
Modular Crimping Tool 17
Multiple Control Panels 19
Operating Instructions 25
Package Contents 4
PHONE CONTROLS 24
Plumbing Requirements 6
Power Center 33
Power Center Circuit Board 12
Power Center with built in Sub-panel 8
41
Page 44
42
Power Center without built in Sub-panel 8
Problem Solving 38
Programming 28
Programming 29
Programming a Once-only 30
Programming a Time-out 29
Programming additional Run Times 29
Remote Control at Spa key 30
Safety Notice 3
Sensor Status 34
Setting the Time of Day 30
Solar Booster Pump Control 20
Solar Heating 20
Spa Waterfall Control 36
Spa-side Heat Boost 35
Spa-side Remote 18
Spa-side Remote 35
SPEC FUNCT - Special Functions 23
SYST - System 23
System Options 18
System Options 36
System Power 9
System Start-up 24
Telephone Module 21
Telephone Module 36
Temperature Control 27
Two Speed Filter Pump 21
Underwater Lights 11
Valve Actuators 13
Valve Module 19
Warranty 40
Water Temperature Sensor 14
Winterizing the System 37
Compool Cp3600
Loading...
