Component Hardware T12-0370-P120 User Manual

®

™

®

Shut-Off

go green

CHG

®

Switch

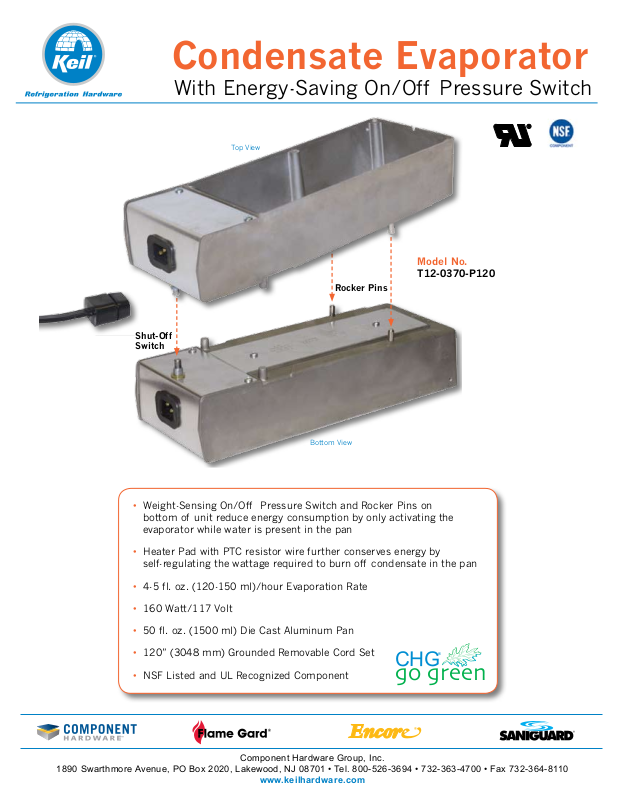

Condensate Evaporator

With Energy-Saving On/Off Pressure Switch

Top View

Model No.

T12-0370-P120

Rocker Pins

Bottom View

• Weight-Sensing On/Off Pressure Switch and Rocker Pins on

bottom of unit reduce energy consumption by only activating the
evaporator while water is present in the pan

• Heater Pad with PTC resistor wire further conserves energy by

self-regulating the wattage required to burn off condensate in the pan

• 4-5 fl. oz. (120-150 ml)/hour Evaporation Rate

• 160 Watt/117 Volt

• 50 fl. oz. (1500 ml) Die Cast Aluminum Pan

• 120” (3048 mm) Grounded Removable Cord Set

• NSF Listed and UL Recognized Component

1890 Swarthmore Avenue, PO Box 2020, Lakewood, NJ 08701 • Tel. [phone] • 732-363-4700 • Fax [phone]

Component Hardware Group, Inc.

www.keilhardware.com
