Component Hardware KN86 - 8001 - RA1 User Manual

SPECIFIER ITEM NO. ________________

®

THE POWER OF SIL V ER

(16mm)

ÿ3/16"
(5mm)

(38mm)

- 1 1/2" DIA.

(38mm)

- 1 1/2" DIA.

(22mm)

(32mm)

7/8" DIA.

1 1/4" DIA.

AS REQUIRED

8 1/2

[216mm]

6 1/4

[161mm]

11 3/4

[300mm]

1-1/4”
[38mm]

5/8"

AS REQUIRED

4 1/16

[103mm]

2 11/16
[69mm]

CHG PART NO. _______________________

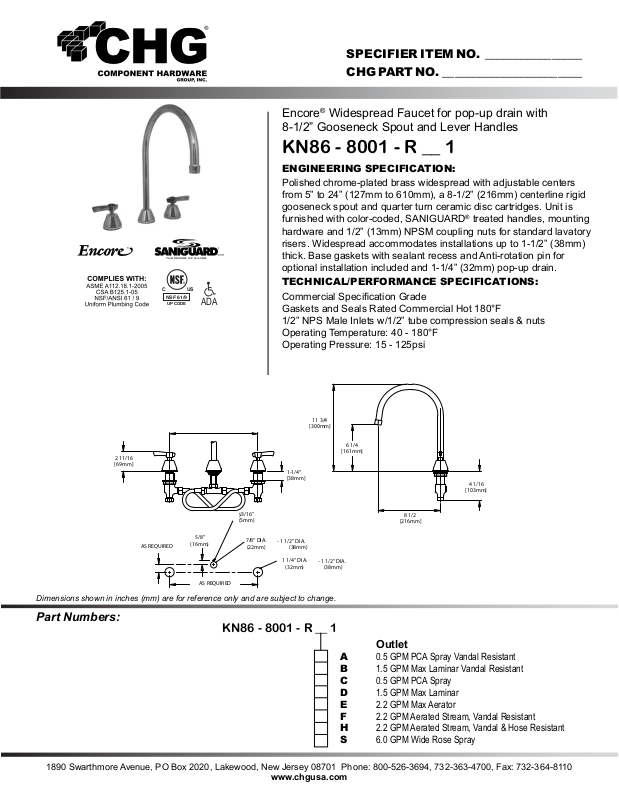

Encore® Widespread Faucet for pop-up drain with
8-1/2” Gooseneck Spout and Lever Handles

KN86 - 8001 - R __ 1

ENGINEERING SPECIFICATION:

Polished chrome-plated brass widespread with adjustable centers
from 5” to 24” (127mm to 610mm), a 8-1/2” (216mm) centerline rigid
gooseneck spout and quarter turn ceramic disc cartridges. Unit is
furnished with color-coded, SANIGUARD® treated handles, mounting
hardware and 1/2” (13mm) NPSM coupling nuts for standard lavatory

®

CUS

NSF 61/9

UP CODE

ADA

risers. Widespread accommodates installations up to 1-1/2” (38mm)
thick. Base gaskets with sealant recess and Anti-rotation pin for
optional installation included and 1-1/4” (32mm) pop-up drain.

TECHNICAL/PERFORMANCE SPECIFICATIONS:

Commercial Specication Grade

Gaskets and Seals Rated Commercial Hot 180°F
1/2” NPS Male Inlets w/1/2” tube compression seals & nuts
Operating Temperature: 40 - 180°F
Operating Pressure: 15 - 125psi

Dimensions shown in inches (mm) are for reference only and are subject to change.

Part Numbers:

KN86 - 8001 - R __ 1

www.chgusa.com

1890 Swarthmore Avenue, PO Box 2020, Lakewood, New Jersey 08701 Phone: [phone], Fax: [phone]

Outlet

A 0.5 GPM PCA Spray Vandal Resistant
B 1.5 GPM Max Laminar Vandal Resistant
C 0.5 GPM PCA Spray
D 1.5 GPM Max Laminar
E 2.2 GPM Max Aerator
F 2.2 GPM Aerated Stream, Vandal Resistant
H 2.2 GPM Aerated Stream, Vandal & Hose Resistant
S 6.0 GPM Wide Rose Spray
