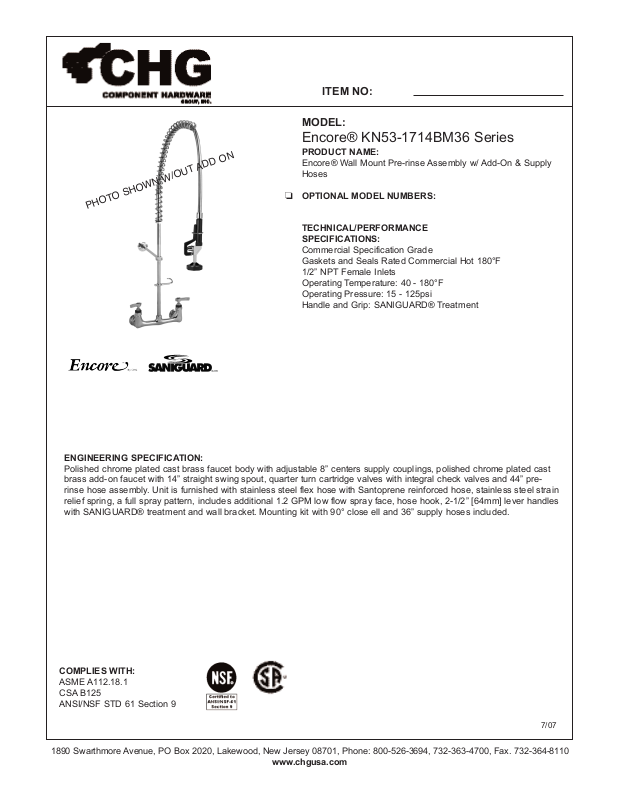

Component Hardware KN53-1714BM36 User Manual

ITEM NO:

MODEL:

Encore® KN53-1714BM36 Series

ON

D

D

A

T

OU

/

N W

HOW

O S

OT

H

P

PRODUCT NAME:

Encore® Wall Mount Pre-rinse Assembly w/ Add-On & Supply
Hoses

OPTIONAL MODEL NUMBERS:

o

TECHNICAL/PERFORMANCE 
SPECIFICATIONS:

Commercial Specification Grade
Gaskets and Seals Rated Commercial Hot 180°F
1/2” NPT Female Inlets
Operating Temperature: 40 - 180°F
Operating Pressure: 15 - 125psi
Handle and Grip: SANIGUARD® Treatment

ENGINEERING SPECIFICATION:

Polished chrome plated cast brass faucet body with adjustable 8” centers supply couplings, polished chrome plated cast
brass add-on faucet with 14” straight swing spout, quarter turn cartridge valves with integral check valves and 44” pre­rinse hose assembly. Unit is furnished with stainless steel flex hose with Santoprene reinforced hose, stainless steel strain
relief spring, a full spray pattern, includes additional 1.2 GPM low flow spray face, hose hook, 2-1/2” [64mm] lever handles
with SANIGUARD® treatment and wall bracket. Mounting kit with 90° close ell and 36” supply hoses included.

COMPLIES WITH:

ASME A112.18.1
CSA B125
ANSI/NSF STD 61 Section 9

7/07

1890 Swarthmore Avenue, PO Box 2020, Lakewood, New Jersey 08701, Phone: [phone], Fax. [phone]

www.chgusa.com

MODEL: Encore™ KN53-1714BM36 Series

13”

(329mm)

MOUNTING KIT

K40-X001

1/2”-NPS NIPPLE

1/2” FIP

1/2-14 NPSM THREAD

WITH WASHER

2-1/2”

(64mm)

1-3/8”
(35mm)

4-1/8”
(105mm)

15-1/8”

(384mm)

8-1/4”

(208mm)

8”

(203mm)

14”

(355mm)

15-1/8”

(385mm)

28-5/8”

(726mm)

0” AIR GAP

36” SUPPLY LINE
(914mm)
