Component Hardware KN41-4112-SE1 User Manual

SPECIFIER ITEM NO. ________________

®

THE POWER OF SIL V ER

1/16" - 1"
(2mm - 25mm)
THICKNESS

(102mm)

(62mm)

(165mm)

C

(48mm)

(22mm)

1/2" NPSM COUPLING
NUT & SEAL FOR 1/2"

FLEXIBLE RISER

B

6 1/2"

2 7/16"

4"

A

7/8"

1 7/8"

CHG PART NO. _______________________

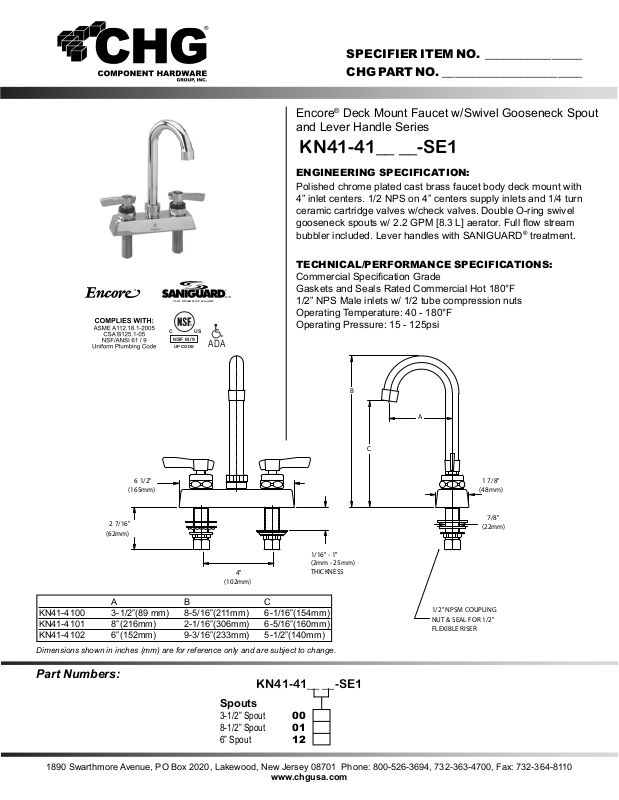

Encore® Deck Mount Faucet w/Swivel Gooseneck Spout
and Lever Handle Series

KN41-41__ __-SE1

ENGINEERING SPECIFICATION:

Polished chrome plated cast brass faucet body deck mount with
4” inlet centers. 1/2 NPS on 4” centers supply inlets and 1/4 turn
ceramic cartridge valves w/check valves. Double O-ring swivel

gooseneck spouts w/ 2.2 GPM [8.3 L] aerator. Full ow stream

bubbler included. Lever handles with SANIGUARD® treatment.

TECHNICAL/PERFORMANCE SPECIFICATIONS:

Commercial Specication Grade

®

CUS

NSF 61/9

UP CODE

ADA

Gaskets and Seals Rated Commercial Hot 180°F
1/2” NPS Male inlets w/ 1/2 tube compression nuts
Operating Temperature: 40 - 180°F
Operating Pressure: 15 - 125psi

A B C
KN41-4100 3-1/2”(89 mm) 8-5/16”(211mm) 6-1/16”(154mm)
KN41-4101 8”(216mm) 2-1/16”(306mm) 6-5/16”(160mm)
KN41-4102 6”(152mm) 9-3/16”(233mm) 5-1/2”(140mm)

Dimensions shown in inches (mm) are for reference only and are subject to change.

Part Numbers:

KN41-41__ __-SE1

Spouts

3-1/2” Spout 00
8-1/2” Spout 01

1890 Swarthmore Avenue, PO Box 2020, Lakewood, New Jersey 08701 Phone: [phone], Fax: [phone]

6” Spout 12

www.chgusa.com
