Component Hardware KL86-8201-RC User Manual

®

®

THE POWER OF SILVER

(16mm)

ÿ3/16"
(5mm)

(38mm)

- 1 1/2" DIA.

(38mm)

- 1 1/2" DIA.

(22mm)

(32mm)

7/8" DIA.

1 1/4" DIA.

AS REQUIRED

8 1/2

[216mm]

6 1/4

[161mm]

11 3/4

[300mm]

1-1/4”
[32mm]

5/8"

AS REQUIRED

4 1/16

[103mm]

5“-24”

(127mm-610mm)

COMPLIES WITH:

ASME A112.18.1-2005

CSA B125.1-05
NSF/ANSI 61/9, ANNEX G
SECTION 116875 OF THE

CALIFORNIA HEALTH & SAFETY CODE

(COMMONLY KNOW AS AB1953)

VERMONT ACT 193

UNIFORM PLUMBING CODE

ADA

SPECIFIER ITEM NO. ________________

CHG PART NO. _______________________

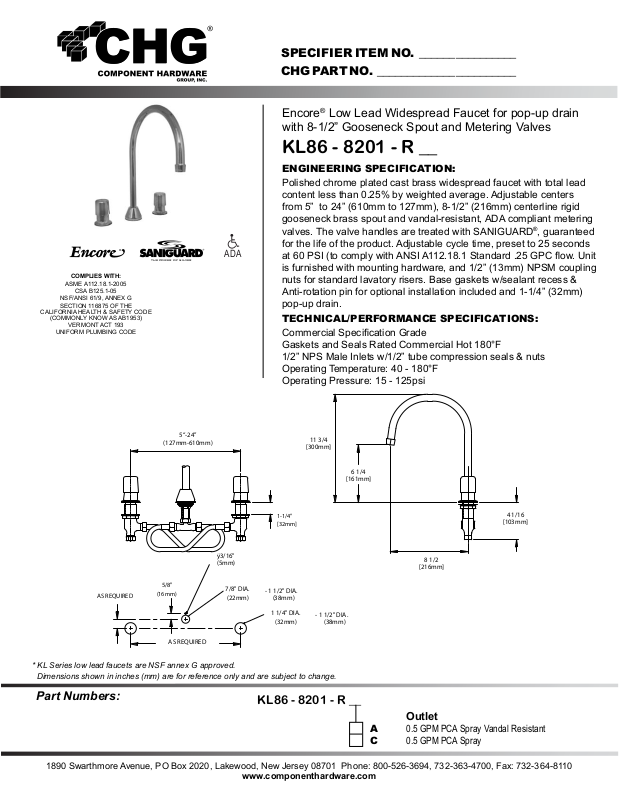

Encore® Low Lead Widespread Faucet for pop-up drain
with 8-1/2” Gooseneck Spout and Metering Valves

KL86 - 8201 - R __

ENGINEERING SPECIFICATION:

Polished chrome plated cast brass widespread faucet with total lead
content less than 0.25% by weighted average. Adjustable centers
from 5” to 24” (610mm to 127mm), 8-1/2” (216mm) centerline rigid
gooseneck brass spout and vandal-resistant, ADA compliant metering
valves. The valve handles are treated with SANIGUARD®, guaranteed
for the life of the product. Adjustable cycle time, preset to 25 seconds

at 60 PSI (to comply with ANSI A112.18.1 Standard .25 GPC ow. Unit

is furnished with mounting hardware, and 1/2” (13mm) NPSM coupling
nuts for standard lavatory risers. Base gaskets w/sealant recess &
Anti-rotation pin for optional installation included and 1-1/4” (32mm)
pop-up drain.

TECHNICAL/PERFORMANCE SPECIFICATIONS:

Commercial Specication Grade

Gaskets and Seals Rated Commercial Hot 180°F
1/2” NPS Male Inlets w/1/2” tube compression seals & nuts
Operating Temperature: 40 - 180°F
Operating Pressure: 15 - 125psi

* KL Series low lead faucets are NSF annex G approved.

Dimensions shown in inches (mm) are for reference only and are subject to change.

Part Numbers:

1890 Swarthmore Avenue, PO Box 2020, Lakewood, New Jersey 08701 Phone: [phone], Fax: [phone]

KL86 - 8201 - R __

www.componenthardware.com

Outlet

A 0.5 GPM PCA Spray Vandal Resistant
C 0.5 GPM PCA Spray
