Complete MX-780 User Manual

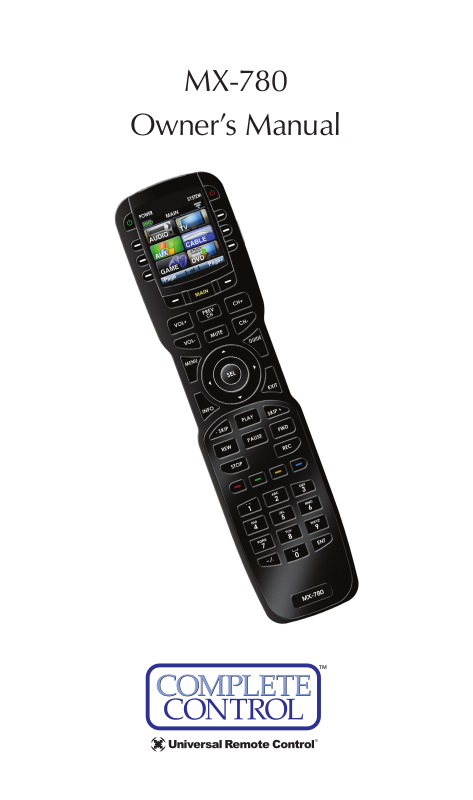

MX-780

Owner’s Manual

MX-780 Owner’s Manual ©2011 URC, Inc.

The information in this manual is copyright protected. No part of this
manual may be copied or reproduced in any form without prior written
consent from Universal Remote Control, Inc.

UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR
OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE
IN THIS MANUAL.

The information in this manual may be subject to change without prior notice.

Complete Control is a registered trademark of Universal Remote Control, Inc.
Entertainment Made Simple is a trademark of Universal Remote Control, Inc.

All other brand or product names are trademarks or registered trademarks of
their respective companies or organizations.

Universal Remote Control, Inc.

500 Mamaroneck Avenue, Harrison, NY 10528

Phone: [phone] Fax: [phone]

TABLE

OF CONTENTS

Congratulations! 1

Using the MX-780 2

Displaying the Settings Screen 3

Color Screen 3

Button Lighting 4

System 5

Erasing and Resetting 5

Specifications 6

Contact Us 6

USA Limited Warranty Statement 7

Federal Communication Commission

Interference Statement 9

Page 1

MX-780 OWNER’S MANUAL

Congratulations!

Thank you for purchasing the Complete Control MX-780 universal
remote control. This unit can directly control every IR device in
your home. You can also control devices located in different rooms
by integrating an MRF base station. Controlling your home is simple
with the MX-780 remote.

Brilliant OLED color display with hard button interface

When any button is pressed, the color OLED (Organic Light Emitting Diode)
screen, as well as the remote buttons, light up. Once the screen is lit,
each of the three buttons on either side of the screen are labeled.
These button labels are based on the devices you want to watch or
listen to.

User interface customizable for any activity

Each button is customizable for activities such as watching TV or
listening to the radio. These activities can contain multiple commands
(macros) which enable a single button press to turn the needed
devices ON or OFF.

Ultra-reliable narrow band RF - compatible with URC
418 MHz RF Base Stations

The MX-780 can communicate directly to RF base stations, such as
the MRF-350 and the MRF-260. It also natively communicates to
URC Lighting via 418MHz RF. This gives the MX-780 the ability to
control your system without being in direct line-of-sight.

Fast setup of complex systems via Complete Control PC editor

To fully automate an audio/video system, and integrate two way
automation of servers etc., the programmer must have a detailed
knowledge of each component, LAN configuration, WiFi
optimization and how the system is connected and operated. Only
a trained and certified professional audio/video installer can install
an MX-780 remote control in a timely and efficient manner.

Replacing the Batteries

Unlock the battery cover by pushing up on the spring lock at the
bottom of the cover. Remove the cover. Observe the + and –
polarity indicators inside the battery compartment and the batteries.
Place the four AA batteries into their positions in the battery compartment.
Now, replace the battery cover and snap it into place.

Page 2

MX-780 OWNER’S MANUAL

Using the MX-780

The MX-780 displays the title (Main or device) at the top of the
screen. Below the title, the OLED displays the device or command
names. All of the hard buttons of the MX-780 are changed to
control the functions of the selected device.

The Title displays
what the main page
or device you can
control.

Press either of the
Page buttons to see
any other available
choices.

The Light

button

backlights all

of the

buttons.

The OLED button

labels describe

special features

for this activity.

The Channel and

Previous Channel

buttons will change
channels when you

have selected devices

like CABLE.

The 4 way cursor

buttons enable you

to navigate on

screen guides and

menus with ease.

The Number keypad

enters numbers for
the devices you’ve

selected. When

watching Cable TV,

use the number

keypad to enter

channel numbers.

When listening to a

CD, the number

keypad enters track

numbers.

The Volume and
Mute buttons always
control the sound
regardless of what
screen is displayed.

The Transport buttons

(Play, Stop, Skip-, Skip+,
FF, REW and Pause)

operate when the
selected device requires
them. When watching
Cable TV, use the number
keypad to enter channel
numbers.
When listening to a CD,
the number keypad
enters track numbers.
