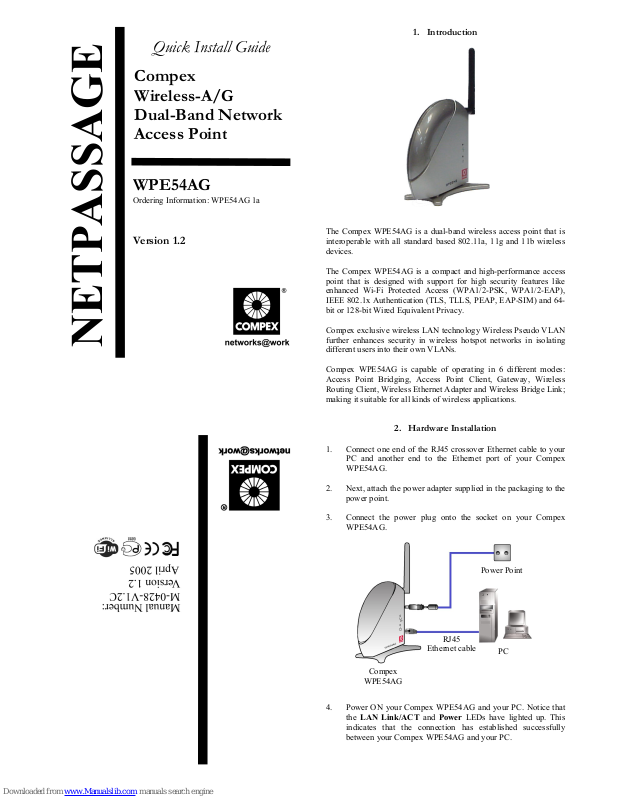

Quick Install Guide

Compex Wireless-A/G Dual-Band Network Access Point

WPE54AG

Ordering Information: WPE54AG 1a

Version 1.2

1. Introduction

The Compex WPE54AG is a dual-band wireless access point that is interoperable with all standard based 802.11a, 11g and 11b wireless devices.

The Compex WPE54AG is a compact and high-performance access point that is designed with support for high security features like enhanced Wi-Fi Protected Access (WPA1/2-PSK, WPA1/2-EAP), IEEE 802.1x Authentication (TLS, TLLS, PEAP, EAP-SIM) and 64bit or 128-bit Wired Equivalent Privacy.

Compex exclusive wireless LAN technology Wireless Pseudo VLAN further enhances security in wireless hotspot networks in isolating different users into their own VLANs.

Compex WPE54AG is capable of operating in 6 different modes: Access Point Bridging, Access Point Client, Gateway, Wireless Routing Client, Wireless Ethernet Adapter and Wireless Bridge Link; making it suitable for all kinds of wireless applications.

2. Hardware Installation

1. Connect one end of the RJ45 crossover Ethernet cable to your PC and another end to the Ethernet port of your Compex WPE54AG.

2. Next, attach the power adapter supplied in the packaging to the power point.

3. Connect the power plug onto the socket on your Compex WPE54AG.

4. Power ON your Compex WPE54AG and your PC. Notice that the LAN Link/ACT and Power LEDs have lighted up. This indicates that the connection has established successfully between your Compex WPE54AG and your PC.

NETPASSAGE

Power Point

RJ45

Ethernet cable

Compex

WPE54AG

Page 2

3. Access to Web-based Interface

Compex has developed a powerful uConfig utility which provides you hassle-free access to the web-based configuration page. To do so, simply

1. Insert your Product CD into your CD-ROM drive. Go to Utilities section and select uConfig to run the program.

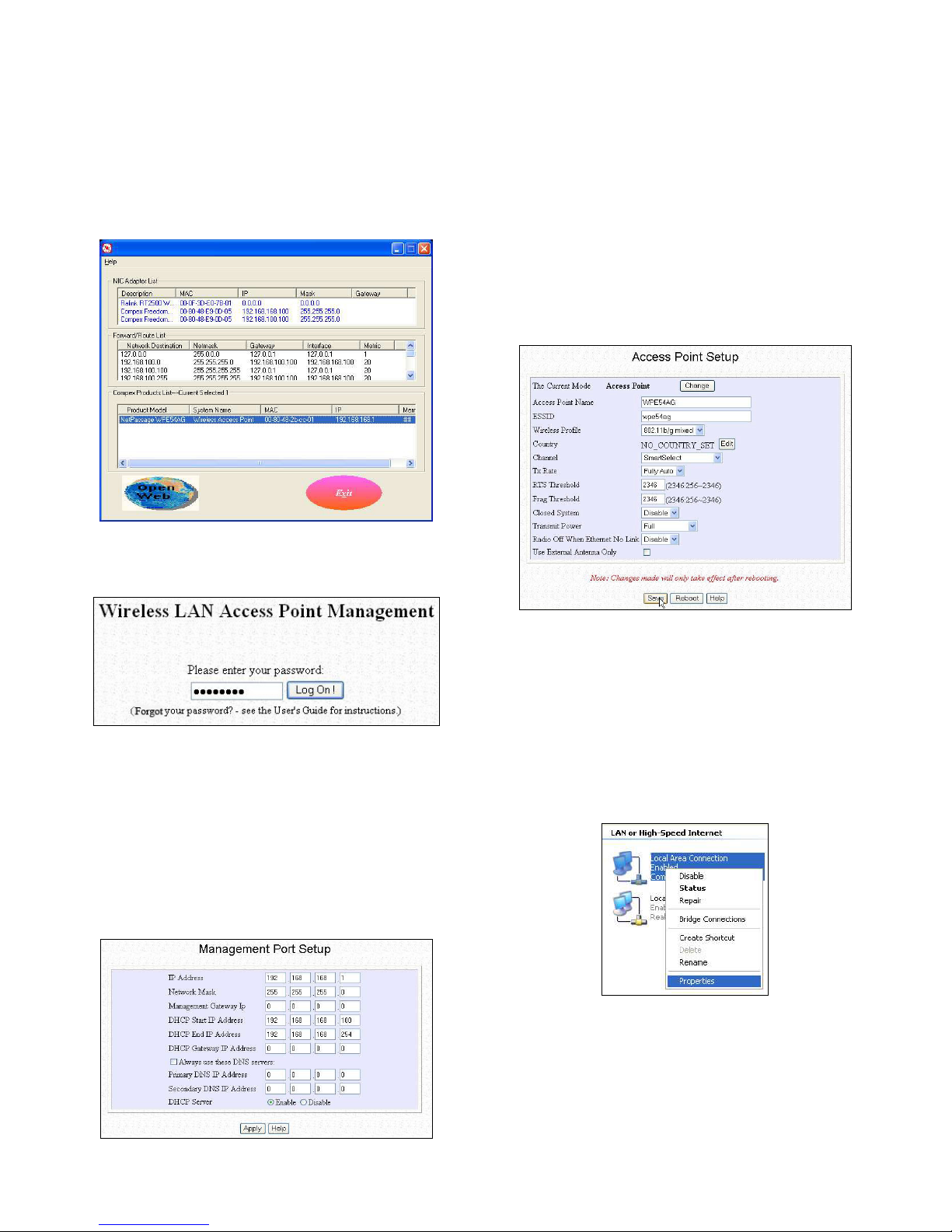

2. The following screen shot will appear. Select NetPassage WPE54AG and click on OpenWeb button to access to the authentication page.

3. The password is pre-configured as password in the field provided. Click on Log On! button to access to the main page.

After accessing to the main page of your Compex WPE54AG, you can start doing your configuration

4. Basic Configuration for Compex WPE54AG

1. To handle automatic IP addressing, go to Management Port under CONFIGURATION section.

2. Go to DHCP Server option and select Enable radio button. Click on Apply button to update the changes.

Now, your Compex WPE54AG acts as a DHCP Server which can assign IP address to your PC/clients.

5. WLAN Basic Setup for Compex WPE54AG

1. To configure your Compex WPE54AG for your wireless user, go to WLAN Basic Setup from the CONFIGURATION section.

2. From your Access Point Setup window, key in the ESSID that you intend to use for your wireless network.

3. You may leave the frequency channel as SmartSelect. This allows your access point to select the channel automatically.

4. Leave the remaining settings as default and click Apply button to update the changes.

6. TCP/IP Configuration for wireless clients

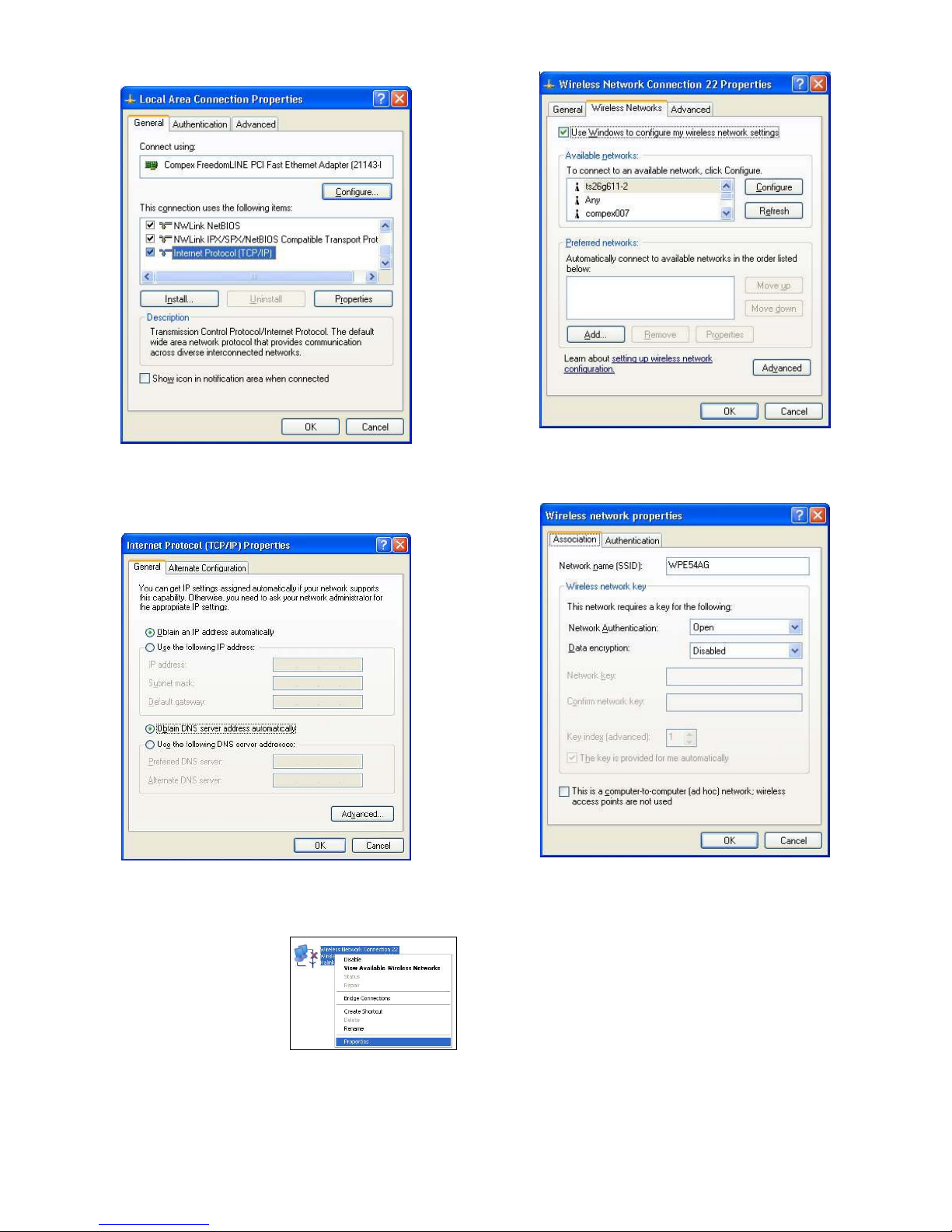

Generally, automatic IP addressing should be configured for your wireless client PCs or notebooks. You may configure the TCP/IP settings of Microsoft windows XP as follows:

1. From your desktop, right click on My Network Places and select Properties.

2. Next, right click on your Ethernet Adapter go to Properties.

Page 3

3. Highlight Internet Protocol (TCP/IP) and click on Properties button.

4. Select the radio buttons for Obtain an IP address

automatically and Obtain DNS server address automatically. Click OK button to update the changes.

Next, you may set up Windows XP’s Wireless Network Connection as follows:

5. Right click on Wireless Network Connection corresponding to the Wireless Ethernet Adapter you wish to connect to your Compex WPE54AG, and click on Properties.

6. Go to Wireless Networks tab and click on Add.. button.

7. Next, enter the Network name (SSID) which must be the same as the ESSID that you input earlier for your access point.

Ensure that the Network name (SSID) value is the same for all wireless clients in the same wireless network.

For now, you may leave the other information as its default settings. Network Authentication: Open Data encryption: Disabled

For details in configuring your Compex WPE54AG, kindly refer to the User’s Manual stored in the Product CD.

Page 4

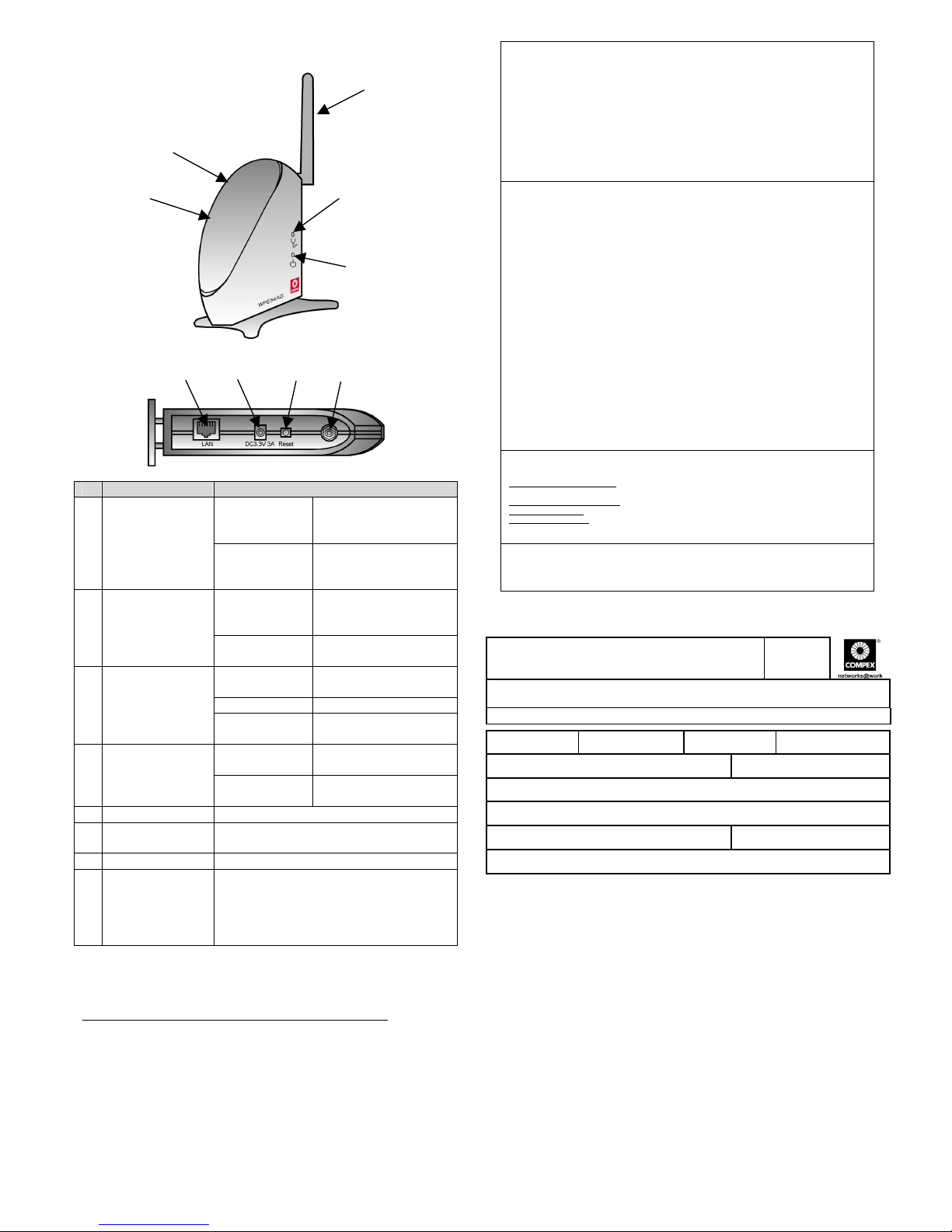

7. Panel Views and Descriptions

Features Status and Indications

Steady Yellow Compex WPE54AG is

operating at the speed of 10Mbps.

1 LAN Link/Act

LED

Steady Green Compex WPE54AG is

operating at the speed of 100Mbps.

Steady Green More than 1 wireless

client is present in the wireless network.

2 WLAN Link/Act

LED

Blinking Green Activity is detected in

the wireless network.

Steady Green The device is in access

point or gateway mode.

Blinking Green The device is booting.

3 Diagnostic LED

Off The device is in Client

mode.

Steady Blue Power is supplied to the

device.

4 Power LED

Off No power is supplied to

the device. 5 External Antenna Rotatable antenna 6 LAN RJ45

Ethernet Port

Using RJ45 Ethernet cable for connection.

7 DC 3.3V 3A Power input of 3.3VDC 8 Reset button Push button:

! 2s to reboot your device ! between 2s to 10s to restore to its

factory default

! > 10s for operating mode switch

This document may become superseded, in which case you may find its latest version at: http://www.compex.com.sg/prodspec.asp?f=Manual&s=1
