Quick Install Guide
Wireless-G 54Mbps XR
TM
Access Point
(Compatible with Compex PoE Injector)
WP54G 1a
i
Table of Contents
1: Introduction...................................................................................1
Packaging Content............................................................................... 2
2: Let’s Get Going-Hardware Setup ...............................................3
Method One: Using power adapter to supply power to the unit ...... 3
Method Two: Using Compex PoE to supply power to the unit .......... 5

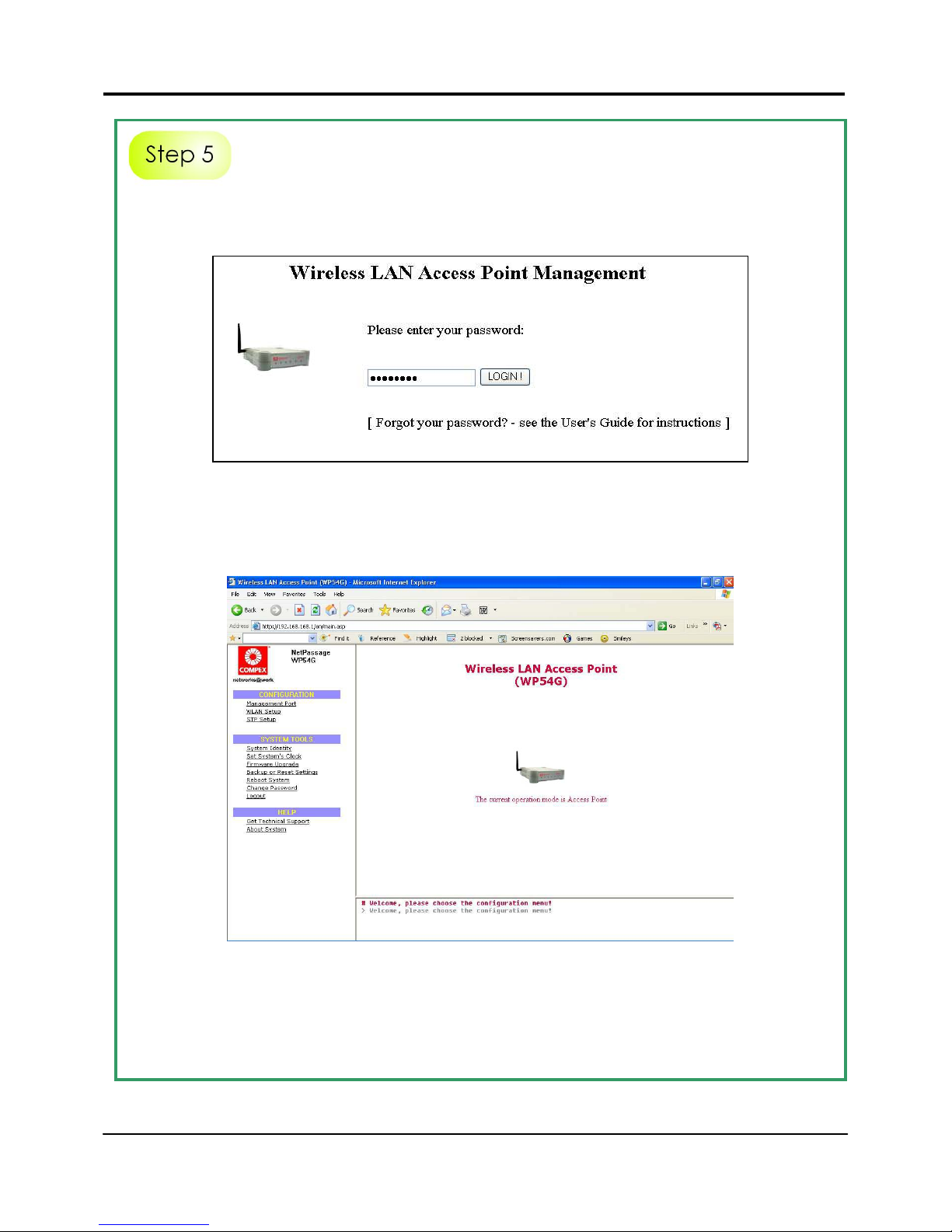

3: Access to Web-based Interface ................................................8

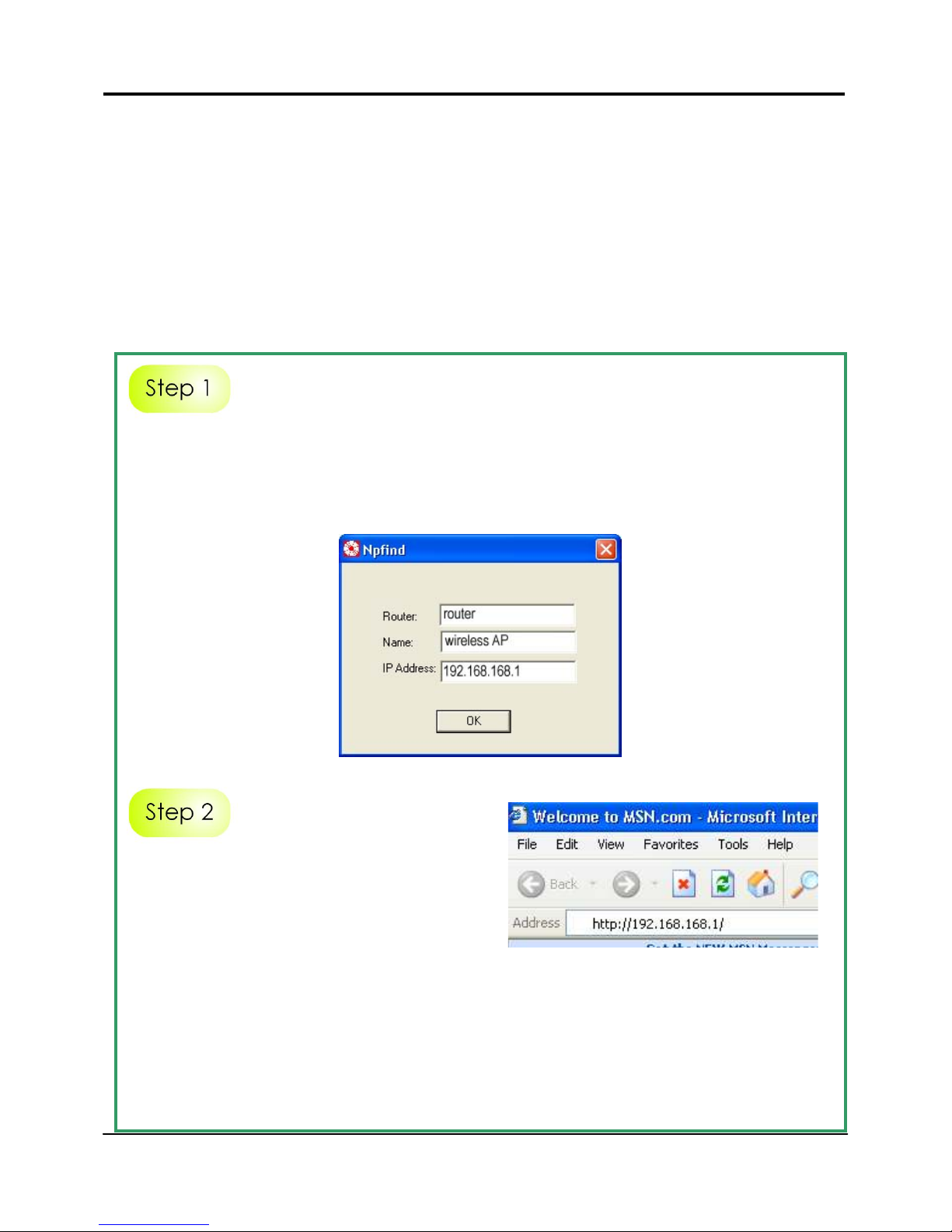

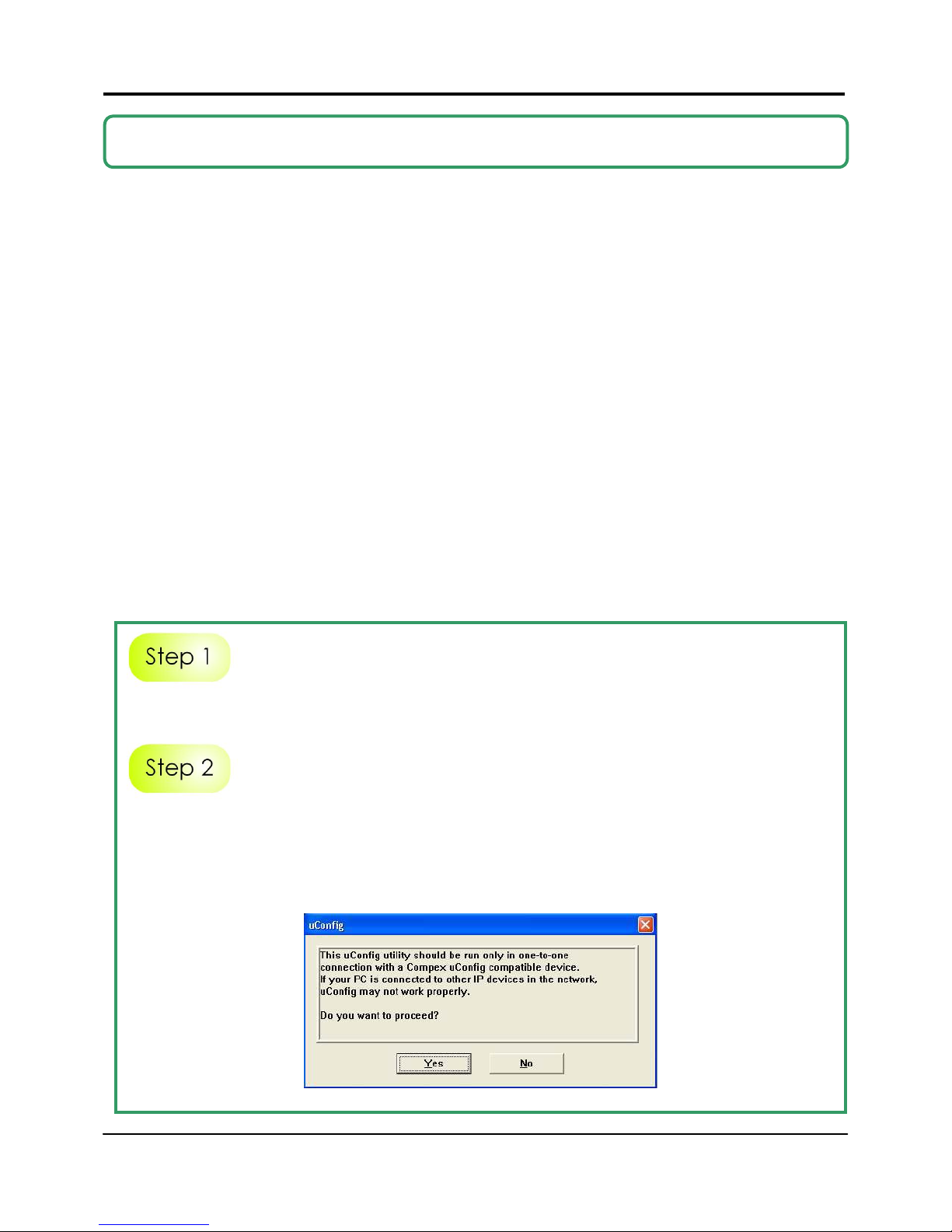

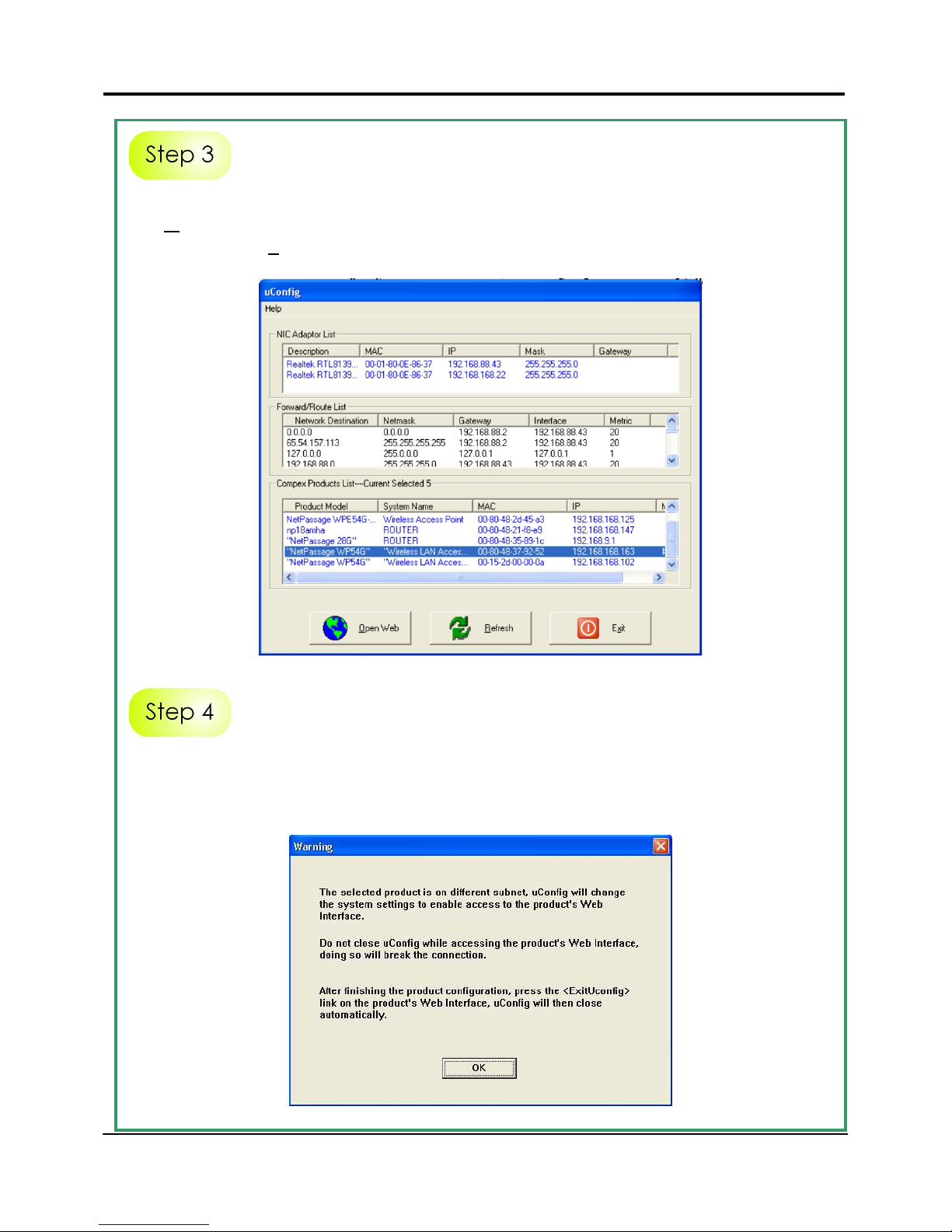

Access to the Web interface with uConfig......................................... 8
Access to the Web interface manually ............................................ 11

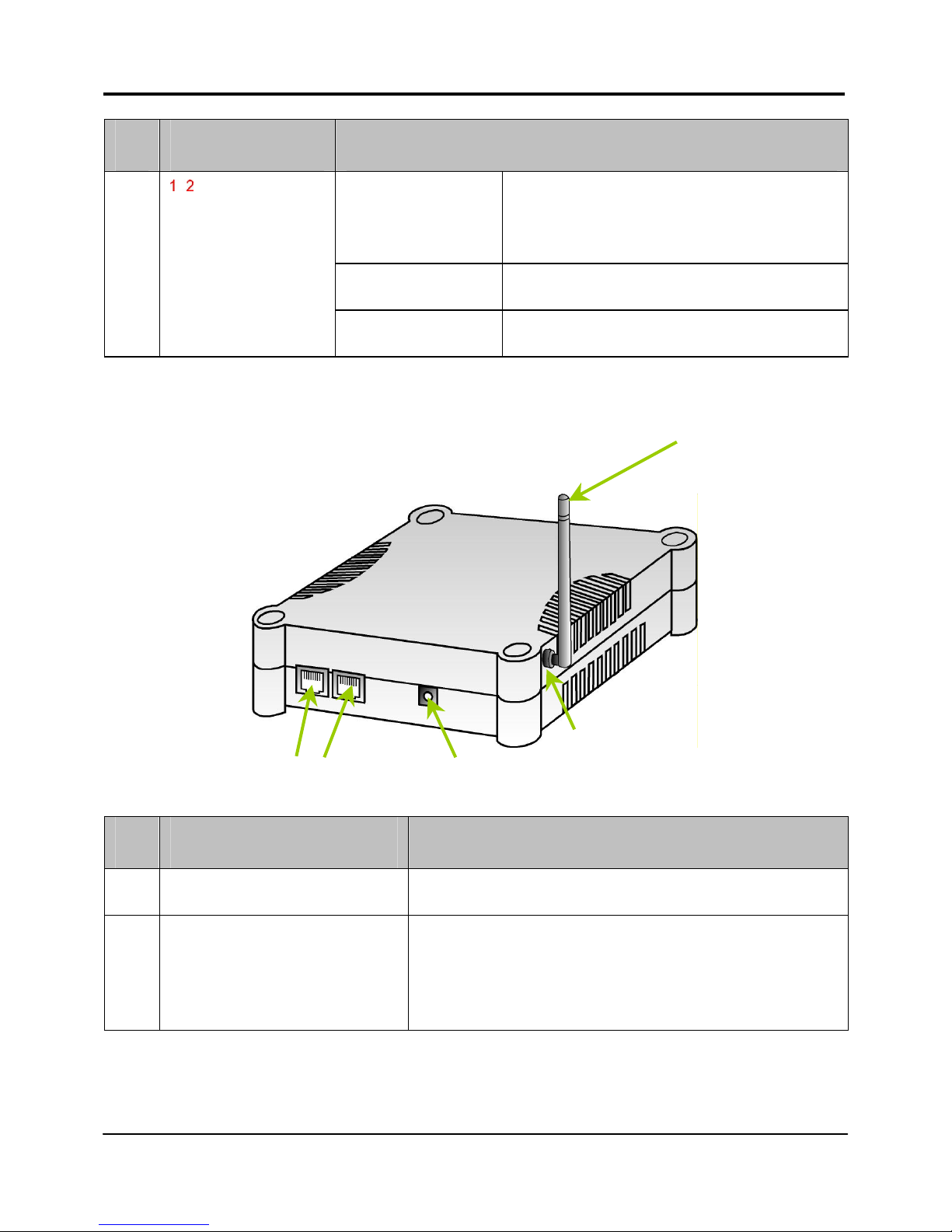

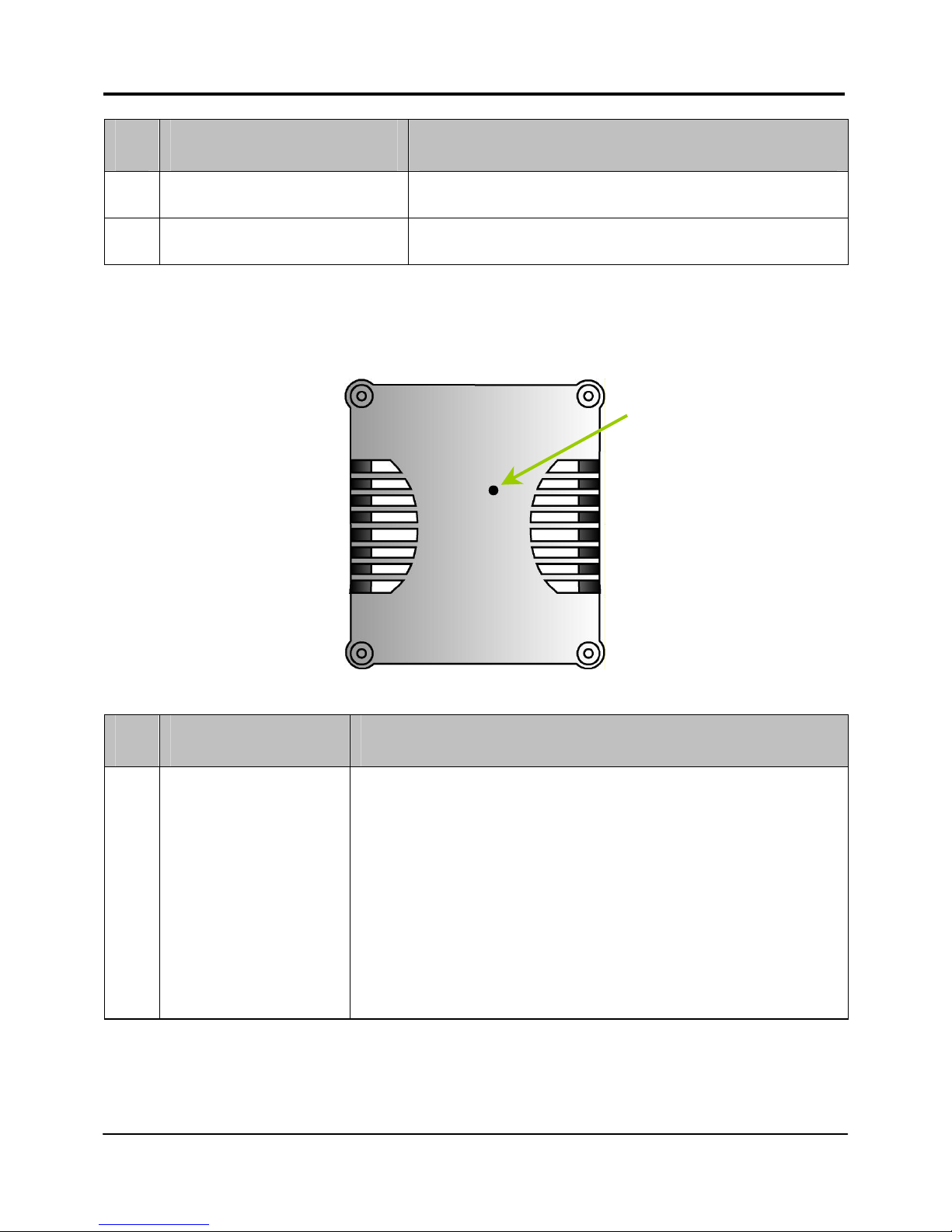

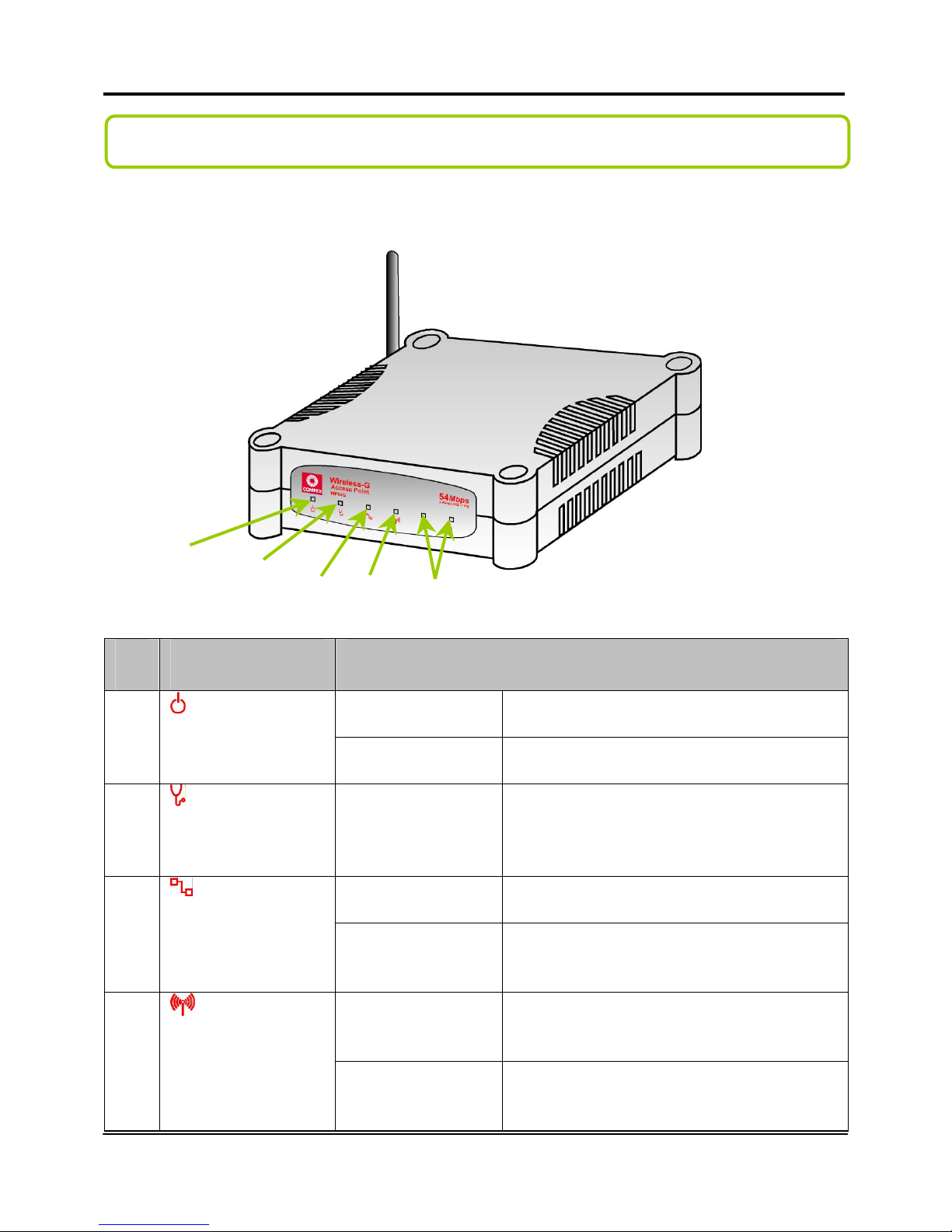

4: Panel Views and Descriptions...................................................12
5: Technical Specifications ...........................................................15
WARRANTY REGISTRATION CARD .....................................................20
Chapter 1 Introduction
1
1: Introduction
The Compex WP54G Wireless-G 54Mbps XR™ Managed Access Point is a highperformance AP that is designed for enterprise and public access applications.
Embedded with the Atheros chipset, it boasts network robustness and stability
and wider network coverage. Based on 802.11g, it can support transfer speeds
5X faster than 802.11b. WP54G supports high-speed data transmission of up to
54Mbps in the 2.4GHz frequency band.
WP54G is capable of operating in several different modes, which makes it
suitable for a wide variety of wireless applications, including long-distance
deployment. Equipped with an SMA connector for external antenna support
WP54G provides a wider coverage for your network. Moreover, its integrated
Power over Ethernet (PoE) allows WP54G to be used in areas where power
outlets are not readily available.
To protect your security and privacy, WP54G is armed with many enhanced
wireless security features such as Wi-Fi Protected Access (WPA), WPA2 (with
Advanced Encryption Standard encryption) MAC Address Filtering, IEEE 802.1x
Authentication and 64/128-bit WEP (Wired Equivalent Privacy) to ensure privacy
for the heterogeneous mix of users within the same wireless LAN.
WP54G also incorporates unique features such as – the Parallel Broadband
feature that allows bandwidth aggregation and fail-over redundancy
capability; Wireless Distribution System (WDS) to wirelessly link all associated
access points together; Long-Range parameter setting which provides WP54G
with the ability to auto-calculate parameters such as slot time, ACK time-out
and CTS time-out to achieve a longer range; Spanning Tree Protocol (STP)
which provides the wireless network with extra redundancy and reliability which
the network will auto-reconfigure when there are changes to the network
connections; Pseudo VLAN feature which enables the creation of wireless
isolated nodes or workgroups of wireless clients to increase network privacy in a
wireless LAN.
Chapter 1 Introduction
2
Packaging Content
Actual product appearance may slightly differ depending on the hardware
version.
1 x Compex WP54G
1 x Power Adapter
1 x Antenna 1 x Product CD
1 x Read-Me-First Note
Chapter 2 Let’s Get Going - Hardware Setup
3
2: Let’s Get Going-Hardware Setup
Compex WP54G can be powered using either the power adapter provided or
the Compex PoE Injector. The installation process for both options is described
below.
Method One: Using power adapter to supply power to the
unit
Connect the external antenna to the
SMA connector of Compex WP54G.
Insert one end of the RJ45 Ethernet cable to any of the LAN ports on your
Compex WP54G, and the other end of the cable to your PC’s Ethernet
network adapter.
PC
Chapter 2 Let’s Get Going - Hardware Setup
4
Attach the power adapter to the main electrical supply, and connect the
power plug into the socket of the Compex WP54G.
Power ON your PC. Notice that the Power and Port 1 or 2 (depending on
which port you have connected the RJ45 Ethernet cable to) LEDs have lighted
up. This indicates that the connection has been established successfully
between your Compex WP54G and your PC.
Chapter 2 Let’s Get Going - Hardware Setup
5
Method Two: Using Compex PoE to supply power to the unit
Compex Power-Over-Ethernet (PoE) is fully compatible with our Compex
WP54G. This accessory supplies operational power to the wireless AP via the
Ethernet cable connection.
Users who have already purchased the Compex PoE and who wish to use it to
supply power to the Compex WP54G may follow the installation procedures as
shown below:
Connect the external antenna to the SMA
connector of Compex WP54G.

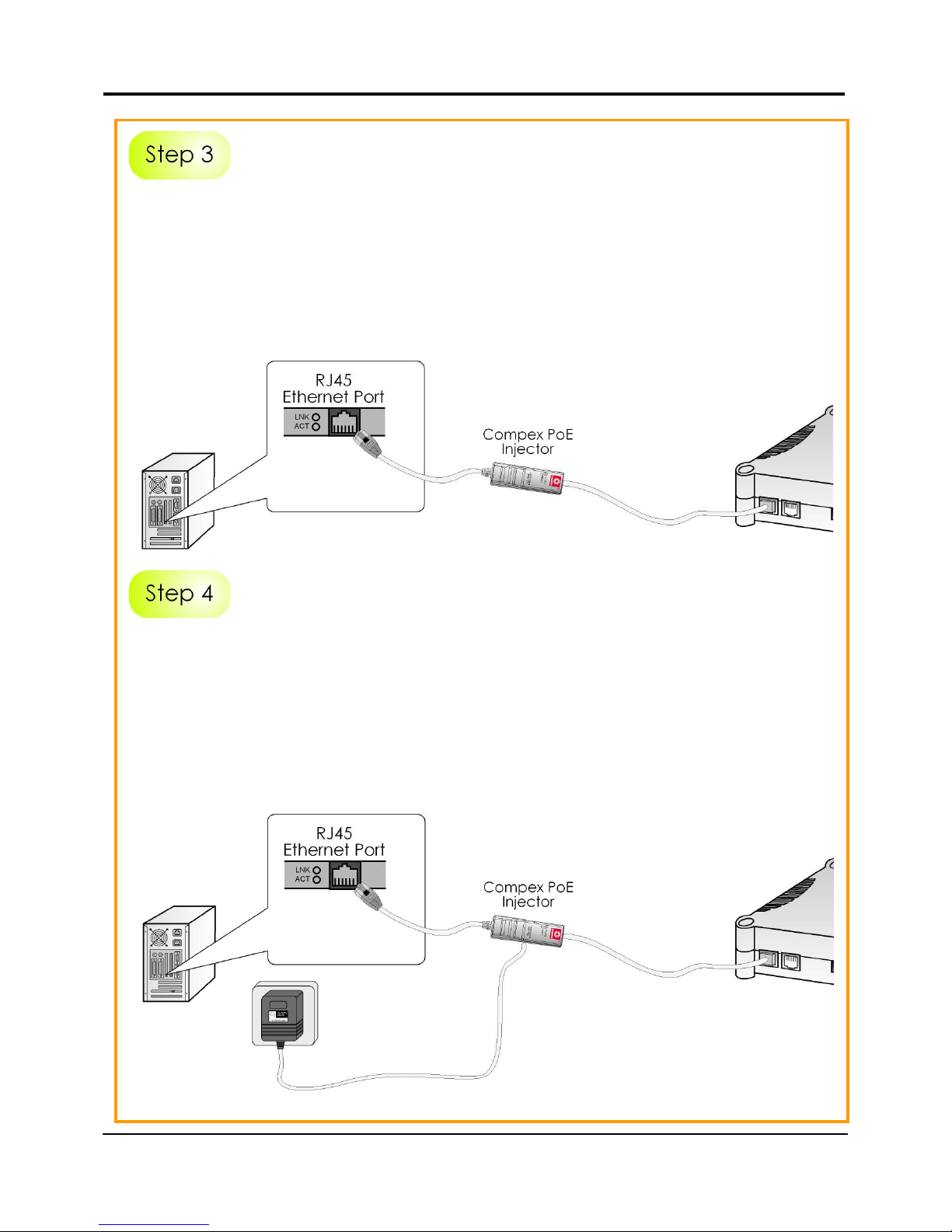

Use an RJ45 Ethernet cable to connect one end of the cable to the Ethernet
socket of the Injector and the other end to one of the LAN ports of Compex
WP54G.
Warning:
When one port is used for PoE, the other port cannot connect to any other
network device.
Maximum length of the RJ45 Category 5 cable is 100 metres.
