Compex WP54 Quick Install Manual

Quick Install Guide

Wireless Access Point

WP54

i

Table of Contents

1: Introduction......................................................................................2

Introduction for WP54G 1D 6D multi-SSID firmware version................ 2

Introduction for WP54G 6E multi-SSID firmware version ......................3

Introduction for WP54AG multi-SSID firmware version ........................ 4

Introduction for WP54G 1D 6D non multi-SSID firmware version........ 5

Introduction for WP54G 6E non multi-SSID firmware version.............. 6

Introduction for WP54AG non multi-SSID firmware version ................ 7

2: Let’s Get Go ing-Hardware Setu p ................................................8

Setup Requirements................................................................................. 8

Hardware Installation............................................................................... 8

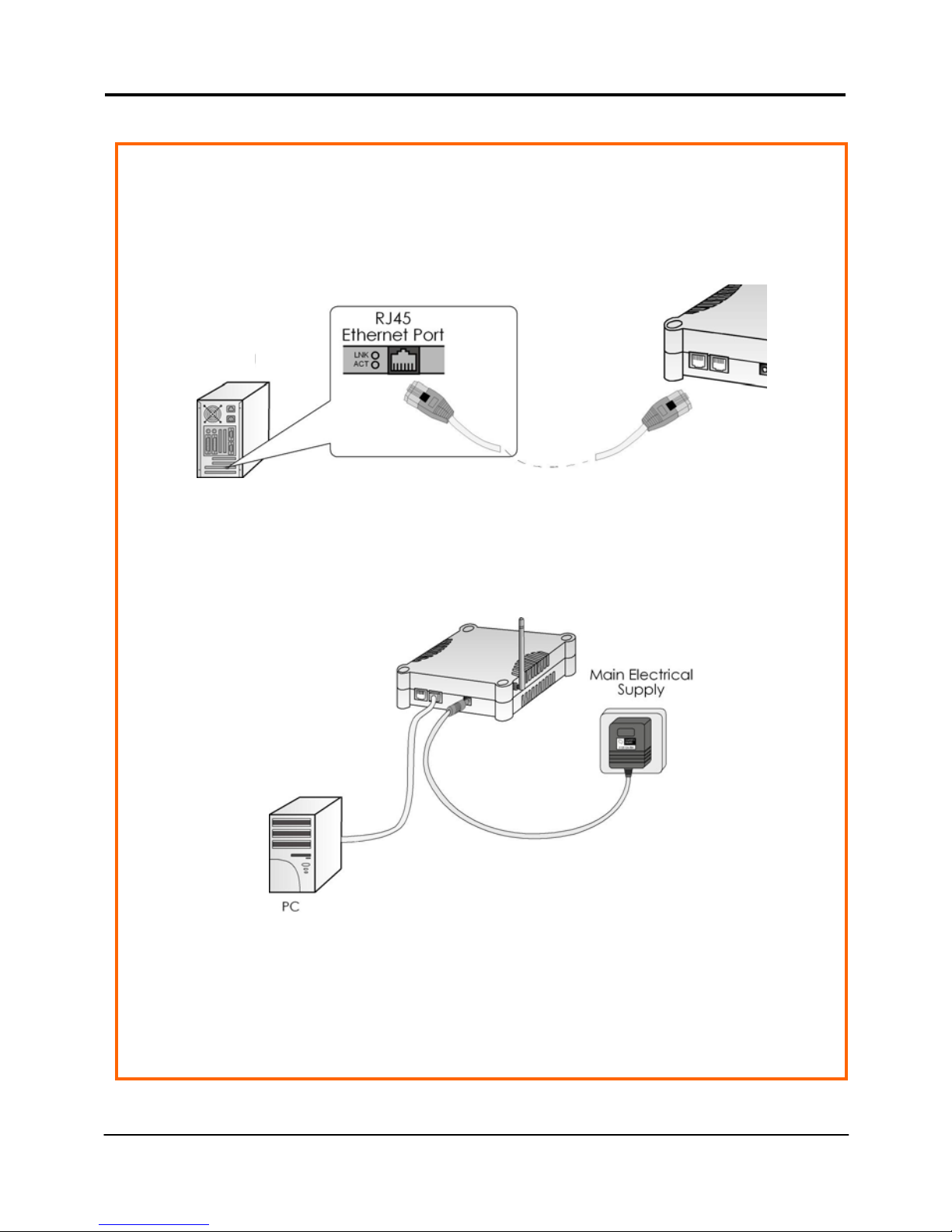

OPTION On e: Using po we r adapter to supply power to the unit.....................8

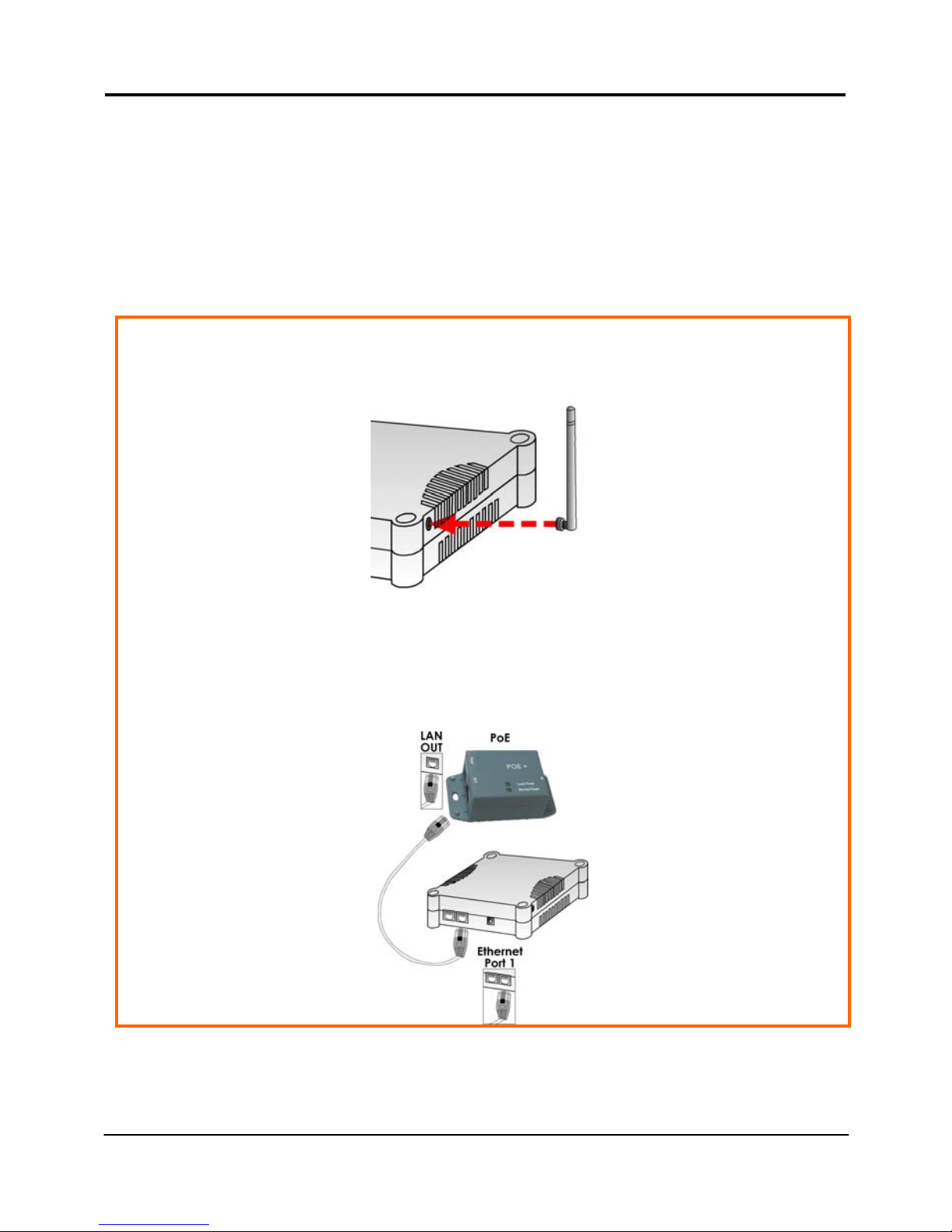

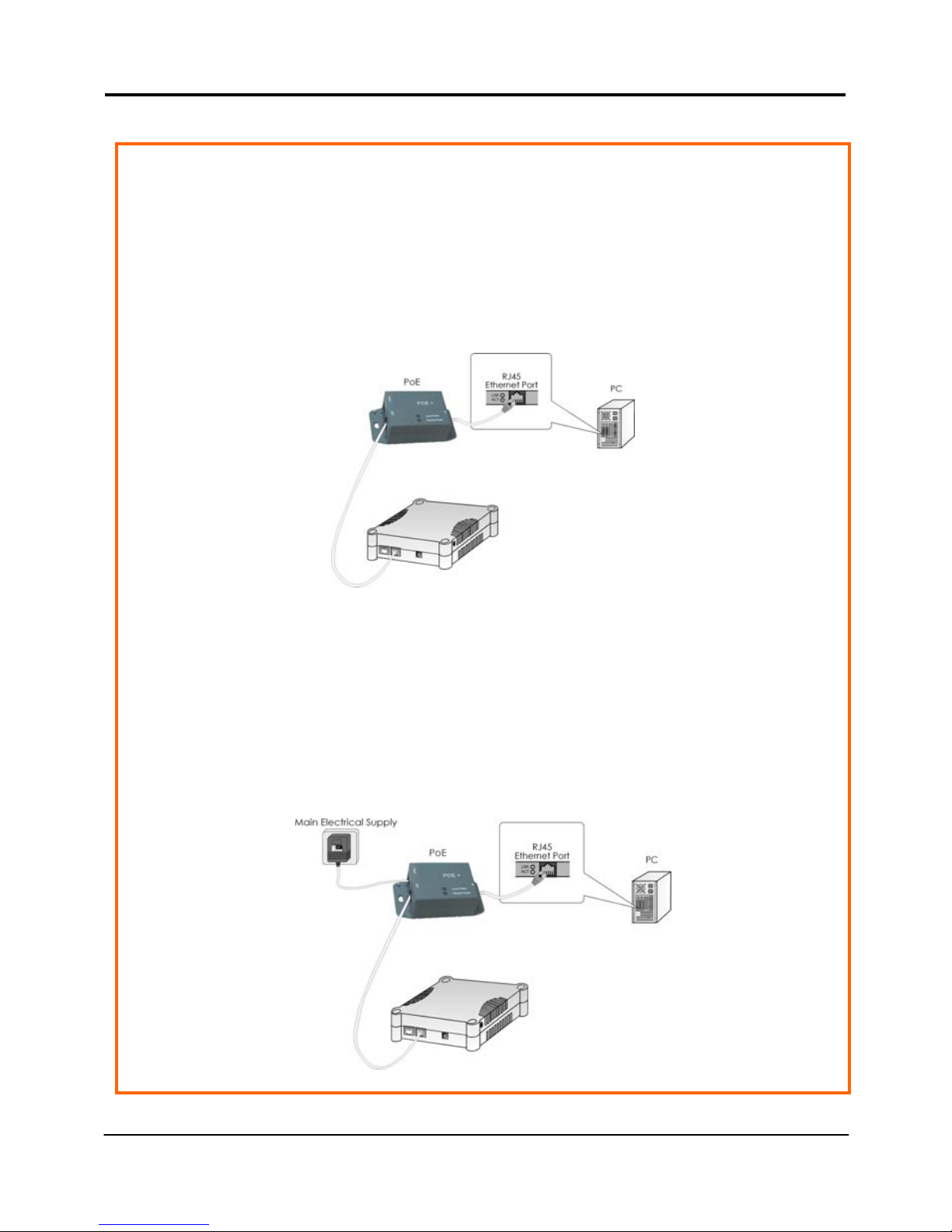

OPTION Two: Using PoE to s upply power to the unit.........................................10

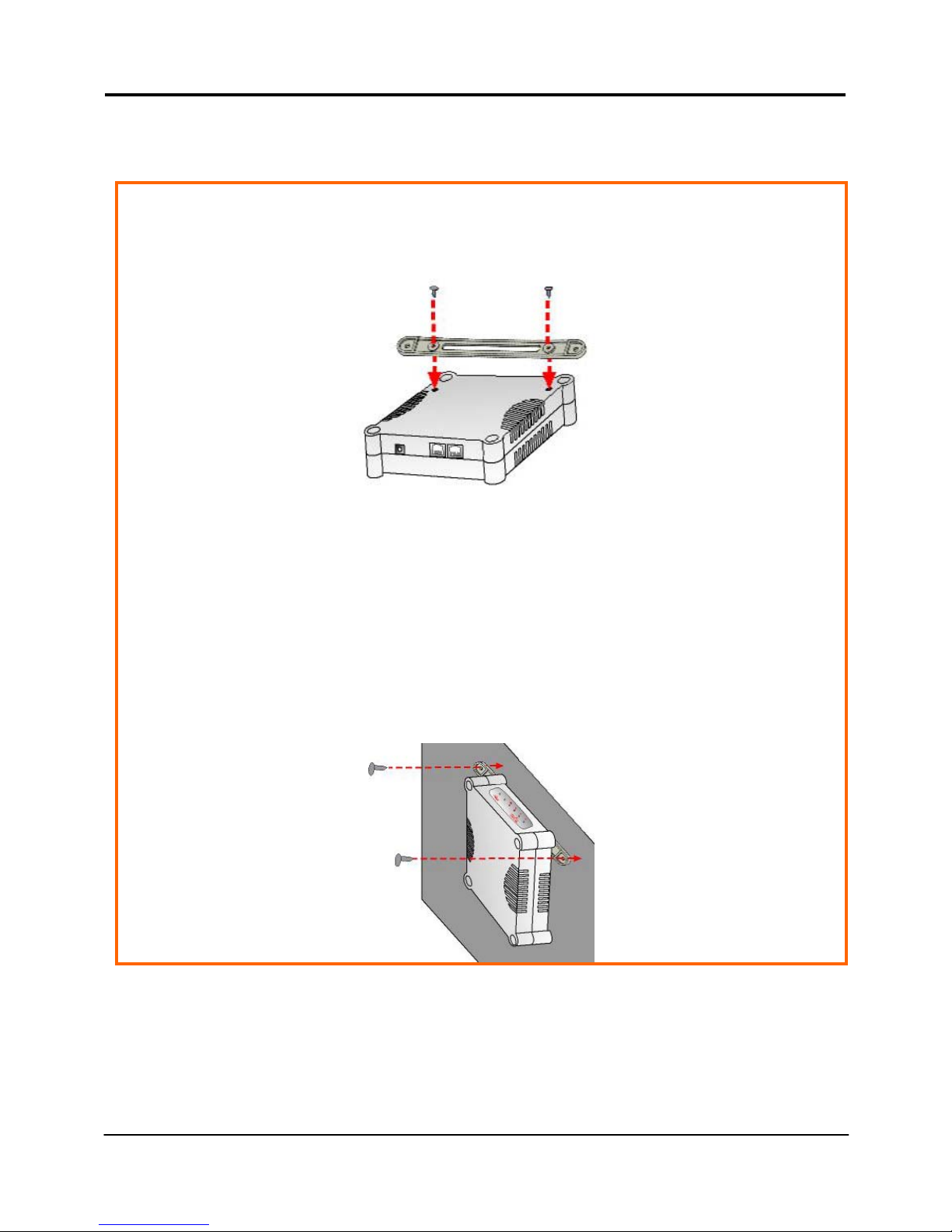

Optional: Moun ting on the Wall ...........................................................................13

3: Access to Web-based Interface................................................14

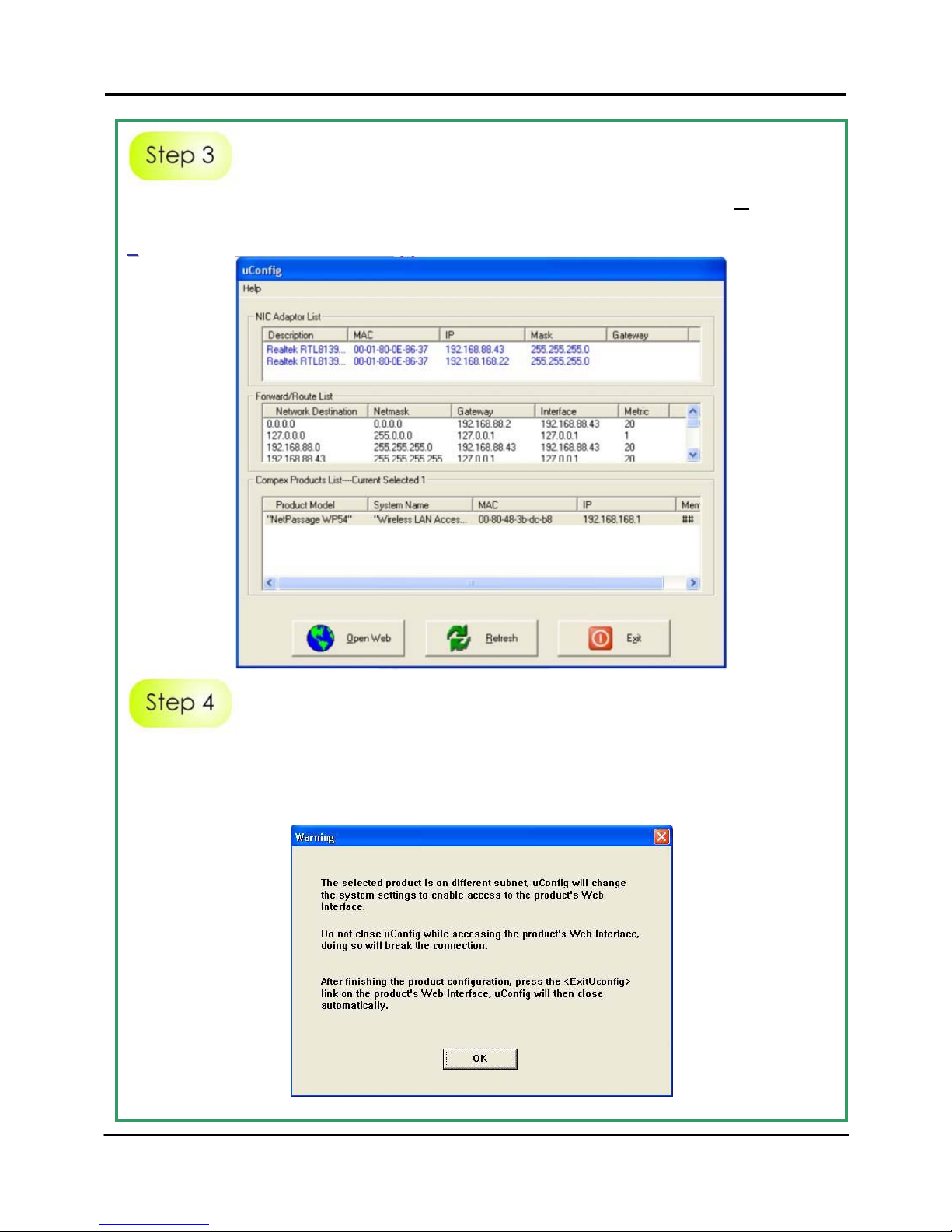

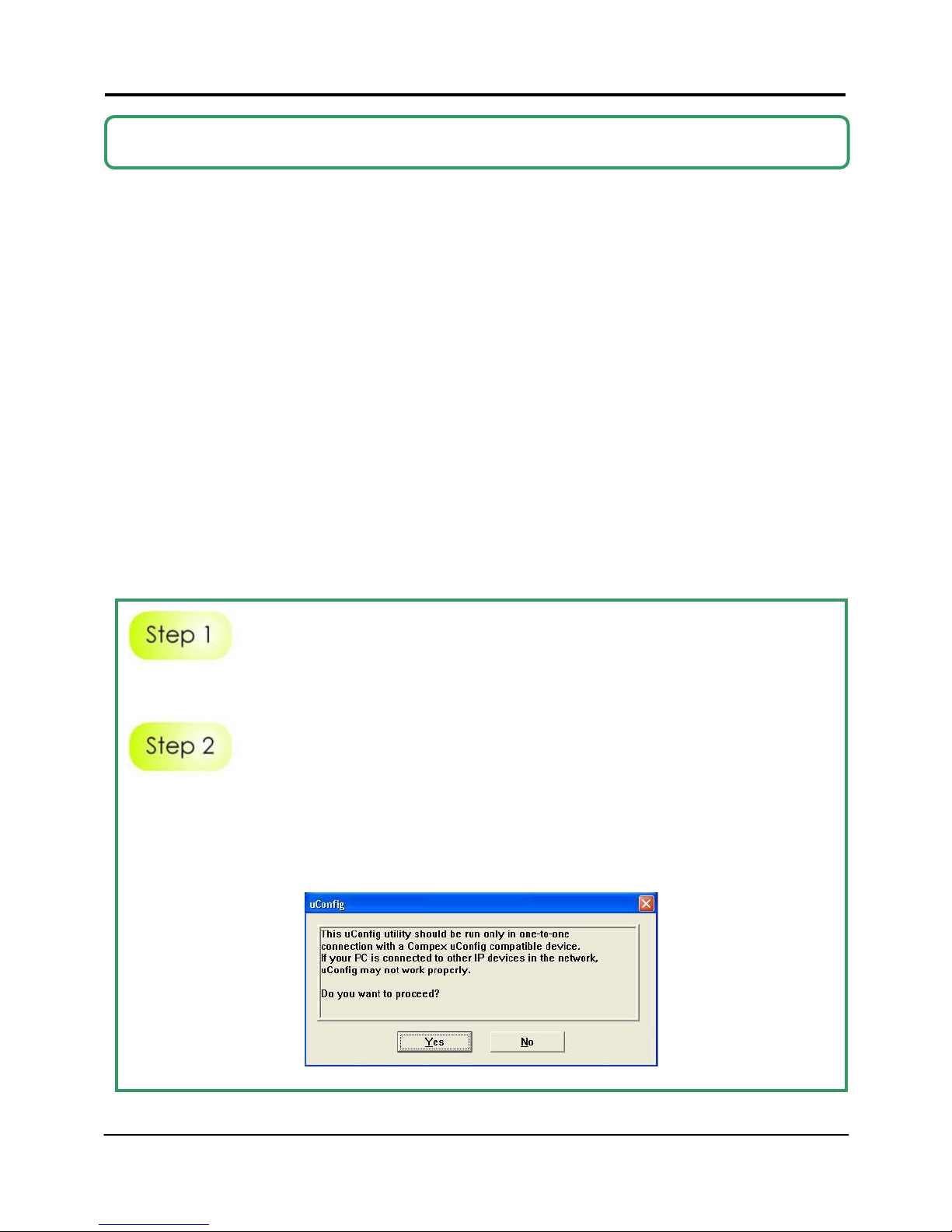

Access to the Web interface with uConfig........................................ 14

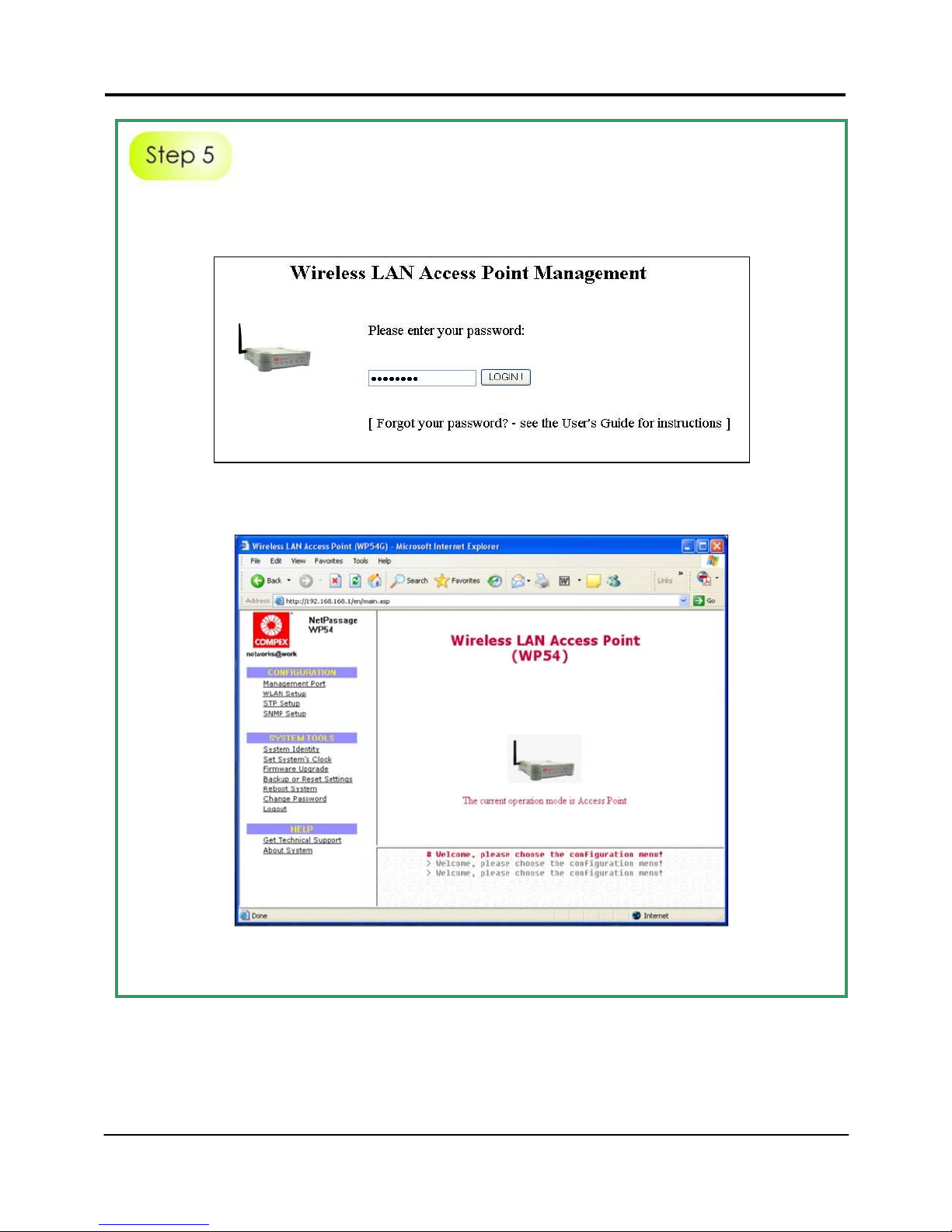

Access to the Web interface manually..............................................16

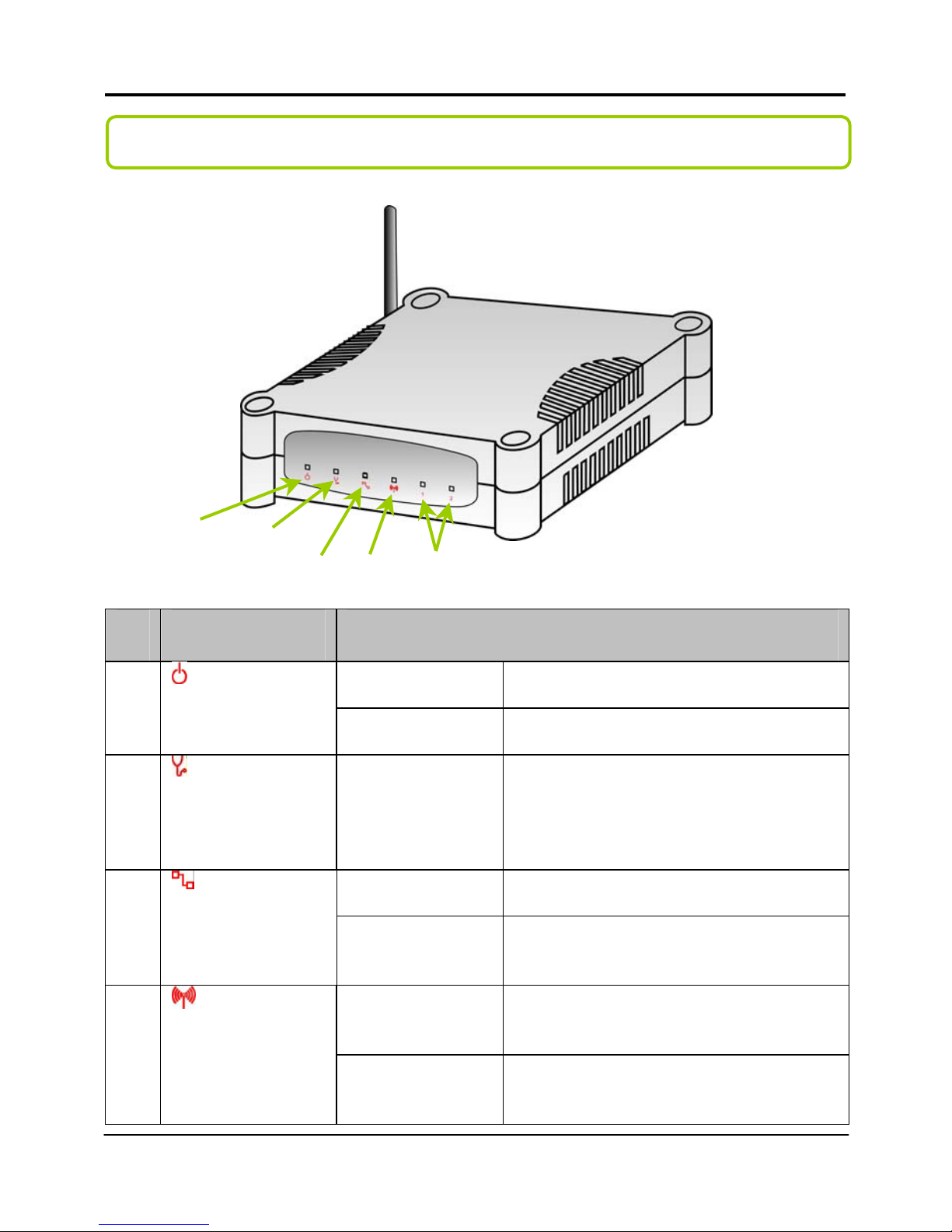

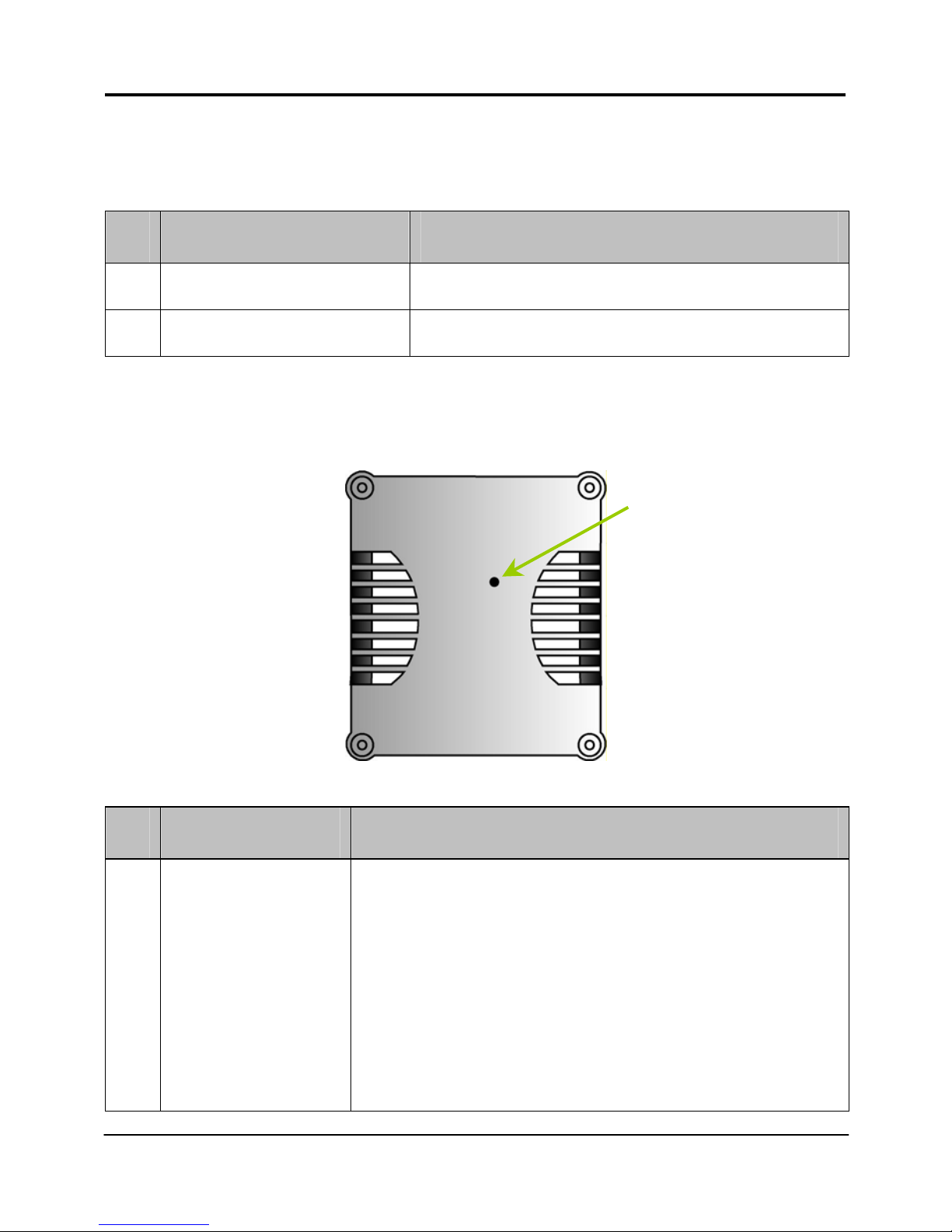

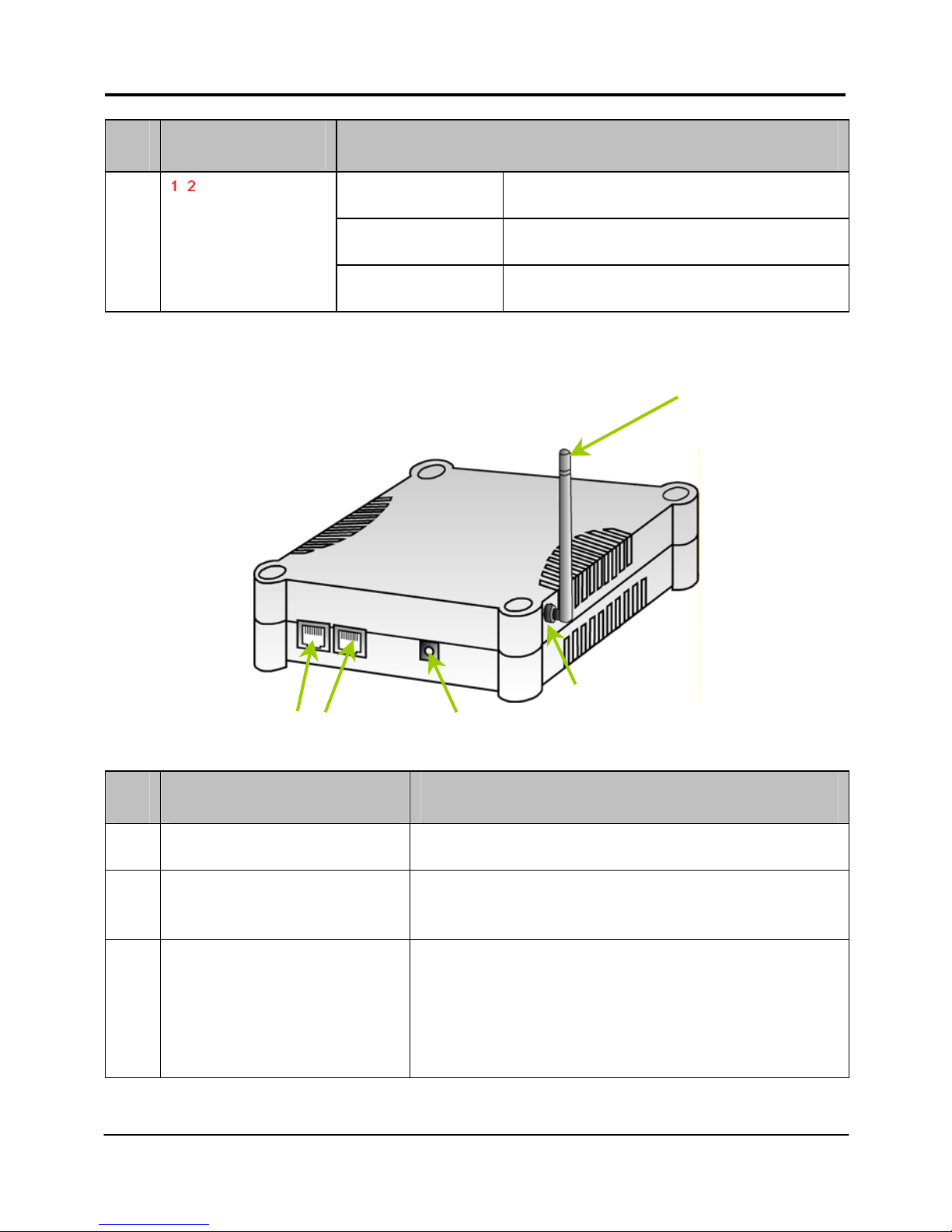

4: Panel Views and Descriptions.....................................................17

5: Technical Specificatio ns..............................................................20

WARRANTY REGISTRATION CARD.......................................................26

Chapter 2 Let’s Get Going - Hardware Setup

2

1: Introduction

Introduction for WP54G 1D 6D multi-SSID firmware version

The Wireless Access Point with PoE is a high-performance access poi nt (AP) that
is designed for enterprise and public access applications. Embedded with the
Atheros chipset, it boasts network robustness, stability and wider network
coverage. Based on 802.11g, the access point supports high-speed data
transmission of up to 54Mbps in the 2.4GHz frequency band.

The access point is capable of operating in 7 modes: Access Point Mode, Client

Mode, Wireless Routing Client, Gateway Mode, Wireless Adapter Mode,
Transparent Client Mode, and Repeater Mode. Which makes it suitable for a

wide variety of wireless appli cations, including long-di stance deployments.
Equipped with an SMA connector for external antenna support, the access

point provides a wider coverage for your network. Moreover, its integrated
Power over Ethernet (PoE) allows the access point to be used in areas where
power outlets are not readily avail able.

To protect your security and privacy, the access point is armed with many
enhanced wireless security features such as Wi-Fi Protected Access (WPA),
WPA2 (with Advanced Encryption S tandard encryption) MAC Address Filtering,
IEEE 802.1x Authentication and 64/128-bit WEP (Wired Equivalent Privacy) to
ensure privacy for the heterogeneous mix of users within the same wireless
network.

The access point also incorporate s a unique set of adv anced features such as:
Virtual AP to deliver multiple servi ces; Long-Range parameter fine-tuning whic h
provide the access point with the ability to auto-cal culate parameters such as
slot time; ACK time-out a nd CTS time-out to achiev e a longer range; Spanning
Tree Protocol (STP) which provides extra redundancy and the ability to auto­reconfigure when there are changes in the network topology; HTTPS which
feature additional authentication and encryption; and Telnet which allows
remote connection; and SSH which provides a secure host connection.

Chapter 2 Let’s Get Going - Hardware Setup

3

Introduction for WP54G 6E multi-SSID firmware version

The high-performance access point (AP) is designed for enterprise and public
access applications. Embedded with the Atheros chipset, it boasts network
robustness, stability and wider network coverage. Based on 802.11 g, the access
point supports high-speed data transmission of up to 54Mbps in the 2.4GHz
frequency band.

The access point is capable of operating in different modes: Access Point and
Access Point Client, which makes it suitable for a wide variety of wireless
applications, including long-distance deployments.

Equipped with an SMA connector for external antenna support, the access
point provides a wider coverage for your network. Moreover, its integrated
Power over Ethernet (PoE) allows the access point to be used in areas where
power outlets are not readily avail able.

To protect your security and privacy, the access point is armed with many
enhanced wireless security features such as Wi-Fi Protected Access (WPA),
WPA2 (with Advanced Encryption S tandard encryption) MAC Address Filtering,
IEEE 802.1x Authentication and 64/128-bit WEP (Wired Equivalent Privacy) to
ensure privacy for the heterogeneous mix of users within the same wireless
network.

The access point also incorporate s a unique set of adv anced features such as:
Virtual AP to deliver multiple servi ces; Long-Range parameter fine-tuning whic h
provide the access point with the ability to auto-cal culate parameters such as
slot time, ACK time-out and CTS time-out to achieve a longer range; and
Spanning Tree Protocol (STP) which prov ides extra redundancy and the ability
to auto-reconfigure when there are changes in the network topology.

Chapter 2 Let’s Get Going - Hardware Setup

4

Introduction for WP54AG multi-SSID firmware version

The Wireless Access Point is a high-performance access point (AP) that is
designed for enterprise and public access applications. Embedded with the
Atheros chipset, it boasts network robustness, stability and wider network
coverage. Compliant with 802.11a/b/g standards, the access point supports
high-speed data transmission of up to 54Mbps in the 2.4GHz and 5GHz
frequency band.

The access point is capable of operating in 7 modes: Access Point Mode, Client

Mode, Wireless Routing Client, Gateway Mode, Wireless Adapter Mode,
Transparent Client Mode, and Repeater Mode. Which makes it suitable for a

wide variety of wireless appli cations, including long-di stance deployments.
Equipped with an SMA connector for external antenna support, the access

point provides a wider coverage for your network. Moreover, its integrated
Power over Ethernet (PoE) allows the access point to be used in areas where
power outlets are not readily avail able.

To protect your security and privacy, the access point is armed with many
enhanced wireless security features such as Wi-Fi Protected Access (WPA),
WPA2 (with Advanced Encryption S tandard encryption) MAC Address Filtering,
IEEE 802.1x Authentication and 64/128-bit WEP (Wired Equivalent Privacy) to
ensure privacy for the heterogeneous mix of users within the same wireless
network.

The access point also incorporate s a unique set of adv anced features such as:
Virtual AP to deliver multiple servi ces; Long-Range parameter fine-tuning whic h
provide the access point with the ability to auto-cal culate parameters such as
slot time; ACK time-out a nd CTS time-out to achiev e a longer range; Spanning
Tree Protocol (STP) which provides extra redundancy and the ability to auto­reconfigure when there are changes in the network topology; HTTPS which
feature additional authentication and encryption; and Telnet which allows
remote connection; and SSH which provides a secure host connection.

Chapter 2 Let’s Get Going - Hardware Setup

5

Introduction for WP54G 1D 6D non multi-SSID firmware
version

The Wireless Access Point is a high-performance access point (AP) that is
designed for enterprise and public access applications. Embedded with the
Atheros chipset, it boasts network robustness, stability and wider network
coverage. Based on 802.11g, the access point supports high-speed data
transmission of up to 54Mbps in the 2.4GHz frequency band.

The access point is capable of operating in 7 modes: Access Point, Access
Point Client, Point-to-Point, Point-to-Multi Point, Wireless Routing Client, Gateway
and Wireless Adapter. Which makes it suitable for a wide variety of wireless
applications, including long-distance deployments.

Equipped with an SMA connector for external antenna support, the access
point provides a wider coverage for your network. Moreover, its integrated
Power over Ethernet (PoE) allows the access point to be used in areas where
power outlets are not readily avail able.

To protect your security and privacy, the access point is armed with many
enhanced wireless security features such as Wi-Fi Protected Access (WPA),
WPA2 (with Advanced Encryption S tandard encryption) MAC Address Filtering,
IEEE 802.1x Authentication and 64/128-bit WEP (Wired Equivalent Privacy) to
ensure privacy for the heterogeneous mix of users within the same wireless
network.

The access point also incorporate s a unique set of adv anced features such as:
Wireless Distribution System (WDS) to wirelessly link associated access points
together and extend network coverage, Long-Range parameter fine-tuning
which provide the access point with the ability to auto-calculate parameters
such as slot time, ACK time-out and CTS time-out to achieve a longer range;
Spanning Tree Protocol (STP) which prov ides extra redundancy and the ability
to auto-reconfigure when there are changes in the network topology; Pseudo
VLAN which enables the creation of wireless isolated nodes or workgroups of
wireless clients to enhance security in a public access wireless network; HTTPS
which feature additional authentication and encryption; Telnet which allows
remote connection; and SSH which provides a secure host connection.

Chapter 2 Let’s Get Going - Hardware Setup

6

Introduction for WP54G 6E non multi-SSID firmware version

The high-performance access point (AP) is designed for enterprise and public
access applications. Embedded with the Atheros chipset, it boasts network
robustness, stability and wider network coverage. Based on 802.11 g, the access
point supports high-speed data transmission of up to 54Mbps in the 2.4GHz
frequency band.

The access point is capable of operating in different modes: Access Point and
Access Point Client, which makes it suitable for a wide variety of wireless
applications, including long-distance deployments.

Equipped with an SMA connector for external antenna support, the access
point provides a wider coverage for your network. Moreover, its integrated
Power over Ethernet (PoE) allows the access point to be used in areas where
power outlets are not readily avail able.

To protect your security and privacy, the access point is armed with many
enhanced wireless security features such as Wi-Fi Protected Access (WPA),
WPA2 (with Advanced Encryption S tandard encryption) MAC Address Filtering,
IEEE 802.1x Authentication and 64/128-bit WEP (Wired Equivalent Privacy) to
ensure privacy for the heterogeneous mix of users within the same wireless
network.

The access point also incorporate s a unique set of adv anced features such as:
Wireless Distribution System (WDS) to wirelessly link associated access points
together and extend network coverage, Long-Range parameter fine-tuning
which provide the access point with the ability to auto-calculate parameters
such as slot time, ACK time-out and CTS time-out to achieve a longer range;
Spanning Tree Protocol (STP) which prov ides extra redundancy and the ability
to auto-reconfigure when there are changes in the network topology; and
Pseudo VLAN which enables the creation of wireless isolated nodes or
workgroups of wireless clients to enhance security in a public access wireless
network.

Chapter 2 Let’s Get Going - Hardware Setup

7

Introduction for WP54AG non multi-SSID firmware version

The Wireless Access Point is a high-performance access point (AP) that is
designed for enterprise and public access applications. Embedded with the
Atheros chipset, it boasts network robustness, stability and wider network
coverage. Compliant with 802.11a/b/g standards, the access point supports
high-speed data transmission of up to 54Mbps in the 2.4GHz and 5GHz
frequency band.

The access point is capable of operating in 7 modes: Access Point, Access
Point Client, Point-to-Point, Point-to-Multi Point, Wireless Routing Client, Gateway
and Wireless Adapter. Which makes it suitable for a wide variety of wireless
applications, including long-distance deployments.

Equipped with an SMA connector for external antenna support, the access
point provides a wider coverage for your network. Moreover, its integrated
Power over Ethernet (PoE) allows the access point to be used in areas where
power outlets are not readily avail able.

To protect your security and privacy, the access point is armed with many
enhanced wireless security features such as Wi-Fi Protected Access (WPA),
WPA2 (with Advanced Encryption S tandard encryption) MAC Address Filtering,
IEEE 802.1x Authentication and 64/128-bit WEP (Wired Equivalent Privacy) to
ensure privacy for the heterogeneous mix of users within the same wireless
network.

The access point also incorporate s a unique set of adv anced features such as:
Wireless Distribution System (WDS) to wirelessly link associated access points
together and extend network coverage, Long-Range parameter fine-tuning
which provide the access point with the ability to auto-calculate parameters
such as slot time, ACK time-out and CTS time-out to achieve a longer range;
Spanning Tree Protocol (STP) which prov ides extra redundancy and the ability
to auto-reconfigure when there are changes in the network topology; Pseudo
VLAN which enables the creation of wireless isolated nodes or workgroups of
wireless clients to enhance security in a public access wireless network; HTTPS
which feature additional authentication and encryption; and Telnet which
allows remote connection; and SSH which provides a secure host connection.

Chapter 2 Let’s Get Going - Hardware Setup

8

2: Let’s Get Going-Hardware Setup

Setup Requirements

Before starting, please verify that the fol lowing is avail able:

 CAT5/5e networking cable
 At least one computer is instal led with a Web browser and a wired or

wireless network interface adapter

 TCP/IP protocol is installed and IP address parameters are properly

configured on all your network’s nodes

Hardware Installation

The access point can be p owered using either the power adap ter provided or
a PoE Injector. The installation process for both options is described below.

OPTION One: Using power adapter to supply power to
the unit

SStteepp 11::

Connect the external antenna to the SMA connector of the access poi nt.

Chapter 2 Let’s Get Going - Hardware Setup

9

SStteepp 22::

Insert one end of the Ethernet cable to any of the Ethernet ports on your
access point, and the other end of the cable to your PC’s Ethernet network
adapter.

SStteepp 33::

Attach the power adapter to the main electrical supply, and connect the
power plug into the socket of the access point.

SStteepp 44::

Turn ON the power supply and power ON your PC. Notice that the LEDs: Power
and Port 1 or 2 (depending on which port you have connected the RJ45
Ethernet cable to) have lighted up. This indicates that connection has been
established successfully between your access point and your PC.

PC

Chapter 2 Let’s Get Going - Hardware Setup

10

OPTION Two: Using PoE to supply power to the unit

The access point is fully compati ble with a Power-Ov er-Ethernet (PoE) kit. A PoE
accessory supplies operational power to th e wireless AP via the Ethernet cable
connection.

Users who have already purchased a PoE and who wish to use it to supply
power to the access point may follow the installation procedures shown below:

SStteepp 11::

Connect the external antenna to the SMA connector of the access poi nt.

SStteepp 22::

Use an RJ45 Ethernet cable to connec t one end of the cable to the LAN OUT
port of the Injector and the other end to Ethernet port 1 of the access point.

Chapter 2 Let’s Get Going - Hardware Setup

11

SStteepp 33::

Next, connect the RJ45 Ethernet cable attached to the PoE Injector to your
PC’s Ethernet network adapter.

Once you have finished config uring your access point, you can connect the
PoE Injector’s RJ45 Ethernet cable to your network device, such as to a switch
or hub.

SStteepp 44::

Connect the power adapter supplied in the PoE kit to the main electrical
supply and the power plug into the socket of the injector.

Note:

The voltage and current supplied to the po wer adapter and the PoE kit power
adapter are different. Do not interchange the power adapters.

Chapter 2 Let’s Get Going - Hardware Setup

12

SStteepp 55::

Turn on your power supply. Notice that the Power LED has lighted up. This
indicates that the access point is receiving power through the Compex PoE
Injector. Notice also that the corresponding port LEDs have lighted up. This
indicates that connection between your access point and your PC has been
established.

Chapter 2 Let’s Get Going - Hardware Setup

13

Optional: Mounting on the Wall

SStteepp 11::

Screw the mount onto the unit.

SStteepp 22::

Align the unit and mount to the wall.
Use the mount as a guide, make 2 marks and drill 2 holes into the wall.

SStteepp 33::

Next, secure the unit and mount to the wall.

Chapter 3 Access to Web-based Inter face

14

3: Access to Web-based Interface

There are two methods to access to the web-based interface of WP54:

1. Through the Compex Utility – uConfig
You can access to the web-based interface directly without having to
change the IP address of your PC.

2. Through your web browser
First, you will need to assign an IP address to your PC, such as

192.168.168.xxx, where x can be any value from 2 to 254, so that it is in the
same subnet as WP54. Then, enter IP address of WP54 in the address bar of
Internet Explorer and press Enter.

Access to the Web interface with uConfig

Compex has developed a powerful uConfig utility that provides hassle-free
access to the web-based configuration page.

Insert the Product CD i nto your C D-ROM drive.

From the Utilities section, select to install the uConfig utility to your hard disk.
When the utility has been installed, double-click on the uConfig icon. The

following screen will appear, click on the Yes button to proc eed .

Chapter 3 Access to Web-based Inter face

15

Select WP54 in the Compex Products List section and click on O

pen Web

button. To retrieve and display the latest device(s) in the list, click on the

R

R

eeffrreessh

h button.

This screen prompts you not to exit your uConfi g program while accessing to
your web-based interface, or else you will fail to connect to your device. Click
on the OK button to proceed.

Chapter 3 Access to Web-based Inter face

16

At the authentication page, click on the LOGIN! Button to enter the main
configuration page. The default password is “password”.

You will then reach the home page of WP54’s web-based interface.

Note:

Refer to User’s Manual for instructions on how to configure WP54 for wireless
access.

Access to the Web interface manually

If you wish to access to the web interface manually, you need to configure the
TCP/IP of your PC. Refer to User’s Manual in the Product CD.

Chapter 4 Panel Views and Descriptions

17

4: Panel Views and Descriptions

Front View of WP54

Name Description

Steady Blue The device is powered up.

1

LED

(Power)

Off No power is supplied to the device.

2

LED

(Diagnostic)

Flashing Green This indicates the flash during

power-up. The light will goes off
when the diagnostic activity is
passed.

Steady Green WAN connection is enabled.

3 LED

(WAN Link/Act)

Flashing Green Data transmission at WAN

connection.

Steady Green Wireless interface up and running.

Ready for operation.

4

LED
(WLAN Link/Act
LED)

Flashing Green Activity is detected in the wireless

network.

3 4 5

1

2

Chapter 4 Panel Views and Descriptions

18

Name Description

Steady Green Ethernet port link is established.

Flashing Green Activity is detected in the network.

5 LED

(Ethernet Port 1
& 2 LEDs)

Off No network connection.

Back View of WP54

Name Description

6 External A ntenna SMA antenna

7 Ethernet Port 2 Connection for computer with NIC (Network

Interface Card) or Ethernet network card.

8 Ethernet Port 1 Connection for computer with NIC (Network

Interface Card) or Ethernet network card.
If using PoE, connect to this port – Ethernet

Port 1.

6

7 8 9

10

Chapter 4 Panel Views and Descriptions

19

Name Description

9 DC Jack Connect to power adapter (if used).

10 Reverse SMA connector Connect to external SMA antenna.

Bottom View of WP54

Name Description

11 Reset Push button To reboot, press once.

To reset password, press and hold the button for 5
seconds. The DIAG LED will flash fast for about 5
flashes/sec before releasing the button.

To restore the factory default settings, press and hold
the button for more than 10 seconds. Th e DIAG LED
will flash slowly for about 10 flashes/sec before
releasing the button.

11

20

5: Technical Specifications

Safety and
Electromagnetic
Conformance

 FCC Part 15 SubPart B and SubPart C (for

wireless module)

 EN 300 328-2
 EMC CE EN 301 489 (EN300 826)
 EN 55022 (CISPR 22)/EN 55024 Class B
 EN 61000-3-2
 EN61000-3-3
 CE EN 60950

Standards (WP54G)  IEEE 802.11b

 IEEE 802.11g

Standards (WP54AG)  IEEE 802.11a

 IEEE 802.11b

• IEEE 802.11g

Performance  Network speeds dynamically shift between 1,2,

5.5, 11, 12, 18, 24, 36, 48, 54 Mbps

 Indoor: 20 m (54 Mbps)
 Outdoor: 80 m (54 Mbps)

Frequency Range
(WP54G)

IEEE 802.11b:
IEEE 802.11g:

2.4 ~ 2.4835 GHz

2.4 ~ 2.497 GHz

Frequency Range
(WP54AG)

IEEE 802.11b:
IEEE 802.11g:
IEEE 802.11a:

2.4 ~ 2.4835 GHz

2.4 ~ 2.497 GHz

5.180 ~ 5.825 GHz

21

Wireless Operation
Modes (non multi-mSSID
firmware version)

 Access Point
 Access Point Client
 Point to Poin t
 Point to Multiple Point

• Wireless Routing Client

• Gateway

• Wireless Adapter

Wireless Operation
Modes (multi-mSSID
firmware version)

 Access Point Mode
 Client Mode
 Wireless Routing Client
 Gateway Mode
 Wireless Adapter Mode
 Transparent Client Mode

• Repeater Mode

Security  64 - bit / 128 - bit WEP

 WPA-Enterprise, WPA-Personal, WPA2-Enterprise,

WPA2-Personal, WPA-Auto-Enterprise, WPA­Auto-Personal

 Tagged VLAN
 IEEE 802.1x – TLS, TTLS, PEAP, EAP-SIM
 Wireless MAC address filtering (in Access Point

mode)

Network Interface 2 10/100 Mbps auto-negotiating Ethernet ports

(RJ45)

Modulation Techniques OFDM (BPSK, QPSK, 16-QAM, 64-QAM), DSSS (BPSK,

QPSK, CCK)

Output Power (WP54G)

IEEE 802.11b:
IEEE 802.11g:

20 dBm
20 dBm

Output Power (WP54AG)

IEEE 802.11a:
IEEE 802.11b:
IEEE 802.11g:

18 dBm
20 dBm
20 dBm

22

Operating Channels  11 Channels (US and Canada)

 13 Channels (Europe)
 14 Channels (Japan)

Advanced Wireless
Features

 Virtual AP
 Long Distance Parameters Setup
 Adjustable transmit power control (in 1dB steps)
 Smart Select
 STP
 HTTPS

Antenna Detachable 2dBi antenna with SMA connector

Management  HTTP Web Management

 SNMP

- SNMP (RFC1157)

- SNMP (RFC1213)

 Telnet
 SSH

Built-in DHCP Server Yes

DHCP Reservation By MAC address

Configuration Backup &
Restore

Yes

Firmware Upgrade Yes

Power Requirements

Using Power Adapter:

Using PoE:

Output 24VDC – 48VDC (localized to country of
sale)

802.11af PoE

Cable Length
Requirement for PoE

100 meters (max)

23

Environment
Requirements
Operating Temp:
Storage Temp:
Operating Humidity:

-20ºC to +70ºC

-65ºC to +100ºC
5% to 95% RH
Humidity (RH – Relative Humidity):

Physical Dimensions 145mm x 132mm x 41mm (H x W x D)

24

Further Information References

For more details on the WP54 configuration, please ref er to the User’s Manual i n
the accompanying Product CD.

This document may become superseded, i n which case you may find its latest
version at:

http://www.compex.com.sg

25
