English
4
TABLE OF CONTENTS
1 I Safety 5
1.1 Purpose 5
1.2 Legal aspects of training 5
1.3 Safety instructions 5
1.3.1 General 5
1.3.2 Contra-indications 5
1.3.3 Unexpected symptoms 6
1.3.4 Electrical safety 6
1.3.5 Prevention of explosion 6
1.3.6 Liability 6
1.3.7 Conformity 6
1.3.8 Deactivation and disposal 6
2 I Components and installation 7
2.1 Receipt 7

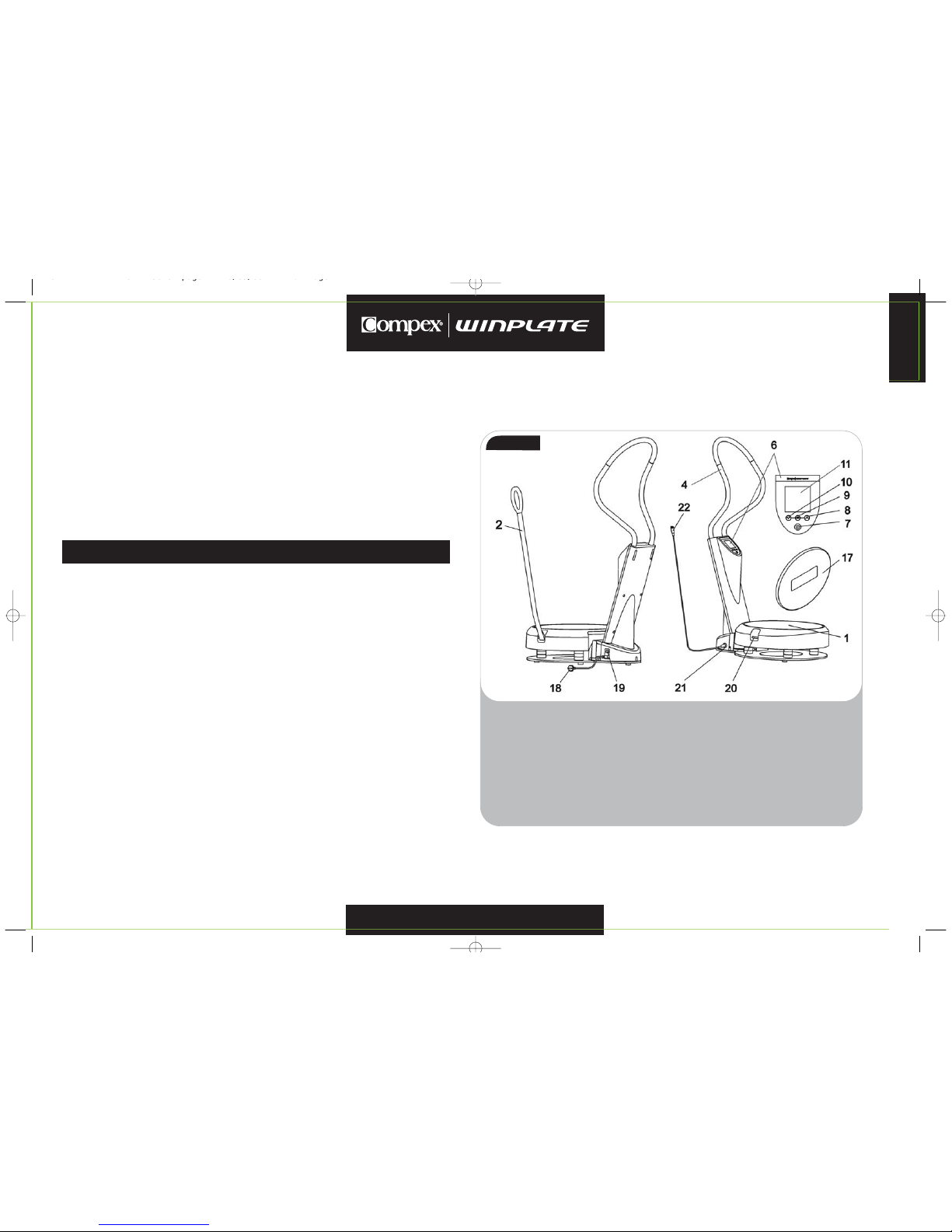

2.2 Description of the control unit and accessory items 7

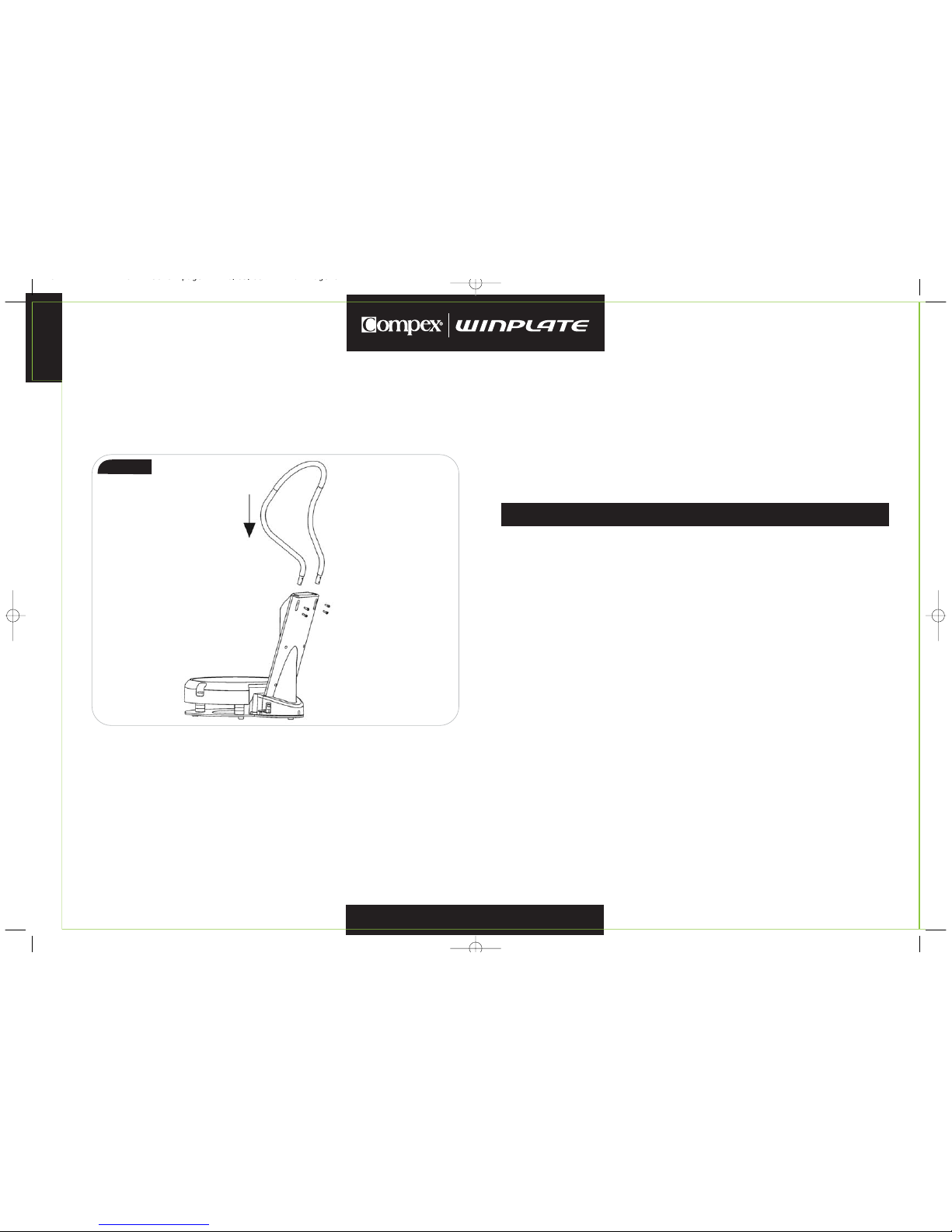

2.3 Assemblage 8
2.4 Transport & storage 8
3 I Operations 8
3.1 Introduction 8
3.2 First use 8
3.3 Important instructions 8
3.4 Operating the Compex Winplate 9

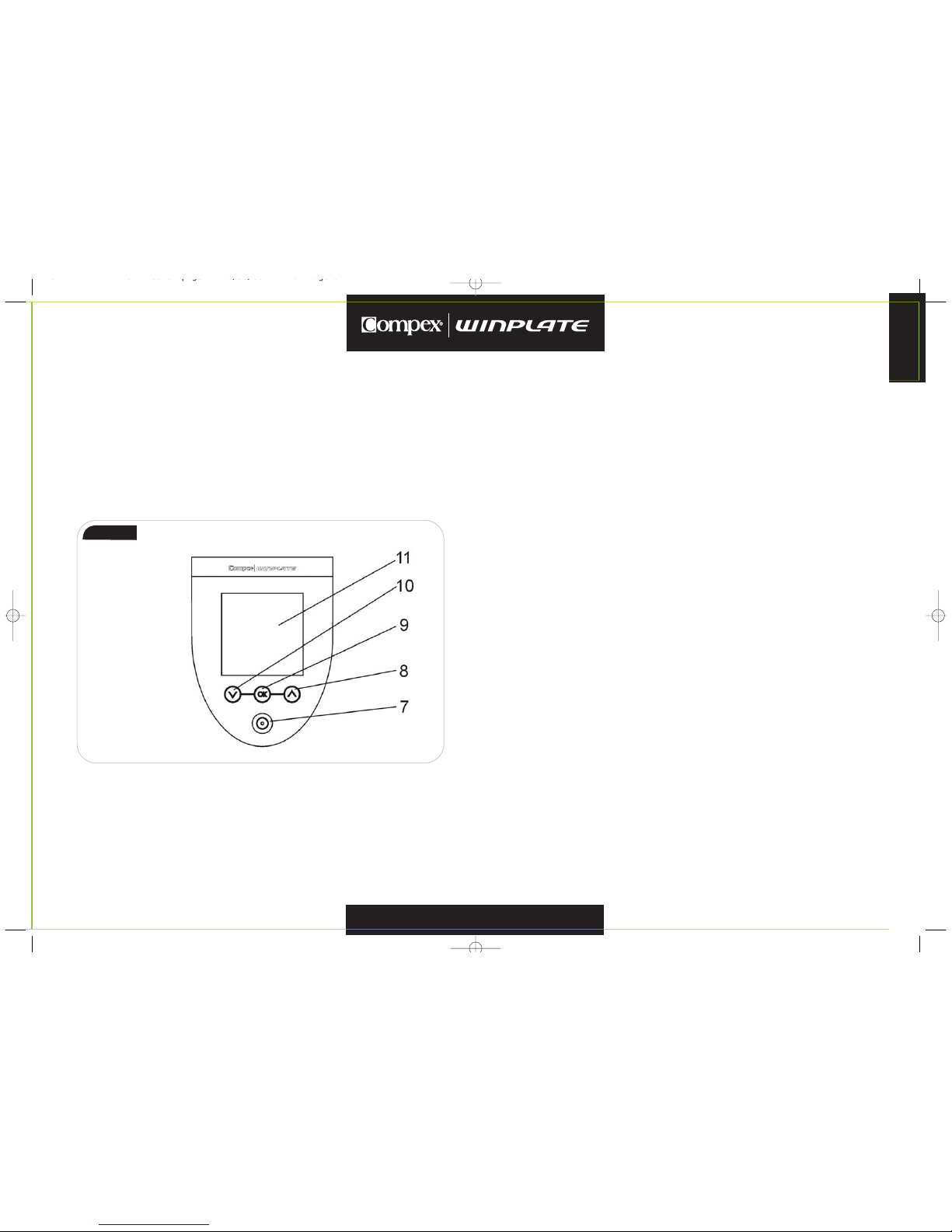

3.4.1 Operating Compex Winplate in general 9
3.4.2 System settings 9
3.4.3 Summary of operating modes 9
3.4.4 Start-stop switch 10
3.4.5 Use of hand straps 11
3.4.6 Vibration training parameters 11
3.4.7 Increase training effort 11
4 I Technical problems, warranty,
maintenance and cleaning 11
4.1 Technical problems 11
4.1.1 The device does not start 11
4.1.2 No function seems to be working 11
4.2 Warranty and service 11
4.3 Maintenance 12
4.4 How to clean the device 12
5 I Technical Data 12
MANUEL WINPLATE 2 8L:Mise en page 1 16/05/08 11:26 Page 4
English
5
1 SAFETY
1.1 I Purpose
The Compex Winplate is intended solely for vibration training. Before attempting to use the Compex Winplate, read and understand the safety aspects and
user instructions in this manual.
1.2 I Legal aspects of training
Training on the Compex Winplate is intended only for those who are physically
capable of undertaking a course of exercise. The legal regulations of the country apply.
1.3 I Safety instructions
1.3.1 I General
• Only a technician authorized by Cefar-Compex International SAS is entitled
to carry out repairs or modifications and to add elements to the device.
• The users’ electrical system must comply with all laws and
regulations.
• Follow the instructions and the directions in this manual.
• Always keep these user instructions with the equipment.
• Place the equipment on a horizontal and stable base.
• Do not place any objects on the equipment.
• Do not place the equipment in the sun or above a heat source.
• Only use the device at a temperature in between +10°C and +40°C.
• Do not use the equipment in a humid environment.
• Do not let any liquid flow into the equipment.
• Do not disinfect or sterilize the equipment. Clean the equipment with a dry
or moistened cloth.
• All legal restrictions concerning the use of the device must be complied with.
1.3.2 I Contra-indications
Each user must check whether he or she suffers or might be suffering
from one or several of the following contra-indication before starting
the vibration plate training. If so only use the Compex Winplate when
you have approval from a medical specialist.
Absolute contraindications:
Relative contraindications:
(use Compex Winplate only after
consulting a medical doctor)
■ Acute inflammations, infections and/
or fever
■ Acute arthropathy and arthrosis
■ Acute rheumatoid arthritis
■ Acute headache
■ Postoperative wounds
■ Implants / Endoprotheses
■ Metal or synthetic implants (e.g.
pacemaker, artificial cardiac valves,
recent stents)
■ Acute thromboses or increased throm-
botic afflictions (6 months)
■ Acute back problems
■ Pregnancy
■ Severe osteoporosis with BMD
< 70mg/ml
■ Spasticity
■ Morbus Sudeck Stadium I (CRPS I)
■ Tumors with metastases in the muscu-
loskeletal system
■ Benign Paroxysmal Positional Vertigo
(BPPV)
■ Epilepsy
■ Gallstones, kidney stones, bladder stones
■ Articular rheumatism and arthrosis
■ Heart failure, insufficiency NYHA III-IV
■ Cardiac dysrhythmia
■ Cardiac affections
■ Metal or plastic implants (piercing
or gynecologic implants)
■ Chronic back pain (6 months after acute ap-
pearing)
■ Severe diabetic mellitus with arterial
circulation disorders
■ Tumors (5 years after appearing, excluding
metastases in the musculoskeletal system)
■ Spondylolisthesis without gliding
■ M. Parkinson
■ Chondromalasy of the joints of the lower
extremities, osteonecrosis and -chondrosis
■ Arterial circulation disorders (Stadium Fon-
taine III°)
■ Venous insufficiency with ulcus cruris
■ Morbus Sudeck Stadium II (CRPS)
■ Lymphatic edema
MANUEL WINPLATE 2 8L:Mise en page 1 16/05/08 11:26 Page 5
English
6
1.3.3 I Unexpected symptoms
A user must immediately stop using the Compex Winplate when any
unexpected symptoms occur. Examples are:
• Muscle contractions without control during static exercises
• Dizziness
• Pain
• Muscle tightness
• Nausea
1.3.4 I Electrical safety
• Only use the equipment in an area with facilities that meet the applicable
legal regulations.
• Connect the equipment to an outlet with a protective earth terminal.
The outlet must meet the locally applicable requirements.
• Compex Winplate has been manufactured for use at a power voltage
of either 230V, 50-60Hz or 115V, 50-60Hz. Check the type shield for
compatibility.
Use of the device at an unsuitable voltage can cause irreparable
damage.
1.3.5 I Prevention of explosion
• Do not use the equipment in an area where combustible gases or vapours
are present.
• Switch off the equipment when it is not used.
1.3.6 I Liability
Neither the manufacturer nor the local dealer can be held liable for personal
injuries or for damage to or by the equipment used, if for example:
• The equipment or the accessories are used incorrectly
• The user instructions are wrongly interpreted or ignored
• The equipment is badly maintained
• Maintenance or repairs are performed by people or organisations that
are not authorized to do so by Cefar-Compex.
1.3.7 I Conformity
MDD/CE
The Compex Winplate has been developed and is tested, produced
and sold according to the international quality standards of the ISO
9001:2000 and DIN EN ISO 13485:2003 quality assurance system.
Furthermore, the Compex Winplate meets the strictest requirements of
European Directive 93/42/ECC for Medical Devices (MDD), as indicated
by the presence of a CE identification (CE 0197) on the device. Furthermore,
the certifying authority (notified body), TÜV Rheinland/Berlin-Brandenburg,
also carries out checks regularly. For the manufacturer’s liabilities, see
Chapter 4.
1.3.8 I Deactivation and disposal
Observe the following instructions when deactivating the “Compex Winplate”
vibration device:
You may deliver the device including all accessory items to a waste
disposal service provider specialized on electronic products or capable
of forwarding the device to such a specialist. In countries where the
suppliers are under the obligation of taking back deactivated electronic
devices, you may of course contact your supplier.
Most countries have by now introduced legislation which prevents
consumers from simply throwing their deactivated electronic products
away alongside their ordinary household waste. In the event that you
yourself are responsible for the safe disposal of the system
or that you prefer to do it on your own, we would like to provide you
with the following information:
The components of the “Compex Winplate” vibration device can be
classified as follows:
Vibration plate, handle with electronic unit, cable, straps and soft mat
must be treated like electronic scrap or light chemical waste.
MANUEL WINPLATE 2 8L:Mise en page 1 16/05/08 11:26 Page 6
