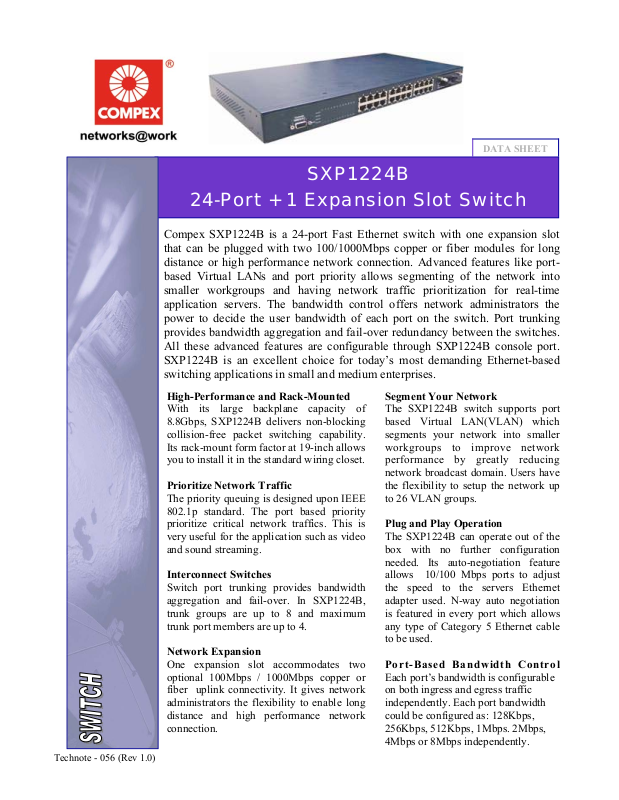

Compex SXP1224B Datasheet

DATA SHEET

SXP1224B

24-Port + 1 Expansion Slot Switch

Compex SXP1224B is a 24-port Fast Ethernet switch with one expansion slot
that can be plugged with two 100/1000Mbps copper or fiber modules for long
distance or high performance network connection. Advanced features like port­based Virtual LANs and port priority allows segmenting of the network into
smaller workgroups and having network traffic prioritization for real-time
application servers. The bandwidth control offers network administrators the
power to decide the user bandwidth of each port on the switch. Port trunking
provides bandwidth aggregation and fail-over redundancy between the switches.
All these advanced features are configurable through SXP1224B console port.
SXP1224B is an excellent choice for today’s most demanding Ethernet-based
switching applications in small and medium enterprises.

Technote - 056 (Rev 1.0)

High-Performance and Rack-Mounted

With its large backplane capacity of

8.8Gbps, SXP1224B delivers non-blocking
collision-free packet switching capability.
Its rack-mount form factor at 19-inch allows
you to install it in the standard wiring closet.

Prioritize Network Traffic

The priority queuing is designed upon IEEE

802.1p standard. The port based priority
prioritize critical network traffics. This is
very useful for the application such as video
and sound streaming.

Interconnect Switches

Switch port trunking provides bandwidth
aggregation and fail-over. In SXP1224B,
trunk groups are up to 8 and maximum
trunk port members are up to 4.

Network Expansion

One expansion slot accommodates two
optional 100Mbps / 1000Mbps copper or
fiber uplink connectivity. It gives network
administrators the flexibility to enable long
distance and high performance network
connection.

Segment Your Network

The SXP1224B switch supports port
based Virtual LAN(VLAN) which
segments your network into smaller
workgroups to improve network
performance by greatly reducing
network broadcast domain. Users have
the flexibility to setup the network up
to 26 VLAN groups.

Plug and Play Operation

The SXP1224B can operate out of the
box with no further configuration
needed. Its auto-negotiation feature
allows 10/100 Mbps ports to adjust
the speed to the servers Ethernet
adapter used. N-way auto negotiation
is featured in every port which allows
any type of Category 5 Ethernet cable
to be used.

Port-Based Bandwidth Control

Each port’s bandwidth is configurable
on both ingress and egress traffic
independently. Each port bandwidth
could be configured as: 128Kbps,
256Kbps, 512Kbps, 1Mbps. 2Mbps,
4Mbps or 8Mbps independently.

24-Port + 1 Expansion Slot Switch

DATA SHEET

Features
and Benefits

Specifications

Ordering
Information

Feature Benefit

Non-blocking Performance It offers operation at wire-speed on all ports, delivering

optimum access to all the network resources.

Address Aging Control To set a period of time to refresh MAC address table.

N-way Auto-Negotiation (Auto MDI/MDI-X) Eliminates common cabling errors by automatically

selecting the correct type of Ethernet cables used
(cross or straight-through)

IEEE 802.1p Prioritization Prioritize the network traffic to allow those real-time

applications to run seamlessly without bottleneck.

Port-Based VLAN Segment your network into smaller workgroups to

reduce network broadcast domain for better network
performance and privacy.

Port Trunking Port trunking increases the bandwidth between

switches while providing fail-over redundancy.

Expansion One expansion slot supports two optional copper or

fiber modules for high performance and long distance
network connection.

Interfaces

24 port 10Base-T / 100Base-T
Console Port (RS232)

1 expansion slot for 2 uplinks:
2 x 1000Base-T
1 x 1000Base-T / GBIC,
2 x 100MFX-SC.

Performance

Packet Forwarding Rate:

6.6Mpps

Forwarding Modes:
Store & Forward

Backplane: 8.8Gbps

MAC Table: 8K

Switching Buffer: 2.5MB

24-Port + 1Expansion Slot Switch SXP1224B-110 (For US & Canada)
SXP1224B-220 (For Europe & Asia)
SXP1224B-UK (For U.K. only)
SXP1224B-AUS (For Australia only)

Functional

IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (1000Base-T)
IEEE802.3z Gigabit Fiber
IEEE 802.3x (Flow Control)

Switching Features/ Functionality

Port-Based VLAN
IEEE 802.1p Priority Queuing
IEEE 802.1ad Port Trunking
Bandwidth Control
Port Operational Mode

LED Indicators

Power, Module, Full/Col ,Link/Act ,
1000/100M, Priority, VLAN1/2,
VLAN3/4, 100M, Half

Electromagnetic Emissions

FCC Part 15 Class A, EN55022A,
EN60555 Part2,Gost (CISPR 22-97)

Safety Certifications

CE Mark, EN 60950.

Power Supply

Voltage Rating: 100 - 240 VAC
Current Ratings: 0.5A (max)
Power: 20Watts (max.)

Environment Requirements

Operating temperature:
0oC to 70oC

Storage Temperature:

o

-55

C to 125 oC

Operating Humidity:
10%to 90% relative humidity

Dimensions

Height: 440mm
Width: 161mm
Depth: 44mm

Technote - 056 (Rev 1.0)
