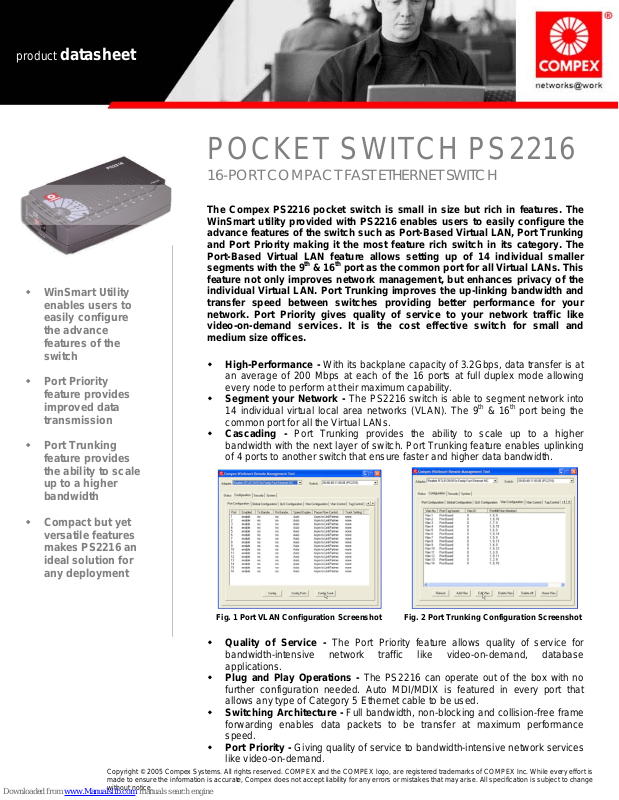

product datasheet
POCKET SWITCH PS2216
16-PORT COMPACT FAST ETHERNET SWITCH
The Compex PS2216 pocket switch is small in size but rich in features. The
WinSmart utility provided with PS2216 enables users to easily configure the
advance features of the switch such as Port-Based Virtual LAN, Port Trunking
and Port Priority making it the most feature rich switch in its category. The
Port-Based Virtual LAN feature allows setting up of 14 individual smaller
segments with the 9
WinSmar
t Utility
enables users to
easily configure
the advance
features of the
switch
Port Priority
feature provides
improved data
transmission
Port Trunking
feature provides
the ability to scale
up to a higher
bandwidth
Compact but yet
versatile features
makes PS2216 an
ideal solution for
any deployment
Copyright © 2005 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc. While every effort is
made to ensure the information is accurate, Compex does not accept liability for any errors or mistakes that may arise. All specification is subject to change
without notice.
feature not only improves network management, but enhances privacy of the
individual Virtual LAN. Port Trunking improves the up-linking bandwidth and
transfer speed between switches providing better performance for your
network. Port Priority gives quality of service to your network traffic like
video-on-demand services. It is the cost effective switch for small and
medium size offices.
High-Performance - With its backplane capacity of 3.2Gbps, data transfer is at
Segment your Network - The PS2216 switch is able to segment network into
Cascading - Port Trunking provides the ability to scale up to a higher
Quality of Service - The Port Priority feature allows quality of service for
Plug and Play Operations - The PS2216 can operate out of the box with no
Switching Architecture - Full bandwidth, non-blocking and collision-free frame
Port Priority - Giving quality of service to bandwidth-intensive network services
th
& 16thport as the common port for all Virtual LANs. This
an average of 200 Mbps at each of the 16 ports at full duplex mode allowing
every node to perform at their maximum capability.
th
14 individual virtual local area networks (VLAN). The 9
common port for all the Virtual LANs.
bandwidth with the next layer of switch. Port Trunking feature enables uplinking
of 4 ports to another switch that ensure faster and higher data bandwidth.
& 16thport being the
Fig. 2 Port Trunking Configuration Screenshot Fig. 1 Port VLAN Configuration Screenshot
bandwidth-intensive network traffic like video-on-demand, database
applications.
further configuration needed. Auto MDI/MDIX is featured in every port that
allows any type of Category 5 Ethernet cable to be used.
forwarding enables data packets to be transfer at maximum performance
speed.
like video-on-demand.
Page 2
cpx.co
POCKET SWITCH PS2216
TECHNICAL SPECIFICATIONS
SWITCHING CAPACITY
3.2Gbps
MAC ADDRESS TABLE
8K
INDUSTRY STANDARDS
IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3x (Flow Control)
FCC Class A; CE mark
CONNECTORS
16 port auto-negotiation 10 Base-T/ 100Base-Tx configured with Auto MDI/MDIX
STORE & FORWARD SWITCHING
Store & Forward
ADVANCED FEATURES
• Supports Port Trunking function with load balancing and fault tolerance
• Speed, Duplex, and 802.3x flow-control ability auto-negotiation
SAFETY & EMISSIONS
Safety Certifications UL, CSA,TUV/GS
Emissions EN 55022 Class A, IEC 61000-3-2, IEC 61000-3-3
Immunity EN55024
LED INDICATORS
Power/ Link/ Activity/ Port
POWER REQUIREMENTS
3.3V
ENVIRONMENTAL SPECIFICATIONS
Temperature
Humidity
DIMENSIONS & WEIGHT
Dimensions 151 x 92 x 35mm (L x W xH)
Weight 260 grams
Operating 0oC to 40oC
Storage -5
Operating 10%to 90% (non-condensing)
Storage 5% to 80% (non-condensing)
o
C to 60oC
