Comper Smart Fertility Tracker, BBTX User Manual

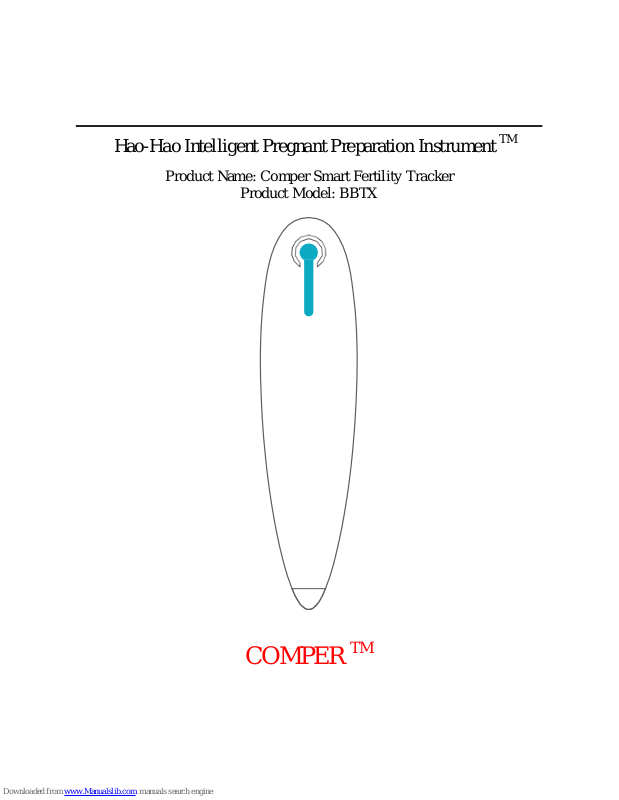

Hao-H ao Intelligent Pregnant Pr eparation Inst r ument

TM

P r od uct Name : Comper Smart Fertility Tracker

Produ ct Mod el: BBTX

COMPER

TM

1

Content

Basic Function and Working Principle
Composition
Safety Precautions
A pp lication Method
Instructi ons for us e
Disin f ection fun ction
Charging function

Prompt function
Voice Prompt
Cleaning and maintenance

Problems and Troubleshooting
Storage and Shipping Condition
Basic Parameters and Specifications

The Registration Certificate Number and Production License Number
Service Agencies and Infor mati o n

2

Basic Function and Working Principle

Dear customers ,

Thank you for purchasing Comper Intelligent Pregnant Preparation
Instrument

TM

(Product Name: Medical electronic thermometer, hereinafter
referred to as Pregnant Preparation Instrument). For appropriate application
of the product, please read the operating manual before using. Keep it
safely after reading for reference. Illustrations in the Manual are effect
pictures.

Basic function of the product

Pregnant Preparation Instrument is a mouth-contained basal body
temperature monitoring device for women. Body temperature can be
accurately measured by electronic sensors, satisfying the demand of daily
basal body temperature monitoring of women, and is satisfied the
requirement of daily monitoring by laypersons, nurs ing staff and care givers in
obste trical department in hospital, clinics and pregnant women at home.

Application scope: m onit or the ovulation cycle

Working principl e

A tempe rature sens or outpu ts electric signals and then ele ct ric sig nals w ill
be converted into digital signals that can be identified by internal
integrated circuit. Temperature value will be obtained by the processing
and comput ing of digital sign a ls by inte rnal chips .

3

Manual

Qualification
certificate

Composition

1 2

4 5 6

Parts list:

1. One pregnant
preparation instrument
(thermometer)

2. One disinf ection
cha rging box

3. One U SB charging cable

4. One manual

5. One qualification certificate

6. “Hao-Hao Health” APP

3

4

1

3

4

2

Instruction of parts:

1. Pregnant
preparation
instrument indicator
lamp

2. Heat probe

3. Contact-based
charging interface

4. The anti-skid

particles

5. Disinfection cha rging box
interface

6. Charging indicator

7. Contact-based charging
connector

8. UV disinfection lamp

7

6

5

8

5

Safety Precautions

In t he Ma n u al , al l po ssibl e ha r m s or da ma g e s ca us e d b y ope r a tio n n ot ac c ordi ng t o
ins tructions have bee n indicated and explained in accordance to the following classification.

Pleas e be aware and un dersta n ding that, for all death, injury or damage to goo ds due t o
operations not according to instructions specifie d in the Manual or deviating from the
designed purpose of the product, the Company shall not bear any responsibility.

Refer to instruction manual/ booklet

Prohibition

It r epr esents abs olu te ly no t allow ed
There is de ath or injury ris k caused by ope ration that is out of the

performanc e of the product or appropria te.

Warning

R epr esent m a t t e rs that require spe c ia l at tent ion

Represent matters that require special atten tion, wh ich may cause death

or serious dise ase even in normal operation.

Caution

Represent genera l conside rations in using

If misused, it may cause personal injury or property damage

Prohibition

Do not use the product in f l ammab le env ir o nment to pr otect from fire or

explosion.

Do not dismount, dismantle or repair the product voluntarily.
* The re i s possibility of causing serio us bod y injury, measur ement error

and damages to th e product.

6

Warning:

Keep the product o ut of the reach of infants a nd yo ung chil dren, and
do not let it use the product alone.

* If misused, th ere is the pos s ibility of causing damages

When t h e e le c tr o n ic de v ic e is limit ed in hospital or aircraft cabin ,
please d o not turn on the product.

Prohibition:

It is dan gerous to condu ct self-diagnosis or self-treatment in
accordance to measur emen t r esul t s, p leas e follo w the guidance of a
doctor

* Self-diagnosis may cause possibility of deterioration of diseases

This prod uc t is an oral dedicated thermo me ter , and is not allowed to

us e in any pa rts other t han th e mouth (especially the parts of the ear)

to measure body temperature.
* I t is unable to correctly measure the temperature, and there is
possibility of causing harm to the ears

Do not share t his product with others

* The re i s possibility of causing a bacterial infectio n or transmission

of the virus.

Do not damage the battery, heat the battery or thro w it in the f ir e
* The re i s possibility of a battery explosion.

7

Do not vigorously bite the product .

* Ma y cause pr oduct breakdown. Please contact your physician if
the condi tion of s wall owing occurs.

Do not pla ce the product 22cm w ithin t he scope closely proximi ty to
other medical instruments (such as heart pacemakers)

Caution:

Make sure the positive and negative si de of prepare pregnant

preparation instrument when putting i nto the disinfection box

* Incorrect placement may cause possibilit y of damages to product.

Do not use the pr oduct closel y to strong ele ctromag netic fields,

elec tr omagnetic wave and magnetic environme nt
* There is possibility of measurement errors or damage to the
product

Avoid severe shock, falling from the height or stomping after

putting into the disinfecti on box

* There is possibility of causing damage to the product.

Do not make the chargi ng part getting wet

* There is possibility of causing damage to the product.

Do not look dir ec tly at disi nfection lamp

* There is possi bili ty of causing damage to eye s

8

S afety Prec aut ions

Do not place the product into boiling water for sterilization
* There is possibility of causing damage to product breakdown or product failure.

Dismantlement is prohibited.

Do not dismount, dismantle or repair the product voluntarily.

* There is possibility of causing serious body injury, measurement error and
damages to the prod uct

Do not take out t he magnet from disinfection charging box.
* Magnet d amage may cause possibility of damage to product.

At the end of pr odu ct life, please deal with the produ ct accord ing to th e relevant local
environmental protection laws and regulations.

Scope of application and c ontra indications

Contraindications: Not f ound

Application scope: monitor the ovulation cycle

9

Application Method

Pr egnant preparation instrument should be
used w ith AP P .

1. Download by scanning QR code.

2. Downlo ad from the
application store: search
“Hao-Hao Health”

Note:
Piggyback Bluetooth 4.0 and above module
IOS7.0 and above operating system

Piggyback Bluetooth 4.0 and above module
Android 4.3 and above operating system

9

Instructions for Use

Note: The instrument shoul d be charged for at lea s t 3 hours in first use.

1. Open the Bluetooth of mobile phone .

2. Open the “Hao-Hao Health” APP and create an account.

3. Select device of “Hao-Hao Health Intell igent Pregnant Preparation
Instrument”, an d conduct subsequent operations according to APP tips.
For questions, please contact customer service.

10

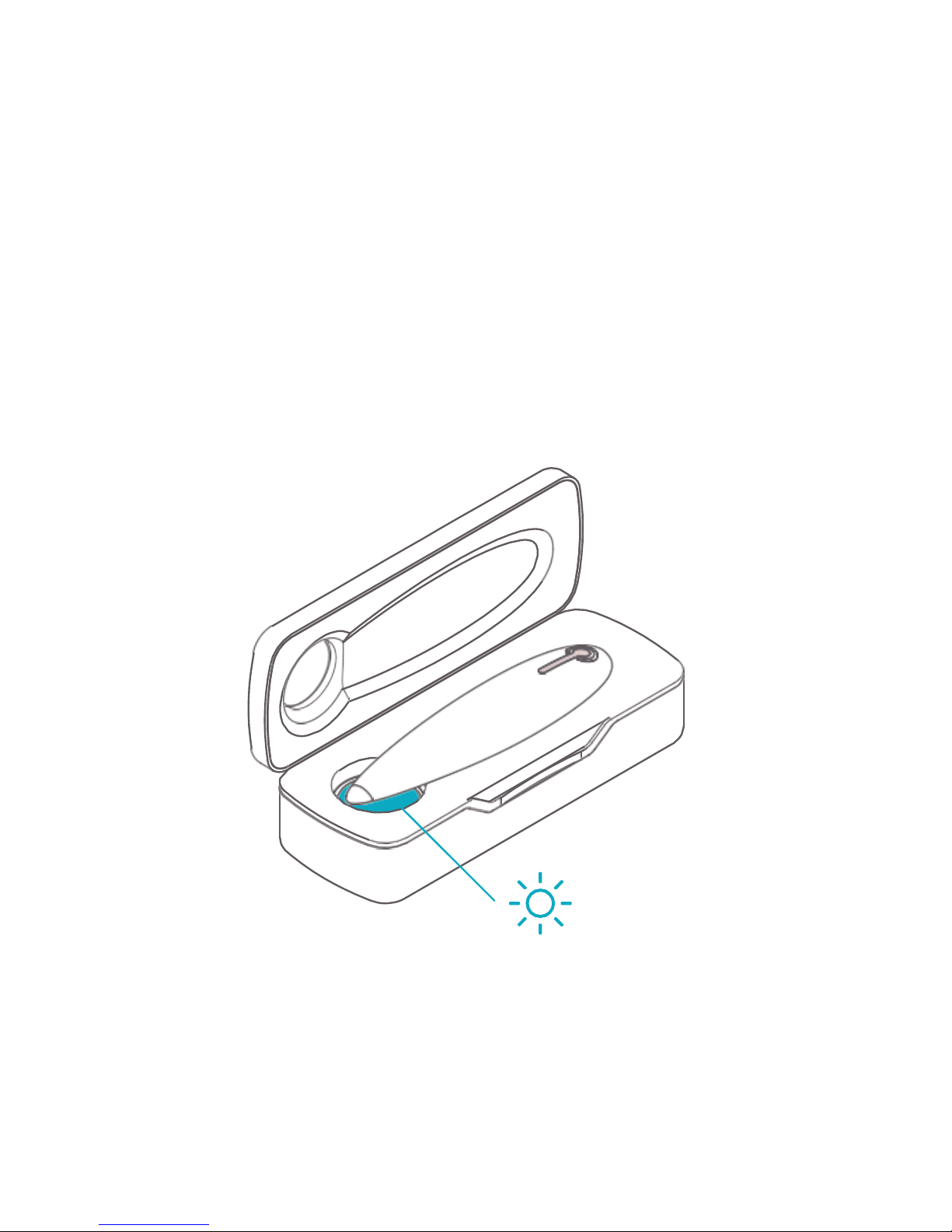

Disinfect i on function

When putti ng the pr egnant preparation instrument back into

disinfection char ging box

after measur ement, pregnant prepar ation instrument will automat ical ly shut down.

Please connect with the power and close the disinfection charging box

, t he function of

disinfection will turns on a utomatic ally.

11

Charging Function

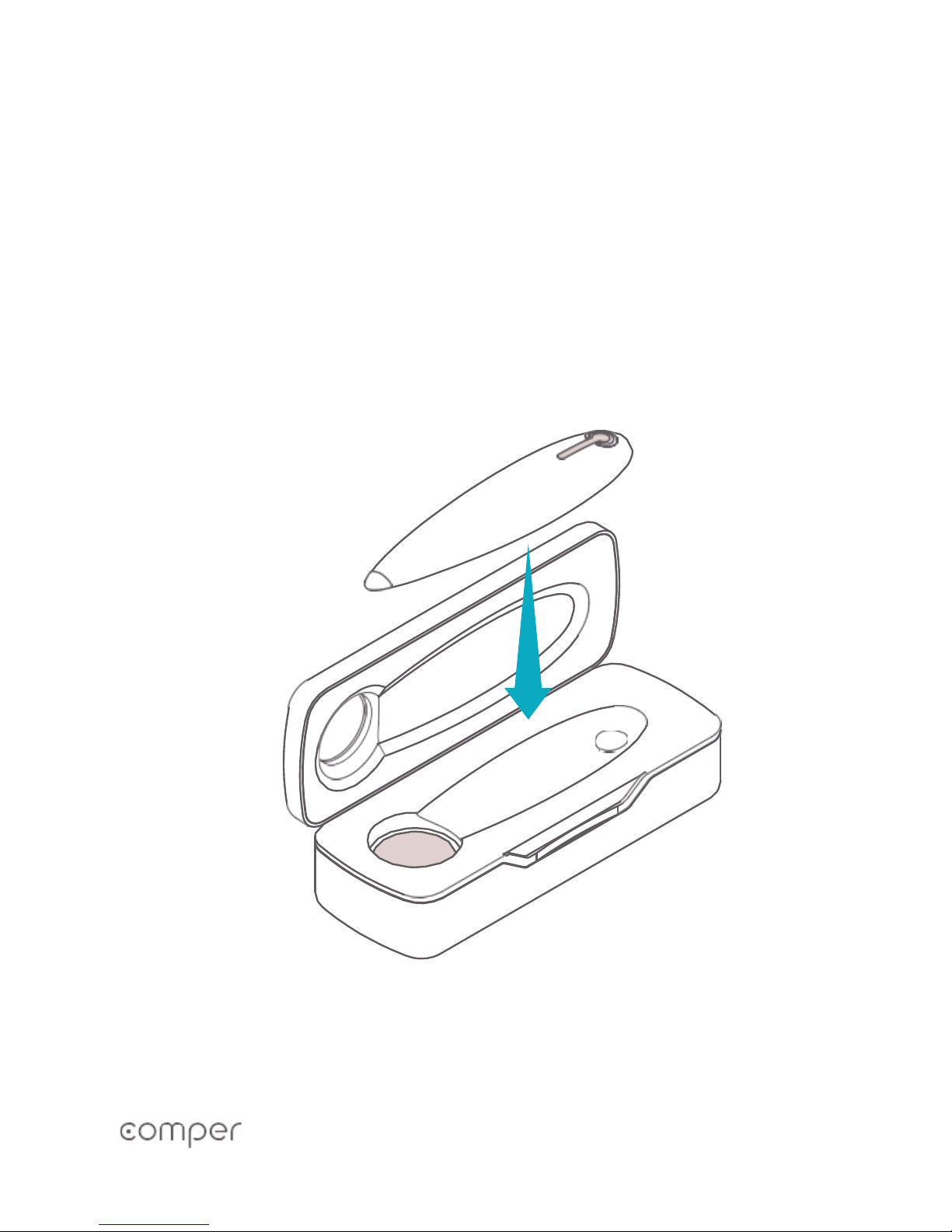

1. Put the pregnant pre paration ins trume nt in the disinfec tion char ging box.

12

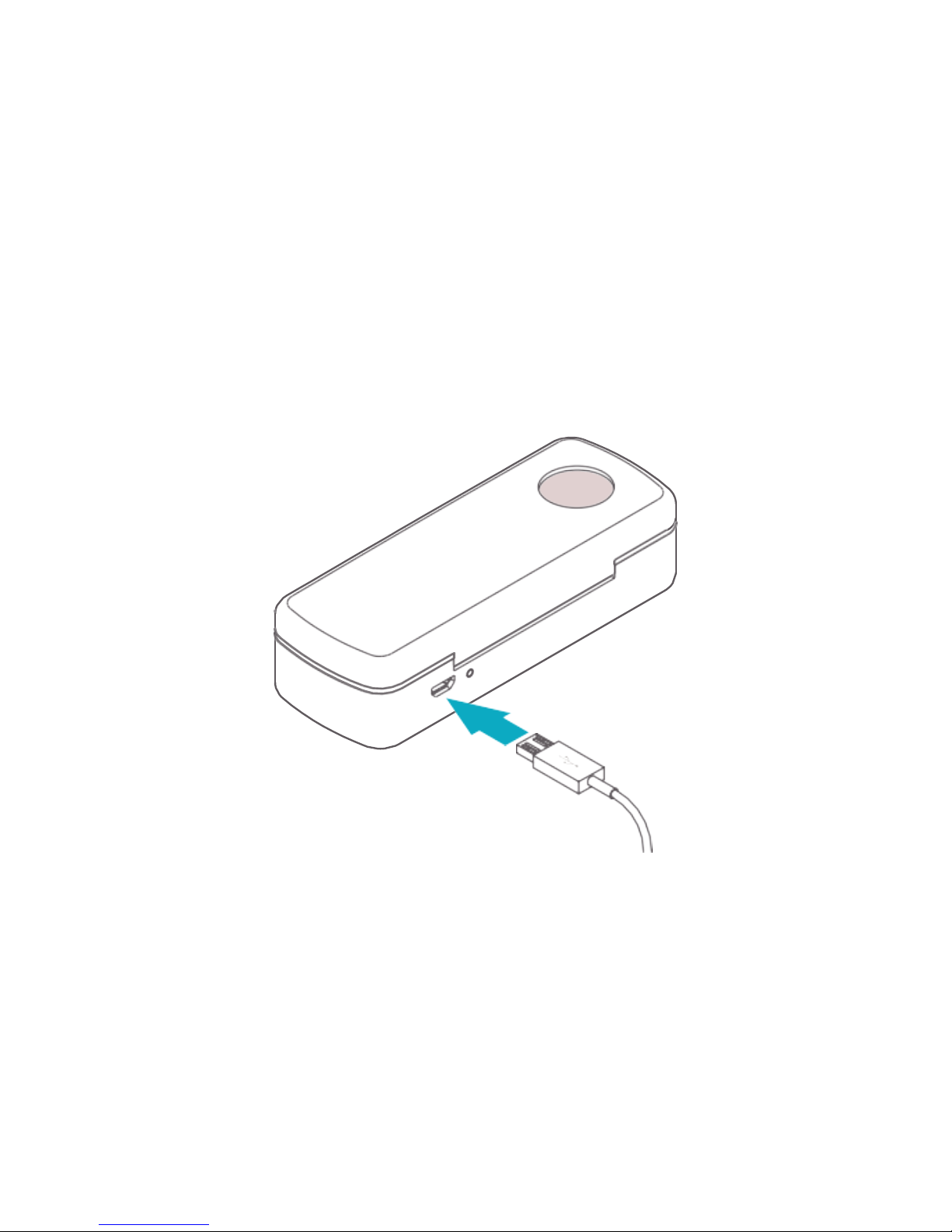

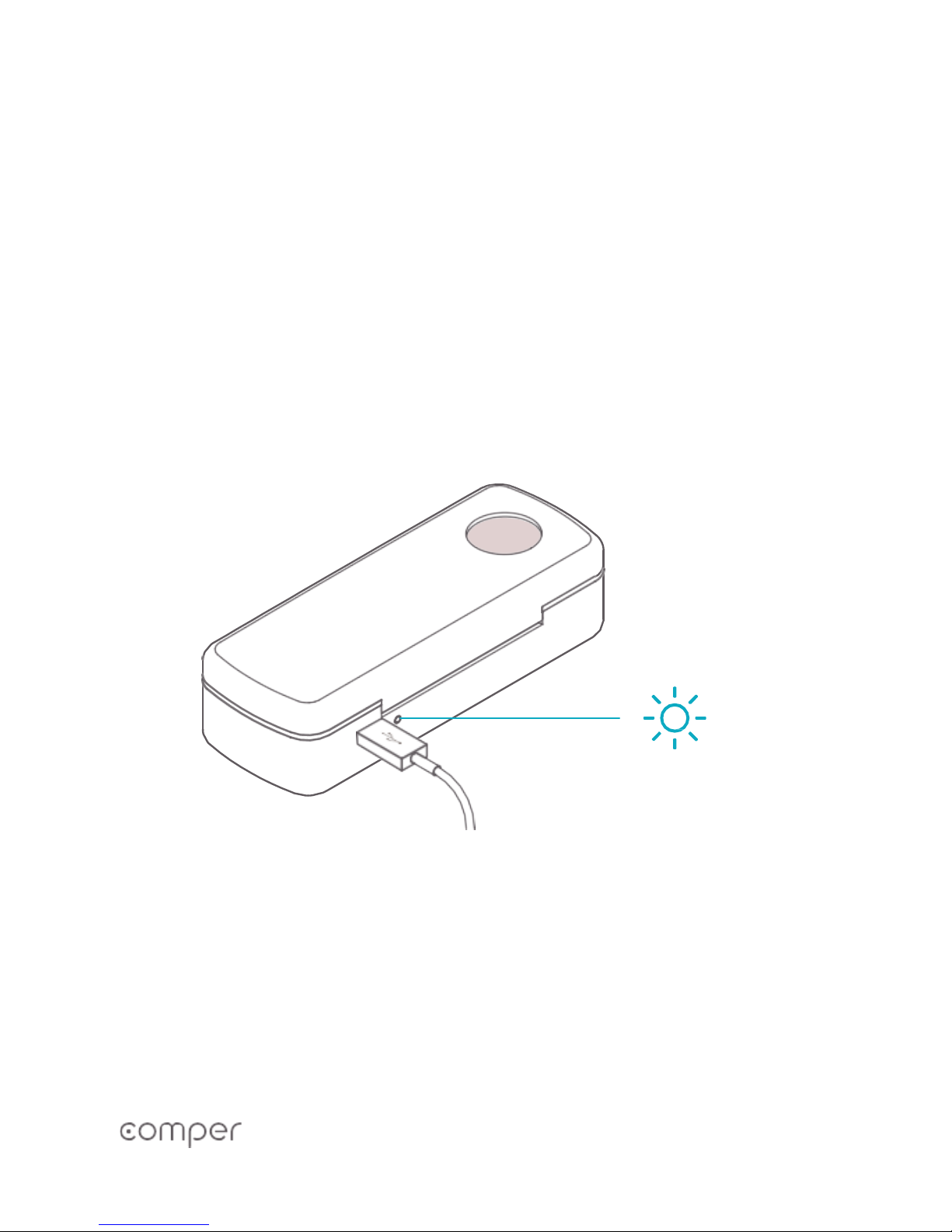

2. I nsert the USB charging cable into the charging interface of disinfecti on charging box.

13

3. La mp displays orange light w hen it i s in cha rging. La mp displ ays white

light w hen cha rging is complet ed.

15

Prompt functi on

Charging indicator lamp

Long white light

Charging is completed.

Long orange light

In charging

Pregnant preparation instrument

ind icator lamp

Long white light & one time of beep

The main body turns on.

Flicker wh ite ligh t

Successful connection of Blueteeth.

Long white light & three times of beep

No measurement / temperature is too low or too

high, or abnormal measurement

Light turned down

Electric quantity exha ustion

Orange light

Period of easy pregnancy

Blue light

Period of non-easy pregnancy

White light

No measurement/results

16

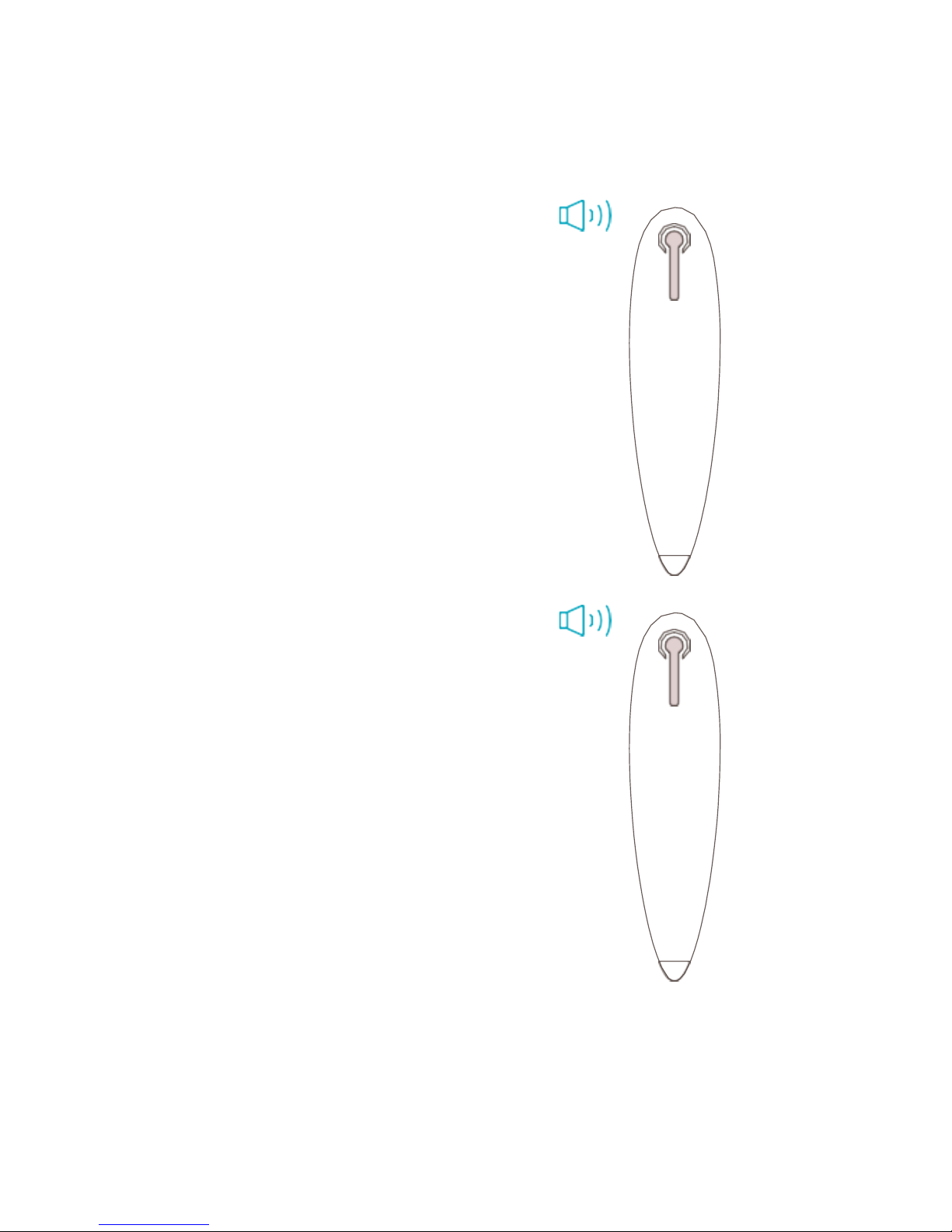

Voice Prom pt

1

x

1. One time of “beep” after measurement represents completion
of measurement.

3

x

2. Three times of “beep” after measurement represent abnormal
measurement temperature.
.

17

Cleaning and ma int ena nce

Please keep the cleaning of pregnant preparation instrument.

Wipe the heat detector pr obe wit h a dry, soft cloth

If there is a lot of dirt on the hea t detector pr obe, pl ease wipe the probe with a
wringed cl oth with neutral detergent or wa ter, and then use a s oft cloth to wipe it

dry.

After connecting with the power, put the instrument into the disinfection char ging
box and automatic disinfection of u ltraviole t r a y will begin and last about 5

minutes.

Please comply with the foll owing precautions to avoid breakdown or failure

Do not remove dirt by usi ng volatile agents, diluent or gasoline, etc.

The disinfection cha rging box is not waterproof; please avoid water flowing into
the box.

Do not immerse the heat detector probe in alcohol for a long time.

Do not use hot wa ter to conduct sterilization of pr egnant preparation instrument
(over 50 ˚C water).

17

Problems and Troubleshooting

Problem/failure

Possible reason

Long wh ite light & thre e times of beep

The measured value is too high due to

activity o r eating before measurem ent.
The measured value is too low due to
incorrect measurement position.
The m eas ured value is too low due to open
mouth measurement.
Artif ic ial interruptio n of the measurement.
The measured value is too high due to a
long time placem e nt in hot env ironment.

No f lic ker of white light af te r startup

Bluetooth is not connected with the phone.

No indicator lamp is turned on after

taking out of the disinfection charging box.

Electr ic qu a ntity exh a ustion

18

Adopted measures

Please conduct measurement in bed immediately after wa king up in the morning.
Please conduct measurement in correct measurement position.
Please close the lips during the measurement and do not breathe by mouth.
Please conduct measurement according to correct instructions.
Please use the product in the environment of +5 ˚C to +40˚C

Please check whether the “Hao-Hao Health” APP is in operation.
Please check whether your phone Bluetooth is turned on in operation

Please charge.

19

Storage and S hippi ng C ond ition

Special s torage

Do not store the product in the following
environments, or otherwise it will cause a
breakdown or failure

Hum id environm ent

High te mperature, direct sunlight, d usty

environment, or salt environment

Envir o nmen t w ith chemic a ls or co r ros iv e g as
Storage environment

Temperature: -10°C to +40°C Humidity: ≤85%
Vent ilated room without co rrosive gase s

Transportation environment
Temperature: -40°C to + 55°C
Humidity: ≤90% RH
Atmospheric pres sure: 50 to 101.3 kPa
Method: air, sea, rail transport or co ach transport

20

Basic Parameters and Speci fic ation s

Mode l: BBTX
Power of t he product
Battery: Rechargeable lithium battery (3.7 V)
Battery life: continuous use of 12 hours, more than 300 times of charge-discharge
Charging power s upply: Micro U SB (DC 5.0 V; 100 mA)

(This pr oduct should be charged with the charging power s upply of me dical produc ts
comply with GB 9706.1/IEC 60601-1 for two MOPP i ns ulati on s ystem. The charging
power supply should be checked or replaced regularly.)

Category of product Electric shock protection type: int ernal pow er supply
Electric shock prote ction type: BF product
Level of anti-liquid: IPX6 (main body of pregnant preparation instrument)
Anti-level liquid feed: IPX6 (prepa red pregnant instrume nt body)
The degree of sa fety of combustible g as: not suitable for using in environme nt wit h
flammable gas
Operating mode : Single measurement
Size of product: 95 x 23 x 12 mm
Shape of dis infe ction box: 117 x 44 x 30 mm
Net weight: Disinf ection chargi ng box of 69 g; pregnant pre paration instrument of 14 g
C ommu nic a t ion: U ltra -low-power consumption Bluetooth 4.0

Compliance:
IEC 60601-1

21

Working environment
T emperature: + 5°C to + 40°C
Humidity: ≤85%
Atmospheric pressure: 70 to 101.3 kPa

Product performance
Sensor: Rapid respons e thermistor
Measurement: High-speed pr ecision Foun d
Measuring range: 35.00°C to 42.00°C
Accuracy: 35.00°C to 39.00°C, ± 0.05°C

39.1°C to 42.0°C, ± 0.1°C
Measurement accuracy: 0.01 °C (displa yed on the “Hao-Hao Health” APP)
Life: 4 years

22

National hotline：[phone]

The Registration Certificate Number and Production License Number

Product r egistration certificate number:

Pr oduct production license num ber:

Service Age ncies and I nformation

Production company name: Comper (Bei jing) Technology Co. , Ltd.
Manufacturer address: Floor 3 Unit 712, 713 B ui lding 1, No. 3

Yongchang North Road, Economic and Tec hnological De velopment
Zone, B eij ing

Manufactu rer Tel.: [phone]

Ma nual v ersion: BT-M-01-15 Rev.02
Date of formulati on / revision:

September 2015

23

COMPER

TM

How the best is done

Copyright

Copyright is owned by Comper (Beijing) Technology Co., Ltd., the Company shall enjoy and reserve all exclusive a uthority
of copyright. No part of the Manual shall be increased or decreased, excerpted, reproduced, a ltered or imitated without the
prior written consent of the Company.

For the content of this Manual, the Company is not responsible for any explicit or implied wa rranty or guarantee liability.
The content change caused by product improvements and technology updates could occur at any time without prior notice.
The power of interpretation is vested by the Company.

Federal Communications Commission (FCC) Statement

15.21
You are c autioned that changes or modifications not expre s s ly a ppr oved
by the part responsible for compliance could void the user’s authority to
operate the equipment.

15.105(b)
This equipment has been tested and found to comply with the limits fo r
a Class B digital device, pursuant to part 15 of t he FCC rules. These
limits are designed to pr ovide reasonable protection against harmful
in t e r f e ren ce in a r esident ia l ins t a lla tion.
Th is e q uip m ent genera tes us es an d can r adia te radio fr equen cy energy
and, if not inst alled and us ed in accordanc e wi th th e instructions, may
cause harmful interfere nce to radio communications. Ho wever , there is
no guarantee that interference will not occur in a particu lar in stallation.
If this equipm ent does c ause ha rm ful inte r f e r enc e to radio or television
reception, which can be determined by turning the equipment off an d on ,
the user is encouraged to try to correct the interference by one or more
o f the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to
which the receiver is con nected .

-Consult the dealer or an experienced radio/TV technician for help.

T hi s device c omplies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:

1) this device may not cau se interference and

2) this device must accep t any in terferen ce, including interference that
m ay caus e undesired operation of the device.

FCC RF Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth
for an uncontrol led envir onment. End users mus t f ollow the specific
ope ratin g instruct ions fo r satisfyin g RF exposure complian ce. This
transmitter must not be c o-loca ted or operating i n conj unct ion w ith any
o ther ante n na or t r an smit te r .
