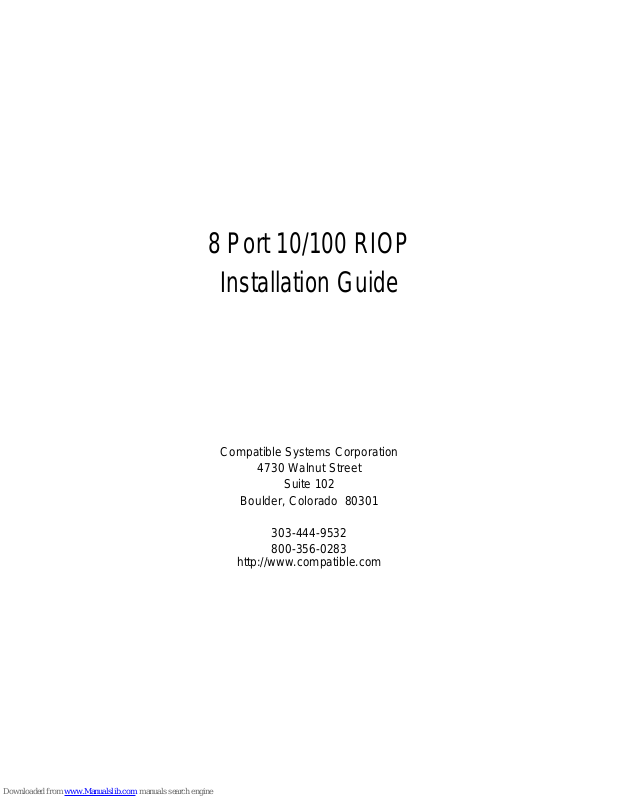

8 Port 10/100 RIOP

Installation Guide

Compatible Systems Corporation

4730 Walnut Street

Suite 102

Boulder, Colorad o 80301

303-444-9532
800-356-0283

http://www.compatible.com

8 Port 10/100 RIOP Installation Guide, Version 1.0
Copyright© 1999, Compatible Systems Corporation

All rights reserved. VSR, VSR-2, MicroRouter and CompatiView are trademarks of Compatible Systems Corporation. Other
trademarks are the property of their respective holders.

FCC Notice: This product has been certified to comply with the limits for a Class A computing device, pursuant to Subpart J
of Part 15 of FCC Rules. It is designed to provide reasonable protection against radio or television communication interfer­ence in a commercial environment. Operation of this equipment in a residential area could cause interference with radio or
television communication.

Table of Contents

i

Introduction to the 8 Port 10/100 RIOP 1
Chapter 1 - Network Installation 2

Connecting the 8 Port 10/100 RIOP to the Ethernet 2
Connecting a Management Console 2
Powering Up the Router 3

Chapter 2 - Quickstart Instructions 4

ETHERNET INTERFACE CONFIGURATION 4

IP Protocol 4

Required for IP 4
Suggested for IP 4

IPX Protocol 5

Required for IPX 5
Suggested for IPX 5

AppleTalk Protocol 5

Required for Apple Talk 5
Suggested for AppleTalk 5

DECnet Protocol 5

Required for DECnet 5
Suggested for DECnet 5

SAVING A CONFIGURATION FILE TO FLASH ROM 6

Chapter 3 - Shipping Defaults 7

Ethernet Interface s 7

IP Routing Defaults 7
IP Bridging Defaults 7
IPX Routing Defaults 7
IPX Bridging Defaults 7
AppleTalk Routing Defaults 7
AppleTalk Bridging Defaults 7
DECnet Defaults 7

Chapter 4 - LED Patterns 8

Over Temp 8
Sys Ready 8
General Indicators 8

8

Introduction to the 8 Port 10/100 RIOP 1

Introduction to the 8 Port 10/100 RIOP

The 8 Port 10/100 Routing Input/Output Processor (RIOP), as part of the VSR multigigabit
switching router, allows you to connect up to eight local Ethernets at a data speed of either 10
Mbps or 100 Mbps.

This section of the manual contains information specific to the 8 Port 10/100 RIOP. It is
divided into the following sections:

Chapter 1: Network Installation

Here you will find step-by-step instructions on how to physically install the 8 Port 10/100 and
connect it to your network.

Chapter 2: Quickstart Configuration

The Quickstart section provides a basic list of parameters that must be entered into the 8 Port
10/100 for proper operation.

Chapter 3: Shipping Defaults

This section of the manual lists factory defaults for each interface.

Chapter 4: LED Patterns

This section of the manual describes the LED indicators for the 8 Port 10/100.

Chapter 1 - Network Installation 2

Chapter 1 - Network Installation

8 Port 10/100 RIOP Front Panel

This section of the manual will help you install the 8 Port 10/100 RIOP to connect up to eight
Ethernets. In summary, the steps for installation are:

1. After mounting the router or placing on a desktop, make sure it is not connected to
any power source.

2. Connect the router to the Ethernet network(s).

3. Connect a management console to the router (optional).

4. Plug in the power cable and power up the router.

Connecting the 8 Port 10/100 RIOP to the Ethernet

The 8 10/100 Ethernet interfaces directly support 100BaseTx or 10BaseT twisted-pair
Ethernet. To connect each of the router’s Ethernet interfaces to twisted-pair Ethernet cabling,
you will need one unshielded twisted-pair station cable that is already connected

to a 10BaseT­compatible twisted-pair hub (fo r a transmit speed of 10 Mbps ) or a 100Mbps Fast Ethernet hub
(for a transmit speed of 100 Mbps).

v

Note: Ethernet cables and cable connectors are not supplied with the 8 port 10/100 RIOP

product. Category 5 cabling is required for 100 BaseTX operation. Please contact your
reseller or your Compatible Systems representative for information on obtaining the correct
Ethernet cabling supplies .

To connect the router to the twisted-pair network, simply plug the twisted-pair cable into the
RJ-45 Ethernet connector on the front of the unit.

Connecting a Management Console

If you wish to connect an out-of-band management console, use the supplied DB-25 male to
DB-25 female cable and connect to the Console interface on the leftmost

slot (slot 0) on the 8
port 10/100 RIOP. You can use a dumb terminal or a c omputer equi pped with VT100 termin al
emulation.

v

Note: If you connect to the console using a slot other than slot 0, all configuration changes

will be lost when the box is rebooted.

The default settings for the Console interface are VT100 terminal emulation, 9600 bps, 8 bits,
no parity, 1 stop bit and no Flow Control.

v

Note: The 8 port 10/100 RIOP also has an AUX interface. This is a modem connection

which should only be used in consultation with Compatible Systems Technical Support staff,
who will provide instruction on its use.

Chapter 1 - Network Installation 3

Powering Up the Router

Connect the supplied power cord to the front of the VSR and set the power switch to “On.” At
power-up, the router will take approximately one minute to become visible to CompatiView.

v

Note: If you want to use Telnet as a management method, you must first configure an IP

address into the router with either an out-of-band console, CompatiView, or with a recon­figured IP ho st or works tation on t he same Ethernet s egment as the router. See the appropriate
VSR chassis section of the manual for more information on Command Line Management.

Chapter 2 - Quickstart Instructions 4

Chapter 2 - Quickstart Instructions

This Quickstart chapter briefly discusses the major parameters that must be set in order to use
the 8 Port 10/100 RIOP as part of your VSR multigigabit switching router.

Detailed information on the meaning of the router’s parameters is provided in the Compa-

tiView Management Software Reference Guide and the Text-Based Configuration and
Command Line Management Reference Guide. You should use this list as a starting point to

look up more specific information in the other documents.
If you need more general information on IP, IPX, AppleTalk or wide area protocols, see the

Appendices in the CompatiView Management Software Reference

Guide.

There are a number of parameter settings which are optional, in the sense that they are not
required for all installations. These settings are not covered in this chapter.

In this chapter:

CV = CompatiView
TB = Text-Based Configuration

Ethernet Interface Confi guration

IP Protocol

Required for IP

These parameters set the basic address characteristics of the interface. They provide enough
information for another IP node to find the interface (such as a Telnet client), but not enough
information for routing to take place.

• IP address

• IP subnet mask

• IP broadcast address

CV: Use the TCP/IP Routing: Ethernet Dialog Box to set these parameters.
TB: Use the configure command and the IPAddress, SubnetMask, and IPBroadcast

keywords in the IP Ethernet 0 (and/or other port numbers you wish to configure) section.

Suggested for IP

These parameters help supply information a bout the segment that the interface is connected to.
With this information, routing can take place.

• Set IP RIP 1, IP RIP 2 or OSPF (Open Shortest Path First)

• IP static routes

CV: Use the TCP/IP Routing: Ethernet 0 Dialog Box to set RIP, and the IP Static Routing
Dialog Box (under Global/IP Static Routes) to set static routes. OSPF can only be configured
using text-based configuration.

TB: Use configure and set either the RIPVersion keyword or the OSPFEnabled keyword for
the IP Ethernet 0 (and/or other port numbers yo u w ish to co nfi gu re) s ectio n. Use edit config
and add static routes in the IP Static section.

Chapter 2 - Quickstart Instructions 5

IPX Protocol

Required for IPX

There are generally no required changes from the shipping Ethernet configuration for IPX.
The Ethernet interface will autoconfigure to use the two most common IPX frame types, and
will adapt to conditions on the Ethernet.

Suggested for IPX

You may want to s et yo ur ow n n etwo rk n umb ers , rat her t han using the autoconfigured val ues.
You may also want to turn off unused frame types.

CV: Use the IPX Routing: Ethernet Dialog Box.
TB: Use configure and set keywords in the IPX Ethernet 0 (and/or other port numbers you

wish to configure) section.

AppleTalk Protocol

Required for AppleTalk

There are generally no required changes from the shipping Ethernet configuration for Apple­Talk. The Ethernet interface will autoconfigure to use AppleTalk Phase 2, and will adapt to
conditions on the Ethernet.

Suggested for AppleTalk

You may want to s et yo ur ow n n etwo rk n umb ers , rat her t han using the autoconfigured val ues.
You may also want to use more meaningful zone names.

CV: Use the AppleTalk Routing: Ethernet Dialog Box.
TB: Use configure and set keywor ds in the AppleTalk Phase 2 Ethernet 0 (and/or other port

numbers you wish to configure) section.

DECnet Protocol

Required for DECnet

The router’s shipping configuration does not have DECnet turned on. In order to be used,
DECnet must be turned on both globally and for a particular port.

• Set DECnet on (globally, and for this port)

• Set DECnet area

• Set DECnet node

CV: Use the DECnet Routing Dialog Box (under Global/DECne t Routing) and the DECnet:
Ethernet Dialog Box.

TB: Use configure and set the Mode keyword in the DECnet Ethernet 0 (and/or other port
numbers you wish to configure) section. Use configure and set the Enabled, Area, and Node
keywords in the DECnet Global section.

v

Note: Setting DECnet on for any port with the command line also sets DECnet on globally.

In CompatiView you must set a global parameter and a port-specific parameter.

Suggested for DECnet

Setting the parameters above should be adequate for most installations.

Chapter 2 - Quickstart Instructions 6

Saving a Configuration File to Flash ROM

Once a configuration is complete, you can save it to the router’s Flash ROM. Until saved, all
changes are made in a separate buf f e r an d th e actual r outer interfaces co ntinue to r un as before
the changes were made.

CV: Use the Save to/Device option from the File menu.
TB: Use the save command.

Once you have saved the configuration in the rou ter, you can run some quick tests from work­stations on the configured segments to check your configuration parameters (i.e. IP ping tests,
mounting IPX servers, etc.).

Chapter 3 - Shipping Defaults 7

Chapter 3 - Shipping Defaults

Ethernet Interfaces

IP Routing Defaults

• Off, all interfaces

IP Bridging Defaults

• On, all interfaces

• Address: 198.41.12.1

• Subnet Mask: 255.255.255.0

• Broadcast Address: 198.41.12.255

• IP RIP off

IPX Routing Defaults

• 802.3 on, autoseeding, all interfaces

• 802.2 on, autoseeding, all interfaces

• Type II on, nonseeding

• 802.2 SNAP on , nonseeding

IPX Bridging Defaults

• Off, all interfaces

AppleTalk Routing Defaults

• Phase I off, all interfaces

• Phase II on, autoseeding, all interfaces

AppleTalk Bridging Defaults

• Off, all interfaces

DECnet Defaults

• Off, all interfaces

Chapter 4 - LED Patterns 8

Chapter 4 - LED Patterns

Some of the LEDs on the front of the VSR multigigabit switching router serve dual functions.
In addition to indicating certain router-wide operating conditions, and they may also display
port-specific information.

The following LEDs and li ght pat terns provid e info rmation about t he VSR’s physical state and
operating conditions.

Over Temp

The router is above the proper operating temperature. The filter needs changing. See the
appropriate VSR chassis section of the manual for instructions.

Sys Ready

The router booted properly without detecting any failures.

General Indicators

v Note: Any continuous flashing pattern not noted in this chapter may be caused by a hard­ware failure. Please call Compatible Systems Technical Support if your router shows a hard­ware failure.

Ethernet 0-3 Lights Ethernet 4-7 Lights Indication

5 flashing 1 flashing Router stacks starting up.

3&4 flashing 2&3 flashing No OS loaded. Running from ROM.

1&4 flashing 2&5 flashing Erasing OS in Flash ROM.

5 flashing 1,2&3 flashing Erasing config in Flash ROM.

1 - 5 scanni ng 5 - 1 scanning Flash ROM erase due to switch setting five or six is

complete. Set switch to zero and cycle power.
