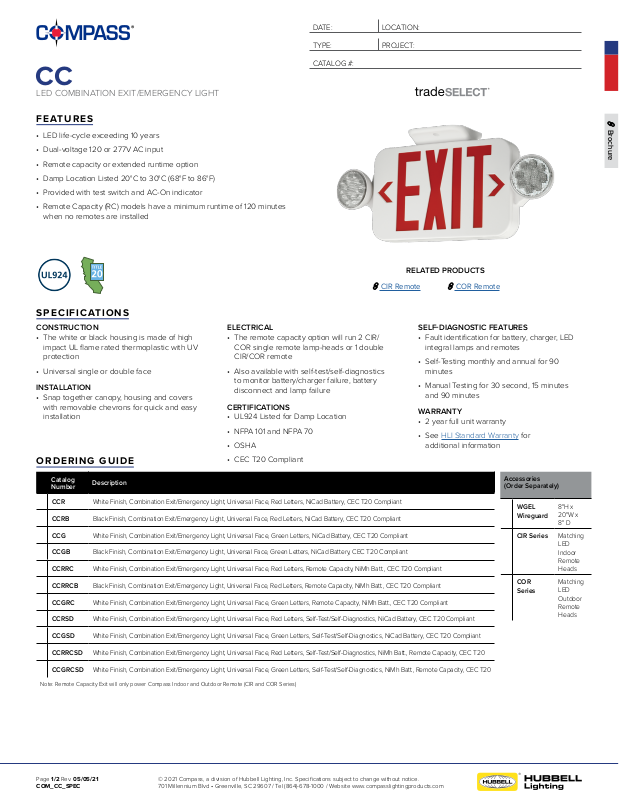

CC

LED COMBINATION EXIT/EMERGENCY LIGHT

DATE: LOCATION:

TYPE: PROJECT:

CATALOG #:

FEATURES

• LED life-cycle exceeding 10 years

• Dual-voltage 120 or 277V AC input

• Remote capacity or extended runtime option

• Damp Location Listed 20°C to 30°C (68°F to 86°F)

• Provided with test switch and AC-On indicator

• Remote Capacity (RC) models have a minimum runtime of 120 minutes
when no remotes are installed

SPECIFICATIONS

CONSTRUCTION

• The white or black housing is made of high
impact UL flame rated thermoplastic with UV
protection

• Universal single or double face

INSTALLATION

• Snap together canopy, housing and covers
with removable chevrons for quick and easy
installation

ORDERING GUIDE

ELECTRICAL

• The remote capacity option will run 2 CIR/
COR single remote lamp-heads or 1 double
CIR/COR remote

• Also available with self-test/self-diagnostics
to monitor battery/charger failure, battery
disconnect and lamp failure

CERTIFICATIONS

• UL924 Listed for Damp Location

• NFPA 101 and NFPA 70

• OSHA

• CEC T20 Compliant

 Brochure

RELATED PRODUCTS

 CIR Remote  COR Remote

SELF-DIAGNOSTIC FEATURES

• Fault identification for battery, charger, LED
integral lamps and remotes

• Self-Testing monthly and annual for 90
minutes

• Manual Testing for 30 second, 15 minutes
and 90 minutes

WARRANTY

• 2 year full unit warranty

• See HLI Standard Warranty for
additional information

Catalog
Number

CCR White Finish, Combination Exit/Emergency Light, Universal Face, Red Letters, NiCad Battery, CEC T20 Compliant

CCRB Black Finish, Combination Exit/Emergency Light, Universal Face, Red Letters, NiCad Battery, CEC T20 Compliant

CCG White Finish, Combination Exit/Emergency Light, Universal Face, Green Letters, NiCad Battery, CEC T20 Compliant

CCGB Black Finish, Combination Exit/Emergency Light, Universal Face, Green Letters, NiCad Battery, CEC T20 Compliant

CCRRC White Finish, Combination Exit/Emergency Light, Universal Face, Red Letters, Remote Capacity, NiMh Batt., CEC T20 Compliant

CCRRCB Black Finish, Combination Exit/Emergency Light, Universal Face, Red Letters, Remote Capacity, NiMh Batt., CEC T20 Compliant

CCGRC White Finish, Combination Exit/Emergency Light, Universal Face, Green Letters, Remote Capacity, NiMh Batt., CEC T20 Compliant

CCRSD White Finish, Combination Exit/Emergency Light, Universal Face, Red Letters, Self-Test/Self-Diagnostics, NiCad Battery, CEC T20 Compliant

CCGSD White Finish, Combination Exit/Emergency Light, Universal Face, Green Letters, Self-Test/Self-Diagnostics, NiCad Battery, CEC T20 Compliant

CCRRCSD White Finish, Combination Exit/Emergency Light, Universal Face, Red Letters, Self-Test/Self-Diagnostics, NiMh Batt., Remote Capacity, CEC T20

CCGRCSD White Finish, Combination Exit/Emergency Light, Universal Face, Green Letters, Self-Test/Self-Diagnostics, NiMh Batt., Remote Capacity, CEC T20

Note: Remote Capacity Exit will only power Compass Indoor and Outdoor Remote (CIR and COR Series)

Description

Accessories
(Order Separately)

WGEL
Wireguard

CIR Series Matching

COR
Series

8"H x
20"W x
8" D

LED
Indoor
Remote
Heads

Matching
LED
Outdoor
Remote
Heads

Page 1/2 Rev. 05/05/21

COM_CC_SPEC

© 2021 Compass, a division of Hubbell Lighting, Inc. Specifications subject to change without notice.
701 Millennium Blvd • Greenville, SC 29607 / Tel [phone] / Website www.compasslightingproducts.com

CC

LED COMBINATION EXIT/EMERGENCY LIGHT

DIMENSIONS

DATE: LOCATION:

DATE: LOCATION:

TYPE: PROJECT:

TYPE: PROJECT:

CATALOG #:

CATALOG #:

7.2"

Single Carton Weight 2.5lbs.

Master Carton Quantity 6 each

ENERGY CONSUMPTION

120VAC 277VAC

CCRG 3.9W 4.2W

CCRGRC 4.4W 4.8W

CCR 4.12W 3.20W

CCG 3.22W 3.18W

CCRRC 4.00W 4.06W

CCGRC 4.10W 4.28W

18"

11.6"

ACCESSORIES

CIRS

CIRD

4.3"

8.2"

2"

C0RSC0RD

SELF DIAGNOSTIC FEATURES

SELF-DIAGNOSTIC FEATURES

• Fault identification for battery, charger, LED
integral lamps and remotes

• Self-Testing monthly and annual for 90
minutes

• Manual Testing for 30 second, 15 minutes
and 90 minutes

Page 2/2 Rev. 05/05/21
