Compaq V6700 User Manual

Compaq Presario V6500, V6600, and V6700 Notebook PCs

Maintenance and Service Guide

AMD, the AMD Arrow logo, Athlon, Turion, and combinations thereof, are trademarks of Advanced Micro Devices, Inc. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel, Core, and Celeron are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. SD Logo is a trademark of its proprietor.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Fifth Edition: November 2007

First Edition: April 2007

Document Part Number: 443430-005

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not

place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950).

iii

iv Safety warning notice

Table of contents

1 Product description

2 External component identification

Top components ...................................................................................................................... 6

Display components .................................................................................................. 6

Buttons and speakers ................................................................................................. 7

Keys ........................................................................................................................ 8

Lights ....................................................................................................................... 9

TouchPad ............................................................................................................... 10

Front components ................................................................................................................... 11

Left-side components ............................................................................................................... 12

Rear component ..................................................................................................................... 13

Right-side components ............................................................................................................ 13

Bottom components ................................................................................................................ 14

3 Illustrated parts catalog

Serial number location ............................................................................................................ 15

Computer major components ................................................................................................... 16

Display assembly components ................................................................................................. 22

Plastics Kit ............................................................................................................................. 23

Cable Kit .............................................................................................................................. 24

Mass storage devices ............................................................................................................. 25

Miscellaneous parts ................................................................................................................ 26

Sequential part number listing .................................................................................................. 27

4 Removal and replacement procedures

Preliminary replacement requirements ....................................................................................... 34

Tools required ......................................................................................................... 34

Service considerations ............................................................................................. 34

Plastic parts ............................................................................................. 34

Cables and connectors ............................................................................. 35

Drive handling ......................................................................................... 35

Grounding guidelines .............................................................................................. 36

Electrostatic discharge damage .................................................................. 36

Packaging and transporting guidelines ........................................ 37

Workstation guidelines .............................................................. 37

Equipment guidelines ................................................................. 38

Unknown user password .......................................................................................... 39

Component replacement procedures ........................................................................................ 40

Serial number ......................................................................................................... 40

Battery ................................................................................................................... 41

Hard drive ............................................................................................................. 42

Computer feet ......................................................................................................... 44

Memory module ...................................................................................................... 44

RTC battery ............................................................................................................ 46

WLAN module ........................................................................................................ 47

Optical drive .......................................................................................................... 50

Switch cover ........................................................................................................... 52

Keyboard ............................................................................................................... 54

Power button board ................................................................................................. 56

Display assembly .................................................................................................... 58

Top cover ............................................................................................................... 64

Bluetooth module .................................................................................................... 67

ExpressCard assembly ............................................................................................. 68

USB/power connector board .................................................................................... 70

System board ......................................................................................................... 71

Audio board ........................................................................................................... 74

Fan/heat sink assembly ........................................................................................... 75

Processor ............................................................................................................... 78

5 Setup Utility

Starting the Setup Utility .......................................................................................................... 80

Using the Setup Utility ............................................................................................................. 81

Setup Utility menus ................................................................................................................. 83

6 Specifications

Changing the language of the Setup Utility ................................................................. 81

Navigating and selecting in the Setup Utility ............................................................... 81

Displaying system information ................................................................................... 81

Restoring default settings in the Setup Utility ............................................................... 82

Using advanced Setup Utility features ........................................................................ 83

Closing the Setup Utility ........................................................................................... 83

Main menu ............................................................................................................. 83

Security menu ......................................................................................................... 84

System Configuration menu ...................................................................................... 84

Diagnostics menu .................................................................................................... 84

Computer specifications .......................................................................................................... 85

15.4-inch, WXGA, BrightView display specifications ................................................................. 86

Hard drive specifications ........................................................................................................ 87

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive specifications ................................. 88

HD DVD-ROM Drive with SuperMulti DVD±R/RW Double Layer support specifications ................... 89

Blu-ray Disc ROM Drive with SuperMulti DVD±R/RW Double-Layer (DL) support specifications ........ 90

System DMA specifications, Intel .............................................................................................. 91

System DMA specifications, AMD ............................................................................................ 92

System interrupt specifications, Intel .......................................................................................... 93

System interrupt specifications, AMD ........................................................................................ 94

System I/O address specifications, Intel .................................................................................... 95

System I/O address specifications, AMD .................................................................................. 97

System memory map specifications, Intel ................................................................................... 99

System memory map specifications, AMD ............................................................................... 100

7 Screw listing

Phillips PM2.0×5.0 captive screw .......................................................................................... 101

Phillips PM3.0×3.0 screw ..................................................................................................... 102

Phillips PM2.0×3.0 screw ..................................................................................................... 103

Phillips PM2.5×7.0 screw ..................................................................................................... 105

Phillips PM2.5×10.0 screw ................................................................................................... 108

Phillips PM2.5×4.0 screw ..................................................................................................... 109

Phillips PM2.5×3.0 screw ..................................................................................................... 113

Hex HM5.0×9.0 standoff ..................................................................................................... 114

Phillips PM2.0×2.0 screw ..................................................................................................... 115

Phillips PM2.0×7.0 screw ..................................................................................................... 116

Phillips PM2.5×5.0 captive screw .......................................................................................... 117

Phillips 2.5×4.0 captive screw ............................................................................................... 118

8 Backup and recovery

Recovering system information ............................................................................................... 119

Creating recovery discs ......................................................................................... 119

Backing up your information ................................................................................... 120

Performing a recovery ........................................................................................... 122

When to back up ................................................................................... 120

Backup suggestions ................................................................................ 120

Using system restore points ...................................................................... 121

When to create restore points ................................................... 121

Create a system restore point .................................................... 121

Restore to a previous date and time ........................................... 121

Recovering from the recovery discs ........................................................... 122

Recovering from the partition on the hard drive .......................................... 122

vii

9 Connector pin assignments

Audio-out (headphone) ......................................................................................................... 123

Audio-in (microphone) .......................................................................................................... 123

External monitor ................................................................................................................... 124

RJ-11 (modem) ..................................................................................................................... 125

RJ-45 (network) .................................................................................................................... 125

S-Video-out .......................................................................................................................... 126

Universal Serial Bus .............................................................................................................. 126

10 Power cord set requirements

Requirements for all countries or regions ................................................................................. 127

Requirements for specific countries or regions .......................................................................... 128

11 Recycling

Battery ................................................................................................................................ 129

Display ............................................................................................................................... 129

Index ............................................................................................................................... 135

viii

Product description

Category Description AMD models Full-featured

Intel models

Product Name Compaq Presario V6500,

Processors Intel® Core™ 2 Duo processors

2.00-GHz processor, 2-MB L2 cache,

1.86-GHz processor, 1-MB L2 cache,

1.50-GHz processor, 2-MB L2 cache,

T7100 1.8-GHz processor 2-MB L2

T5250 1.5-GHz processor 2-MB L2

V6600, and V6700 Notebook PCs

2.20-GHz processor, 4-MB L2 cache, 800-MHz front side bus (FSB)

800-MHz FSB

533-MHz FSB

667-MHz FSB

Intel Core Duo processors

T7300 2.0-GHz processor, 4-MB L2 cache, 800-MHz FSB

cache, 800-MHz FSB

cache, 667-MHz FSB

√ √ √

√ √

Defeatured Intel models

T2330 1.6-GHz processor 1-MB L2

cache, 533-MHz FSB

T2310 1.46-GHz processor 1-MB L2

M530 1.73-GHz processor 1-MB L2

Turion™ MK-38 (2.2-GHz, 512-MB L2

Turion TL-66 (2.3 -GHz, 1-MB L2

Turion TL-60 (2.0 -GHz, 1-MB L2

cache, 533-MHz FSB

Intel Celeron® processors

cache, 533-MHz FSB

AMD processors

cache)

√ √

√

Category Description AMD models Full-featured

Intel models

Defeatured Intel models

Turion TL-58 (1.9 -GHz, 1-MB L2

cache)

Turion TL-56 (1.8 -GHz, 1-MB L2

Athlon™ TK-53 (1.7-GHz. 512-MB L2

Chipset

Southbridge: Intel ICH8m √ √

Northbridge/Southbridge: nVidia

Graphics Intel Extreme Graphics (Mobile

cache)

Northbridge: Intel GM965 √ √

MCP67M

Intel Graphics Media Accelerator X3100) UMA (integrated) with shared video memory, and:

Up to 64 MB on computer models

●

with 512 MB of system RAM

or, Up to 256 MB on computer

●

models with 1024 MB or more of system RAM

Memory size is a dynamic change.

UMA nVidia MCP67M with shared video memory, and:

√

√ √

√

Up to 128 MB on computer

●

models with 512 MB of system RAM

Up to 287 MB on computer

●

models with 1024 MB of system RAM

Up to 559 MB on computer

●

models with 2048 MB of system RAM

Up to 559 MB on computer

●

models with 4096 MB of system RAM

Memory size is dynamically allocated.

Panel

Memory

Customer-accessible/upgradable √ √ √

Supports up to 4 GB of system RAM √ √ √

PC2-5300, 667-MHz, DDRII √√√

15.4-inch, WXGA BrightView √ √ √

2 SODIMM slots √ √ √

2Chapter 1 Product description

Category Description AMD models Full-featured

Intel models

Defeatured Intel models

Supports the following configurations:

4096 (2048 × 2)

●

2048 (2048 × 1, 1024 × 2)

●

1536 (1024 + 512)

●

1024 (1024 × 1, 512 × 2)

●

512 (512 × 1)

●

Hard drives

Serial ATA √ √ √

Supports the following drives:

Optical drives

Parallel ATA √ √ √

Supports 9.5-mm, 2.5-inch hard drives √ √ √

250-GB, 5400-rpm

●

200-GB, 4200-rpm

●

160-GB, 5400-rpm

●

120-GB, 5400-rpm

●

80-GB, 5400-rpm

●

Fixed (removal of 1 screw required) √ √ √

√ √ √

12.7-mm tray load √ √ √

Supports the following drives:

DVD±RW and CD-RW

●

SuperMulti Double-Layer Combo Drive with LightScribe

DVD±RW and CD-RW

●

SuperMulti Double-Layer Combo Drive

DVD-CD/RW Combo Drive

●

Diskette drive

Microphone

Audio

HD Audio - Conexant CX20549-12) √

Supports Windows Vista® Premium

Blu-ray Disc ROM Drive with

●

SuperMulti DVD±R/RW DoubleLayer (DL) support (select models only)

Supports external USB drive only √ √ √

2 omnidirectional, dual-array microphones, with beam-forming, echo-cancellation, noise-suppression software

HD audio - Realtek ALC861-VD-GR √ √

Logo requirements

√ √ √

√

√ √ √

√√√

Category Description AMD models Full-featured

Intel models

Defeatured Intel models

Presario-branded Altec Lansing

speakers

Modem

Supports all world-wide certification

Modem cable not included √ √ √

Ethernet

Ethernet cable not included √ √ √

Wireless Integrated wireless local area

Intel PRO Wireless 3945 802.11a/b/

Intel PRO Wireless 4965 802.11a/b/

Intel WLAN + Bluetooth® √ √

Broadcom 4321AGN Wi-Fi Adapter

56K V.92 data/fax modem √ √ √

requirements

Integrated Realtek 10/100 network interface card (NIC)

network (WLAN) options by way of wireless module:

g and 802.11b/g with 2 antennae integrated into the display assembly

g/n with 3 antennae integrated into the display assembly @ 2.4 and 5.0 GHz

(802.11 a/b/g/ draft-n) + Bluetooth w/2 antennas

√ √ √

√ √

√

Broadcom 4321AGN Wi-Fi Adapter

(802.11 a/b/g/ draft-n) w/2 antennas

External media card

Digital Media Slot, supports SD, MMC,

Ports

Audio-out (stereo headphone) √ √ √

Consumer infrared √ √ √

RJ-11 (modem) √ √ √

RJ-45 (Ethernet, includes link and

S-Video-out √ √ √

USB (3) √ √

USB (1) √

VGA (Dsub 15-pin) √ √ √

1394 √ √

2-pin AC power √√√

One ExpressCard54 slot √ √ √

SDIO, MS, MSpro, xD

Audio-in (mono microphone) √ √ √

activity lights)

√

√ √ √

4Chapter 1 Product description

Category Description AMD models Full-featured

Intel models

Defeatured Intel models

Docking

Keyboard/pointing devices

TouchPad with 2 buttons and four-way

Power requirements

6-cell 2.55-Ah Li-ion battery √ √ √

6-cell 2.20-Ah Li-ion battery √ √ √

65-W AC adapter with localized cable

Security

Operating system Preinstalled:

Free DOS √ √

Windows Vista Business (32-bit) √ √ √

Windows Vista Home Basic (32-bit) √ √ √

Windows Vista Premium (32- and 64-

Expansion port 3 supports HP xb3000 Notebook Expansion Base and HP Notebook QuickDock

14.1-inch keyboard √ √ √

scroll (taps enabled as default)

12-cell 2.20-Ah Li-ion battery √ √ √

plug support (2-wire plug with ground pin, supports 2-pin DC connector)

Security cable slot √ √ √

bit)

√ √ √

Windows Vista Home Basic (32-bit) √ √

Serviceability End-user replaceable parts:

AC adapter √ √ √

Battery (system) √ √ √

Hard drive √ √ √

Memory module √ √ √

Optical drive √ √ √

WLAN module √√√

External component identification

Top components

Display components

Item Component Description

(1)

(2)

*The location of the internal display switch varies by computer model.

6Chapter 2 External component identification

Internal display switch* Turns off the display if the display is closed while the

Internal microphones (2) (select models only) Record sound.

computer is on.

NOTE: If there is a microphone icon next to each

microphone opening, the computer has internal microphones.

Buttons and speakers

Item Component Description

(1)

(2)

(3)

Power button*

Speakers (2) Produce sound.

Media button

When the computer is off, press the button to turn on

●

the computer.

When the computer is on, press the button to initiate

●

Sleep.

When the computer is in the Sleep state, press the

●

button briefly to exit Sleep.

When the computer is in Hibernation, press the button

●

briefly to exit Hibernation.

If the computer has stopped responding and Windows® shutdown procedures are ineffective, press and hold the power button for at least 5 seconds to turn off the computer.

To learn more about your power settings, select Start >

Control Panel > System and Maintenance > Power Options.

Opens the QuickPlay program (for models with

●

QuickPlay preinstalled).

Opens the DVDPlay program (for models with DVDPlay

●

preinstalled).

NOTE: If the computer has been set up to require a logon

password, you may be asked to log on to Windows. QuickPlay or DVDPlay opens after you log on. Refer to the QuickPlay or DVDPlay software Help for more information.

(4)

(5)

*This table describes factory settings. For information about changing factory settings, refer to the user guides located in Help and Support.

Volume mute button Mutes and restores speaker sound.

Volume scroll zone Adjusts speaker volume. Slide your finger to the left to

decrease volume and to the right to increase volume. You can also tap the minus sign on the scroll zone to decrease volume, or tap the plus sign on the scroll zone to increase volume.

Top components 7

Keys

Item Component Function

(1)

(2)

(3)

(4)

(5)

(6)

(7)

esc key Displays system information when pressed in combination

with the fn key.

fn key Executes frequently used system functions when pressed in

combination with a function key or the esc key.

Windows logo key Displays the Windows Start menu.

Windows applications key Displays a shortcut menu for items beneath the pointer.

Embedded numeric keypad keys Can be used like the keys on an external numeric keypad.

num lock key Enables numeric lock, turns on the embedded numeric

keypad, and turns on the num lock light.

Function keys Execute frequently used system functions when pressed in

combination with the fn key.

8Chapter 2 External component identification

Lights

Item Component Description

(1)

(2)

(3)

(4)

(5)

(6)

(7)

Power lights (2)*

Battery light

Drive light Blinking: The hard drive or optical drive is being accessed.

Caps lock light On: Caps lock is on.

Volume mute light

Volume down light Blinking: The volume scroll zone is being used to decrease

Volume up light Blinking: The volume scroll zone is being used to increase

On: The computer is on.

●

Blinking: The computer is in the Sleep state.

●

Off: The computer is off or in Hibernation.

●

On: A battery is charging.

●

Blinking: A battery that is the only available power

●

source has reached a low battery level or a critical battery level.

Off: If the computer is plugged into an external power

●

source, the light is turned off when all batteries in the computer are fully charged. If the computer is not plugged into an external power source, the light stays off until the battery reaches a low battery level.

Blue: Computer sound is turned on.

●

Amber: Computer sound is turned off.

●

speaker volume.

(8)

*The 2 power lights display the same information. The light on the power button is visible only when the computer is open. The power light on the front of the computer is visible whether the computer is open or closed.

Num lock light On: Num lock is on or the embedded numeric keypad is

enabled.

Top components 9

TouchPad

Item Component Function

(1)

(2)

(3)

(4)

(5)

(6)

(7)

*This table describes factory settings. To view or change pointing device preferences, select Start > Control Panel > Hardware and Sound > Mouse.

TouchPad light

TouchPad* Moves the pointer and selects or activates items on the

TouchPad horizontal scroll zone Scrolls left or right.

Left TouchPad button* Functions like the left button on an external mouse.

TouchPad on/off button Enables/disables the TouchPad.

TouchPad vertical scroll zone Scrolls up or down.

Right TouchPad button* Functions like the right button on an external mouse.

Blue: TouchPad is enabled.

●

Amber: TouchPad is disabled.

●

screen.

10 Chapter 2 External component identification

Front components

Item Component Function

(1)

(2)

(3)

(4)

(5)

Power light

Battery light

Drive light Blinking: The hard drive or optical drive is being accessed.

Wireless switch Turns the wireless feature on or off, but does not create a

Wireless light

On: The computer is on.

●

Blinking: The computer is in the Sleep state.

●

Off: The computer is off or in Hibernation.

●

On: A battery is charging.

●

Blinking: A battery that is the only available power

●

source has reached a low battery level or a critical battery level.

Off: If the computer is plugged into an external power

●

wireless connection.

NOTE: To establish a wireless connection, a wireless

network must already be set up.

Blue: An integrated wireless device, such as a WLAN

●

device and/or a Bluetooth® device, is turned on.

Amber: An integrated wireless device is turned off.

●

(6)

(7)

(8)

Consumer infrared lens (select models only) Receives a signal from a remote control device, such as the

HP Remote Control.

Audio-in (microphone) Connects an optional computer headset microphone, stereo

array microphone, or monaural microphone.

Audio-out (headphone) jack Produces sound when connected to optional powered stereo

speakers, headphones, ear buds, a headset, or television audio.

Front components 11

Left-side components

Item Component Function

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

S-Video-out jack Connects an optional S-Video device such as a television,

VCR, camcorder, overhead projector, or video capture card.

External monitor port Connects an external VGA monitor or projector.

Expansion port 3 Connects the computer to an optional docking device or

expansion product.

NOTE: The computer has only one expansion port. The

term expansion port 3 describes the type of expansion port.

RJ-45 (network) jack Connects a network cable.

RJ-11 (modem) jack Connects a modem cable.

USB ports (1 or 2, depending on computer model) Connect optional USB devices.

1394 port (select models only) Connects an optional IEEE 1394 or 1394a device, such as

Digital Media Slot (select models only) Supports the following optional digital card formats:

a camcorder.

Memory Stick (MS)

●

Memory Stick Pro (MSP)

●

MultiMediaCard (MMC)

●

Secure Digital Input/Output (SD I/O)

●

12 Chapter 2 External component identification

Secure Digital (SD) Memory Card

●

xDPicture Card (XD)

●

xD-Picture Card (XD) Type H

●

xD-Picture Card (XD) Type M

●

Rear component

Component Description

Vent Enables airflow to cool internal components.

Right-side components

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

Item Component Function

(1)

(2)

(3)

(4)

(5)

(6)

ExpressCard slot Supports optional ExpressCard/54 cards.

Optical drive Reads optical discs, and, on select models, also writes to

optical discs.

Optical drive light Blinking: The optical drive is being accessed.

USB port (select models only) Connects an optional USB device.

Power connector Connects an AC adapter.

Security cable slot Attaches an optional security cable to the computer.

NOTE: The security cable is designed to act as a

deterrent, but it may not prevent the computer from being mishandled or stolen.

Rear component 13

Bottom components

Item Component Function

(1)

(2)

(3)

(4)

(5)

(6)

Battery bay Holds the battery.

Battery release latch Releases the battery from the battery bay.

Optical drive Reads optical discs and, on select models, also writes to

optical discs.

Memory/WLAN module compartment Contains the memory module slots, the WLAN module slot,

and the RTC battery.

NOTE: To prevent an unresponsive system, replace the

wireless module only with a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore computer functionality, and then contact technical support through Help and Support.

Vents (5) Enable airflow to cool internal components.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

Hard drive bay Holds the hard drive.

14 Chapter 2 External component identification

Illustrated parts catalog

Serial number location

When ordering parts or requesting information, provide the computer serial number and model number located on the bottom of the computer.

Serial number location 15

Computer major components

Item Description Spare part number

(1) 15.4-inch, WXGA, BrightView display assembly (includes microphones)

16 Chapter 3 Illustrated parts catalog

446485-001

Item Description Spare part number

NOTE: See Display assembly components on page 22 for more display assembly spare

part information.

(2) Switch cover (includes LED board and cable)

For use in full-featured models 431425-001 and

For use in defeatured models 455260-001

(3) Power button board (includes power button board cable)

(4) Keyboards

Denmark, Finland, Norway, and Sweden 441428-DH1

France 441428-051

French Canada 441428-121

Italy 441428-061

South Korea 441428-AD1

Latin America 441428-161

The Netherlands and Europe 441428-B31

Saudi Arabia 441428-171

Spain 441428-071

Taiwan 441428-AB1

Thailand 441428-281

451010-001

431438-001

Turkey 441428-141

The United Kingdom 441428-031

The United States 441428-001

(5) Top cover for use in computer models with Intel processors (includes speakers, TouchPad,

and cable)

For use in computer models with AMD processors:

● Full-featured models 454170-001

(6) Fan/heat sink assembly (includes thermal material )

For use only in computer models with Intel processors 446522-001

For use only in computer models with AMD processors 449961-001

(7) ExpressCard assembly

(8a)

(8b)

(8c)

Defeatured models

●

Plastics Kit (see Plastics Kit on page 23 for more Plastics Kit information):

ExpressCard slot bezel

Hard drive cover (includes 2 captive screws, secured by C-clips)

Memory/WLAN module compartment cover (includes 3 captive screws, secured by C-clips)

446510-001 and 455514–001

451407-001

431440-001

438669-001

Computer major components 17

Item Description Spare part number

HDMI port cover (not illustrated)

(9) Processors (include thermal material )

Intel Core 2 Duo processors:

Intel Core Duo processors:

● T2330 1.6-GHz processor (1-MB L2 cache, 533-MHz FSB) 455944–001

Intel Celeron processors:

● M530 1.73-GHz processor (1-MB L2 cache, 533-MHz FSB) 457315–001

AMD processors:

2.20-GHz processor (4-MB L2 cache, 800-MHz FSB)

●

2.00-GHz processor (2-MB L2 cache, 800-MHz FSB)

●

1.86-GHz processor (1-MB L2 cache, 533-MHz FSB)

●

1.50-GHz processor (2-MB L2 cache, 667-MHz FSB)

●

T7300 2.00-GHz processor (4-MB L2 cache, 800-MHz FSB)

●

T7100 1.80-GHz processor (2-MB L2 cache, 800-MHz FSB)

●

T5250 1.50-GHz processor (2-MB L2 cache, 667-MHz FSB)

●

T2310 1.46-GHz processor (1-MB L2 cache, 533-MHz FSB)

●

Turion MK-38 (2.2-GHz, 512-MB L2 cache)

●

Turion TL-66 (2.3-GHz, 1-MB L2 cache)

●

Turion TL-60 (2.0-GHz, 1-MB L2 cache)

●

453771-001

455515-001

453773–001

453772-001

446478-001

446479-001

453033-001

455943–001

449904-001

450804-001

450803-001

(10) Bluetooth module (includes Bluetooth module cable)

(11) System board (includes modem cable)

For use only in computer models with Intel processors 453770-001 and

For use only in computer models with AMD processors in full-featured models equipped with

(12) USB/power connector board (includes USB/power connector board cable)

(13) Audio boards (include audio board cable)

For use only in computer models with AMD processors:

Turion TL-58 (1.9-GHz, 1-MB L2 cache)

●

Turion TL-56 (1.8-GHz, 1-MB L2 cache)

●

Athlon TK-53 (1.7-GHz. 512-MB L2 cache)

●

Processor bracket (not illustrated)

UMA graphics subsystem memory:

For use only in computer models with Intel processors:

Equipped with consumer infrared

●

Not equipped with consumer infrared

●

450802-001

450801-001

451013-001

450370-001

412766-002

446475-001

449901-001

447444-001

449453-001

431443-001

18 Chapter 3 Illustrated parts catalog

Item Description Spare part number

● In full-featured models equipped with consumer infrared 454176-001

(14) Batteries

6-cell, 2.55-AH, Li-ion 446507-001

6-cell, 2.20-AH, Li-ion 446506-001

(15) Base enclosure (includes infrared lens and wireless on/off switch)

For use with full-featured computer models 448343-001

For use with defeatured models 454171-001

(16) Optical drives (include bezel)

For use in computer models with AMD processors:

In defeatured models equipped with consumer infrared

●

12-cell, 8.80-AH, Li-ion 451864-001

Rubber Kit (not illustrated; includes base enclosure rubber feet and display bezel screw covers)

For use in computer models with Intel processors:

Blu-ray Disc ROM Drive with SuperMulti DVD±R/RW Double-Layer (DL) support

●

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe

●

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive

●

DVD/CD-RW Combo Drive

●

449967-001

431431-001

462453-001

446505-001

446504-001

446503-001

● DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive 449934-001

(17) Hard drives (include hard drive bracket)

200-GB, 4200-rpm 451863-001

160-GB, 5400-rpm 451862-001

120-GB, 5400-rpm 446498-001

80-GB, 5400-rpm 446497-001

60-GB, 5400-rpm 446496-001

(18) WLAN modules

Intel 802.11a/b/g/n WLAN modules:

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe

●

DVD/CD-RW Combo Drive

●

250-GB, 5400-rpm 453775-001

For use in Antigua & Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda,

●

Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, the United States, Uruguay, Venezuela, and Vietnam

For use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the

●

Czech Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece,

449936-001

455076-001

441086-001

441086-002 and 441087-002

Computer major components 19

Item Description Spare part number

Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

Intel 802.11a/b/g WLAN modules:

Broadcom 802.11b/g WLAN modules:

For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South

●

Korea

For use in Japan

●

For use in South Korea

●

For use in Antigua & Barbuda, Argentina, Australia, the Bahamas, Barbados, Brunei,

●

Canada, Chile, the Dominican Republic, Guam, Guatemala, Hong Kong, India, Indonesia, Malaysia, Mexico, New Zealand, Panama, Paraguay, Saudi Arabia, Taiwan, the United States, and Vietnam

For use in Aruba, Austria, Azerbaijan, Bahrain, Belgium, Bermuda, Brazil, Bulgaria, the

●

Cayman Islands, Colombia, Croatia, Cyprus, the Czech Republic, Denmark, Egypt, El Salvador, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Italy, Jordan, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, the United Kingdom, and Uzbekistan

For use in Ecuador, Haiti, Honduras, Pakistan, the People's Republic of China, Peru,

●

Qatar, South Korea, Uruguay, and Venezuela

For use in Japan

●

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands, and

●

the United States

441086-003 and 441088-003

441086-291 and 441089-291

441086-AD1

451861-001

451861-002

451861-003

451861-291

441090-001

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua & Barbuda,

●

Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan,

20 Chapter 3 Illustrated parts catalog

441090-002

Item Description Spare part number

Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

Intel 802.11b/g WLAN module for use in Thailand 451861-004

Broadcom 4311AG 802.11a/b/g modules:

Broadcom 4321AGN 802.11a/b/g/n modules:

(19) RTC battery (includes 2-sided tape)

(20) Memory modules (667-MHz, PC2-5300, 1-DIMM)

1024-MB 446495-001

512-MB 446494-001

For use in Japan

●

For use in the United States and Canada

●

For use in France, Germany, Italy, the Netherlands, Spain, the United Kingdom, Nordic

●

region, and India

For use in the United States and Canada

●

For use in France, Germany, Italy, the Netherlands, Spain, the United Kingdom, Nordic

●

region, and India

2048-MB 453774-001 and

Cable Kit (not illustrated; see

Cable Kit on page 24 for more Cable Kit information)

441090-291

441075-001

441075-002

434661-001

434661-002

446518-001 and 449729-001

457437–001

446520-001

Computer major components 21

Display assembly components

Item Description Spare part number

(1) Display bezel

For use in computers with Intel processors 433283-001 and

For use in computer models with AMD processors:

(2) Display inverter (includes Mylar shield)

(3) Display Hinge Kit (includes left and right display hinges)

(4) Display panel (15.4-inch, WXGA, BrightView; includes display panel cable)

(5) Wireless Antenna Kits

For use only with computer models equipped with an 802.11a/b/g or 802.11b/g WLAN

(6) Microphone

(7) Display enclosure

For full-featured models 446488-001

For defeatured models 432920-002

Full-featured models

●

For use only with computer models equipped with an 802.11a/b/g/n WLAN module (includes 3 wireless antenna transceivers and cables)

module (includes 2 wireless antenna transceivers and cables)

Display Cable Kit (not illustrated)

453328-001

433284-002

431391-001

433288-001

446480-001

449728-001

449726-001

431393-001

433287-001

Display Screw Kit (not illustrated)

22 Chapter 3 Illustrated parts catalog

431400-001

Plastics Kit

Item Description Spare part number

(1)

(2)

(3)

Plastics Kit:

ExpressCard slot bezel

Hard drive cover (includes 2 captive screws, secured by C-clips)

Memory/WLAN module compartment cover (includes 3 captive screws, secured by C-clips)

438669-001

Plastics Kit 23

Cable Kit

Item Description Spare part number

(1)

(2)

(3)

(4)

(5)

Cable Kit:

LED board cable

Power button board cable

USB/power connector board cable

Audio board cable

Bluetooth module cable

446520-001

24 Chapter 3 Illustrated parts catalog

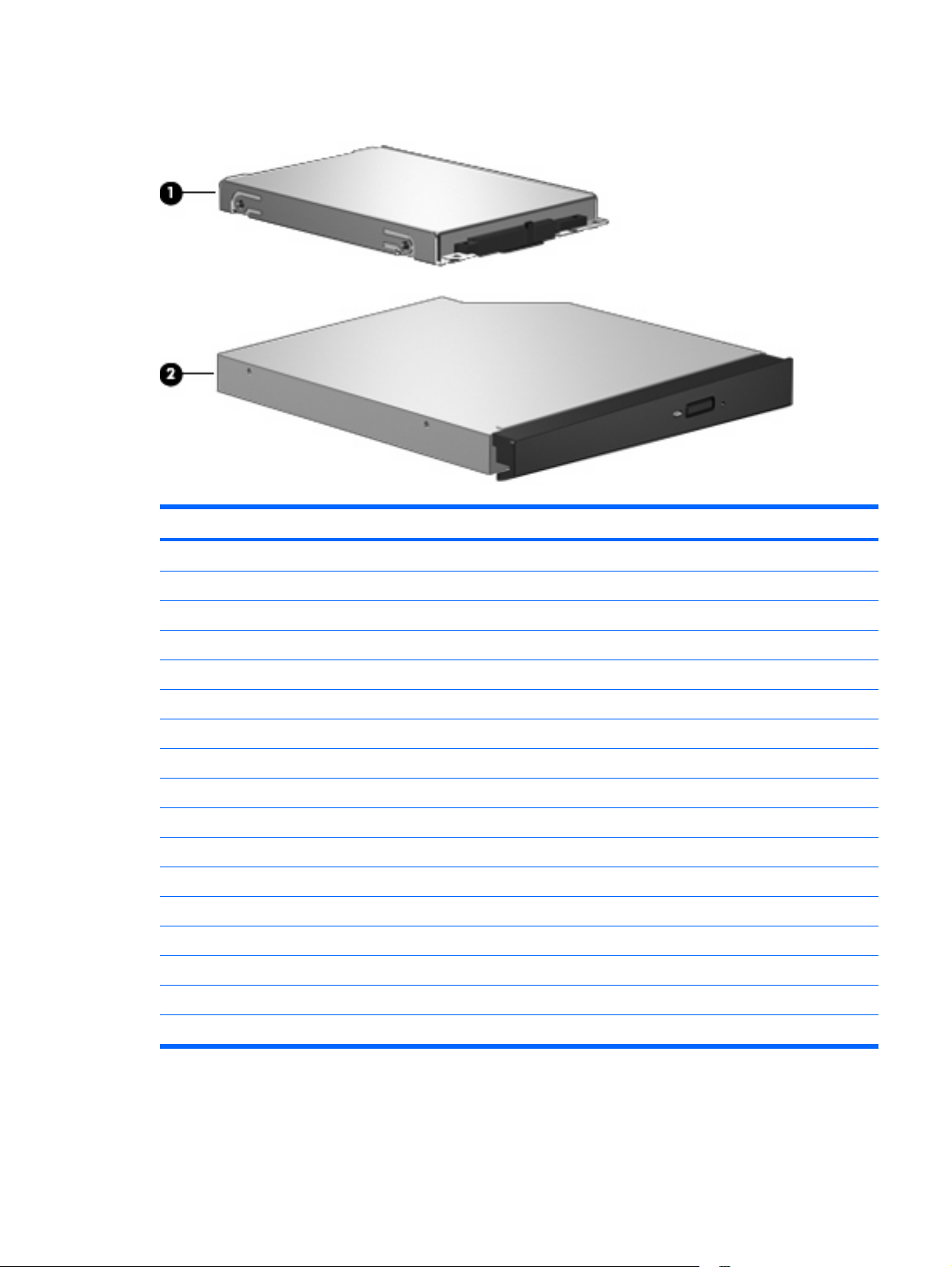

Mass storage devices

Item Description Spare part number

(1) Hard drives (include hard drive bracket)

200-GB, 4200-rpm 451863-001

160-GB, 5400-rpm 451862-001

120-GB, 5400-rpm 446498-001

80-GB, 5400-rpm 446497-001

60-GB, 5400-rpm 446496-001

(2) Optical drives (include bezel and bracket)

For use in computer models with AMD processors:

● DVD/CD-RW Combo Drive 455076-01

250-GB, 5400-rpm 453775-001

For use in computer models with Intel processors:

Blu-ray Disc ROM Drive with SuperMulti DVD±R/RW Double-Layer (DL) support

●

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe

●

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive

●

DVD/CD-RW Combo Drive

●

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive

●

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe

●

462453–001

446501-001

446500-001

446499-001

449934-001

449936-001

Mass storage devices 25

Miscellaneous parts

Description Spare part number

AC adapters

90-W non-PFC AC adapter 432309-001

90-W PFC AC adapter 453198-001

65-W non-PFC AC adapter 402018-001

65-W PFC AC adapter 453199-001

ATSC/NTSC TV tuner antenna

ATSC/NTSC/PAL TV tuner

Composite video cable

DVB-T tuner

DVB-T wireless antenna adapter

ExpressCard Kit (includes software CD)

HP backpack

HP carrying case

HP Remote Control

Infrared emitter with cable

Label Kit for computer models with Intel processors

439131-001

439130-001

407939-001

412175-001

412176-001

445170-001

405527-001

418162-001

435743-001

439129-001

446525-001

Label Kit for computer models with AMD processors

Optical wired mouse

RF input adapter cable (without ferrite)

USB digital drive

Windows Vista remote control (fits inside ExpressCard slot)

Windows Vista remote control (does not fit inside ExpressCard slot)

Wired headset

Wireless laser mouse with cable adapter

Power cords:

Australia and New Zealand

Belgium, Europe, Finland, France, Germany, Greece, the Netherlands, Norway, Portugal, Spain, and Sweden

Canada, French Canada, Latin America, Thailand, and the United States 394279-001

Denmark 394279-081

India 394279-D61

Israel 394279-BB1

Italy 394279-061

449972-001

436238-001

407940-001

364727-002

439128-001

439254-001

371693-001

430958-001

394279-011

394279-021

26 Chapter 3 Illustrated parts catalog

Description Spare part number

Japan 394279-291

South Korea 394279-AD1

The People's Republic of China 394279-AA1

Switzerland 394279-BG1

Taiwan 394279-AB1

The United Kingdom and Hong Kong 394279-031

Screw Kit (see Screw listing on page 101 for more Screw Kit information)

Hex HM5.0×9.0 standoff

●

Phillips PM3.0×3.0 screw

●

Phillips PM2.5×10.0 screw

●

Phillips PM2.5×7.0 screw

●

Phillips PM2.5×5.0 captive screw

●

Phillips PM2.5×4.0 captive screw

●

Phillips PM2.5×4.0 screw

●

Phillips PM2.5×3.0 screw

●

Phillips PM2.0×7.0 screw

●

Phillips PM2.0×5.0 captive screw

●

Phillips PM2.0×3.0 screw

●

Phillips PM2.0×2.0 screw

●

Sequential part number listing

434983-001

Spare part number

364727-002 USB digital drive

371693-001 Wired headset with volume control

394279-001 Power cord for use in the United States

394279-011 Power cord for use in Australia

394279-021 Power cord for use in Europe

394279-031 Power cord for use in the United Kingdom

394279-061 Power cord for use in Italy

394279-081 Power cord for use in Denmark

394279-BG1 Power cord for use in Switzerland

394279-291 Power cord for use in Japan

Description

Sequential part number listing 27

Spare part number

394279-AA1 Power cord for use in the People's Republic of China

394279-AB1 Power cord for use in Taiwan

394279-AD1 Power cord for use in South Korea

394279-BB1 Power cord for use in Israel

394279-D61 Power cord for use in India

402018-001 65-watt PFC AC adapter

405527-001 HP backpack

407939-001 Composite video cable

407940-001 RF input adapter cable (without ferrite)

412175-001 DVB-T tuner

412176-001 DVB-T antenna adapter

412766-001 Bluetooth module (includes Bluetooth module cable)

412766-002 Bluetooth module (includes Bluetooth module cable)

418162-001 HP carrying case

430958-001 Wireless laser mouse

Description

431391-001 Display inverter (includes Mylar shield)

431393-001 Microphone

431400-001 Display Screw Kit (see Screw listing on page 101 for more Display Screw Kit information)

431425-001 Switch cover for use in full-featured models (includes LED board and cable)

431431-001 Rubber Kit (includes base enclosure rubber feet and display bezel screw covers)

431438-001 Power button board (includes power button board cable)

431440-001 ExpressCard assembly

431443-001 Audio board without infrared lens for computer models with Intel processors

432309-001 90-watt non-PFC AC adapter

432920-002 Display enclosure for defeatured models

433283-001 Display bezel for use only with computer models not equipped with microphones

433284-002 Display bezel for use in full-featured computer models with AMD processors

433287-001 Display Cable Kit

433288-001 Display Hinge Kit (includes left and right display hinges)

434661-001 Broadcom 4321AGN 802.11a/b/g/n module for use in the United States and Canada

434661-002 Broadcom 4321AGN 802.11a/b/g/n module for use in France, Germany, Italy, the Netherlands, Spain,

the United Kingdom, Nordic region, and India

434983-001 Screw Kit

436238-001 Optical wired mouse

28 Chapter 3 Illustrated parts catalog

Spare part number

438669-001 Plastics Kit (see Plastics Kit on page 23 for more Plastics Kit information)

439128-001 Windows Vista remote control (fits inside ExpressCard slot)

439129-001 Infrared emitter with cable

439130-001 ATSC/NTSC/PAL TV tuner

439131-001 ATSC/NTSC TV tuner antenna

439254-001 Windows Vista remote control (does not fit inside ExpressCard slot)

441075-001 Broadcom 4311AG 802.11a/b/g module for use in the United States and Canada

441075-002 Broadcom 4311AG 802.11a/b/g module for use in France, Germany, Italy, the Netherlands, Spain, the

Description

United Kingdom, Nordic region, and India

441086-001 Intel 802.11a/b/g/n WLAN module for use in Antigua & Barbuda, Argentina, Aruba, the Bahamas,

441086-002 Intel 802.11a/b/g/n WLAN module for use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria,

441086-003 Intel 802.11a/b/g/n WLAN module for use in Australia, New Zealand, Pakistan, the People's Republic

441086-291 Intel 802.11a/b/g/n WLAN module for use in Japan

441086-AD1 Intel 802.11a/b/g/n WLAN module for use in South Korea

441087-002 Intel 802.11a/b/g/n WLAN module for use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria,

441088-003 Intel 802.11a/b/g/n WLAN module for use in Australia, New Zealand, Pakistan, the People's Republic

441089-291 Intel 802.11a/b/g/n WLAN module for use in Japan

Barbados, Bermuda, Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, the United States, Uruguay, Venezuela, and Vietnam

Croatia, Cyprus, the Czech Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

of China, and South Korea

441090-001 Broadcom 802.11b/g WLAN module for use in Canada, the Cayman Islands, Guam, Puerto Rico, the

U.S. Virgin Islands, and the United States

441090-002 Broadcom 802.11b/g WLAN module for use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua

& Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania,

Sequential part number listing 29

Spare part number

441090-291 Broadcom 802.11b/g WLAN module for use in Japan

441428-001 Keyboard for use in the United States

441428-031 Keyboard for use in the United Kingdom

441428-051 Keyboard for use in France

441428-061 Keyboard for use in Italy

441428-071 Keyboard for use in Spain

441428-121 Keyboard for use in French Canada

441428-141 Keyboard for use in Turkey

441428-161 Keyboard for use in Latin America

Description

Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

441428-171 Keyboard for use in Saudi Arabia

441428-281 Keyboard for use in Thailand

441428-AB1 Keyboard for use in Taiwan

441428-AD1 Keyboard for use in Thailand

441428-B31 Keyboard for international use

441428-DH1 Keyboard for use in Finland, Norway, and Sweden

445170-001 ExpressCard Kit (includes software CD)

446475-001 System board for use in computer models with Intel processors

446478-001 Intel Core Duo T7300 2.0-GHz processor (4-MB L2 cache; includes thermal material)

446479-001 Intel Core Duo T7100 1.8-GHz processor (2-MB L2 cache; includes thermal material)

446480-001 15.4-inch, WXGA, SVA, TFT BrightView display panel (includes display panel cable)

446485-001 15.4-inch, WXGA, BrightView display assembly (includes microphones)

446488-001 Display enclosure for full-featured models

446494-001 512-MB memory module (667-MHz, PC2-5300, 1-DIMM)

446495-001 1024-MB memory module (667-MHz, PC2-5300, 1-DIMM)

446496-001 60-GB, 5400-rpm hard drive (includes hard drive bracket)

446497-001 80-GB, 5400-rpm hard drive (includes hard drive bracket)

446498-001 120-GB, 5400-rpm hard drive (includes hard drive bracket)

446503-001 DVD/CD-RW Combo Drive for use in computer models with Intel processors

30 Chapter 3 Illustrated parts catalog

Spare part number

446504-001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive for use in computer models with Intel

Description

processors

446505-001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive for use in computer models with Intel

446506-001 6-cell, 2.20-AH battery

446507-001 6-cell, 2.55-AH battery

446510-001 Top cover (includes speakers and TouchPad and cable)

446518-001 RTC battery (includes 2-sided tape)

446520-001 Cable Kit (see Cable Kit on page 24 for more Cable Kit information)

446522-001 Fan/heat sink assembly for use in computer models with Intel processors (includes thermal material)

446525-001 Label Kit for computer models with Intel processors

447444-001 USB/power connector board (includes USB/power connector board cable)

448343-001 Base enclosure for use in full-featured computer models (includes infrared lens and wireless on/off

449453-001 Audio board with infrared lens for use in computer models with Intel processors

449726-001 Wireless Antenna Kit for use only with computer models equipped with an 802.11a/b/g or 802.11b/g

449728-001 Wireless Antenna Kit for use only with computer models equipped with an 802.11a/b/g/n WLAN module

449729-001 RTC battery

processors

switch)

WLAN module (includes 2 wireless antenna transceivers and cables)

(includes 3 wireless antenna transceivers and cables)

449901-001 System board for use only in computer models with AMD processors equipped with UMA graphics

subsystem memory

449904-001 AMD Turion MK-38 processor (2.2-GHz, 512-MB L2 cache)

449934-001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive for use in computer models with AMD

processors

449936-001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe for use in computer models

with AMD processors

449956-001 Cable Kit (see Cable Kit on page 24 for more Cable Kit information)

449961-001 Fan/heat sink assembly for use in computer models with AMD processors (includes thermal material)

449967-001 Audio board for use in defeatured computer models with AMD processors (includes audio connectors,

audio board cable, and infrared lens)

449972-001 Display Label Kit for computer models with AMD processors

450370-001 Processor bracket

450371-001 Processor bracket for use with 8.1 processors

450801-001 AMD Turion TL-56 processor (1.8-GHz, 1-MB L2 cache)

450802-001 AMD Turion TL-58 processor (1.9-GHz, 1-MB L2 cache)

450803-001 AMD Turion TL-60 processor (2.0-GHz, 1-MB L2 cache)

450804-001 AMD Turion TL-66 processor (2.3-GHz, 1-MB L2 cache)

Sequential part number listing 31

Spare part number

451010-001 Switch cover for use in full-featured models (includes LED board)

451013-001 AMD Athlon TK-53 processor (1.7-GHz. 512-MB L2 cache)

451407-001 Top cover for use in defeatured computer models with AMD processors (includes speakers and TouchPad

451861-001 Intel 802.11a/b/g WLAN module for use in Antigua and Barbuda, Argentina, Australia, the Bahamas,

451861-002 Intel 802.11a/b/g WLAN module for use in Aruba, Austria, Azerbaijan, Bahrain, Belgium, Bermuda,

Description

and cable)

Barbados, Brunei, Canada, Chile, the Dominican Republic, Guam, Guatemala, Hong Kong, India, Indonesia, Malaysia, Mexico, New Zealand, Panama, Paraguay, Saudi Arabia, Taiwan, the United States, and Vietnam

Brazil, Bulgaria, the Cayman Islands, Colombia, Croatia, Cyprus, the Czech Republic, Denmark, Egypt, El Salvador, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Italy, Jordan, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, the United Kingdom, and Uzbekistan

451861-003 Intel 802.11a/b/g WLAN module for use in Ecuador, Haiti, Honduras, Pakistan, the People's Republic

451861-004 Intel 802.11b/g WLAN module for use in Thailand

451861-291 Intel 802.11a/b/g WLAN module for use in Japan

451862-001 160-GB, 5400-rpm hard drive

451863-001 200-GB, 4200-rpm hard drive

451864-001 12-cell, 8.8-AH battery

453033-001 Intel Core Duo T5250 1.50-GHz processor (2-MB L2 cache, 533-MHz FSB; includes thermal material)

453198-001 90-watt, PFC AC adapter

453199-001 65-watt, PFC AC adapter

453328-001 Display bezel for use only with computer models equipped with microphones

453770-001 System board for use only in computer models with Intel processors

453771-001 Intel Core 2 Duo 2.20-GHz processor (4-MB L2 cache, 800-MHz FSB; includes thermal material)

453772-001 Intel Core 2 Duo 1.50-GHz processor (2-MB L2 cache, 667-MHz FSB; includes thermal material)

453773–001 Intel Core 2 Duo 1.86-GHz processor (1-MB L2 cache, 533-MHz FSB; includes thermal material)

453774-001 2048-MB memory module (PC2-5300, 667-MHz, DDR2)

453775-001 250-GB, 5400-rpm hard drive

of China, Peru, Qatar, South Korea, Uruguay, and Venezuela

454170-001 Top cover for use in full-featured computer models with AMD processors (includes speakers and TouchPad

454171-001 Base enclosure for use with defeatured computer models (includes infrared lens and wireless on/off

454176-001 Audio boards for use in full-featured computer models with AMD processors (includes audio board cable)

455076-001 DVD/CD-RW Combo Drive for use in computer models with AMD processors

455260-001 Switch cover for use in defeatured models (includes LED board)

455514–001 Top cover (includes TouchPad)

and cable)

switch)

32 Chapter 3 Illustrated parts catalog

Spare part number

455515-001 Intel Core 2 Duo 2.00-GHz processor (2-MB L2 cache, 800-MHz FSB; includes thermal material)

455943–001 Intel Core Duo T2310 1.46-GHz processor (1-MB L2 cache, 533-MHz FSB; includes thermal material)

455944–001 Intel Core Duo T2330 1.6-GHz processor (1-MB L2 cache, 533-MHz FSB; includes thermal material)

457315–001 Intel Celeron TM530 1.50-GHz processor (2-MB L2 cache, 533-MHz FSB; includes thermal material))

457437–001 2048-MB memory module (PC2-5300, 667-MHz)

462453–001 Blu-ray Disc ROM Drive with SuperMulti DVD±R/RW Double-Layer (DL) support (select models only)

Description

Sequential part number listing 33

Removal and replacement procedures

Preliminary replacement requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

Magnetic screwdriver

●

Phillips P0 and P1 screwdrivers

●

Flat-bladed screwdriver

●

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.

NOTE: As you remove each subassembly from the computer, place the subassembly (and all

accompanying screws) away from the work area to prevent damage.

Plastic parts

Using excessive force during disassembly and reassembly can damage plastic parts. Use care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.

34 Chapter 4 Removal and replacement procedures

Cables and connectors

CAUTION: When servicing the computer, be sure that cables are placed in their proper locations

during the reassembly process. Improper cable placement can damage the computer.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the

computer, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid touching the connector.

Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be sure that the optical drive tray is closed.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective packaging and label the package “FRAGILE.”

Preliminary replacement requirements 35

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.

A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a normal cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life expectancy.

CAUTION: To prevent damage to the computer when you are removing or installing internal

components, observe these precautions:

Keep components in their electrostatic-safe containers until you area ready to install them.

Use nonmagnetic tools.

Before touching an electronic component, discharge static electricity by using the guidelines described in this section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity affects the electrostatic voltage levels generated by different activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl floor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 v 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

36 Chapter 4 Removal and replacement procedures

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

●

Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.

●

Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

●

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.

●

Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized

●

equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

Cover the workstation with approved static-shielding material.

●

Use a wrist strap connected to a properly grounded work surface and use properly grounded tools

●

and equipment.

Use conductive field service tools, such as cutters, screwdrivers, and vacuums.

●

When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe

●

materials.

Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and

●

Styrofoam.

Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these

●

items only at static-free workstations.

Avoid contact with pins, leads, or circuitry.

●

Turn off power and input signals before inserting or removing connectors or test equipment.

●

Preliminary replacement requirements 37

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps

●

with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.

When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps) can

●

be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be effective, the conductive strips must be worn in contact with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

Antistatic tape

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

●

Conductive tabletop workstations with ground cords of one megohm resistance

●

Static-dissipative tables or floor mats with hard ties to the ground

●

Field service kits

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

●

Metal tote boxes

●

Electrostatic voltage levels and protective materials

●

The following table lists the shielding protection provided by antistatic bags and floor mats.

Material Use Voltage protection level

Antistatic plastic Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

38 Chapter 4 Removal and replacement procedures

Unknown user password

If the computer you are servicing has an unknown user password, follow these steps to clear the password.

NOTE: These steps also clear CMOS.

Before disassembling the computer, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the RTC battery (see

Wait approximately 5 minutes.

Replace the RTC battery and reassemble the computer.

Connect AC power to the computer. Do not reinsert any batteries at this time.

Turn on the computer.

All passwords and all CMOS settings have been cleared.

Battery on page 41).

RTC battery on page 46).

Preliminary replacement requirements 39

Component replacement procedures

This chapter provides removal and replacement procedures.

There are as many as 87 screws and standoffs, in 13 different sizes, that must be removed, replaced, or loosened when servicing the computer. Make special note of each screw and standoff size and location during removal and replacement.

Serial number

Report the computer serial number to HP when requesting information or ordering spare parts. The serial number is located on the bottom of the computer.

40 Chapter 4 Removal and replacement procedures

Battery

Description Spare part number

12-cell, 8.80-Ah Li-ion battery 451864-001

6-cell, 2.55-Ah Li-ion battery 446507-001

6-cell, 2.20-Ah Li-ion battery 446506-001

Before disassembling the computer, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery:

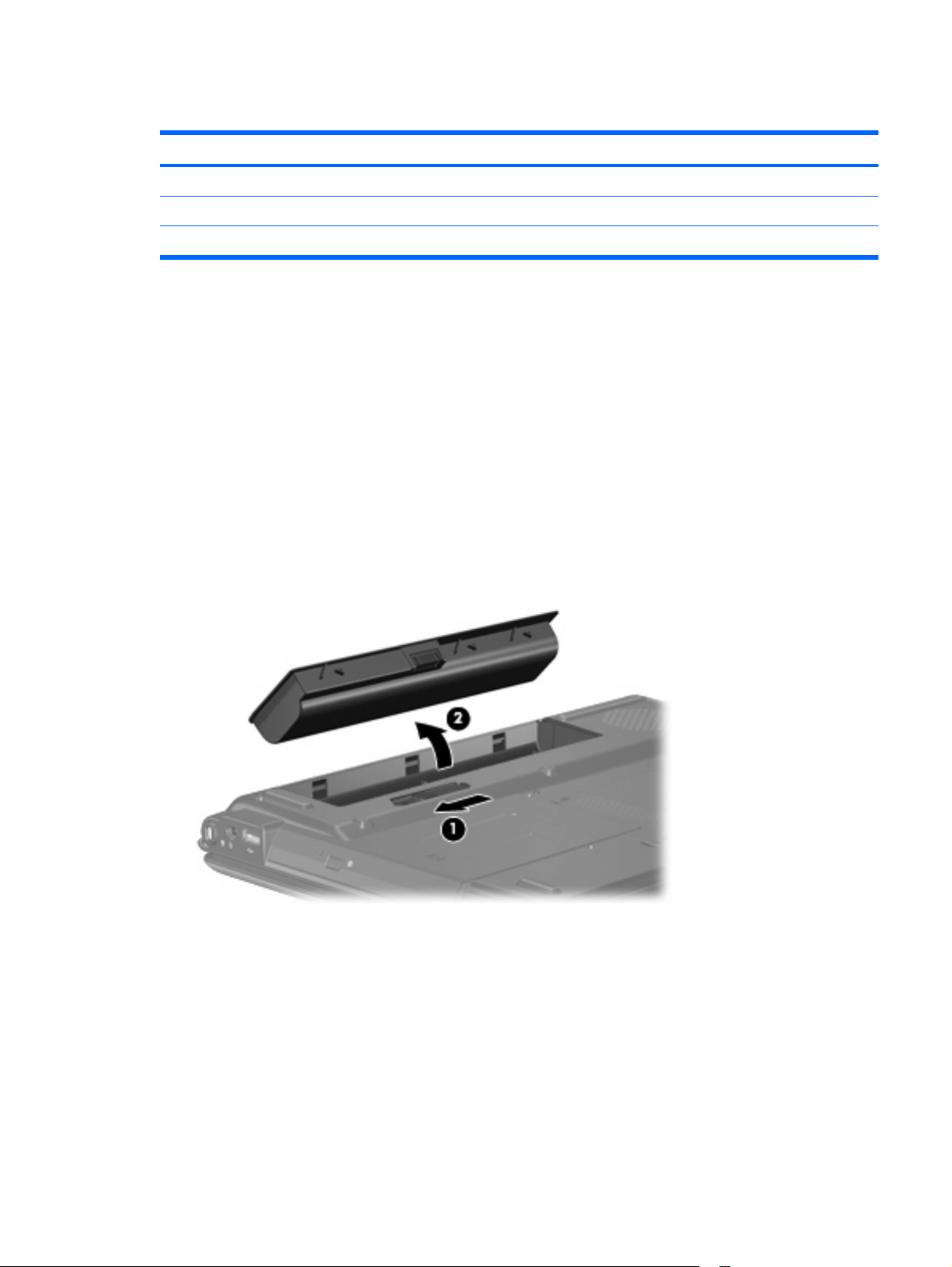

Turn the computer upside down on a flat surface.

2. Slide the battery release latch (1) to release the battery.

3. Pivot the battery (2) upward and remove it from the computer.

To insert the battery, insert the rear edge of the battery into the battery bay and pivot the battery downward until it is seated. The battery release latch automatically locks the battery into place.

Component replacement procedures 41

Hard drive

NOTE: All hard drive spare part kits include a hard drive bracket.

Description Spare part number

250-GB, 5400-rpm 453775-001

200-GB, 4200-rpm 451863-001

160-GB, 5400-rpm 451862-001

120-GB, 5400-rpm 446498-001

80-GB, 5400-rpm 446497-001

60-GB, 5400-rpm 446496-001

Before removing the hard drive, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 41).

Remove the hard drive:

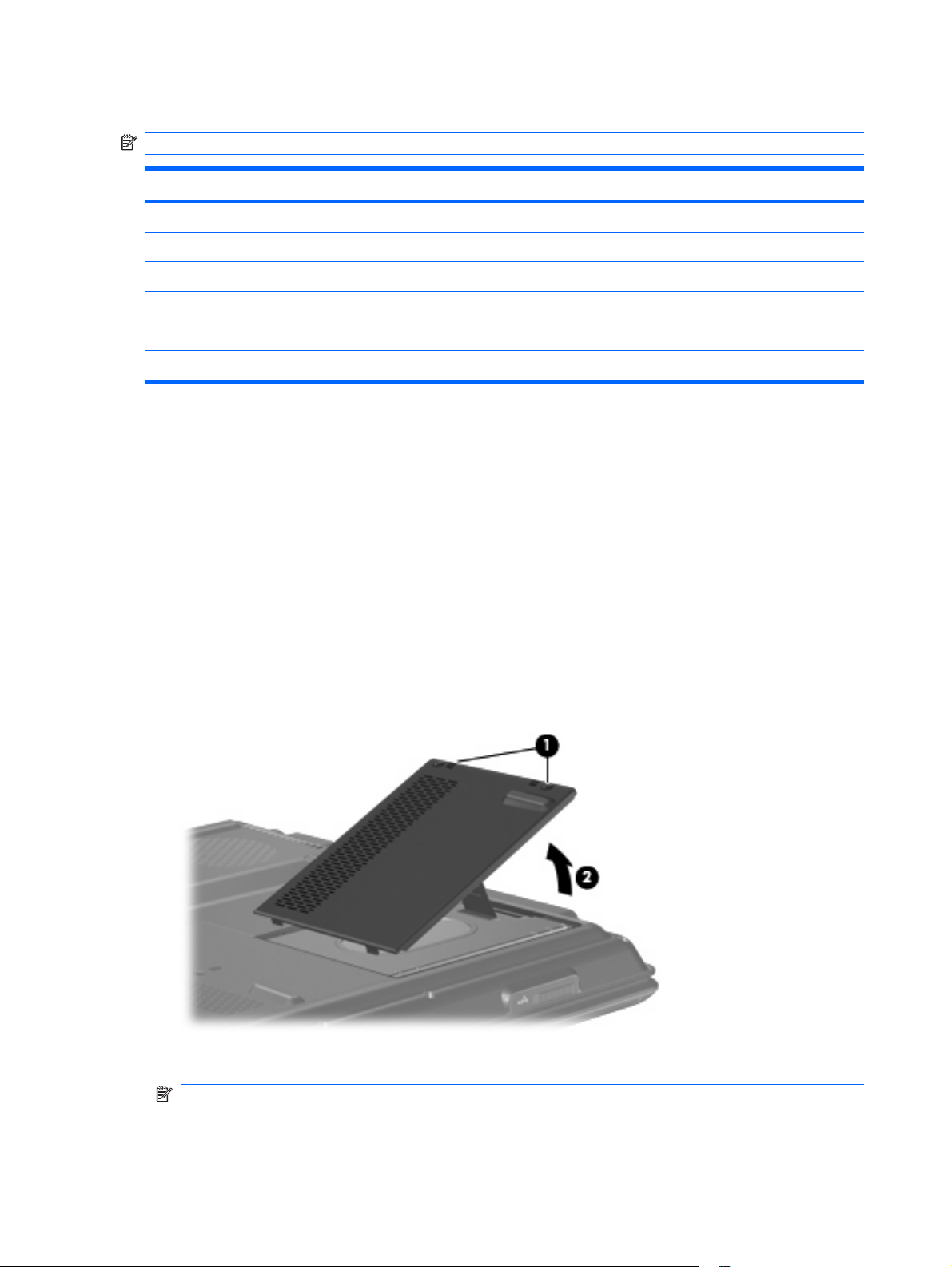

1. Loosen the two Phillips PM2.0×5.0 screws (1) that secure the hard drive cover to the computer.

2. Lift the right side of the hard drive cover (2), swing it to left, and remove the cover.

Remove the hard drive cover.

NOTE: The hard drive cover is included in the Plastics Kit, spare part number 438669-001.

42 Chapter 4 Removal and replacement procedures

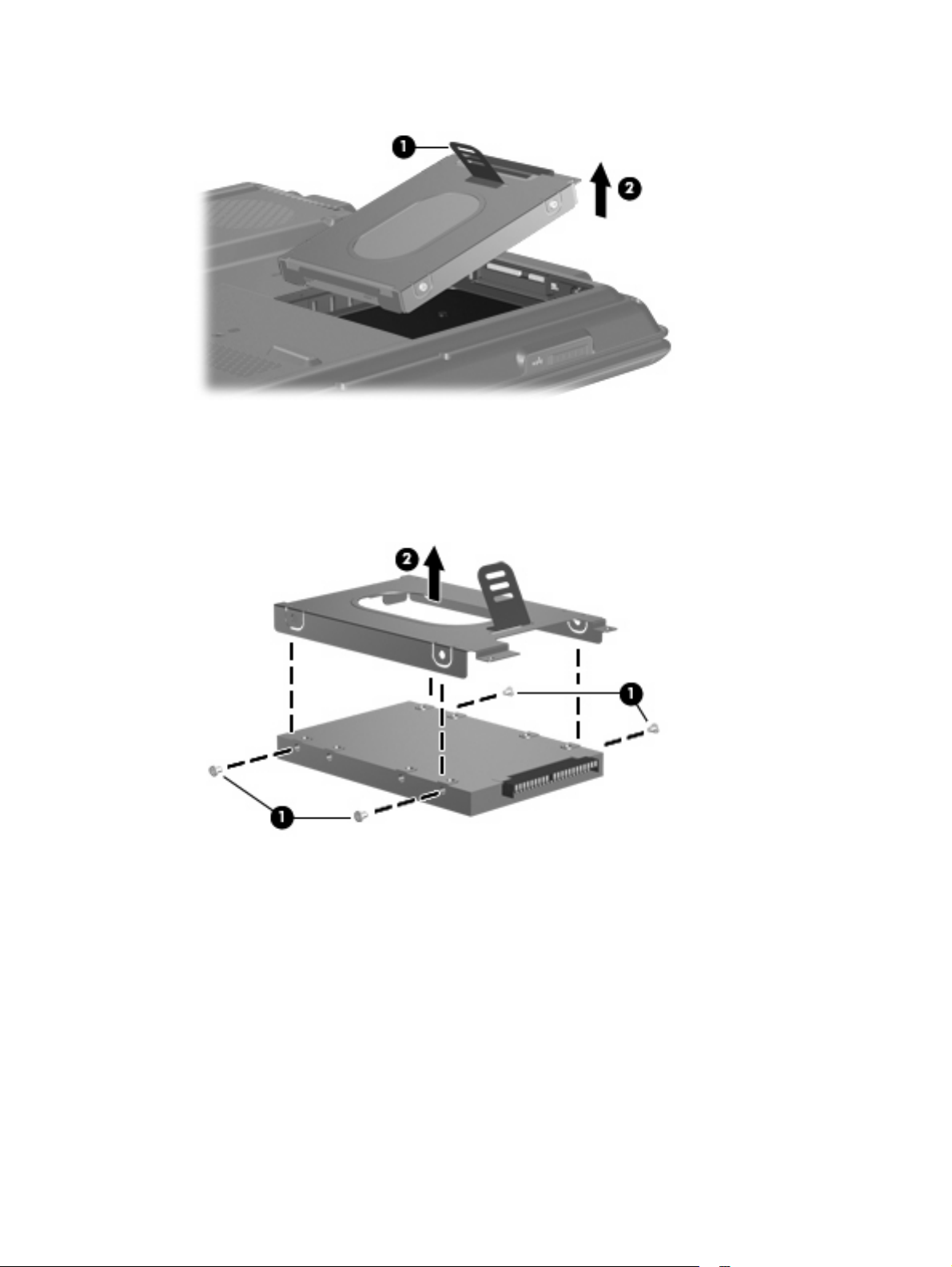

4. Use the Mylar tab (1) to lift the hard drive (2) until it disconnects from the computer.

Remove the hard drive.

6. If it is necessary to remove the hard drive bracket, remove the four Phillips PM3.0×3.0 screws (1)

that secure the hard drive bracket to the hard drive.

7. Lift the bracket (2) straight up to remove it from the hard drive.

Reverse this procedure to reassemble and install the hard drive.

Component replacement procedures 43

Computer feet

Description Spare part number

Rubber Kit (includes base enclosure rubber feet and display bezel screw covers) 431431-001

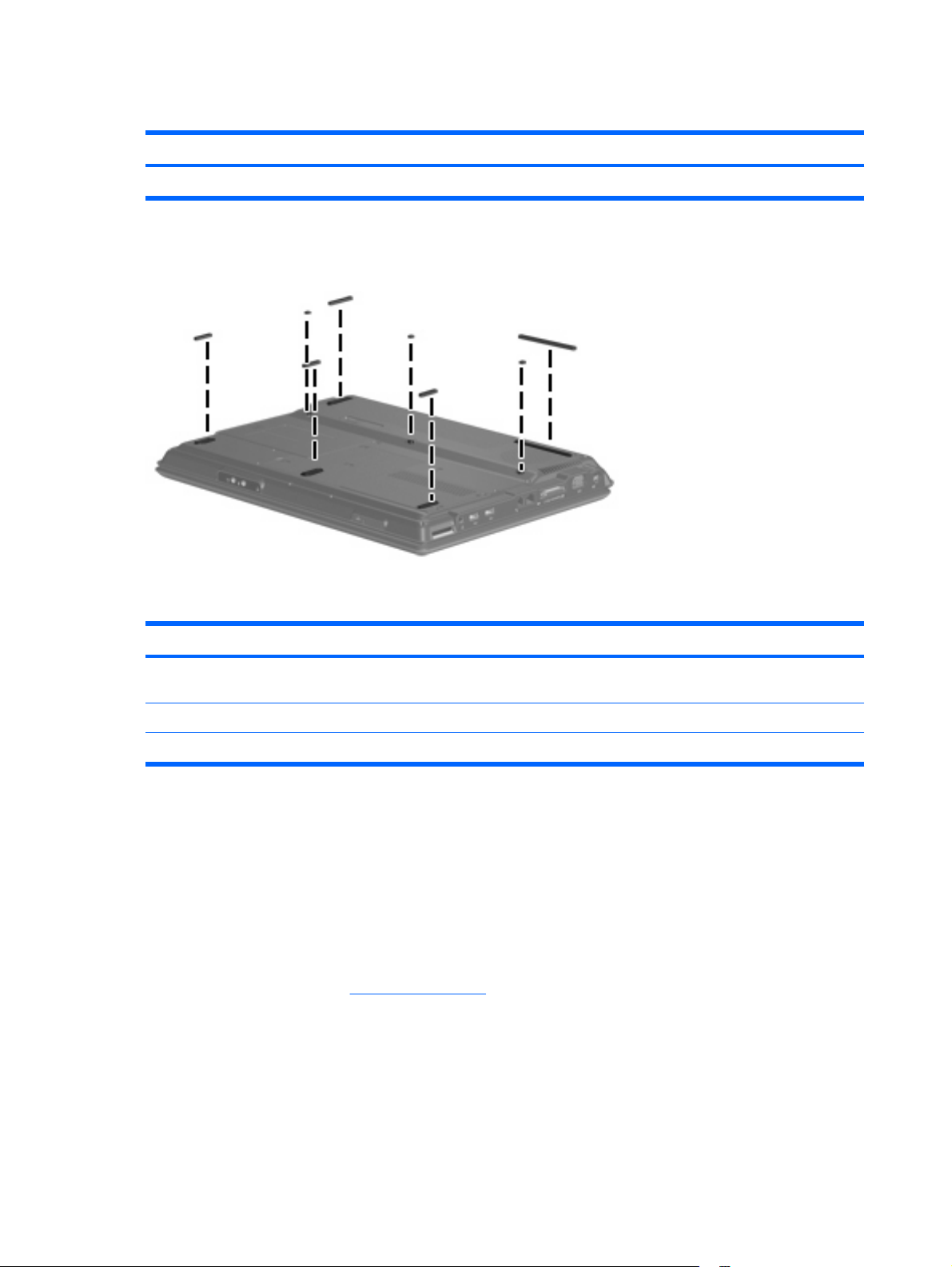

The computer feet are adhesive-backed rubber pads. The feet attach to the base enclosure in the locations illustrated below.

Memory module

Description Spare part number

2048-MB (PC2-5300, 667-MHz, 1-DIMM) 453774-001 and

1024-MB (PC2-5300, 667-MHz, 1-DIMM) 446495-001

512-MB (PC2-5300, 667-MHz, 1-DIMM) 446494-001

Before removing the memory module, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the memory module:

1. Loosen the three Phillips PM2.0×5.0 screws (1) that secure the memory/WLAN module compartment

cover to the computer.

457437–001

Battery on page 41).

44 Chapter 4 Removal and replacement procedures

2. Lift the left side of the cover (2), swing it to the right, and remove the cover.

Remove the memory/WLAN module compartment cover.

NOTE: The memory/WLAN module compartment cover is included in the Plastics Kit, spare part

number 438669-001.

4. Spread the retaining tabs (1) on each side of the memory module slot to release the memory module.

(The edge of the module opposite the slot rises away from the computer.)

5. Remove the module (2) by pulling it away from the slot at an angle.

NOTE: Memory modules are designed with a notch (3) to prevent incorrect installation into the

memory module slot.

Reverse this procedure to install a memory module.

Component replacement procedures 45

RTC battery

NOTE: Removing the RTC battery and leaving it uninstalled for 5 or more minutes causes all passwords

and CMOS settings to be cleared.

Description Spare part number

RTC battery (includes 2-sided tape) 446518-001 and

Before removing the RTC battery, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

449729-001

Remove the battery (see

Remove the memory/WLAN module compartment cover (see

Battery on page 41).

Memory module on page 44).

Remove the RTC battery:

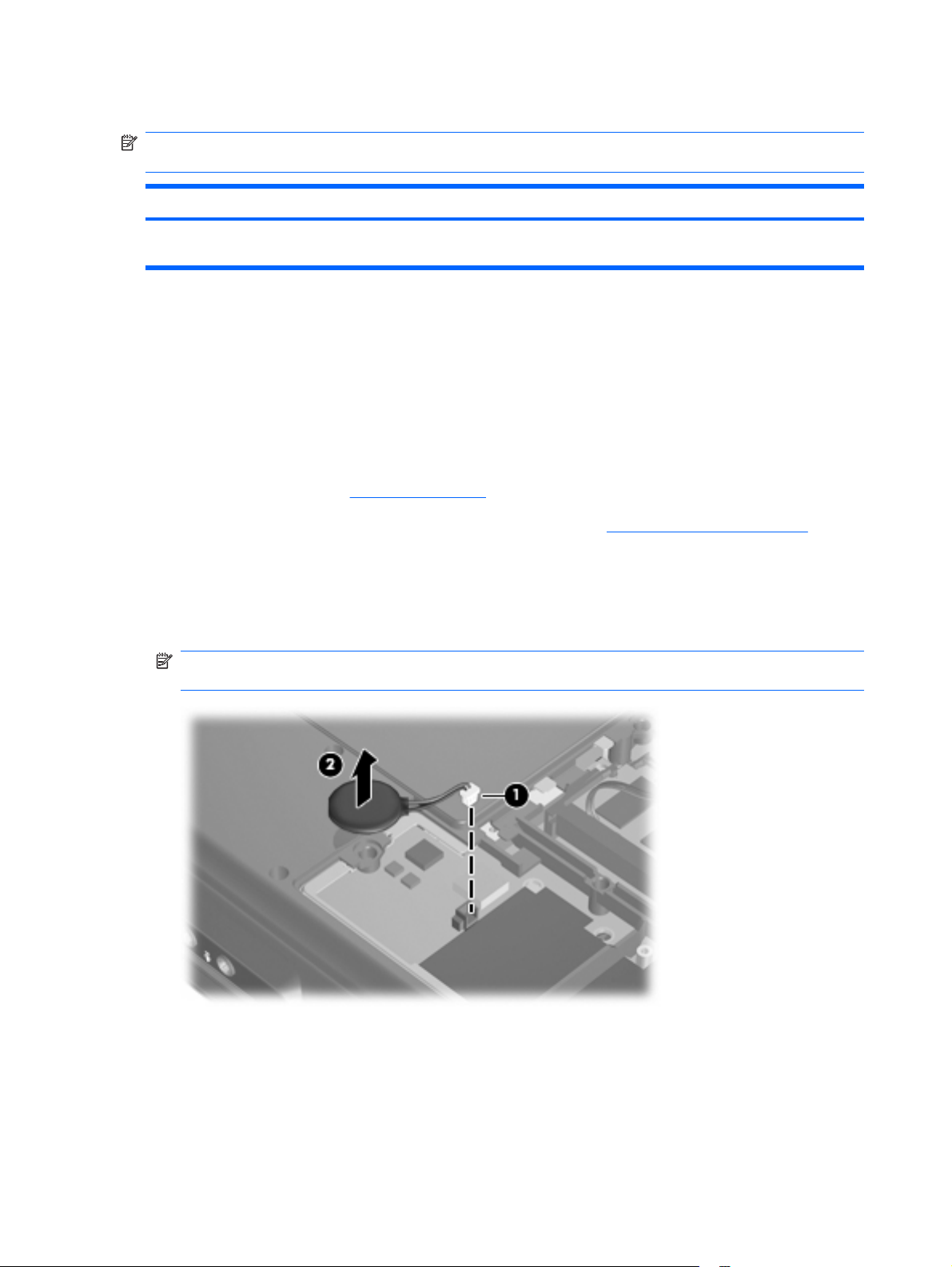

1. Disconnect the RTC battery cable (1) from the system board.

2. Remove the RTC battery (2).

NOTE: The RTC battery is secured to the computer by 2-sided tape. All replacement RTC battery

spare part kits include 2-sided tape.

Reverse this procedure to install the RTC battery.

46 Chapter 4 Removal and replacement procedures

WLAN module

Description Spare part number

Intel 802.11a/b/g/n WLAN modules:

For use in Antigua & Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda, Brunei,

●

Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, the United States, Uruguay, Venezuela, and Vietnam

For use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the Czech

●

Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South Korea

●

● For use in Japan 441086-291 and

For use in South Korea

●

Intel 802.11a/b/g WLAN modules:

For use in Antigua & Barbuda, Argentina, Australia, the Bahamas, Barbados, Brunei, Canada,

●

Chile, the Dominican Republic, Guam, Guatemala, Hong Kong, India, Indonesia, Malaysia, Mexico, New Zealand, Panama, Paraguay, Saudi Arabia, Taiwan, the United States, and Vietnam

For use in Aruba, Austria, Azerbaijan, Bahrain, Belgium, Bermuda, Brazil, Bulgaria, the Cayman

●

Islands, Colombia, Croatia, Cyprus, the Czech Republic, Denmark, Egypt, El Salvador, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Italy, Jordan, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, the United Kingdom, and Uzbekistan

441086-001

441086-002 and 441087-002

441086-003 and 441088-003

441089-291

441086-AD1

451861-001

451861-002

For use in Ecuador, Haiti, Honduras, Pakistan, the People's Republic of China, Peru, Qatar, South

●

Korea, Uruguay, and Venezuela

For use in Japan

●

Broadcom 802.11b/g WLAN modules:

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands, and the

●

United States

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua & Barbuda, Argentina,

●

Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru,

Component replacement procedures 47

451861-003

451861-291

441090-001

441090-002

Description Spare part number

Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

For use in Japan

●

802.11b/g WLAN module for use in Thailand 451861-004

Broadcom 4311AG 802.11a/b/g modules:

For use in the United States and Canada

●

● For use in France, Germany, Italy, the Netherlands, Spain, the United Kingdom, Nordic region,

and India

Broadcom 4321AGN 802.11a/b/g/n modules:

For use in the United States and Canada

●

For use in France, Germany, Italy, the Netherlands, Spain, the United Kingdom, Nordic region,

●

and India

441090-291

441075-001

441075-002

434661-001

434661-002

Before removing the WLAN module, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the memory/WLAN module compartment cover (see

Battery on page 41).

Remove the WLAN module:

1. Disconnect the two WLAN antenna cables (1) from the WLAN module.

NOTE: The black WLAN antenna cable is connected to the WLAN module “Main” terminal. The

gray WLAN antenna cable is connected to the WLAN module “Aux” terminal.

NOTE: Computer models equipped with an 802.11a/b/g/n WLAN module have an additional

wireless antenna cable (2), yellow in color.

2. Remove the two Phillips PM2.0×3.0 screws (3) that secure the WLAN module to the computer. (The

edge of the module opposite the slot rises away from the computer.)

48 Chapter 4 Removal and replacement procedures

Memory module on page 44).

3. Remove the WLAN module (4) by pulling it away from the slot at an angle.

NOTE: WLAN modules are designed with a notch (5) to prevent incorrect installation into the

WLAN module slot.

Reverse this procedure to install a WLAN module.

Component replacement procedures 49

Optical drive

NOTE: All optical drive spare part kits include an optical drive bezel.

Description Spare part number

For use in computer models with Intel processors:

Blu-ray Disc ROM Drive with SuperMulti DVD±R/RW Double-Layer (DL) support 462453-001

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 446505-001

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive 446504-001

DVD/CD-RW Combo Drive 446503-001

For use in computer models with AMD processors:

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive 449934-001

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 449936-001

DVD/CD-RW Combo Drive 455076-001

Before removing the optical drive, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 41).

Remove the optical drive:

Position the computer with right side toward you.

2. Remove the Phillips PM2.5×7.0 screw (1) that secures the optical drive to the computer.

3. Insert a thin tool, such as a paper clip (2), into the disc tray release access. (The optical drive disc

tray is partially ejected from the optical drive.)

4. Use the disc tray frame to slide the optical drive (3) out of the computer.

50 Chapter 4 Removal and replacement procedures

Remove the optical drive.

If it is necessary to replace the optical drive bracket, position the optical drive with the optical drive

bracket toward you.

7. Remove the two Phillips PM2.0×3.0 screws (1) that secure the optical drive bracket to the optical

drive.

8. Remove the optical drive bracket (2).

Reverse the above procedure to reassemble and install the optical drive.

Component replacement procedures 51

Switch cover

Description Spare part number

Switch cover for use in full-featured computer models (includes LED board and cable) 431425-001 and

Switch cover for use in defeatured computer models (includes LED board and cable) 455260-001

Before removing the switch cover, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

451010-001

Remove the battery (see

Battery on page 41).

Remove the switch cover:

1. Remove the two Phillips PM2.5×10.0 screws (1) and the Phillips PM2.5×4.0 screw (2) that secure

the switch cover to the computer.

Turn the computer display-side up, with the front toward you.

Open the computer as far as possible.

52 Chapter 4 Removal and replacement procedures

Lift the rear edge of the switch cover and swing it forward until it rests on the keyboard.

5. Release the zero insertion force (ZIF) connector (1) to which the LED board cable is connected, and

disconnect the cable (2) from the LED board.

Remove the switch cover.

Reverse this procedure to install the switch cover.

Component replacement procedures 53

Keyboard

Description

For use in: Spare part

number

Finland, Norway, and Sweden 441428-DH1 Saudi Arabia 441428-171

France 441428-051 Spain 441428-071

French Canada 441428-121 Taiwan 441428-AB1

International 441428-B31 Thailand 441428-281

Italy 441428-061 Turkey 441428-141

South Korea 441428-AD1 The United Kingdom 441428-031

Latin America 441428-161 The United States 441428-001

For use in: Spare part

number

Before removing the keyboard, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the switch cover (see

Battery on page 41).

Switch cover on page 52).

Remove the keyboard:

Turn the computer upside down, with the front toward you.

Remove the three Phillips PM2.5×7.0 screws that secure the keyboard to the computer.

Turn the computer display-side up, with the front toward you.

54 Chapter 4 Removal and replacement procedures

Open the computer as far as possible.

5. Lift the rear edge of the keyboard (1) until it rests at an angle.

6. Release the keyboard (2) by sliding it back to disengage the tabs on the front edge of the keyboard

from the top cover.

7. Swing the keyboard (3) up and forward until it rests on the palm rest.

8. Release the ZIF connector (1) to which the keyboard cable is attached, and disconnect the keyboard

cable (2) from the system board.

Remove the keyboard.

Reverse this procedure to install the keyboard.

Component replacement procedures 55

Power button board

Description Spare part number

Power button board (includes power button board cable) 431438-001

Before removing the power button board, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the switch cover (see

Remove the keyboard (see

Battery on page 41).

Switch cover on page 52).

Keyboard on page 54).

Remove the power button board:

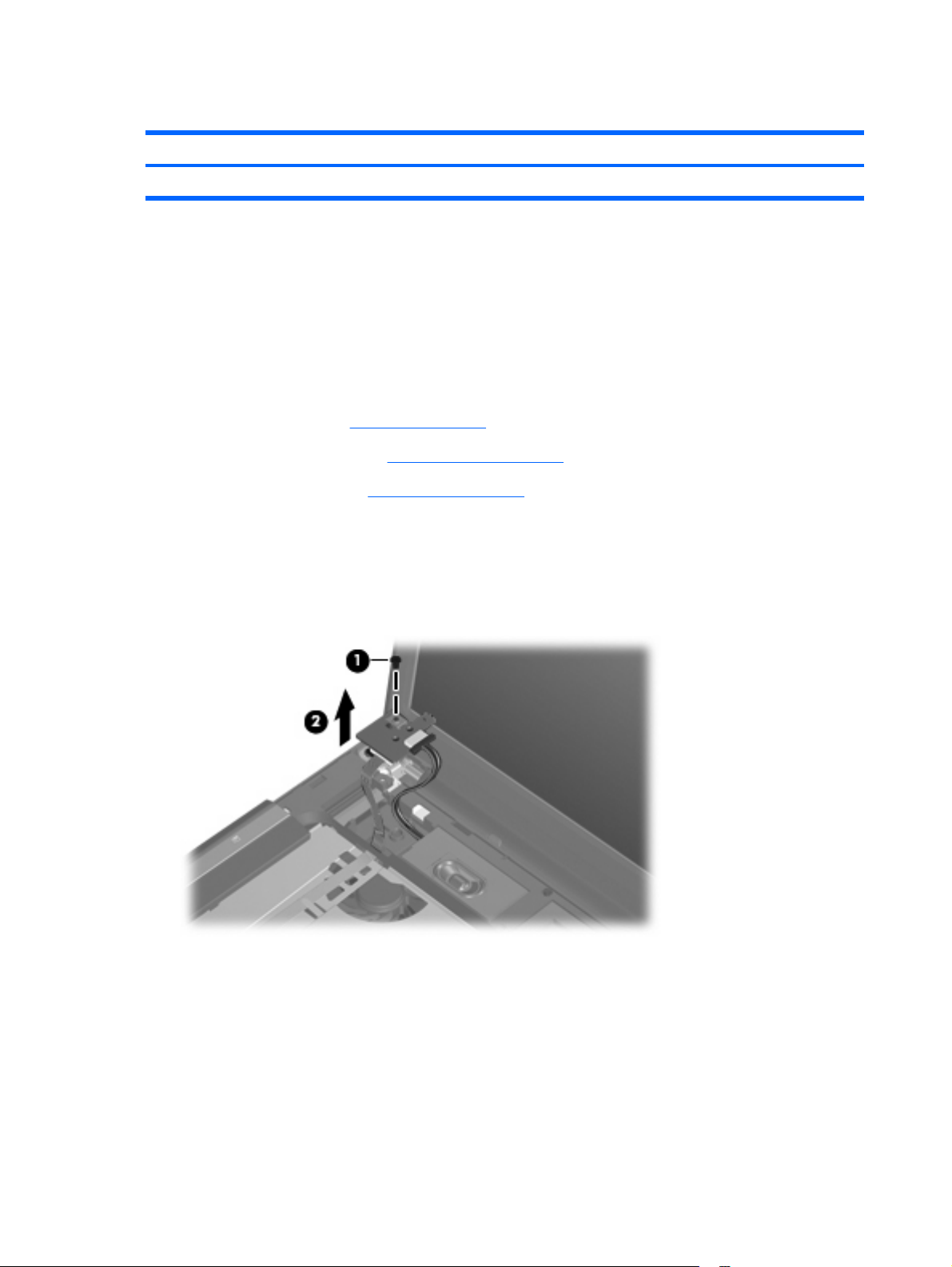

1. Remove the Phillips PM2.5×4.0 screw (1) that secures the power button board to the fan/heat sink

assembly.

2. Release the power button board (2) from the computer as far as the cables allow.

3. Disconnect the microphone cable (1) and the speaker cable (2) from the power button board.

4. Release the ZIF connector (3) to which the power button board cable is connected, and disconnect

the cable.

56 Chapter 4 Removal and replacement procedures

5. Remove the power button board (4).

Reverse this procedure to install the power button board.

Component replacement procedures 57

Display assembly

Description Spare part number

15.4-inch, WXGA, BrightView display assembly (includes microphones) 446485-001

Before removing the display assembly, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Disconnect the WLAN antenna cables from the WLAN module (see

Remove the following components:

Switch cover (see

Keyboard (see

Battery on page 41).

WLAN module on page 47).

Switch cover on page 52)

Keyboard on page 54)

Remove the display assembly:

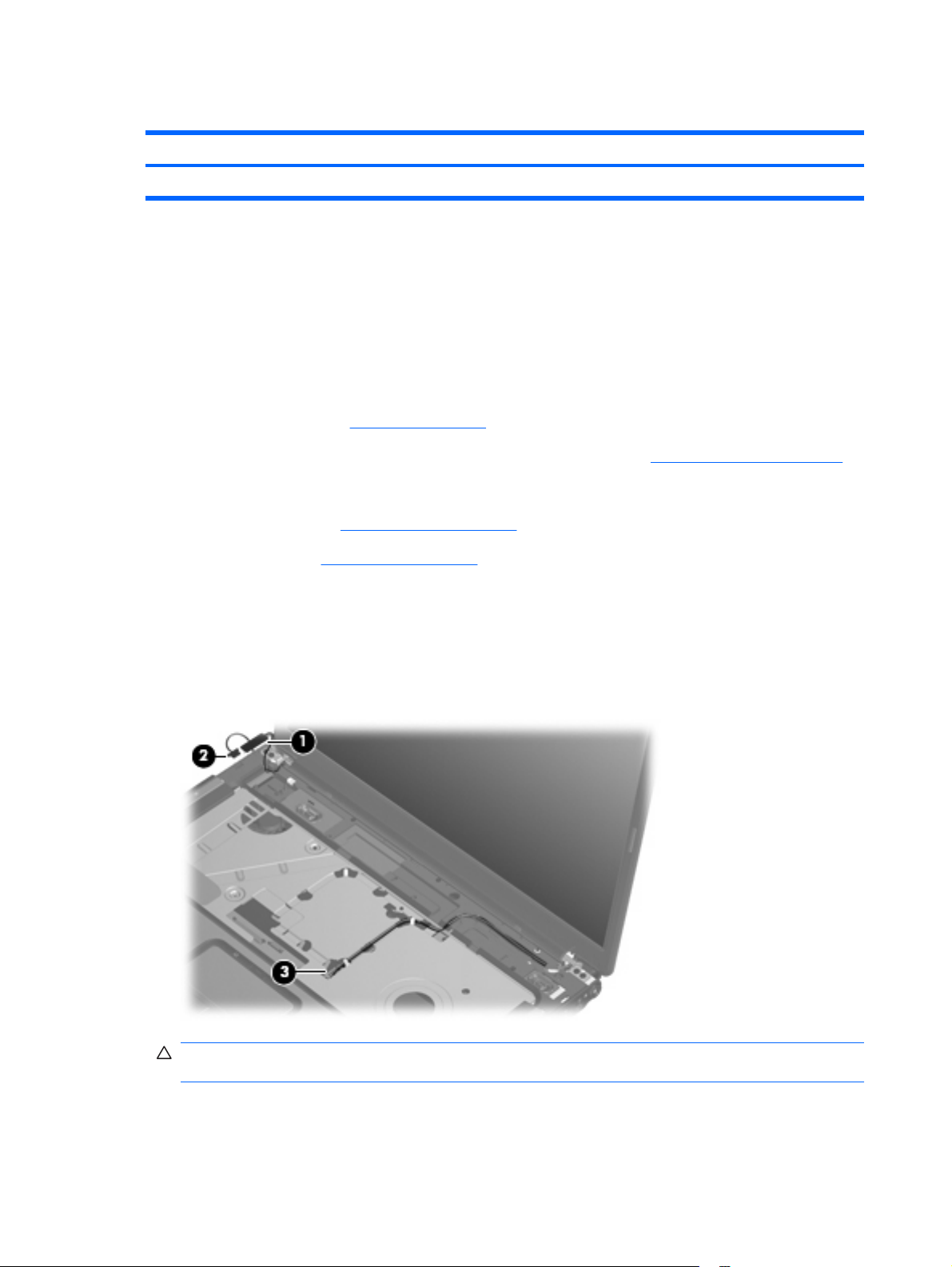

1. Disconnect the display panel cable (1) from the system board.

2. Disconnect the microphone cable (2) from the power button board.

3. Remove the wireless antenna cables (3) from the clips in the top cover.

CAUTION: Support the display assembly when removing the following screws. Failure to support

the display assembly can result in damage to the display assembly and other computer components.

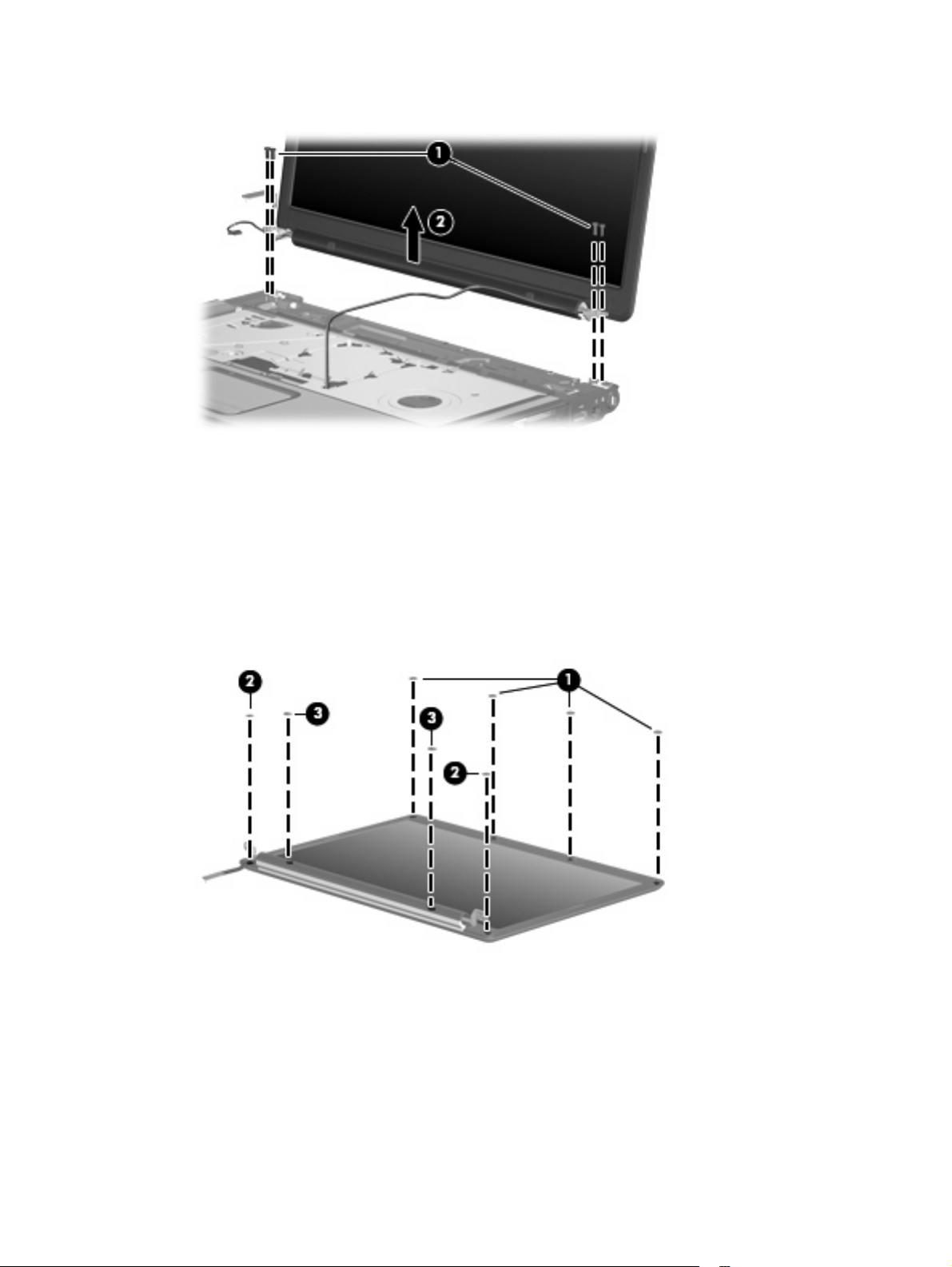

4. Remove the four Phillips PM2.5×7.0 screws (1) that secure the display assembly to the computer.

58 Chapter 4 Removal and replacement procedures

5. Remove the display assembly (2).

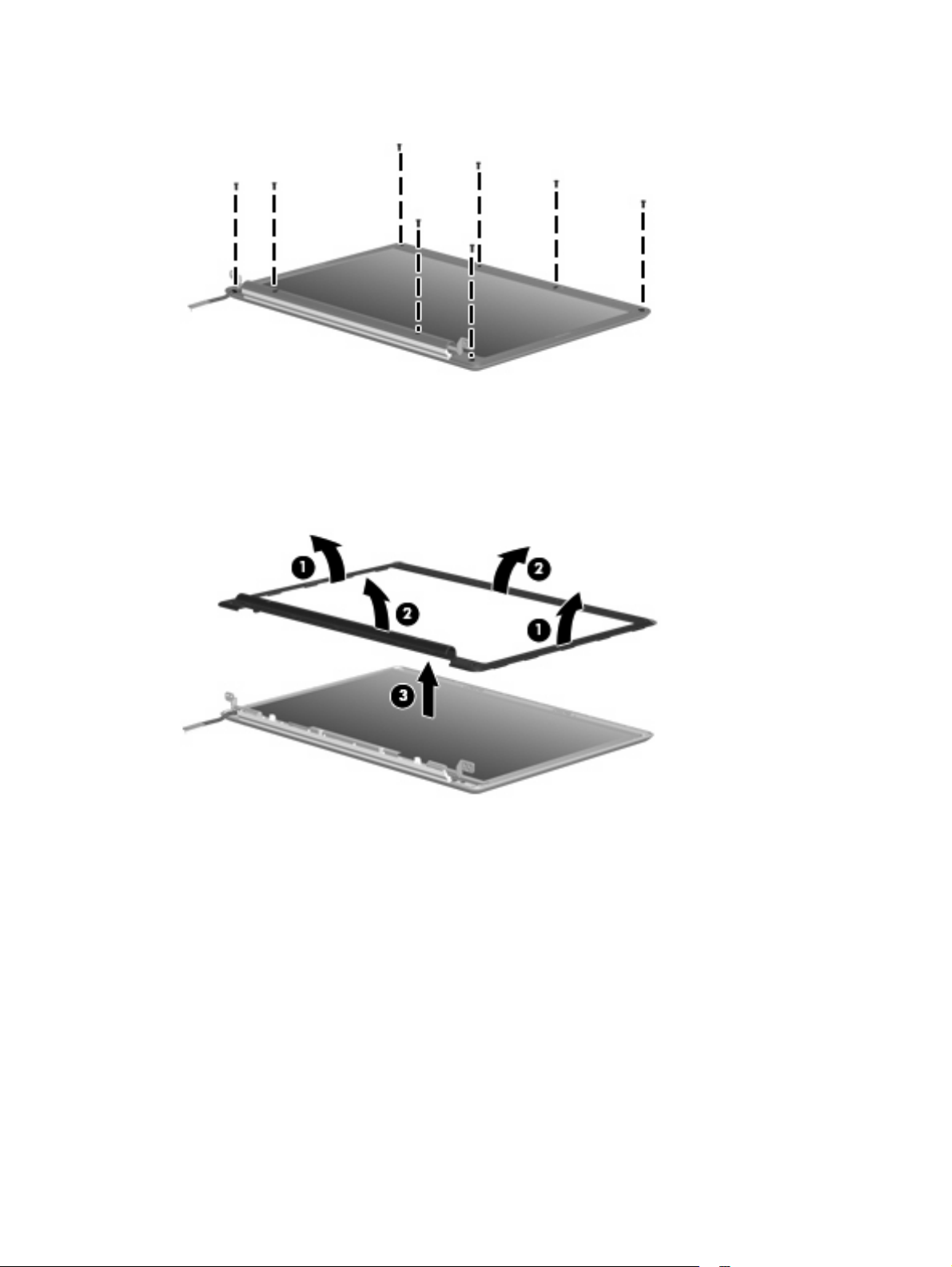

If it is necessary to replace the display bezel or any of the display assembly internal components,

remove the following screw covers:

(1) Four covers on the top edge of the bezel

(2) Two covers on the lower bezel edges

(3) Two covers on the lower-inside edge of the bezel

The display rubber screw covers are included in the Display Screw Kit, spare part number 431400-001.

Component replacement procedures 59

Remove the eight Phillips PM2.5×7.0 screws that secure the display bezel to the display assembly.

8. Flex the inside edges of the left and right sides (1) and the top and bottom sides (2) of the display

bezel until the bezel disengages from the display enclosure.

9. Remove the display bezel (3). The display bezels are available using spare part numbers

433283-001 and 453328-001 for models with Intel processors, and 433284-002 for full-featured models with AMD processors.

10. If it is necessary to replace the display inverter, remove the inverter (1) from the display enclosure

as far as the display panel cable and the backlight cable allow.

60 Chapter 4 Removal and replacement procedures

11. Disconnect the display panel cable (2) and the backlight cable (3) from the inverter.

Remove the display inverter. The display inverter is available using spare part number

12.

431391-001.

13. If it is necessary to replace the display panel, remove the four Phillips PM2.5×4.0 screws (1) that

secure the display panel to the display enclosure.

14. Remove the display panel (2). The display panel is available using spare part number

446480-001.

15. If it is necessary to replace the display hinges, remove the two Phillips PM2.0×3.0 screws (1) that

secure each display hinge to the display panel.

Component replacement procedures 61

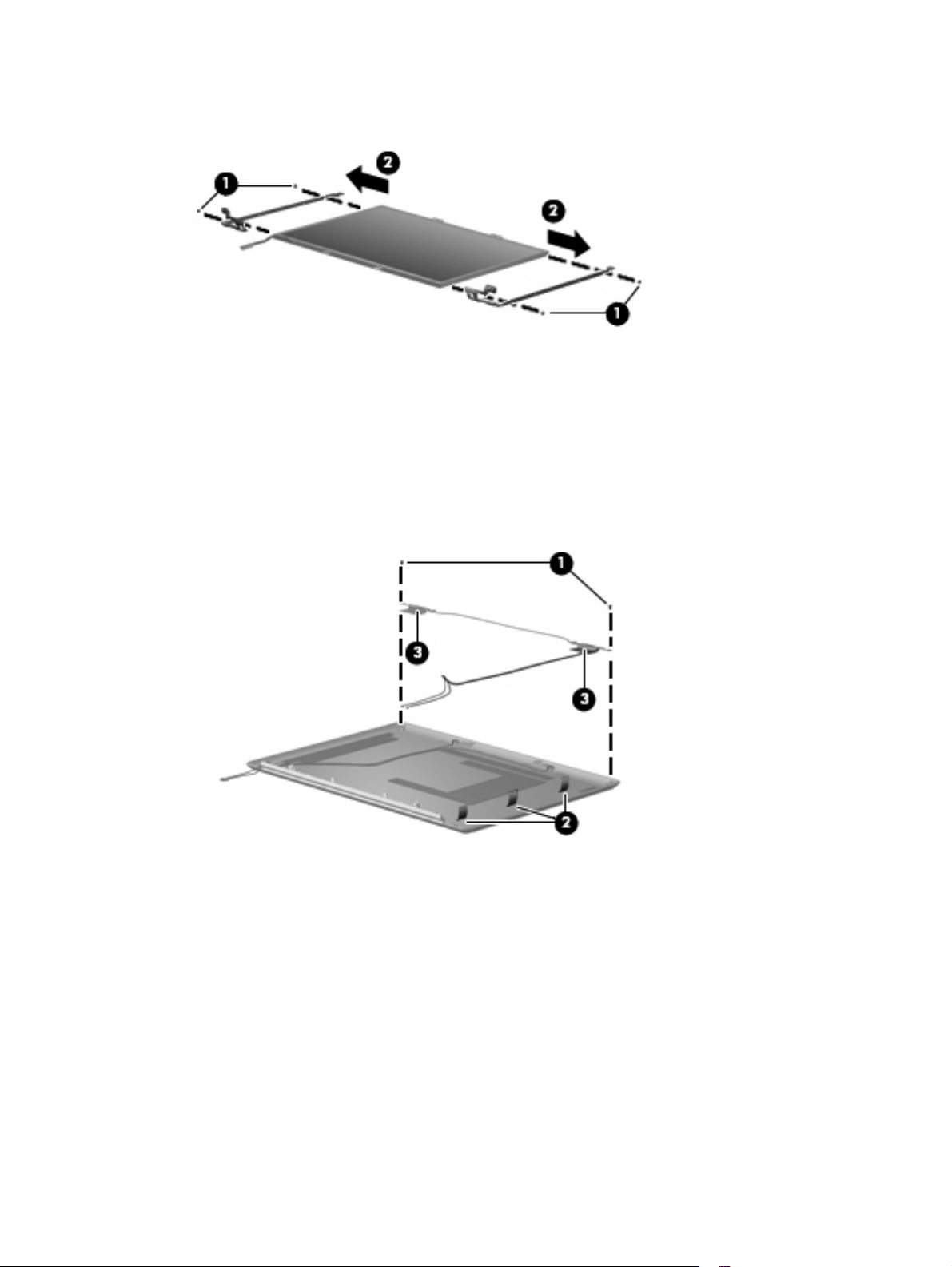

16. Remove the display hinges (2). The display hinges are available using spare part number

433288-001.

If it is necessary to replace the wireless antenna transceivers and cables, remove the Phillips

17.

PM2.0×3.0 screw (1) that secures each transceiver to the display enclosure.

18. Release the retention tabs (2) built into the display enclosure that secure the wireless antenna cables

and remove the cables from the tabs.

19. Detach the wireless antenna transceivers (3) from the display enclosure. The wireless antenna

transceivers and cables are available using spare part numbers 449728-001 (for use only with computer models equipped with an 802.11a/b/g/n WLAN module) and 449726-001 (for use only with computer models equipped with an 802.11a/b/g or 802.11b/g WLAN module).

Remove the wireless antenna transceivers and cables.

20.

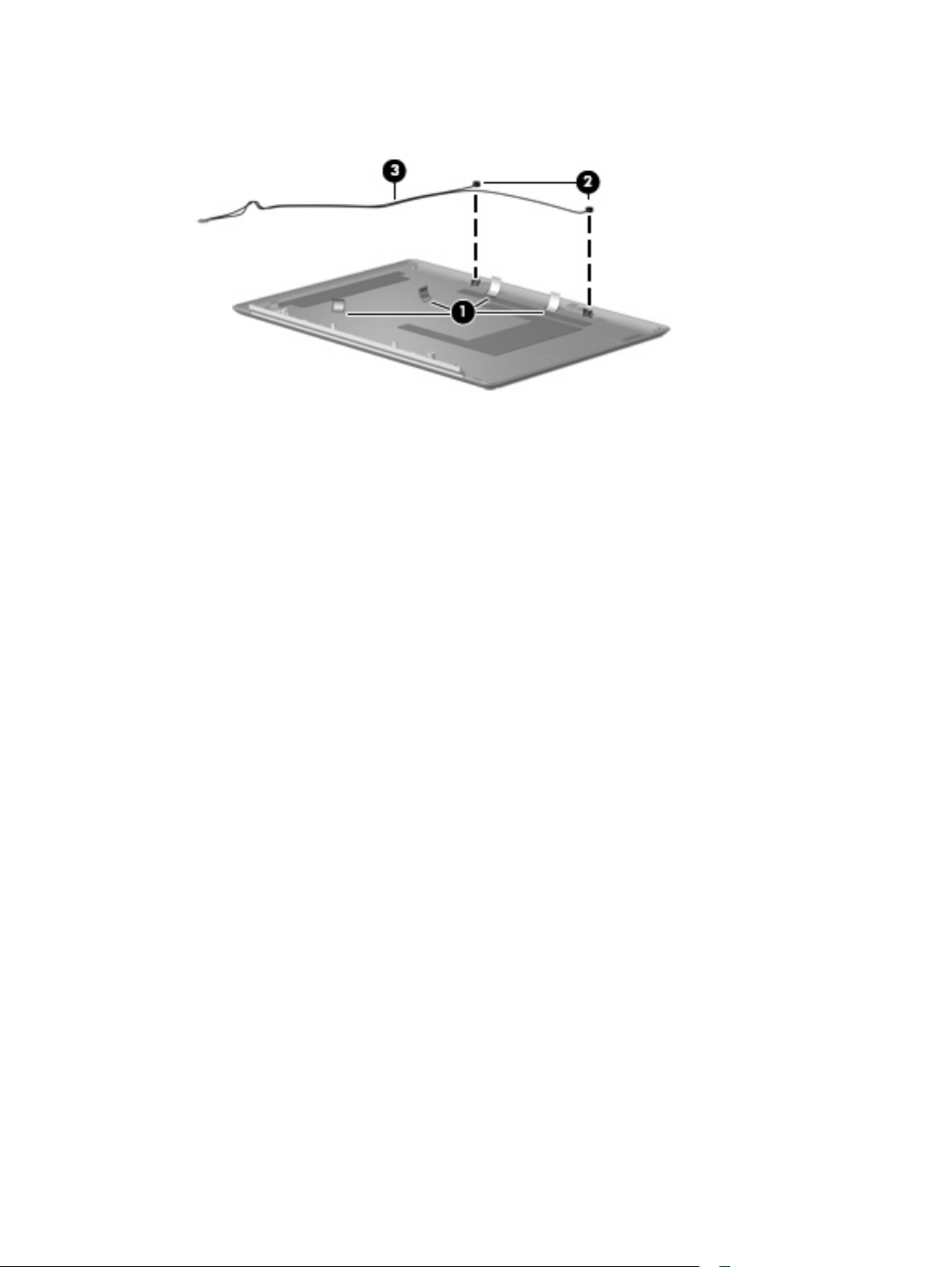

21. If it is necessary to replace the microphones and cables, release the retention tabs (1) built into the

display enclosure that secure the microphone cables to the display enclosure.

22. Remove the microphone receivers (2) from the clips in the display enclosure.

62 Chapter 4 Removal and replacement procedures

23. Remove the microphone cables (3) from the display enclosure. The microphones and cables are

available using spare part number 431393-001.

Reverse this procedure to reassemble and install the display assembly.

Component replacement procedures 63

Top cover

Description Spare part number

Top cover for use with computer models with Intel processors (includes speakers and TouchPad and cable)

Top cover for use in computer models with AMD processors:

Full-featured models

●

Defeatured models 451407-001

●

446510-001 and 455514–001

454170-001

Before removing the top cover, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Battery on page 41).

Hard drive on page 42)

Optical drive on page 50)

Switch cover (see

Keyboard (see

Display assembly (see

Switch cover on page 52)

Keyboard on page 54)

Display assembly on page 58)

Remove the top cover:

Turn the computer upside down, with the front toward you.

Remove the nine Phillips PM2.5×7.0 screws that secure the top cover to the computer.

64 Chapter 4 Removal and replacement procedures

Remove the following screws:

(1) Three Phillips PM2.5×3.0 screws

(2) Six Phillips PM2.5×4.0 screws

(3) Two Hex HM5.0×9.0 screw locks

Turn the computer right-side up, with the front toward you.

5. Release the ZIF cable (1) to which the TouchPad cable is connected, and disconnect the TouchPad

cable (2).

Component replacement procedures 65

6. Remove the two Phillips PM2.5×7.0 screws (1) and the two Phillips PM2.5×4.0 screws (2) that

secure the top cover to the base enclosure.

7. Lift the front edge of the top cover (1) until it disengages from the computer.

8. Remove the top cover (2).

Reverse this procedure to install the top cover.

66 Chapter 4 Removal and replacement procedures

Bluetooth module

Description Spare part number

Bluetooth module (includes Bluetooth module cable) 412766-002

Before removing the Bluetooth module, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Switch cover (see

Keyboard (see

Display assembly (see

Top cover (see

Battery on page 41).

Hard drive on page 42)

Optical drive on page 50)

Switch cover on page 52)

Keyboard on page 54)

Display assembly on page 58)

Top cover on page 64).

Remove the Bluetooth module:

1. Disconnect the Bluetooth module cable (1) from the system board.

2. Remove the two Phillips PM2.0×2.0 screws (2) that secure the Bluetooth module to the system board.

3. Remove the Bluetooth module (3).

Component replacement procedures 67

Reverse this procedure to install the Bluetooth module.

ExpressCard assembly

Description Spare part number

ExpressCard assembly 431440-001

Before removing the ExpressCard assembly, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Switch cover (see

Keyboard (see

Display assembly (see

Top cover (see

Battery on page 41).

Hard drive on page 42)

Optical drive on page 50)

Switch cover on page 52)

Keyboard on page 54)

Display assembly on page 58)

Top cover on page 64).

Remove the ExpressCard assembly:

1. Push in on the ExpressCard slot bezel (1) to release the bezel from the ExpressCard slot.

68 Chapter 4 Removal and replacement procedures

2. Remove the ExpressCard slot bezel (2) from the ExpressCard slot.

NOTE: The ExpressCard slot bezel is included in the Plastics Kit, spare part number 438669-001.

3. Remove the three Phillips PM2.5×4.0 screws (1) that secure the ExpressCard assembly to the system

board.

4. Disconnect the ExpressCard assembly (2) from the system board by sliding it to the right.

5. Remove the ExpressCard assembly (3).

Reverse this procedure to install the ExpressCard assembly.

Component replacement procedures 69

USB/power connector board

Description Spare part number

USB/power connector board (includes USB/power connector board cable) 447444-001

Before removing the USB/power connector board, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Switch cover (see

Keyboard (see

Display assembly (see

Top cover (see

Battery on page 41).

Hard drive on page 42)

Optical drive on page 50)

Switch cover on page 52)

Keyboard on page 54)

Display assembly on page 58)

Top cover on page 64).

Remove the USB/power connector board:

1. Remove the two Phillips PM2.5×5.0 screws (1) that secure the USB/power connector board to the

computer.

2. Release the USB/power connector board (2) as far as the USB/power connector board cable allows.

70 Chapter 4 Removal and replacement procedures

3. Disconnect the USB board cable (3) and the power connector board cable (4) from the USB/power

connector board.

Remove the USB/power connector board.

Reverse this procedure to install the USB/power connector board.

System board

Description Spare part number

System board for use in computer models with Intel processors 446475-001 and

453770-001

System board for use only in computer models with AMD processors in full-featured models equipped with UMA graphics subsystem memory:

449901–001

Before removing the system board, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Battery on page 41).

Hard drive on page 42)

Optical drive on page 50)

Switch cover (see

Keyboard (see

Display assembly (see

Switch cover on page 52)

Keyboard on page 54)

Display assembly on page 58)

Component replacement procedures 71

Top cover (see

Top cover on page 64)

Audio board (see

USB/power connector board (see

When replacing the system board, be sure that the following components are removed from the defective system board and installed on the replacement system board:

Memory modules (see

●

RTC battery (see

●

WLAN module (see

●

Bluetooth module (see

●

ExpressCard assembly (see

●

Fan/heat sink assembly (see

●

Processor (see

●

Remove the system board:

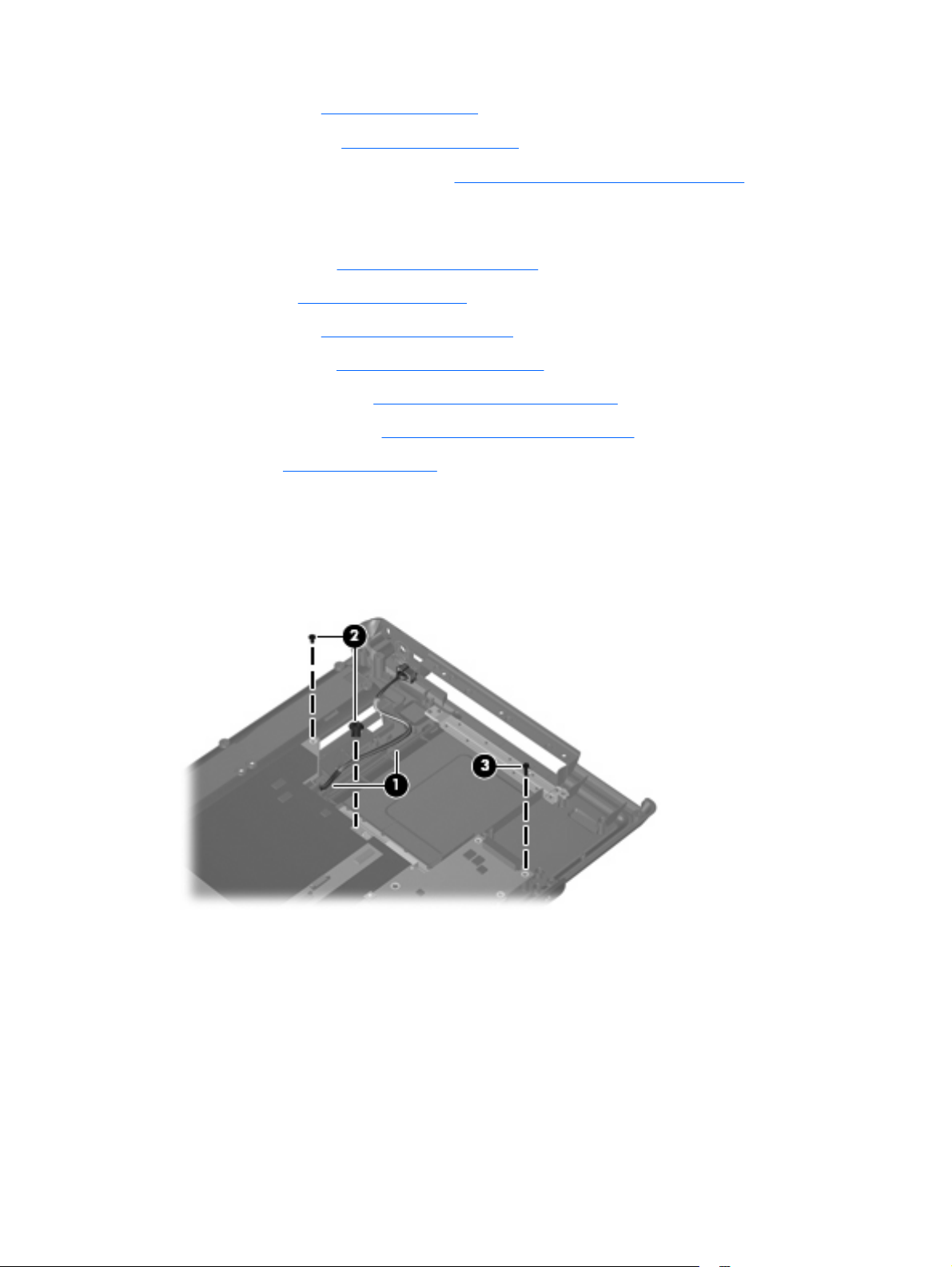

1. Remove the USB/power connector board cable (1) from the clips built into the base enclosure.

2. Remove the Phillips PM2.5×4.0 screw (2) and the Phillips PM2.0×7.0 screw (3) that secure the

system board to the base enclosure.

Processor on page 78)

Audio board on page 74)

USB/power connector board on page 70)

Memory module on page 44)

RTC battery on page 46)

WLAN module on page 47)

Bluetooth module on page 67)

ExpressCard assembly on page 68)

Fan/heat sink assembly on page 75)

3. Use the optical drive connector (1) to lift the right side of the system board (2) until it rests at an

angle.

4. Disconnect the audio board cable (3) from the system board.

72 Chapter 4 Removal and replacement procedures

5. Release the system board (4) by sliding it to the right until the connectors on the left side of the system

board disengage from the base enclosure.

Remove the system board.

If it is necessary to replace the USB/power connector board cable, turn the system board upside

down with the front toward you.

8. Disconnect the power connector board cable (1) and the USB board cable (2) from the system

board.

Reverse the above procedure to install the system board and USB/power connector board cable.

Component replacement procedures 73

Audio board

Description Spare part number

For use only in computer models with Intel processors:

In models that include consumer infrared

●

In models that do not include consumer infrared lens

●

For use only in computer models with AMD processors:

In full-featured models equipped with consumer infrared

●

In defeatured models equipped with consumer infrared 449967-001

●

449453-001

431443-001

454176-001

Before removing the audio board, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Battery on page 41).

Hard drive on page 42)

Optical drive on page 50)

Switch cover (see

Keyboard (see

Display assembly (see

Top cover (see

Switch cover on page 52)

Keyboard on page 54)

Display assembly on page 58)

Top cover on page 64).

Remove the audio board:

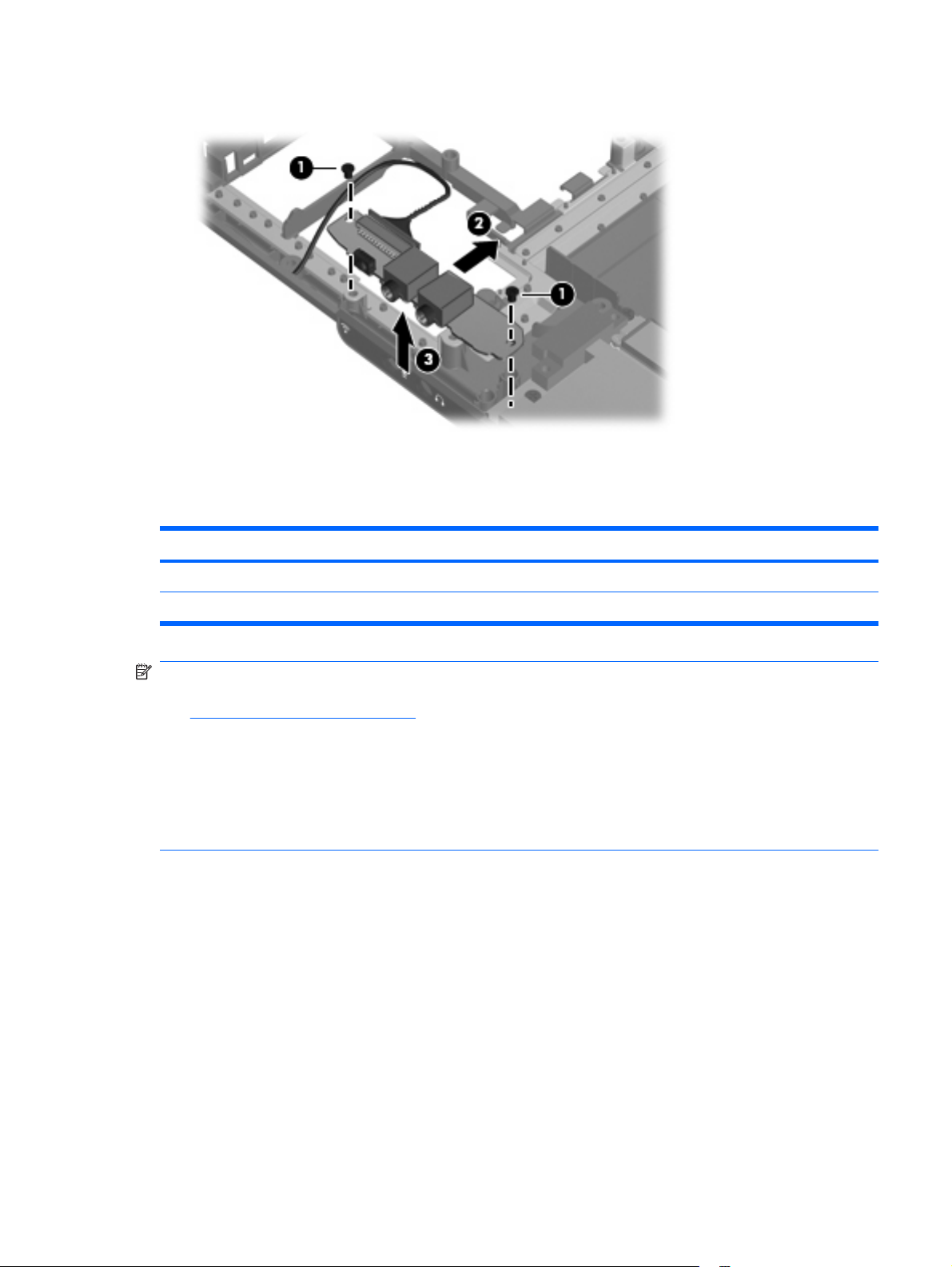

1. Remove the two Phillips PM2.5×4.0 screws (1) that secure the audio board to the computer.

2. Release the audio board (2) by sliding it back to disengage the audio connectors from the base

enclosure.

74 Chapter 4 Removal and replacement procedures

3. Remove the audio board (3) by lifting it straight up.

Reverse this procedure to install the audio board.

Fan/heat sink assembly

Description Spare part number

Fan/heat sink assembly for use in computer models with Intel processors (includes thermal material) 446522-001

Fan/heat sink assembly for use in computer models with AMD processors (includes thermal material) 449961-001

NOTE: When replacing the fan/heat sink assembly, be sure that the power button board is removed

from the defective fan/heat sink assembly and installed on the replacement fan/heat sink assembly.

Power button board on page 56 for power button board removal information.

See

NOTE: To properly ventilate the computer, allow at least a 7.6-cm (3-inch) clearance on the right side

and rear panel of the computer. The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist. These conditions are affected by high external temperatures, system power consumption, power management/battery conservation configurations, battery fast charging, and software applications. Exhaust air is displaced through the ventilation grill located on the left side of the computer.

Before removing the fan/heat sink assembly, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Component replacement procedures 75

Remove the battery (see

Remove the following components:

Battery on page 41).

Hard drive (see

Optical drive (see

Switch cover (see

Keyboard (see

Display assembly (see

Top cover (see

Audio board (see

USB/power connector board (see

System board (see

Remove the fan/heat sink assembly:

Turn the system board upside down, with the expansion port 3 and external monitor port toward

you.

2. Disconnect the fan cable (1) from the system board.

3. Loosen the three Phillips PM2.5×5.0 captive screws (2) and the Phillips PM2.5×4.0 captive

screw (3) that secure the fan/heat sink assembly to the system board.

Hard drive on page 42)

Optical drive on page 50)

Switch cover on page 52)

Keyboard on page 54)

Display assembly on page 58)

Top cover on page 64)

Audio board on page 74)

USB/power connector board on page 70)

System board on page 71)

4. Remove the fan/heat sink assembly (4).

NOTE: Due to the adhesive quality of the thermal material located between the fan/heat sink

assembly and system board components, it may be necessary to move the fan/heat sink assembly from side to side to detach the assembly.

76 Chapter 4 Removal and replacement procedures

NOTE: The thermal material must be thoroughly cleaned from the surfaces of the fan/heat sink

assembly (1) and (2), the processor (3), and the system board component (4) each time the fan/heat sink assembly is removed. Thermal material must be installed on all surfaces before the fan/heat sink assembly is reinstalled. Thermal material is included with all fan/heat sink assembly, system board, and processor spare part kits.

Reverse this procedure to install the fan/heat sink assembly.

Component replacement procedures 77

Processor

NOTE: All processor spare part kits include thermal material.

Description Spare part number

Intel Core 2 Duo processors:

2.20-GHz processor (4-MB L2 cache, 800-MHz FSB)

2.00-GHz processor (2-MB L2 cache, 800-MHz FSB) 455515-001

1.86-GHz processor (1-MB L2 cache, 533-MHz FSB) 453773–001

1.50-GHz processor (2-MB L2 cache, 667-MHz FSB) 453772-001

Intel Core Duo processors:

T7300 2.0-GHz processor (4-MB L2 cache)

T7100 1.8-GHz processor (2-MB L2 cache) 446479-001

T5250 1.5-GHz processor (2-MB L2 cache) 453033-001

T2330 1.6-GHz processor (1-MB L2 cache, 533-MHz FSB) 455944–001

T2310 1.46-GHz processor (1-MB L2 cache, 533-MHz FSB) 455943–001

Intel Celeron processors:

M530 1.73-GHz processor (1-MB L2 cache, 533-MHz FSB) 457315–001

AMD processors:

Turion MK-38 (2.2-GHz, 512-MB L2 cache) 449904-001

Turion TL-66 (2.3 -GHz, 1-MB L2 cache) 450804-001

Turion TL-60 (2.0 -GHz, 1-MB L2 cache) 450803-001

453771-001

446478-001

Turion TL-58 (1.9 -GHz, 1-MB L2 cache) 450802-001

Turion TL-56 (1.8 -GHz, 1-MB L2 cache) 450801-001

Athlon TK-53 (1.7-GHz. 512-MB L2 cache) 451013-001

Processor bracket:

For use with 7.9 processors 450370-001

For use with 8.1 processors 450371-001

Before removing the processor, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

78 Chapter 4 Removal and replacement procedures

Remove the battery (see

Remove the following components:

Battery on page 41).

Hard drive (see

Optical drive (see

Switch cover (see

Keyboard (see

Display assembly (see

Top cover (see

Audio board (see

USB/power connector board (see

System board (see

Fan/heat sink assembly (see

Remove the processor:

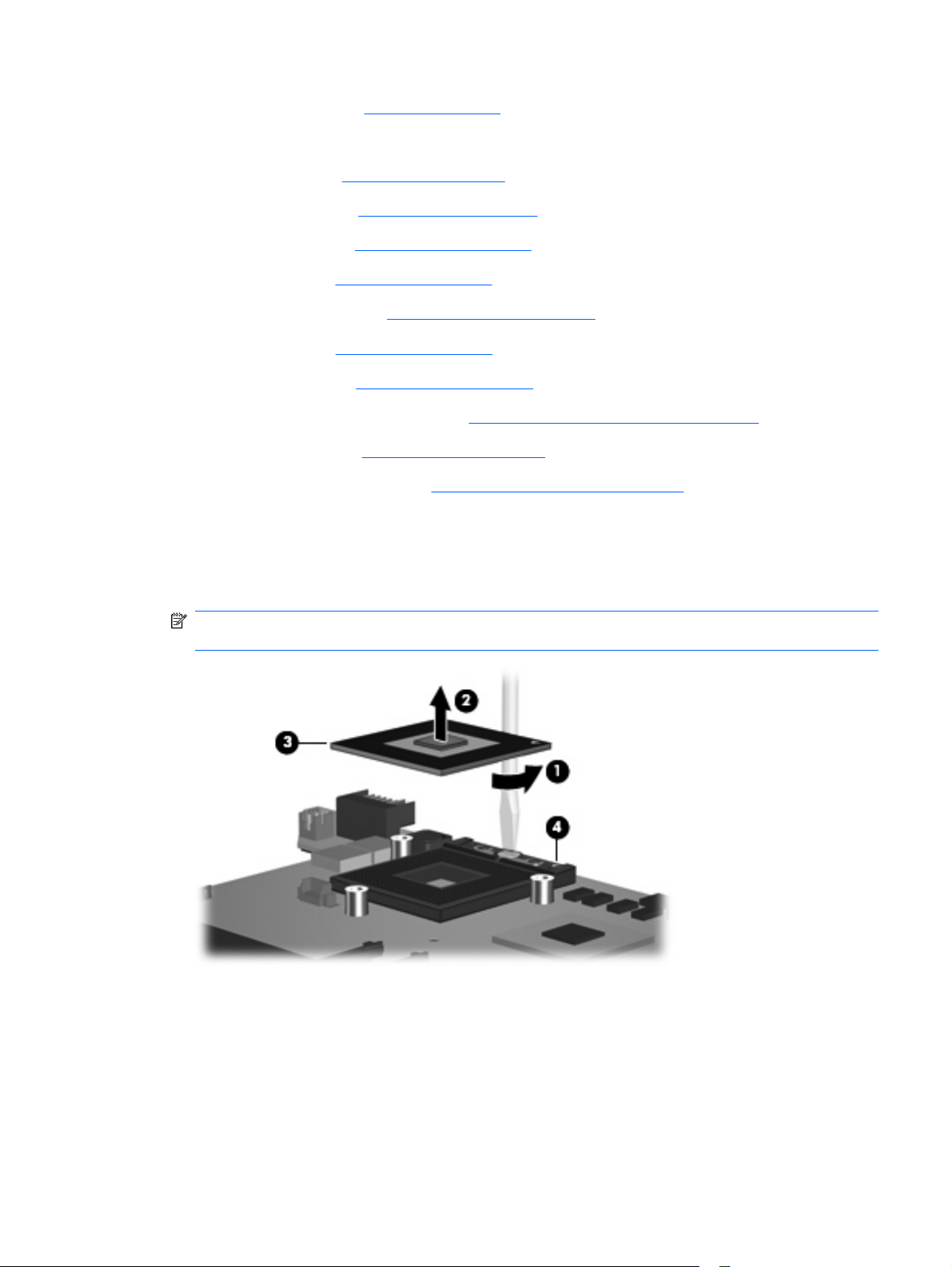

1. Turn the processor locking screw (1) one-half turn counterclockwise until you hear a click.

2. Lift the processor (2) straight up and remove it.

NOTE: The gold triangle (3) on the processor must be aligned with the triangle icon (4) embossed

on the processor socket when you install the processor.

Hard drive on page 42)

Optical drive on page 50)

Switch cover on page 52)

Keyboard on page 54)

Display assembly on page 58)

Top cover on page 64)

Audio board on page 74)

USB/power connector board on page 70)

System board on page 71)

Fan/heat sink assembly on page 75)

Reverse this procedure to install the processor.

Component replacement procedures 79

Setup Utility

Starting the Setup Utility

The Setup Utility is a ROM-based information and customization utility that can be used even when your Windows® operating system is not working or will not load.

NOTE: The fingerprint reader (select models only) does not work when accessing the Setup Utility.

The utility reports information about the computer and provides settings for startup, security, and other preferences.

To start the Setup Utility:

Turn on or restart the computer.

Before Windows opens and while “Press <F10> to enter setup” is displayed in the lower-left corner

of the screen, press f10.

80 Chapter 5 Setup Utility

Using the Setup Utility

Changing the language of the Setup Utility

The following procedure explains how to change the language of the Setup Utility. If the Setup Utility is not already running, begin at step 1. If the Setup Utility is already running, begin at step 2.

To start the Setup Utility, turn on or restart the computer, and then press f10 while “Press <F10> to

enter setup” is displayed in the lower-left corner of the screen.

2. Use the arrow keys to select System Configuration > Language, and then press enter.

Press f5 or f6 (or use the arrow keys) to select a language, and then press enter to select a language.

When a confirmation prompt with your preference selected is displayed, press enter to save your

preference.

To set your preferences and exit the Setup Utility, press f10 and then follow the instructions on the

screen.

Your preferences go into effect when the computer restarts in Windows.

Navigating and selecting in the Setup Utility

Because the Setup Utility is not Windows-based, it does not support the TouchPad. Navigation and selection are by keystroke.

To choose a menu or a menu item, use the arrow keys.

●

To choose an item in a drop-down list or to toggle a field, for example an Enable/Disable field, use

●

either the arrow keys or f5 or f6.

To select an item, press enter.

●

To close a text box or return to the menu display, press esc.

●

To display additional navigation and selection information while the Setup Utility is open, press f1.

●

Displaying system information

The following procedure explains how to display system information in the Setup Utility. If the Setup Utility is not open, begin at step 1. If the Setup Utility is open, begin at step 2.

To start the Setup Utility, turn on or restart the computer, and then press f10 while “Press <F10> to

enter setup” is displayed in the lower-left corner of the screen.

2. Access the system information by using the Main menu.

3. To exit the Setup Utility without changing any settings, use the arrow keys to select Exit > Exit

Discarding Changes, and then press enter. (The computer restarts in Windows.)

Using the Setup Utility 81

Restoring default settings in the Setup Utility

The following procedure explains how to restore the Setup Utility default settings. If the Setup Utility is not already running, begin at step 1. If the Setup Utility is already running, begin at step 2.

To start the Setup Utility, turn on or restart the computer, and then press f10 while “Press <F10> to

enter setup” is displayed in the lower-left corner of the screen.

2. Select Exit > Load Setup Defaults, and then press enter.

When the Setup Confirmation is displayed, press enter to save your preferences.

To set your preferences and exit the Setup Utility, press f10, and then follow the instructions on the

screen.

The Setup Utility default settings are set when you exit the Setup Utility and go into effect when the computer restarts.

NOTE: Your password, security, and language settings are not changed when you restore the factory

default settings.

82 Chapter 5 Setup Utility

Using advanced Setup Utility features

This guide describes the Setup Utility features recommended for all users. For more information about the Setup Utility features recommended for advanced users only, refer to Help and Support, which is accessible only when the computer is in Windows.

The Setup Utility features available for advanced users include a hard drive self-test, a Network Service Boot, and settings for boot order preferences.

The “<F12> to boot from LAN” message that is displayed in the lower-left corner of the screen each time the computer is started or restarted in Windows is the prompt for a Network Service Boot.

The “Press <F9> to change boot order” message that is displayed in the lower-left corner of the screen each time the computer is started or restarted in Windows is the prompt to change the boot order.

Closing the Setup Utility

You can close the Setup Utility with or without saving changes.

To close the Setup Utility and save your changes from the current session, use either of the following

●

procedures:

Press f10, and then follow the instructions on the screen.

◦

– or –

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the

◦

arrow keys to select Exit > Exit Saving Changes, and then press enter.

When you use the f10 procedure, you are offered an option to return to the Setup Utility. When you use the Exit Saving Changes procedure, the Setup Utility closes when you press enter.

To close the Setup Utility without saving your changes from the current session:

●

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the arrow keys to select Exit > Exit Discarding Changes, and then press enter.

After the Setup Utility closes, the computer restarts in Windows.

Setup Utility menus

The menu tables in this section provide an overview of Setup Utility options.

NOTE: Some of the Setup Utility menu items listed in this chapter may not be supported by your

computer.

Main menu

Select To Do This

System information

View and change the system time and date.

●

View identification information about the computer.

●

View specification information about the processor, memory size,

●

system BIOS, and keyboard controller version (select models only).

Setup Utility menus 83

Security menu

Select To Do This

Administrator password Enter, change, or delete an administrator password.

Power-On Password Enter, change, or delete a power-on password.

System Configuration menu

Select To Do This

Language Support Change the Setup Utility language.

Boot Options Set the following boot options:

f10 and f12 Delay (sec.)―Set the delay for the f10 and f12 functions

●

of the Setup Utility in intervals of 5 seconds each (0, 5, 10, 15, 20).

CD-ROM boot―Enable/disable boot from CD-ROM.

●

Floppy boot―Enable/disable boot from Floppy.

●

Internal Network Adapter boot―Enable/disable boot from Internal

●

Network Adapter.

Boot Order―Set the boot order for:

●

Button Sound (select models only) Enable/disable the Quick Launch Button tapping sound.

Virtualization Technology Enable/disable the processor Virtualization Technology.

Processor C4 State Enable/disable the processor C4 sleep state.

Diagnostics menu

Select To Do This

Hard Disk Self Test Run a comprehensive self-test on the hard drive.

Secondary Hard Disk Self Test (select models only) Run a comprehensive self-test on a secondary hard drive.

USB Floppy

◦

ATAPI CD/DVD ROM Drive

◦

Hard drive

◦

USB Diskette on Key

◦

USB Hard drive

◦

Network adapter

◦

NOTE: On models with two hard drives, this menu option is called the

Primary Hard Disk Self Test.

Memory Test Run a diagnostic test on the system memory.

84 Chapter 5 Setup Utility

Specifications

Computer specifications

Metric U.S.

Dimensions

Height (front to back)

Width 35.71 cm 14.06 in

Depth 25.71 cm 10.12 in

Weight (with optical drive, hard drive, and battery)

Input power

Operating voltage

Operating current 3.5 A or 4.74 A

Temperature

Operating (not writing to optical disc)

Operating (writing to optical disc) 5°C to 35°C 41°F to 95°F

Nonoperating -20°C to 60°C -4°F to 140°F

Relative humidity

Operating

Nonoperating 5% to 95%

Maximum altitude (unpressurized)

Operating (14.7 to 10.1 psia)

4.09 cm 1.61 in

2.86 kg 6.31 lbs

18.5 V dc —19.0 V dc

0°C to 35°C 32°F to 95°F

10% to 90%

-15 m to 3,048 m -50 ft to 10,000 ft

Nonoperating (14.7 to 4.4 psia) -15 m to 12,192 m -50 ft to 40,000 ft

Shock

Operating

Nonoperating 200 g, 2 ms, half-sine

Random vibration

Operating

125 g, 2 ms, half-sine

0.75 g zero-to-peak, 10 Hz to 500 Hz, 0.25 oct/min sweep rate

Computer specifications 85

Metric U.S.

Nonoperating 1.50 g zero-to-peak, 10 Hz to 500 Hz, 0.5 oct/min sweep rate

NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The computer operates well within this

range of temperatures.

15.4-inch, WXGA, BrightView display specifications

Metric U.S.

Dimensions

Height

Width 33.1 cm 13.03 in

Diagonal 39.1 cm 15.39 in

Number of colors

Contrast ratio

Brightness

Pixel resolution

Pitch

Format 1280 × 800

Configuration RGB vertical stripe

Backlight

Character display

Total power consumption

Viewing angle

20.7 cm 8.15 in

Up to 16.8 million

200:1 (typical)

150 nits (typical)

0.259 × 0.259 mm

Edge lit

80 × 25

4 W

+/-65° horizontal, +/-50° vertical (typical)

86 Chapter 6 Specifications

Hard drive specifications

250-GB* 200-GB* 160-GB* 120-GB* 80-GB*

Dimensions

Height

Width 70 mm 70 mm 70 mm 70 mm 70 mm

Weight 102 g 102 g 102 g 102 g 102 g

Interface type

Transfer rate

Synchronous (maximum)

Security ATA security ATA security ATA security ATA security ATA security

Seek times (typical read, including setting)

Single track

Average 13 ms 13 ms 13 ms 13 ms 13 ms

Maximum 24 ms 24 ms 24 ms 24 ms 24 ms

Logical blocks

Disk rotational speed

Operating temperature

NOTE: Certain restrictions and exclusions apply. Consult technical support for details.

*1 GB = 1 billion bytes when referring to hard drive storage capacity. Accessible capacity is less. Actual drive specifications may differ slightly.

9.5 mm 9.5 mm 9.5 mm 9.5 mm 9.5 mm

SATA SATA SATA SATA SATA

100 MB/sec 100 MB/sec 100 MB/sec 100 MB/sec 100 MB/sec

3 ms 3 ms 3 ms 3 ms 3 ms

488,379,125 390,706,000 312,560,480 234,433,260 156,280,320

5400 rpm 4200 rpm 5400 rpm 5400 rpm 5400 rpm

5°C to 55°C (41°F to 131°F)

Hard drive specifications 87

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive specifications

Applicable disc Read:

CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM

Access time CD DVD

Random < 175 ms < 230 ms

Cache buffer

Data transfer rate

24X CD-ROM

8X DVD 10,800 KB/sec

24X CD-R 3,600 KB/sec

16X CD-RW 2,400 KB/sec

8X DVD+R 10,800 KB/sec

4X DVD+RW 5,400 KB/sec

8X DVD-R 10,800 KB/sec

2 MB

3,600 KB/sec

Write:

CD-R and CD-RW

DVD+R, DVD+RW, DVD-R, DVDRW, DVD-RAM

4X DVD-RW 5,400 KB/sec

2.4X DVD+R(9) 2,700 KB/sec

5X DVD-RAM 6,750 KB/sec

Transfer mode

Multiword DMA Mode

88 Chapter 6 Specifications

HD DVD-ROM Drive with SuperMulti DVD±R/RW Double Layer support specifications

Applicable disc Read:

Access time

Random 170 ms 170 ms 230 ms

Cache buffer

Data transfer rate

24X CD-ROM 3,600 KB/sec

8X DVD 10,800 KB/sec

16X CD-R 2,400 KB/sec

10X CD-RW 1,500 KB/sec

4X DVD+R 5,400 KB/sec

CD DVD HD

8 MB

Write:

CD-R and CD-RW

DVD+R, DVD+R(9), DVD+RW, DVD-R, DVD-R(9),DVD-RW, DVD-RAM

4X DVD+RW 5,400 KB/sec

4X DVD-R 5,400 KB/sec

4X DVD-RW 5,400 KB/sec

2.4X DVD+R(9) 2,700 KB/sec

3X DVD-RAM 4,056 KB/sec

1X HD-DVD-ROM 4,460 KB/sec

Transfer mode

Multiword DMA Mode

HD DVD-ROM Drive with SuperMulti DVD±R/RW Double Layer support specifications 89

Blu-ray Disc ROM Drive with SuperMulti DVD±R/RW Double-Layer (DL) support specifications

Applicable disc Read:

CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (PhotoCD, CD-EXTRA, Portfolio, CD-R, CDRW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM, BD-ROM, BD-RE. BD-R

Access time

Random 150 ms 180 ms 300 ms

Cache buffer

Data transfer rate

24X CD-ROM 3,600 KB/sec

8X DVD 10,800 KB/sec

24X CD-R 3,600 KB/sec

16X CD-RW 2,400 KB/sec

8X DVD+R 10,800 KB/sec

4X DVD+RW 5,400 KB/sec

CD DVD Blu-ray

8 MB

Write:

CD-R and CD-RW

DVD+R, DVD+R(9), DVD+RW, DVD-R, DVD-R(9),DVD-RW, DVD-RAM

8X DVD-R 10,800 KB/sec

4X DVD-RW 5,400 KB/sec

2.4X DVD+R(9) 2,700 KB/sec

5X DVD-RAM 6,750 KB/sec

1X BD-ROM 4,500 KB/sec

1X BD-R read 4,500 KB/sec

1X BD-RE read 4,500 KB/sec

Transfer mode

Multiword DMA Mode

90 Chapter 6 Specifications

System DMA specifications, Intel

Hardware DMA System function

DMA0 Not applicable

DMA1* Not applicable

DMA2* Not applicable

DMA3 Not applicable

DMA4 Direct memory access controller

DMA5* Available for PC Card

DMA6 Not assigned

DMA7 Not assigned

*PC Card controller can use DMA 1, 2, or 5.

System DMA specifications, Intel 91

System DMA specifications, AMD

Hardware DMA System function

DMA4 Direct memory access controller

92 Chapter 6 Specifications

Compaq V6700 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Product description

External component identification

Top components

Display components

Buttons and speakers

Keys

Lights

TouchPad

Front components

Left-side components

Rear component

Right-side components

Bottom components

Illustrated parts catalog

Serial number location

Computer major components

Display assembly components

Plastics Kit

Cable Kit

Mass storage devices

Miscellaneous parts

Sequential part number listing

Removal and replacement procedures

Preliminary replacement requirements

Tools required

Service considerations

Plastic parts

Cables and connectors

Drive handling

Grounding guidelines

Electrostatic discharge damage

Packaging and transporting guidelines

Workstation guidelines

Equipment guidelines

Unknown user password

Component replacement procedures

Serial number

Battery

Hard drive

Computer feet

Memory module

RTC battery

WLAN module

Optical drive

Switch cover

Keyboard

Power button board

Display assembly

Top cover

Bluetooth module

ExpressCard assembly

USB/power connector board

System board

Audio board

Fan/heat sink assembly

Processor

Setup Utility

Starting the Setup Utility

Using the Setup Utility

Changing the language of the Setup Utility

Navigating and selecting in the Setup Utility

Displaying system information

Restoring default settings in the Setup Utility

Using advanced Setup Utility features

Closing the Setup Utility

Setup Utility menus

Main menu

Security menu

System Configuration menu

Diagnostics menu

Specifications

Computer specifications

15.4-inch, WXGA, BrightView display specifications

Hard drive specifications

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive specifications

HD DVD-ROM Drive with SuperMulti DVD±R/RW Double Layer support specifications
