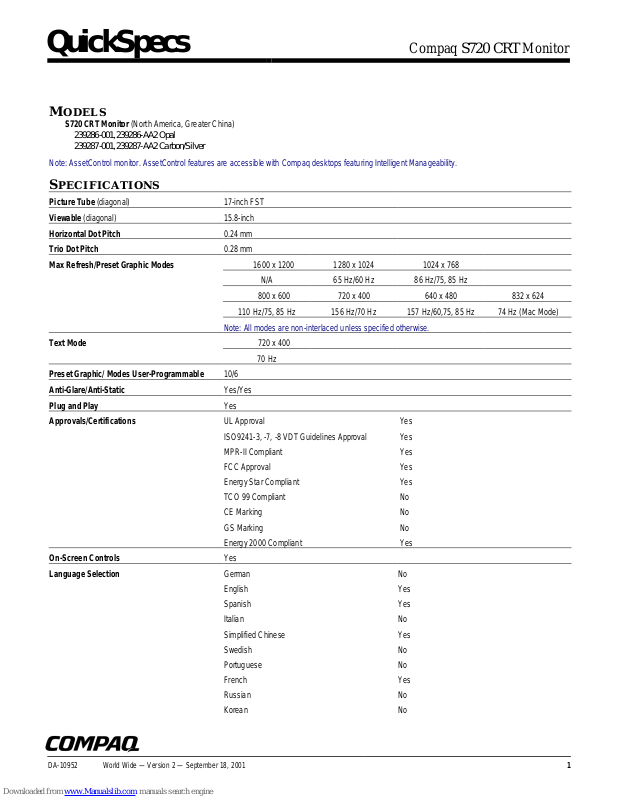

QuickSpecs
Compaq S720 CRT Monitor
M
ODELS
S720 CRT Monitor (North America, Greater China)
239286-001,239286-AA2 Opal
239287-001,239287-AA2 Carbon/Silv er
Note: AssetControl monitor. AssetControl features are accessible with Compaq desktops featuring Intelligent Manageability.
S
PECIFICATIONS
Picture Tube (diagonal) 17-inch FST
Viewable (diagonal) 15.8-inch
Horizontal Dot Pitch 0.24 mm
Trio Dot Pitch 0.28 mm
Max Refresh/Preset Graphic Modes 1600 x 1200 1280 x 1024 1024 x 768
800 x 600 720 x 400 640 x 480 832 x 624
110 Hz/75, 85 Hz 156 Hz/70 Hz 157 Hz/60,75, 85 Hz 74 Hz (Mac Mode)
Note: All modes are non-interlaced unless specified otherwise.
Text Mode 720 x 400
70 Hz
Preset Graphic/ Modes User-Programmable 10/6
Anti-Glare/Anti-Static Yes/Yes
Plug and Play Yes
Approvals/Certifications UL Approval Yes
ISO9241-3, -7, -8 VDT Guidelines Approval Yes
MPR-II Compliant Yes
FCC Approval Yes
Energy Star Compliant Yes
TCO 99 Compliant No
CE Marking No
GS Marking
On-Screen Controls Yes
Language Selection German No
English Yes
Spanish Yes
Italian
Swedish No
Portuguese No
French Yes
Russian No
Korean No
N/A 65 Hz/60 Hz 86 Hz/75, 85 Hz
No
Energy 2000 Compliant
Simplified Chinese
Yes
No
Yes
DA-10952 World Wide — Version 2 — September 18, 2001
1
QuickSpecs
Compaq S720 CRT Monitor
S
PECIFICATIONS
Tilt Base (up/down) 13° up/5° down
Swivel ± 45° left/right
User Controls Brightness, Contrast Yes
Size and Positioning Yes
Pincushion (barrel) Yes
Trapezoid Yes
Tilt (rotation) Yes
Color temperature Yes
Parallelogram No
Pincushion Balance No
Pinbalance No
Individual color control No
Moiré Cancellation Yes
Convergence No
Vertical Linearity No
Display Timing Yes
OSD Lock/Unlock No
Serial Number Display No
Degauss Yes
Factory Reset/Recall Yes
AssetControl Yes
Note: When used with Compaq Intelligent Manageability CPUs and appropriate network software.
Pixel Clock Speed 108 MHz
Input Impedance 75 ohms
Horizontal Frequency 30 to 70 KHz
Vertical Frequency 50 to 160 Hz
Power Supply 90 to 132 & 195 to 265 VAC, 47.5 to 63 Hz Universal Auto-Sensing
Maximum Power Rating ≤ 75 Watts
Power Saver State < 3W
Synch Input TTL separate synch
Signal Cable Captive 15-pin D-sub video cable
Dimensions (WxDxH) 404 mm x 423 mm x 408 mm (15.9 in x 16.7 in x 16.7 in)
Weight (Packaged/Unpackaged) 16.9 kg / 14.5 kg
Operating Temperature 50° to 95° F/10° to 35° C
Operating Humidity (non-condensing) 20% to 80%
(continued)
DA-10952 World Wide — Version 2 — September 18, 2001
2
QuickSpecs
Compaq S720 CRT Monitor
S
PECIFICATIONS
48 Hour Direct Replacement
Limited Warranty Three-year parts, first-year labor on-site
Note: Certain restrictions and exclusions apply. Consult the Compaq Customer Service Support Center
C
OMPATIBILITY
Graphics Controllers ATI RAGE Mobility
Chipsets Intel 810
Compaq, regi stered United States Patent and Trad emark Office.
Other product names mentioned herein may be trademarks and/or registered trademarks of their respective companies.
©2001 Compaq Computer Corporation
(continued)
.
If this monitor fails during the parts warranty, Compaq guarantees that a new, or like-new monitor
replacement will be delivered within 48 hours.
Note: Certain restrictions and exclusions apply. Consult the Compaq Customer Service Support Center
for details.
for details.
ATI RAGE LT Pro
S3 Virge max
NVIDIA Quadro2 MXR
NVIDIA Quadro2 EX
NVIDIA Quadro2 Pro
Sonic Blue FireGL2
3Dlabs Wildcat 5110
NVIDIA TNT2 Vanta
G400 Dual Head
G200 Quad MMS
NVIDIA NV10
NVIDIA TNT2 Model 64
RAGE Pro Turbo 2x
RAGE Pro Turbo 2X
Viper V730
Viper V770 Ultra
Millennium II
G200SG
G400SD
G450 Dual Head AGP
G400 Toucan
TNT2 Pro
NVIDIA NV11 (AGP)
NVIDIA NV11 Dual Head (AGP)
NVIDIA NV11 Dual Head (PCI)
NVIDIA TNT2 (AGP)
Elsa Synergy III
NVIDIA TNT2 Pro
Matrox 450 Dual Head PCI
NV15 Sapphire
M64 8 MB PCI
M64 16MB
Intel 810e
Intel 815
DA-10952 World Wide — Version 2 — September 18, 2001
3
